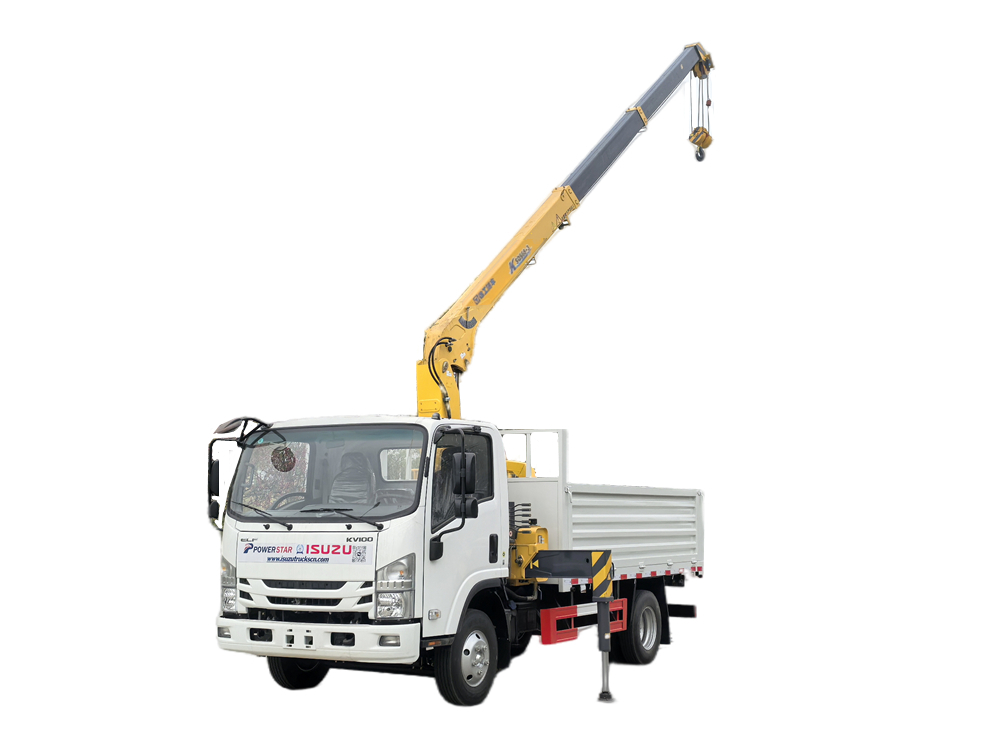

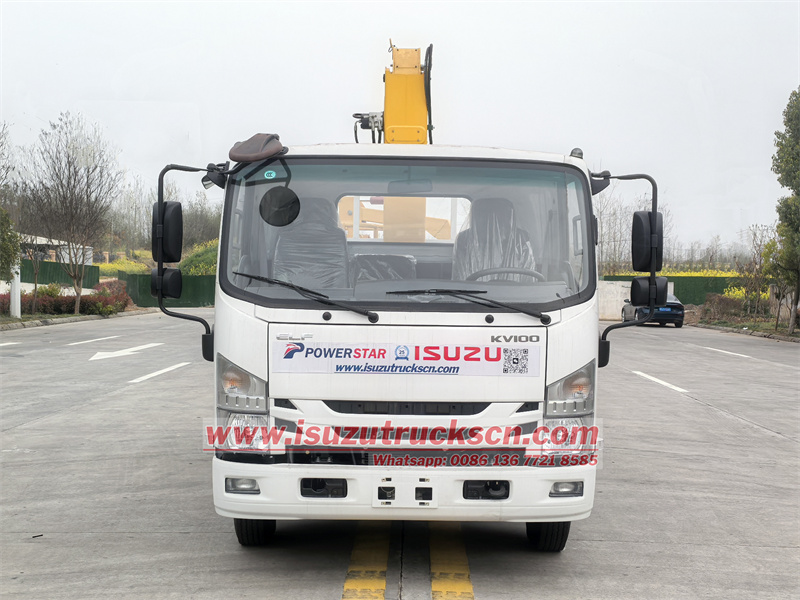

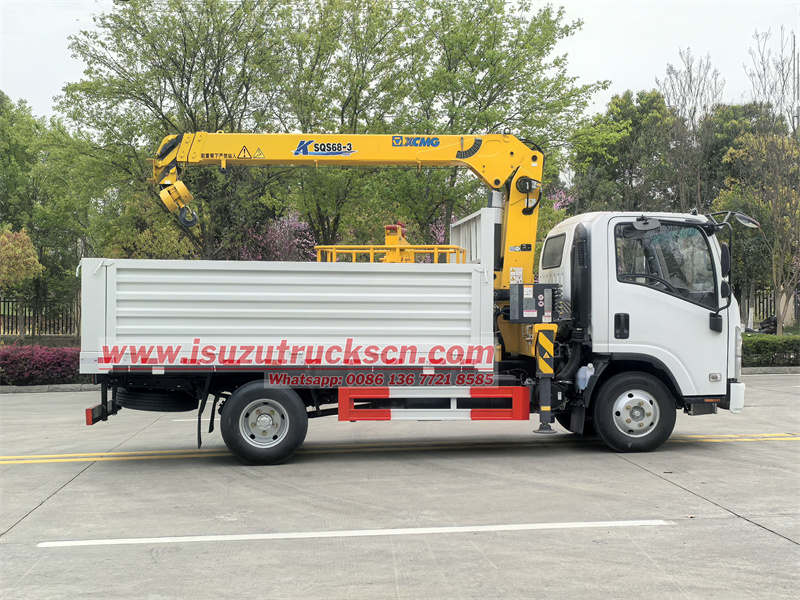

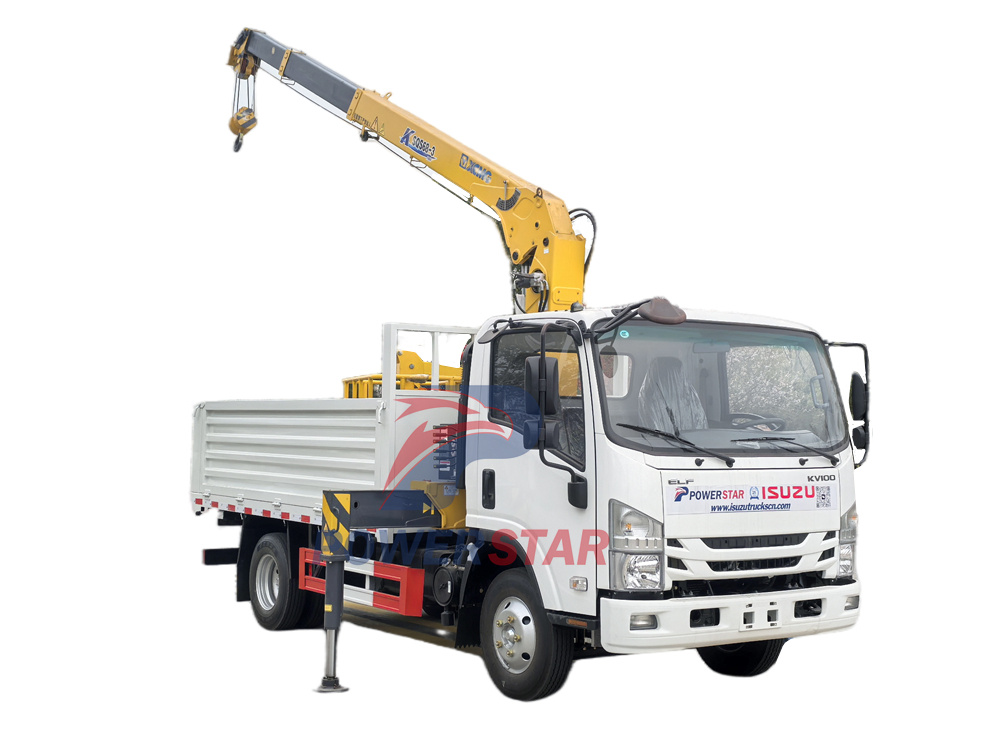

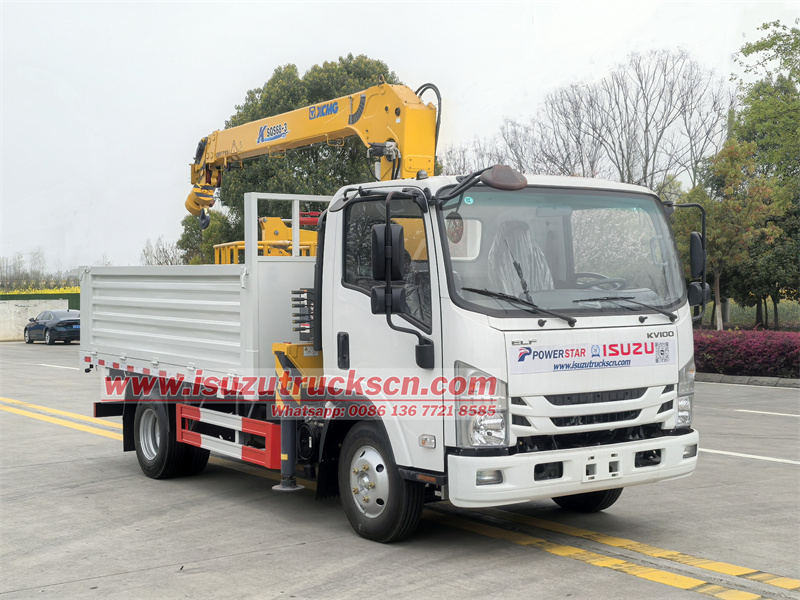

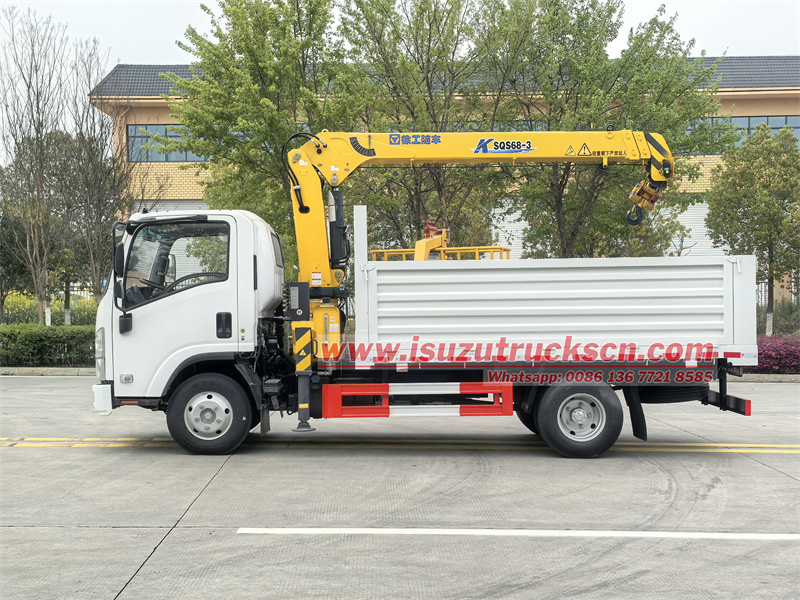

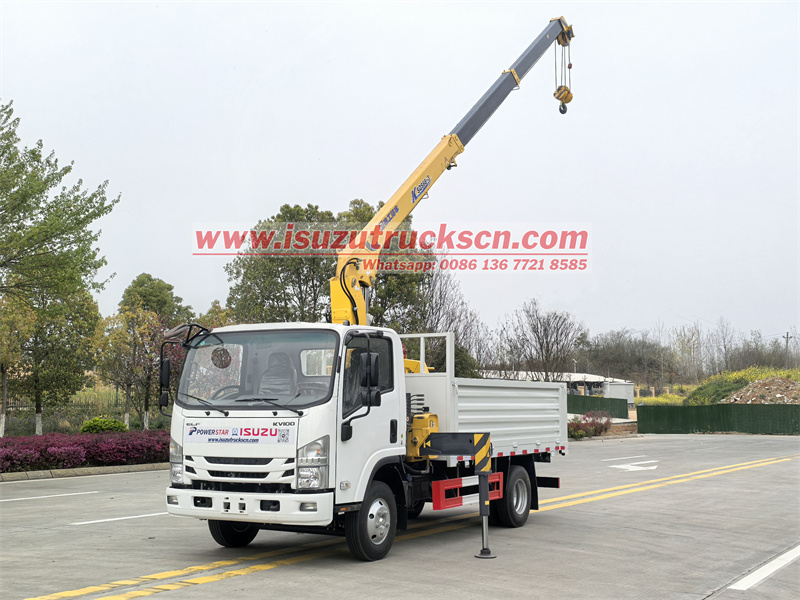

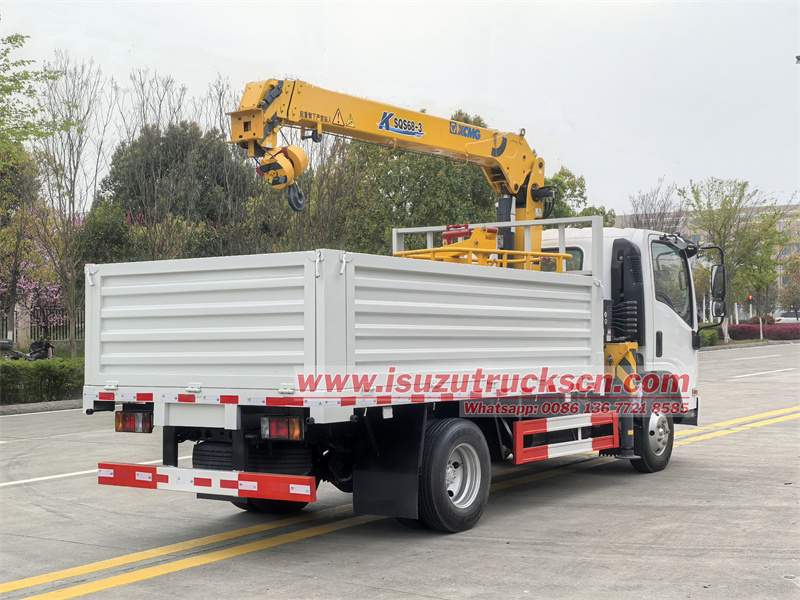

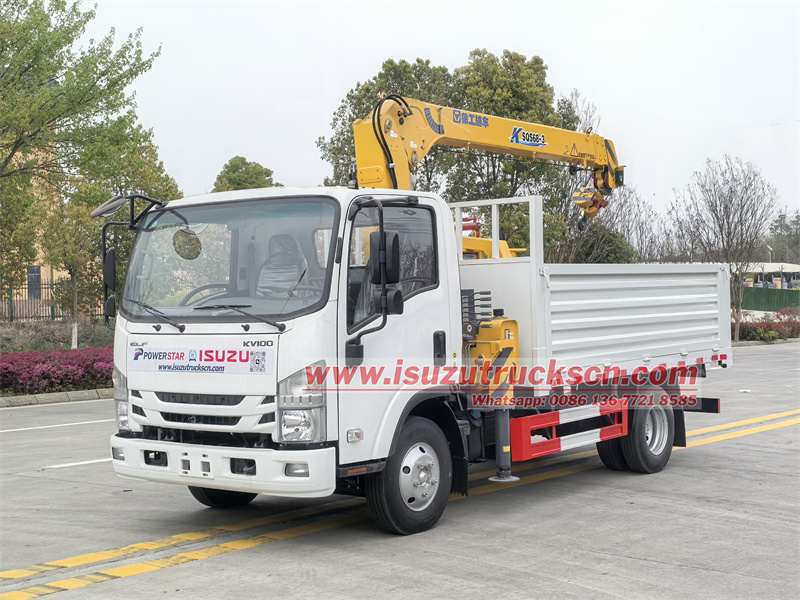

Isuzu KV100 truck-mounted crane is modified based on the Isuzu KV100 3X chassis, with a wheelbase of 3,360mm. It is equipped with an Isuzu 4KH1CN6LB 120HP diesel engine and an Isuzu MSB5-speed gearbox. The upper structure consists of a box body and a crane. The box body measures 3,580x1,980x800mm, is made of carbon steel, and side 3mm bottom 4mm thickness. The crane adopts a XCMG SQS68-3 model, capable of lifting a load of 3.2 tons. This crane has a Max Lifting Moment of 6.72 T.M, a Max lifting height of 9 m, and a Max working radius of 7.56m.
Manufacturer:
Powerstar TrucksWork capacity:
3.2tonsDimension:
6050 x 2080 x 3140(mm)Cabin type:
Isuzu KV100 3X cab chassis，3 seatsWheelbase:
3360mmEngine power:
120HPEngine type:
ISUZU 4KH1CN6LBAxle drive:
4X2Gear box:
Isuzu MSB 5-speed gearbox,manualRemarks:

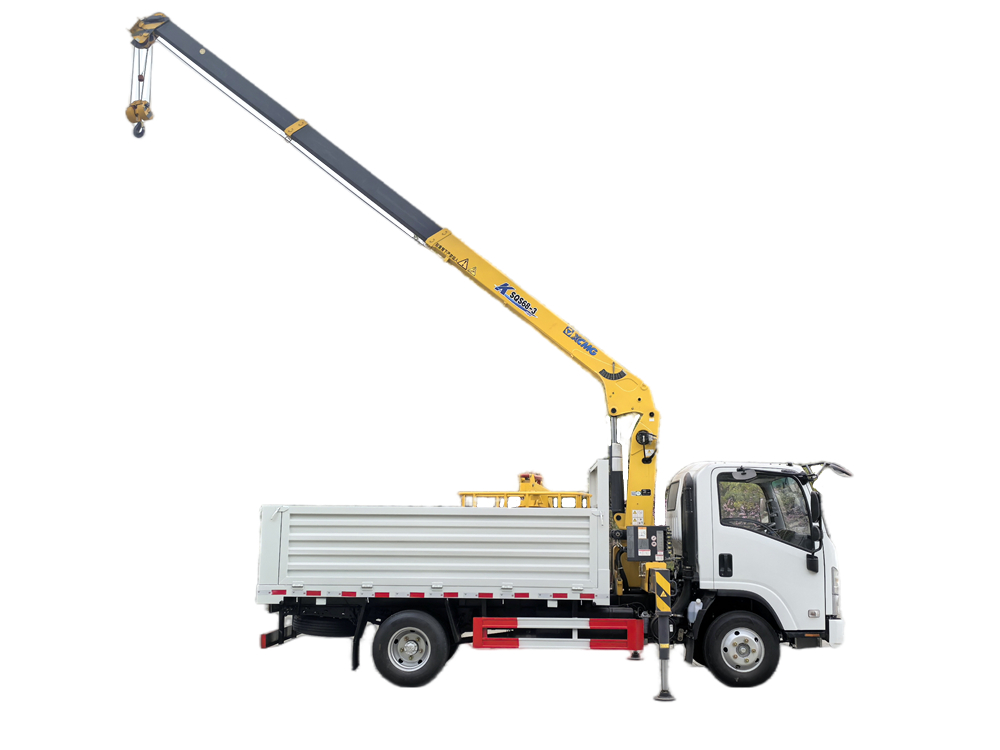

Equipped with XCMG SQS68-3 boom craneThe Isuzu utility service truck with crane, equipped with the XCMG SQS68-3 crane, is an efficient operational vehicle specifically designed for light engineering and logistics scenarios. Its crane features a 3-section telescopic boom, with a maximum lifting capacity of 3.2 tons, a maximum lifting height of 9 meters, and a working radius of up to 7.56 meters. It supports 360° continuous rotation and 0°-75° luffing operations, covering comprehensive lifting needs. The hydraulic system drives the boom's telescoping, rotation, and luffing, ensuring smooth and responsive movements, while the hydraulic outriggers (H-type) guarantee operational stability. The vehicle is equipped with overload protection and anti-tipping designs, and its modular hydraulic components facilitate easy maintenance. Optional accessories such as wireless remote controls and auxiliary hooks can enhance efficiency. Suitable for construction sites, roadside rescues, municipal maintenance, and logistics transportation, it stands as a preferred choice in the light lifting sector due to its high reliability, flexibility, and low maintenance costs.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|
Isuzu KV100 3.2tons boom crane truck |
||
|
General Technical Parameters |
||
|
Overall Dimension |
6050*2080*3140(mm) |
|
|
Gross Vehicle Weight |
7300(Kg) |
|
|
Curb Weight |
4580(Kg) |
|
|
Chassis Specification |
||
|
Chassis Brand |
ISUZU |
|
|
Drive model |
4x2,Left Hand Driving |
|
|
Cabin |
Isuzu KV100 3X cab chassis, with air conditional |
|
|
Number of Passengers |
3 |
|
|
Engine |
Style |
4-stroke direct injection , 4-cylinder in-line with water cooling, inter-cooling, EGR |
|
Model |
Isuzu 4KH1CN6LB |
|
|
Power |
88KW/120HP |
|
|
Emission standard |
EURO 6 |
|
|
Displacement |
2999(ml) |
|
|
Fuel type |
Diesel |
|
|
Gearbox |
Isuzu MSB 5-speed,manual |
|
|
Brake System |
Oil brake |
|
|
Wheel Base |
3360(mm) |
|
|
Front/Rear Axle Loading |
2500/4800(Kg) |
|
|
Front/rear overhang |
1110/1580(mm) |
|
|
Front/rear wheel track |
1685/ 1525(mm) |
|
|
Tire |
7.00R16LT 14PR |
|
|
Max Driving Speed |
115(km/h) |
|
|
Upper structure Specification |
||
|
Cargo Body |
Dimension |
3580x1980x800(mm) |
|
Material |
Q235 carbon steel |
|
|
Cargo Thickness |
Side 3mm, Bottom 4mm |
|
|
Crane |
Boom model |
XCMG SQS68-3 |
|
Boom Type |
Straight 3-Arm telescopic boom |
|
|
Max Lifting Moment |
6.72(T.M) |
|
|
Max Lifting Capacity |
3.2(tons) |
|
|
Max lifting height |
9(m) |
|
|
Rotation angle |
360(°) |
|
|
Max working radius |
7.56m |
|
|

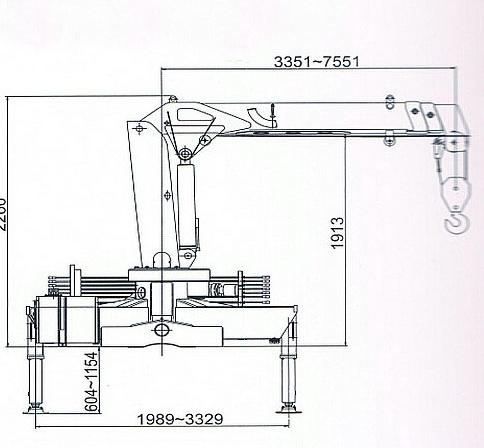

Crane height |
2266 (mm) |
|
|
Crane arm length |
3351(mm) |
|
|
Outrigger span |
3329(mm) |
|
|
Oil tank capacity |
200(L) |
|
|
Other Configuration |

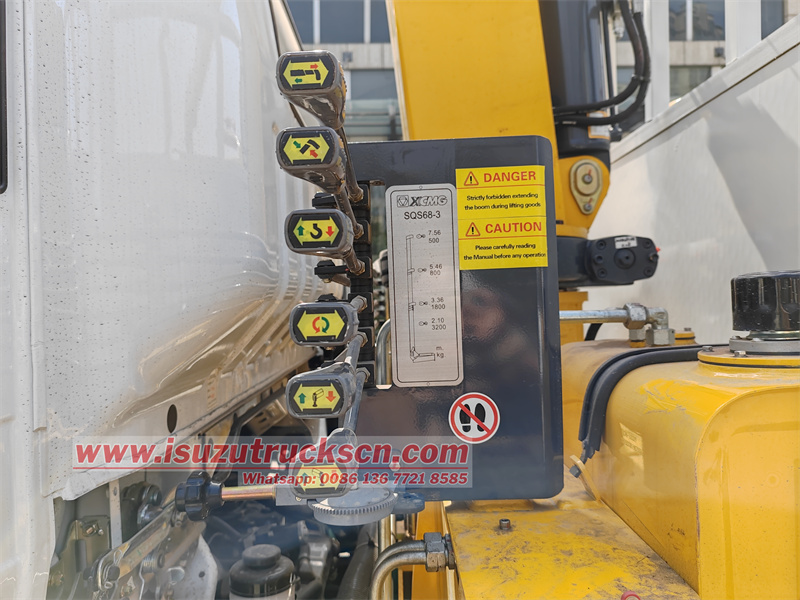

Control system in 2 side; diamond palt, yellow warning fire,etc. |
|
|
Options |
Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. |
|
In today's diversified engineering and logistics transportation sectors, a truck-mounted crane model that combines flexibility, load-bearing capacity, and versatility is of paramount importance. The Isuzu KV100 truck-mounted crane, precisely tailored to meet this market demand, is a professional engineering vehicle meticulously refitted based on the classic Isuzu KV100 3X chassis. With its outstanding performance and reliable quality, it has become an invaluable assistant in numerous engineering projects.
Chassis Foundation: Solid and Dependable
The Isuzu KV100 truck-mounted crane inherits the robust and durable characteristics of the Isuzu brand, featuring a 3,360mm wheelbase design that ensures stable driving and precise handling under complex working conditions. Its Isuzu 4KH1CN6LB engine, renowned for high efficiency and low fuel consumption, provides a continuous power supply, enabling the vehicle to effortlessly navigate both urban roads and rugged mountain paths. Coupled with the Isuzu MSB5-speed gearbox, which offers smooth shifting and rapid response, driving comfort and operational efficiency are further enhanced.
Upper Structure Design: Versatile Functions

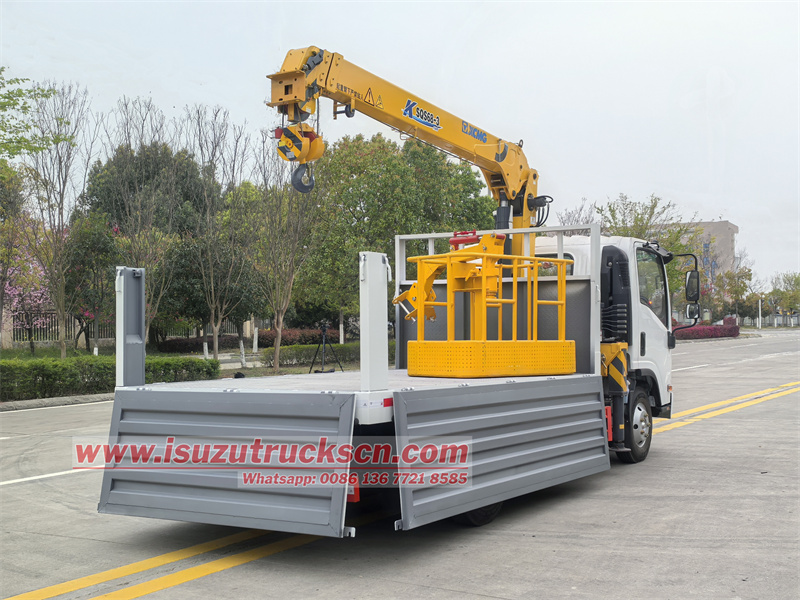

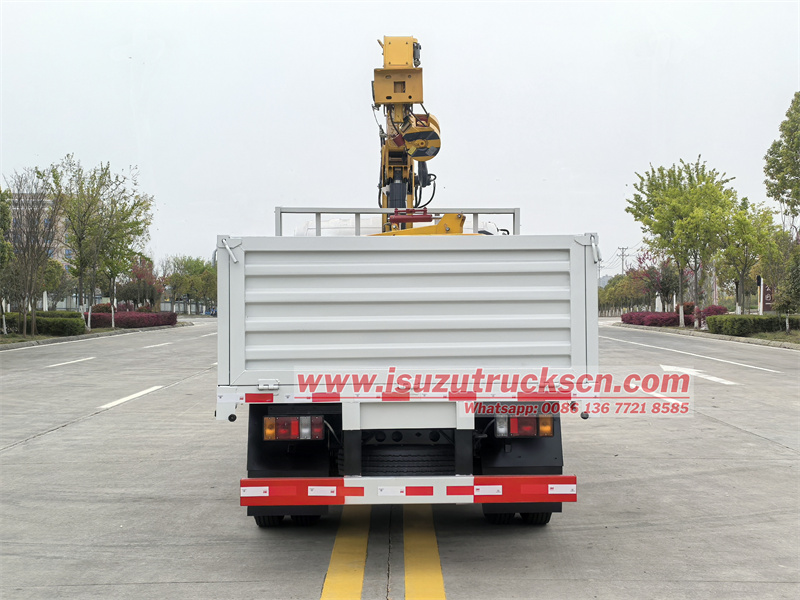

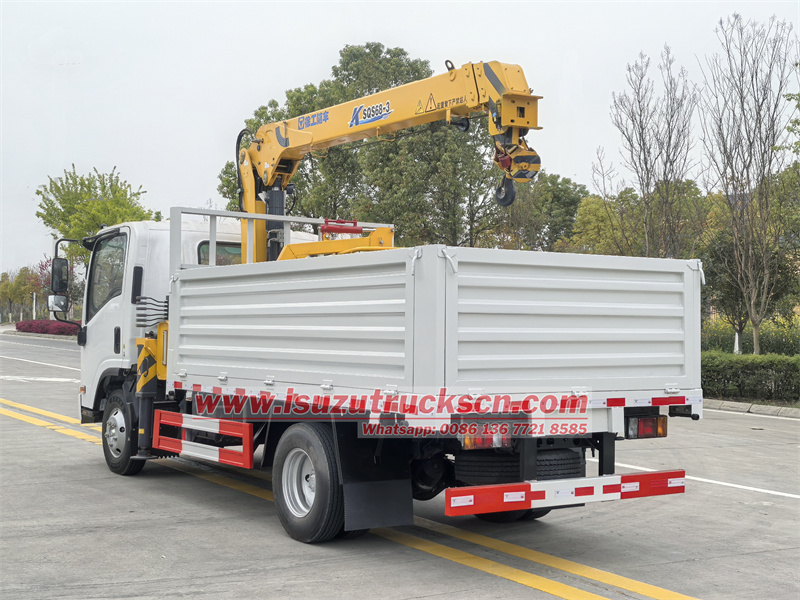

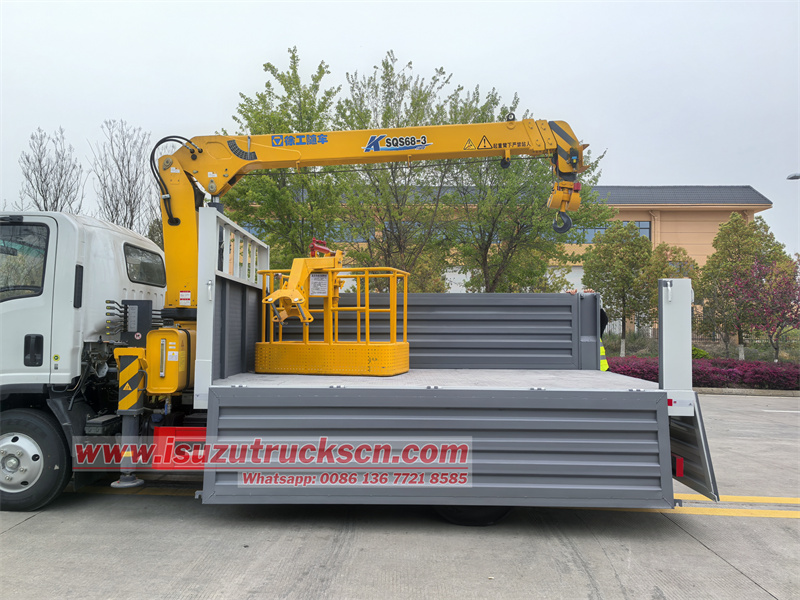

The upper structure of this truck-mounted crane is ingeniously designed, integrating two functional modules: a cargo box and a crane, achieving the convenience of "one vehicle, multiple uses." The cargo box measures 3,580x1,980x800(mm) and is constructed from high-strength carbon steel. With three open side panels and a "three-side reinforced, four-layer (bottom) reinforced" structure, it ensures both the durability of the box and an enhanced load-carrying capacity, easily accommodating construction materials, equipment parts, or other bulk cargo.

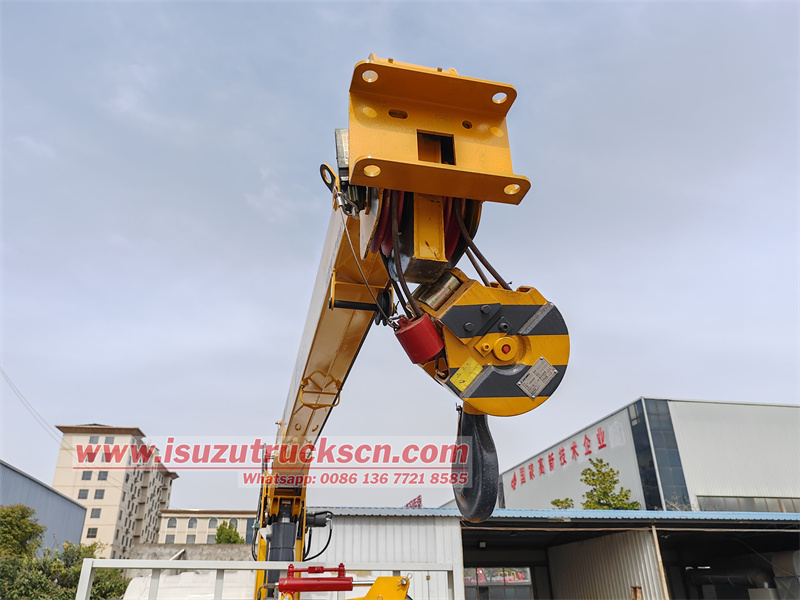

Crane Performance: Powerful and Exceptional

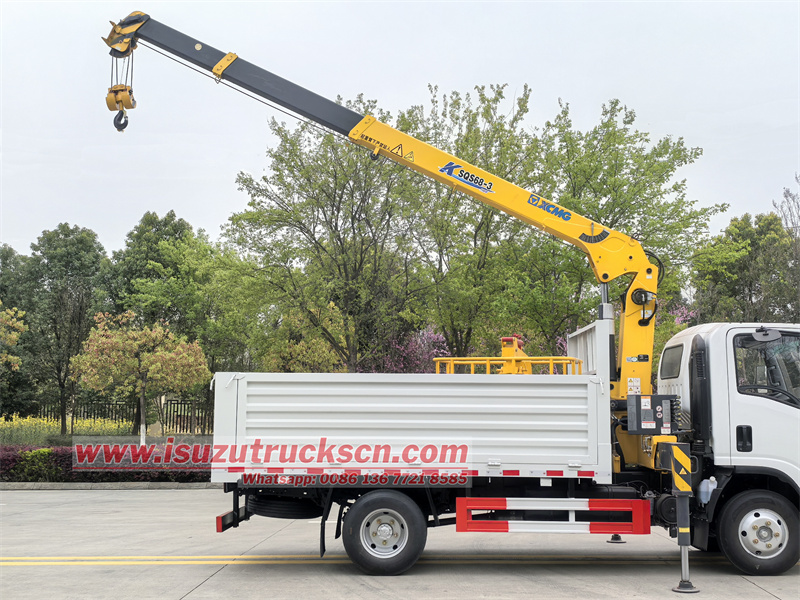

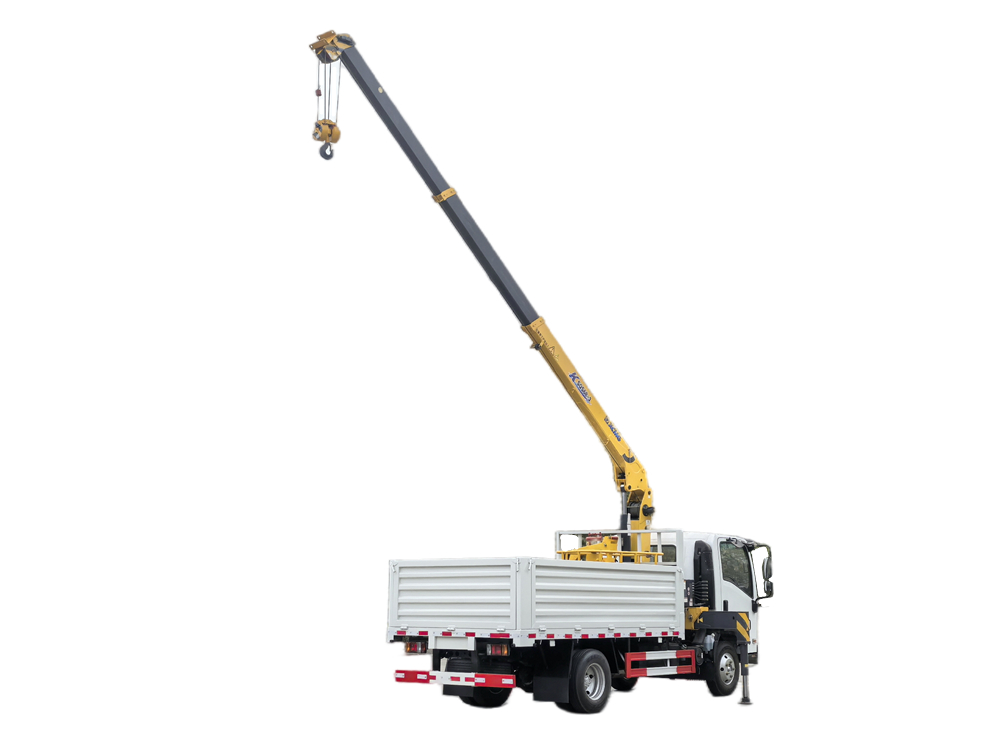

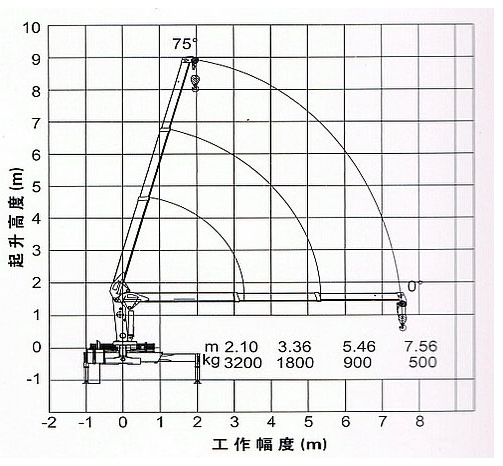

As the core component of the truck-mounted crane, the addition of the XCMG SQS68-3 crane further elevates the capabilities of the Isuzu KV100. This crane, a 3-section straight boom model, boasts a 3.2-ton load-bearing capacity and a Maximum Lifting Moment of 6.72(T.M), indicating strong lifting capabilities even at extended operating radii. With parameters such as a Maximum Lifting Height of 9(m) and a Maximum Working Radius of 7.56m, the crane excels in various complex operational environments, effortlessly completing both high-altitude and long-distance lifting tasks.
• Operational Characteristics

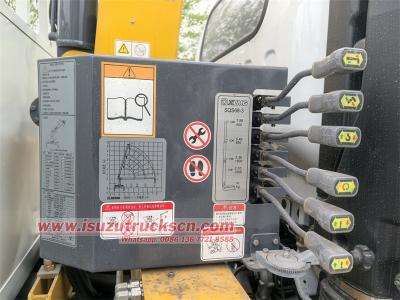

♦ Hydraulic Control: A dual-pump system supports simultaneous lifting and outrigger operations, fully hydraulic-driven, enabling multi-angle and multi-speed operations. Hydraulic cylinders adjust the boom's elevation angle (0°-75°), facilitating vertical lifting and oblique hoisting.
• Slewing System
♦ 360° continuous rotation: The crane base is driven by a hydraulic motor, which allows full rotation (with mechanical brake lock), allowing the direction to be changed without moving the vehicle.
♦ Slewing Buffering: Built-in buffering devices reduce slewing inertia, enhancing operational stability.
• Hydraulic System

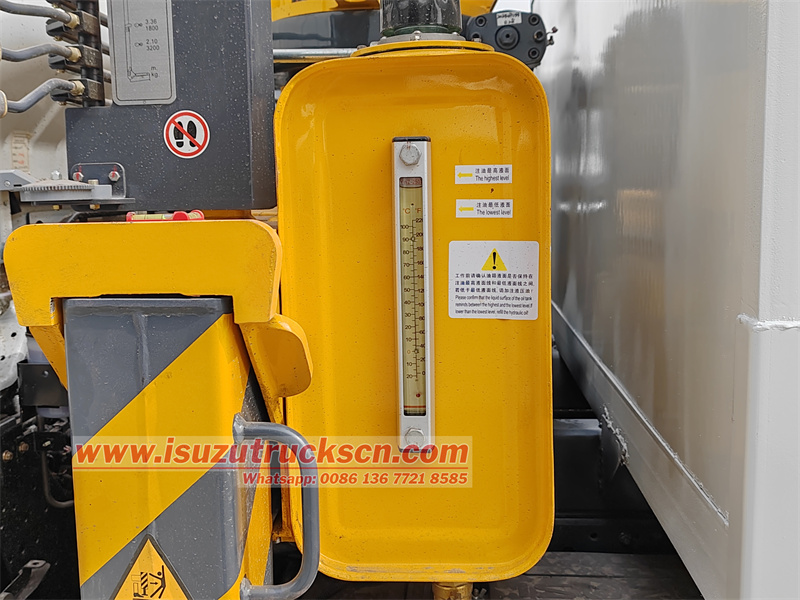

♦ Independent Hydraulic Oil Tank: Equipped with a large-capacity hydraulic oil tank to ensure hydraulic oil cleanliness and system stability.
♦ Load-Sensitive Control: The hydraulic system supports load-sensitive proportional control, ensuring smooth hoisting actions and reducing impact.
• Outrigger System
♦ Hydraulic Outriggers: H-type hydraulic outriggers support bilateral deployment with a span of 3.3m, ensuring vehicle stability during hoisting.
♦ Level Adjustment: Outriggers can independently adjust height to accommodate uneven terrain.
Application Scenarios
|
Scenario |
Lifting Method |
Advantages |
|
Construction Site |
Telescopic Boom + Slewing |
Vertical lifting of construction materials, slewing to switch work surfaces |
|
Road Rescue |
Luffing + Telescopic Boom |
Rapid lifting of accident vehicles, adapting to narrow spaces |
|
Municipal Maintenance |
Slewing + Combined Lifting |
Lifting streetlights and billboards, minimizing traffic impact |
|
Logistics Transportation |
Telescopic Boom + Wireless Remote Control |
Efficient loading and unloading of goods, reducing labor costs |
|
Agricultural Operations |
Light-load Mode + Short Boom |
Lifting agricultural supplies and machinery, adapting to field terrain |

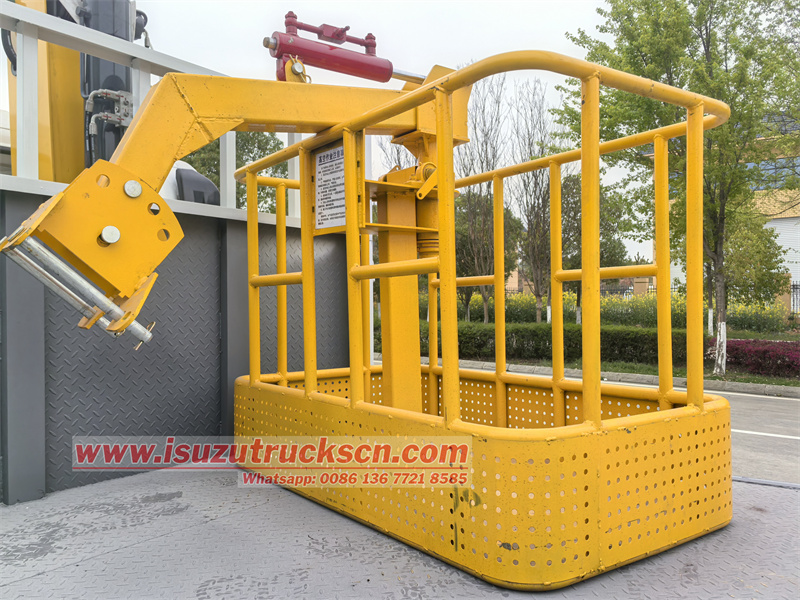

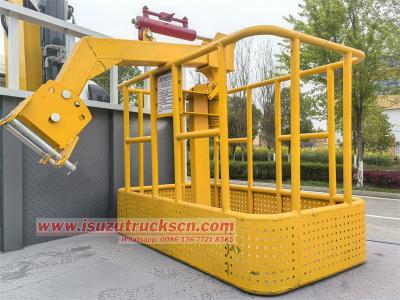

The Isuzu KV600 truck-mounted crane is a highly efficient, versatile vehicle that integrates transport, lifting, aerial work, and self-loading and unloading capabilities. It utilizes the reliable Isuzu KV600 chassis, a powerful 120-horsepower engine, and a 5-speed transmission. The core of the upper structure is a XCMG KSQS100-4 telescopic boom crane with a maximum lifting capacity of 4 tons. It supports fully hydraulic and fully rotary operation, and precise control of the outriggers and boom movement via manual hydraulic levers. The cargo box is equipped with a removable 200kg hanging basket that can be easily converted into an aerial work platform. In addition, the rear of the vehicle is equipped with a 3-ton hydraulic tailgate with a lifting height of 1.52 meters, enabling fast and safe self-loading and unloading of goods.
