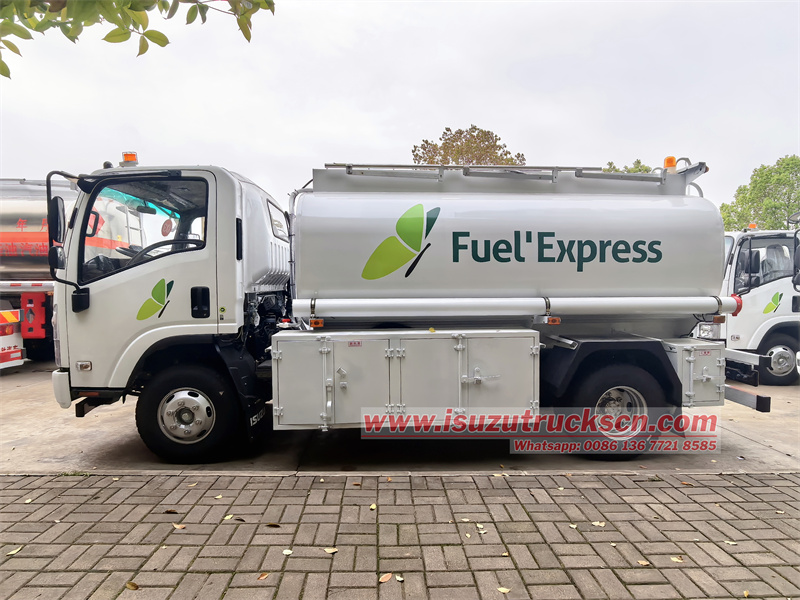

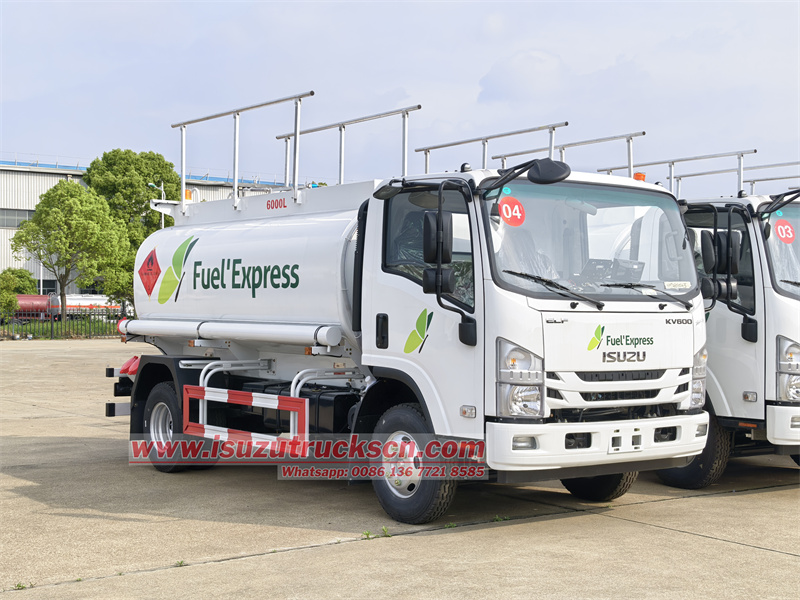

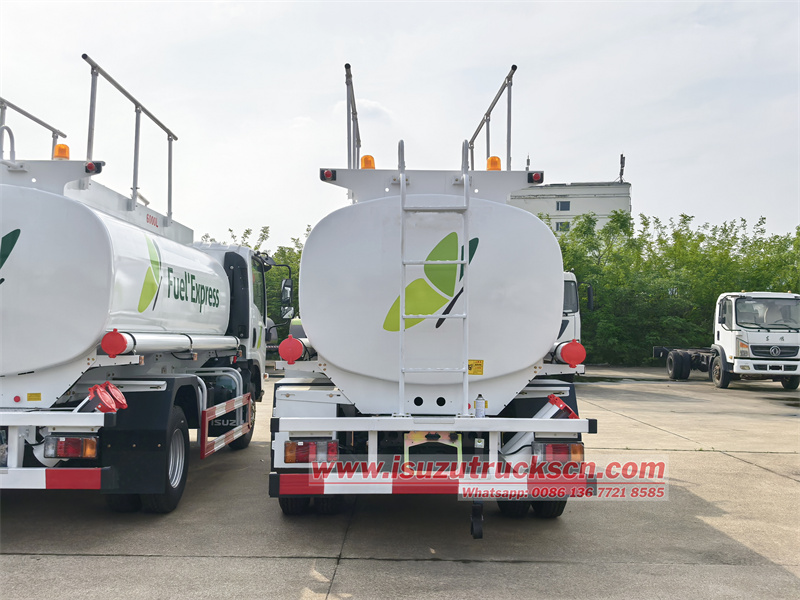

The ISUZU KV600 6 cbm fuel tanker truck,3365mm wheelbase,ISUZU 4KH1N6HD 150hp engine, MYY 6-speed gearbox. The uperstructure consists of a 6cbm oval-shaped carbon steel tank (5mm thick), with one European standard manhole on the top, one aluminum alloy bottom valve, one unloading valve, and a bottom valve switch. It features a Chinese-made oil pump with a flow rate of 30m³/h, a Censtar fuel dispenser, a 15M fuel hose reel and a fuel nozzle; also features inlet and outlet pipelines, a toolbox, ladder, folding guardrails, 2 fire extinguisher, and two side storage box with oil delivery pipes.
Manufacturer:
Powerstar TrucksWork capacity:
6000LDimension:
5990 x 2200 x 2450 mmCabin type:
Isuzu KV600 cab,3 seatsWheelbase:
3365mmEngine power:
150HP/108kWEngine type:
ISUZU 4KH1N6HDAxle drive:
4x2,LHDGear box:
ISUZU MYY 6-speed,manualRemarks:

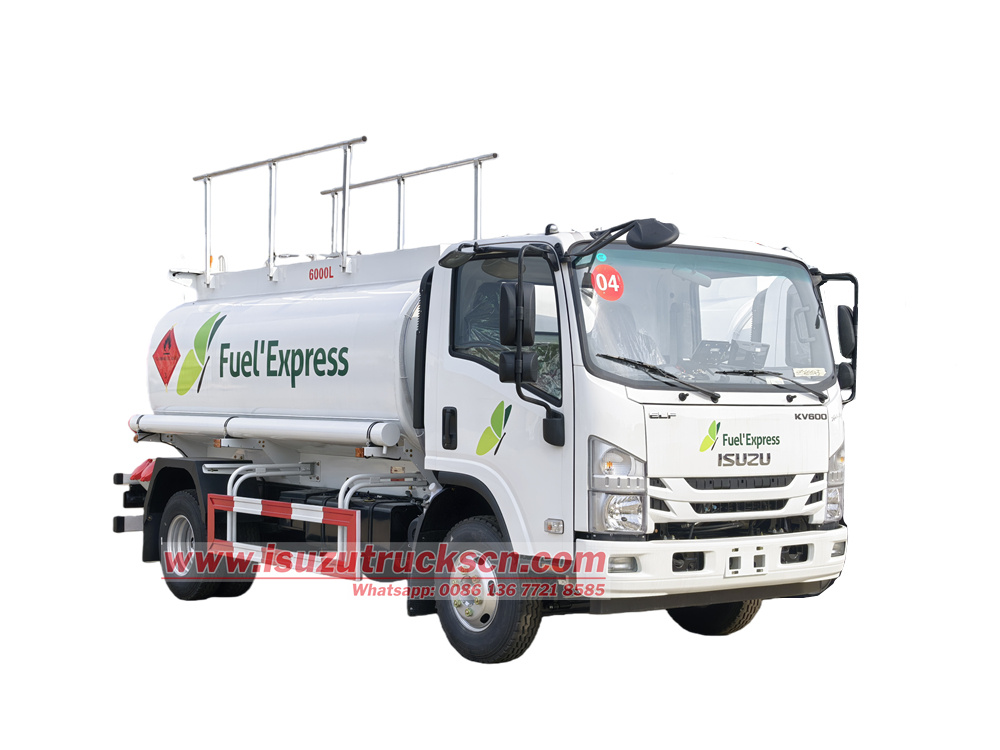

Tank capacity availableThe ISUZU KV600 150HP Refueling trucks is a light-duty fuel supply vehicle. It is equipped with an Isuzu 150hp engine and a 6-speed transmission, ensuring reliable power. The upper structure features a 6-cubic-meter fuel tank, equipped with a European standard manhole, aluminum alloy bottom valve, and unloading valve. The refueling system uses a 30m³/h fuel pump and Censtar fuel dispenser, along with a 15-meter hose reel and fuel nozzle, making it suitable for fuel supply operations at construction sites, logistics parks, and fleets.
▶ Product Parameter :
|

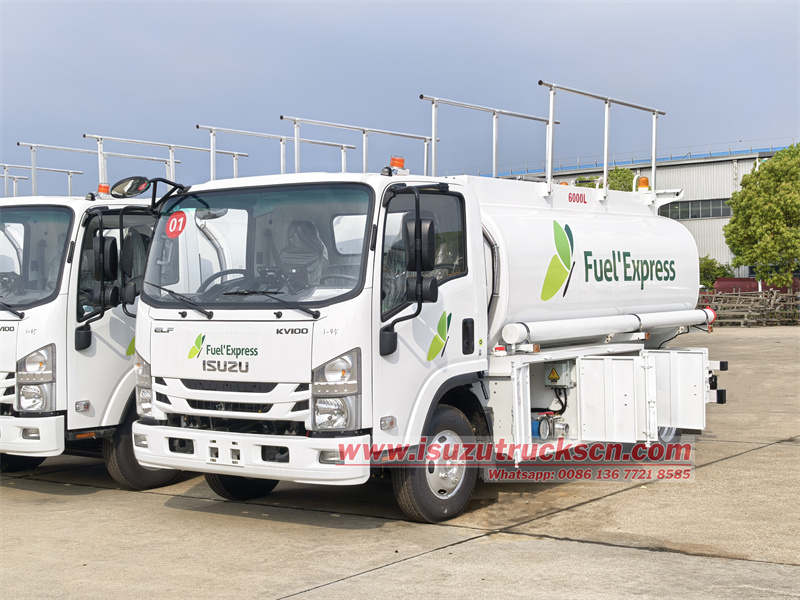

Isuzu KV600 6000L Fuel Dispenser Truck |
||
|
Vehicle |
Model |
PT5080GJY |
|
Overall dimension |
5990*2200*2450 mm |
|
|
GVW/Curb weight |
8280/4310 kg |
|
|
Axle load |
3000/5280kg |
|
|
Front /Rear hanging |
1120/1505mm |
|
|
Speed limitation |
115 km/h |
|
|
Model |
Isuzu KV600 |
|
|
Wheelbase |
3365mm |
|
|
Tire |
750R16 |
|
|
Gearbox |
Isuzu MYY 6-speed,manual |
|
|
Cab |
3 passenger,Direction power assistance,A/C, center lock,electric lock and window |
|
|
Engine |
Model |
ISUZU 4KH1N6HD |
|
Power |
150HP/ 108 kW |
|
|
Displacement |
2999 ml |
|
|
Emission standard |
Euro 6 |
|
|
Tank |
Volume |
6000 Liters ( petrol / diesel ) |
|
Tank Material |
Q235B carbon steel,5mm thickness |
|
|
Compartment |
1 |
|
|
Function |
Manhole on top tanker |
European standard, including pressure relief valve |
|
Safety Valve |
European Standard |
|
|
Bottom Valve |
Alluminum Alloy Ball Valve type |
|
|
Discharge Valve |
Alluminum Alloy Ball Valve type |
|
|
Oil Pump |
Chinese brand,30m³/h |
|
|
Fuel Dispenser |
1pcs |
|
|
Refueling reel |
15m Refueling reel with refueling gun |
|
|
Liquid level display |
Computer control system |
|
|
Standard configuration |
Tool box, climbing ladder, handrail, fire extinguisher, two side storage box |
|
▶ Basic Chassis Configuration:
This vehicle adopts an Isuzu KV600 series dedicated chassis with a wheelbase of 3365mm. The core powertrain of the chassis is supplied by the original manufacturer, boasting high reliability and fuel economy:
• Engine: Equipped with an Isuzu 4KH1N6HD high-pressure common rail diesel engine, with a maximum output of 150 horsepower;
• Transmission: Matched with an Isuzu MYY 6-speed manual transmission;
• Driving Performance: The maximum design speed can reach 115km/h, meeting the needs of rapid logistics and construction site fuel supply.
▶ Upper Tank Design:
The tank is made of Q235 carbon steel and is specifically designed for fuel (diesel and gasoline) transportation and refueling:
• Volume and Material: 6 cubic meters, carbon steel, 5mm thickness
• Structural Shape: Elliptical structure with baffles, low center of gravity, and good driving stability.
▶ Safety System:
• Subsea Valve (Emergency Shutdown Valve): Installed on the pipeline at the bottom of the tank. In case of emergencies such as collisions, the valve body can automatically detach and shut off the outflow of the medium inside the tank, preventing leakage accidents.
• Subsea Valve Switch (Pneumatic): A control switch is located on the left side of the valve box, which can shut off the unloading pipeline in an emergency.
• Static Electricity Discharge Device: Equipped with a static electricity discharge rubber strip to effectively discharge static electricity generated during loading and unloading.
▶ Oil Pump and Refueling Equipment:
Oil Pump: Utilizes a Chinese-made oil pump with a flow rate of 30 m³/h. The pump boasts stable performance, high oil delivery efficiency, and rapid oil extraction and transfer.

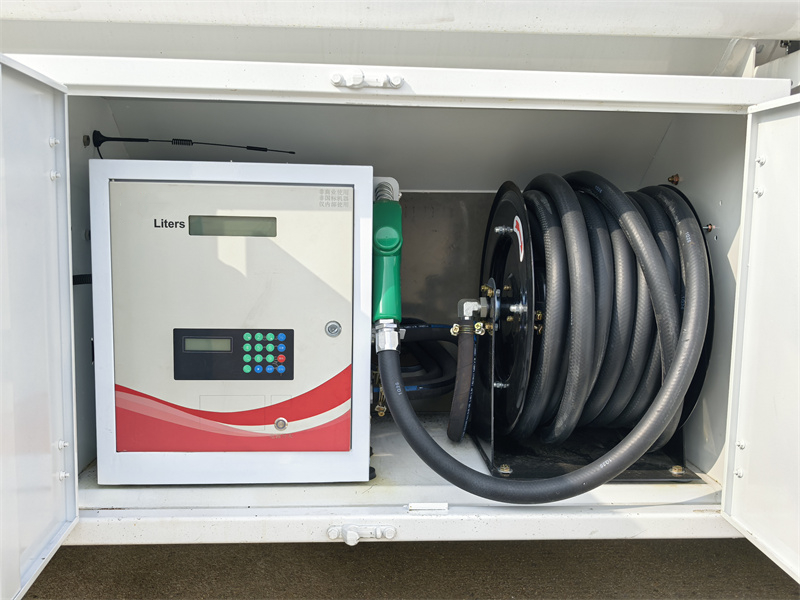

Fuel Dispenser: Equipped with a Censtar fuel dispenser, offering advantages such as accurate metering and ease of operation.
 |
 |
Fuel Reel and Nozzle: A 15M fuel reel paired with a fuel nozzle meets refueling needs at varying distances. The reel is easy to retract and extend, and the fuel nozzle features a comfortable grip and convenient operation, improving both efficiency and safety in refueling operations.

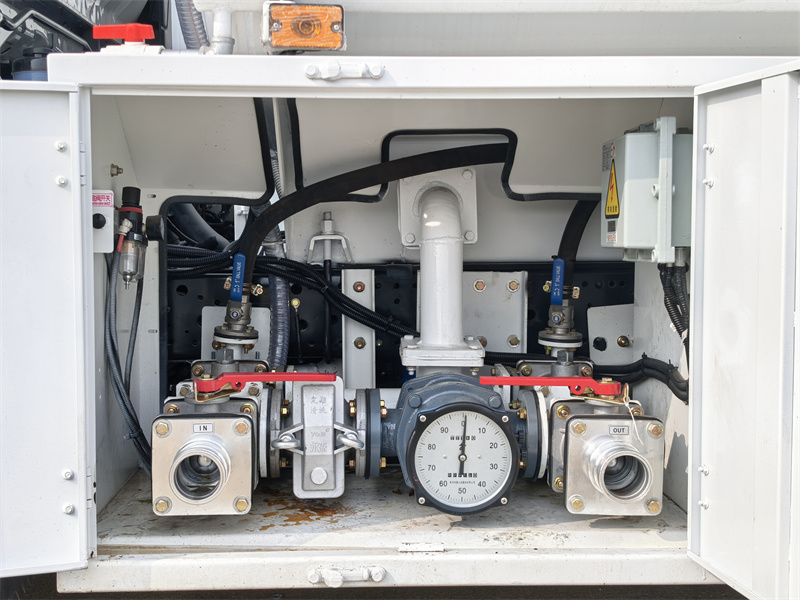

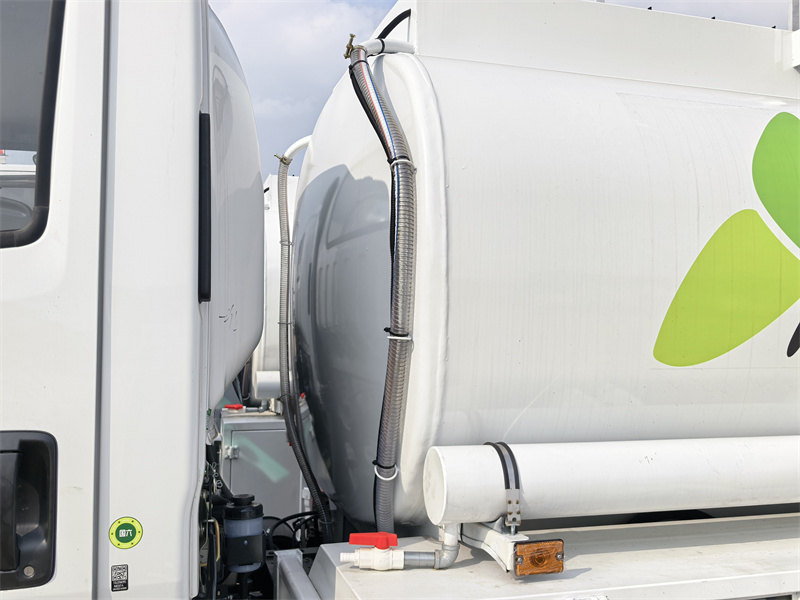

• Piping System: Includes oil- and corrosion-resistant inlet and outlet pipes, ball valves, and a flow meter.

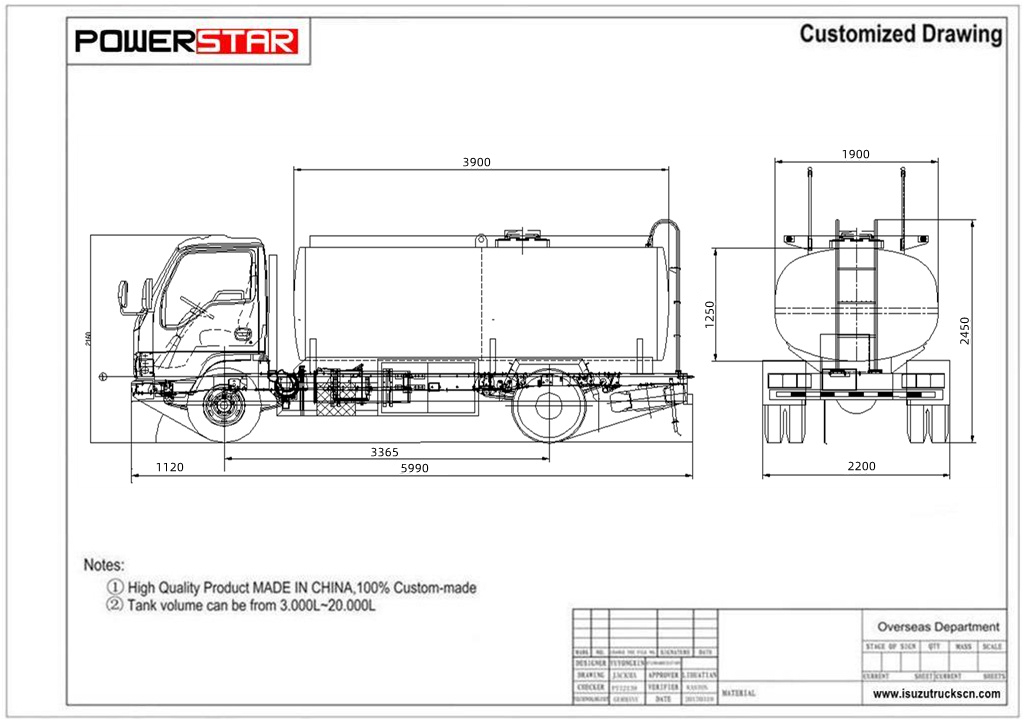

Technical drawing of Isuzu KV600 fuel refueling truck

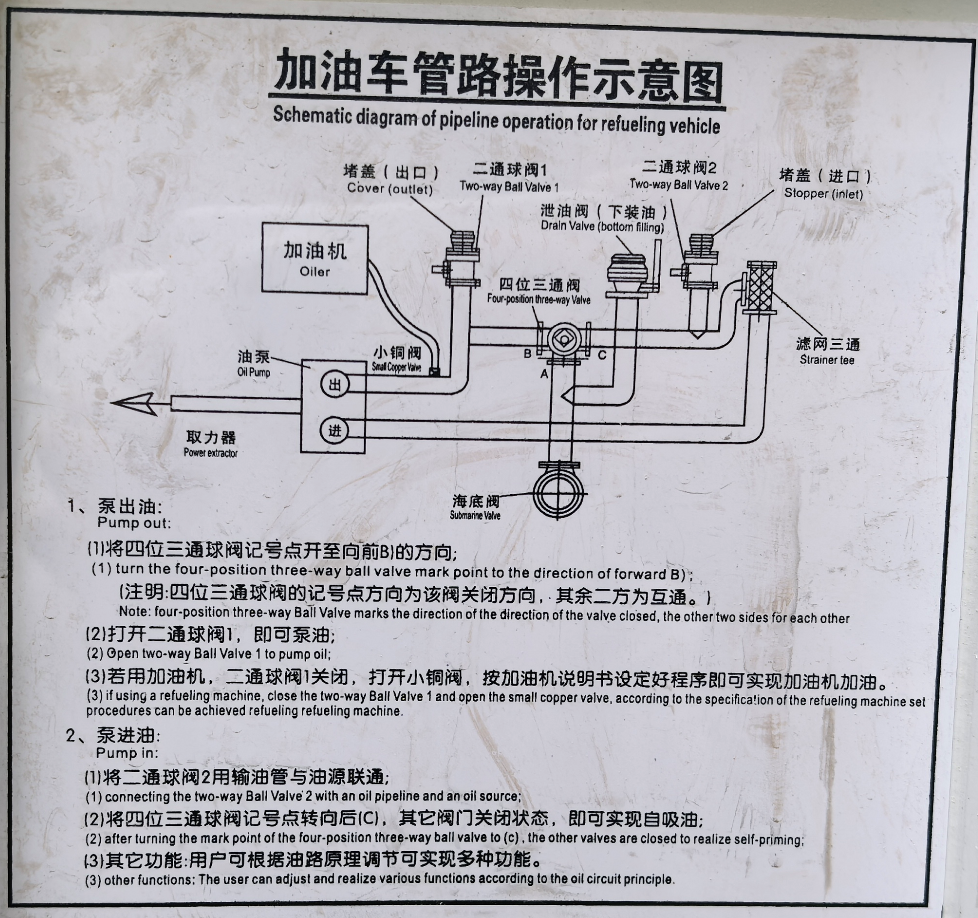

▶ How does the fuel refueling work?
The core is the engine drive the transmission. A PTO mounted on the transmission drives an oil pump, which generates power to pump oil from the tank into or out of the tank via a pipeline network.
★ Oil Suction Process: The oil pump starts, generating suction that connects the mobile refueling truck to an oil storage container (such as an underground oil depot) through pipelines. Under atmospheric pressure, oil is continuously drawn into the tank, preparing it for transportation.
★ Refueling Process: Upon arrival at the designated location, the oil pump restarts, discharging the oil from the tank through pipelines and a refueling nozzle to the receiving equipment (such as a car's fuel tank). During this process, a meter accurately measures the amount of oil dispensed, while the refueling nozzle controls the refueling speed and operation, ultimately completing a safe and accurate refueling operation.

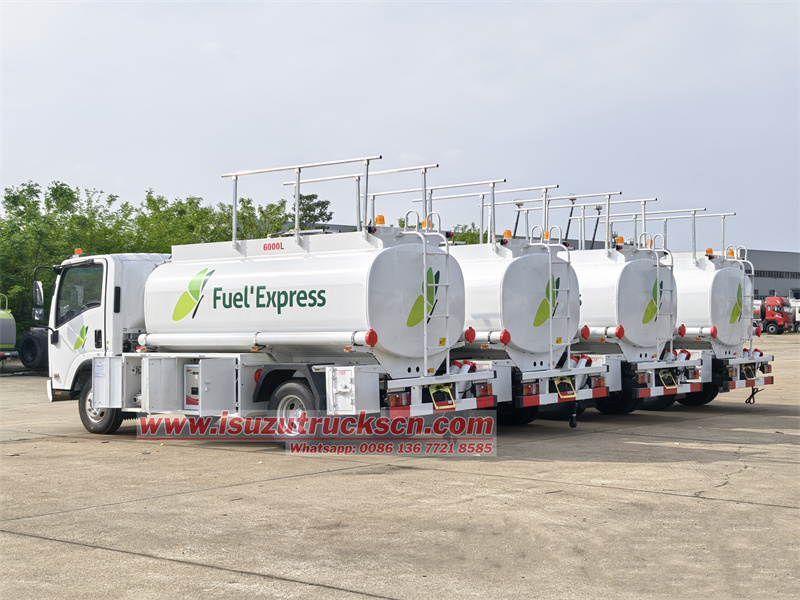

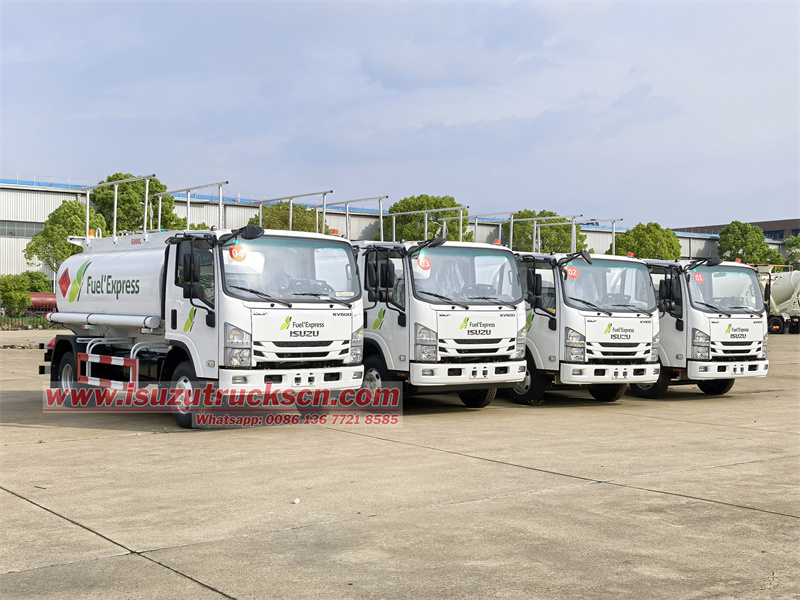

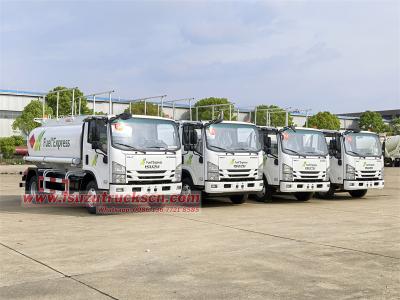

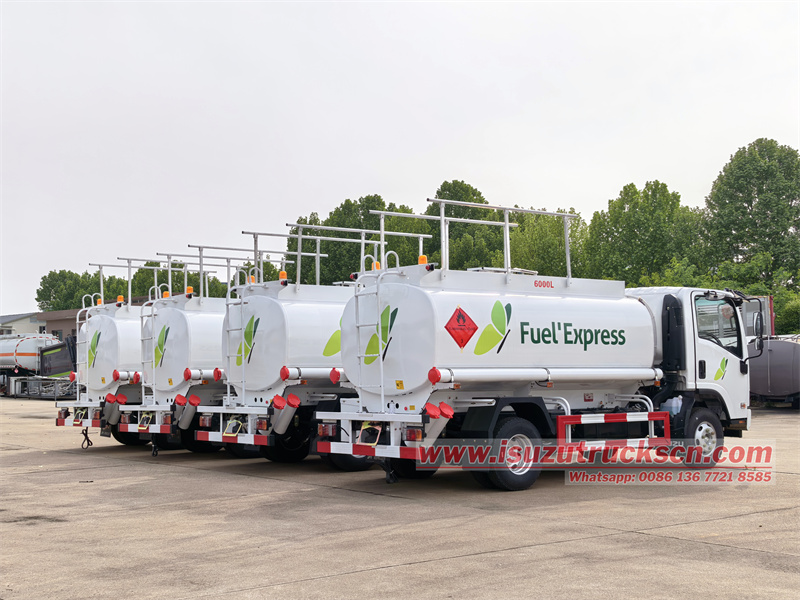

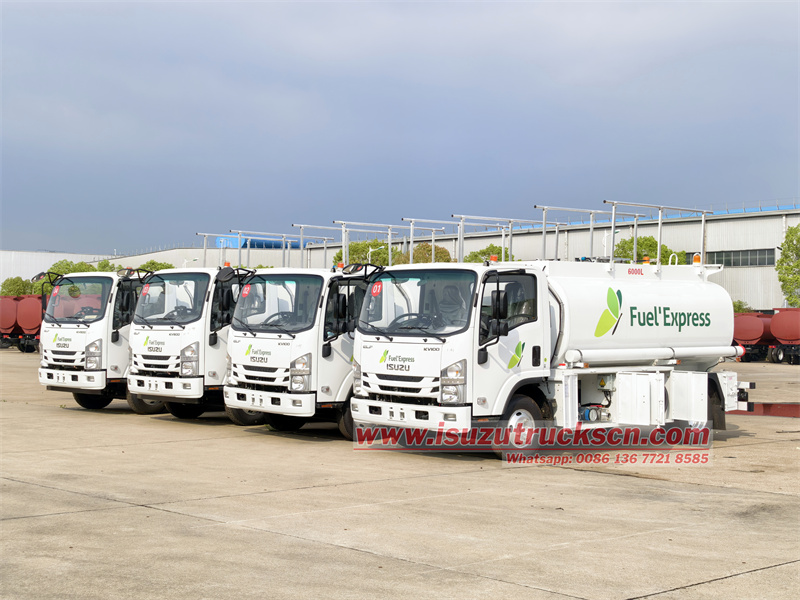

4 units ISUZU KV600 6000 Liters Refuel Tanker Truck

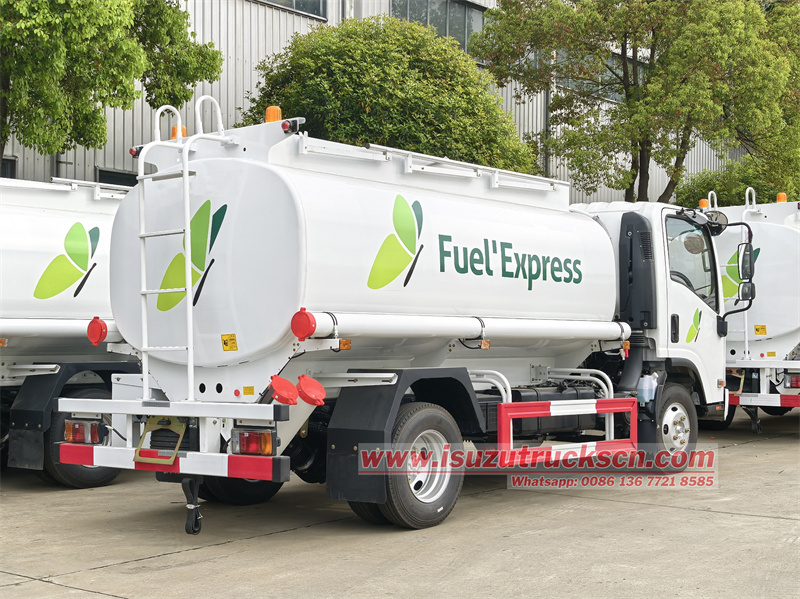

4 units Isuzu 6cbm refined fuel delivery truck
