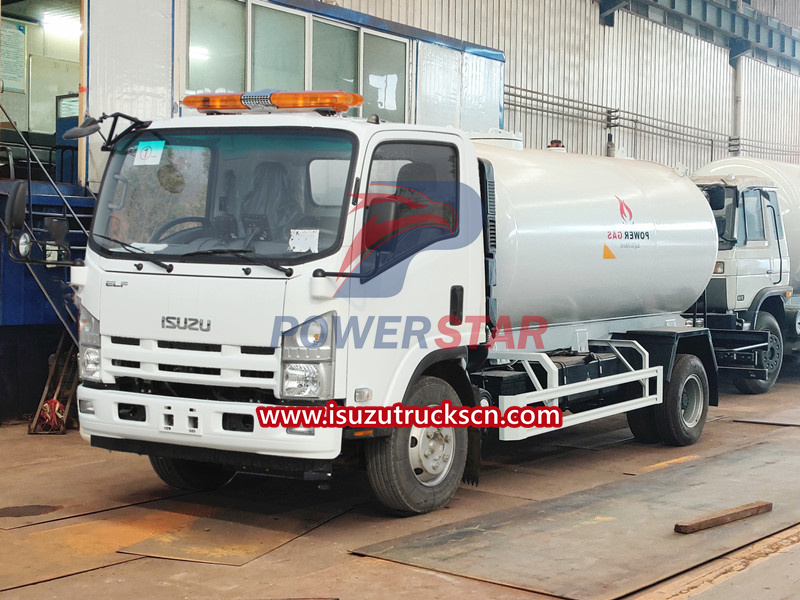

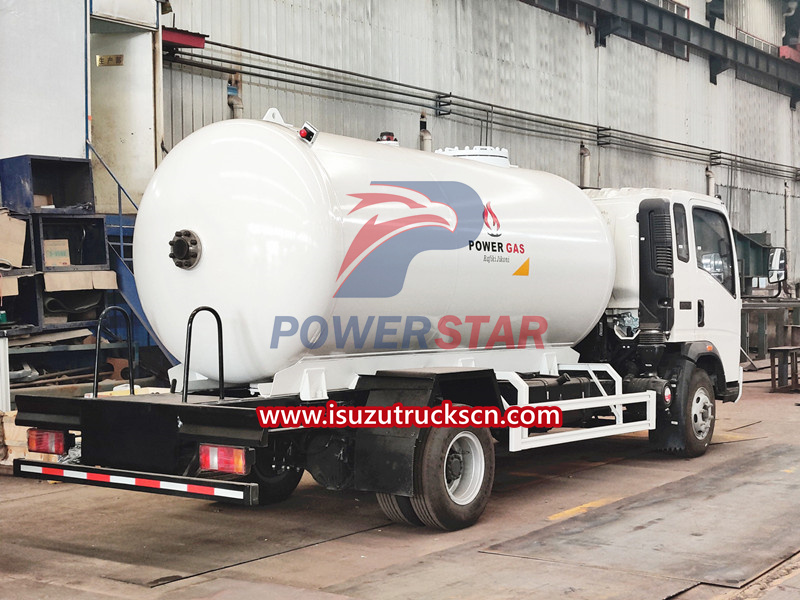

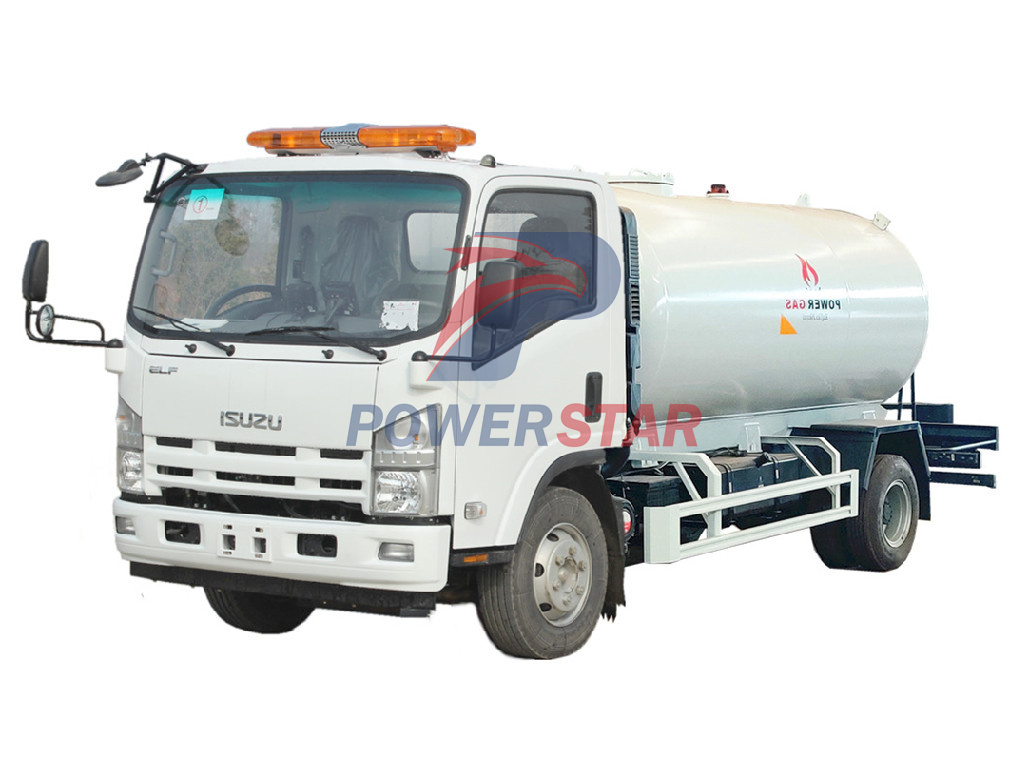

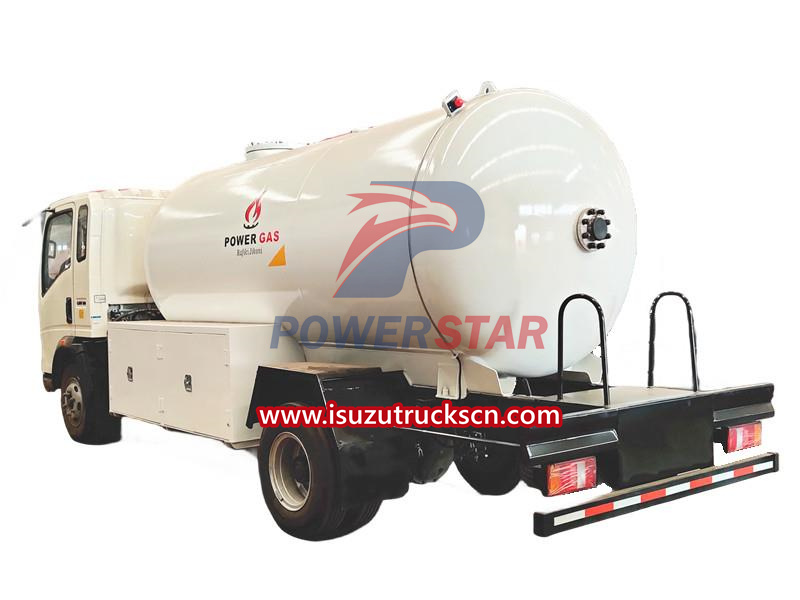

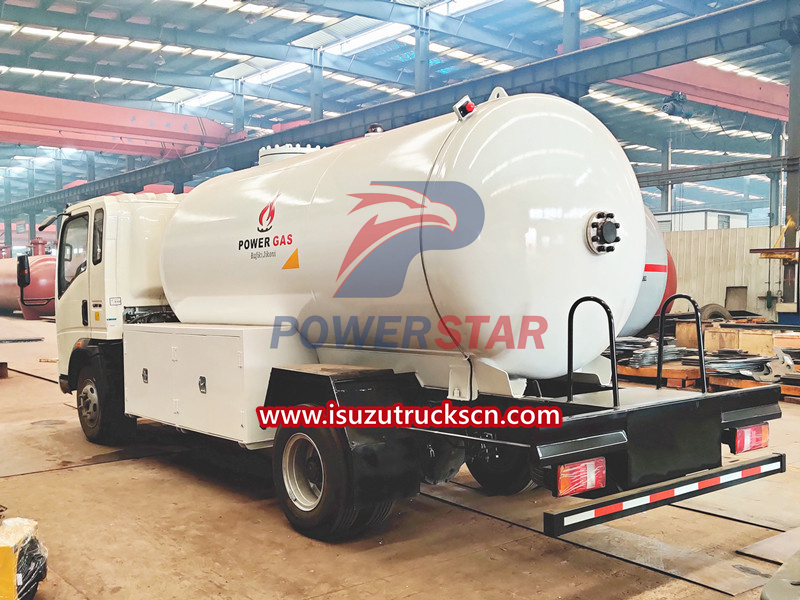

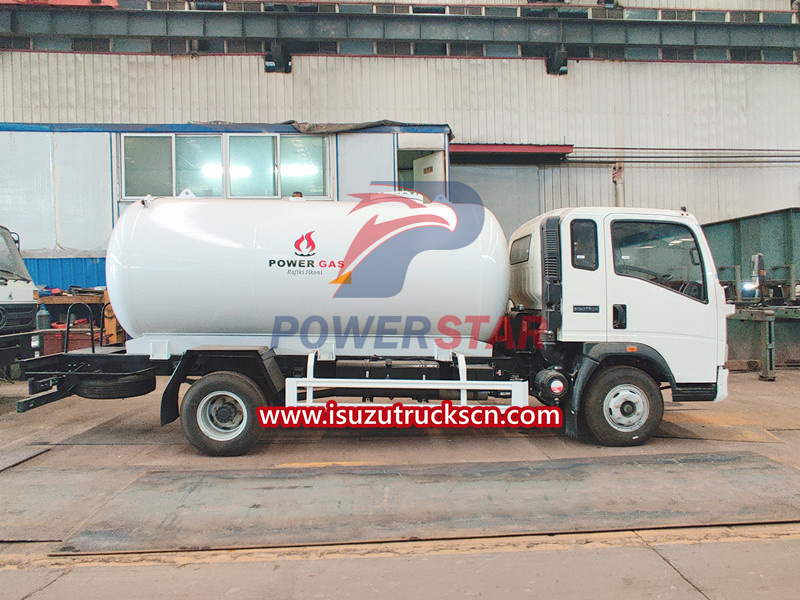

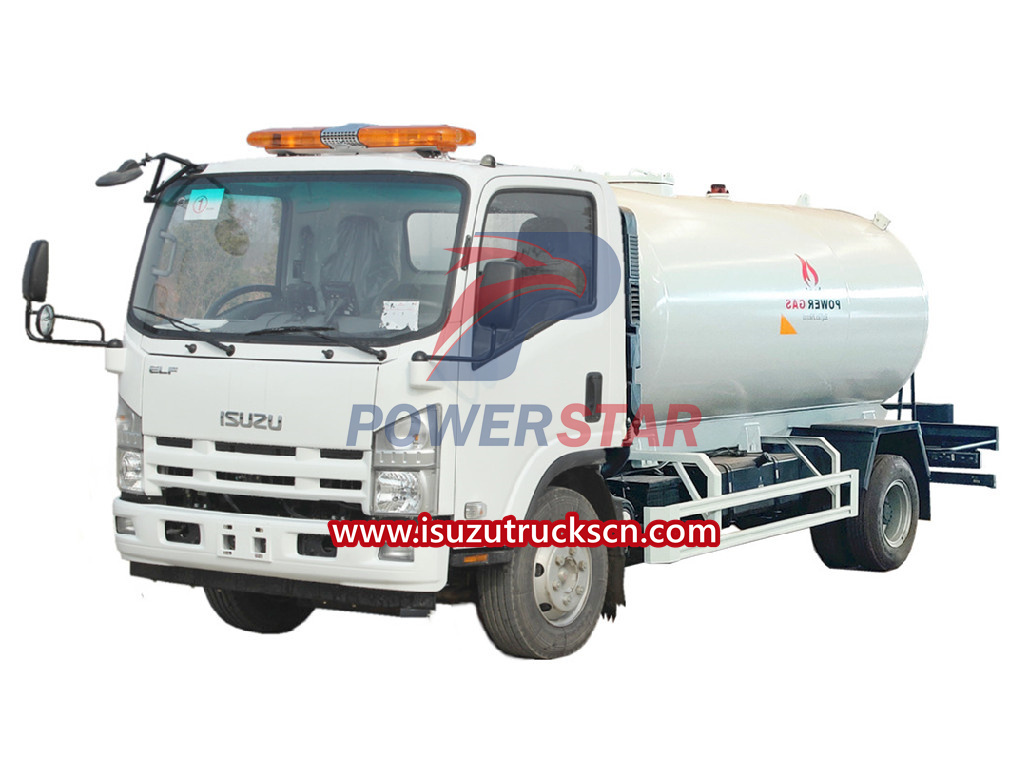

Isuzu NPR Bobtail LPG trucks is based on ISUZU ELF 700P truck chassis, Isuzu LPG tanker truck equipped with 4HK1-TC diesel engine with 190HP, MLD 6-shift manual gearbox, 6000L round LPG tanker, mounted with auto filling dispenser. LPG Transportation Function: The Isuzu LPG Bobtail truck is designed to safely transport liquefied petroleum gas (LPG), which is commonly used for civil and industrial purposes such as heating, cooking, industrial production, etc.
Work capacity:
6000 LEngine power:
190 HPEngine type:
4HK1-TCAxle drive:
4×2Gear box:
MLD 6-speed manualRemarks:
Round LPG tanker with auto filling dispenserThe Isuzu LPG Bobtail truck is a specialized vehicle manufactured by POWERSTAR Company, and specifically for transporting liquefied petroleum gas (LPG). This model Isuzu LPG bobtail tank truck is usually used in LPG gas supply business and is an important means of transportation. Overall, the Isuzu LPG Bobtail tank truck is a specialized vehicle designed for LPG transportation. Its safety performance, high efficiency performance and professional use make it an indispensable part of the LPG supply chain, providing reliable gas transportation solutions for various gas consumption sites.

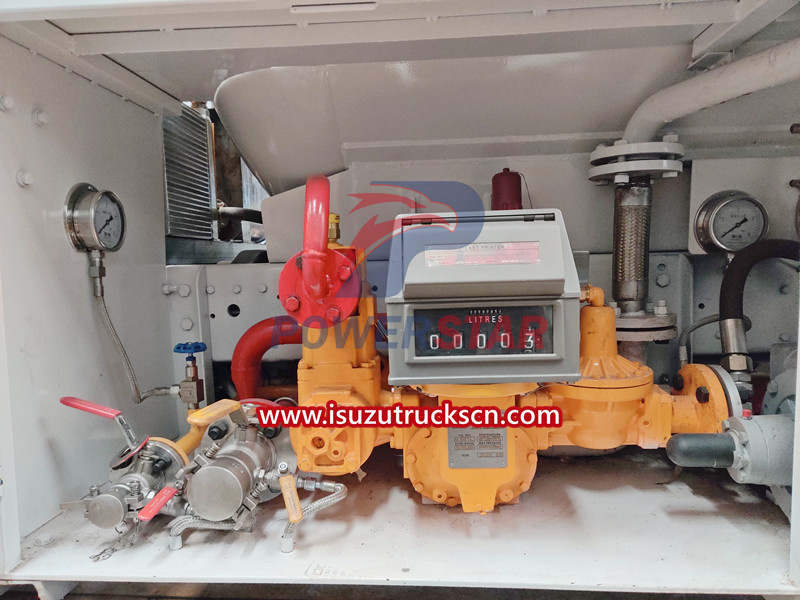

Isuzu LPG Bobtail Tank Truck, LPG Filling machine introduction:
Main function: This small filling machine is mainly used to fill gas for family use LPG cylinder and car by gas-filling gun
1. Pre-setting unit price, gas-filling quantity(volume, weight) and gas-filling amount.
2. Automative compensation function of LPG temperature and volume
3. Over pressure-proof and automative shut-off protection design
4. Vapor-gas separation and Pressure difference self-protection
5. Over-flow self protection
6. Power-off Restore function
7. Provide interface port for tax-controlling machine
Isuzu LPG Bobtail tank truck Main technical parameter:
1. single gun flow: 10L/min ~ 60L/min ;
2, Max.working pressure: 2.5Mpa ;
3, Working environmental temperature: -30 ºC ~+55 ºC;
4 , Measuring Accuracy: ± 1% ;
5, Power: AC220 ± 30% , 50 ± 1Hz
6 , Degree of anti-explosive: Exmdib II AT4
7, pre-setting internal interface port:RS485
Technical Specifications for ISUZU flatbed or rollback tow truck:
| TECHNICAL PARAMETER for ISUZU LPG BOBTAIL TANK TRUCK |
||||||
| Item No. | Parameters | |||||
| Cabin | Left hand drive, one single row | |||||
| Overall Dimension | 7535x2500x3450 mm | |||||
| Gross Vehicle Weight | 10000kg | |||||
| Curb Weight | 4000 kg | |||||
| Rated Weight(kg) | 7800 Kg | |||||
| Wheel Base | 4475mm | |||||
| Front/rear Overhang | 1285/1950mm | |||||
| Approach/Departure Angle | 28/22 degree | |||||
| Engine | ISUZU 4HK1-TC Diesel Engine, Four Stroke, 4 Cylinder in line. | |||||
| Engine horsepower | 140kw/190HP , Euro VI, ISUZU engine | |||||
| Displacement | 5193 ml(Diesel) | |||||
| Max Driving Speed | 90 km/h | |||||
| Gear Box | ISUZU MLD 6 Forward Gear, 1 Backward Gear | |||||
| Cabin | Left Hand Driving, 3 Passengers Allowed | |||||
| Tire | 8.25R16, 6+1 pcs | |||||
| Tank Capacity | 6CBM (6000L) | |||||
| Filling Content | Liquefied Petroleum Gas (Propane) | |||||

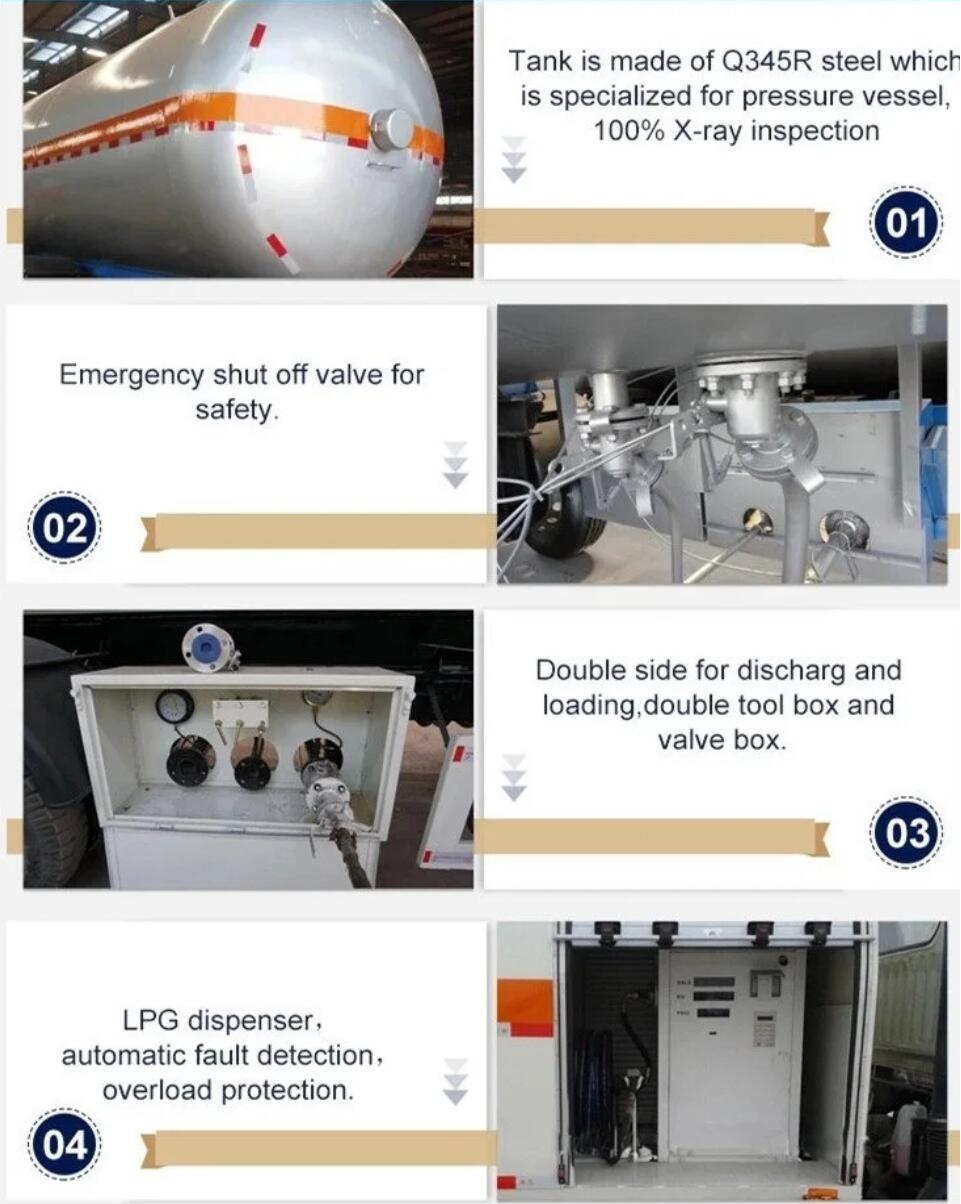

| Tank Material | Q345R high tension steel, 12mm Thickness Tank Body. | |||||

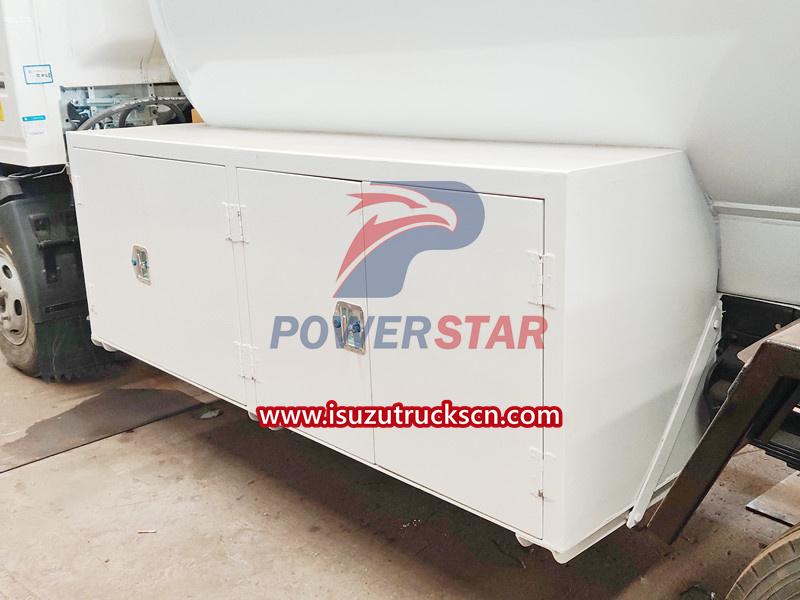

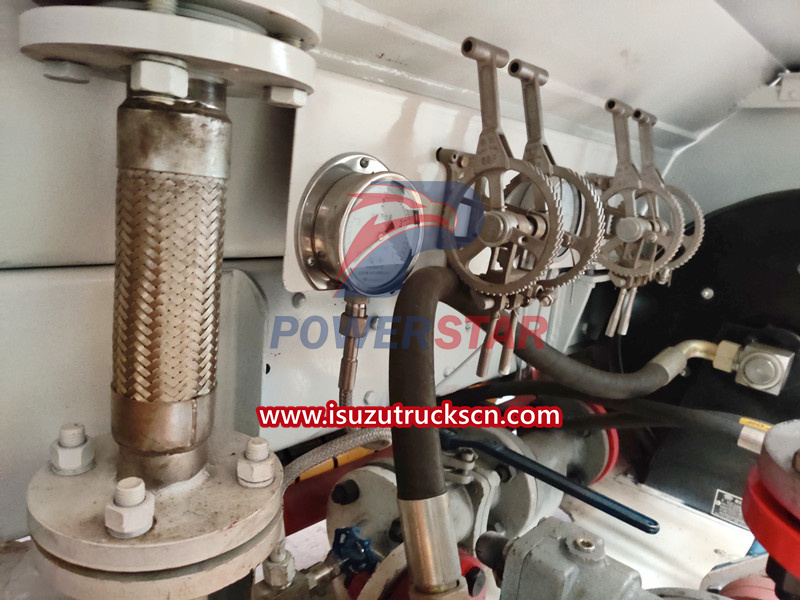

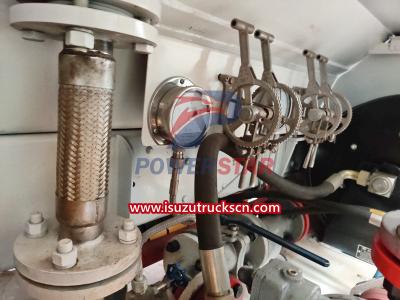

| Standard Equipment | Safety Valve, Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. | |||||
| Specification | Designed Pressure: 1.66Mpa | |||||
| Filling Ratio: 420-590 kg/m3 | ||||||
| Working Temperature: -20-50 centi-degree | ||||||
| Corrosion Allowance:≥ 1mm | ||||||
| Pump | ||||||
| Flow gauge/TSC with Mechanical print function | ||||||
Brand new Isuzu LPG tank truck also called GPL tank truck, LPG bobtail truck,LPG dispenser truck,LPG refilling truck,LPG tanker truck,LPG dispensing truck,is a pressure vessel vehicle that combined with the chassis, 100% X-ray radiographic tested tanker, safe valve, emergency cutting valve, themometer, liquid level meter, pressure gauge, gas dispenser and gas pump, which is designded and used for transporting and refueling or filling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders or filling the gas to different gas station.
1. Propane Cylinder Refilling Truck (also called as gas cylinder filling truck,Lpg filling truck, Isuzu LPG bobtail tank truck, gas refueling truck,lpg distribution truck,gas distributor truck,gas delivery truck,lpg truck,lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg dispensing truck,propane delivery truck,propane bobtail,propane gas truck,)is designed and used for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into small lpg tanks and home use lpg cylinders.
2. With different design,you can choose volume flow meter or lpg dispenser for propane filling truck.With above gas cylinder refilling truck,you can start lpg delivery business easily.
3. Optional propane truck chassis brand: Isuzu GIGA, Sinotruk HOWO, FOTON, Dongfeng, FAW and other brands you prefer.
4. Popular LPG tank size: 5000liters, 10000liters, 12000liters, 15000liters, 20000liters
5. Function of cylinder filling truck:mobile propane or butan gas delivery/refilling/bottling/filling

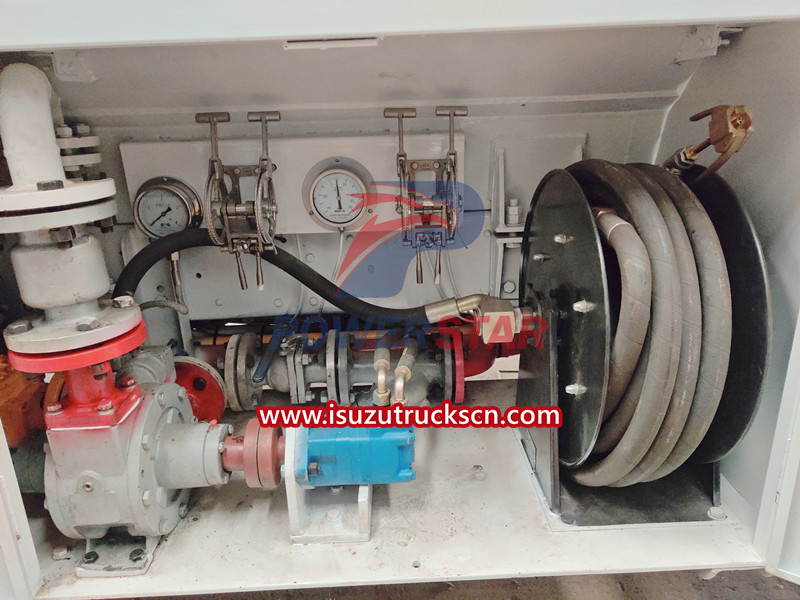

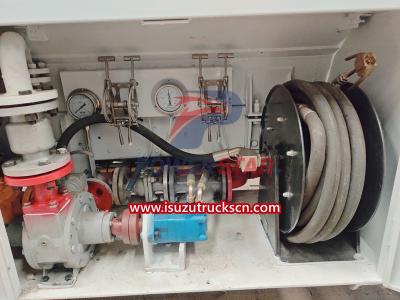

6. Main equipment of cylinder filling truck: 2" Flowmeter or single nozzle filling dispenser machine,2" corken or Chinese brand vane pump,15/30/40 meters filling hose reel,filling nozzle, radiator,hydraulic oil box
