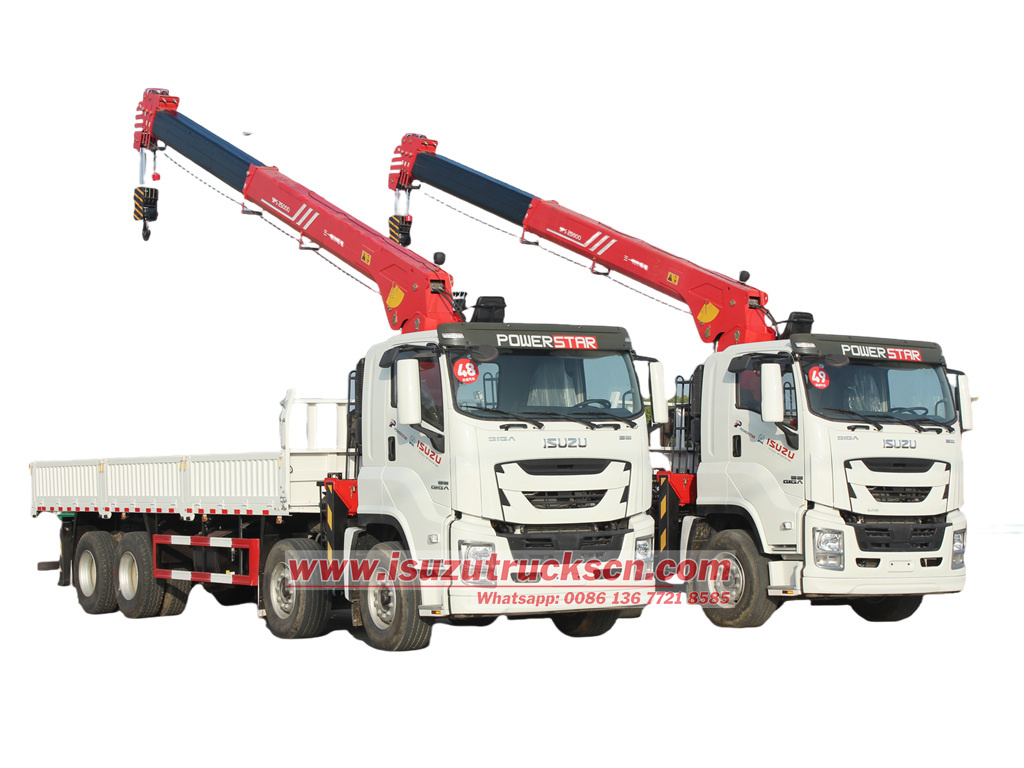

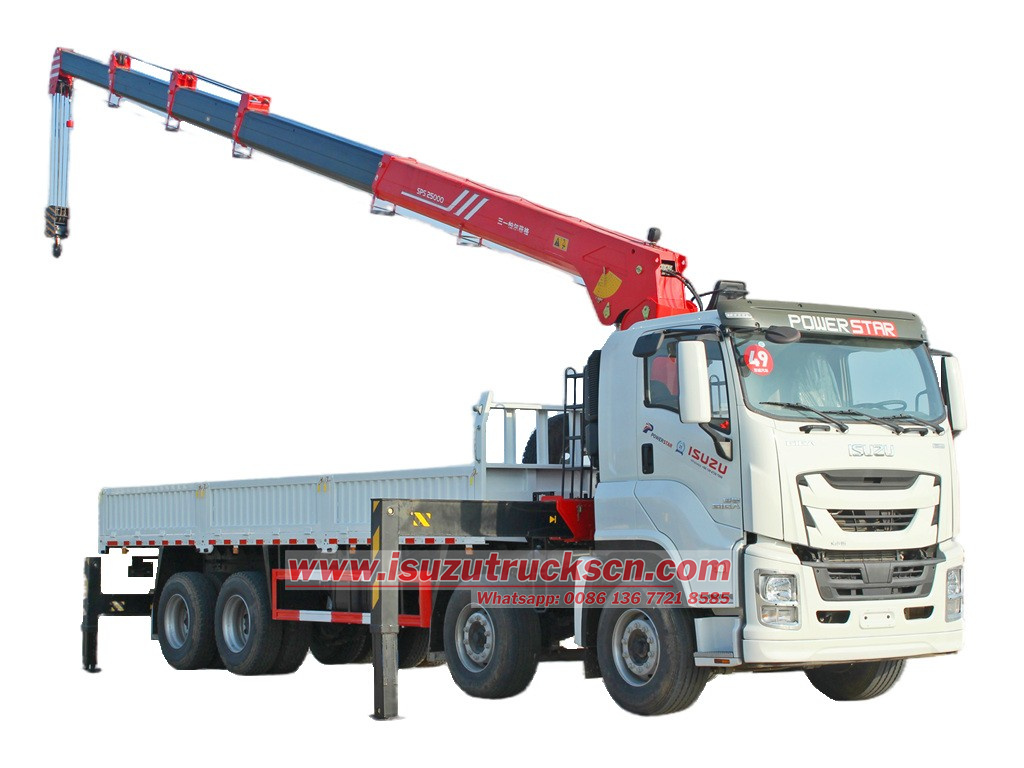

Isuzu mechanic truck with stiff boom crane

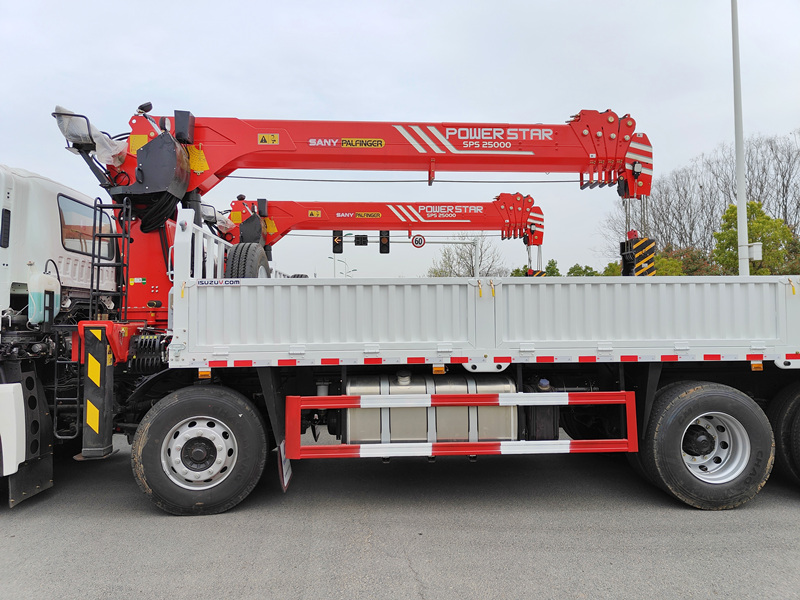

Super powerful heavy duty Isuzu GIGA VC66 new cabin 8X4 truck chassis, equipped with original Japanese Isuzu technology 6WG1-TCG61 diesel engine with 460HP and 15681cc emission, meet international standard EURO 6 model, also can be customized to remove the DPF and ADblue device, to make truck working as EURO 3 or 4 model. FAST 12-speed gearbox with 12 forward and 2 reverse back, which matched well with ISUZU diesel engine and make whole truck fuel comsumption much lower. Isuzu GIGA heavy boom crane truck equipped with Palfinger SPS40000 telescopic boom crane, maximum lifting weight 16 tons, also matched with dropsid cargo box size 7500x2350x550mm, Side 3mm, Bottom 4mm thickness.
Manufacturer:
Powerstar TrucksWork capacity:
10-16 tonsDimension:
11500×2500×3950 mmCabin type:
Isuzu VC66 8X4 truck cabinWheelbase:
2100+4575+1370 mmEngine power:
338kW/460HPEngine type:
Isuzu 6WG1-TCG61Axle drive:
8x4,LHDGear box:
FAST 12-speed,manualRemarks:

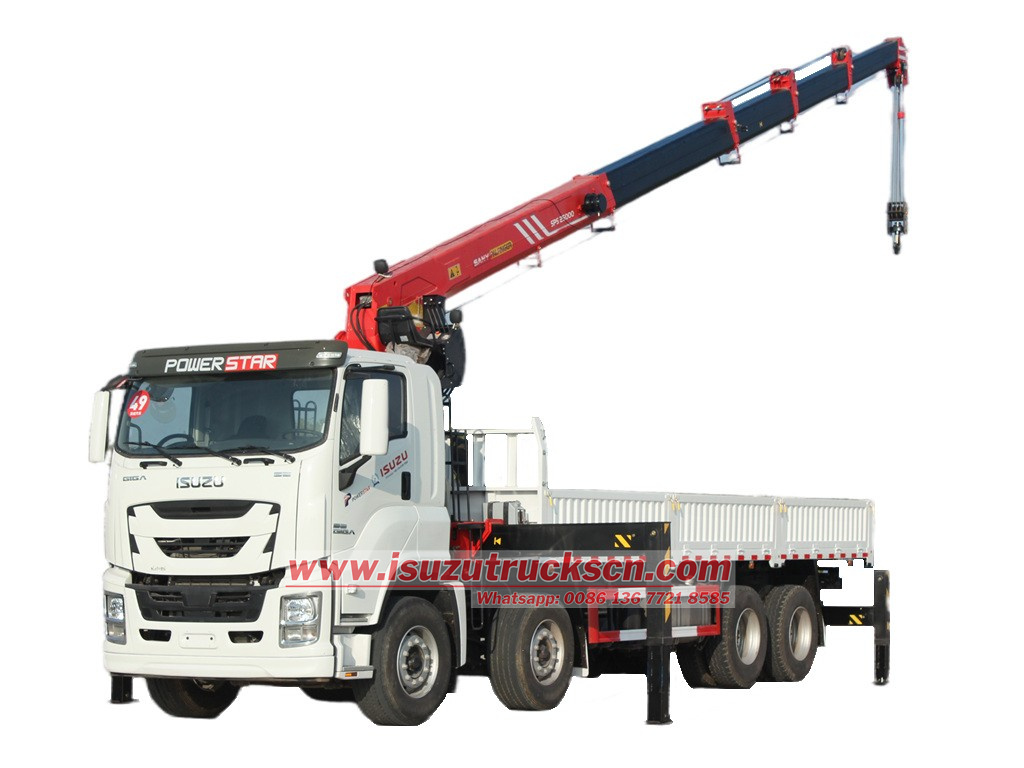

Customized to equipped with HIAB, PALFINGER, XCMG boom craneHeavy duty Isuzu GIGA VC66 dropside cargo crane truck, also known as Isuzu GIGA stiff boom truck, which is a transport vehicle build based on original Japanese ISUZU GIGA VC66 8x4 model 12 wheeler truck chassis, equipped with an European quality standard Palfinger boom crane, which can efficiently ensure the best reliability, performance and safety, which can be widely used for lifting and moving heavy objects. Also Isuzu mobile crane trucks are equipped with full dropside cargo body, which make whole Isuzu lorry crane truck used in various industries, including construction, transportation, and utilities, for tasks like loading and unloading materials, lifting equipment, and setting up structures.
● Japanese ISUZU GIGA heavy truck mounted crane
● China best cargo mounted crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

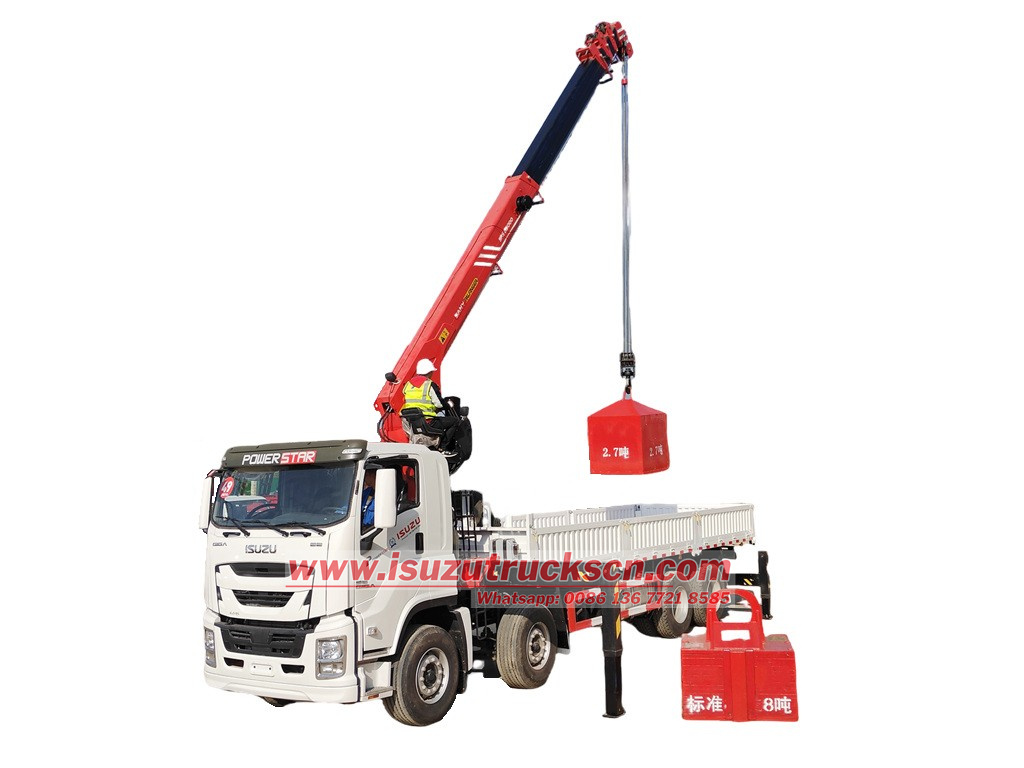

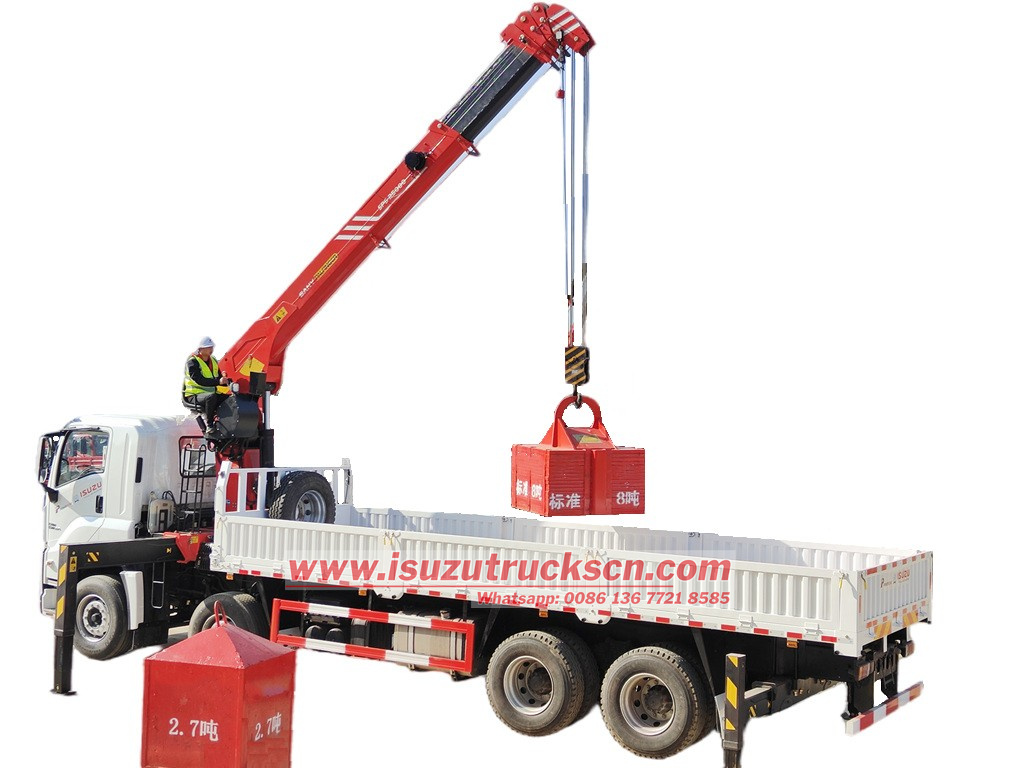

Isuzu palfinger boom crane truck is a versatile and essential piece of equipment for many industries, combining the capabilities of a truck and a crane into one unit for efficient lifting and transportation of heavy loads. And the telescopic boom mounted on original Japan ISUZU VC66 truck chassis, which can be extended and retracted for lifting operations. They are known for their ability to travel at highway speeds and are often used for jobs requiring both lifting and transportation.

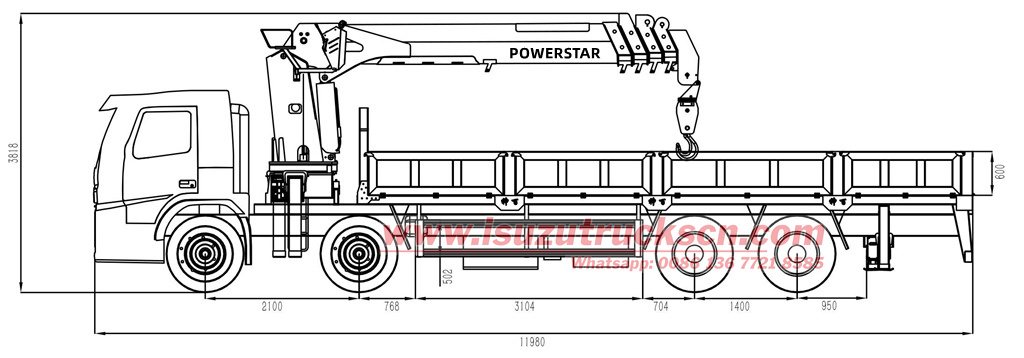

| ISUZU GIGA VC66 boom crane truck General Technical Parameters | |||
| Overall Dimension | 11500×2500×3950 (mm) | ||
| Gross Vehicle Weight | 31000(Kg) | ||
| Curb Weight | 15800(Kg) | ||
| ISUZU GIGA Truck Chassis Specification | |||
| Chassis Brand | ISUZU | ||
| Drive model | 8x4 | ||
| Cabin | Double, Left Hand Driving, with air conditional | ||
| Number of Passengers | 3 | ||
| Engine | Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR | |
| Power | 338KW/460HP | ||
| Emission standard | EURO 6 | ||
| Displacement | 15681(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | FAST 12 Forwards & 2 Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 2100+4575+1370 mm | ||
| Front/Rear Axle Loading | 8000/11500(Kg) | ||
| Approach/Departure Angle | 23/12(°) | ||
| Overhang | 1250/3545(mm) | ||
| Tire | 11.00R20 | ||
| Max Driving Speed | 90(km/h) | ||
| Upperstructure Specification | |||
| Cargo Body | Dimension | 7500×2300×550(mm) | |
| Material | Q235 carbon steel | ||
| Cargo Thickness | Side 3mm, Bottom 4mm | ||
| Working System | Boom Type | Straight 4-Arm telescopic boom | |
| Crane | Crane Brand | SANY or POWERSTAR | |
| Range of Sprayer | 30m | ||
| Max Lifting Moment | 25(T.M) | ||
| Max Lifting Capacity | 16000(kg) | ||
| Max lifting height | 12(m) | ||
| Rotation angle | 360(°) | ||
| Installation space | 1150(mm) | ||
| Recommented power | 30(kw) | ||
| Maximum working pressure | 26(Mpa) | ||
| Max Flow | 63(l/min) | ||
| Crane weight | 3800(kg) | ||
| Oil tank capacity | 160(L) | ||

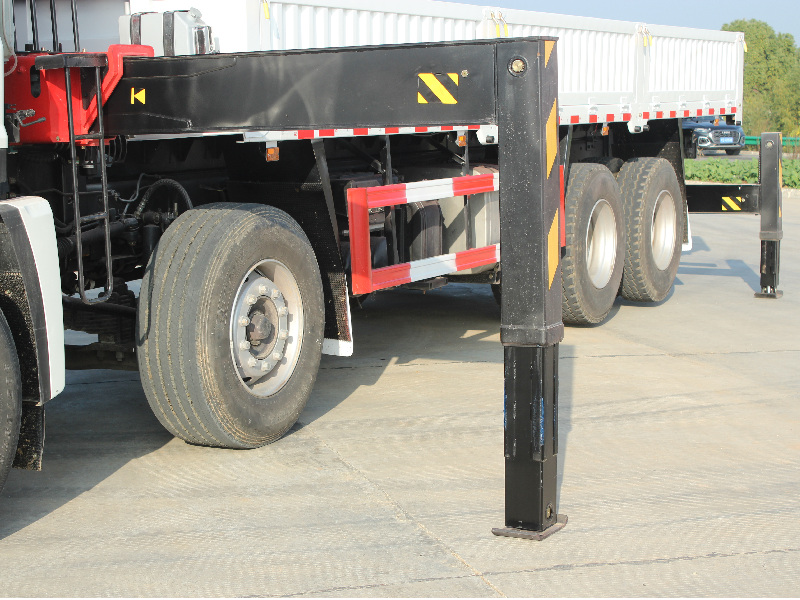

| Leg | Leg type | H type | |
| Leg Span | 2.28-5.9(m) | ||
| Hydraulic system | Pressure | 18(M pa) | |
| Capacity | 70(l) | ||

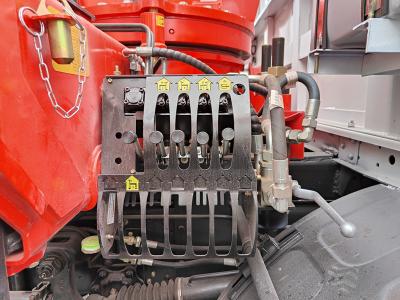

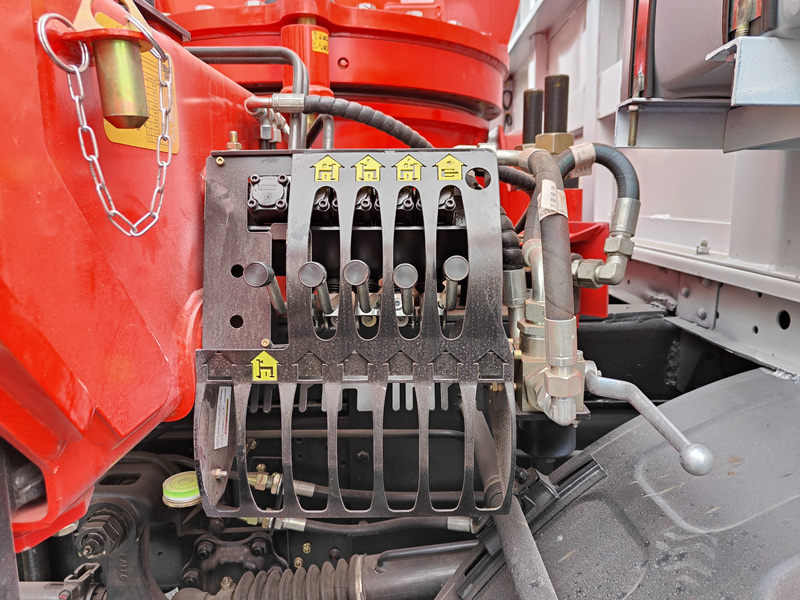

| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||
ISUZU crane mounted dropside cargo truck carrier provides the mobility for this type of crane. This boom crane truck has two parts: the dropside cargo body as carrier and the straight boom crane as lifting component. The Palfinger crane and dropside cargo body are matched together through a turntable, allowing the crane to swing from side to side. These modern ISUZU hydraulic truck cranes are usually single engine machines, with the same engine powering the undercarriage and the crane. The upper crane is usually powered via hydraulics run through the turntable from the pump mounted on the lower.

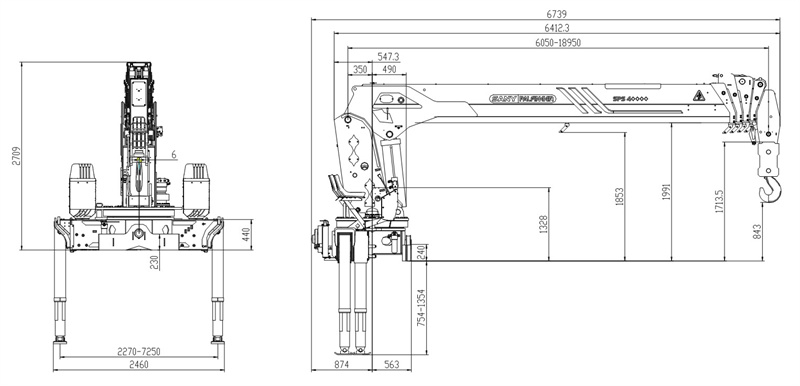

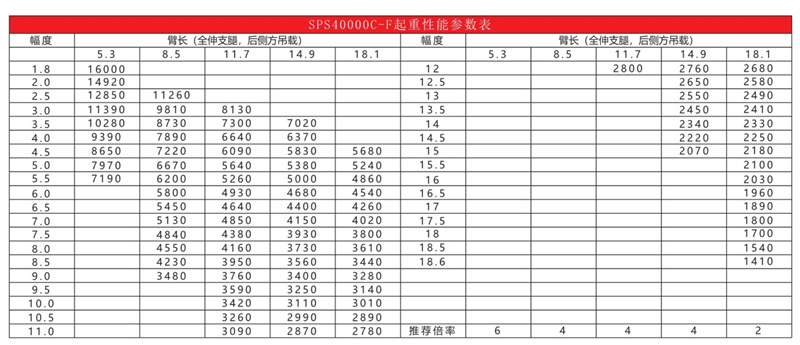

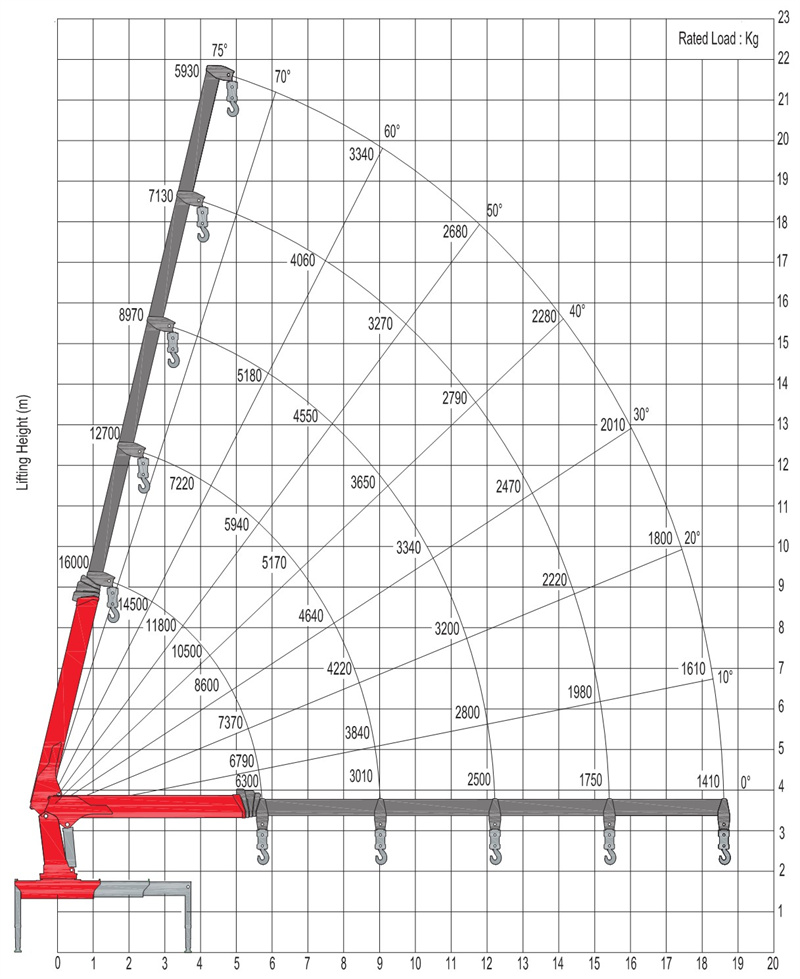

Advanced features PALFINGER SPS40000 boom crane that mounted on Isuzu Boom Crane Truck:
|
Basic Data |
SPS40000 |
|
Rated Lifting Moment |
40 MT |
|
Rated Lifting Capacity |
16000 kg (2.5m) |
|
Max. Outreach |
18.6 m |
|
Max. Lines Of The Hook |
6 |
|
Slewing Angle |
Continuous |
|
Boom Raising Angle |
0-75° |
|
Max. Lifting Height |
21.5 m |
|
Length Of the Boom System (Retracted) |
6.23 m |
|
Length Of the Boom System (Fully Extended) |
19 m |
|
Boom Sections |
5 |
|
Outrigger Span (Fully Extended) |
7250 (mm) |
|
Recommended Flow Rate |
80-110 L/min |
|
Operating Pressure |
32 Mpa |
|
Recommended Oil Tank Capacity |
300 L |
|
Crane Moment (Dynamic) |
913.8 kNm / 93.1 mt |
|
Torisonal Moment (Dynamic) |
52.5 kNm / 5.4 mt |
|
Crane Weight |
6000 kg |
Isuzu GIGA 8x4 Loader cranes help to load and unload trucks and other vehicles. Loader cranes make an impression thanks to their operator friendliness and high level of cost efficiency. Various equipment (rope winch, rotator, gripper, crane fork) expands the loader crane's field of application. With more than tens of models the POWERSTAR is the world market leader in this segment. The most important industries include: construction, transport logistics, emergency services, local authorities, waste management, mining and the inspection/maintenance/cleaning of structures, buildings and large machines as well as leasing and rental business.
