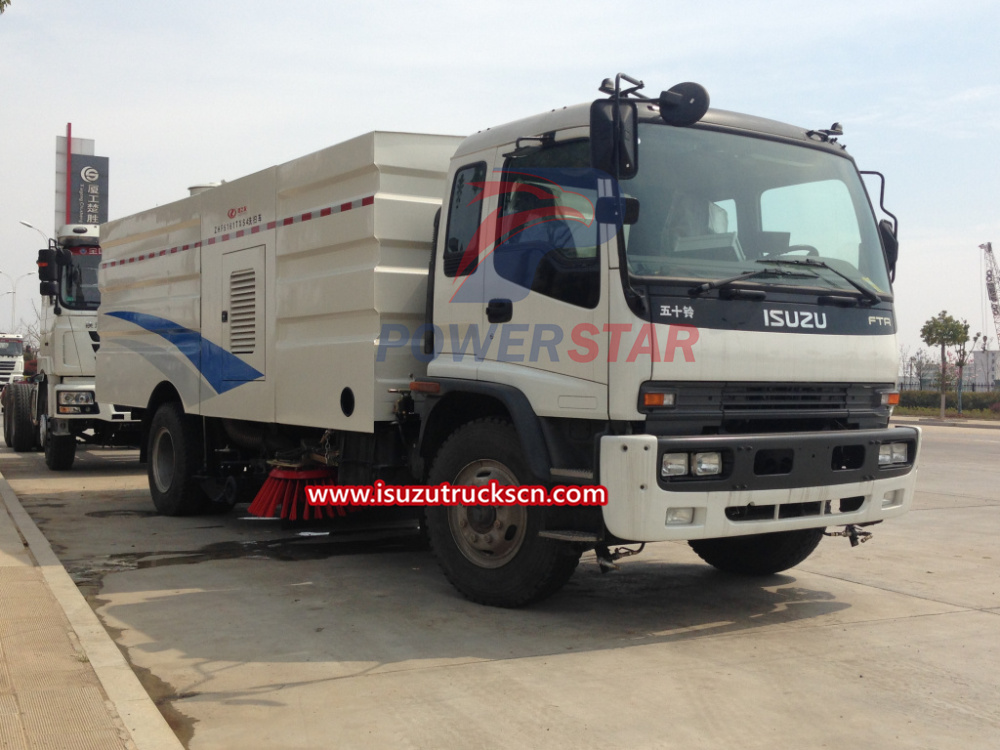

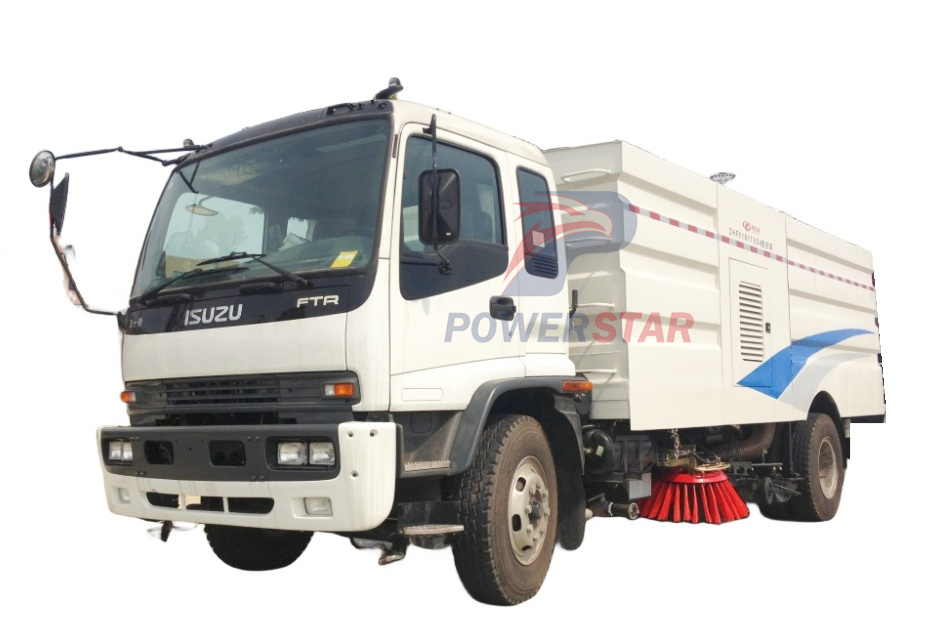

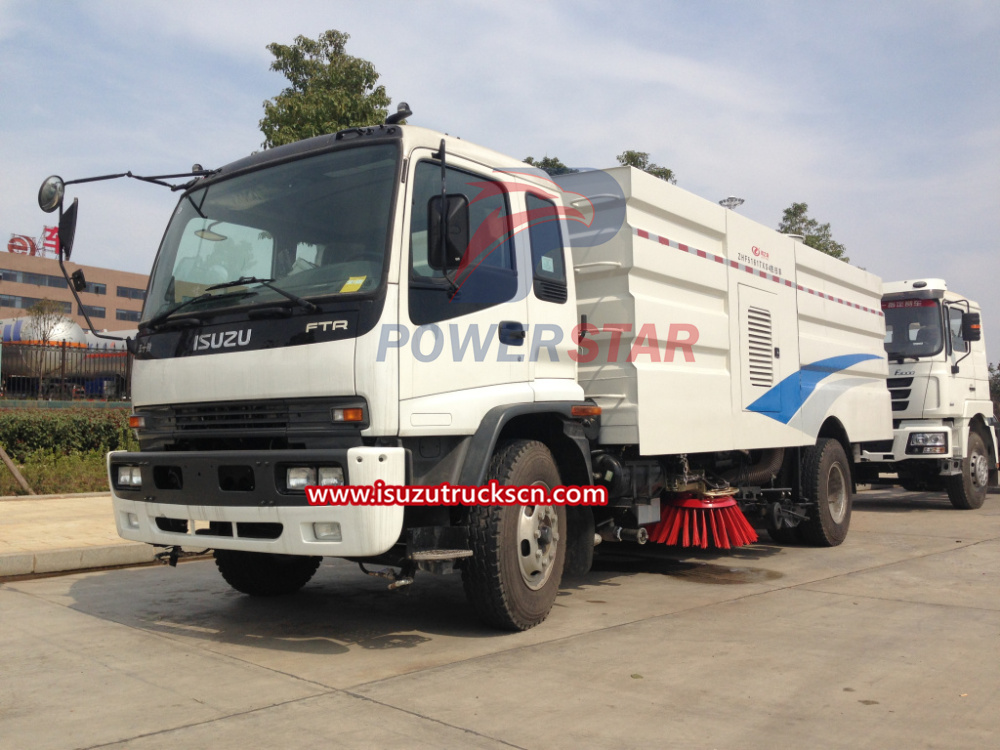

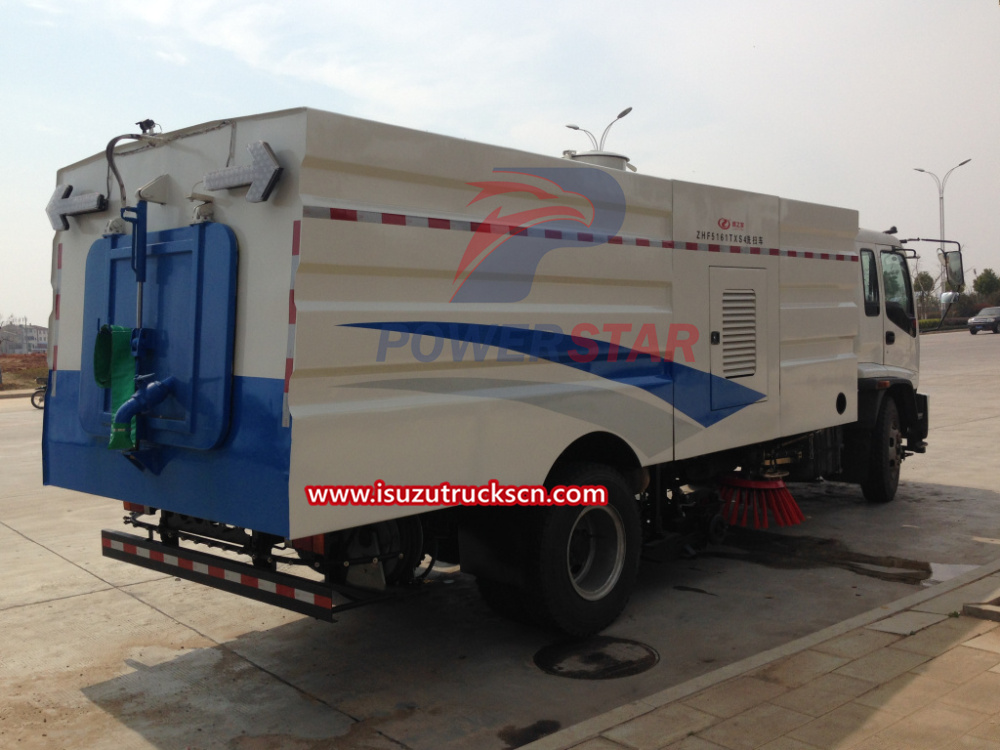

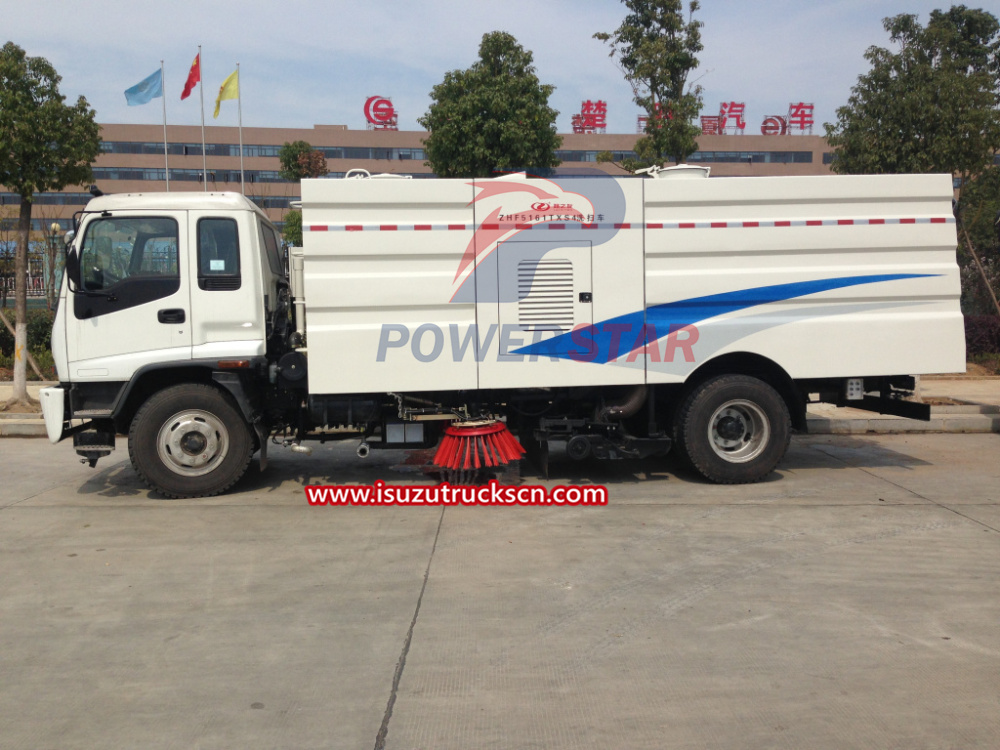

Isuzu Mechanical Broom Sweeper Trucks

Chassis Information

Chassis brand

ISUZU FTR

Chassis model

FTR

Drive type

4×2

Dimension Parameter

Overall dimension (L*W*H) (mm)

8580*2500*3100

Wheel base (mm)

5000

Wheel No.

2

Front / Rear track (mm)

1940/1860

Weight Parameter

GVW (kg)

16000

Kerb weight (kg)

11350

Front / Rear axle (T)

6T / 10T

Engine Parameter

Model

4KH1

Manufacturer

ISUZU

Horsepower (hp)

205

Displacement / power (ml/kw)

5200/140

Engine type

4 cylinder in-line, water cooling

Emission Standard

EURO 5

Transmission

Control type

manual

Gear Shift

6 forward and 1 reverse speeds

Tyre

Type

10.00R20

Tyre No.

6+1 spare tyre

Cab

Type

flat roof cab with A/C, power steering

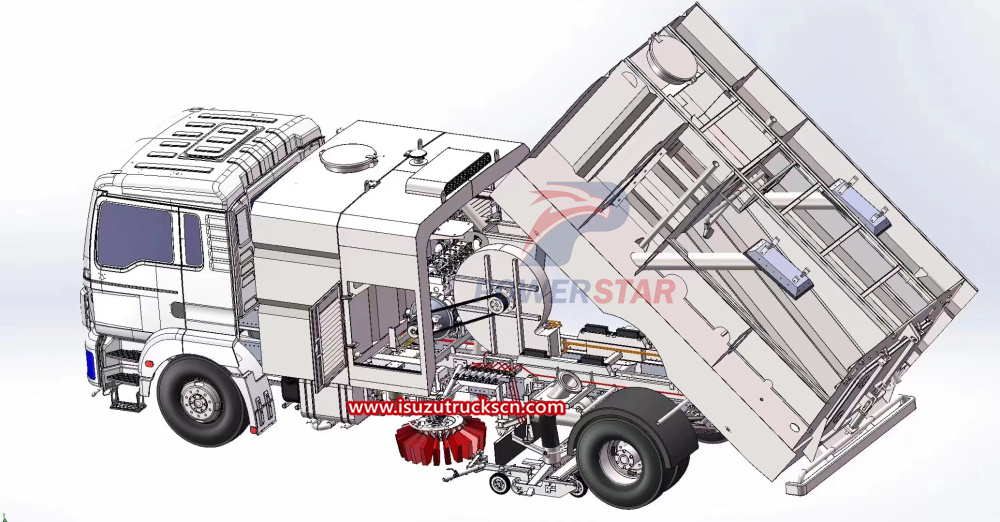

Upper Structure Parameter

 Volume of water tank

9000L

 Volume of Dustbin

5000L

Material of the water tank and garbage tank

Stainless steel

Hydraulic valve

Taiwan famous brand

Hydraulic motor

Domestic famous brand

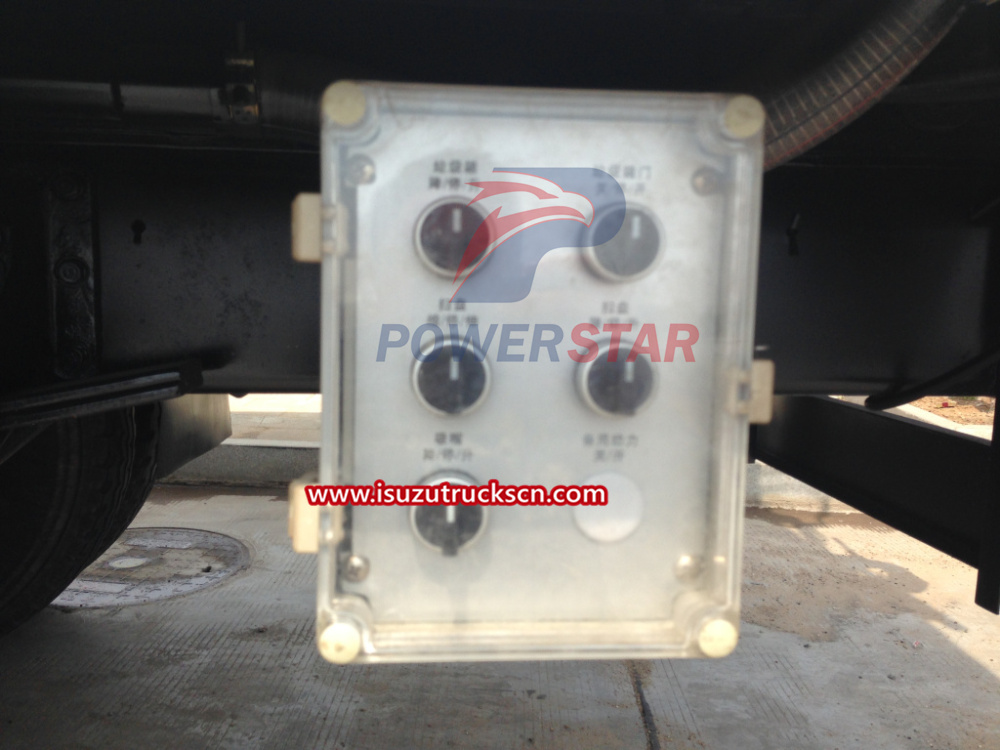

Switch

Schneider control switch

Auxiliary Motor

Brand

Dongfeng Cummins

Horsepower

170HP

High pressure washing Technical

washing width (mm)

3.5m

Washing speed

3-20km/h

Washing water pressure

10Mpa

Water pump flow rate

154L/min

Sweeping Technical

Max sweeping width (mm)

3.5m

Max. sweeping capacity

70000m³/h

Sweeping speed

3-20km/h

Cleaning efficiency

≥95%

Max. particle inhalation

110mm

Disc plate brush extension size

≥400mm

Garbage tank door max. discharge angle

≥50°

Sweeping system

Type

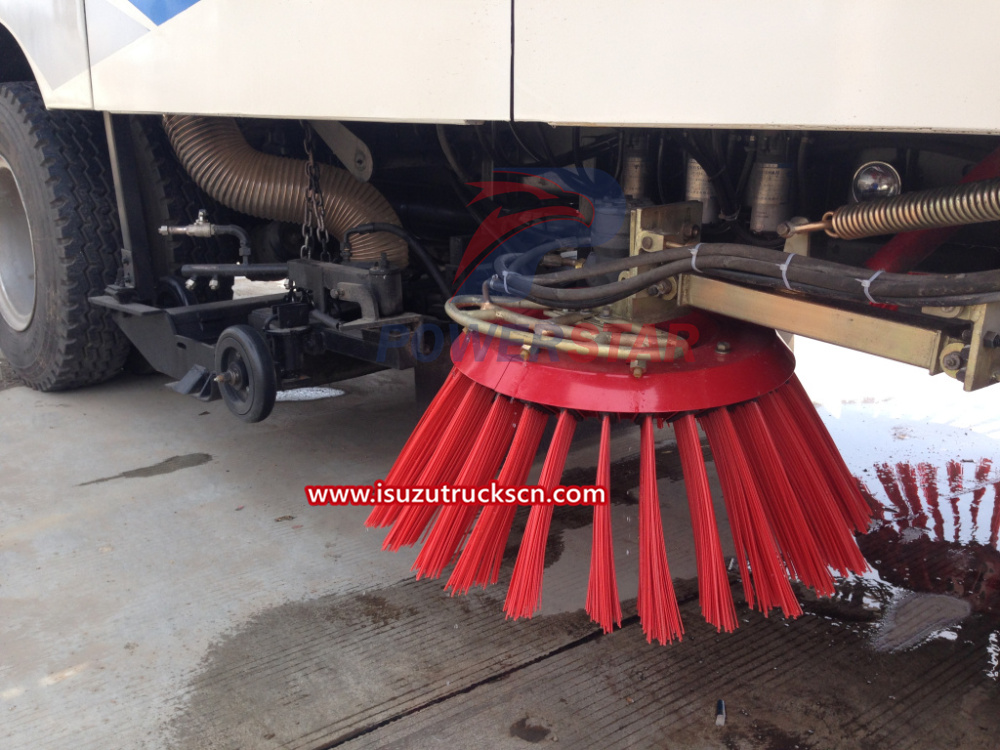

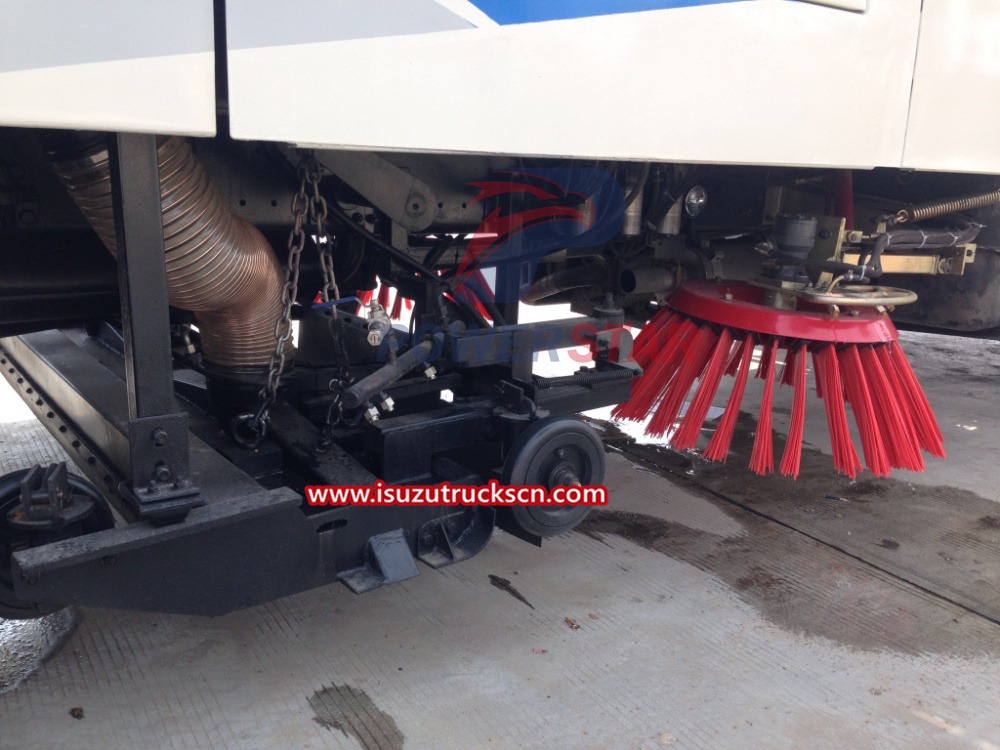

Total 2 pcs brushes and 1 sucking disc mounted in the medium, it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function

Sweeping brush diameter

Φ850mm

Sweeping disk speed

110r/min high-speed,

80r/min medium speed,

50r/min low-speed

Sweeping disk dip angle adjust

forward 4 ° ~ 6 ° extroversion 4 ° ~ 7 °

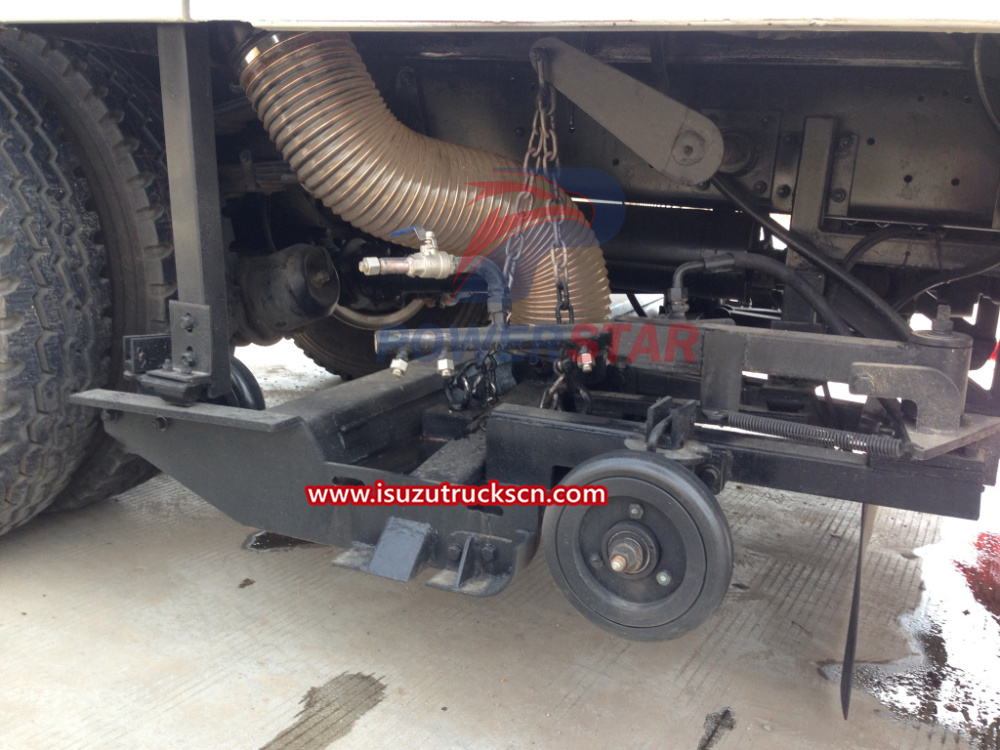

Sucking disc

Type

Double suction hole, hydraulic control, spring suspension

Suction hole diameter

180mm

Suction disc width

2400mm

Hydraulic system

Type

Open type, electrical control

Main components

Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve

Pressure

16Mpa

Hydraulic oil volume

60L

Oil temperature

60°C

Water spraying system

Components

Pump, nozzle, water filter, etc.

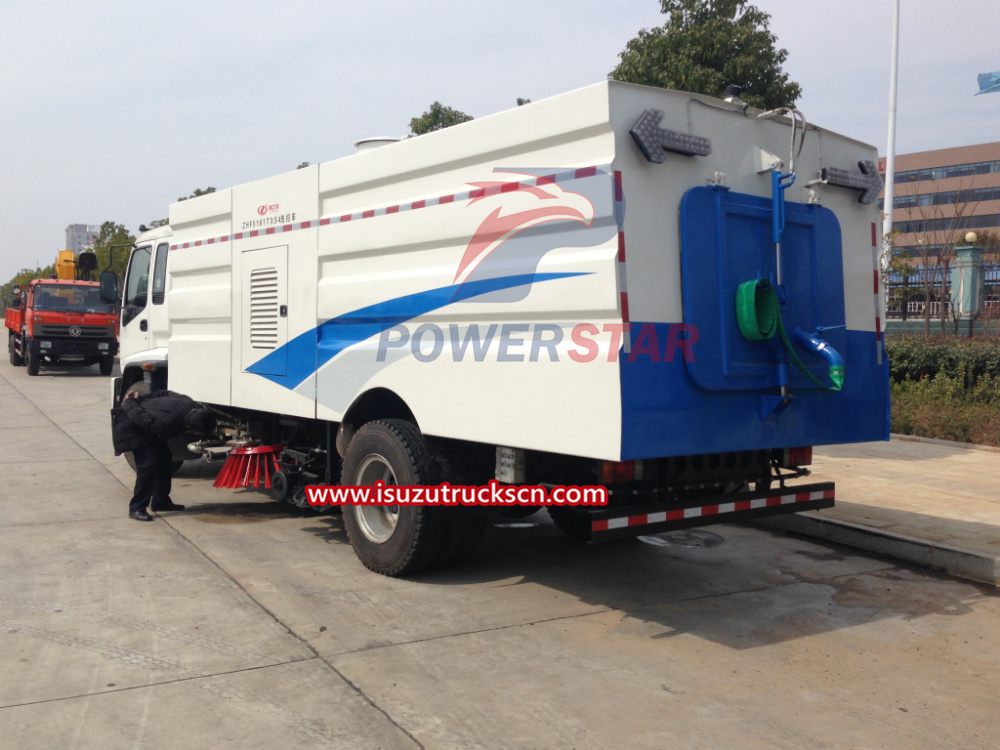

High pressure water system

Type

High pressure plunger pump

Model

Germany PINFL PF36

System Pressure

10Mpa

Rotation speed

1150r/min

Water valve type

hydraulic high pressure ball valve

Water valve pressure

7MPa

Nozzle type

High pressure washing type

Water filter

Strainer mesh

Winch

20m

Low pressure water system

Model

Hangzhou Weilong 60/90

Flow rate

60m³/h

Water delivery distance

90m

Washing width

24m

Side spray rod

type

V-type spray bar, with automatic avoidance function

Electrical system

Type

DC24V, PLC control

Volts

24V

Battery

2x12V

Tools

Fire hose

2 pcs

Fire wrench

1 pcs

Water filter wrench

1 pcs

High pressure spray gun

1 pcs

Manual hydraulic pump rocker

1 pcs

Spare parts

Sweep brush

88 pcs

Fan seal

1 pcs

Rear door seal

1 pcs

Suction tube seal

2 pcs

Import Parts List

High pressure water pump

Germany PINFL PT40

Automatic unloading valve

Germany PINFL VB200/150

Relief valve

Germany PINFL VS200-180

Electric control box controller

Germany STW

Rotary switch

Japan

Sewage tank sensor

USA

Hydraulic valves

Taiwan SWH-G02-C4-D2H

Unit Price (USD/unit)

FOB Shanghai or Qingdao Port, China

Main function

The Isuzu FTR road washing sweeper has three truck function together, road sweeper, water sprinkler, high pressure jetting truck. Road washing sweeper with road sweeping, road washing, high pressure jetting, low pressure washing, road edge washing, garbage collection, sewage recovery, dust suppression, road wall cleaning, small advertising cleaning and other operating functions.
