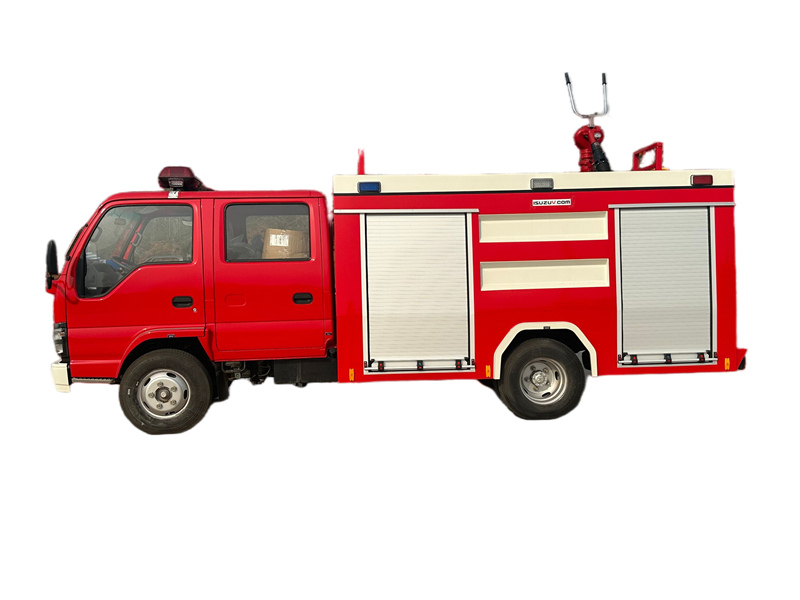

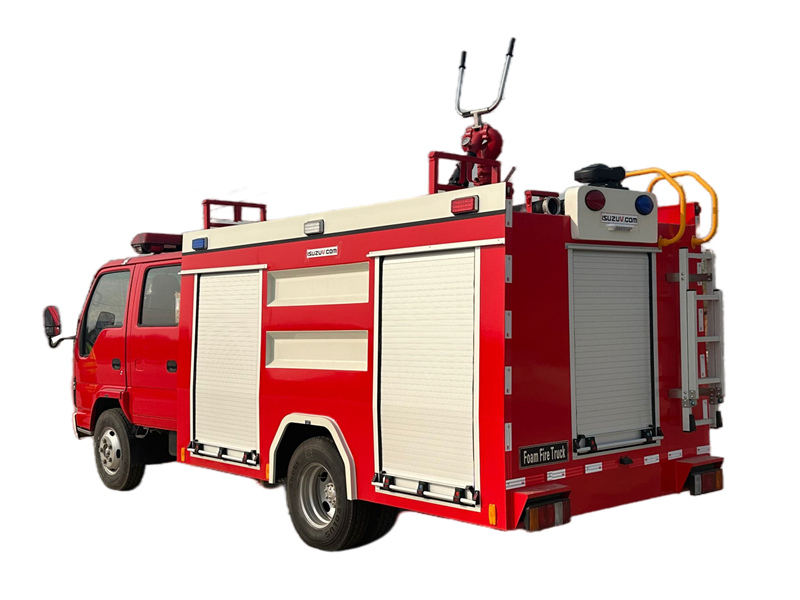

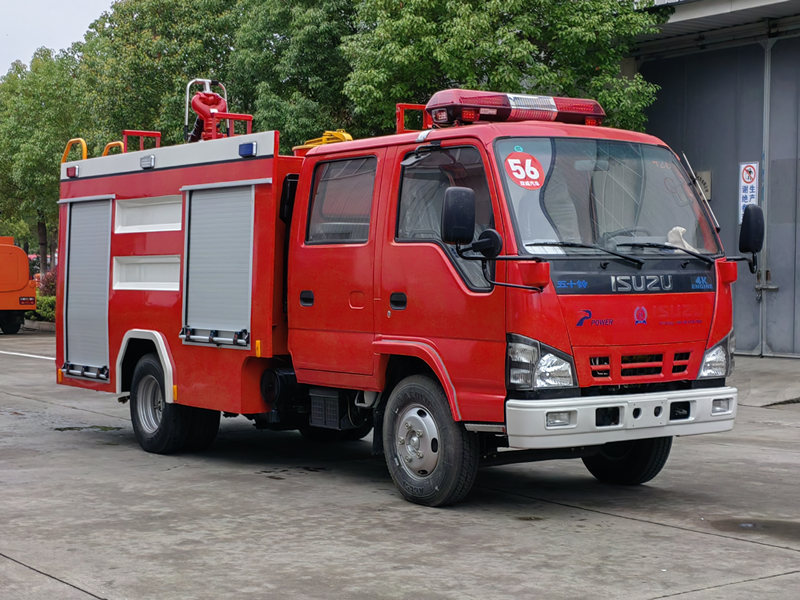

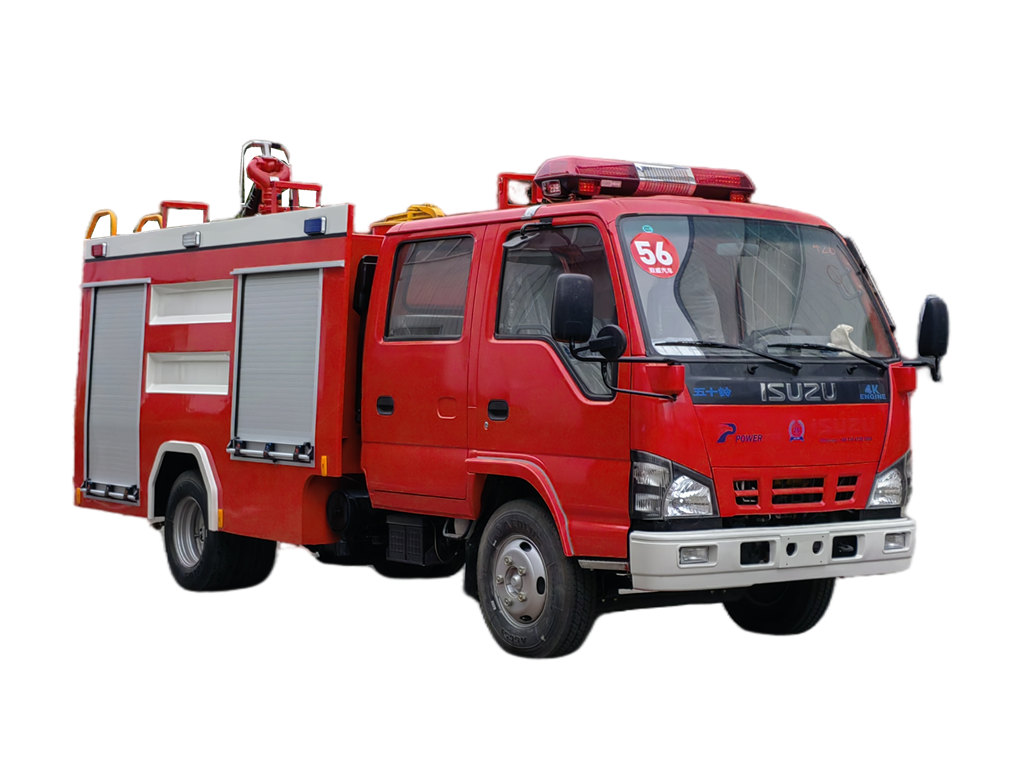

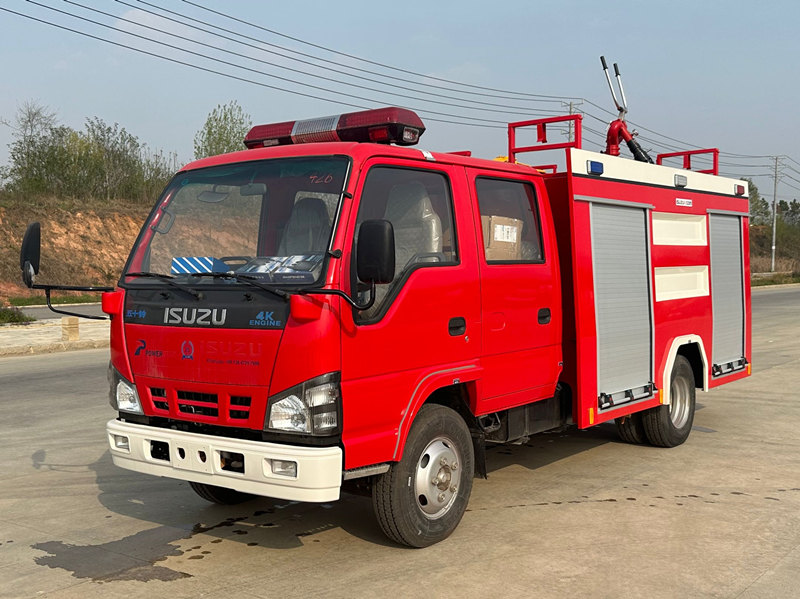

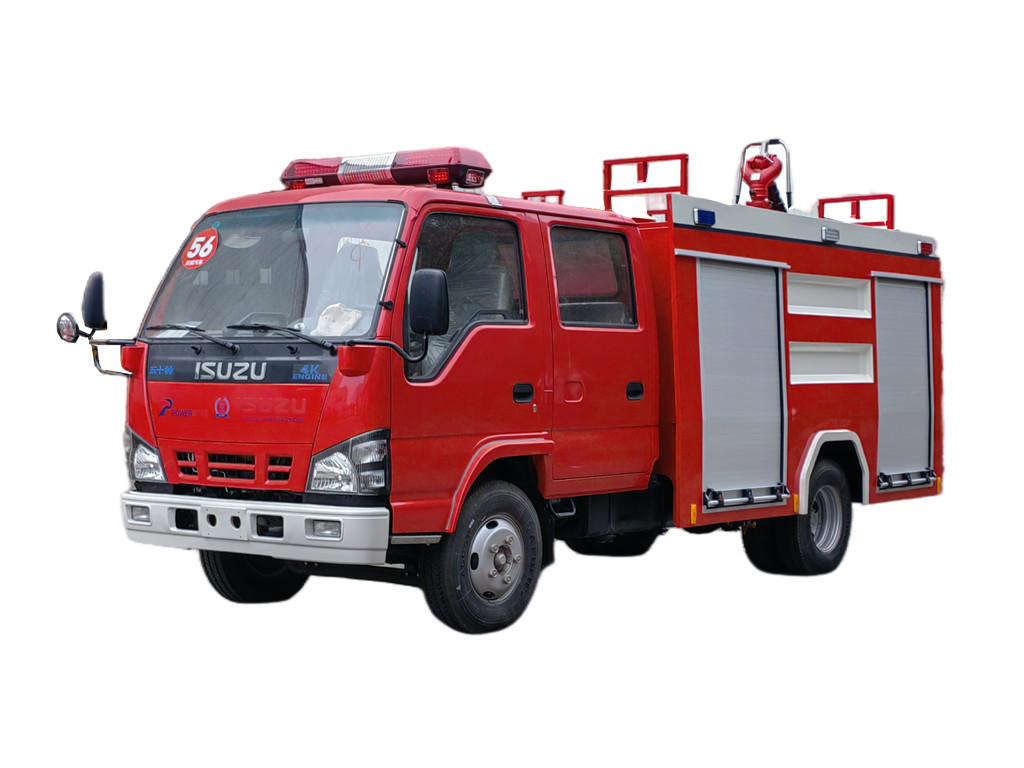

The ISUZU 600P tanker fire truck is a compact fire truck that is well-received by customers. Despite its compact body structure, it is fully functional and utilizes space extremely efficiently. The 2000-liter water tank and 1000-liter foam tank are cleverly arranged, paired with an efficient fire pump and a long-range fire monitor. Its powerful engine and compact body blend perfectly, allowing it to maneuver through narrow streets and quickly reach fire scenes to efficiently carry out fire-fighting and rescue operations.
Manufacturer:
Powerstar TrucksWork capacity:
3000 litersDimension:
6350 x 2250 x 2880mmCabin type:
Isuzu ELF 600P light chassis cabin, 2 seatsWheelbase:
3360mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2, left hand driveGear box:
MSB 5-speed, manualRemarks:
Stainless steel water tank and foam tankThe performance of fire-fighting and rescue equipment directly affects the success or failure of fire-fighting operations. The ISUZU NKR foam fire truck, with its outstanding design and powerful performance, has become the preferred equipment for many fire departments. This fire truck is meticulously built based on the ISUZU QL1070 chassis, featuring a compact and reasonable overall design. It not only has good trafficability but also excellent maneuverability, enabling it to quickly respond to various fire scenes and buy valuable time for fire-fighting and rescue work.
The upper body of the ISUZU mini tanker fire truck is carefully designed, with all parts working together to provide a solid guarantee for efficient fire-fighting. Its tank is made of high-quality stainless steel, featuring corrosion resistance and high strength, ensuring the service life and safety of the tank. The water tank has a capacity of 2000 liters, and the foam tank has a capacity of 1000 liters, providing sufficient water and foam extinguishing agents for long-term and large-scale fire-fighting operations.

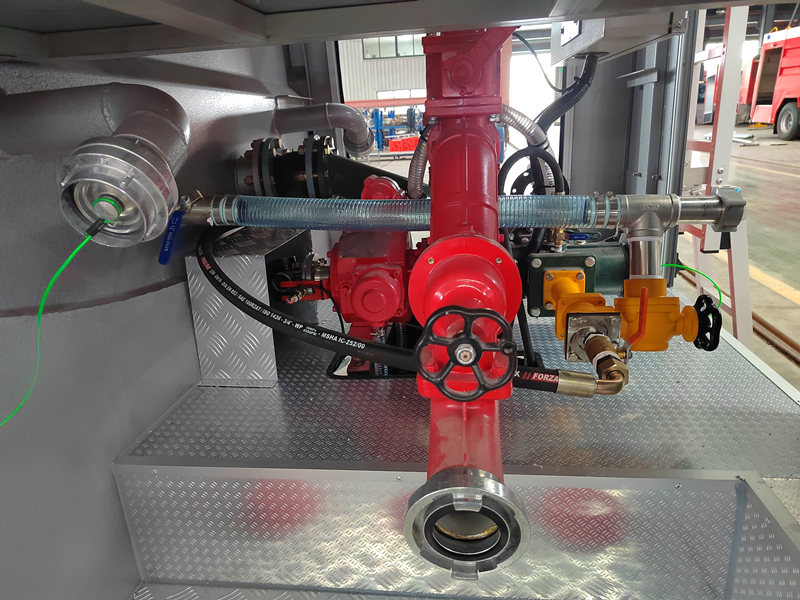

The fire pump is one of the core components of a fire truck. The ISUZU 600P fire pumper truck is equipped with a CB10/30 type constant pressure pump, with a pressure of ≥1.0 MPa, a maximum suction height of 7 meters, a flow rate of 30 L/S, a rated speed of 2800 r/min, and a suction time of ≤50 s. Its powerful pumping capability enables the fire truck to quickly draw water and deliver the extinguishing agent to the fire scene, providing strong power support for fire-fighting work.

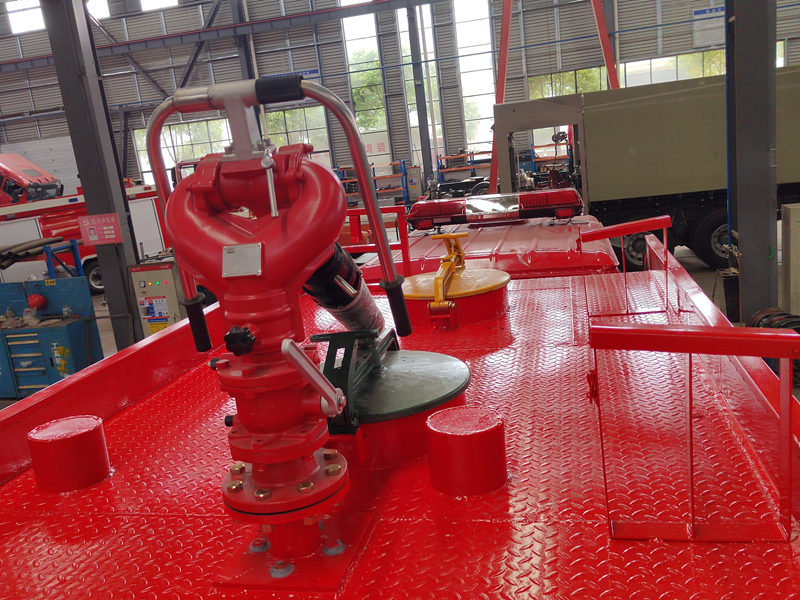

The fire monitor is a key device for fire extinguishing. The PL24 type fire monitor equipped on the ISUZU light fire tanker truck performs excellently. Its water range is ≥45 meters, foam range is ≥40 meters, flow rate is 24 L/S, rated working pressure is 1 MPa, and rotation angle is 360°. Firefighters can flexibly adjust the angle and spray mode of the fire monitor according to the actual situation at the fire scene, achieving precise strikes on the fire source and effectively controlling the spread of the fire.

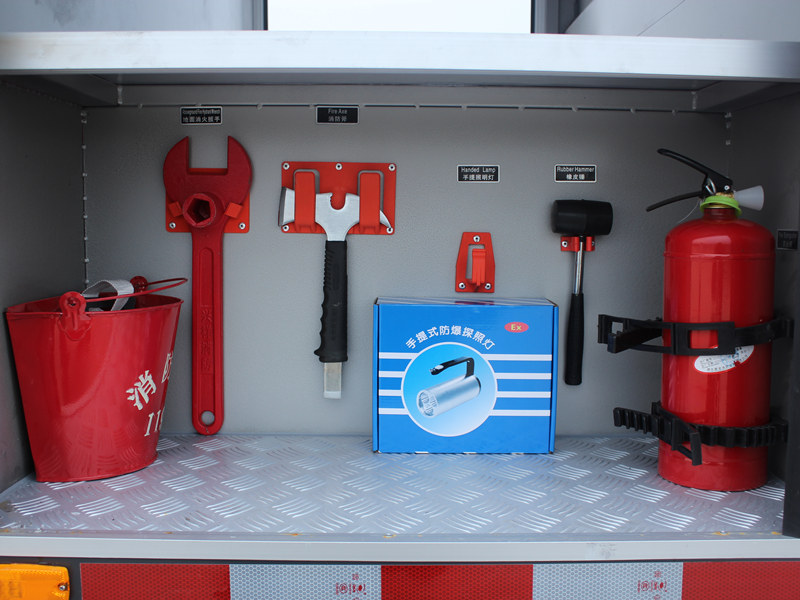

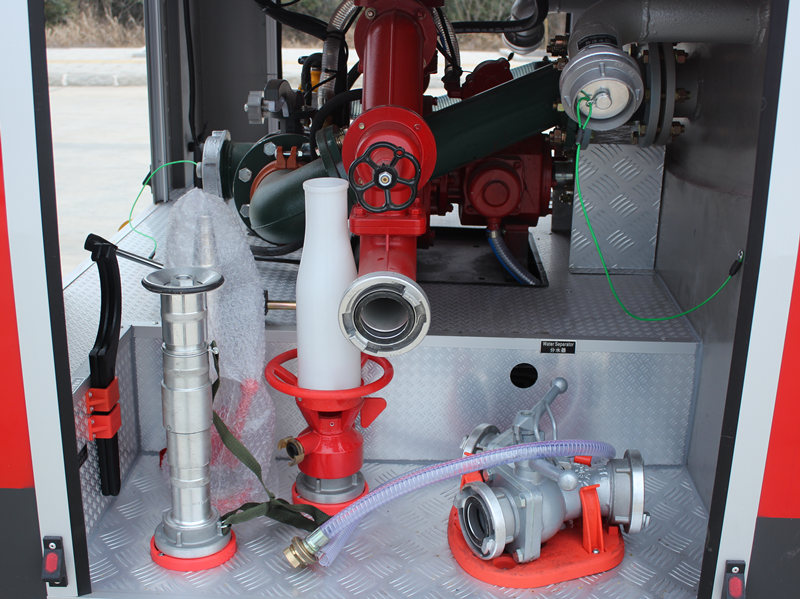

In addition, the ISUZU mini firefighting truck is equipped with a pump room and an equipment room, making it convenient for firefighters to store and access various fire-fighting equipment and improving rescue efficiency. Its overall structure is compact, and space is utilized reasonably, ensuring complete functionality while also enhancing the vehicle's maneuverability and flexibility.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality
Product Specifications
|
Chassis brand |
ISUZU |
|
|
Chassis model |
QL1070 |
|
|
Overall dimension(L*W*H) |
6350x2250x2880mm |
|
|
Total weight |
7,300 kg |
|
|
Rated Loading capacity |
3,000 kg |
|
|
Number of seats |
2+3 |
|
|
Chassis |
Drive model |
4x2 left hand drive |
|
Axle loading (front/rear) |
2500/4800 kg |
|
|
Wheelbase |
3360 mm |
|
|
Front/rear suspension |
1015/1845 mm |
|
|
Approach/departure angle |
17/13 (°) |
|
|
Spring number |
8/6+5 |
|
|
Tyre size & number |
7.00R16, 6 pcs with one spare tyre |
|
|
Max speed |
90 km/h |
|
|
Engine |
Manufacturer |
ISUZU |
|
Model |
4KH1CN6LB |
|
|
Engine Type |
Diesel |
|
|
Horse power |
88kw/120hp |
|
|
Displacement |
2999 ml |
|
|
Emission |
Euro 6 |
|
|
Tank |
Water tank capacity |
2000 liters |
|
Foam tank capacity |
1000 liters |
|
|
Material |
Stainless steel |
|
|
Fire pump |
Model |
CB10/30, Normal pressure pump |
|
Pressure |
≥1.0 Mpa |
|
|
Max suction height |
7 m |
|
|
Flow |
30 (L/S) |
|
|
Rated speed |
2800 (r/min) |
|
|
Time of drawing water |
≤50 (s) |
|
|
Fire monitor |
Model |
PL24 |
|
Water range |
≥45 m |
|
|
Foam range |
≥40 m |
|
|
Flow |
24 (L/S) |
|
|
Rated Working pressure |
1 Mpa |
|
|
Rotation angle |
360 (°) |
|
