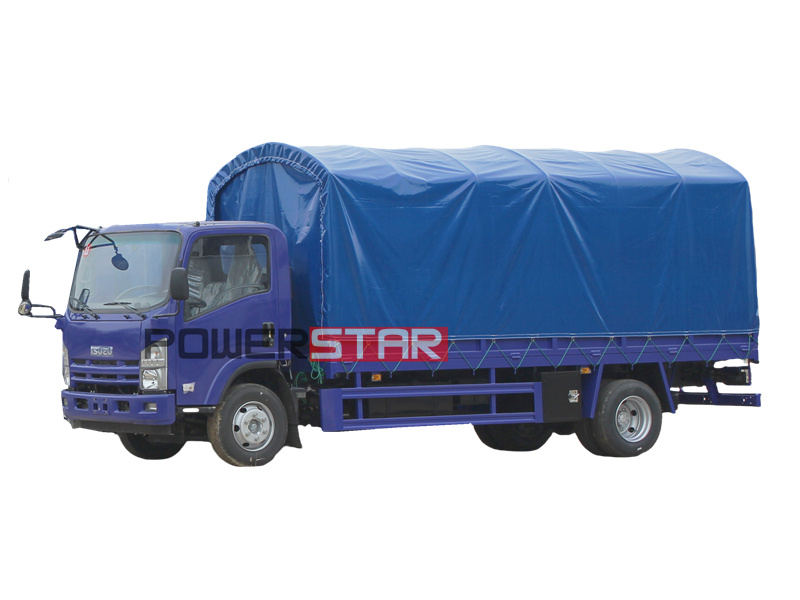

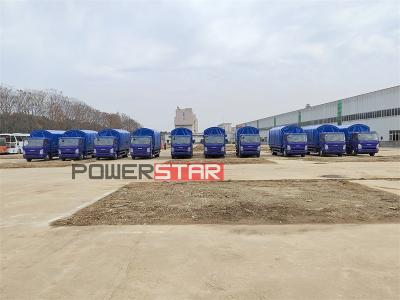

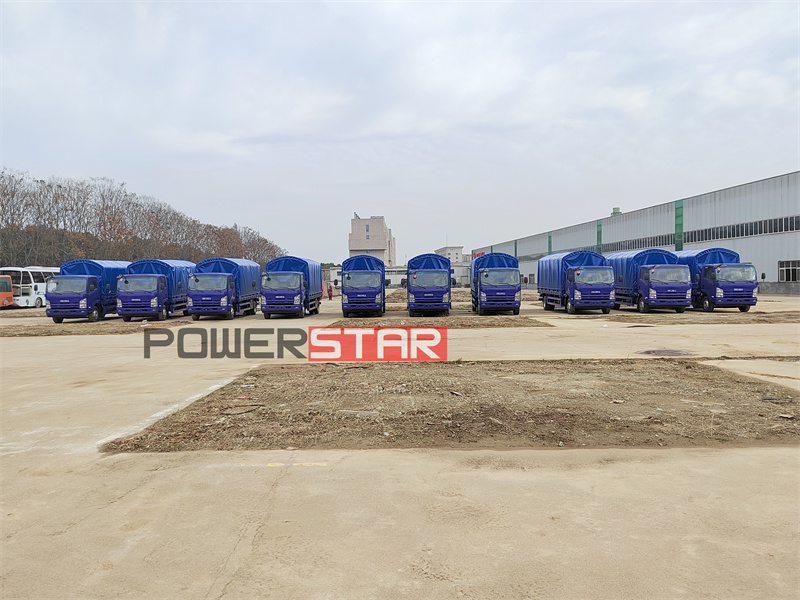

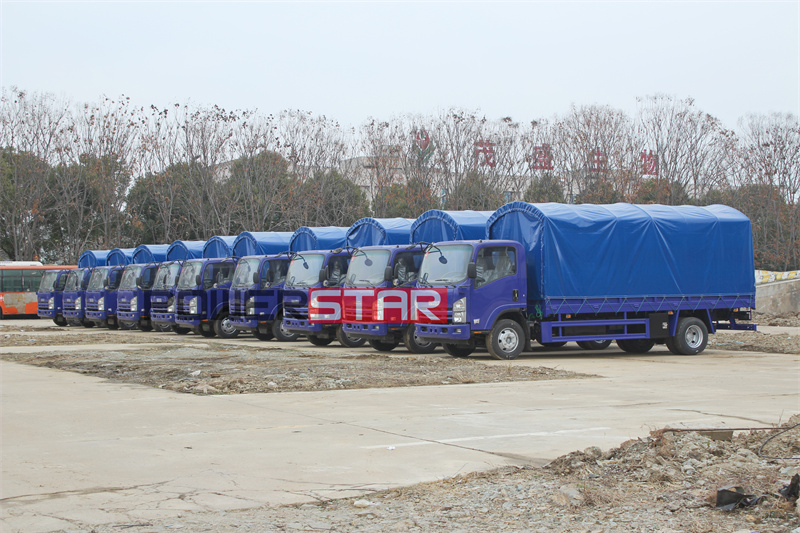

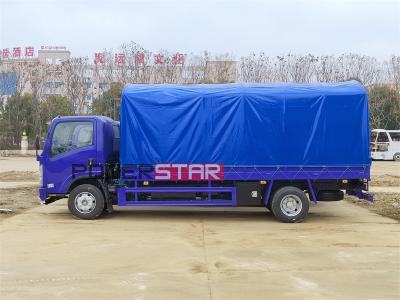

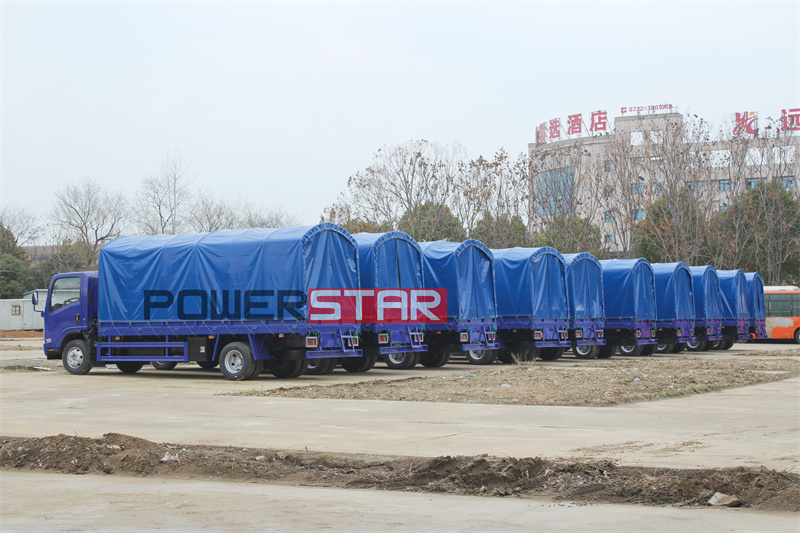

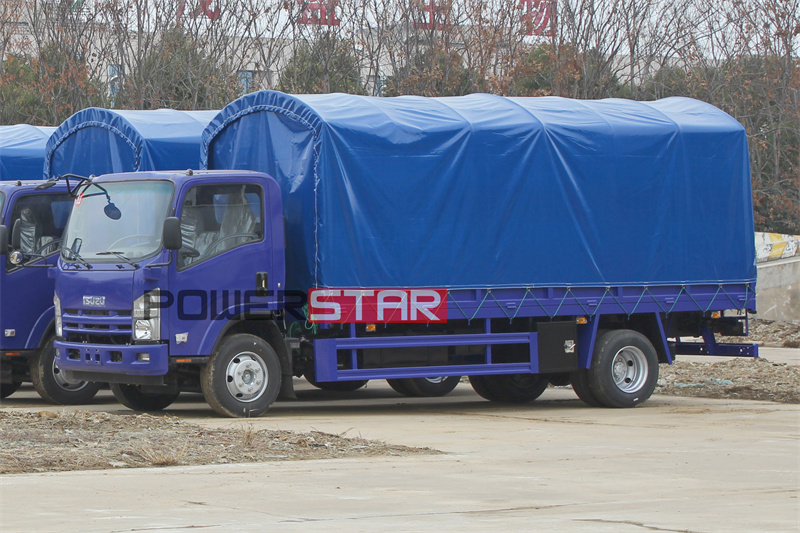

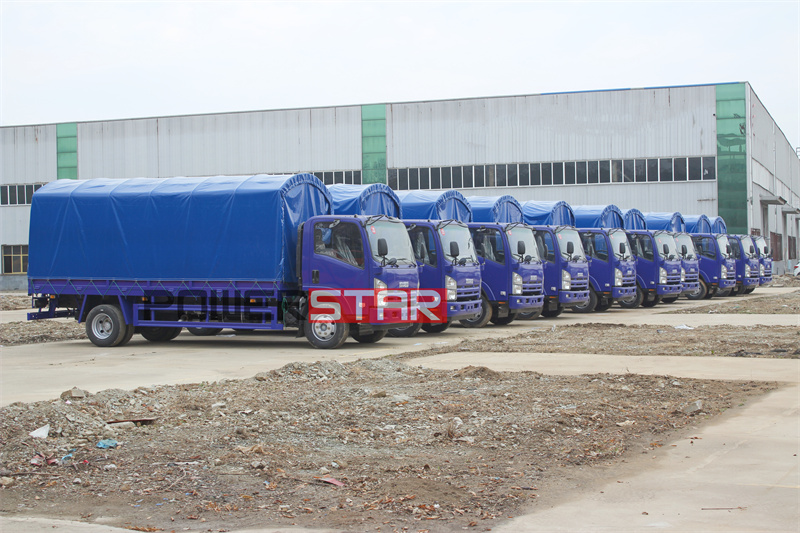

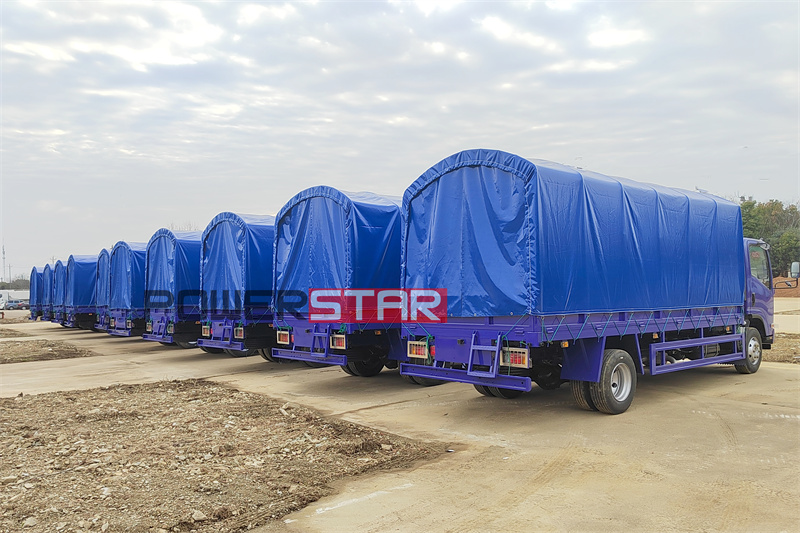

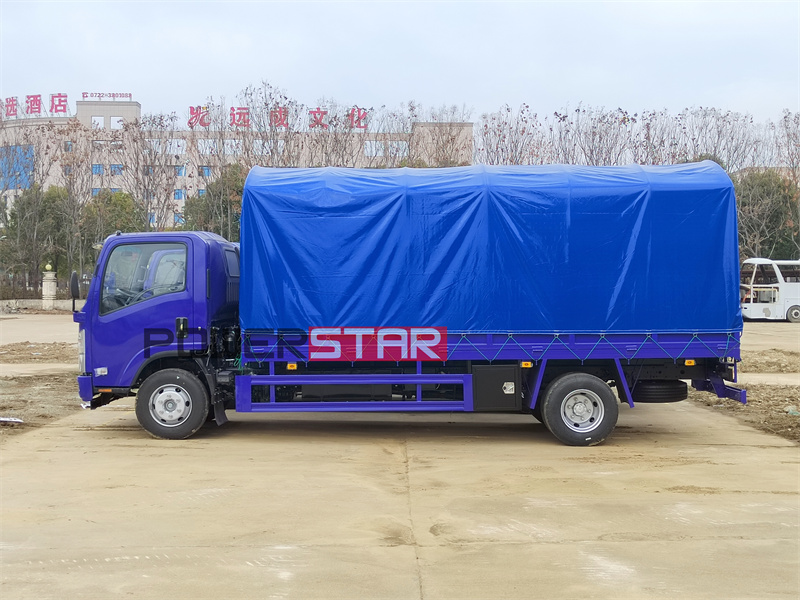

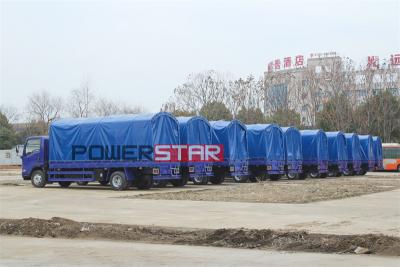

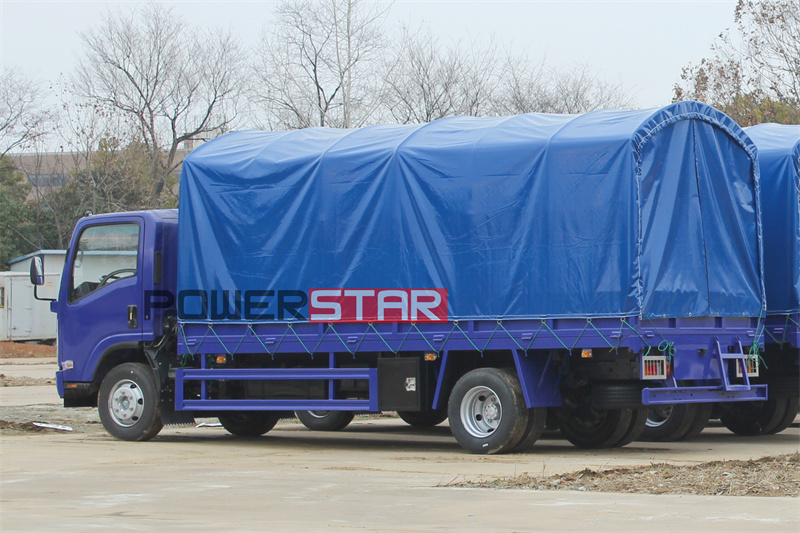

This is a Soldier carrier truck built on the Isuzu NPR chassis. With a 4x4 drive mode, the carrier truck is equipped with a 4HK1-TCG61 4-cylinder in-line diesel engine with a displacement of 5193ml, a rated power of 139kw/190hp, and a maximum speed of 110km/h, ensuring the maneuverability of the truck. The front axle of the chassis weighs 4 tons, the rear axle weighs 7 tons, and is equipped with 235/75R17.5 tires, a total of 6+1, with a standard load capacity and flexibility. The upper body measures 4668x2150x1250mm, made of a mixture of ordinary steel and wood, with a load capacity of 8000kg. The body is painted blue, equipped with a blue tarpaulin with windows and a rear door, and has foldable seats inside. This troop carrier combines the reliable performance of the Isuzu chassis with a customized military car body design, suitable for various military transportation and personnel dispatch tasks, and embodies the perfect combination of functionality and practicality.
Work capacity:
20 peopleEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
ISUZU 4WD chassis, large space van for 20 passengersISUZU Soldier carrier truck is a leader in military transport, integrating advanced technology and practical experience. With Isuzu's classic NPR chassis and 4HK1-TCG61 engine as the core, it creates a high-performance, reliable and durable product. This ISUZU NPR Soldier carrier truck adopts 4x4 drive, equipped with a well-designed suspension system and optimized approach and departure angles, which can easily cope with various complex terrains. The maximum speed of 110km/h ensures rapid maneuverability, while the 8-ton load capacity meets diverse transportation needs.

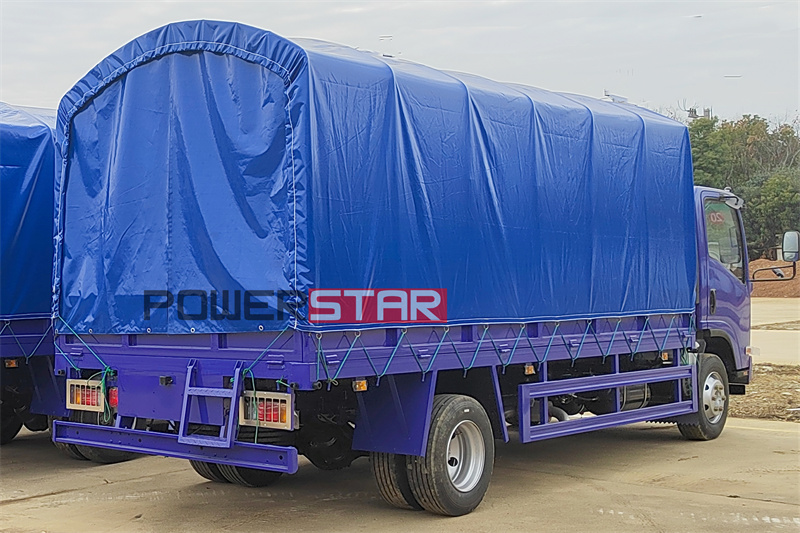

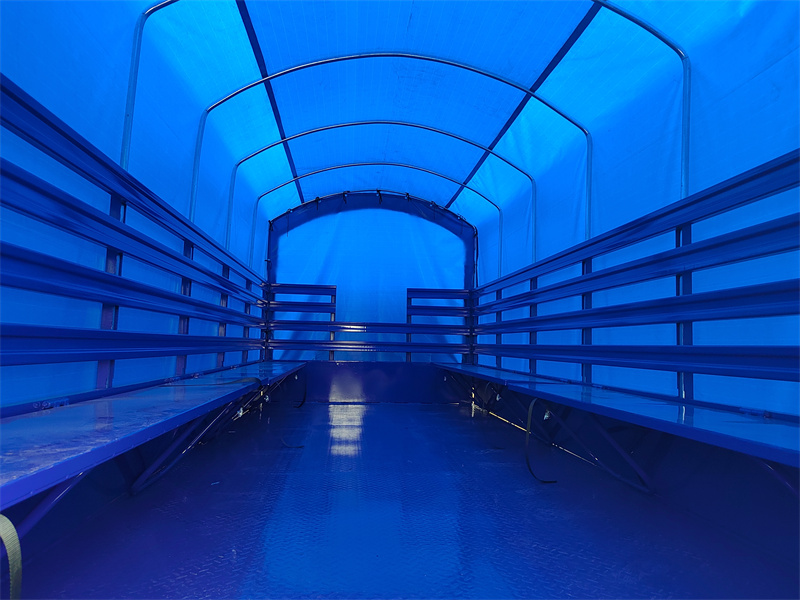

The van adopts a steel and wood structure, combining strength and lightness. The blue waterproof tarpaulin, flexible window design and foldable seats not only improve practicality, but also provide a comfortable riding experience for the occupants. We pay special attention to safety performance, strengthen the body structure, optimize the seat layout, and equip it with comprehensive safety equipment.
In addition, the design concept of our factory also includes easy maintenance, versatility and concealment. The modular car body structure facilitates modification according to different mission requirements, while the carefully selected body color and contour design effectively reduce visual exposure. While ensuring high performance, economy is also fully considered. The efficient engine and highly versatile parts not only reduce operating costs but also improve maintenance efficiency.
The ISUZU NPR 4X4 Soldier carrier truck is a perfect combination of performance, functionality and economy, and will surely become a powerful assistant for military transport missions.
Specifications:
|
Chassis parameters |
|||
|
Chassis model |
Isuzu NPR |
Vehicle brand |
PST5110YBC |
|
Overall dimensions |
6600x23000x2730mm |
Wheel base |
3800mm |
|
Front/rear wheel track |
1380/1450mm |
Front/rear suspension |
1110/2602mm |
|
Approach/departure angle |
20/10° |
Maximum speed |
110km/h |
|
Engine |
Model |
4HK1-TCG61 |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, diesel engine |
||
|
Rated power |
139kw / 190 hp |
||
|
Displacement |
5193ml |
||
|
Tire |
Size |
235/75R17.5 |
|
|
Number |
6+1 nos |
||
|
Frame |
216*70*6+3 mm |
||
|
Front axle |
4 tons |
||
|
Rear axle |
7 tons |
||
|
Drive form |
4X4 |
||
|
Van body structure parameters |
|||
|
Van dimensions |
4668x2150x1250 mm |
Loading capacity |
8000kg |
|
Van material |
Common steel and wooden |
Color and Logo |
Truck color blue |
|
Standard configuration |
Chassis,sub frame,Common steel and wooden van body. Bule trap with windows and rear door, Foldable chairs. |
||
Application:
The design of this ISUZU NPR 4X4 Soldier carrier truck fully considers the diverse usage scenarios and is highly adaptable. Here is a detailed introduction to its typical applications:
1. Border patrol: Thanks to its excellent off-road performance and 4x4 drive system, this ISUZU ELF Soldier carrier truck can easily cope with the rugged border terrain. Whether it is mountains, deserts or jungles, it can ensure the mobility and safety of the patrol team.
2. Emergency rescue: In natural disasters or emergencies, this ISUZU ELF Soldier carrier truck can quickly transport rescue personnel and supplies. Its strong load capacity and passability make it an ideal choice for disaster relief operations.
3. Peacekeeping missions: In international peacekeeping operations, this ISUZU carrier truck can provide reliable transportation support for peacekeeping forces. Its protective performance and mobility can ensure the safety of personnel in complex environments.
4. Military exercises: In various military exercises, this ISUZU NPR carrier truck can be used to simulate the transportation of personnel and equipment in actual combat environments, providing troops with a real training experience.
5. Logistics supply: With its excellent load-carrying capacity and fuel efficiency, this ISUZU carrier truck is very suitable for long-distance logistics supply missions to ensure the supply of materials to front-line troops.
6. Rapid response forces: The maximum speed of 110km/h makes it an ideal vehicle for rapid response forces, capable of transporting troops to designated locations in the shortest time.
7. Urban security: In special periods when urban security needs to be strengthened, this ISUZU ELF carrier truck can be used as an important part of mobile forces to quickly deploy personnel for urban patrols and key area protection.
8. Multinational joint exercises: Due to the use of internationally common chassis and engines, this ISUZU NPR carrier truck has good compatibility and maintenance convenience in multinational joint exercises.
9. Plateau and cold zone operations: The specially tuned engine and chassis system make this ISUZU 190hp carrier truck also suitable for military operations in plateaus or extremely cold areas, ensuring all-weather and all-region combat capabilities.
10. Civilian modification: When necessary, this ISUZU 4X4 carrier truck can also be modified for civilian use, for special purposes such as personnel transportation for large-scale engineering projects or field scientific research.
