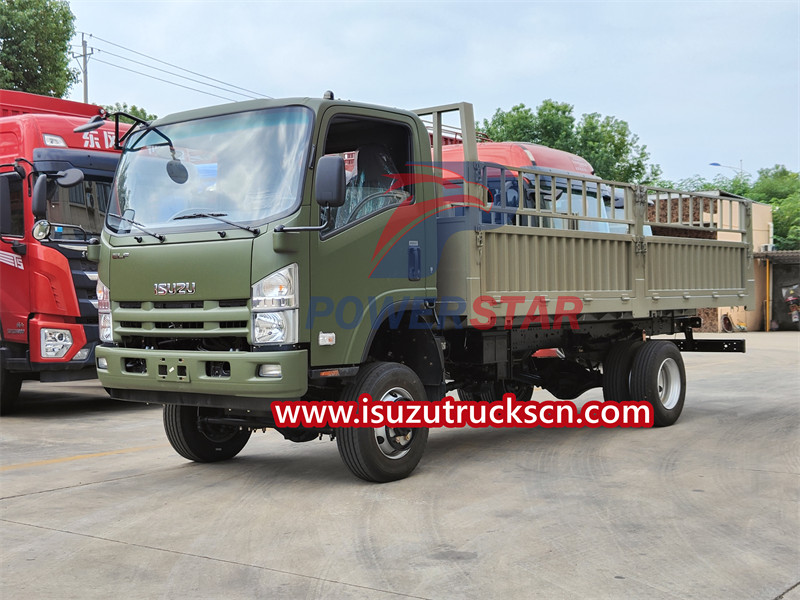

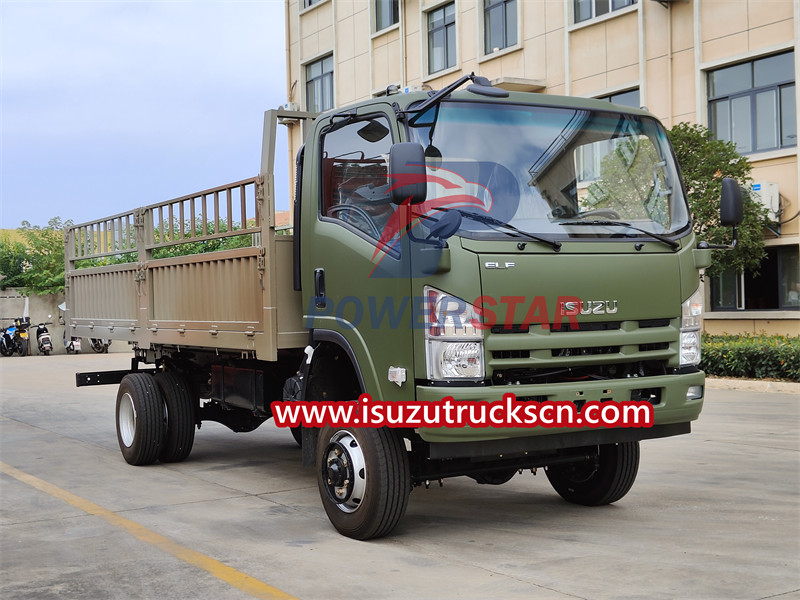

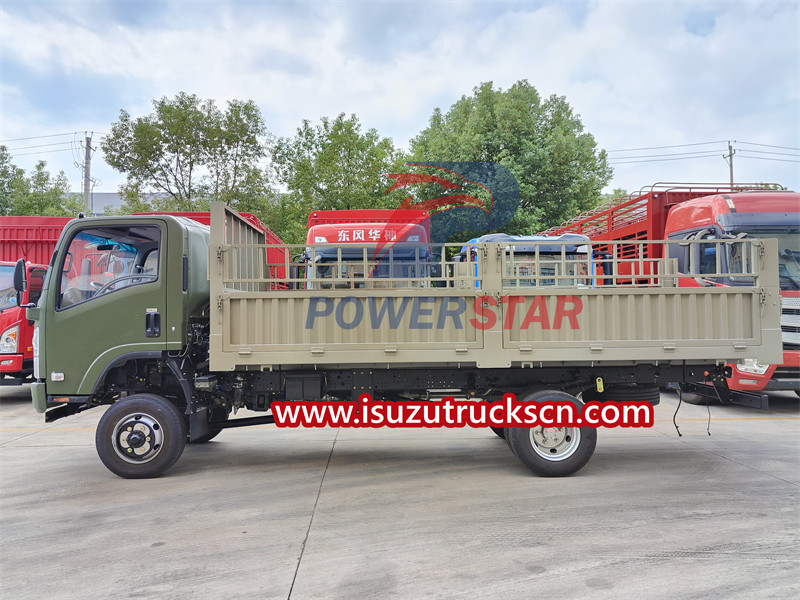

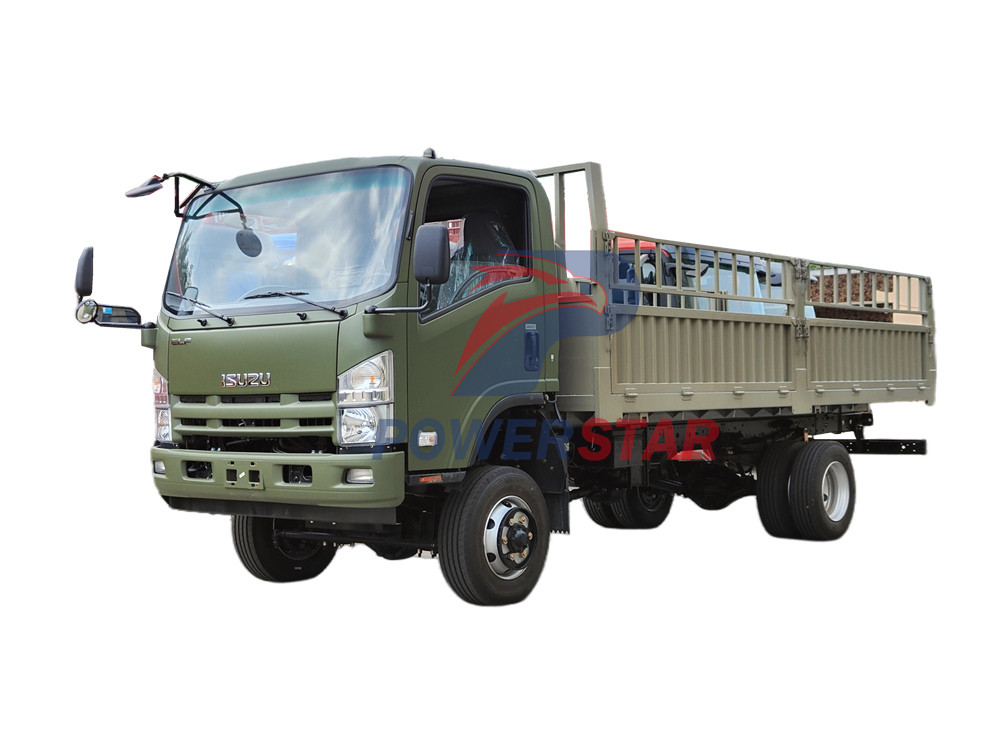

The ISUZU NPR 4×4 troop carrier is a truck specially designed for extreme off-road environments, with powerful off-road performance and unparalleled stability. The vehicle adopts a unique suspension system and powerful power output, allowing it to easily cope with various complex terrains and harsh environments.
Work capacity:
6 tonsEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
ISUZU NPR 4WD chassis, cargo box with 20 seats
The ISUZU 4×4 troop carrier truck adopts an advanced four-wheel drive system, which can provide stable driving force in various complex terrains and harsh weather conditions. Whether it is rugged mountain roads, muddy swamps, or severe cold and heat, it can ensure the rapid mobility and efficient deployment of troops.

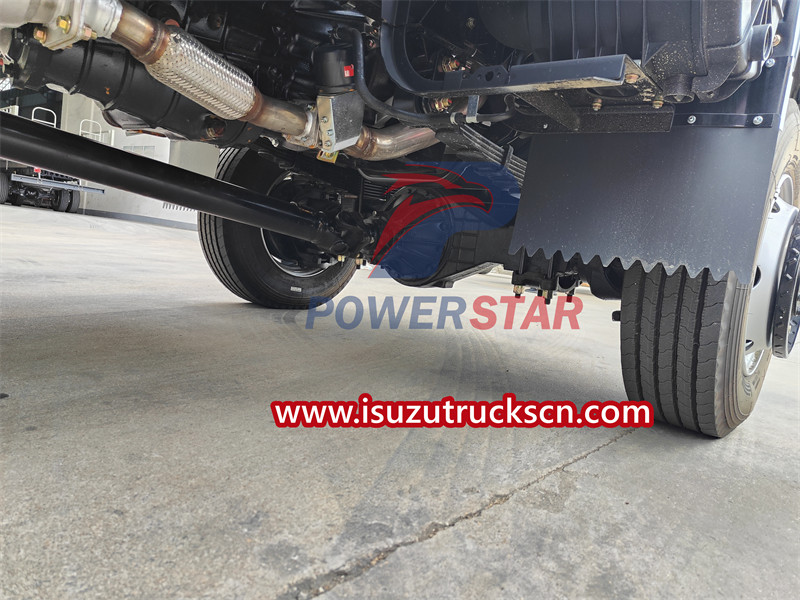

ISUZU NPR 4×4 troop carrier has strong load capacity and can carry a variety of heavy equipment and supplies. The vehicle adopts a reinforced suspension system and a solid body structure to ensure the vehicle's stability and reliability under heavy loads.
ISUZU 4×4 military truck features high quality and comfort in terms of internal configuration. It has a spacious cab, high-quality interior materials and modern technological configurations to ensure a comfortable experience for drivers and passengers.
ISUZU off-road troop transport trucks focus on safety performance in design, using high-strength steel and reinforced body structures to effectively resist external impacts and protect the safety of personnel inside. The truck is also equipped with a number of active safety technologies, such as ABS anti-lock braking system, ESP body stability control system, etc., which improves the vehicle's handling stability in complex road conditions and safety during emergency braking.
Product Specifications
|
Driving type |
4X4 |
|
|
GVW（Kg） |
11000 |
|
|
Rated load（Kg） |
6000 |
|
|
Curb weight（Kg） |
5100 |
|
|
Max. driving speed（Km/h） |
90 |
|
|
Overall dimensions（mm） |
Length |
8400 |
|
Width |
2300 |
|
|
Height |
3400 |
|
|
Box dimensions（mm） |
Length |
6200 |
|
Width |
2300 |
|
|
Height |
600 |
|
|
Wheelbase（mm） |
4475 |
|
|
Wheel track（front/rear）（mm） |
1680 /1650 |
|
|
Front/rear overhang（mm） |
1250/2020 |
|
|
Approach / departure angle（0） |
30/18 |
|
|
Minimum turning radius (m) |
16 |
|
|
Minimum ground clearance（mm） |
250 |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4HK1-TC51 |
|
|
Fuel type |
Diesel |
|
|
Power（KW/HP） |
141KW/190HP |
|
|
Displacement (ml) |
5193 |
|
|
Emission standard |
Euro 5 |
|
|
Rated speed (r/min) |
2600 |
|
|
Max. torque（N.m） |
510 |
|
|
Clutch |
Dry single plate with cushioning spring |
|
|
Gear box |
MLD 6-speed, manual |
|
|
Front axle |
4000 kg |
|
|
Rear axle |
7000 kg |
|
|
No. of leaf spring |
8/10+6 |
|
|
Steering |
Power assisted |
|
|
Tires |
235/75R17.5 |
|
|
Cabin |
Single cab, with A/C and ABS |
|
|
No. of seats |
3 |
|
|
Fuel tank（L） |
100 |
|
 |
 |
 |
 |
Product Features
1. Powerful off-road capability: The ISUZU NPR 4×4 troop carrier adopts a rugged and durable chassis design and has excellent off-road performance.

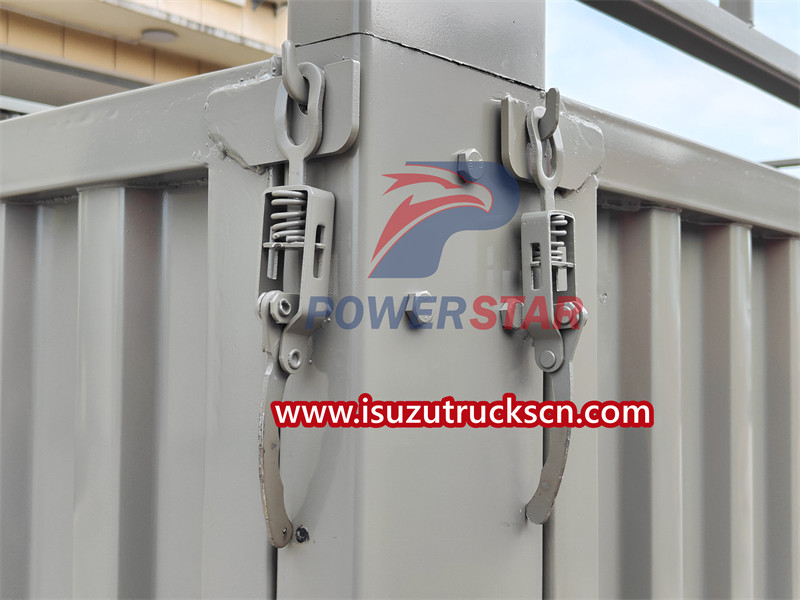

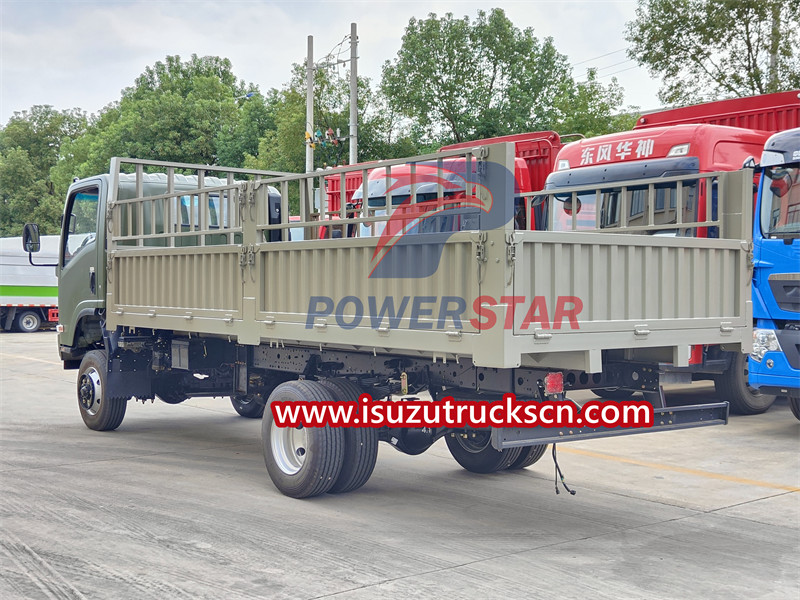

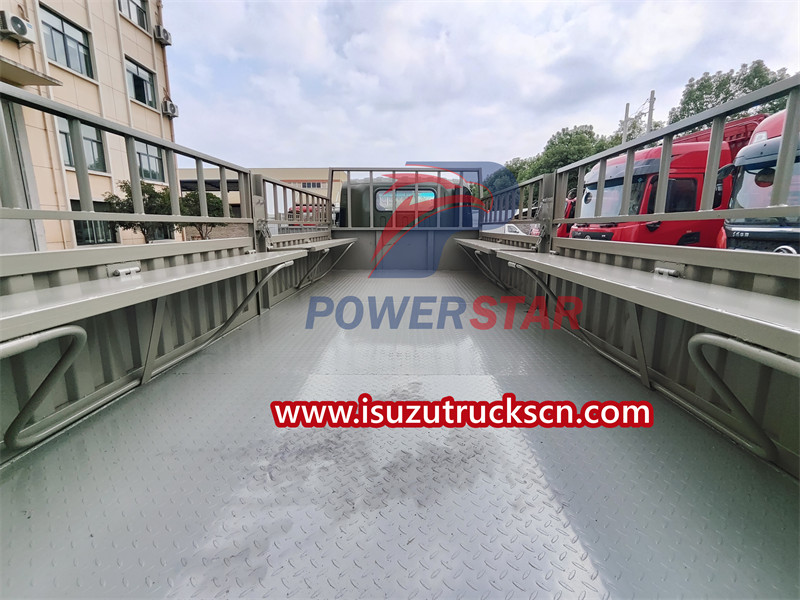

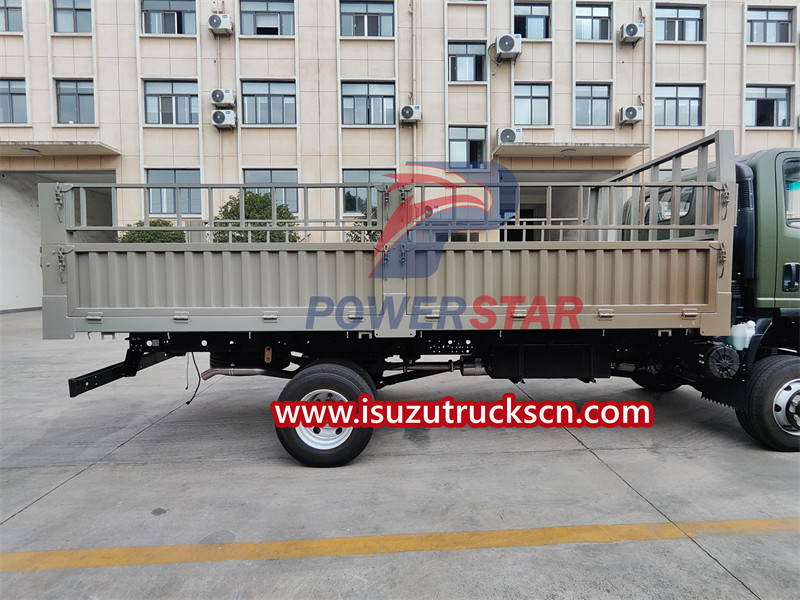

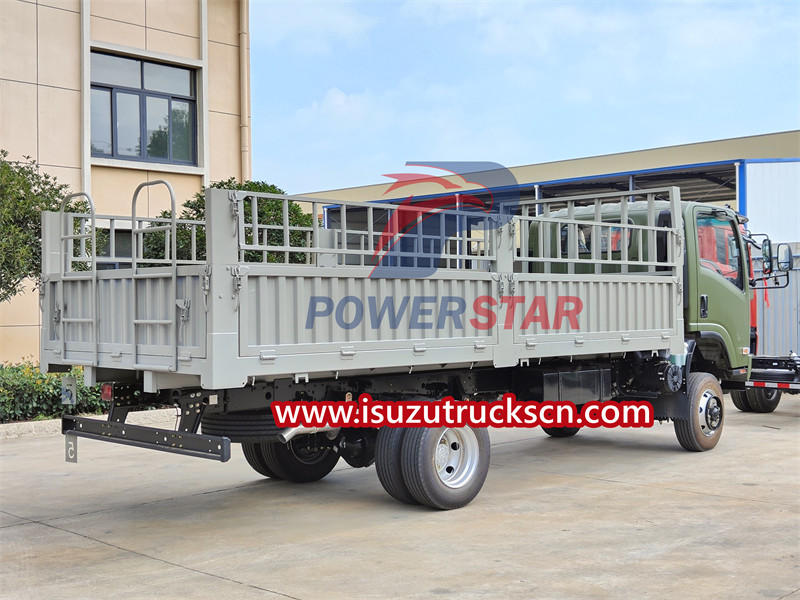

2. Spacious and practical cargo box: The cargo box is designed to be spacious and can accommodate 20 people. A removable pole tarpaulin, bench seat and rear ladder are installed on the cargo box.
3. Reliable power output: The Isuzu NPR 4×4 troop transport truck is equipped with a powerful engine, which can provide reliable power output and low fuel consumption.
4. Advanced safety system: The vehicle is equipped with advanced safety systems, including ABS braking system, airbags and body stability control system.
5. Comfortable driving experience: The ISUZU 4×4 troop carrier has user-friendly layout and operating controls, allowing the driver to easily master the vehicle and reduce the fatigue of long-term driving.

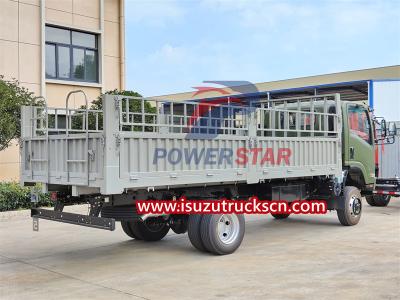

Original factory ISUZU 4×4 FTR FVR military soldier carriers army off road trucks for sale,the Isuzu Military Soldier Carrier is a multi-faceted asset for modern armies, providing a means of rapidly deploying and protecting infantry forces while also contributing to offensive and defensive operations through its own firepower. Its combination of armor, mobility, and weapons systems makes it an indispensable tool in the modern battlefield.
