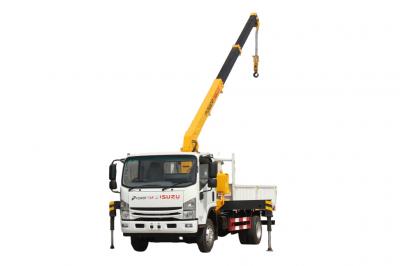

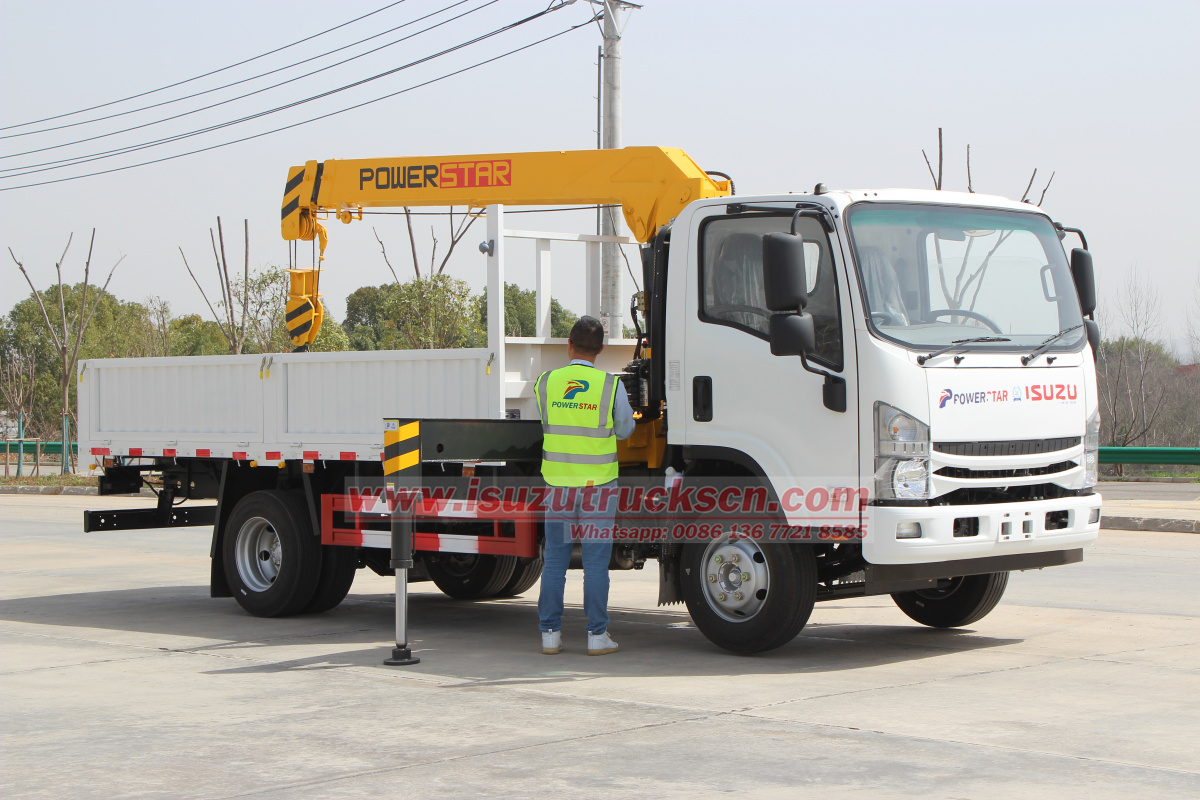

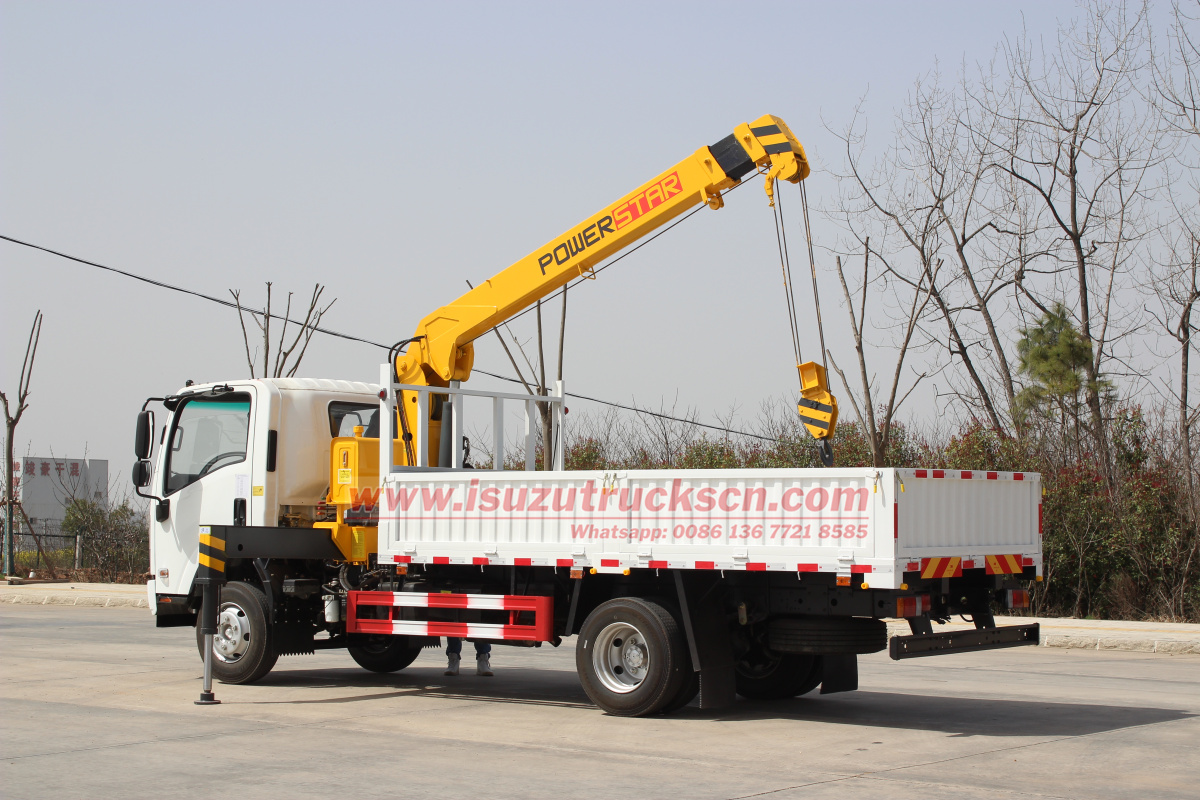

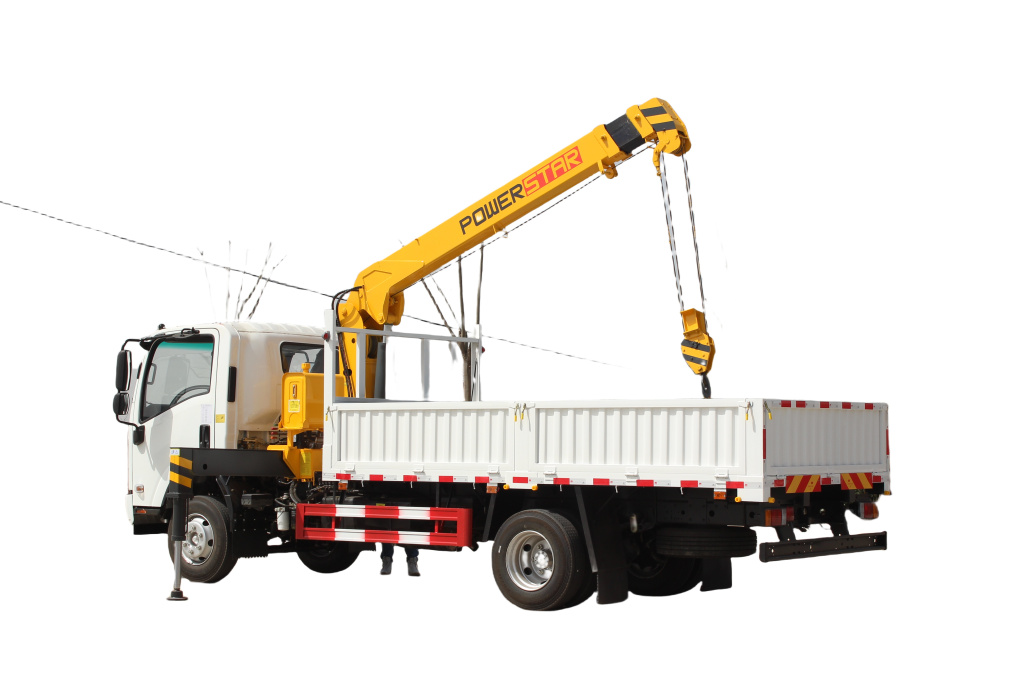

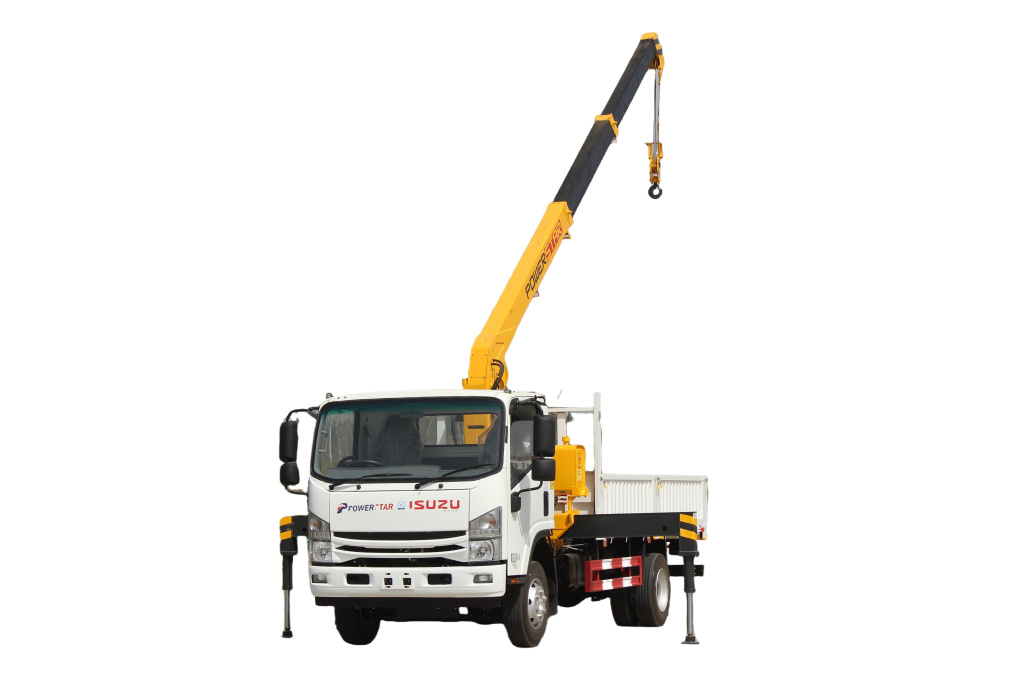

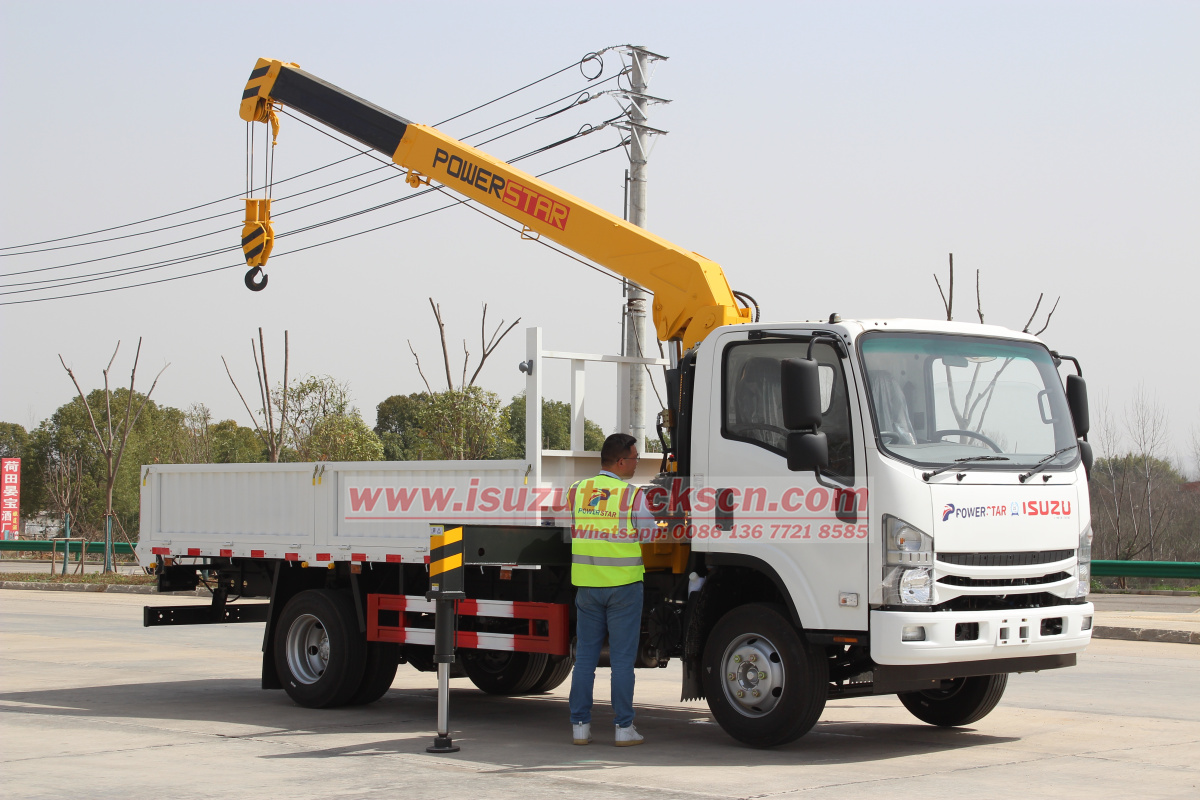

Isuzu NPR Right hand drive Crane cargo truck
New type Isuzu NPR right-hand drive cab chassis truck is a light commercial vehicle platform designed for right-hand drive markets (such as Maldives, Japan, Southeast Asia, etc.). It is equipped with a 4HK1 3.0-liter turbocharged diesel engine (190 horsepower) and an ISUZU MLD 6-speed manual transmission, which has high transmission efficiency and low maintenance costs. The right-hand drive adaptation complies with the regulations of right-hand drive countries such as Maldives. It is widely used in truck crane trucks (such as 5-ton straight boom cranes). Isuzu NPR right-hand drive chassis has become a benchmark choice for light commercial vehicles in the right-hand drive market through modular design and localized adaptation.
Manufacturer:
Powerstar TrucksWork capacity:
5 TonsDimension:
7300*2400*3100mmCabin type:
NPR cabinWheelbase:
3815mmEngine power:
190hpEngine type:
Isuzu 4HK1Axle drive:
4x2Gear box:
Isuzu MLD 6-shiftRemarks:

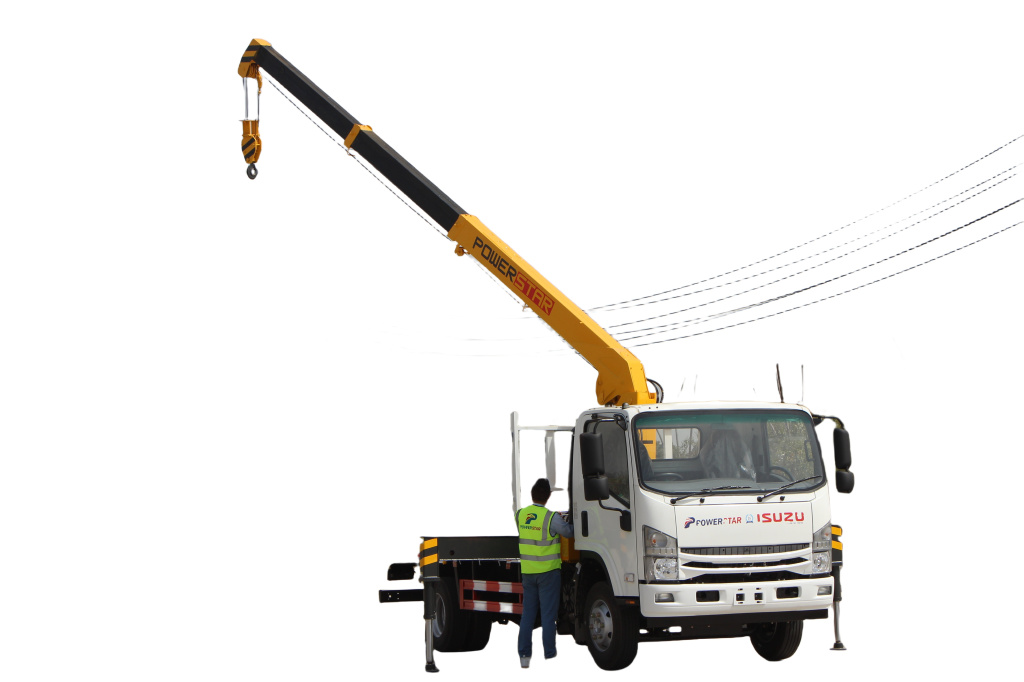

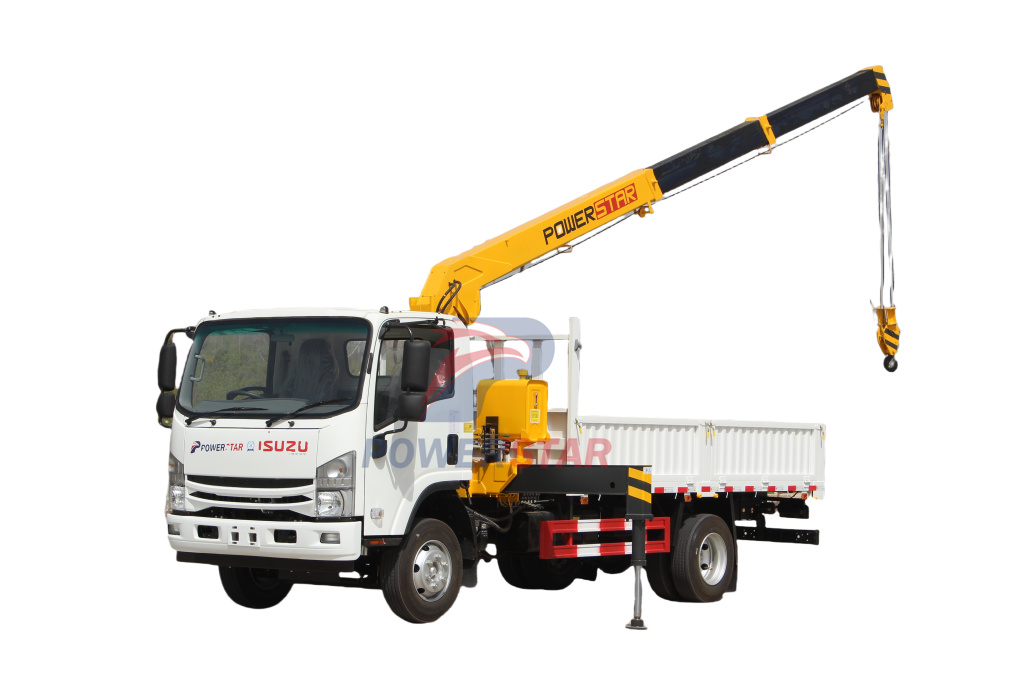

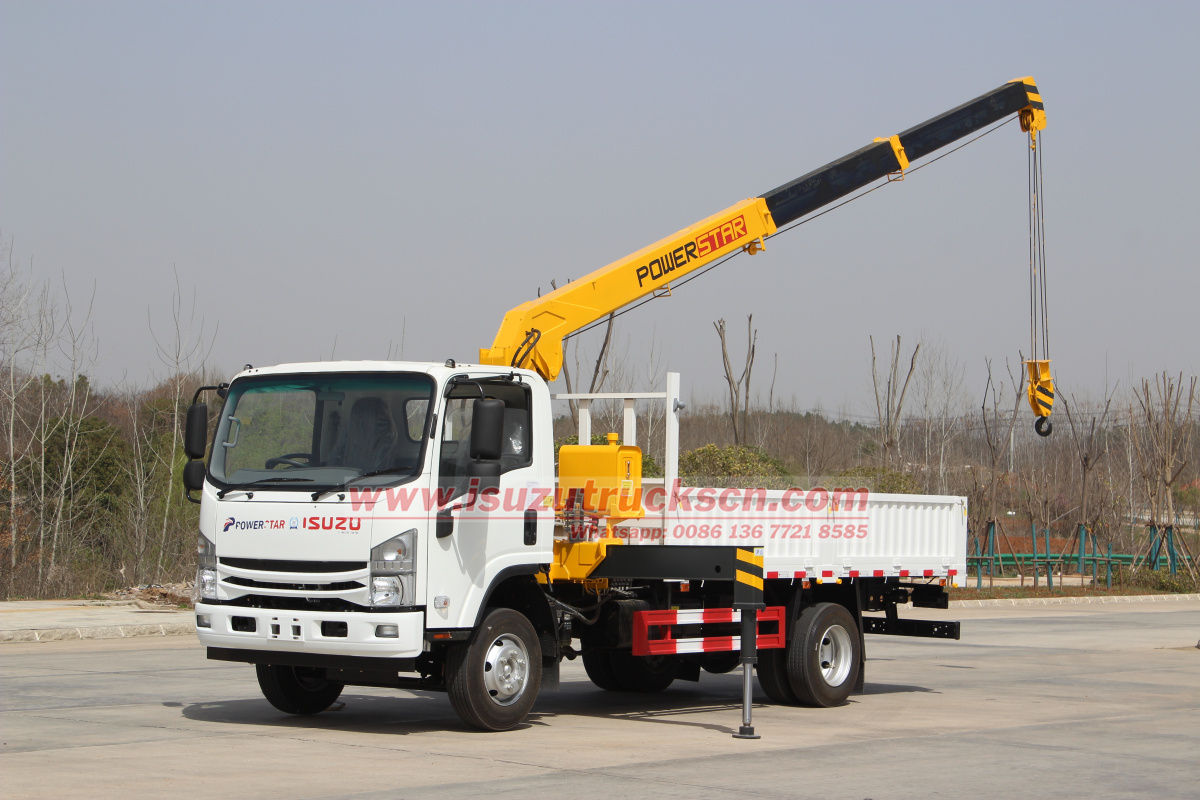

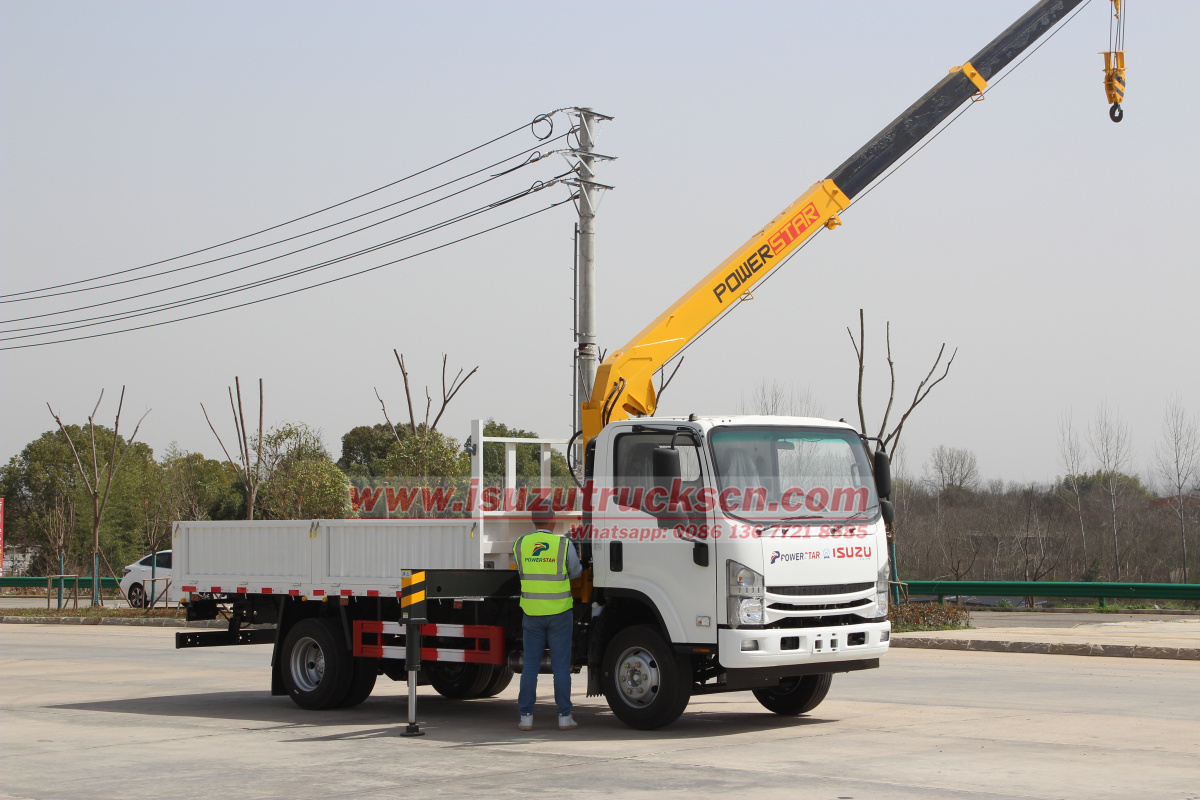

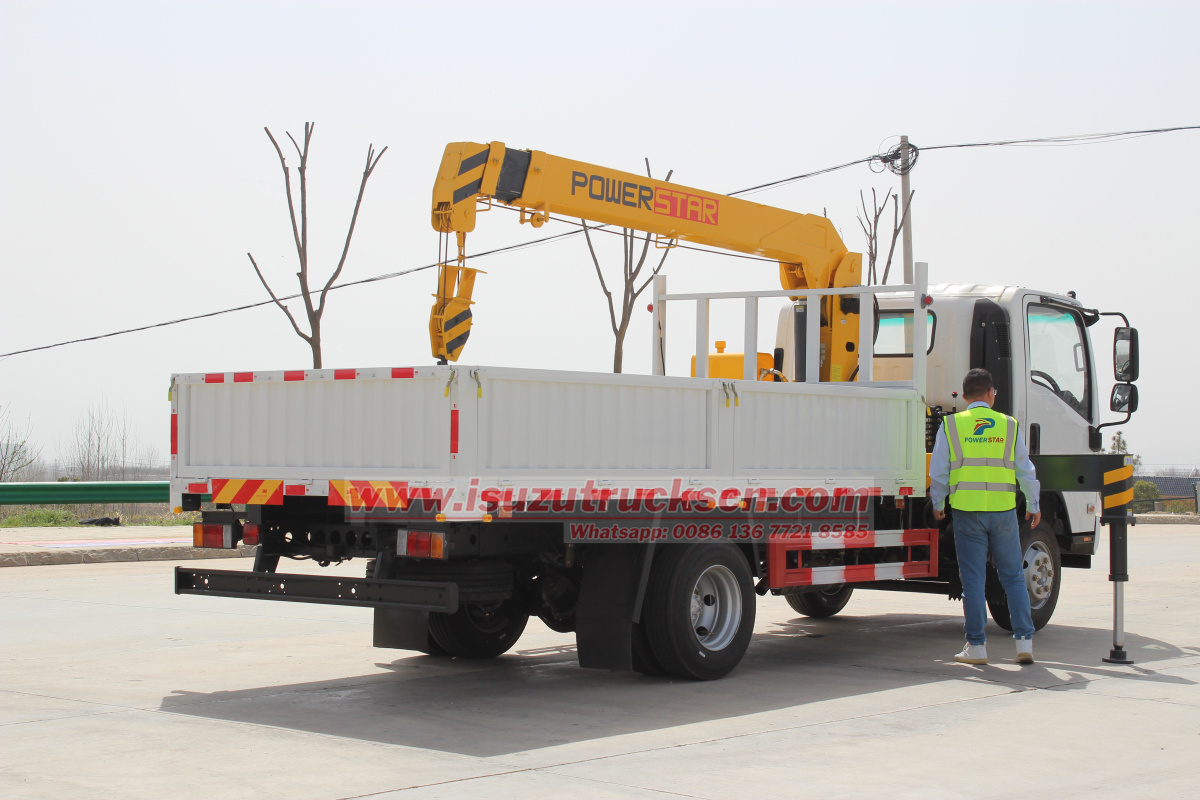

4x4 off road for optionalRHD right drive ISUZU NPR 5-ton cargo crane truck, also named Isuzu truck loader crane, is a high-performance lifting equipment designed for truck-mounted cranes. Based on Isuzu NPR right hand drive cab chassis, special designed fore Maldives market. It has a maximum lifting capacity of 5 tons and covers medium-sized lifting needs. It adopts a 4-section telescopic boom structure with a full-extended boom length of up to 9.5 meters, taking into account both the operating radius and flexibility. It supports 360° full rotation to adapt to multi-angle lifting tasks. It is equipped with efficient hydraulic outriggers, which can adjust the support angle through hydraulic telescopic and manual swing to improve stability in complex terrain. Optional ground remote control or cab control ensures safety and convenience of operation.
The Maldives Municipal Government has joined hands with China's POWERSTAR TRUCKS to mass-customize 5-ton truck crane trucks to help upgrade the island country's infrastructure.
● 30 years experience on ISUZU boom crane truck designing
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu truck mounted crane factory
In the pearl necklace of the Indian Ocean, the Maldives, a country consisting of more than 1,200 coral islands, municipal construction has always faced unique challenges: small land area, scattered island distribution, and a logistics system that relies on sea transportation. In order to improve the efficiency of municipal operations, the Maldives Municipal Department recently reached a cooperation with China's well-known truck crane supplier POWERSTAR TRUCKS to mass-customize the 5Ton Isuzu NPR Right hand drive Crane cargo truck designed specifically for the right-hand drive market. This multi-functional vehicle that integrates lifting and transportation will become a key boost to the city maintenance and infrastructure development of the Maldives.
Tailor-made: Solutions adapted to the needs of island countries
Maldives' vehicles must comply with right-hand drive regulations and must adapt to the high temperature, high humidity, and high salt marine climate. POWERSTAR TRUCKS chose the Isuzu NPR right-hand drive chassis, equipped with an Isuzu 4HK1 190 horsepower engine and an ISUZU MLD 6-speed gearbox, which is powerful and durable. The matching 5-ton straight-arm crane uses high-strength steel and anti-corrosion coating to ensure long-term stable operation in the harsh environment of the Maldives.
This cooperation stems from the urgent need of the Maldivian municipal department for efficient equipment. Traditionally, local municipal operations rely on small trucks and independent cranes, which are inefficient and costly. The truck-mounted crane truck combines the lifting and transportation functions into one, which is particularly suitable for operations in the Maldivian city streets and ports with limited space, such as garbage removal, building materials loading and unloading, and pipeline maintenance.
Efficiency Revolution: One vehicle with multiple functions improves the level of municipal operations
The introduction of the 5-ton truck-mounted crane has significantly optimized the workflow of the Maldivian municipality:
Improved space utilization: The compact design of the vehicle is suitable for narrow roads, and the crane can rotate 360° for flexible operation at docks or crowded urban areas.
Reduced labor costs: Hoisting tasks that used to require the collaboration of multiple people can now be completed by only 1-2 operators.
Faster response: Vehicles can be quickly transferred to different islands to respond to emergency repairs or disaster relief (such as clearing fallen trees after a typhoon).
2. TRUCK PARAMETERS
| ISUZU boom crane with auger truck specifications | |
| Vehicle | ISUZU NPR Right drive boom crane truck |
| Overall dimension (mm)76 | 00×2560×3520 |
| Boom crane lifting | 5 tons |
| Gross vehicle weight (kg) | Appro×11000 |
| Curb weight (kg) | Appro×5600 |
| Payload (kg) | Appro×8000 |
| Chassis brand | ISUZU brand |
| Wheel base (mm) | 3815 |
| Max speed (km/h) | 95 |
| Chassis Parameters | |
| Cabin | Flat top roof cabin, single row, power steering, with air conditioner, 3 passengers+ 1 sleeper, left hand drive, tilting cabin |
| Drive form | 4×2 |
| Engine | Brand: ISUZU |
| Model: 4HK1-TCG, 190hp (139 Kw) | |
| Type: diesel, turbocharged, 4 cylinders. | |
| Displacement: 5193ml | |
| Emission standard: Euro 6, euro 5 | |
| Transmission | 6 forward,1 reverse, manual operated |
| Tire model | 8.25R20 |
| No.of tires | 6pcs, with 1pc spare tire |
| Superstructure Parameters | |
| Boom Crane Characteristic | 1. Crane brand XCMG |
| 2. Crane model SQ5SK2Q | |
| 3. Max lifting capacity( kg) 5000 KG | |
| 4. Rated lifting torque 157kNm | |
| 5. Rotation angle(°) 360°, all rotation | |
| 6. Arm length 2.5-8.5m | |
| 7. Hydraulic system maximum flow (L/min ) 40L/min | |
| 8. Hydraulic system rated pressure 20Mpa | |
| 9. Oil tank capacity 90L | |
| 10. Max lifting height 8.5m | |
| 11. Rated power 20kw/rpm | |
|
Auger Characteristic (Optional) |
1. Auger brand XCMG |
| 2. Rotary drilling diameter 14 inch | |
| 3. Drilling depth 8 FT | |
Take Male, the capital of the Maldives, as an example. This is one of the most densely populated cities in the world, and municipal vehicles often need to shuttle through crowded streets. The mobility of truck-mounted cranes has greatly reduced the time of occupying the road and relieved traffic pressure.
Future trends: The market potential of right-hand drive truck-mounted cranes is huge
As the Maldives promotes the "smart city" and upgrades tourism facilities, the demand for efficient engineering vehicles will continue to grow. The 5-ton truck-mounted crane will become the first choice in the following areas due to its moderate lifting capacity and flexibility:
Tourism infrastructure maintenance: The water villas and dock facilities on the resort island need frequent maintenance, and the vehicle can directly transport building materials and complete the lifting.
Environmental protection projects: In garbage treatment plants and seawater desalination projects, crane trucks can efficiently transport large equipment.
Regional cooperation demonstration: The success story of Maldives may attract other right-hand drive countries (such as Sri Lanka and Mauritius) to pay attention to China's customized equipment.
POWERSTAR TRUCKS' localized services (such as parts supply and technical training) further enhance its market competitiveness. In the future, with the penetration of new energy technologies, electric or hybrid right-hand drive truck cranes may become a new option for the Maldives' low-carbon city plan.
