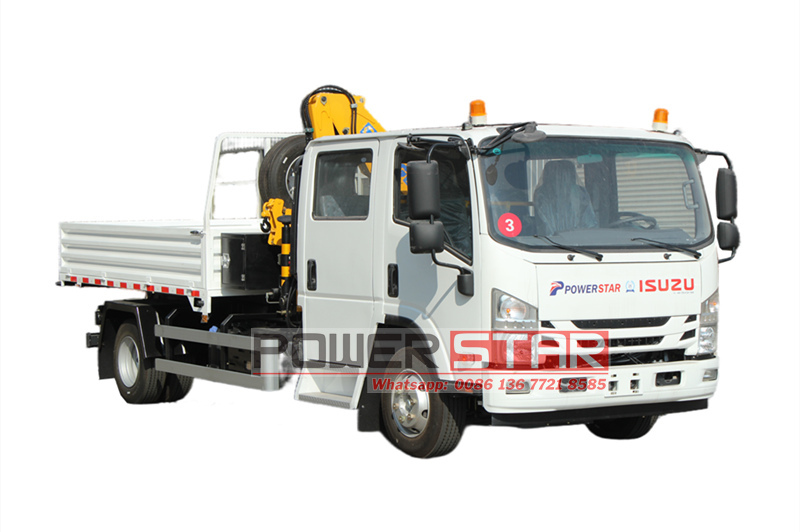

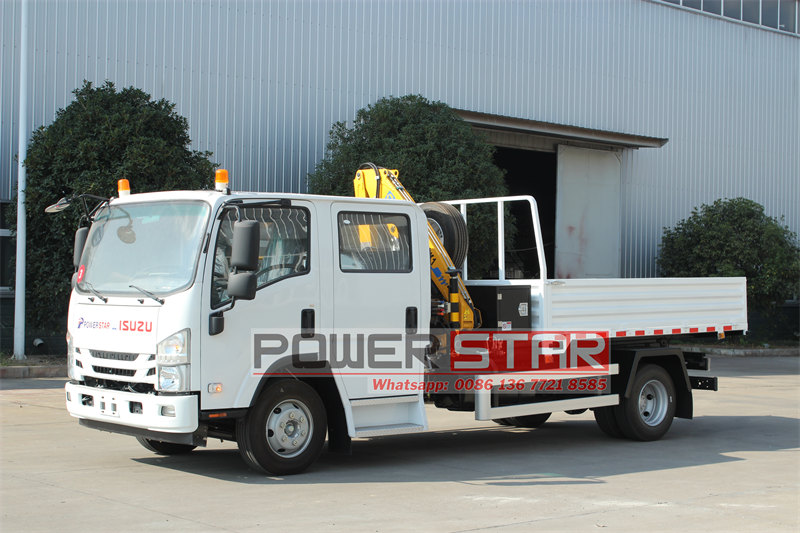

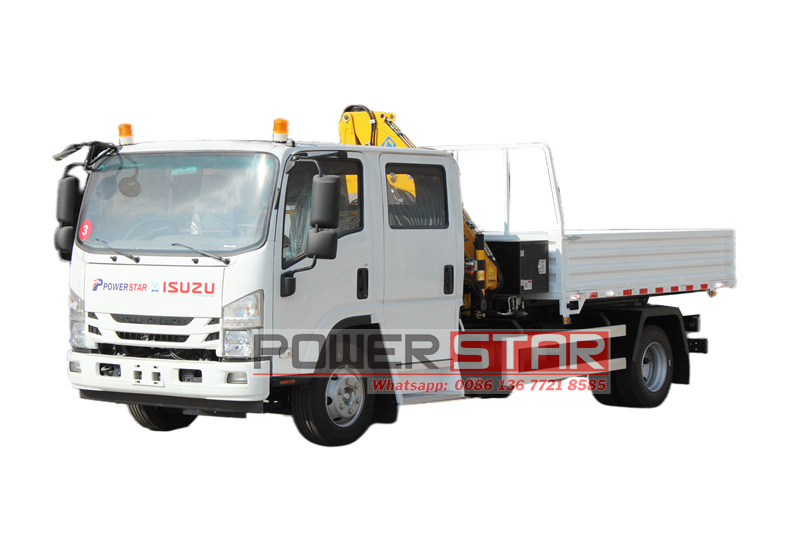

The ISUZU NPR Tipper Lorry with Crane is a multi-functional engineering vehicle that combines cargo transportation, automatic unloading, and lifting operations. Built on an ISUZU NPR 4×2 chassis, it is powered by an ISUZU 4HK1-TCG61 diesel engine delivering 190HP, paired with a 6-speed manual transmission for a maximum speed of 110km/h. With overall dimensions of 7300×2300×2700mm, the vehicle features a double-row cabin design (3+3 seats) and comes standard with air conditioning, ensuring both crew comfort and operational functionality.
Manufacturer:
PT5110JSQWork capacity:
5000 kgDimension:
7300×2300×2700Cabin type:
Double row cabin, 3+3 seatsWheelbase:
4175 mmEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2, left hand driveGear box:
MLD 6-speed,manualRemarks:

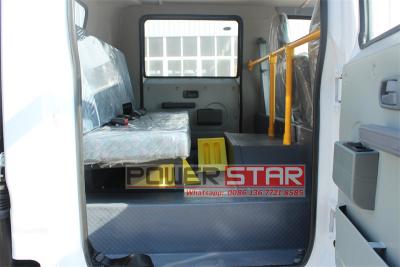

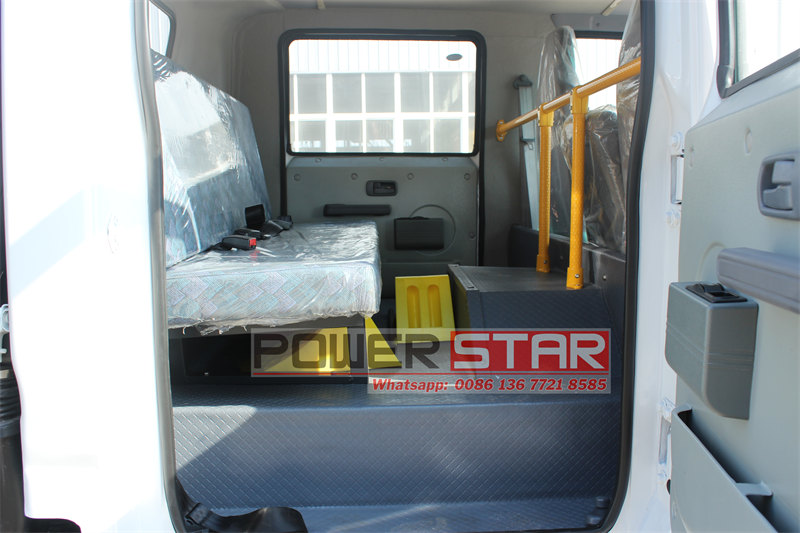

Telescopic boom crane is optionalThe ISUZU NPR Dump Truck with Crane is a specialized vehicle based on the ISUZU NPR tipper series, uniquely equipped with an XCMG SQ2ZK1 knuckle boom crane. This model ingeniously integrates the tipper's robust loading capacity with the crane's flexible lifting capabilities, achieving the ideal "multi-purpose vehicle" concept. Its double-row cabin accommodates 3+3 crew members, meeting both team operation requirements and ensuring riding comfort and safety. With compact yet stable dimensions of 7300×2300×2700mm, the vehicle demonstrates excellent maneuverability across various road conditions.

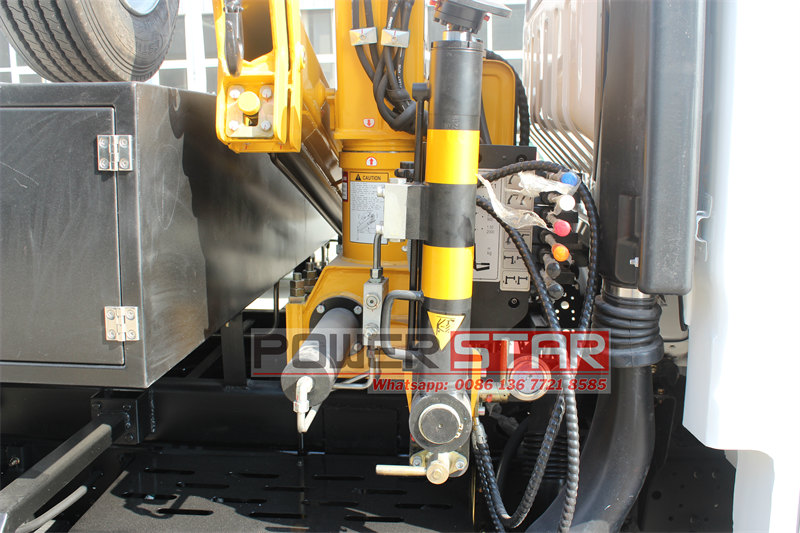

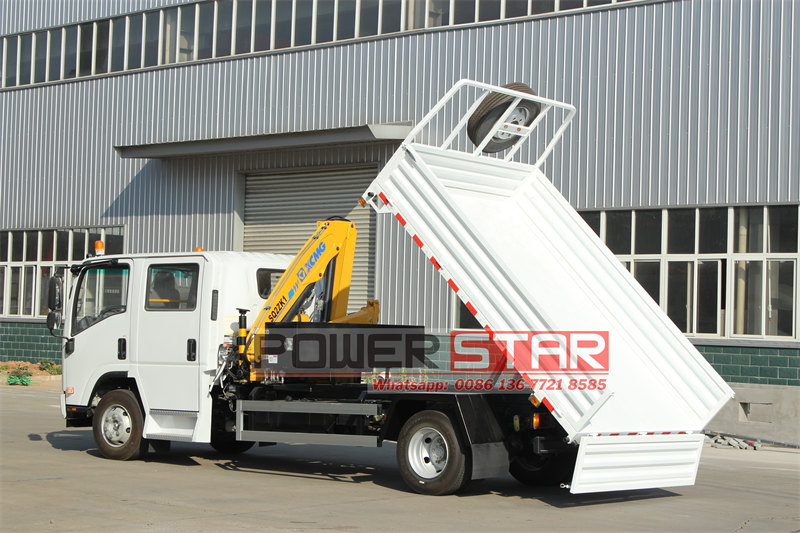

The XCMG SQ2ZK1 knuckle boom crane serves as the core highlight of this ISUZU NPR crane truck. With a maximum lifting moment of 3.2 ton-meters (T.M) and maximum capacity of 2000kg, it effortlessly handles various heavy lifting tasks. The knuckle boom design not only saves space but also enables flexible operation in confined or complex environments. The maximum hydraulic outreach reaches 4.78 meters, combined with a 370° rotation angle, significantly expanding the working range. Additionally, the crane is equipped with a 25L oil tank to ensure continuous operation, while the hydraulic system's maximum flow rate of 20L/min and rated pressure guarantee smooth and precise lifting movements.

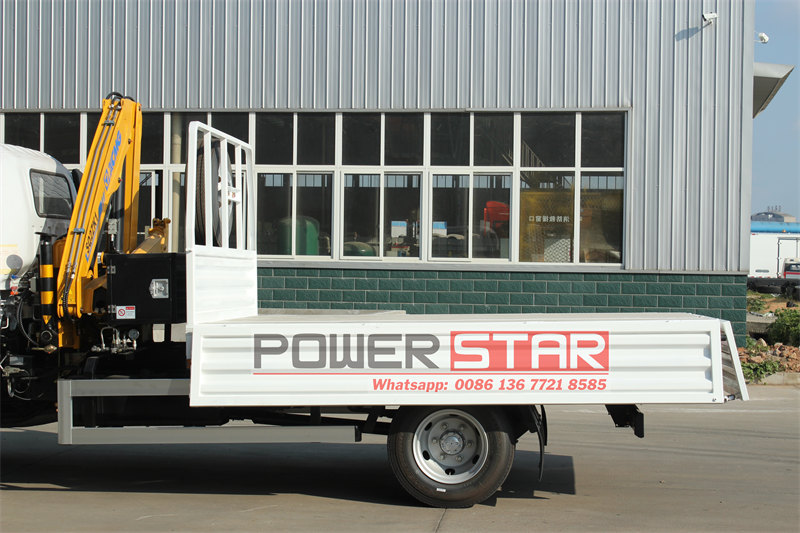

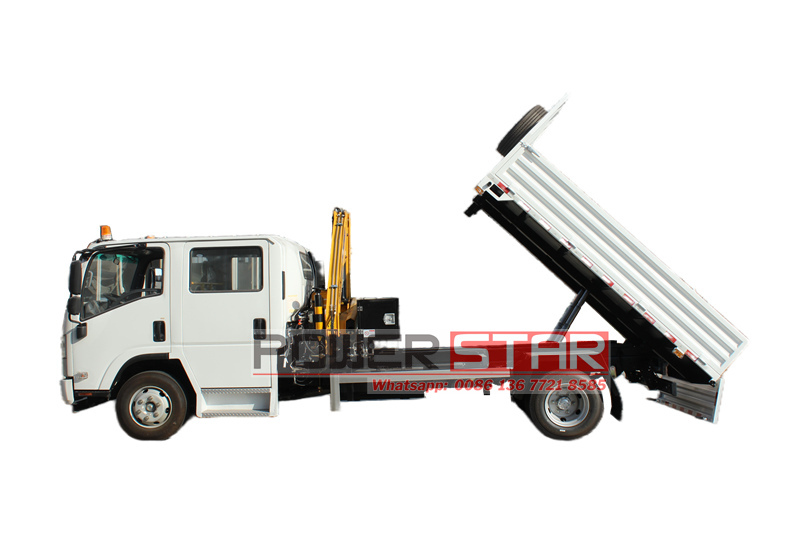

The ISUZU NPR knuckle boom crane truck comes with a 3200×2200×500mm carbon steel cargo box featuring 3mm side plates and 4mm floor plates, ensuring durability. The box is equipped with a middle-lift dual hydraulic cylinder dumping system that enables quick and stable unloading, significantly improving work efficiency. The cargo box dimensions can be customized according to customer requirements to meet specific operational needs in different scenarios.
● 30 years experience on ISUZU boom crane truck designing
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu truck mounted crane factory
Product Specifications
|
General |
Vehicle Name |
ISUZU NPR tipper truck mounted crane |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension(mm) |
7300 * 2300 * 2700 |
|
|
GVW(kg) |
11000 |
|
|
Payload(kg) |
5000 |
|
|
Cab |
Type |
Double row |
|
Cab Seat |
3+3 |
|
|
Air Conditioner |
Yes |
|
|
Engine |
Fuel Type |
Diesel |
|
Engie Model |
4HK1-TCG61 |
|
|
Engine Brand |
ISUZU |
|
|
Power (KW) |
190HP |
|
|
Emission Standard |
Euro 6 |
|
|
Displacement (mm) |
5193 |
|
|
Chassis |
Drive Type |
4X2 LHD |
|
Transmission |
MLD, 6-speed gearbox, Manual |
|
|
Wheelbase(mm) |
4175 mm |
|
|
Tyre Specification |
235/75R17.5 |
|
|
Tyre No.(pcs) |
6+1 |
|
|
Max Speed(km/h) |
110 |
|
|
Paint |
White |
|
|
ABS |
Standard |
|
|
Cargo box |
Size |
3200×2200×500 mm |
|
Box material |
Carbon steel, thickness: side 3mm, bottom 4mm |
|
|
Dumping system |
Middle lift with double hydraulic cylinder |
|
|
Crane specifications |
Crane Model |
XCMG SQ2ZK1 |
|
Type |
Knuckle boom crane |
|
|
Max Lifting Moment |
3.2 T.M |
|
|
Max Lifting Capacity |
2000 kg |
|
|
Max. hydraulic outreach |
4.78 m |
|
|
Max Oil Flow of Hydraulic System |
20 L/min |
|
|
Rated Pressure Of Hydraulic System |
20 L/min |
|
|
Oil Tank Capacity |
25 L |
|
|
Rotation Angle |
370° |
|
|
Crane Weight |
608 kg |
Product Advantages
1. Efficient and Reliable Powertrain
• Powerful Engine Performance: the ISUZU NPR boom crane truck equipped with ISUZU 4HK1-TCG61 diesel engine, 5.193L displacement delivering 190HP maximum power. Peak torque arrives at low RPM range, ensuring strong and stable power output that easily handles heavy-load climbing and challenging road conditions.
• Optimized Transmission: Paired with MLD 6-speed manual transmission featuring carefully calibrated gear ratios for smooth power delivery. Balances strong torque for hill climbing with fuel efficiency during highway cruising.
2. Outstanding Load Capacity
• Robust Chassis Structure: High-strength steel frame with scientifically designed cross-section provides exceptional torsional rigidity to withstand heavy loads. 4175mm wheelbase combined with optimized suspension ensures stability on both urban roads and unpaved surfaces.

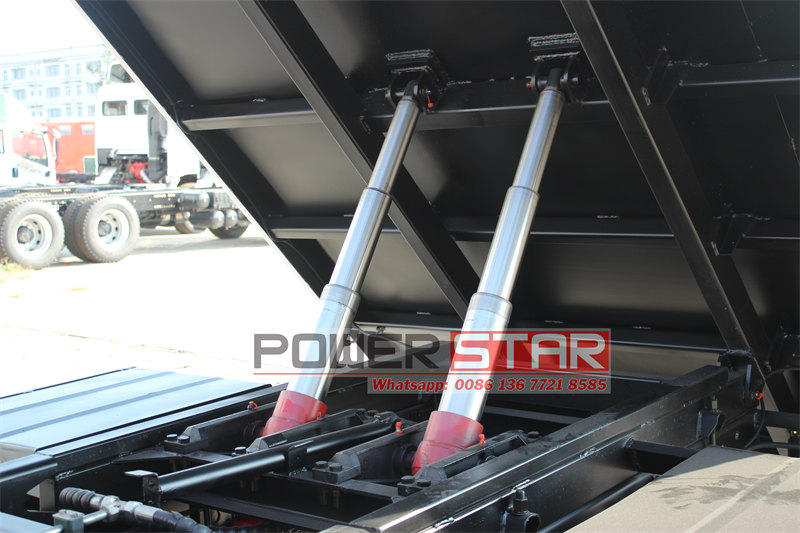

• Practical Cargo Box Design: 3200×2200×500mm box constructed with high-strength carbon steel for impact resistance. Middle-mounted dual hydraulic cylinder dumping system offers wide lifting angle, fast unloading speed and low residue rate.
3. Flexible and Efficient Lifting Function
• Excellent Crane Performance: XCMG SQ2ZK1 knuckle boom crane provides 3.2T·m maximum torque and 2000kg lifting capacity for medium/small equipment. 4.78m max hydraulic outreach with 370° rotation covers most working areas around the vehicle.
• Stable Hydraulic System: 20L/min rated pressure and flow rate ensure quick cylinder response. 25L oil tank supports continuous operation. Key hydraulic components use imported parts for reliability.
• Convenient and Safe Operation: "Mirror-symmetrical" control lever layout allows operators to choose either side. Ergonomic handles with anti-slip rubber coating reduce fatigue during prolonged operation.

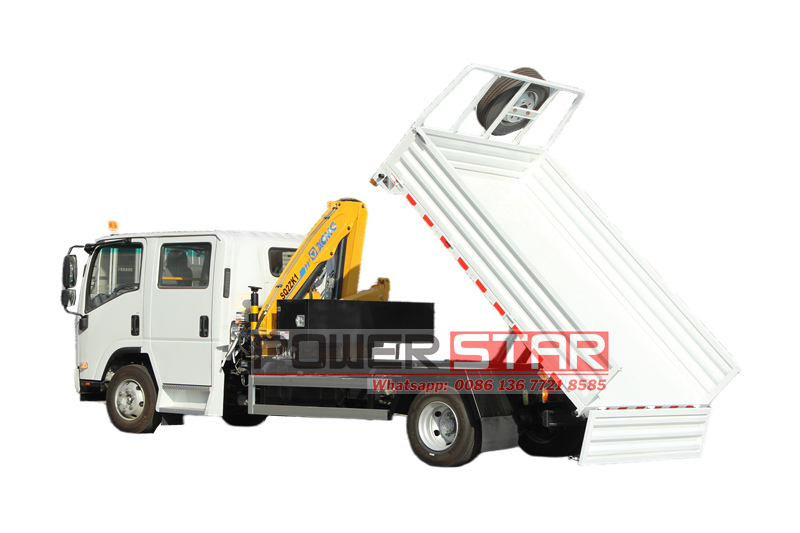

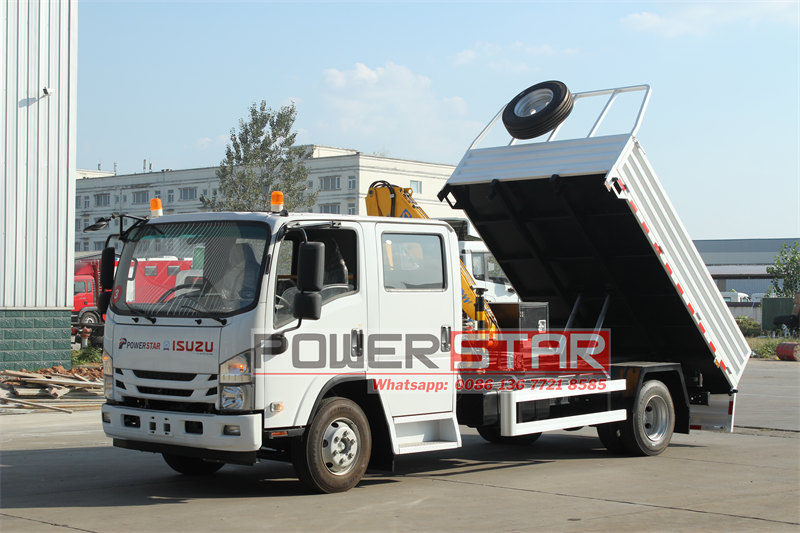

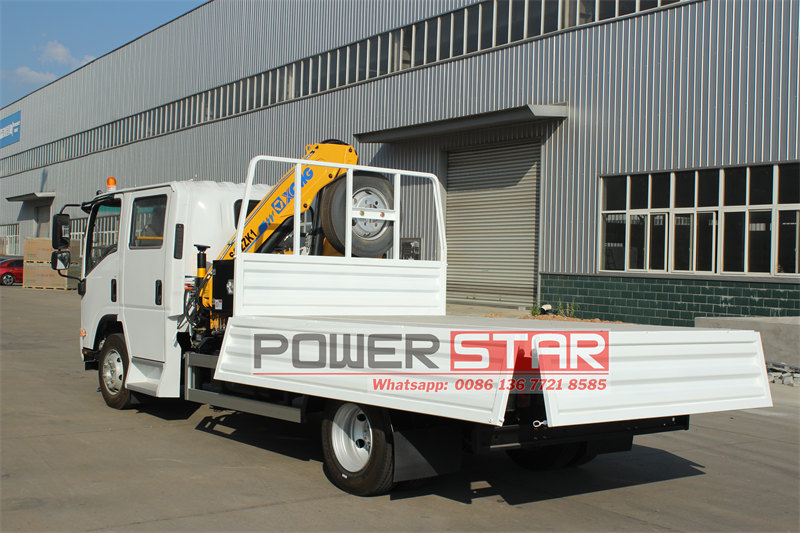

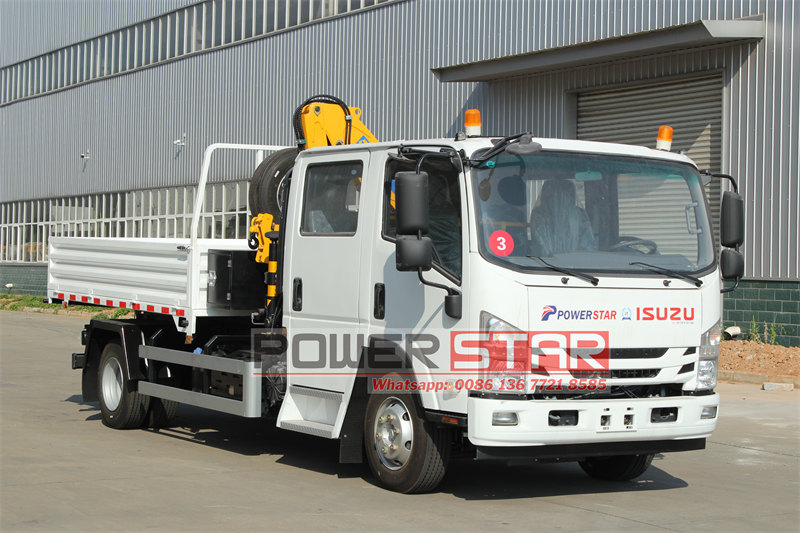

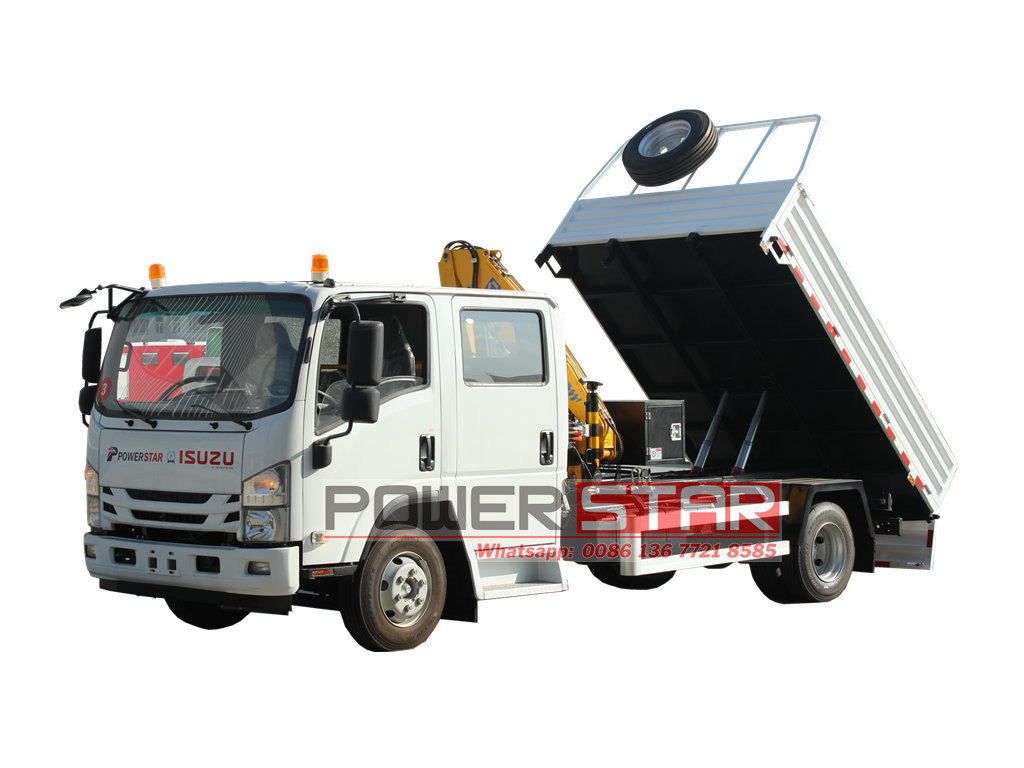

Product Pictures
