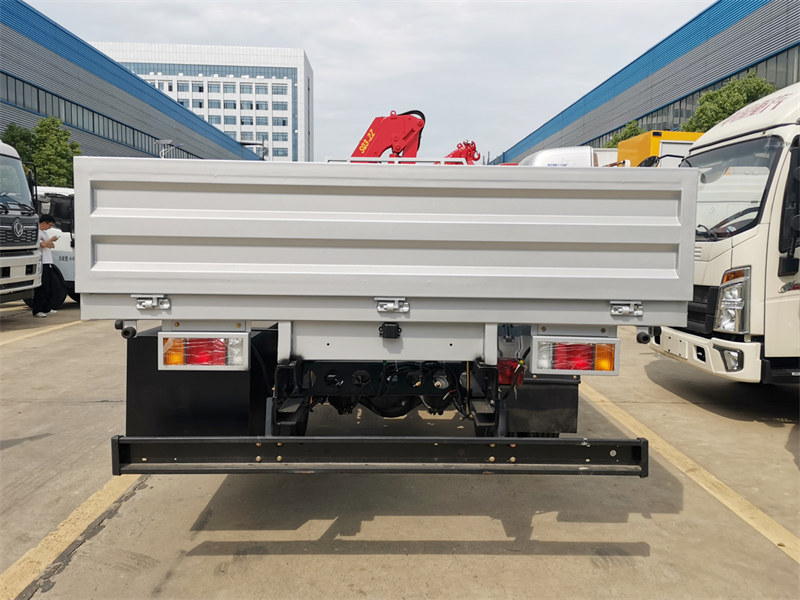

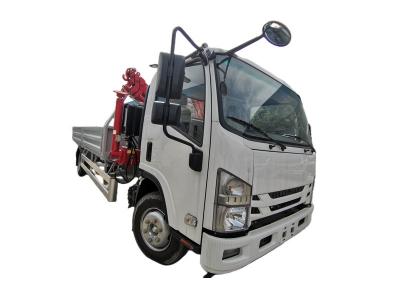

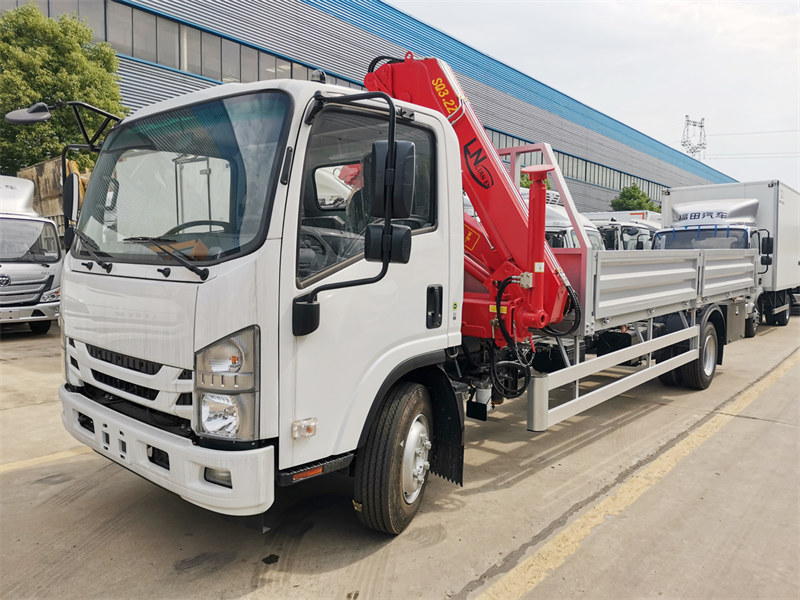

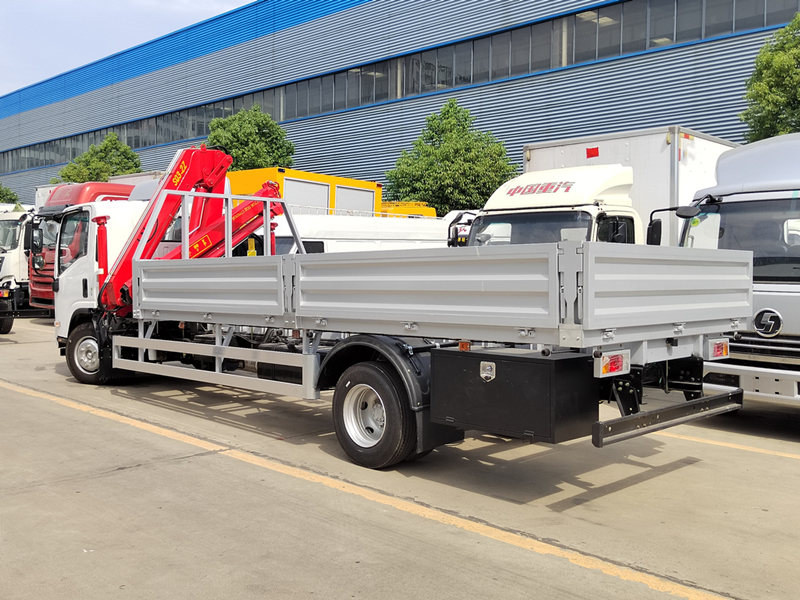

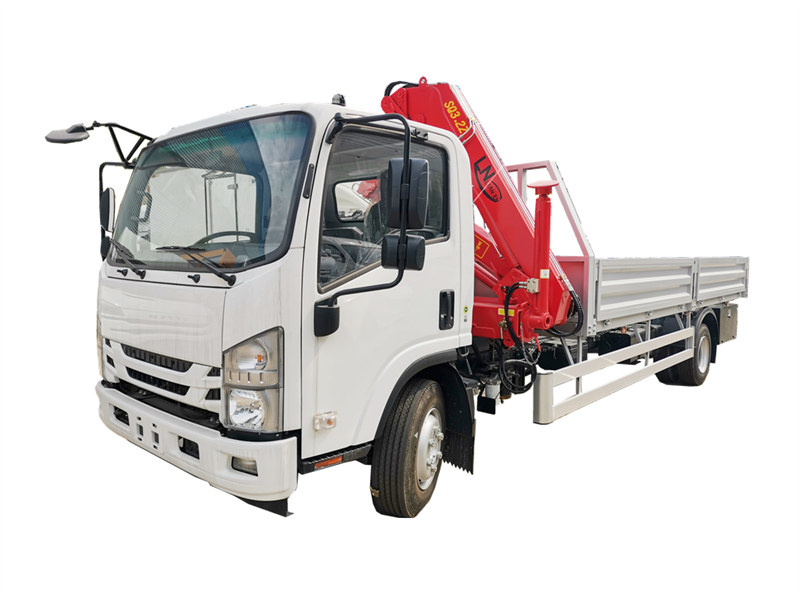

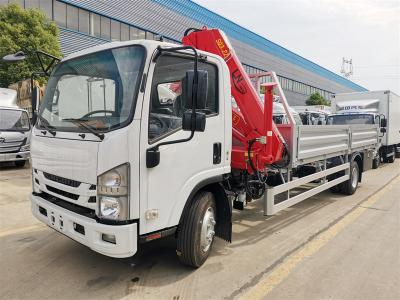

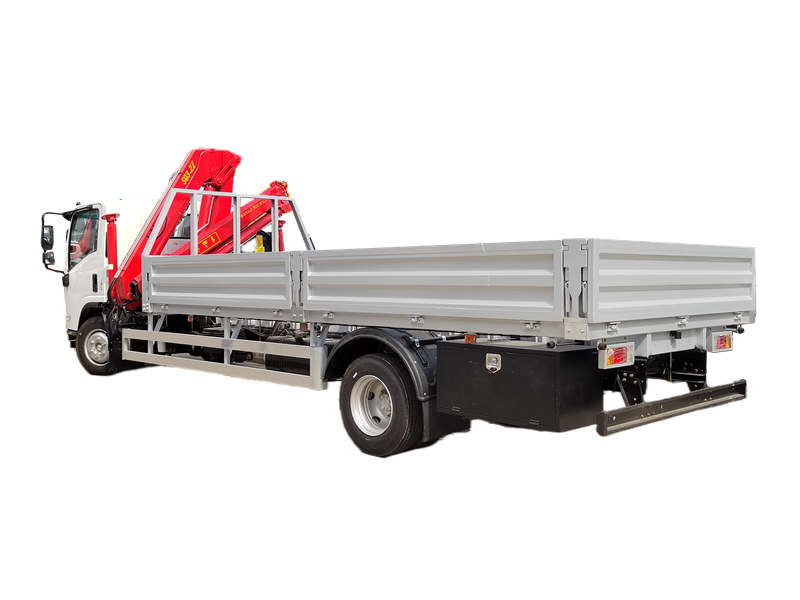

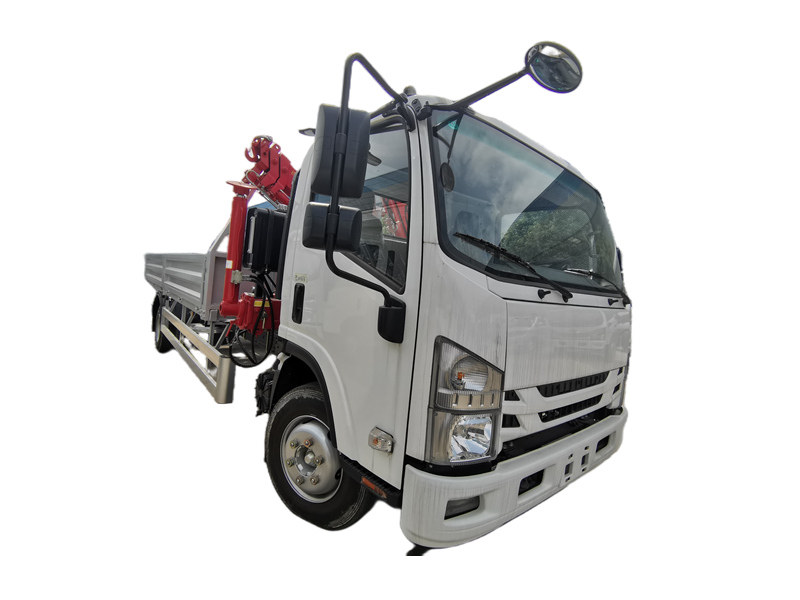

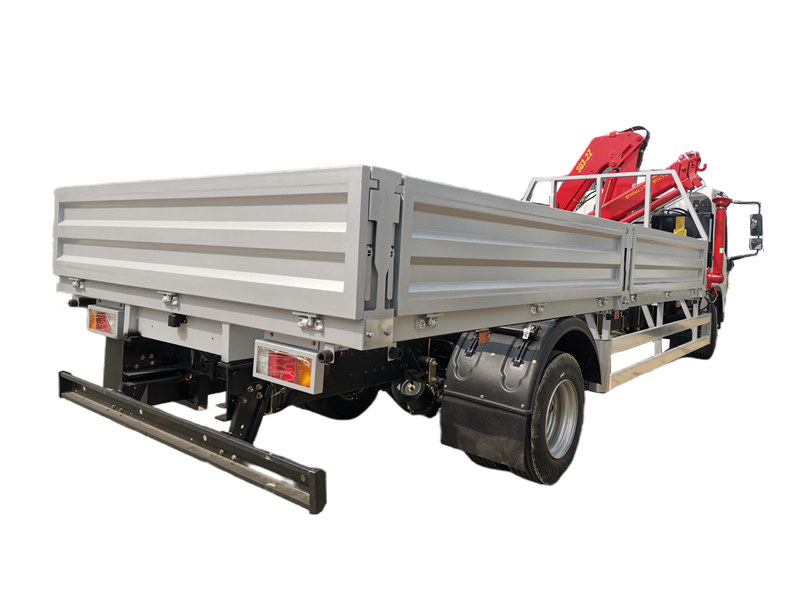

The ISUZU NPR knuckle boom crane truck is a highly efficient and versatile folding boom truck-mounted crane, built on the reliable ISUZU QL1100A chassis. Powered by a 190-horsepower turbocharged engine compliant with Euro 6 emission standards, it features a three-section folding boom crane with a maximum lifting capacity of 3.2 tons and a working radius of 6.5 meters. The 360° full-rotation design allows for an operating height of up to 8.5 meters. With overall dimensions of 7000×2300×3100 mm and a 4500 mm cargo bed, it offers a maximum payload of 5 tons, seamlessly integrating transport and lifting functions. The spacious cab, power steering, and air conditioning enhance driving comfort, while the 4×2 drivetrain and 235/75R17.5 tires ensure excellent mobility. Ideal for construction, logistics, and municipal engineering, this vehicle delivers both performance and practicality.
Manufacturer:
POWERSTARWork capacity:
5 tonDimension:
7000×2300×3100Cabin type:
ISUZU ELF wide cabinWheelbase:
4175 mmEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2, left hand driveGear box:
MLD 6-speed,manualRemarks:
Palfinger, UNIC crane is optionalThe ISUZU Folding Boom Truck-Mounted Crane is a multifunctional engineering vehicle that combines ISUZU's renowned chassis reliability with a high-performance folding boom crane system. Based on the QL1100A chassis and equipped with a 190 HP 4HK1-TCG61 turbocharged diesel engine, it delivers robust power output. Measuring 7000×2300×3100 mm, its compact design ensures easy maneuverability in urban roads and construction sites, while the 4500 mm cargo bed provides ample loading space. This crane truck is particularly suited for frequent loading and unloading tasks in industries such as building material transport, power equipment installation, and municipal engineering, significantly improving efficiency and reducing labor costs.

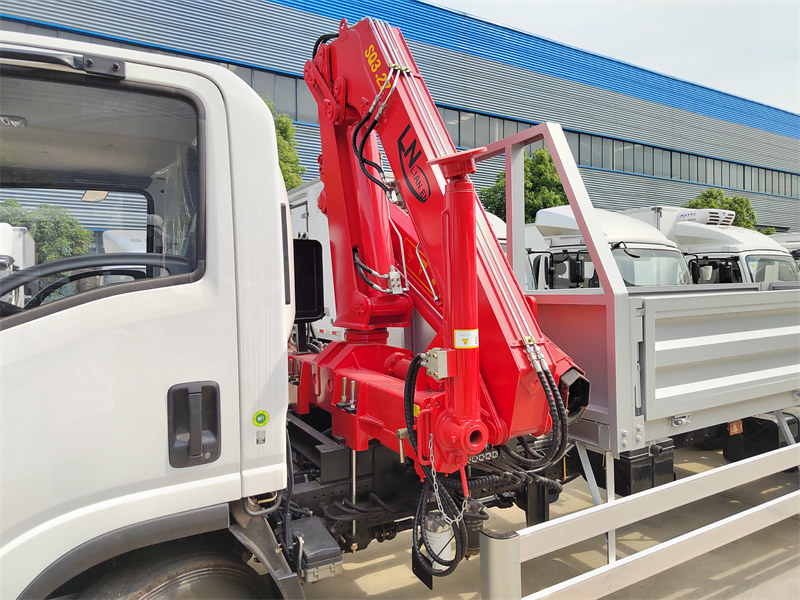

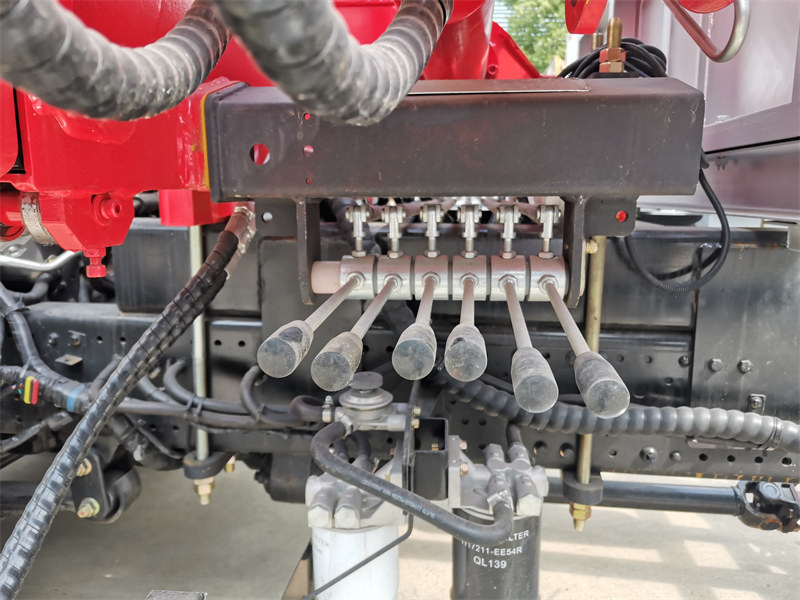

The standout feature of the ISUZU NPR knuckle boom truck is its high-performance folding boom crane system, offering a maximum lifting capacity of 3.2 tons and a maximum load moment of 8 ton-meters. The three-section folding boom design achieves a maximum lifting height of 8.5 meters and a working radius of 6.5 meters, with 360° full rotation enabling obstruction-free operation. Dual outriggers enhance stability during lifting tasks, ensuring safe and reliable performance. Compared to straight boom cranes, the folding boom design provides superior adaptability in confined spaces, making it ideal for tight construction environments. The hydraulic control system ensures precise and smooth operation, complemented by ISUZU's factory-installed power steering for effortless handling even in narrow spaces. This design allows the vehicle to fulfill both standard transport needs and independent lifting tasks, truly embodying multi-functionality.
The ISUZU NPR Knuckle Truck-Mounted Crane's versatility makes it widely applicable across various sectors. On construction sites, it efficiently handles materials like steel bars and formwork; in logistics and warehousing, it streamlines cargo transfers; and in municipal projects, it facilitates the installation of streetlights and traffic signs. Unlike traditional "crane + truck" setups, this integrated solution reduces equipment costs and manpower requirements—just one operator is needed for both driving and lifting—dramatically boosting operational efficiency.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
ITEM |
PARAMETER |
UNIT |
DATA |
|
VEHICLE |
VEHICLE MODEL |
ISUZU5110JSQ3 |
|
|
OVERALL DIMENSION |
MM |
7000×2300×3100 |
|
|
CARGOBOX DIMENSION |
MM |
4500x2300x550 |
|
|
CURB WEIGHT |
KG |
6200 |
|
|
MAX LOADING CAPACITY |
KG |
5000 |
|
|
MAX GRADABILITY WHEN FULL LOADING |
DEG |
35° |
|
|
MAX SPEED |
KM/H |
90 |
|
|
FRONT/REAR HANGING |
MM |
1150/2140 |
|
|
CLOSE/DEPARTURE ANGLE |
DEG |
20/11 |
|
|
LEAF SPRING |
PCS |
8/10+6 |
|
|
DRIVE WHEEL |
4*2 |
||
|
CHASSIS |
CHASSIS MODEL |
QL1100A |
|
|
BRAND |
ISUZU |
||
|
WHEELBASE |
4175 |
||
|
CABIN |
|
ISUZU ELF wide cabin, with A/C |
|
|
NUMBER OFSEATS |
|
3 |
|
|
POWER STEERING |
Equipped |
||
|
FRONT AXLE |
4 T |
||
|
REAR AXLE |
7 T |
||
|
TYRE SPECIFICATION |
235/75R17.5 |
||
|
NO OF TYRES |
PCS |
6+1 spare tyre |
|
|
ENGINE |
ENGINE MODEL |
|
4HK1-TCG61 |
|
BRAND |
|
ISUZU |
|
|
ENGINE HORSEPOWER |
PS |
190 |
|
|
DISPLACEMENT |
ML |
5193 |
|
|
EMISSION STANDARD |
|
Euro 6 |
|
|
ENGINE DETAILS MORE |
|
4 cylinders |
|
|
|
Direct injection |
||
|
|
Water cooling, turbocharged |
||
|
GEARBOX |
NO OF GEARS |
|
6 forward gears and 1 reverse |
|
RATIO |
|
6.833 |
|
|
Crane |
MAX LIFTING CAPACITY |
KG |
3,200 |
|
SECTION OF BOOM |
PCS |
3 |
|
|
MAX LIFTING MOMENT |
T.M |
8 |
|
|
ROTATION ANGLE |
DEG |
360° |
|
|
MAX LIFTING HEIGHT |
M |
8.5 |
|
|
RADIUS OF WORKING |
M |
6.5 |
|
|
NO OF SURPPORT LEGS |
PCS |
2 |
