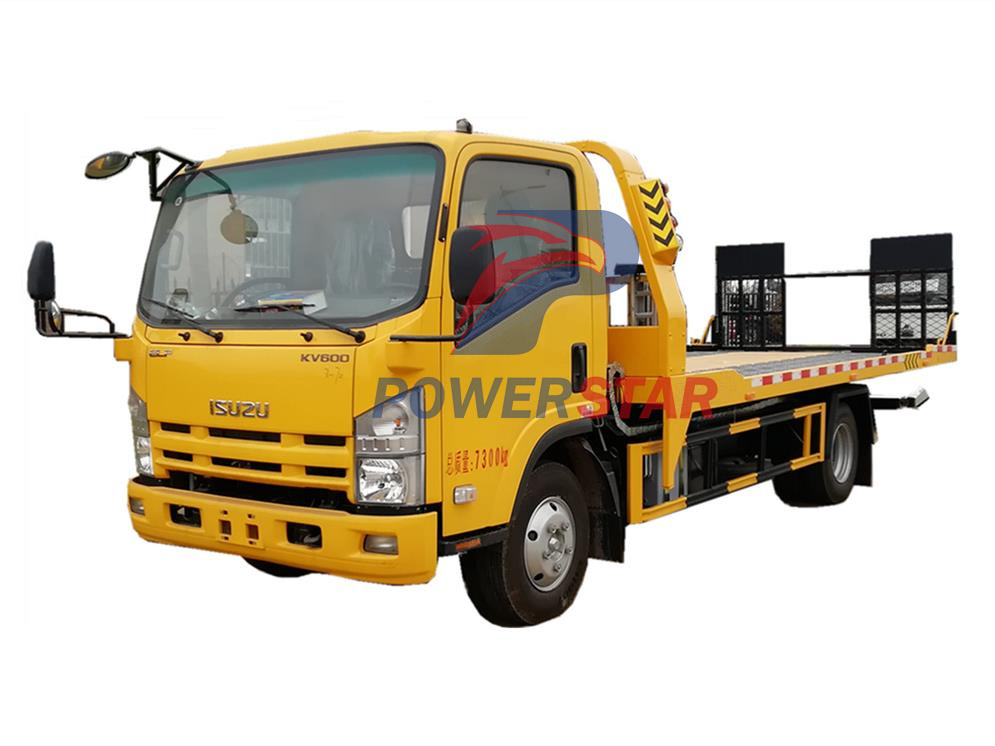

Isuzu NPR wrecker tow truck

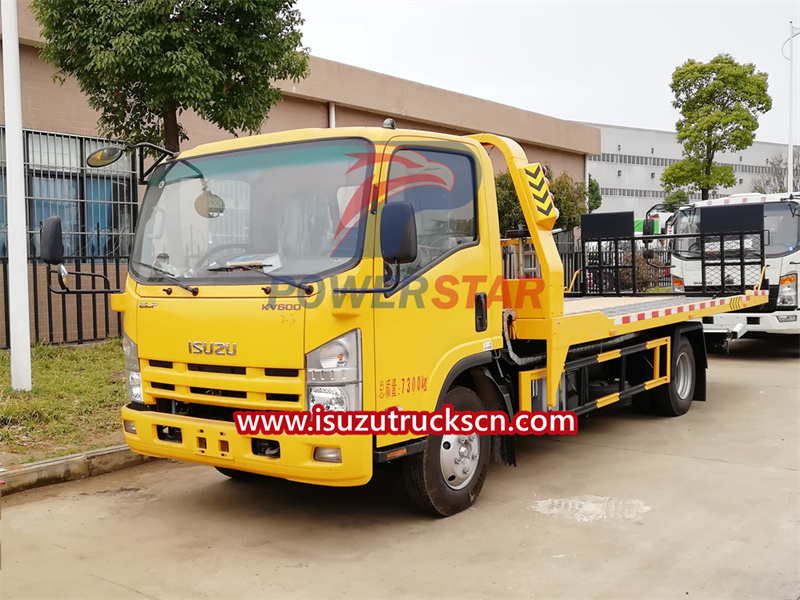

ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck
ISUZU NPR flatbed or rollback tow truck

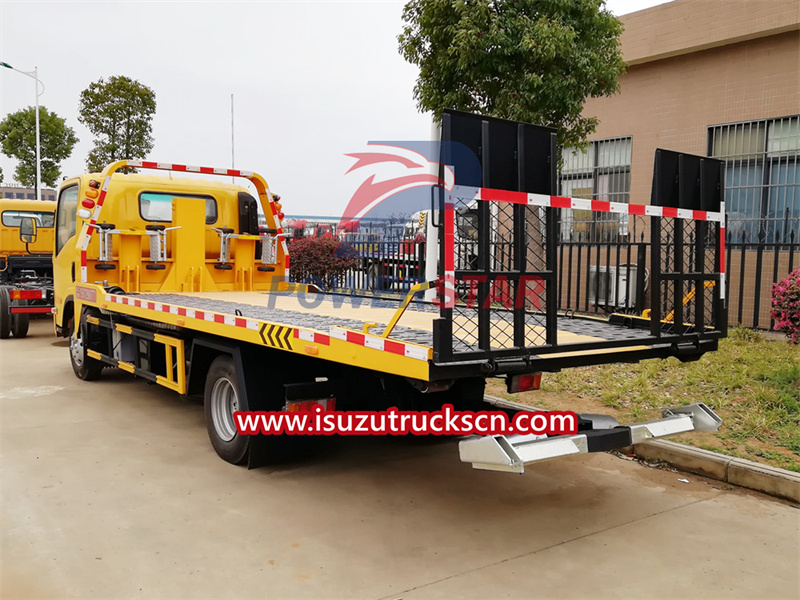

Isuzu NPR wrecker tow truck

Isuzu NPR Tow trucks come in various styles to serve different applications, such as hauling a wrecked car to a junkyard or transporting a disabled vehicle to a repair shop. Typically, Isuzu NPR 700P 5tons wrecker two truck companies rely on a few main types of tow trucks and wreckers for their daily operations. When you know the main differences between the types of Isuzu tow trucks, you can be better prepared to select the right one for your company’s needs. Calling us to find the reliable company POWERSTAR to offer different capacity flatbed towing truck.

  • Work capacity:

    5 Tons
  • Truck model:

    PT5080TQZ05P
  • Engine power:

    132 HP
  • Engine type:

    4KH1CN6HB
  • Axle drive:

    4×2
  • Gear box:

    MLD 6-speed manual
  • Remarks:

    Original ISUZU wide cabin, Japan tech diesel engine 132HP matched with MLD 6-shift gearbox

Isuzu wrecker tow truck (also called a wrecker, a breakdown truck, Isuzu recovery truck or a breakdown lorry) is a truck used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. Isuzu NPR wrecker tow trucks may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location. Isuzu recovery tow truck is distinct from an Isuzu car carrier trailer, which is used to move multiple new or used vehicles simultaneously in routine transport operations.

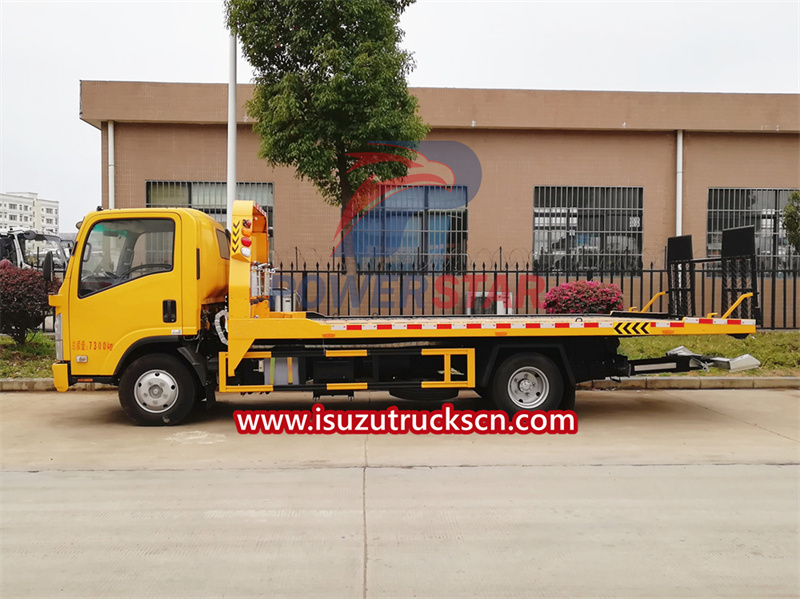

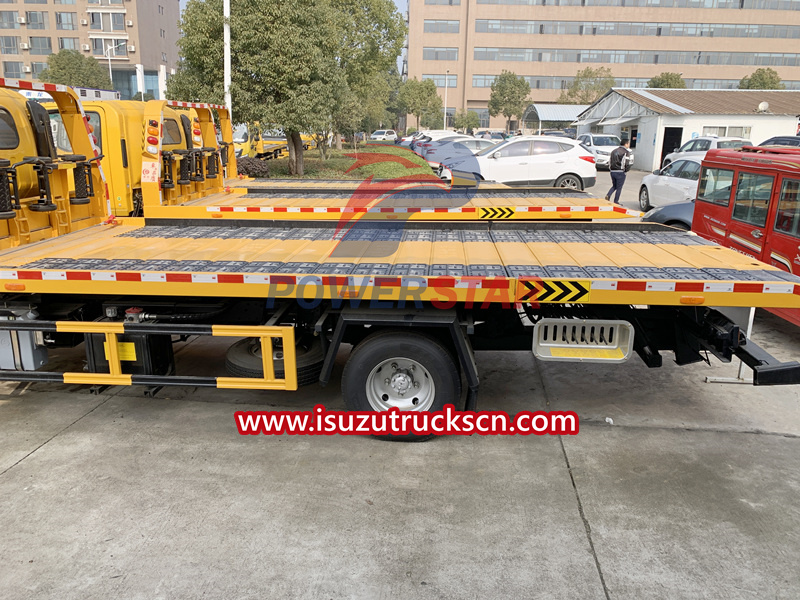

Flatbed or rollback tow trucks manufacture from POWERSTAR have feature a flat-topped empty bed on their rear, designed to carry vehicles on top of it. When these Isuzu wrecker tow trucks need to mount a vehicle on their bed, they employ hydraulics to vertically shift the flatbed up or down.

Once the operator’s ready to pick up a vehicle, they simply put their Isuzu NPR wrecker tow truck or Isuzu recovery truck on the ground and drive the Isuzu rollback tow truck on top of it. When a vehicle is inoperable and can’t be driven, the operator will use chains and a winch to haul the vehicle onto the bed. After the vehicle is on the bed, the Isuzu rescue towing truck’s powerful hydraulic system lifts the bed and the vehicle up into a secure position behind the cab.

Since Isuzu flatbed wrecker trucks are easy to operate, you’ll often see them on the road towing vehicles to their destination. Recovery towing companies usually use them to pick up and transport vehicles that have had an accident or broken down on the road.

Isuzu recovery trucks are also popular because they offer a safe way to transport vehicles. With this type of tow truck, you don’t put any potentially dangerous pressure on towed vehicles or drag the vehicle on the ground. Instead, the flatbed takes all the stress, keeping the vehicle protected from harmful conditions during transport.



Isuzu NPR wrecker tow truck



Isuzu NPR wrecker tow truck



Technical Specifications for ISUZU flatbed or rollback tow truck:

General Technical Specification for ISUZU NPR wrecker tow truck
Overall Dimension 7280*2350*2400(mm)
Gross Vehicle Weight 7300 (Kg)
Curb Weight 4280 (Kg)
Chassis Specification

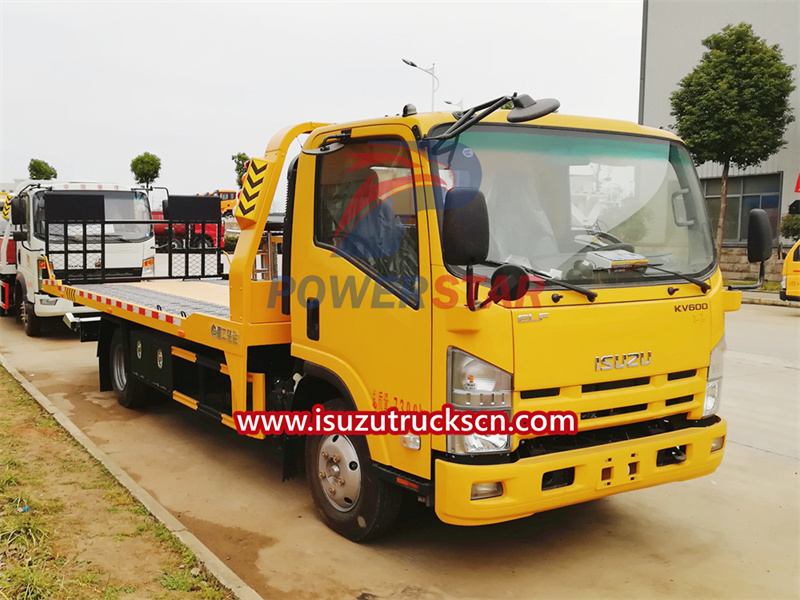

Chassis Brand Isuzu KV600 or NPR
Drive model 4*2
Cabin Single, Left Hand Drive
Engine Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power 97KW/132HP
Emission standard EURO 6
Displacement 2999(ml)
Fuel type Diesel
Gearbox ISUZU MLD 6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System Air Brake
Wheel Base 3360(mm)
Front/Rear Axle Loading 3000/5500(Kg)
Approach/Departure Angle 24/12(°)
Tire 7.50R16, 6pcs + 1 spare tire
Max Driving Speed 98(km/h)
Superstructure Specification
Platform Organ Dimension 5600*2350(mm)

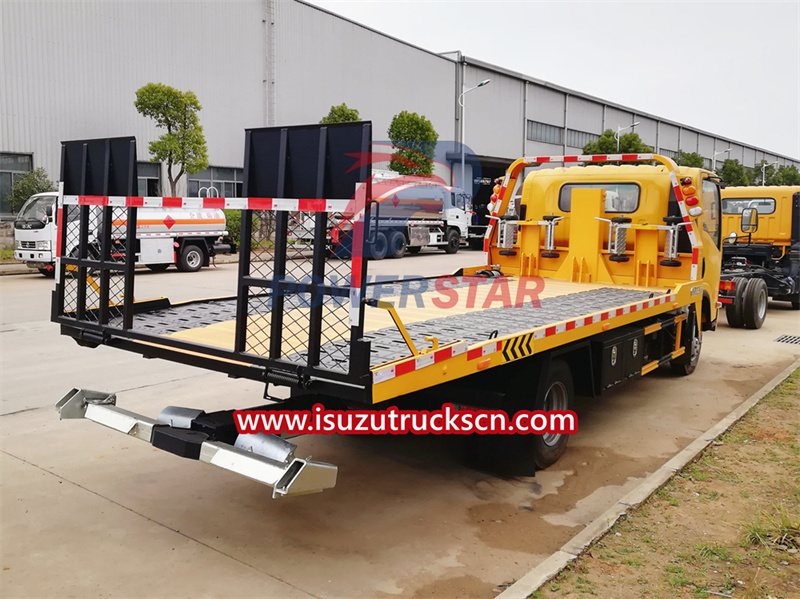

Rear manual flip board length 1200(mm)
Material Q235 carbon steel
Max Loading capacity 4000(kg)

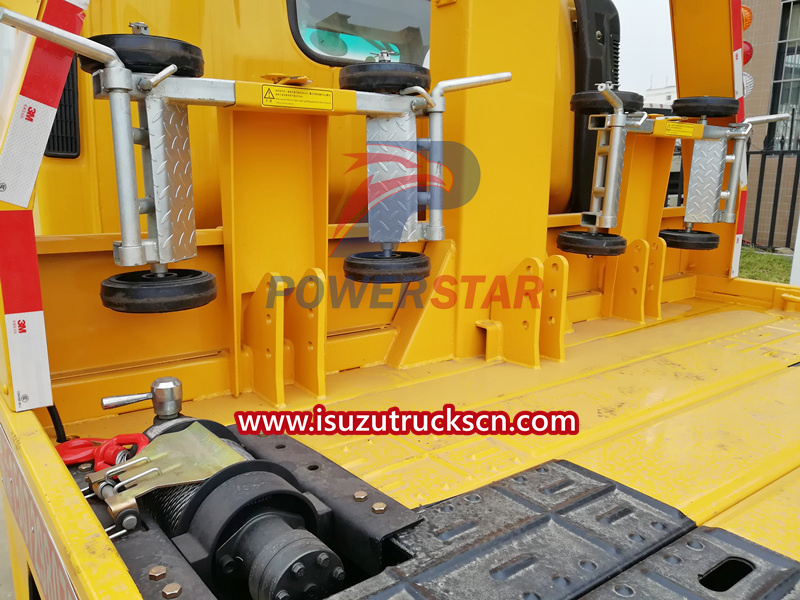

Winch Quantity 1
Winch rating towing capacity 4000(kg)
Length of steel rope 25(m)
Speed of winch 3.23~8 (m/min)

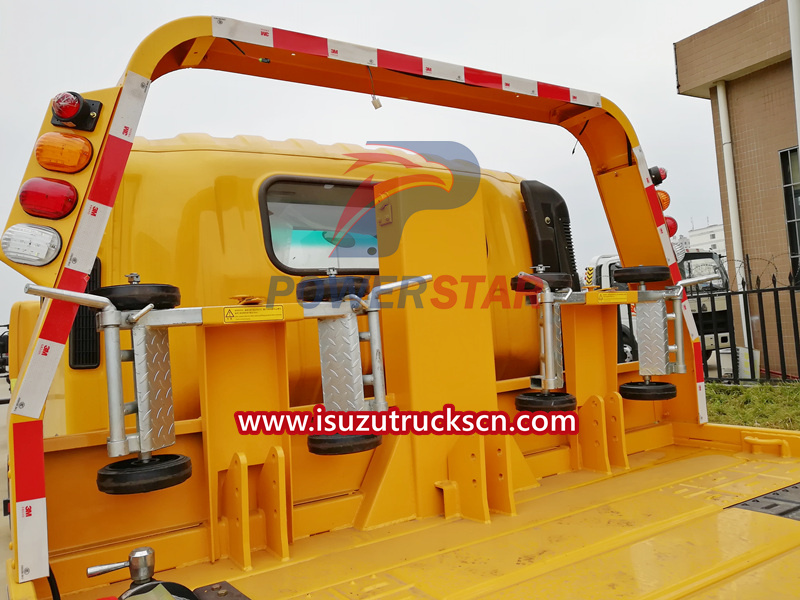

Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.
Options Caution light, air condition,inlet valve.

Isuzu NPR wrecker truck



Isuzu NPR wrecker tow truck



Isuzu NPR wrecker tow truck



The Isuzu rollback tow truck manufacture from POWERSTAR TRUCKS, Isuzu NPR Wrecker tow truck has multiple functions such as lifting, pulling and lifting towing. The Isuzu towing wrecker truck is mainly used for road failure vehicles and urban illegal vehicles. And rescue and so on. Isuzu recovery trucks are mainly divided into tow trucks according to their categories: tow-lift conjoined type, tow-lift separation type, one tow one type, one tow two type flatbed, multi-function tow truck, hydraulic automatic clamping type.

1. Factory direct sale ISUZU NPR WRECKER TOW TRUCK, Isuzu tow wrecker truck with 5200*2400mm platform with good price.
2. Many kinds of wrecker truck for choose, light duty Isuzu flatbed wrecker and heavy duty Isuzu towing trucks.
3. We POWERSTAR sold many Isuzu road wrecker towing trucks / platform wrecker body to South America, Africa, Middle East, etc.
4. We can design and produce the wrecker tow trucks according to customers' request.
  •

Isuzu NPR wrecker tow truck



Isuzu NPR wrecker tow truck



Isuzu NPR wrecker tow truck



Isuzu NPR wrecker tow truck
