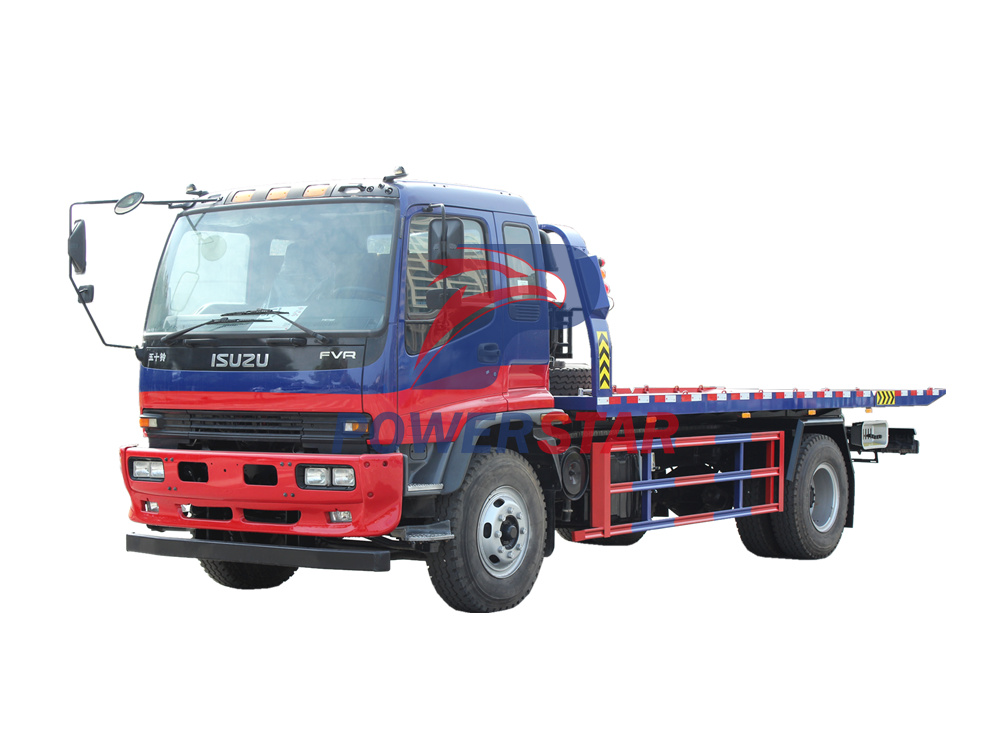

Isuzu Rollback Tow Truck

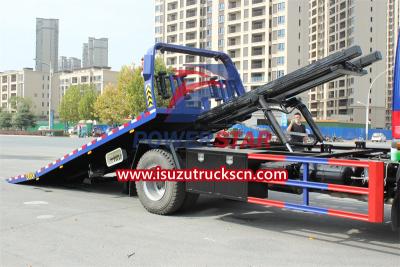

ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck
ISUZU FVR 300HP road wrecker tow truck

Isuzu Rollback Tow Truck

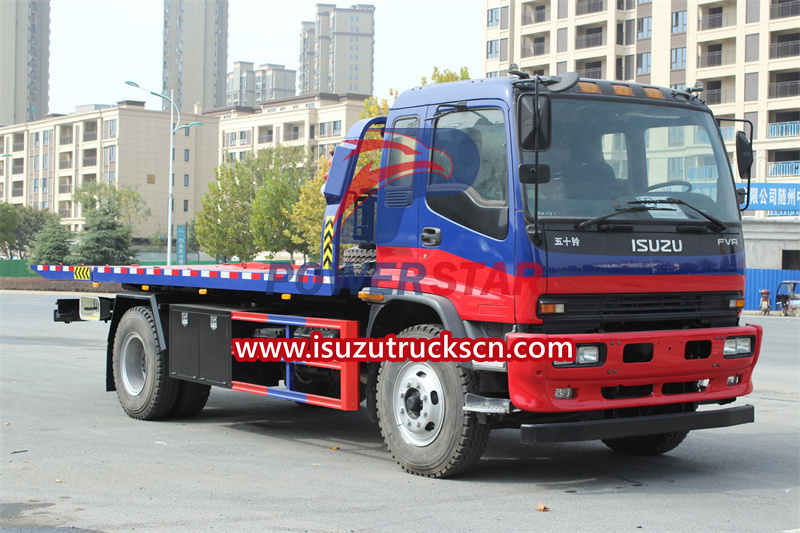

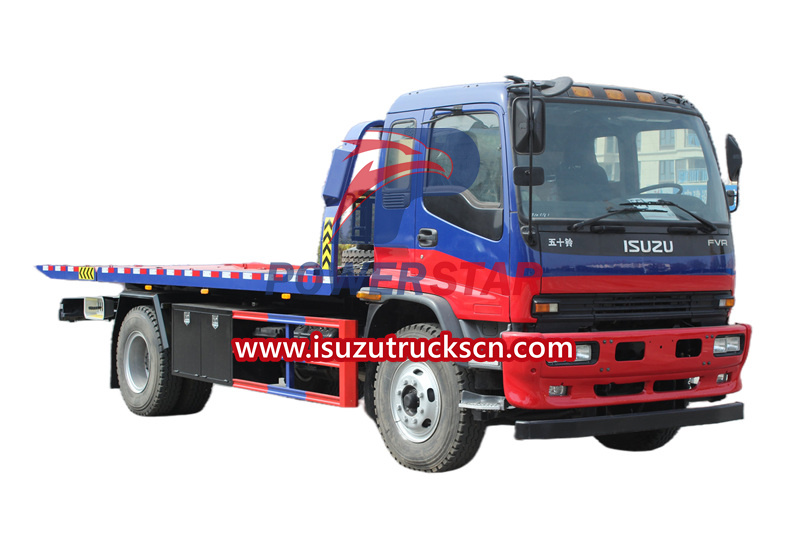

Isuzu FVR rollback tow truck is designed and used to clean block road broken cars, it has more than 5 series different type, flat bed recovery car, ISUZU clean road block car, T type towing truck, rotation wrecker.it also named ISUZU slide flat bed recovery carrier, towing truck, ISUZU wrecker, ISUZU towing truck, ISUZU rotator wrecker. ISUZU crane car carrier truck. New Isuzu FVR 300HP wrecker rescue tow truck mounted with 6.4+1.6m flatbed for car carrier, Also 8tons towing winch with 25m steel rope for safety working. Painting and Logos as required.

  • Work capacity:

    8 Tons
  • Truck model:

    PT5180TQZ10F
  • Engine power:

    300 HP
  • Engine type:

    6Hk1-TC
  • Axle drive:

    4×2
  • Gear box:

    FAST 9-speed manual
  • Remarks:

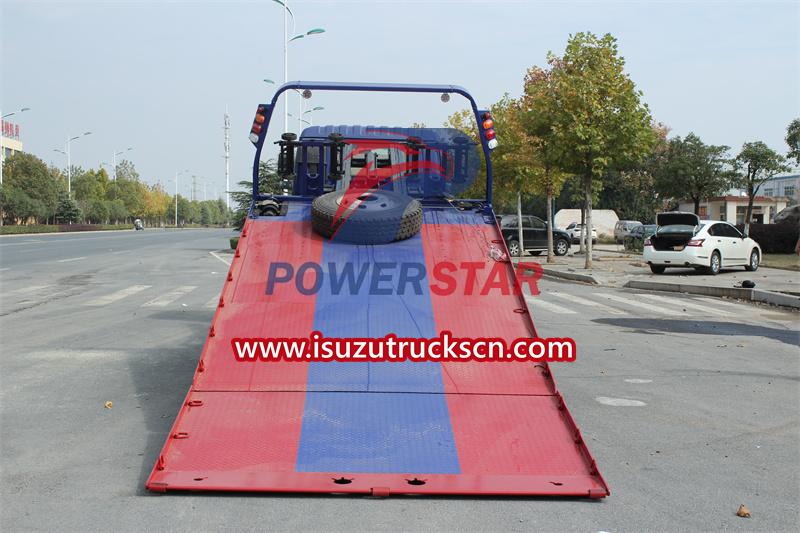

    Flatbed platform 10mm Q235 checkered plate carbon steel, 8tons towing winch

Isuzu road wrecker truck is a special engineering vehicle designed to ensure smooth roads, and Isuzu rollback tow truck is an important equipment for traffic management in prosperous urban areas and expressways. Isuzu recovery truck can quickly, timely and safely remove accidents, breakdowns, and illegal vehicles on the road, as well as special vehicles for dredging road traffic. First, the Isuzu wrecker tow truck are generally divided into four series according to the structure type: the separate type Isuzu flatbed rollback tow truck, the Isuzu combined type platform rollback truck, the Isuzu flat type wrecker truck, and the Isuzu ordinary type rollback tow truck. Among them, the lifting and separating type wrecker includes two types of boom rotating wrecker and non-rotating wrecker. Isuzu rollback tow truck can be designed and produced with different loading capacity: 2tons, 4tons, 5tons, 6tons, 7tons, 8tons, 10tons, 12tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons.

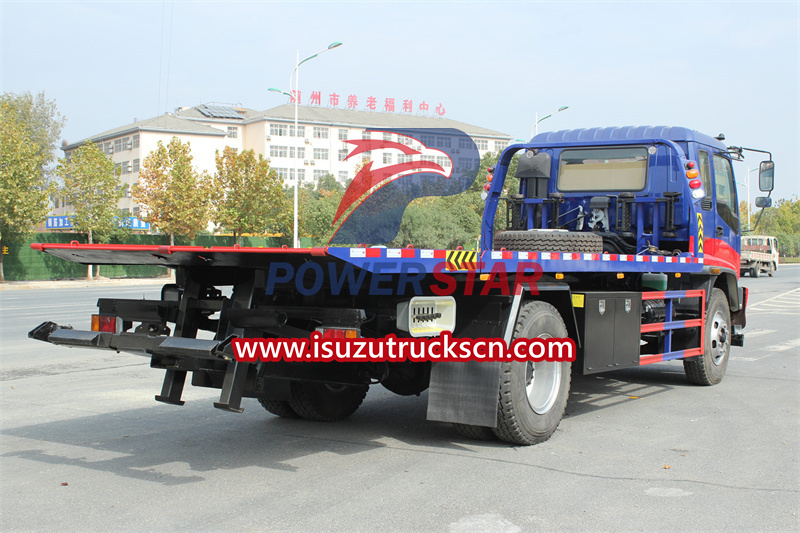

Isuzu rollback tow truck

Isuzu rollback tow truck



Technical Specifications for ISUZU rollback tow truck:

The ISUZU 8Ton rollback tow truck, also known as an Isuzu Wrecker Road Recovery Truck, road wrecker, trailer, road rescue vehicle, or tow truck, is a versatile vehicle designed for various roadside assistance tasks. It excels in functions like lifting, pulling, and providing traction. This road wrecker is primarily utilized for rescuing road-faulted vehicles and addressing urban illegal parking incidents. It plays a crucial role in ensuring the efficient flow of traffic by swiftly clearing road obstructions.

This Isuzu Rollback Tow Truck is a reliable and versatile vehicle designed to handle a wide range of roadside emergencies, making it an invaluable asset for road safety and rescue operations.

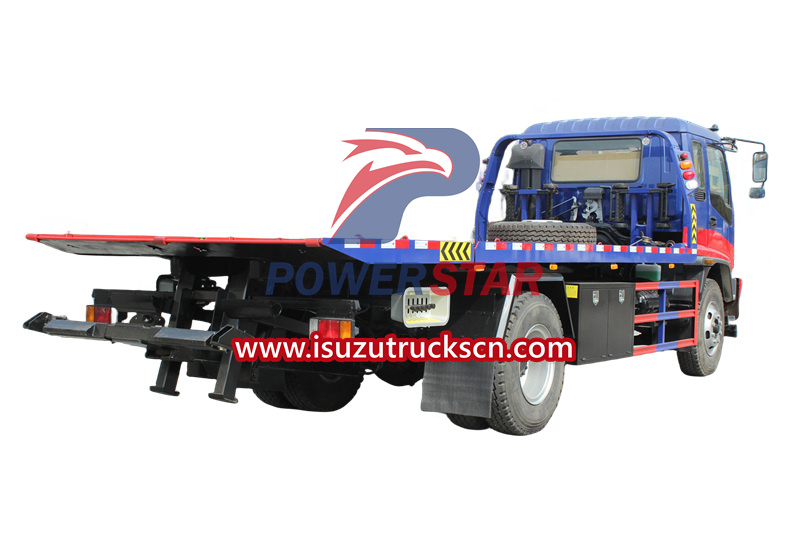

Isuzu rollback tow truck

ITEM UNIT PARAMETER
Vehicle   ISUZU Rollback Tow Truck
Overall Dimensions mm 8900×2500×3050
Gross Vehicle Weight (GVW) kg 18000 kg
Curb Weight   8600 kg
Payload   10000 kg
Wheelbase mm 4500
Front/Rear Track Base   1960/1855
Approach/Departure Angle ° 24/10
Maximum Speed km/h 95
Axle Load kg 6300/13000
Tire Specification   10.00R20
Number of Axles   2
Engine Model   6HK1-TC
Engine Type   Diesel, 6 Cylinder, Direct Line, Water Cooling
Engine Displacement/Power ml/kw 7790/220/300
Steering   Power
Transmission   FAST 9 Forward & 1 Reverse
Cab Passenger Capacity   3
Electric System V 24V
Drive Type   4×2
Emission Standard   Euro 5
Standard Configuration   Equipment Lashing, Auxiliary Wheel, Bundling Belt, Automatic Skateboard, Alarm Lamp, Set of Wheel Covers, 3-Ton Lift, 4-Ton Windlass.

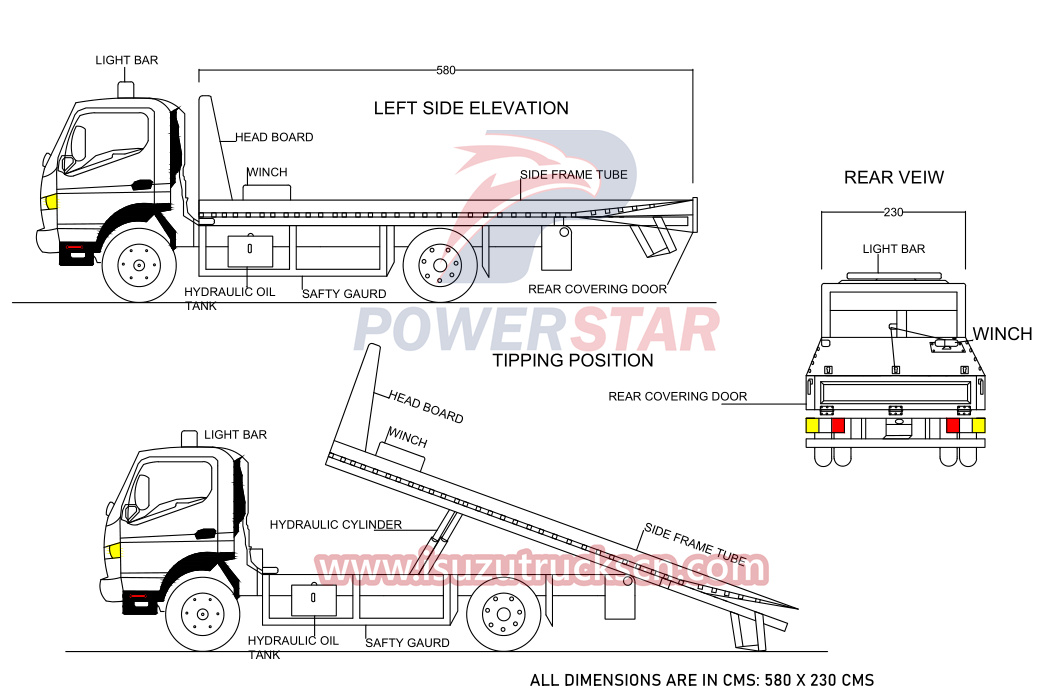

Isuzu rollback tow truck



Isuzu rollback tow truck



The Isuzu rollback tow truck manufacture from POWERSTAR TRUCKS, which consists of the Isuzu truck chassis, hoisting equipment, truck tow hook, tow truck winch 3-50tons, two truck wheel lift, hydraulic system, electric control system, truck body and the tool box. The customized Isuzu recovery wrecker truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles, this may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap, inclement weather, towing or transporting one via flatbed to workshop.

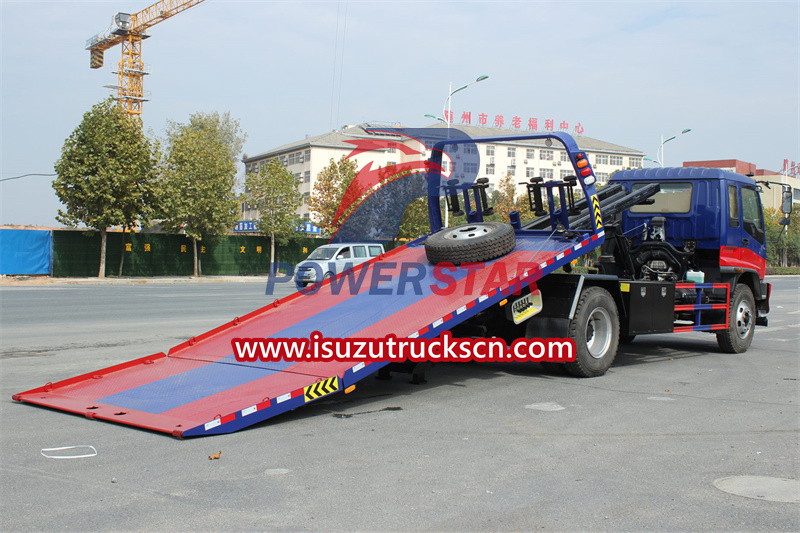

Isuzu rollback tow truck

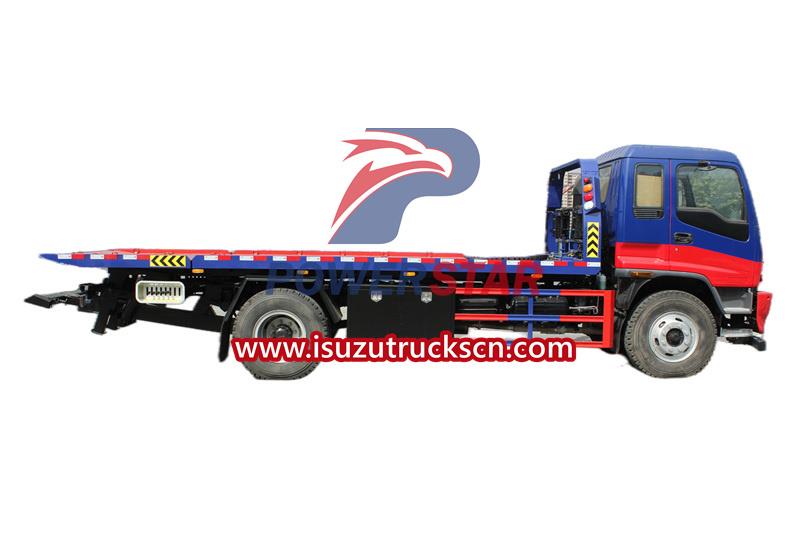

Isuzu rollback tow truck   Isuzu rollback tow truck



Isuzu rollback tow truck   Isuzu rollback tow truck



Isuzu rollback tow truck   Isuzu rollback tow truck



Isuzu rollback tow truck

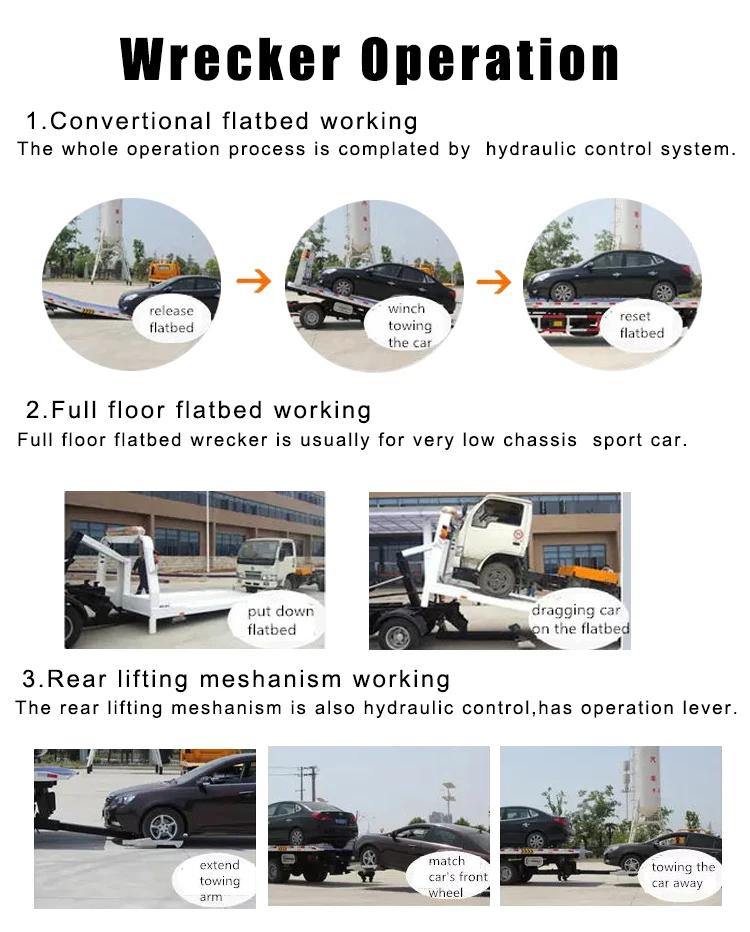

The Isuzu rollback tow truck is a multi-purpose vehicle designed for vehicle accidents, breakdowns or emergencies and has the following features:

  • Road Rescue Equipment: The Isuzu road wrecker truck comes equipped with essential road rescue equipment to efficiently manage vehicle breakdowns and accidents. It plays a critical role in maintaining road safety by promptly removing obstructed vehicles from the scene.
  • High-Strength Steel Construction: The arm and boom of the Isuzu rollback tow trucks are constructed from high-strength steel, providing durability and stability. Carbon dioxide automatic protection welding ensures precise and robust joints, enhancing overall strength and safety.
  • Advanced Welding Techniques: Welding on the Isuzu FVR wrecker employs advanced techniques, including carbon dioxide protection welding and argon arc welding. This results in smooth, aesthetically pleasing welds with high precision and strength, with each weld length exceeding 300mm.
  • Superior Towing Capacity: With a towing capacity of 8 tons and a 8-ton windlass, matched with 25m steel rope, this Isuzu towing wrecker truck can handle a variety of vehicle sizes and weights, making it highly effective for rescues.
  • Spacious and Functional Cab: The Isuzu road wrecker tow truck cab accommodates up to three passengers and features power steering for ease of operation.
  • Compliant with Emission Standards: The Isuzu rescue wrecker vehicle adheres to Euro 3 emission standards, contributing to reduced environmental impact.
  • Standard Configuration: The wrecker comes equipped with essential accessories, including equipment lashing, an auxiliary wheel, bundling belts, an automatic skateboard, an alarm lamp, a set of wheel covers, a 6-ton lift, and a 8-ton windlass.

Isuzu rollback tow truck



Isuzu rollback tow truck



Isuzu rollback tow truck



Isuzu rollback tow truck



Isuzu rollback tow truck

Isuzu rescue wrecker truck
