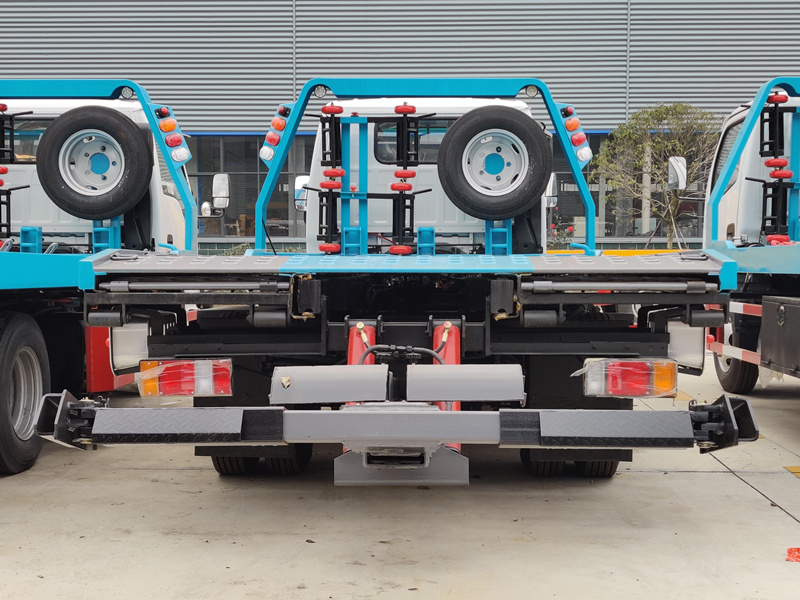

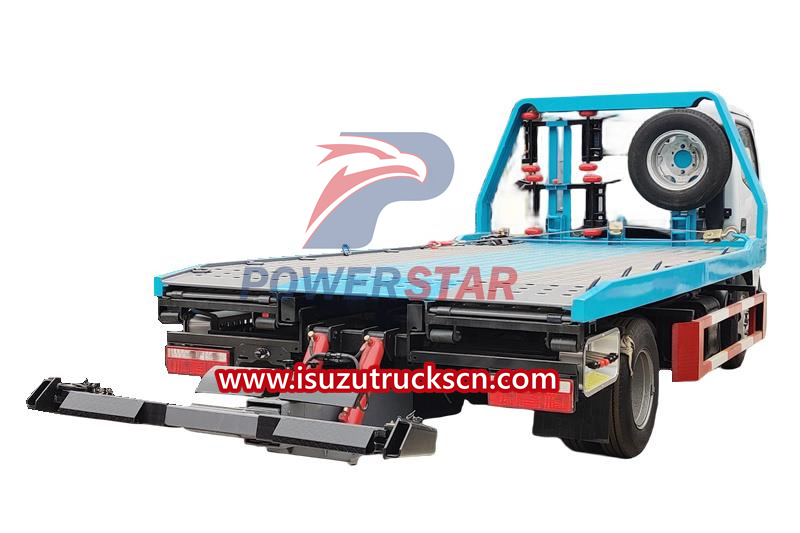

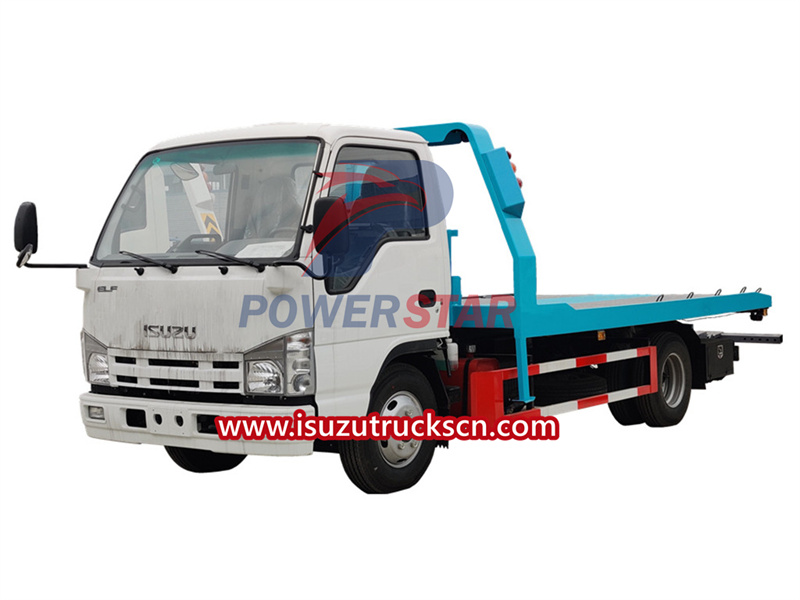

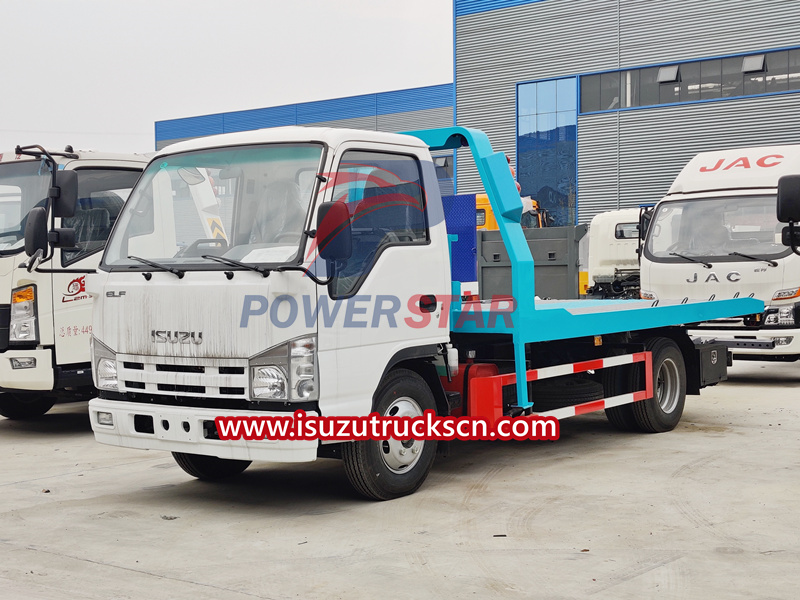

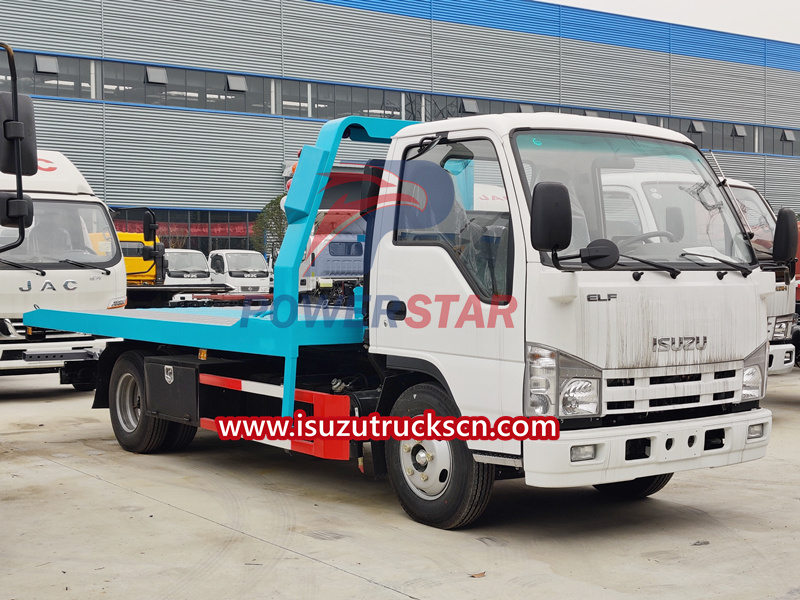

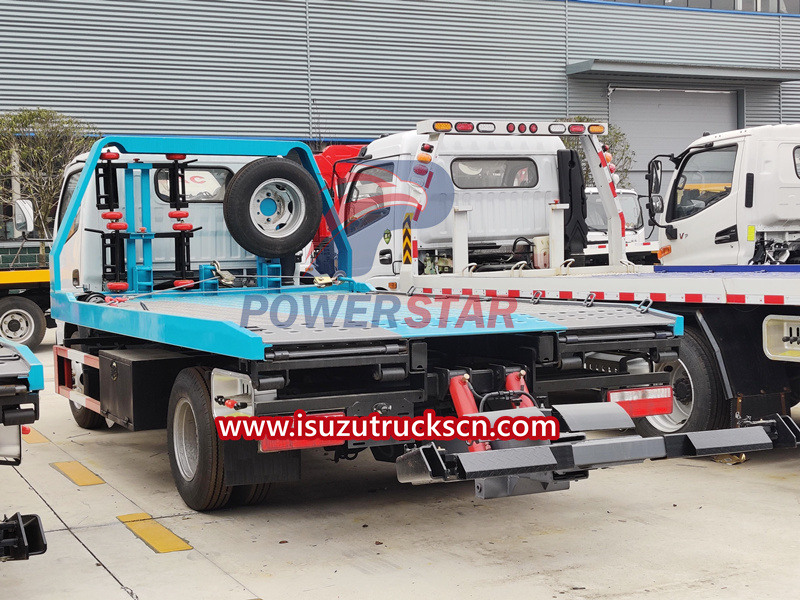

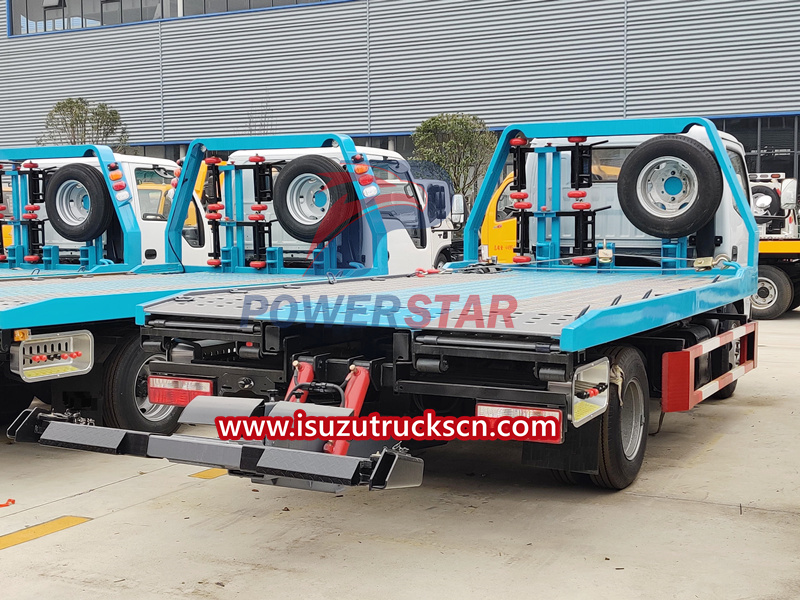

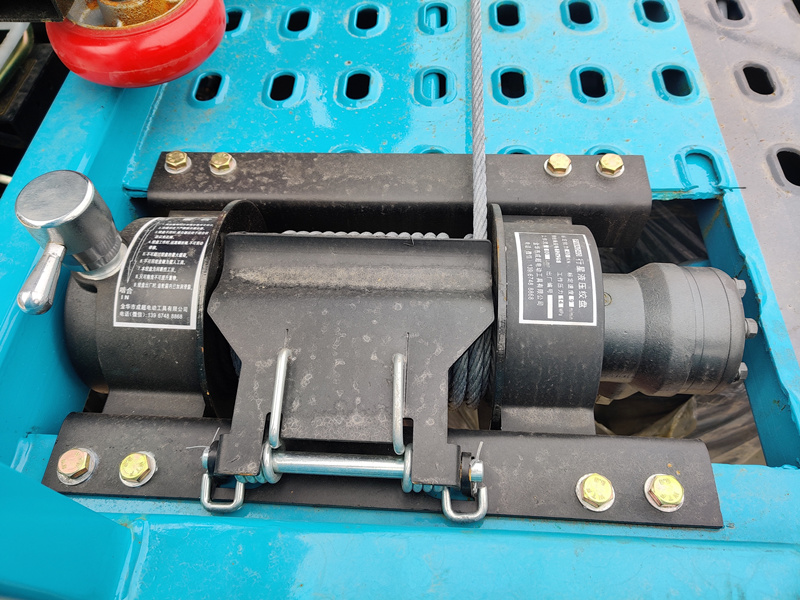

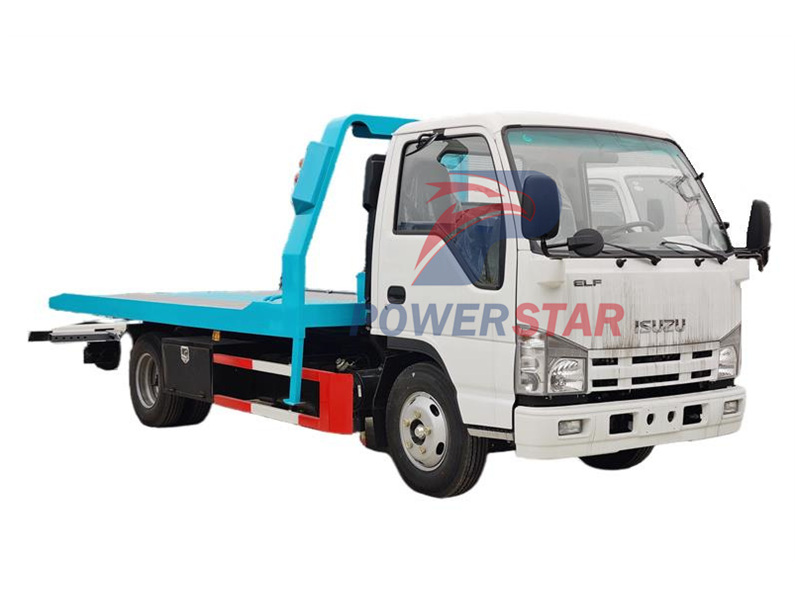

Isuzu emergency road rescue wrecker Japanese NKR tow truck for sale, Isuzu wrecker truck has multiple functions such as lifting, pull and lift device, mounted with 5.6m flatbed wrecker platform. The Isuzu rescue wrecker truck basically is refitted from the loading goods type 2 Isuzu NKR chassis, 4KH1CN diesel engine 120HP, MSB 5-shift manual gearbox, 3360mm wheelbase, with GVW 7300 and kurb weight 3800kg, the payload weight can be 3500kg. Also mounted with 4tons towing winch device with steel rope diameter 12mm. Whole truck painting and logos can be customized.
Work capacity:
3 TonsTruck model:
PT5070TQZ03EEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed manualRemarks:
Q345 steel plate wrecker platform, 4tons towing with with 25m steel rope
Technical Specifications for ISUZU rescue wrecker truck:
1. Purpose of Isuzu 3ton flatbed tow truck, Isuzu rescue wrecker truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Spare parts of Isuzu rescue wrecker truck: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
3. The customers can choose to install the crane. Telescopic model and Knuckle model. With option brand Palfingerl, UNIC, XCMG, POWERSTAR, etc
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
General Technical Parameters | |||
Overall Dimension | 5995x2300x2200(mm) | ||
Gross Vehicle Weight | 7300kg | ||
Curb Weight | 3800kg | ||
Chassis Specification | |||
Chassis Parameters | Chassis Brand | ISUZU | |
Cabin | Single, Left Hand Driving | ||
Engine | Model | 4 Cylinders | |
Power | 88KW/120HP | ||
Emission Standard | EURO VI | ||
Displacement | 2999ml | ||
Fuel Type | Diesel | ||
Gearbox | MSB 5 Forward & 1 Reverse Gear | ||
Front and Rear Axle Load | 2.5T/4.8T | ||
Wheel Base | 3360(mm) | ||
Overhang( Front/Rear) | 1015/2450(mm) | ||
Angle(Approach/departure) | 24/16(°) | ||
Brake System | Air brake | ||
Steering Gear | Power Assistant | ||
Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
Maximum Speed | 110 (km/h) | ||
Superstructure | |||

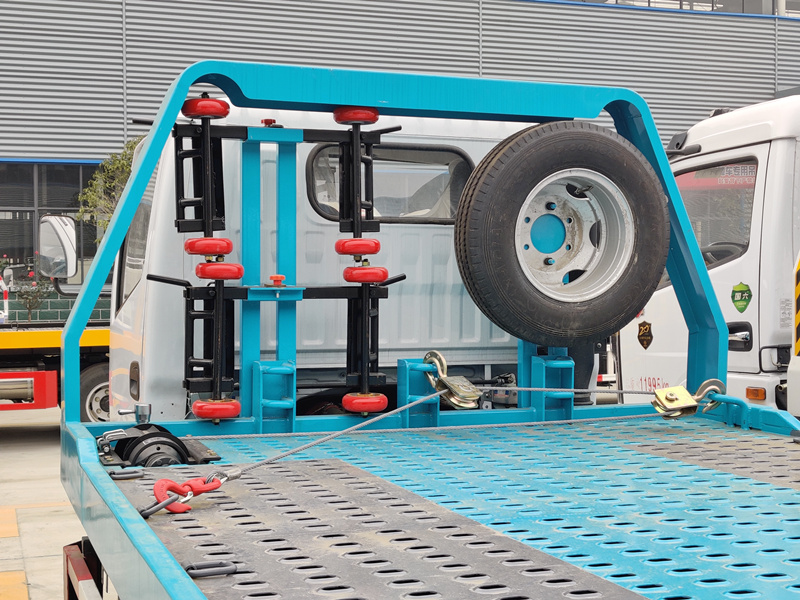

Flatbed | Dimensions | 5600x2320 (mm) | |
Max. Loading Weight | 3000(kg) | ||
Operating Stroke | 2700 (mm) | ||
Min. Angle of Slope | 8(°) | ||
Platform Height from the Ground | 1070(mm) | ||
Winch | Quantity | 1pc | |
Winch Rating Pulling Capacity | 4000 (kg) | ||
Length of Steel Cable | 25 (m) | ||

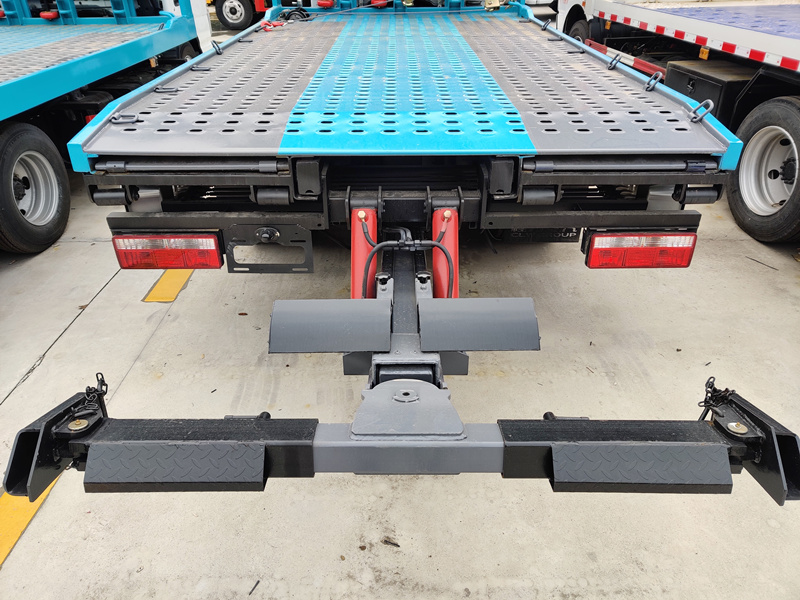

Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
Rating Under-Hoisting Capacity | 2000 (kg) | ||
Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
Max Under-Hoist Useful Length | 1640 (mm) | ||
Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
The Isuzu rescue wrecker truck is a multi-purpose vehicle designed for vehicle accidents, breakdowns or emergencies and has the following features:
Powerful towing capabilities: The Isuzu recovery rescue truck is equipped with a dedicated towing device, capable of towing and hauling various types and sizes of vehicles, including cars, vans, heavy-duty trucks, excavators, etc.
Unique rescue equipment: The Isuzu towing rescue vehicle is equipped with a variety of rescue equipment, such as lifting arms, winches, towing ropes, etc. These devices can be used to rescue vehicles, extricate them from distress, and provide emergency repairs and support.
Large-capacity storage space: The Isuzu recovery wrecker truck has a large-capacity storage space that can be used to store rescue tools, spare parts, safety equipment, etc. These storage spaces allow rescuers to quickly obtain the tools and equipment they need, improving rescue efficiency.
Good maneuverability and controllability: Rescue missions usually require quick response and flexible operation. Isuzu road wrecker trucks have good maneuverability and controllability, and can quickly arrive at the scene and perform related tasks in emergency situations.
For African country construction, Isuzu rescue trucks are of great significance and value:
Road traffic safety: Road traffic safety problems in African countries are serious and accidents occur frequently. Isuzu rescue wrecker trucks can respond quickly and provide rescue services, tow damaged vehicles, clean up the scene, reduce road congestion and secondary accidents, and improve road traffic safety.
Economic development and logistics: Isuzu recovery towing rescue trucks provide African countries with an efficient and reliable rescue and repair mechanism. They can quickly restore the normal operation of the road transportation system, promote the flow of goods, and improve the level of logistics and economic development.
Emergency relief: African countries face various natural disasters and emergencies, such as floods, earthquakes, hurricanes, etc. Isuzu rescue tow trucks can be used for emergency relief work, transporting medical equipment, rescue personnel and supplies to disaster-stricken areas, and providing emergency humanitarian assistance.
Technology transfer and personnel training: The introduction and use of Isuzu road wrecer trucks will contribute to technology transfer and personnel training in African countries. By cooperating with Isuzu, local technicians can be trained, repair and rescue capabilities can be improved, and the development of the local automobile manufacturing and repair industry can be promoted.
