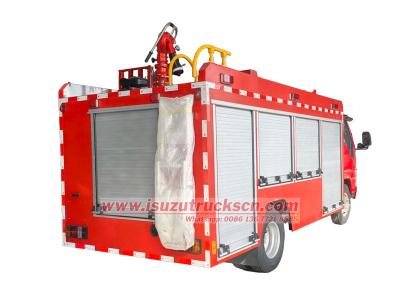

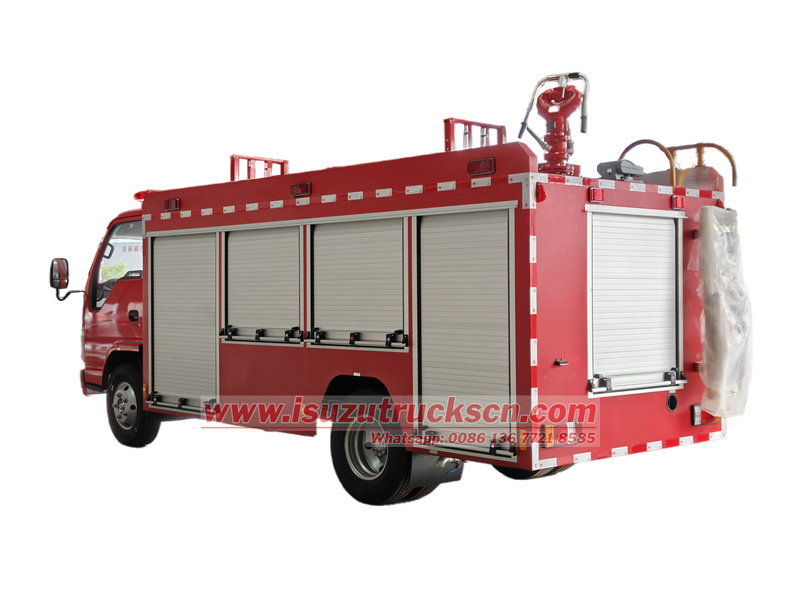

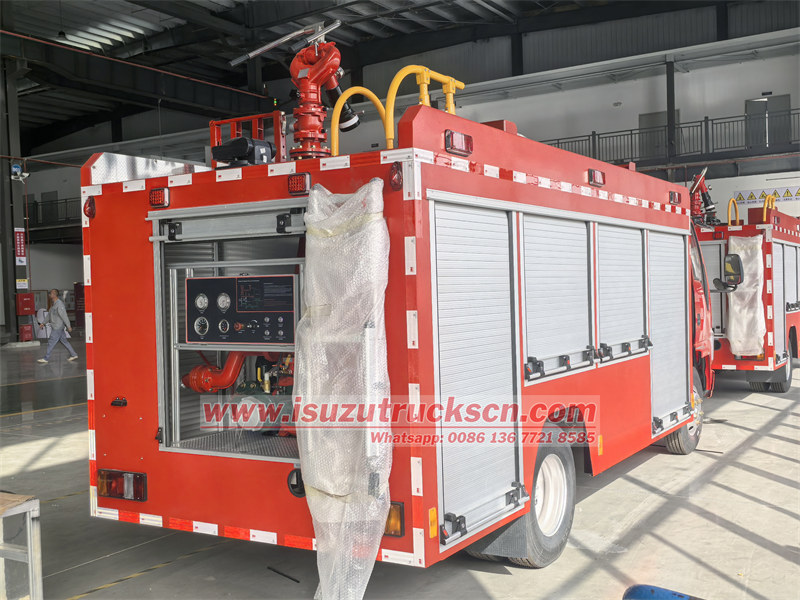

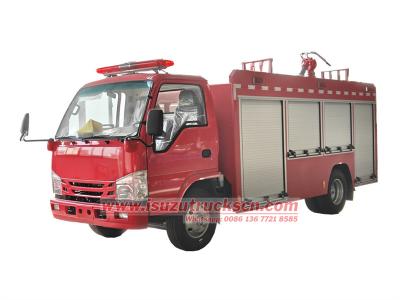

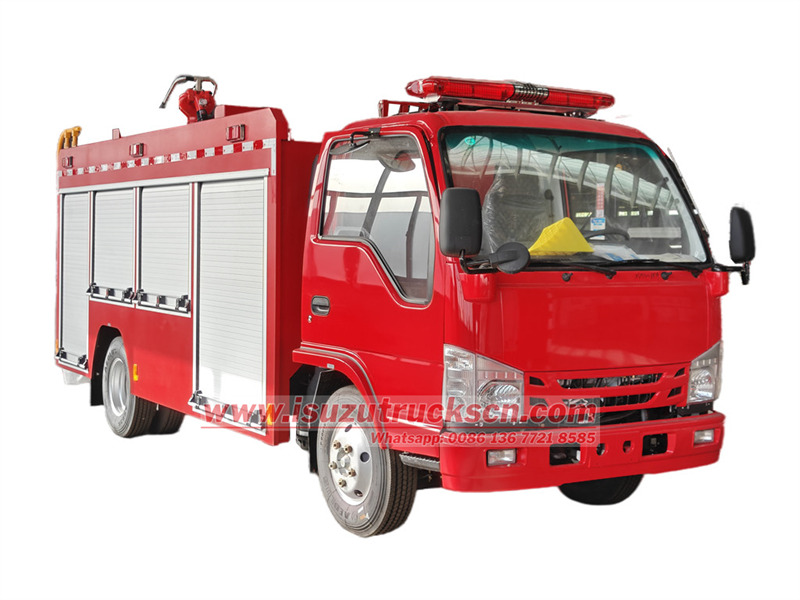

The ISUZU NKR Water Tank Fire Truck is a reliable assistant in urban firefighting. Its superior upper structure is well-equipped, featuring a large 2000-liter water tank for ample water storage; the powerful CB10/30 fire pump ensures efficient water supply; the PS20 fire monitor delivers precise, long-range spraying; the equipment compartment is rationally arranged and fully stocked; and the integrated pump room allows for convenient operation. Compact and highly efficient, this fire truck responds swiftly to fire emergencies, providing solid protection for urban fire safety.
Manufacturer:
Powerstar TrucksWork capacity:
2000 litersDimension:
5980 x 2000 x 2850 mmCabin type:
ISUZU 100P single row cabinWheelbase:
3360 mmEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

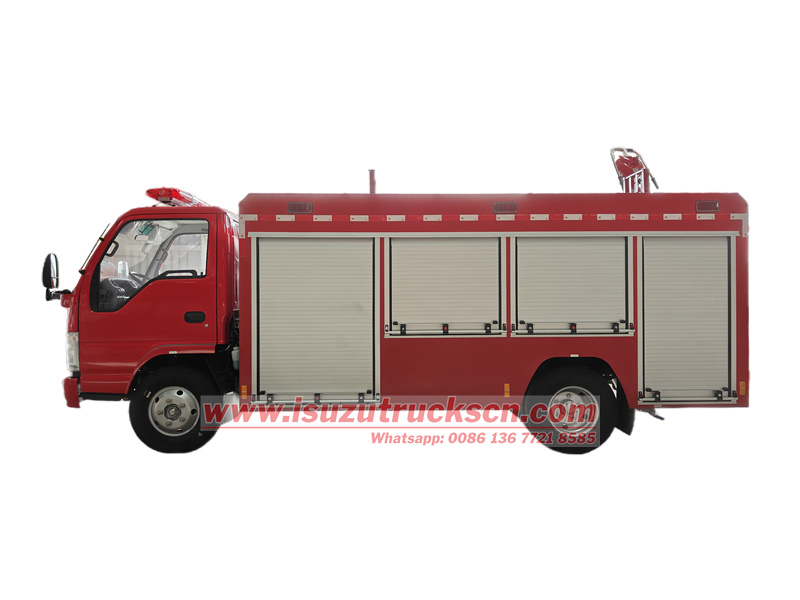

Right hand drive, 4x4 drive optionalThe ISUZU Mini Water Tank Fire Truck is a lightweight firefighting vehicle specifically designed for urban firefighting. It adopts a single-row cab design, with compact dimensions of 5980mm in length, 2000mm in width, and 2850mm in height, and a wheelbase of only 3360mm. This design enables easy maneuvering even on narrow roads, demonstrating excellent mobility.
The water tank of the ISUZU NKR Water Fire Tender is made of high-quality carbon steel with a thickness of 4mm, ensuring durability and robustness. The tank has a designed capacity of 2000 liters, meeting the demands of daily firefighting operations. Particularly in the early stages of fire suppression, it can quickly provide sufficient water to effectively control the spread of flames. The interior of the tank is specially treated to be smooth and free of dead corners, facilitating cleaning and maintenance while ensuring water quality and extending the equipment's service life.

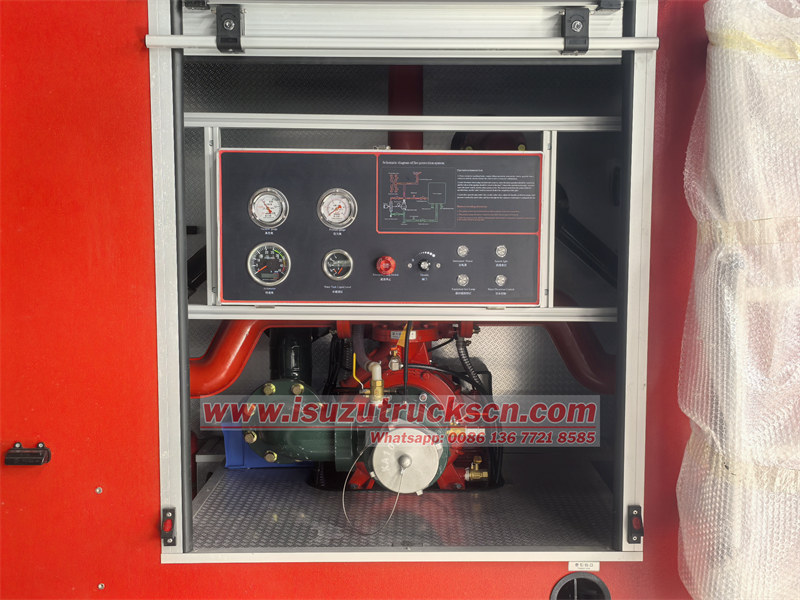

The fire pump is one of the core components of the fire truck. The ISUZU NKR single row fire engine is equipped with a CB10/30 normal-pressure pump. This fire pump features a four-cylinder in-line, water-cooled, direct-injection, turbocharged, and intercooled design, delivering high maximum power. It can pressurize water to 1.0 MPa in a short time, ensuring sufficient range and impact force of the water stream. With a maximum suction lift of 7 meters and a flow rate of 30 L/s, the pump can rapidly establish a water supply system, whether drawing water from hydrants or natural sources, providing strong support for firefighting operations.

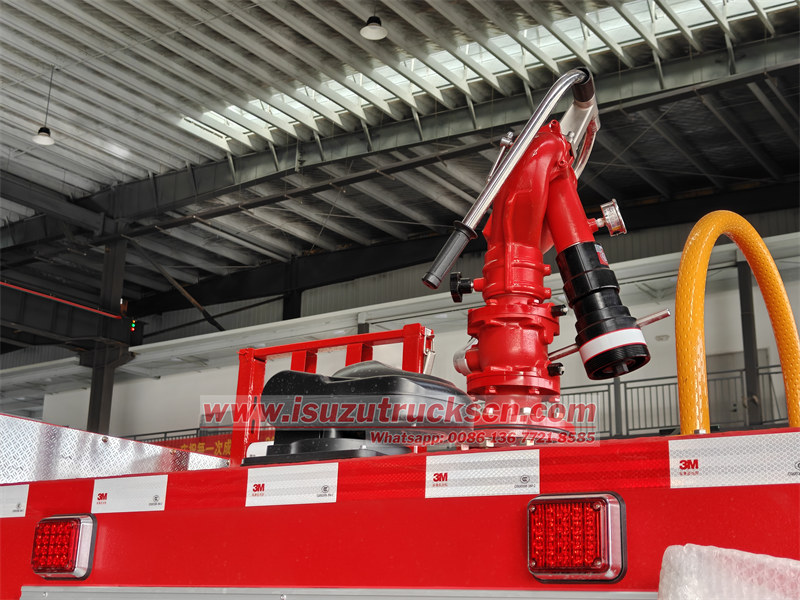

The fire monitor is a critical firefighting tool on the ISUZU Mini Fire Tanker Truck, model PS20. This monitor boasts outstanding performance, with a flow rate of 20 L/s and a range of ≥50 meters, enabling quick coverage of large fire areas. The monitor can rotate 360 degrees horizontally and tilt from -35 to +70 degrees vertically, offering flexible adjustment of spray direction to achieve all-around, multi-angle firefighting. Its simple and quick operation significantly enhances firefighting efficiency.

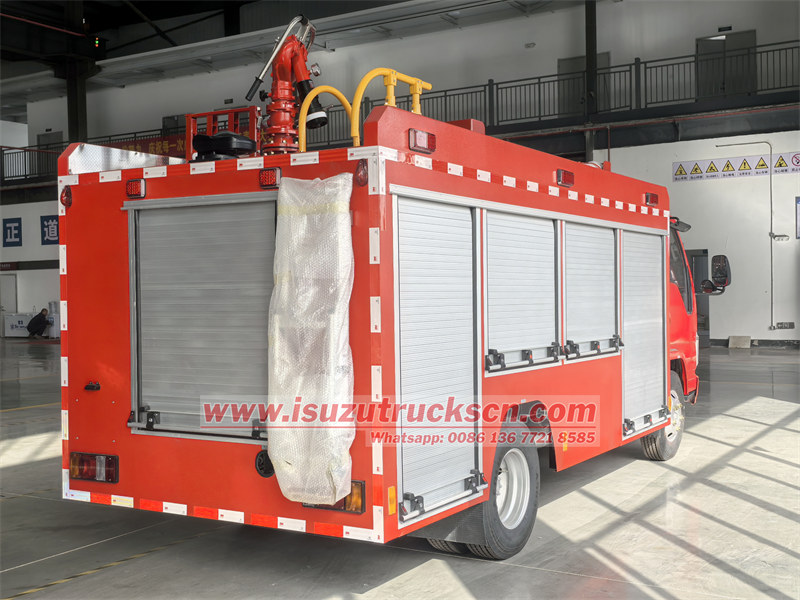

The equipment compartment is an essential part of the ISUZU NKR Light Pumper Fire Truck, providing ample storage space for firefighters' gear. The compartment is rationally organized, categorizing and storing various firefighting tools and equipment, such as hoses, nozzles, demolition tools, and protective gear. This setup allows firefighters to quickly access the necessary items during missions, improving operational efficiency.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
ISUZU NKR mini fire tender truck specifications |
||
|
Main specification |
Chassis brand |
ISUZU |
|
Chassis model |
NKR |
|
|
Overall dimension(L*W*H) |
5980×2000×2850mm |
|
|
Water tank volume |
2,000 LITRES |
|
|
Cabin |

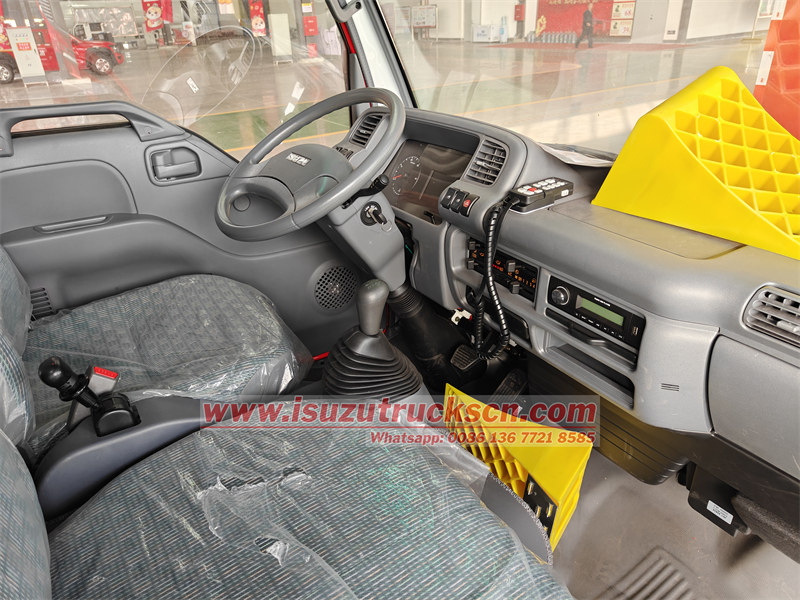

Single cabin, with Air conditioner, electronic windows, USB, |
|
|
Chassis |
Drive model |
4x2 left hand drive |
|
Axle loading (front/rear) |
2500kg/4800kg |
|
|
Front/rear overhang |
1015/1623mm |
|
|
Wheelbase |
3360mm |
|
|
Approach/departure angle |
24/13(°) |
|
|
Tyre size & number |
7.00R16 with one spare tyre |
|
|
Transmission |
ISUZU MSB, manual, 5 forwards and one reverse |
|
|
Max speed |
95km/h |
|
|
Brake |
Air brake, with ABS |
|
|
Color |
Red |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN6LB |
|
|
Engine Type |
4-cylinder, in-line, water cooling, direct injection type, turbocharged, intercooling |
|
|
Horse power |
120 HP |
|
|
Displacement |
2999ml |
|
|
Emission |
Euro 6 |
|
|
Water tank |
Water tank volume |
2000 Liters |
|
Tank material |
Carbon steel (stainless steel is optional) |
|
|
Water tank thickness |
4 mm |
|
|
Fire pump |
Model |
CB10/30, Normal pressure pump |
|
Working pressure |
1.0 Mpa |
|
|
Max suction height |
7 m |
|
|
Flow |
30 (L/S) |
|
|
Rated speed |
3000 (r/min) |
|
|
Time of drawing water |
≤50 (s) |
|
|
Input |
2 units, diameter: DN65 |
|
|
Outlet |
1 unit, diameter: DN65 |
|
|
Fire monitor |
Model |
PS20 |
|
Flow |
20 L/s |
|
|
Range |
≥50 m |
|
|
Rated working pressure |
0.8 Mpa |
|
|
Depression/elevation angle |
-35～+70 (°) |
|
|
Horizontal rotation angle |
360 (°) |
|
