Isuzu Truck Mounted Boom Lift

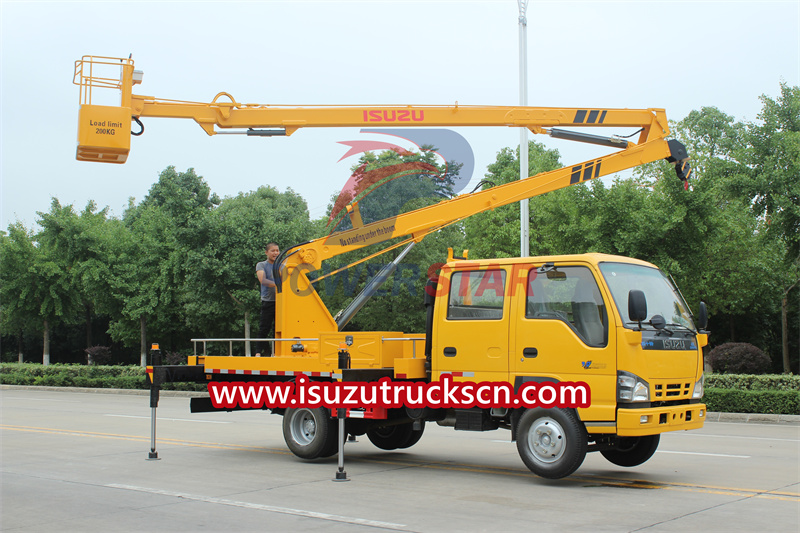

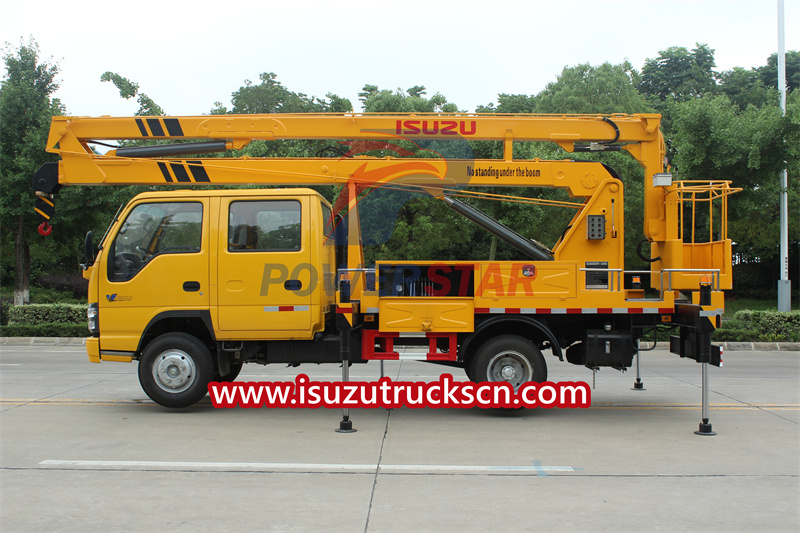

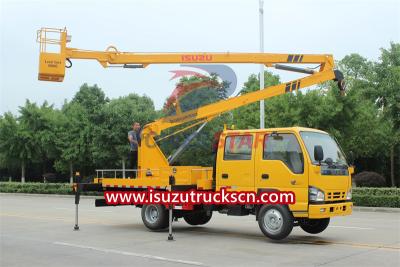

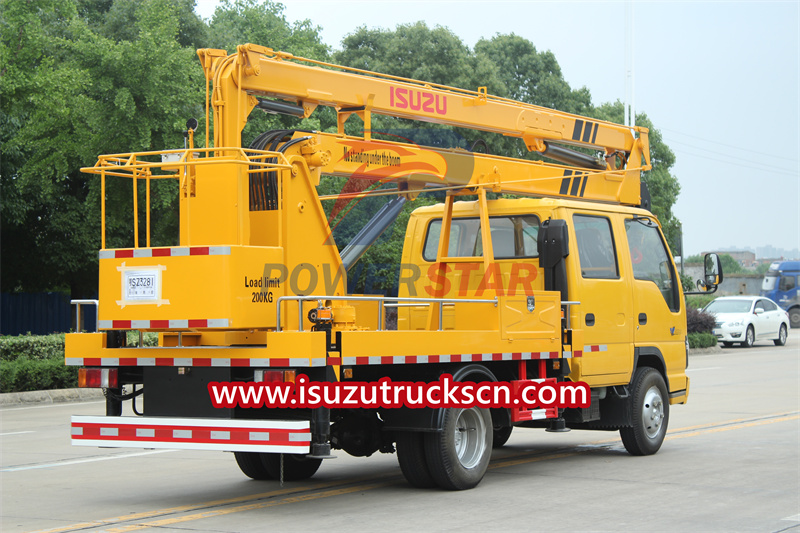

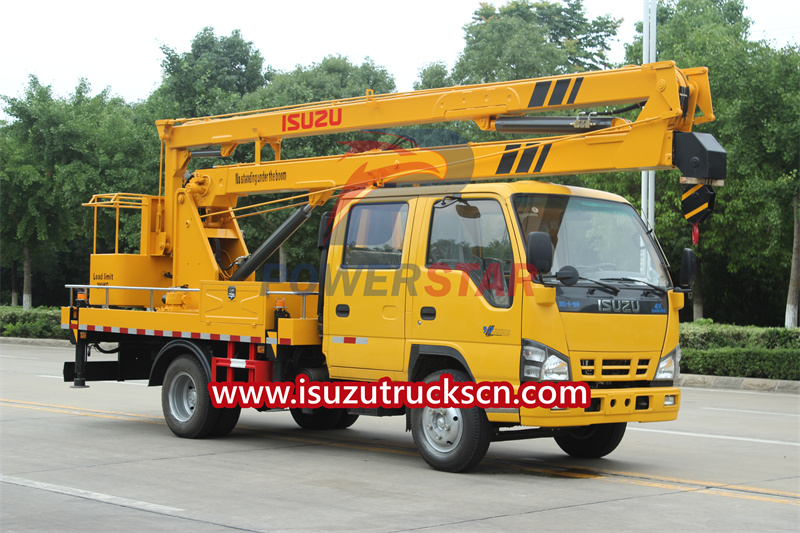

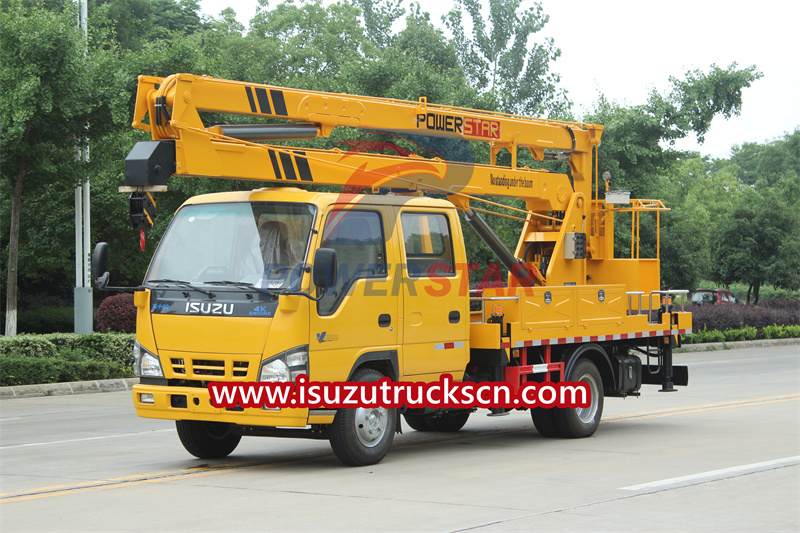

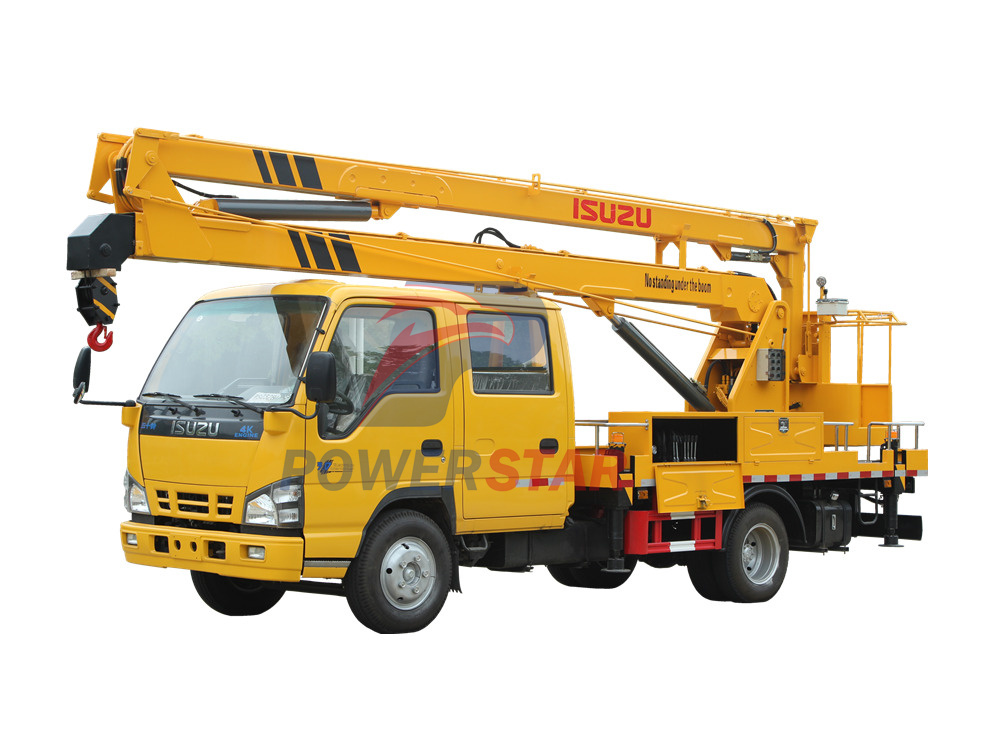

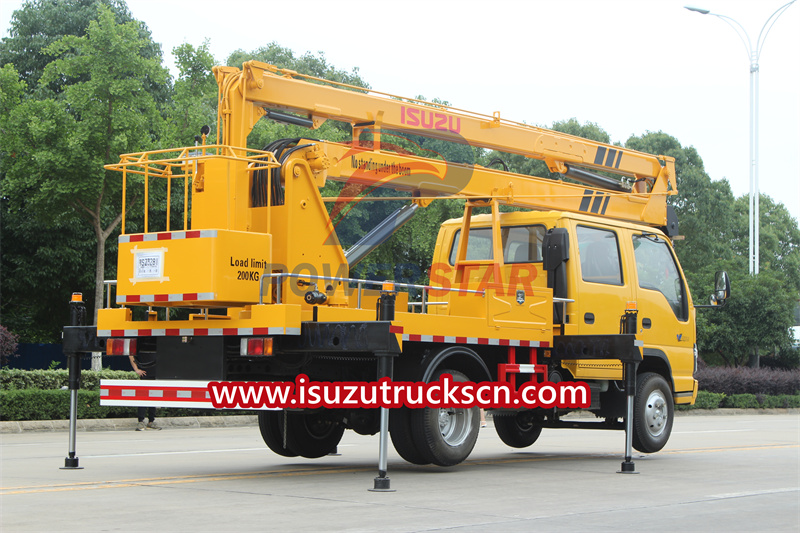

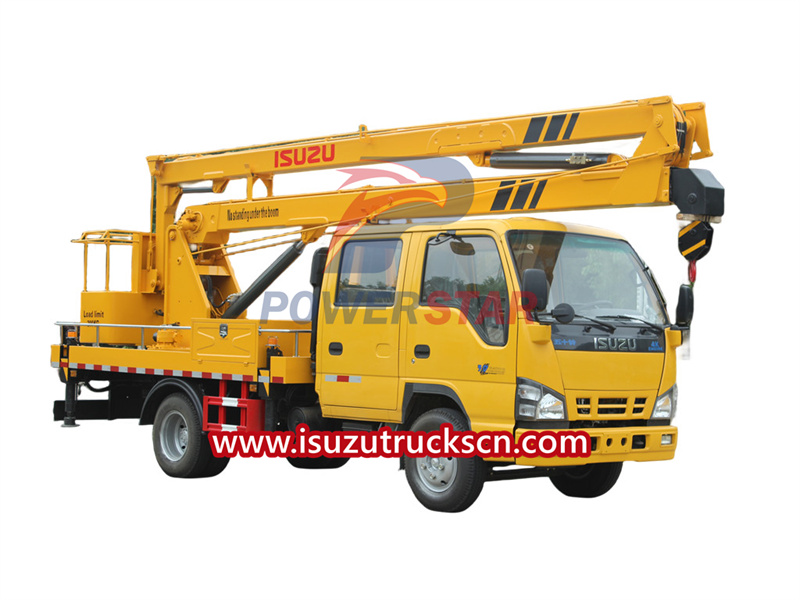

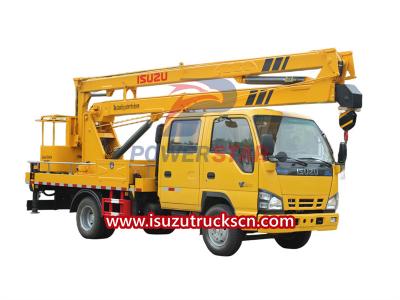

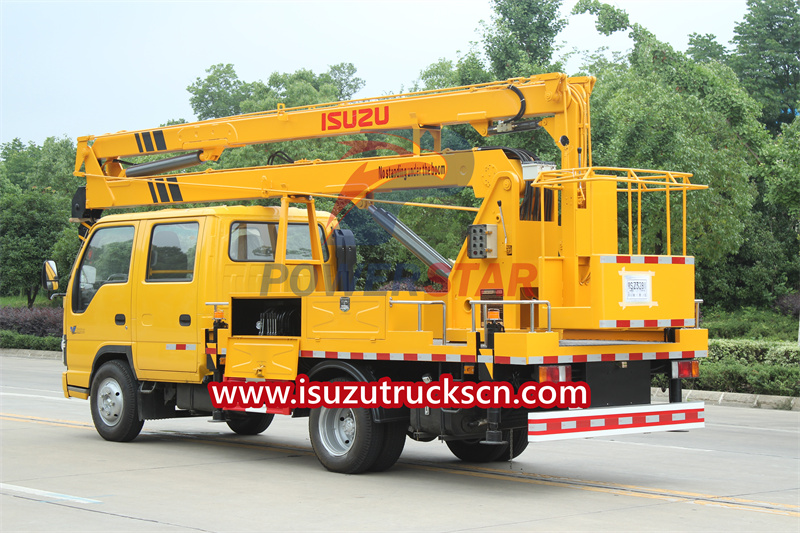

Brand New Isuzu NKR 4x2 aerial platform truck is advanced designed, with a safety and reliable technology. The original Isuzu NKR double cabin manlifter truck is build based on Isuzu NKR double cabin chassis, double row with 4 doors and 2+3 seats, 4KH1CN diesel engine with 120HP, MSB 5-shift manual geabox with 5 forward and 1 reverse back, 3 section folding arms with working height can be up to 18m, bucket lifting capacity can be 200kg. Painting and Logos as customized.
Work capacity:
18 mTruck model:
PT5070JGK18ZEngine power:
120 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Isuzu NKR double cabin row with 2+3 seats, 18m working heightThe Isuzu Manlifter Truck also named as Isuzu lift truck, Isuzu truck mounted boom lift, which is a commercial vehicle with a lifting function designed to provide personnel with the convenience and safety of working heights. It is widely used in construction, maintenance, cleaning, electricity, communications and other fields, especially in places where high-altitude operations are required. The main feature of the Isuzu Manlifter Truck is its lifting platform, which is usually driven by a reliable hydraulic system. The lifting platform of this model can move up and down, allowing workers to easily access high-altitude working areas and perform necessary repairs, installation or cleaning work. The lifting height is usually adjustable to suit different work needs, which can be minimum 10m to maximum 34m.
Product Parameters for Isuzu truck mounted boom lift from POWERSTAR:
In addition to the lifting platform, Isuzu nkr Manlifter Truck also has other important components. The first is the chassis, usually produced by Isuzu to ensure the quality and reliability of the vehicle. The chassis has good stability and load-bearing capacity to cope with various situations during high-altitude work. Secondly, this model is equipped with advanced drive system and suspension system to provide stable driving performance. The drive system of Isuzu aerial platform truck is usually powered by an efficient and reliable diesel engine with sufficient torque and power output. The suspension system adopts reasonable design to enhance driving comfort and stability. In addition, Isuzu Truck Mounted Boom Lift also focuses on safety performance. It is equipped with emergency stopping devices, safety belts, handrails and anti-slip countertops to ensure the safety of workers while working at heights. The vehicle's operating console and control panel are designed to be simple and easy to use, allowing for convenient operation and control. Finally, the exterior design of Isuzu Manlifter Truck is in line with the style of modern commercial vehicles, with a simple and elegant shape and good visual effects. The body size and weight are moderate, making it easy to control and operate.
| Main specification | Chassis brand | ISUZU NKR Truck Mounted Boom Lift |
|||
| Chassis model | QL1070 | ||||
| Overall dimension(L*W*H) | 7640x2000x3150mm | ||||
| Gross / Curb weight | 7,300kg / 5,275kg | ||||
| Chassis | Drive modle | 4*2 left hand drive | |||
| Wheel Base | 3360 mm | ||||
| Tyre size & number | 7.00R16, with one spare tyre | ||||
| Fuel/Engine type: | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | ||||
| Engine model | 4KH1CN | ||||
| Engine horse power | 120HP (88KW) | ||||
| Emission | Euro 5/6 |
||||
| Transmission | ISUZU MSB 5 speed forward, 1 reverse | ||||
| Working condition | Maximum operating height | 18m | |||
| Max. bucket bottom height | 16 m | ||||
| Rotation | 360° | ||||
| Boom Type | 3 Sections telescopic boom | ||||

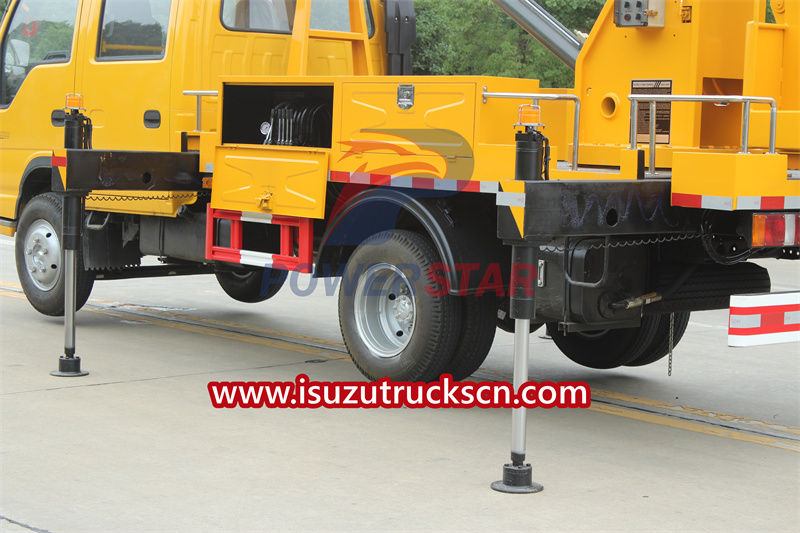

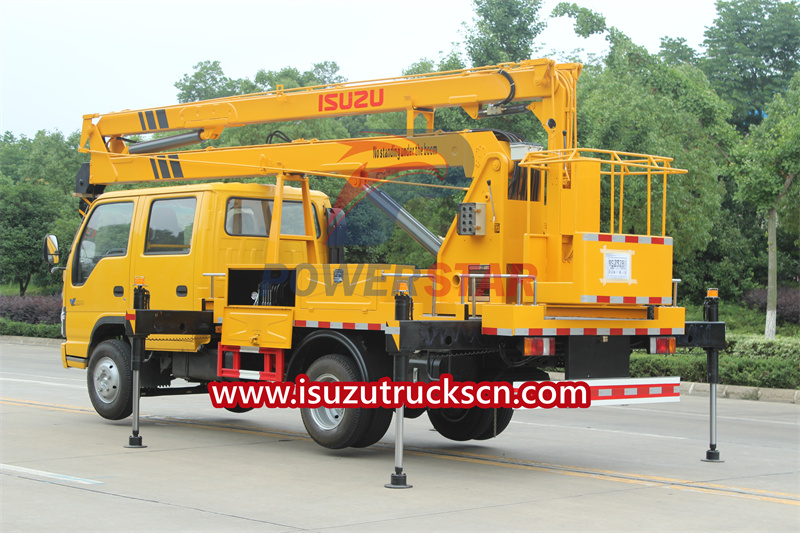

| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |||
| Outrigger span | Vertical | 4000mm | |||
| horizontal | 4350mm | ||||

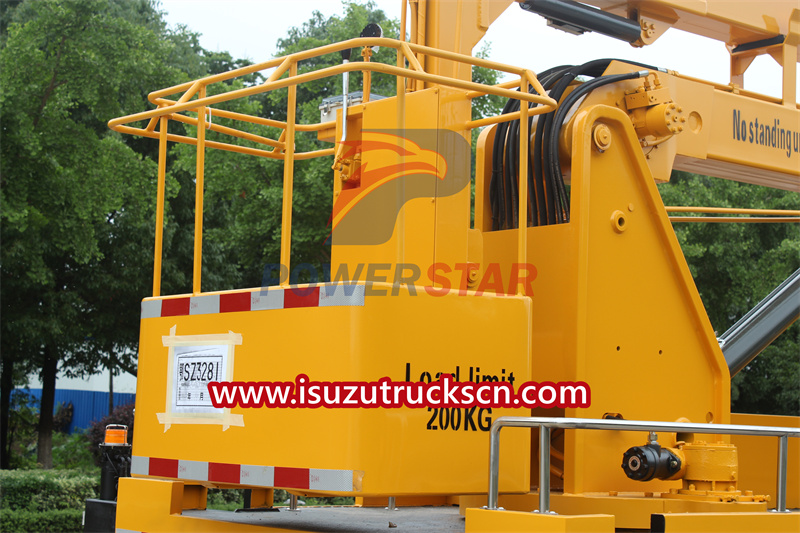

| Basket | Rated loading weight | 200kgs | |||
| L*W*H | 1500x700x1150mm | ||||

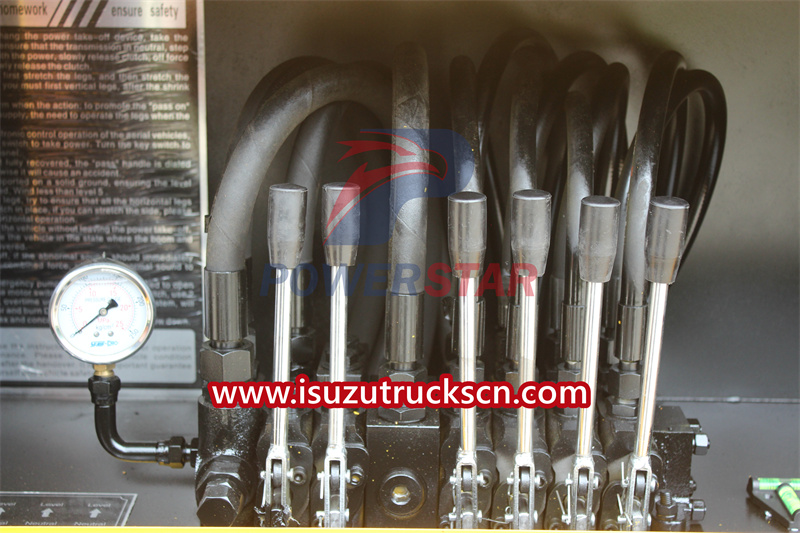

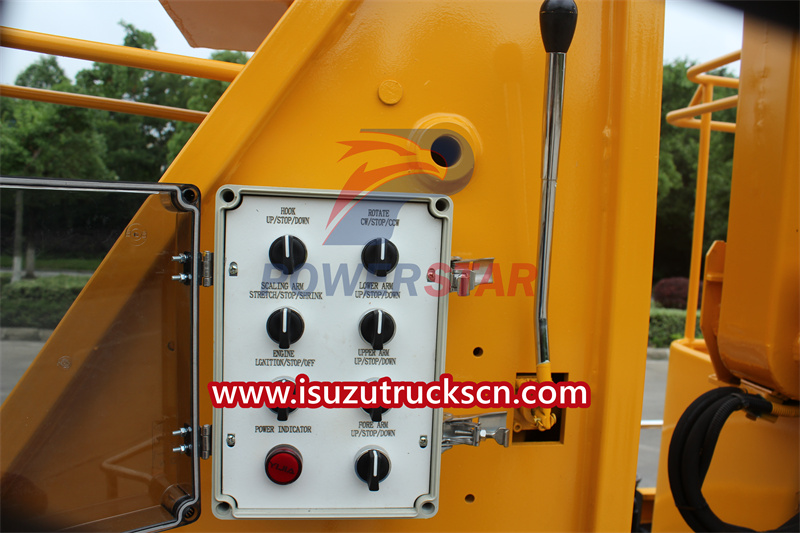

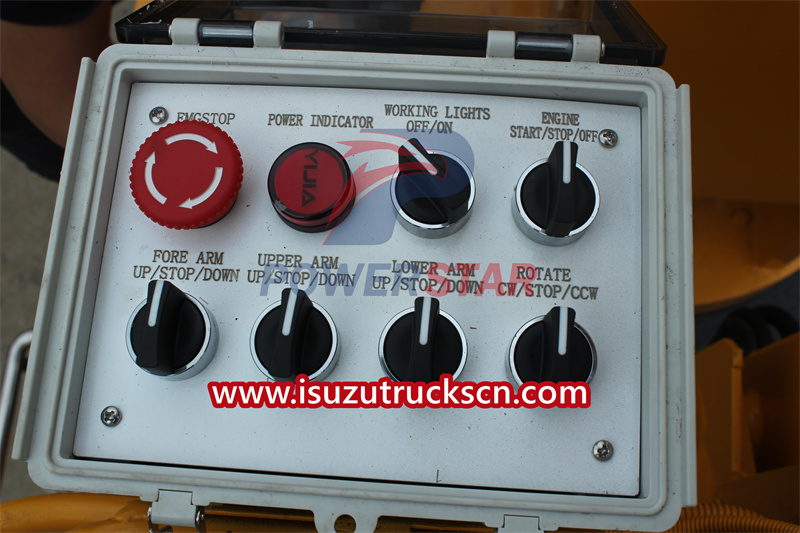

| Operation system | Operation | 4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. | |||

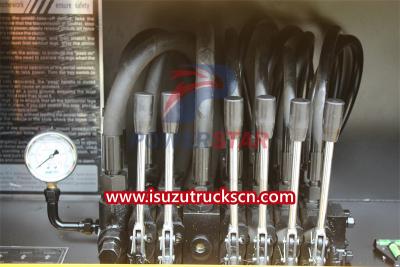

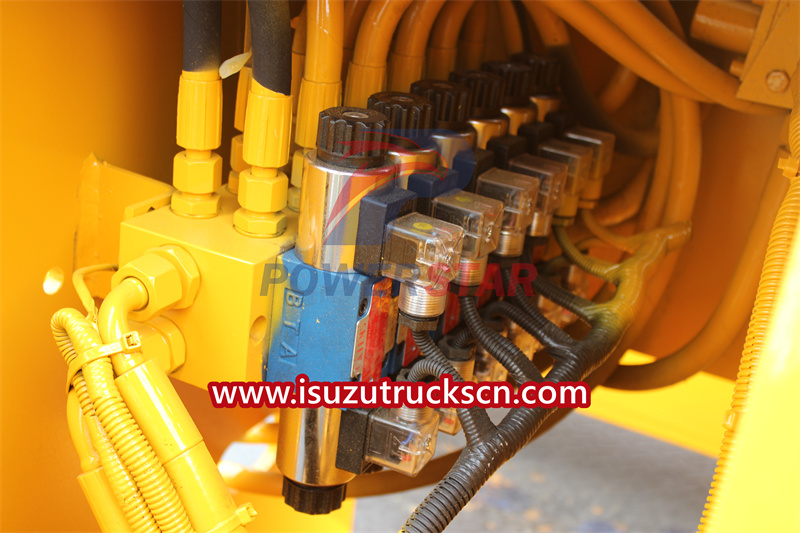

| Control system | Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation | ||||
| Leveling system | Hydraulic automatic leveling | ||||
| Security configuration | Automatic interlocking device for up and down | For locking up and down the truck to prevent the risk of misoperation. | |||
| Basket | 360 degree rotation | ||||
| Horizontal function | Real time display | ||||
| Real time communication | There is wireless intercom between the platform and the vehicle | ||||
| Emergency electric emergency pump | When the engine and main pump failure, the operator can be sent back to the ground. | ||||
What should known for Isuzu NKR 4x4 manlifter trucks manufacturer from POWERSTAR:
Brand new Isuzu NKR Manlifter Truck, ISUZU truck mounted boom lift is a comprehensive, safe and reliable commercial vehicle designed to provide convenience and safety for working at heights. Its lifting platform, chassis, drive system, safety equipment and appearance design are all carefully designed to meet the needs of users in the field of high-altitude operations. Whether on construction sites, repairing equipment or cleaning windows, the Isuzu Manlifter Truck is a reliable lift vehicle. And kindly note that as for ISUZU aerial platform truck, No matter what position the first arm’s in, the second arm cannot exceed the maximum lift angle of 70 °, otherwise it may cause personal injury work causing by bucket tipping.
How to maintenance and troubleshooting for Isuzu manlifter trucks:
|
Malfunction |
Possible Reason |
Solution |
|
Handle holded, cylinder does not move or move slowly.
|
Ø PTO does not hang up the work file Ø Pump damage Ø Low pressure for relief valve. Ø Suction filter blocked or tank liquid level is too low Ø Cylinder or rotary infiltration within the central connector Ø Engine speed is low, oil less than the system supply |
Ø Turn on power take off switch Ø Replacement or repair Ø Increase the pressure on Ø Clean and change oil filter, oil Ø Examined in order Ø repair the Engine
|
|
Hydraulic system noise sound serious, severe beating pressure gauge pointer |
Ø Oil level is too low, inhaling air into the oil pipeline Ø Oil filter or oil flow valve obstruction caused by poor hole Ø Uneven pump operation Ø Oil temperature is low or the oil has gone |
Ø Add a little hydraulic oil, the pipeline leaks mended; then load cycle times, cylinder movement to the limit position, to exclude air. Ø Clean filter or valve replacement Ø Repair or replace the pump Ø Low speed pump, or replace the oil with new oil heating |
|
Boom sink |
Ø Balancing valve failure Ø The fuel tank vent Ø Fittings leak |
Ø Balancing valve replacement Ø Replace the seals or the exclusion of other causes Ø Tighten fittings or replace seals |
|
Oil temperature is too high
|
Ø At full capacity too often Ø Overflow relief valve pressure is too high, the system component parts are often subject to high impact Ø Pump speed is too high Ø High viscosity Ø serious leaking |
Ø Appropriate parking cooling Ø Adjust the pressure relief valve Ø Appropriate to reduce engine speed Ø For a suitable viscosity hydraulic oil Ø Check the hydraulic components |
|
Legs sinking or driving status automatically retracts legs stretched out |
Ø The fuel tank vent Ø Fittings leak Ø Hydraulic lock failure |
Ø Replacement of cylinder seal or the exclusion of other causes Ø Tighten fittings or replace seals Ø Replacement of hydraulic lock |
Isuzu Chassis 14m Truck Mounted Aerial Working Platform Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters (PT5061JGK10S GKS-14QX) Working Condition 1, Altitude: 0-1000m 2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90% 3, Allowed working condition: Solid, stable land, the vehicle should be horizontal 4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s ) Working Range PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations. Bulletin No. KFM5061JGK10S Type GKS-14QX External dimensions ( mm ) 7050×2020×3250 Structure type Three-section telescopic boom Working Cage Internal size ( mm ) 1200×600×1100 Rated loading ( kg ) 200 ( or 2 persons ) Max. Working height ( mm ) 14000 Max. Height from ground ( mm ) 12300 Max. Working radius ( mm ) 9300 Working radius when doing the highest height ( mm ) 1320 Working Boom Lifting angle of main boom ( º ) -24_78° Out rate speed ( mm/sec ) 8500/50 Ret rate speed ( mm/sec ) 8500/50 Boom rack rotation angle ( º ) 360 Boom rack rotation speed ( r/min ) 1.0 Outrigger Vertical span ( mm ) 3050 Horizontal span ( mm ) 3600 Traveling of vertical outrigger ( mm ) 450 Adjustment Single adjustable
