Manufacturer:
Powerstar TrucksWork capacity:
5tonsDimension:
6300x2300x2650mmCabin type:
NPR cabinWheelbase:
3815mmEngine power:
190HPEngine type:
ISUZU 4HK1Axle drive:
4x2Gear box:
ISUZU MLD-6shiftRemarks:

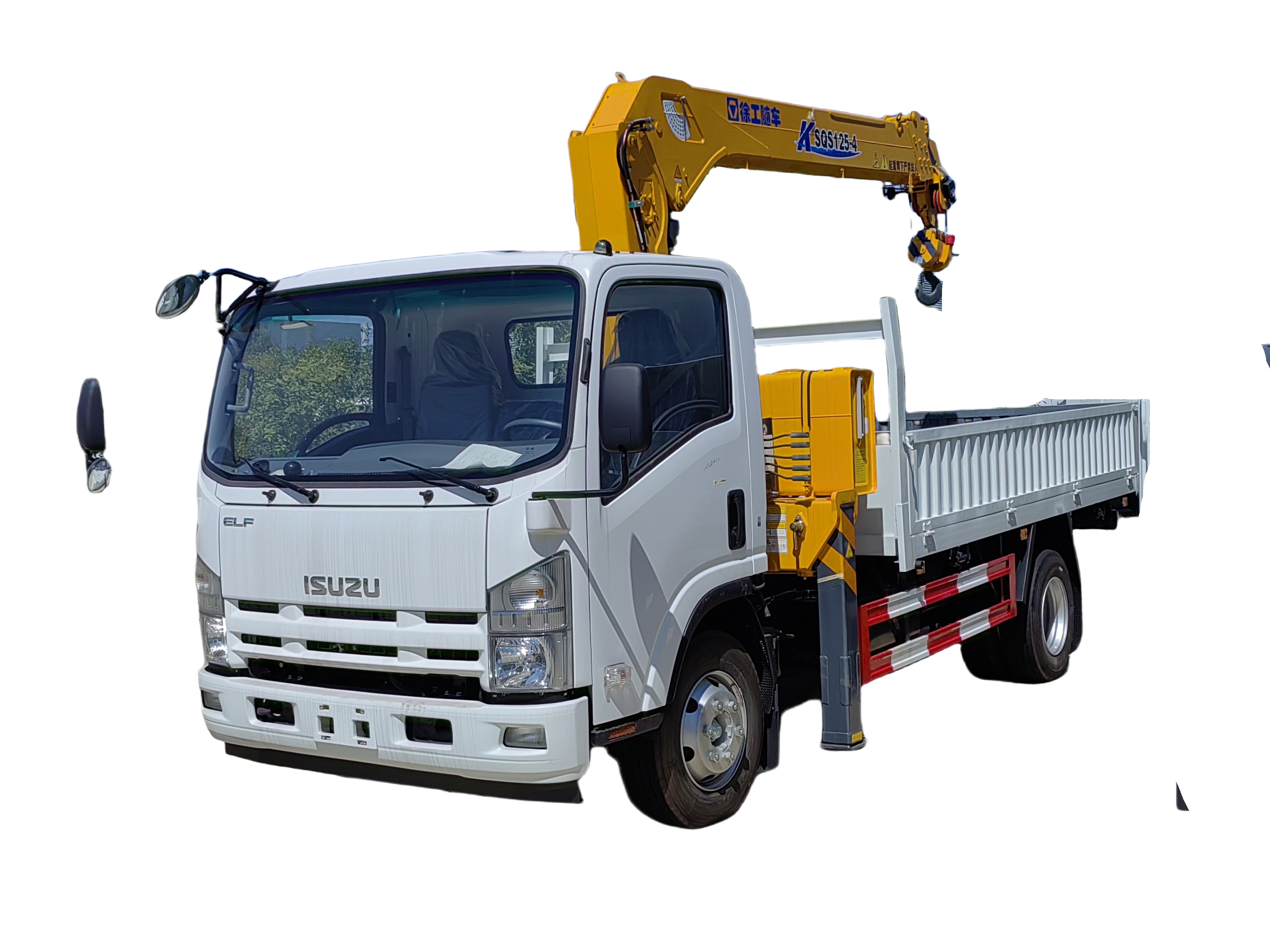

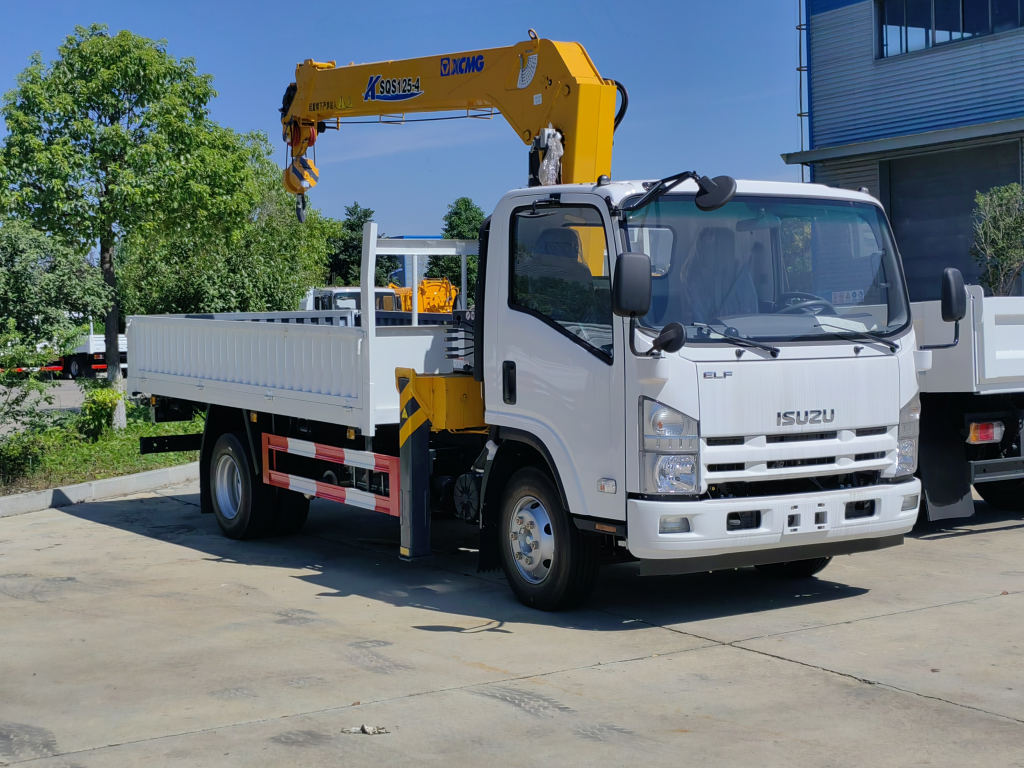

Right hand drive optionalPOWERSTAR TRUCKS customized a Isuzu NPR 5-ton truck crane for the Palau Municipal Government. It is based on the Isuzu NPR chassis (4HK1 190 horsepower engine + MLD 6-speed gearbox), with a cargo box of 4200X2200x600mm, suitable for tropical island operations. The vehicle has a reinforced anti-corrosion design, and the boom covers an 8.5-meter radius, meeting the needs of Koror Port loading and unloading and the maintenance of the ring road around the island. The procurement background is based on Palau's 2025 infrastructure upgrade plan and the cost-effectiveness of Chinese manufacturing (18% lower than Japanese and Korean brands). Future trends focus on electrification (solar drive pilot) and smart scheduling to help Palau's sustainable development.
A new benchmark for cross-sea cooperation: Palau Municipal Government introduces customized truck cranes from China to promote sustainable development
Introduction: Infrastructure needs of tropical island countries
As an archipelago country in the western Pacific, Palau consists of more than 340 volcanic islands and coral islands. The unique geographical environment places strict requirements on municipal vehicles. The main city of Koror in the country has undulating terrain, and port and road maintenance needs to cope with challenges such as high temperature, high humidity, and salt spray corrosion. In the 2025 Palau Municipal Construction Plan, it is clearly stated that improving port loading and unloading efficiency and road maintenance capabilities will be a key task, which provides a policy basis for the customized procurement of Palau 5tons Boom truck crane Isuzu.
● China best Isuzu boom crane truck factory
● 30 years experience on straight arm crane truck designing
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
1. Special vehicle design: Tropical adaptability technology breakthrough
The truck crane customized by POWERSTAR TRUCKS for Palau deeply integrates regional characteristics and Isuzu's core technology:
Chassis reinforcement: The special version of Isuzu NPR chassis adopts a coating anti-corrosion process, and the ground clearance is increased to 280mm, which has been verified by the bumpy road conditions of tropical islands. The 4HK1 190 horsepower engine is equipped with a two-stage fuel filtration system, which can maintain stable power output in an environment with humidity exceeding 80%. The MLD 6-speed gearbox has a 23% improvement in shifting smoothness compared to conventional models.

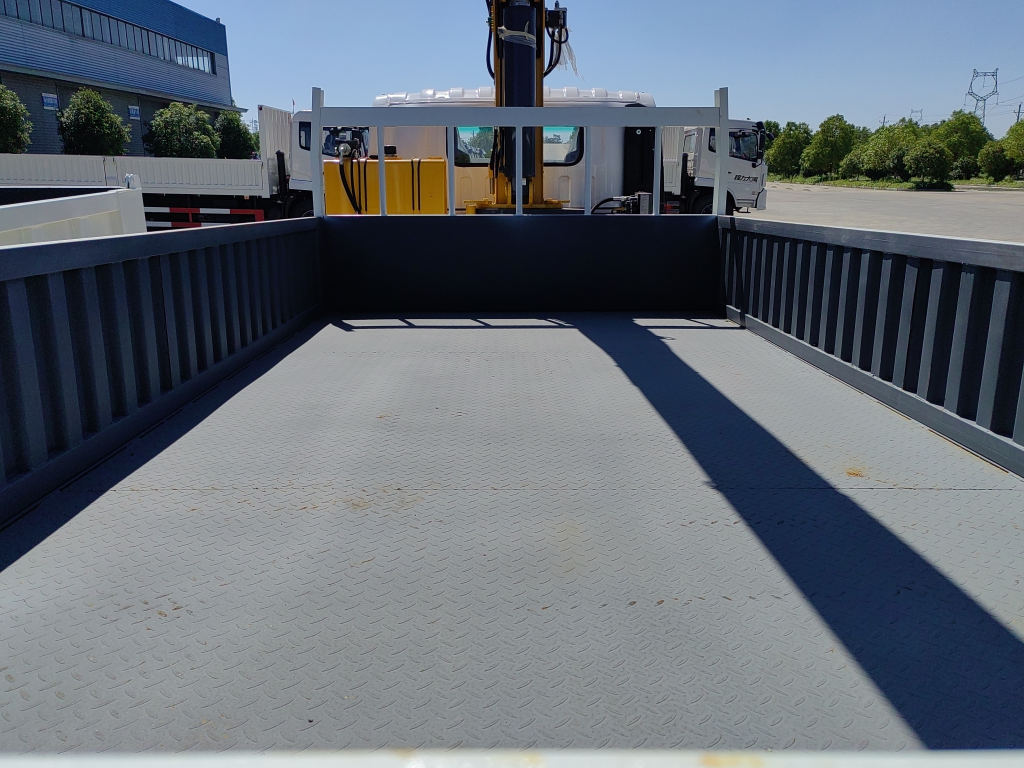

Functional adaptation: The 42002200600mm cargo box design takes into account both port container transshipment and road building materials transportation, and the maximum load of 5 tons meets the loading and unloading needs of local specialties such as coconut and coral stone. The boom is made of seawater corrosion-resistant aluminum alloy with a coverage radius of 8.5 meters, which can cope with narrow dock operating spaces.
Cultural integration: The body paint incorporates the totem of the Palau national bird "Palau horned owl" and traditional wave patterns, and the operation interface adds English-Palau bilingual logos, reflecting the supplier's respect for local culture.
2. Cooperation background: A microcosm of the deepening of China-Palau economic and trade relations
This batch purchase is due to three core motivations:
Infrastructure upgrade needs: In 2024, the throughput of Palau ports will increase by 12%, and the problem of insufficient efficiency of traditional manual loading and unloading will be highlighted. Municipal companies need mechanized equipment to solve the problem of labor shortage and meet the maintenance needs of the newly built ring road around the island in 2025.
ISUZU NPR TRUCK WITH CRANE SPECIFICATIONS
| Palau ISUZU 4x2 boom truck crane manipulator loading capacity 4 ton 5 ton unic 3ton truck mounted crane price | |||
| Dimension(Lx W xH)(unloaded)(mm) | 8445×2498×3650 | ||
| Cargo body size (LxWxH) (mm) | 5450×2300×550 | ||
| Approaching angle/Departure angle(°) | 17/20 | ||
| Overhang(front/rear) (mm) | 1240/2505 | ||
| Wheel base (mm) | 4700 | ||
| Max speed(km/h) | 95 | ||
| Curb weight(kg) | 7000 | ||
| Engine | Fuel type | Diesel | |
| Power, max(kw/rpm) | 190HP | ||
| Emission | EURO5 | ||
| Transmission | Model | MLD-6 | |
| Front axle | 3.6 TON | ||
| Rear axle | 10.5 TON | ||
| Tire | 9.00R20 | ||
| Cab | 2080 | ||
| SPECIFICATION FOR CRANE | |||
| Max Lifting Capacity | 5000 kg | ||
| Max Lifting Moment | 12.5 T.M | ||
| Max Oil Flow of Hydraulic System | 32 L/min | ||
| Max Pressure of Hydraulic System | 20 MPa | ||
| Rotation Angle | All Rotation | ||
| Max.Working radius (m) | 8.5 m | ||
Advantages of Made in China: POWERSTAR TRUCKS provides an integrated solution of "financing + training + after-sales" based on successful cases in Pacific island countries (such as the Fiji port vehicle delivery project), which reduces the comprehensive cost by 18% compared with Japanese and Korean brands.
Policy window period: In 2025, Palau's commercial vehicle import tariff will be reduced to 3%, and the mutual recognition of technical standards under the framework of China's "Belt and Road" will be accelerated, clearing barriers for the access of special vehicles.
3. Market prospects: the future path of new energy and intelligence
The Palau truck crane market will show three major trends:
Electrification pilot: Relying on the advantages of rich solar energy resources, municipal vehicles are planned to pilot pure electric drive from 2026. POWERSTAR has reserved an electric drive lifting technology prototype based on the Isuzu chassis.
Smart operation and maintenance: Through the linkage between the vehicle GPS and the Koror Municipal Dispatch Center, vehicle utilization monitoring and preventive maintenance can be achieved, reducing operating costs by 30%.
Localized services: Chinese companies plan to set up a training center with the Palau Institute of Technology to train local technicians and solve the problem of "labor shortage" in special equipment.
