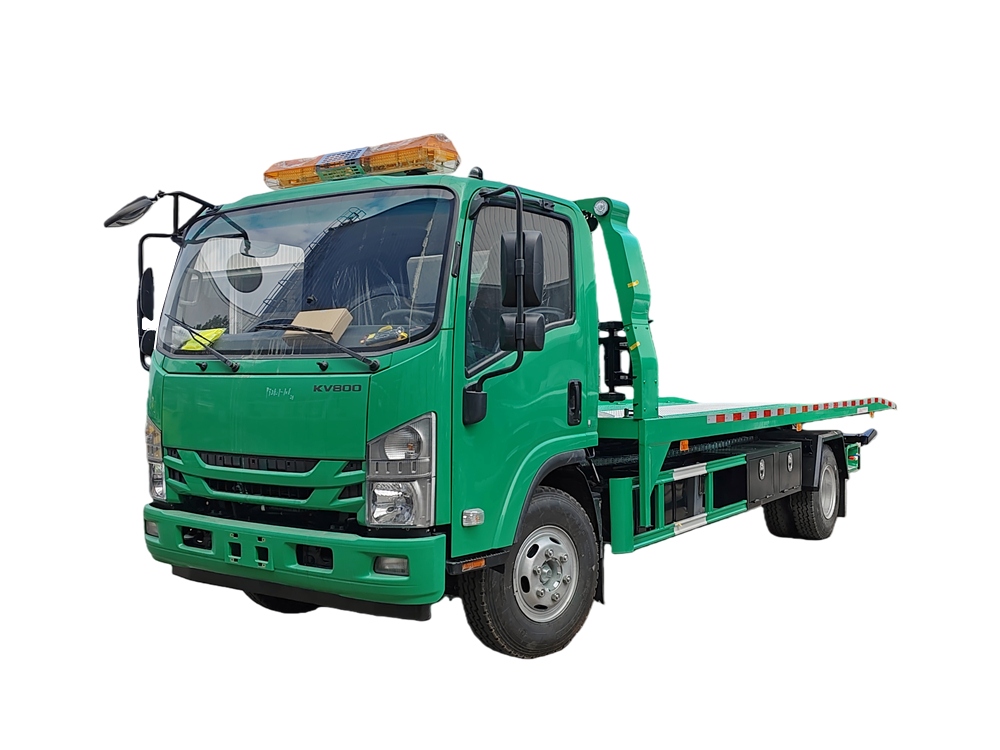

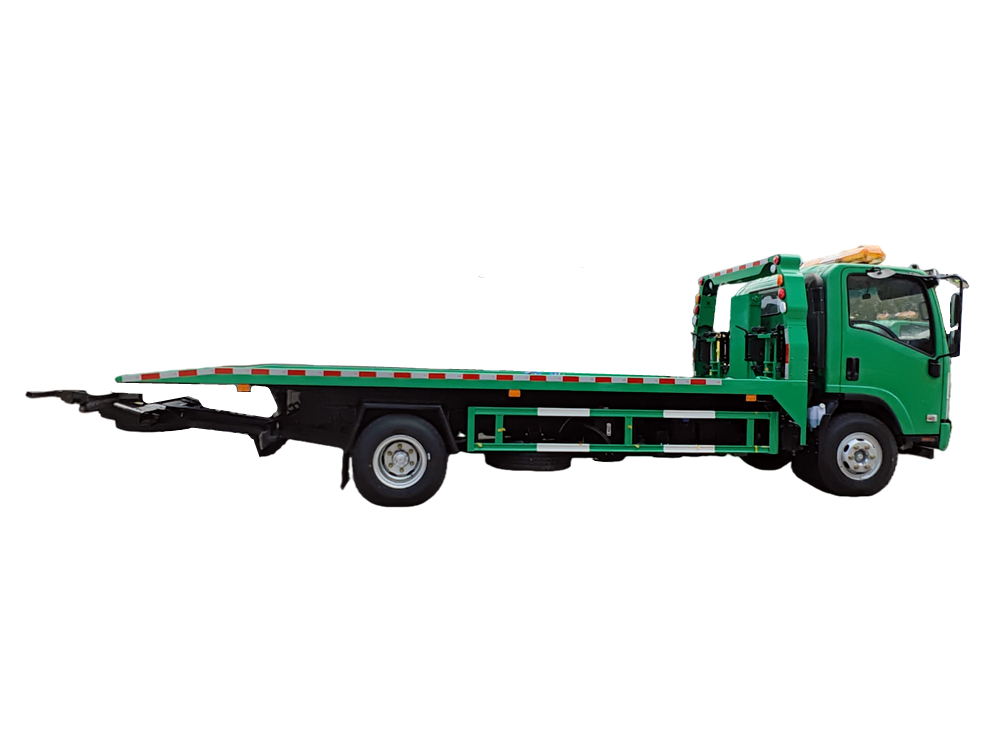

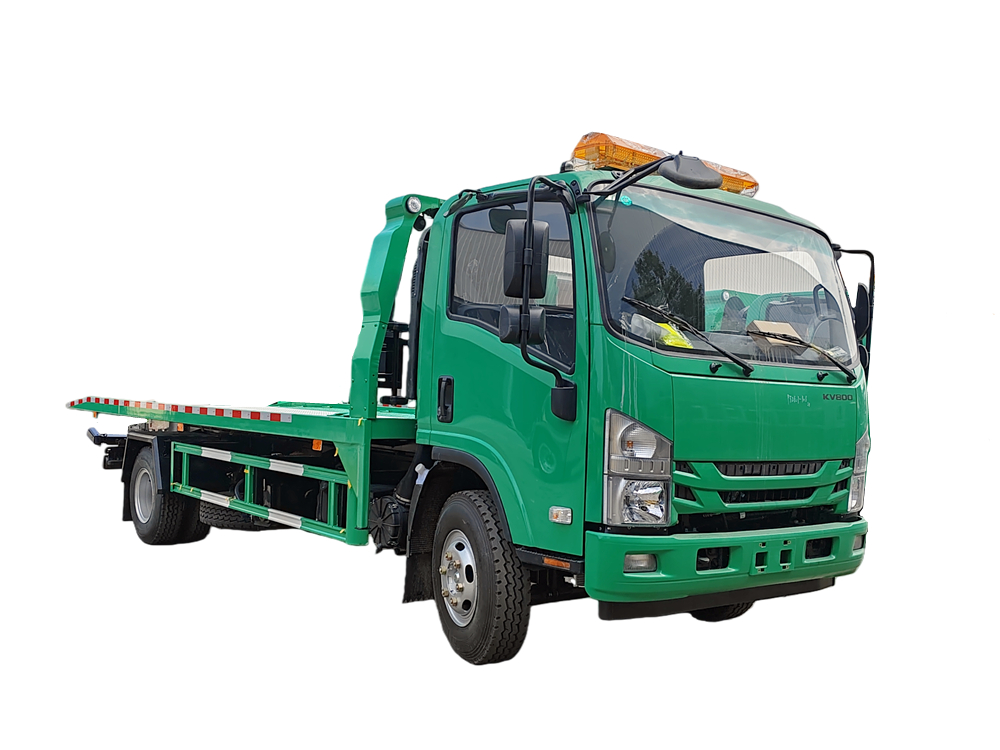

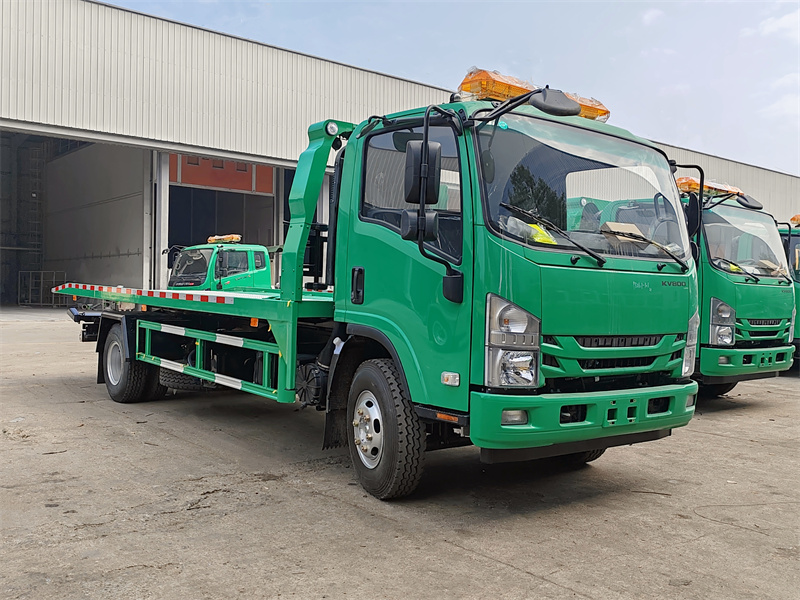

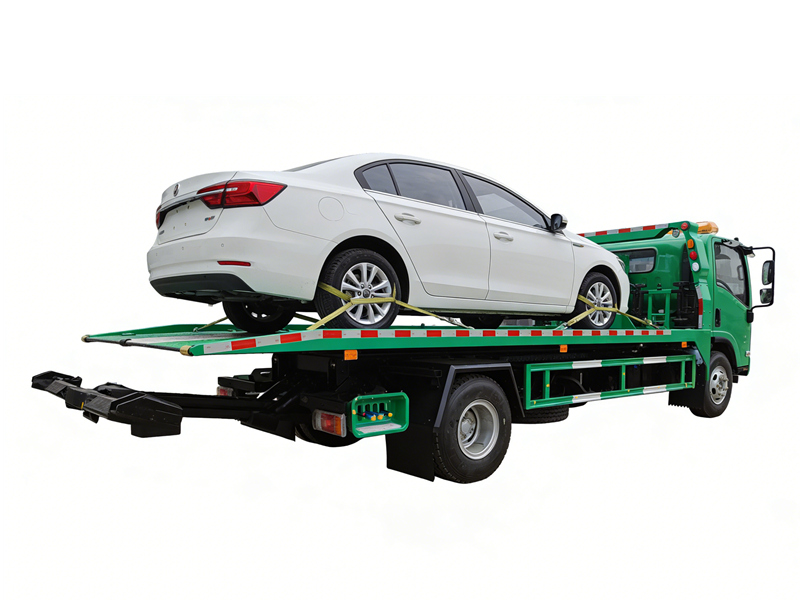

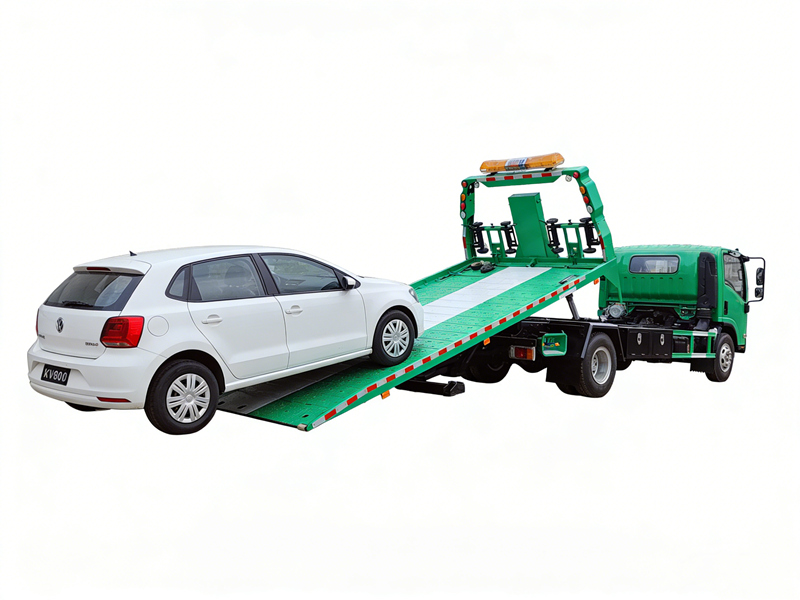

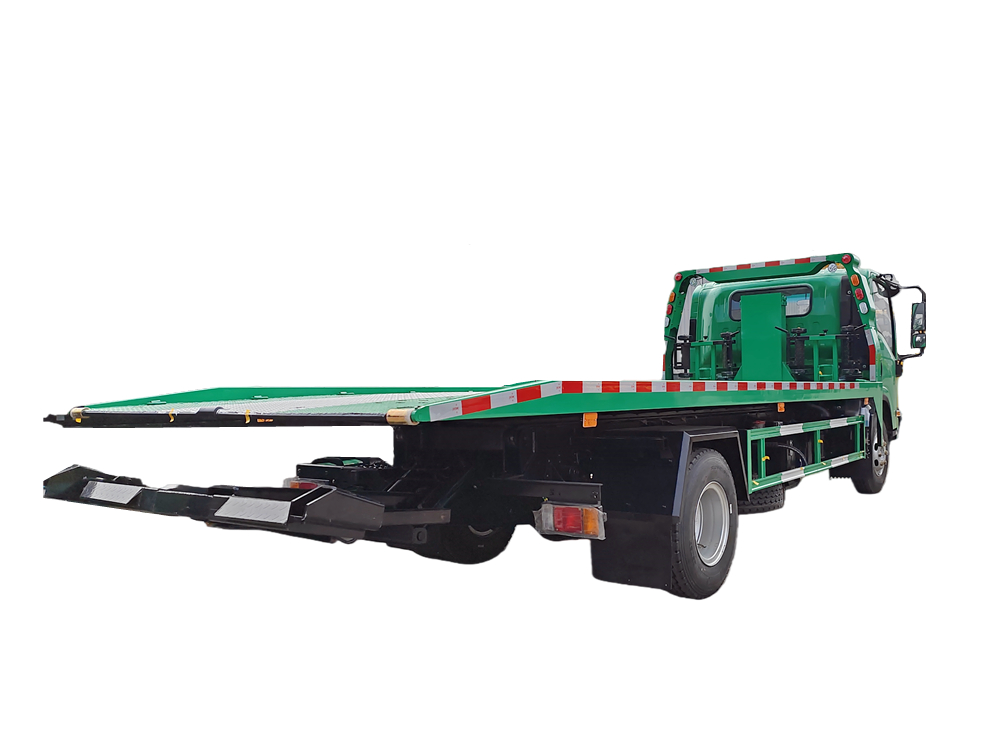

Philippines Isuzu KV800 180HP road rescue tow truck
This Isuzu KV800 5-ton tow truck ：4475mm wheelbase, equipped with an Isuzu 4JZ1-TCG62 180HP Euro VI engine, a MYY 6-speed gearbox, and a 5-ton flatbed tow platform with dimensions of 6000*2200mm. It also features a 4-ton hydraulic winch (with a 25-meter steel cable) and can be operated remotely or manually.
Manufacturer:
Powerstar TrucksWork capacity:
5 tonsDimension:
7950 x 2200 x 2450 mmCabin type:
Isuzu KV800 cab,with A/CWheelbase:
4475 mmEngine power:
180HP / 133kWEngine type:
Isuzu 4JZ1-TCG62Axle drive:
4x2Gear box:
Isuzu MYY 6-speed,manualThe Philippines Isuzu KV800 180HP road rescue tow truck is modified from the Isuzu KV800 chassis, integrating Isuzu's leading power system (4JZ1 180HP) and mature bodywork technology. With strong load-bearing capacity, convenient operation, and reliable safety, they are widely used for breakdown vehicle clearing, accident vehicle rescue, and illegal vehicle towing operations on urban roads and highways.
▶ Features:
★ Isuzu KV800 type,180HP powerful engine
★ Loading capacity 3tons,5tons,8tons,10tons,20tons available
★ Stable and simple operation
★ With hydraulic tailgate
★ Rotary wrecker type is available
▶ Product Parameters:
|

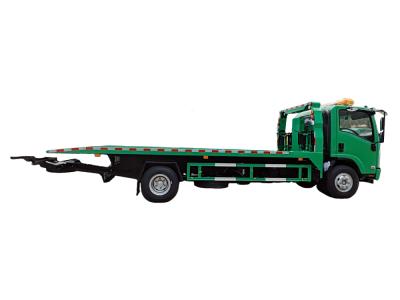

Isuzu KV800 5tons flatbed wrecker truck |
||
|
General Technical Parameters |
||
|
Overall Dimension |
7950x2200x2450 (mm) |
|
|
Gross Vehicle Weight |
10550kg |
|
|
Curb Weight |
5000kg |
|
|
Axle loading |
4000/7000kg |
|
|
Cabin |
Single row, 3 seats,left Hand Driving |
|
|
Wheel Base |
4475mm |
|
|
Engine |
Model |
Isuzu 4JZ1-TCG62 |
|
Type |
Inline 4-cylinder |
|
|
|
Power |
180HP/ 133kW |
|
Max torque |
510N.m |
|
|
Emission Standard |
EURO 6；2999ml |
|
|
Gearbox |
Isuzu MYY-6 transmission,6-speed,manual |
|
|
Brake System |
Air Brake |
|
|
Tire |
7.50R16LT , 6+1 |
|
|
Maximum Speed |
115(km/h) |
|
|
Superstructure |
||
|
Platform dimensions |
6000x2200mm,5mm thickness, Anti-slip Treatment Deck |
|
|
Material |
high-strength steel perforated plate |
|
|
Loading capacity |
5tons |
|
|
Winch |
Quantity |
1pc |
|
Winch Rating Pulling Capacity |
4tons |
|
|
Length of Steel Cable |
25 m |
|
|
Equipment |
3.5tons rear support arm One long row of LED warning lights, Dual-side linkage operation device 1 toolbox 2 trolleys 1 pair of L-shaped tire holders 1 pair of tow forks, 1 pair of tow fork seats, 4 binding straps 1 chain hook fully ground-mounted wireless remote control. |
|
▶ Chassis Configuration:
• Chassis Model: Isuzu KV800
• Wheelbase: 4475mm
• Engine: Isuzu 4JZ1-TCG62 China VI Emission Standard Engine
• Horsepower: 180HP
• Features: Employs high-pressure common rail technology, powerful performance, high fuel economy, meets China VI emission standards

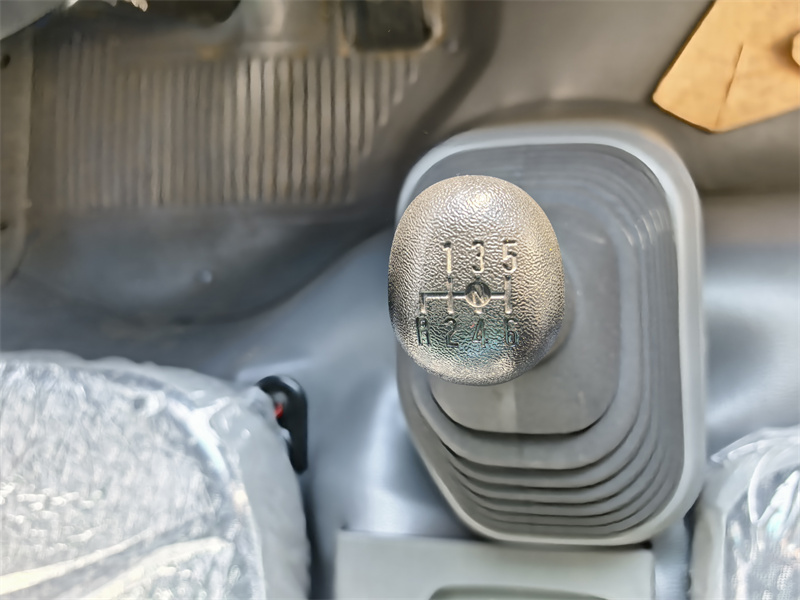

• Transmission: MYY 6-speed manual transmission.Smooth shifting, high transmission efficiency.

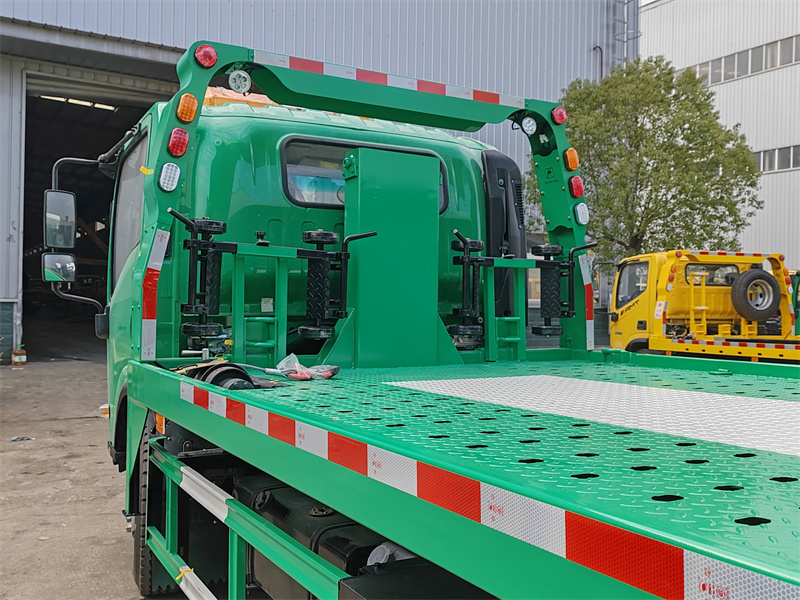

▶ Upper Platform System:
1. The upper structure is a 5-ton flatbed clearing platform, constructed from high-strength steel plates, ensuring a robust, durable, corrosion- and rust-resistant structure.

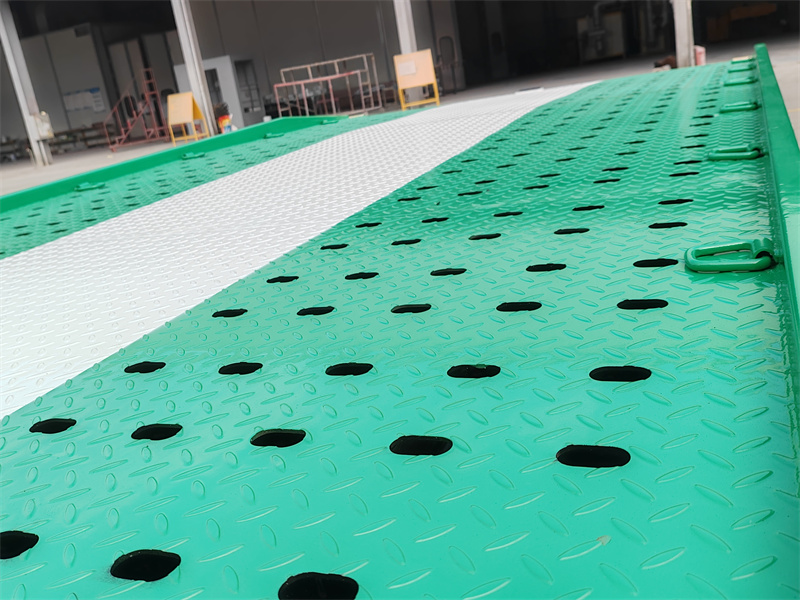

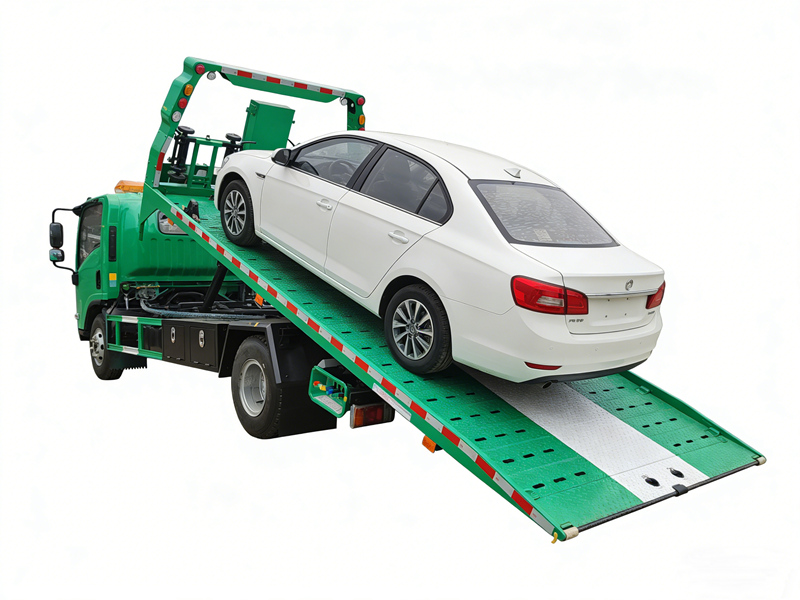

• Platform Dimensions: 6000mm × 2200mm The extended and widened design allows the flatbed to support most passenger cars, mid-size SUVs, and light commercial vehicles. The flat loading surface facilitates easy vehicle loading and unloading.
• Load Capacity: 5 tons
2. Specialized Equipment
To meet diverse rescue needs, this vehicle is equipped with specialized obstacle clearing tools:

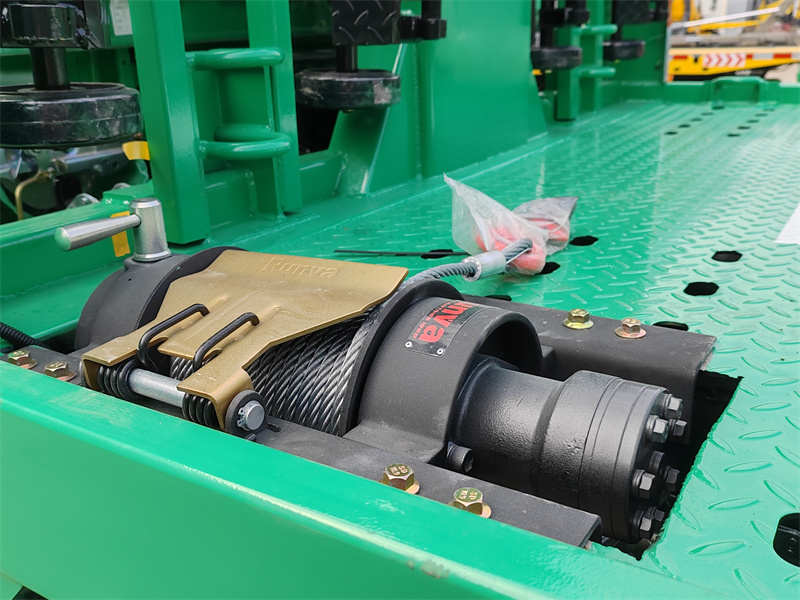

• Hydraulic winch: 1 unit (40KN), wire rope length: 25 m

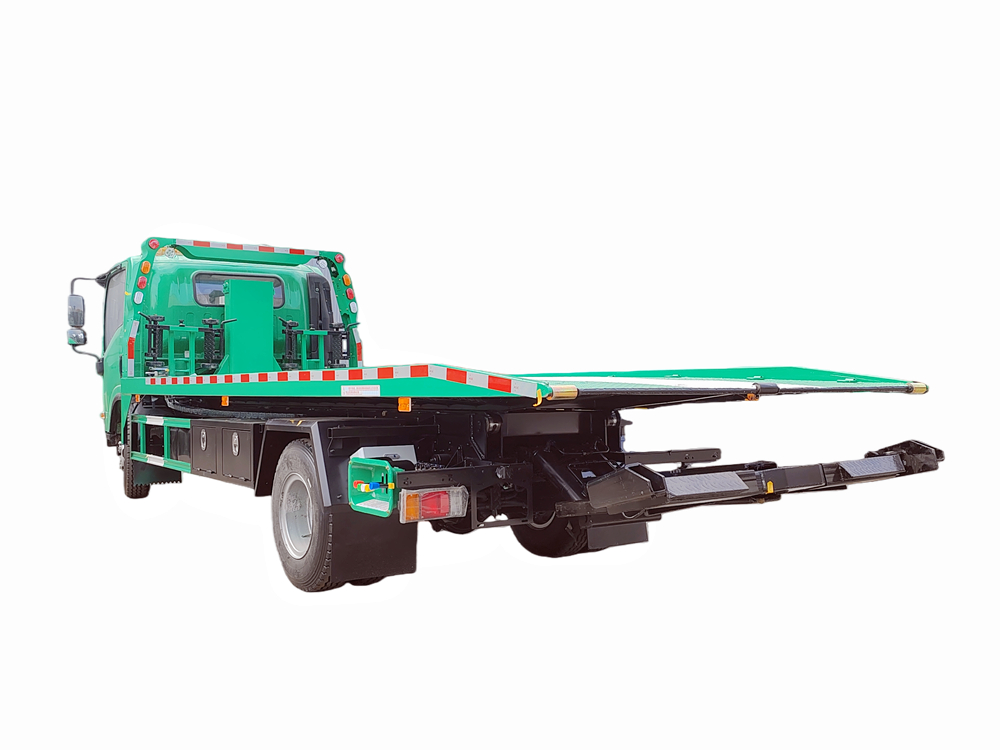

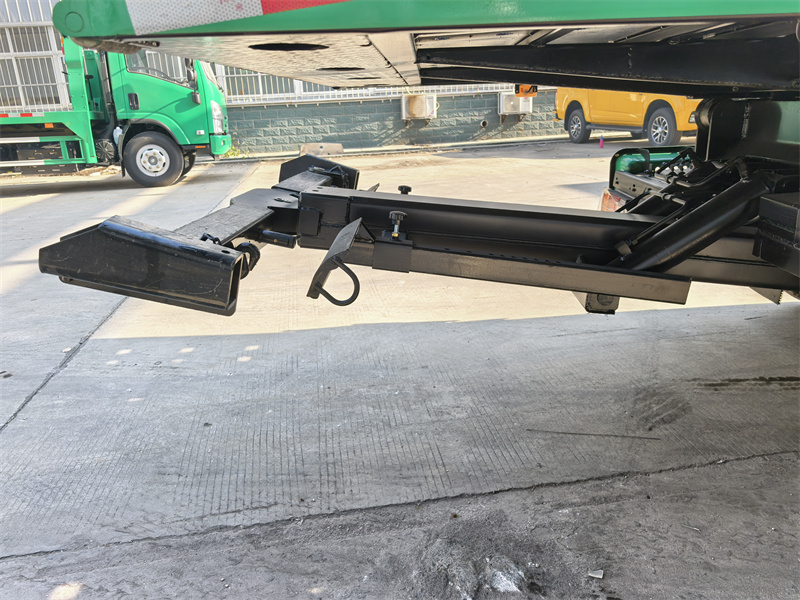

• Rear support arm: 3.5T
• Floor clips: Multiple on both sides for easy securing
• Auxiliary wheels (trolley): 2 units
• L-shaped tire holder: 1 pair
• Tie-on straps: 6 units
• Lifting fork and lifting fork seat: 1 pair each
• Chain hook: 1 unit
• Toolbox: 1 unit

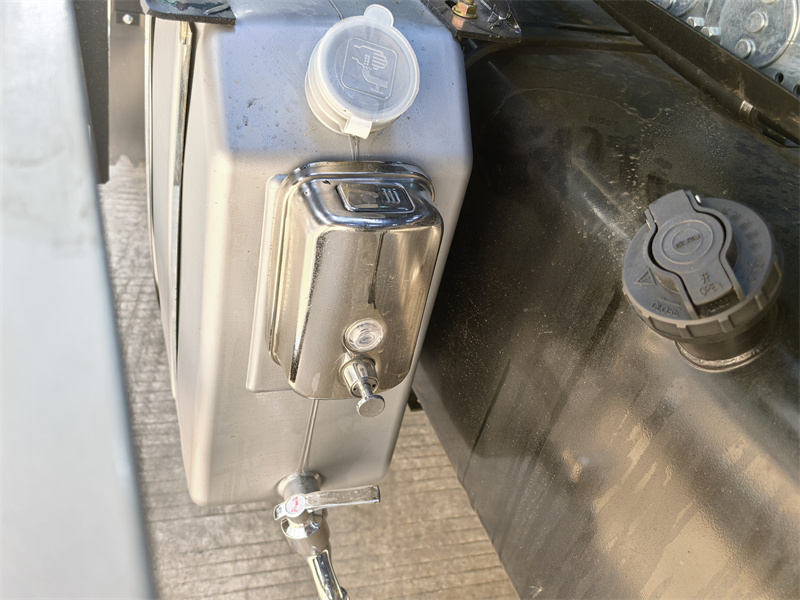

• handwashing box：1 unit
▶ Operation:
Easy to operate: Equipped with wireless remote control and tail manual hydraulic control lever, it can control: Capstan Frap rope/Unfasten rope, platform sliding in and out, platform Lifting and Falling, wheel bracket Shrinking/Stretch out, Rising/Reducing.

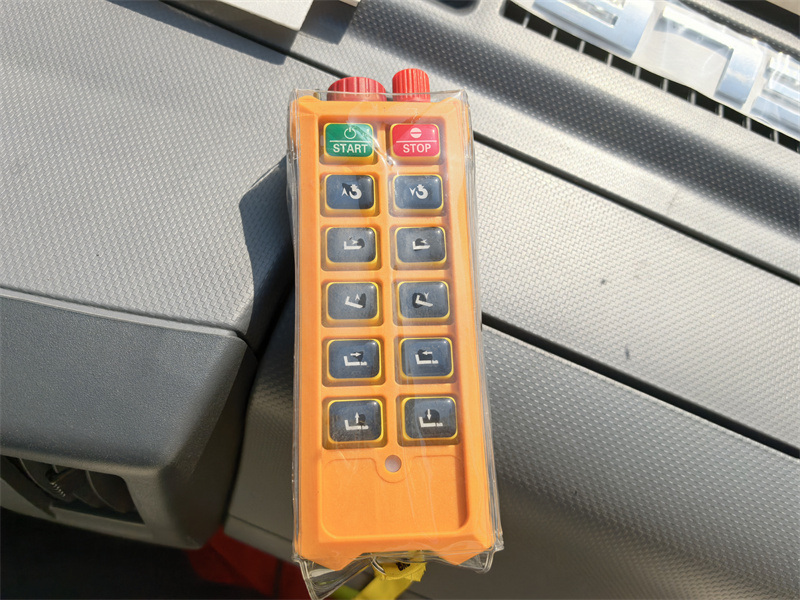

Wireless remote control

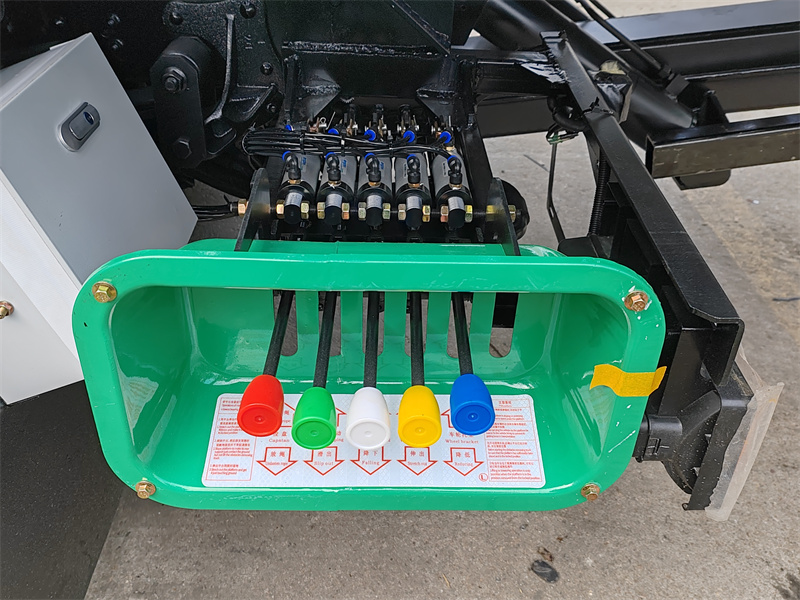

Manual operation
▶ Applicable scenarios:
1. Urban Roadside Assistance: Quickly arrives at the scene, tows away broken-down or illegally parked vehicles, rapidly clears roads, reduces traffic congestion, and ensures the normal operation of urban traffic.
2. Highway Clearance: Promptly tows away broken-down or accident-damaged vehicles on highways to prevent secondary accidents and provide a safe passage environment for other vehicles.
3. Other Transportation: Used for vehicle transportation between 4S shops, repair shops, auto service centers, logistics parks, etc.

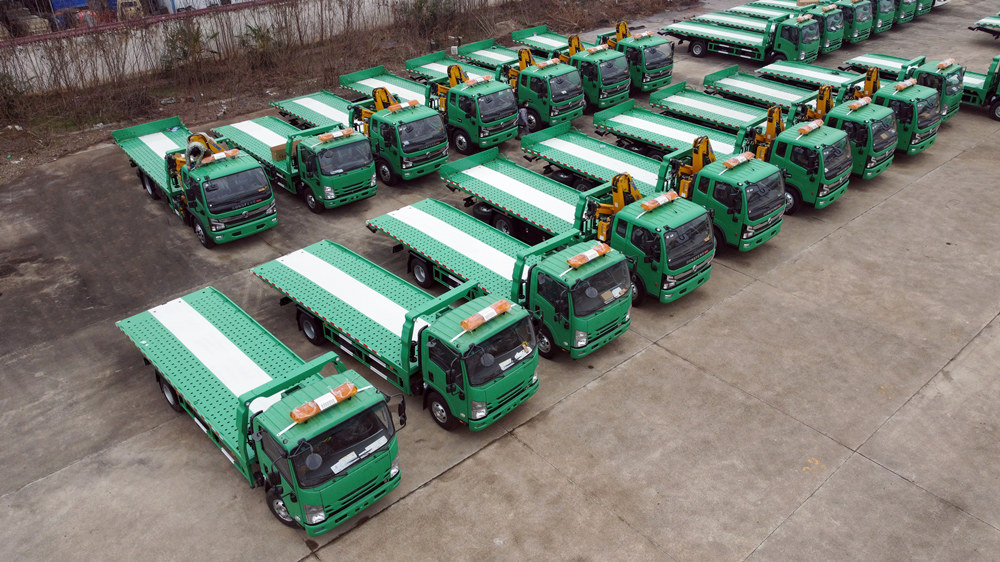

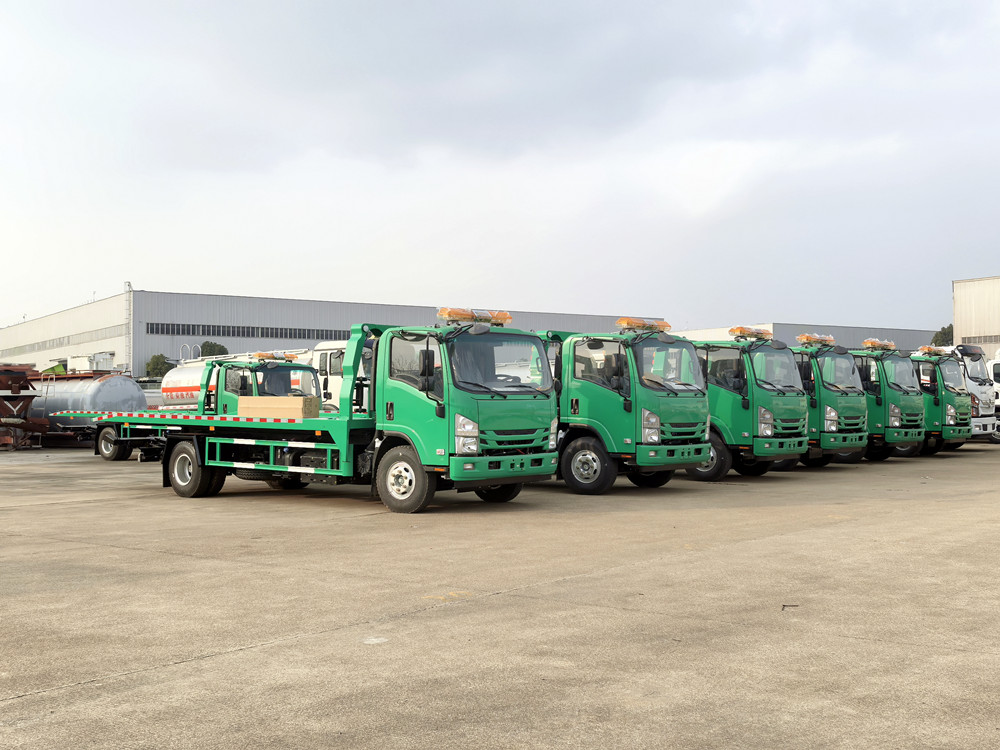

▶ Mass Production:
