Portable Vacuum Truck Isuzu KV600

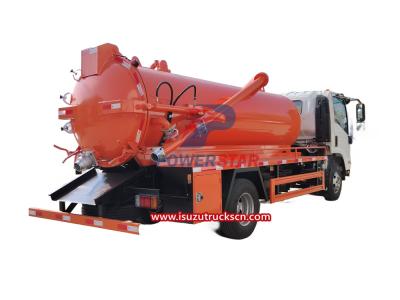

4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks
4KH1 Isuzu engine Sewage Pump Trucks

Portable Vacuum Truck Isuzu KV600

HAITI Isuzu Portable Toilet Vacuum Trucks serve as efficient and portable sanitation solutions in Haiti. With their large vacuum tank capacity, reliable vacuum pump system, and portable design, they effectively address waste management needs in various settings. Isuzu's after-sales service ensures the longevity and optimal performance of the trucks, supporting sustainable waste management practices in Haiti.

  • Work capacity:

    7000L
  • Truck model:

    PT5070GXW
  • Engine power:

    130 HP
  • Engine type:

    Isuzu 4KH1CN5HS
  • Axle drive:

    4x2
  • Gear box:

    Isuzu MSB 5S
  • Remarks:

    Italy Jurop vacuum pump

The HAITI Portable Vacuum Truck Isuzu KV600 are innovative and efficient sanitation vehicles designed to meet the sanitation needs in Haiti. Manufactured by Isuzu Powerstar trucks, a trusted global automotive company, these vacuum trucks are specifically tailored to provide effective waste management solutions in the country. With their portable and versatile capabilities, the HAITI Isuzu Truck mounted vacuum tanker offer a sustainable and hygienic solution for waste disposal.



2. Features:
- Large Vacuum Tank Capacity: The Haiti Isuzu Portable Vacuum Cleaner are equipped with a large capacity vacuum tank, allowing for the collection and transportation of significant amounts of waste material. This ensures extended operational time without the need for frequent emptying.
- Reliable Vacuum Pump System: The vacuum pump system efficiently creates the necessary suction power for waste removal and transportation. It ensures thorough waste extraction from portable toilets and other sanitation facilities.
- Portable Design: The Isuzu Portable Restroom Vacuum Trucks for Haiti are designed for ease of maneuverability and portability. They feature compact dimensions that allow access to narrow and crowded areas, making them ideal for urban environments.
- Efficient Disposal System: The waste collected is securely stored and transported to designated disposal sites, complying with international sanitation and environmental standards.
- Easy Maintenance: The Isuzu Portable Toilet Vacuum Trucks are designed for easy maintenance, with accessible components and user-friendly systems that reduce downtime and ensure consistent performance.

3. Advantages:
- Improved Sanitation: The Portable Toilet Vacuum Truckss facilitate proper waste management, enhancing sanitation levels in Haiti. By effectively collecting and disposing of waste, they contribute to reducing the risk of contamination and the spread of diseases in communities.
- Enhanced Efficiency: The large tank capacity and reliable vacuum pump system ensure efficient waste collection and transportation. This reduces the need for frequent trips, saving time and resources.
- Portability: The portable design allows the trucks to access areas that are typically difficult to reach, such as narrow streets and crowded neighborhoods. This ensures comprehensive waste management coverage across urban areas.
- Environmental Compliance: The efficient disposal system adheres to international sanitation and environmental standards, promoting a sustainable waste management process.



Specification of Haiti Portable Vacuum Truck Isuzu KV600

4/6/8/10/12/14 CBM Sewage Suction Truck
General
Vehicle Brand
Powerstar
Chassis Brand
ISUZU KV
Overall Dimension
6930×2500×2850
GVW/Curb Weight
9000/5105
Cab
Cab Seat
3
Air Conditioner
included
Engine
Fuel Type
diesel
Engie Model
ISUZU 4KH1
Engine Brand
ISUZU
Power
130hp
Displacement
3.0L
Emmission Standard
Euro Ⅲ
Chassis
Drive Type
4x2
Transmission
5 forward, 1 reverse
Wheelbase
3815
Tyre Specification
7.00R16
Tyre No.
6+1
Max Speed
90
Paint
as customer requirement
Superstructure
tank
tank material
Carbon steel
Thickness(mm)
6
Volume(cbm)
10 to 12
equipment
Vacuum pump (single pump), water and oil separator, anti-overflow valve, sewage window, a self-flowing port, a 6m suction pipe.
Optional
1. Overfill alarm device: 180USD;
2. Yifeng or Weiye double pump: 455USD; Weilong 68/7000 vacuum pump single pump: 150USD (double pump add 530USD); Weilong

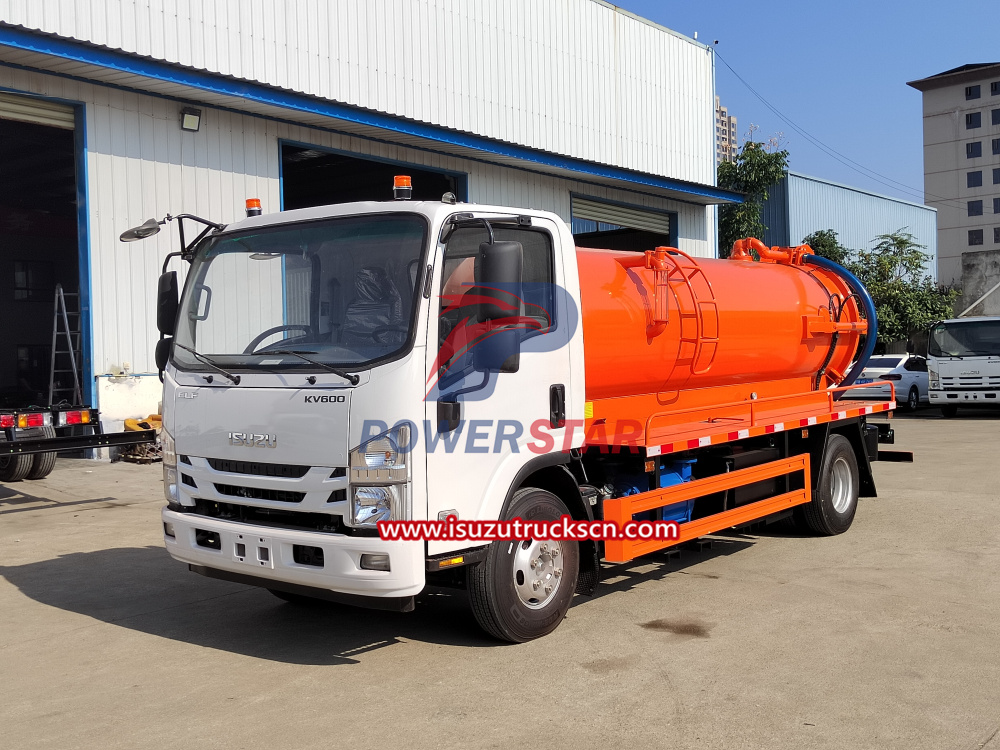

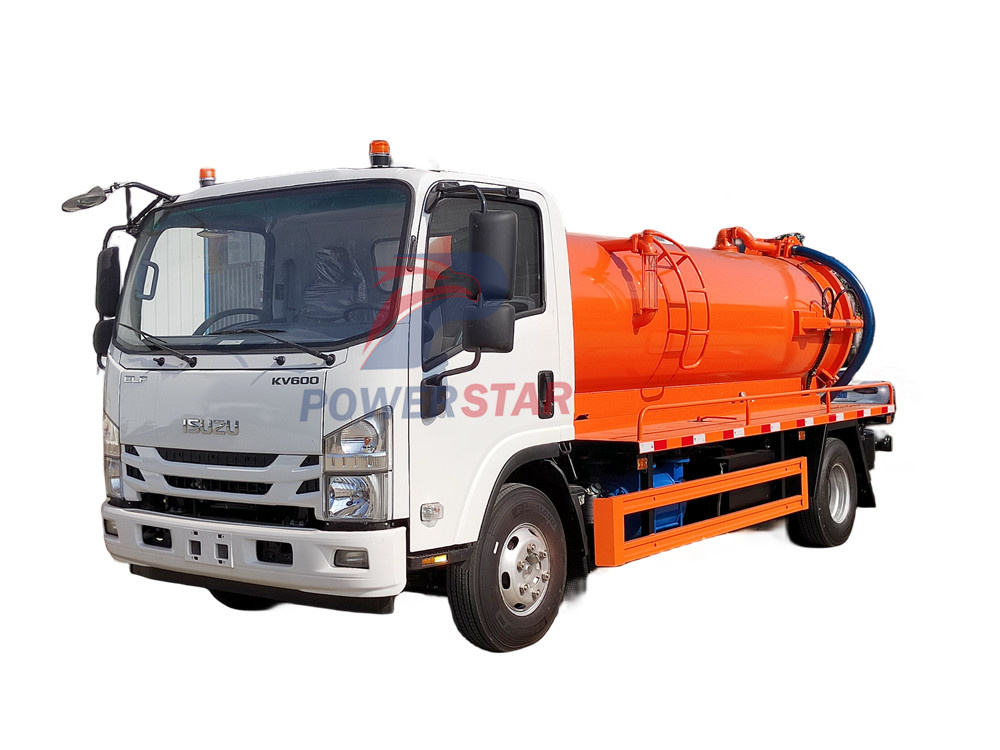

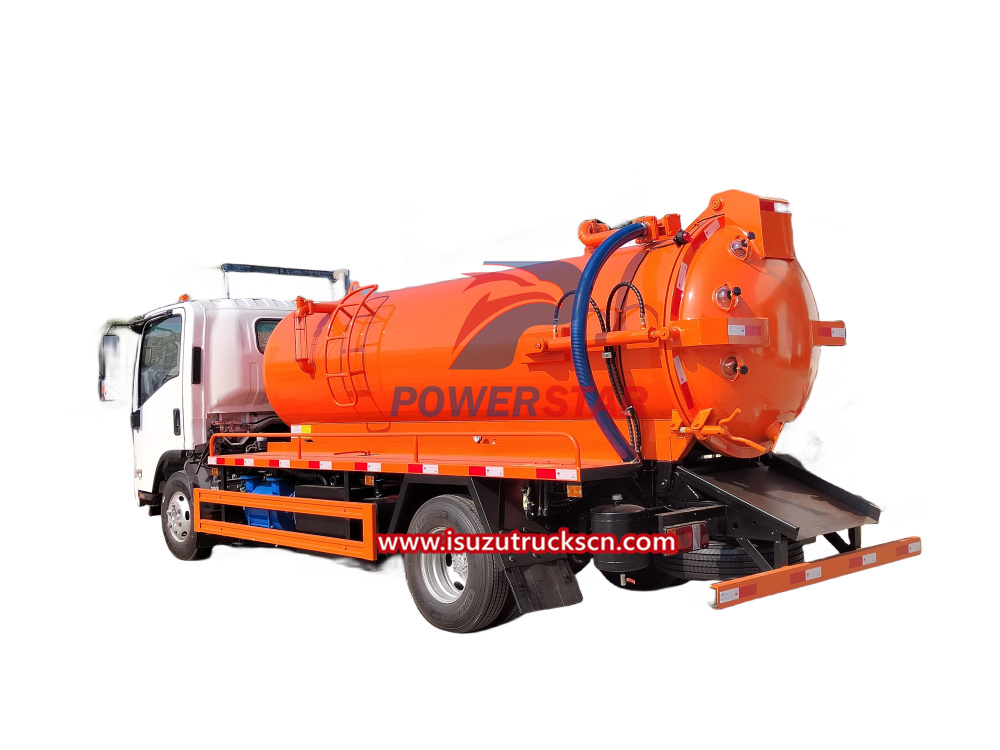

Front view of Haiti Vacuum service truck Isuzu KV600

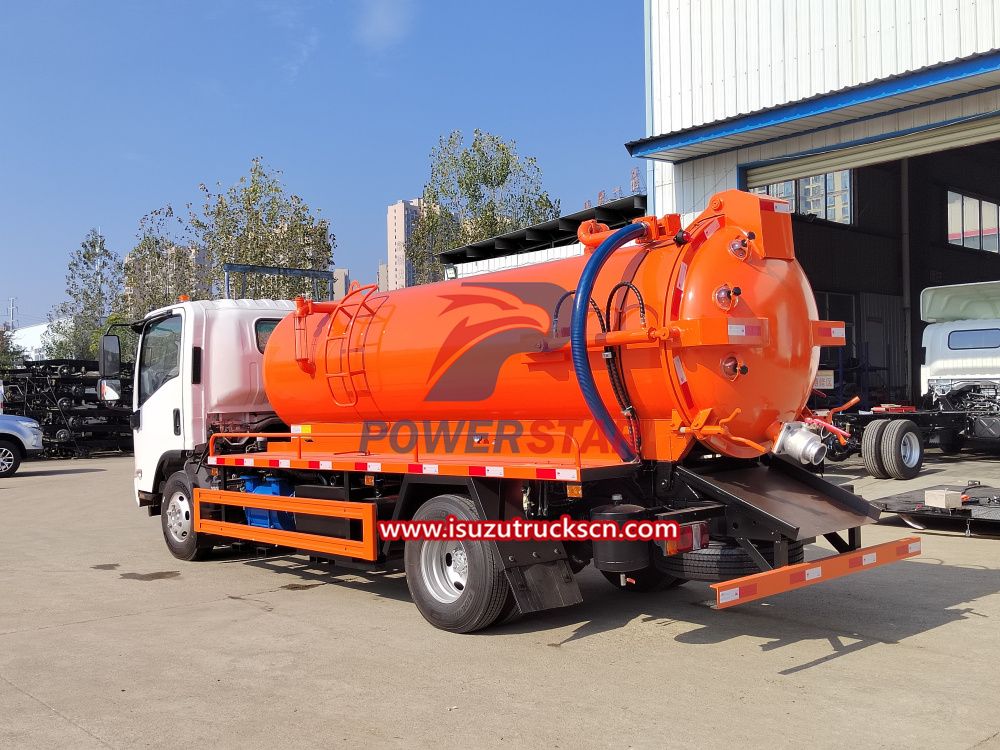

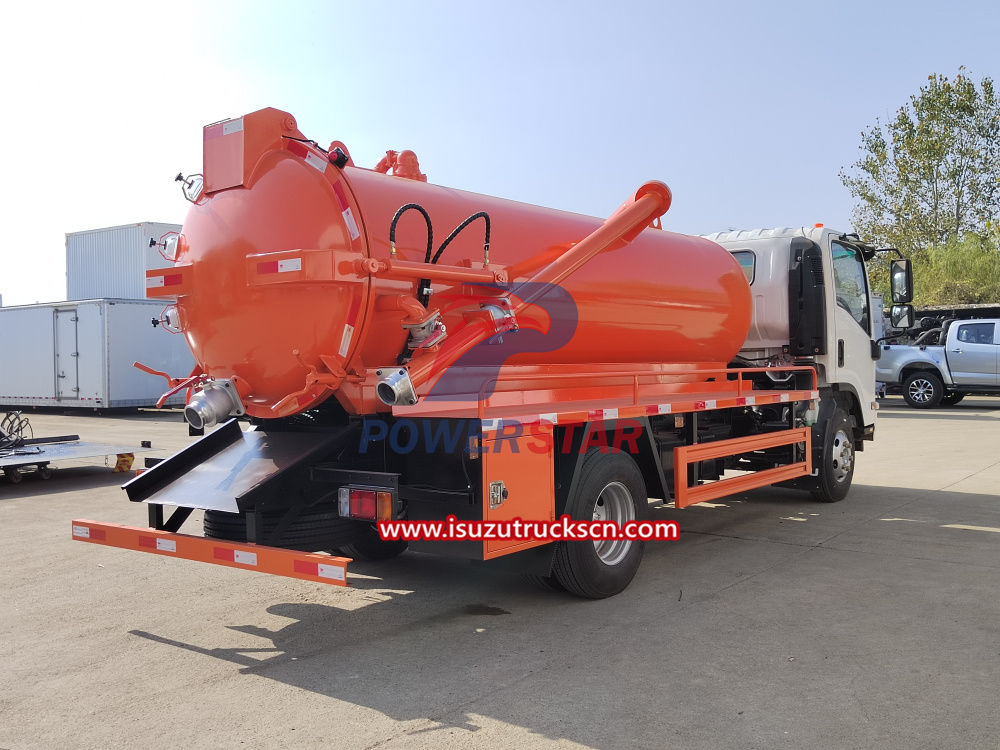

Rear view of Haiti Vacuum service truck Isuzu KV600

Rear view of Haiti Vacuum service truck Isuzu KV600

4. Application:
The HAITI Isuzu Portable Vacuum Systems truck find application in various settings, including:
- Urban Areas: The trucks are effective in urban environments, such as cities and towns, where portable toilets are commonly used in construction sites, festivals, and events.
- Remote Areas: They provide a valuable solution for waste management in rural communities, where access to proper sanitation facilities may be limited.
- Disaster Management: During disaster response and recovery operations, the vacuum trucks can assist in addressing sanitation needs, ensuring hygienic conditions for affected populations.

5. After-sales service:

Isuzu Motors provides comprehensive after-sales service support for the HAITI Isuzu Portable Toilet Vacuum Trucks. This includes routine maintenance, availability of spare parts, and technical assistance through authorized service centers. Ensuring the longevity and optimal performance of the vacuum trucks is a top priority for Isuzu to support the sanitation requirements in Haiti.

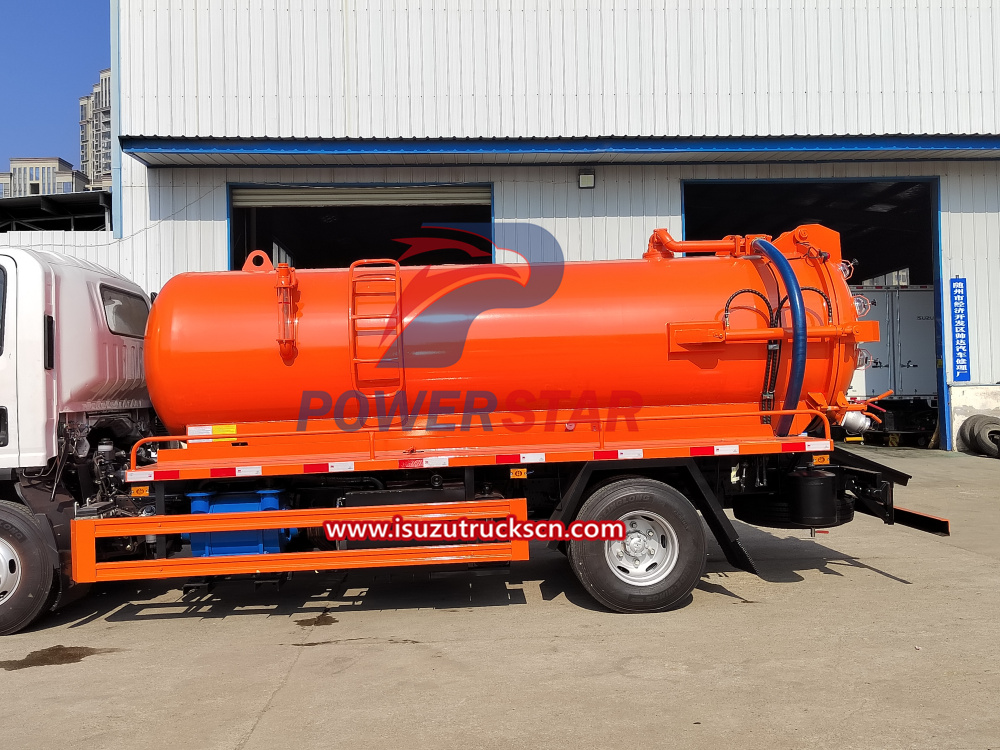

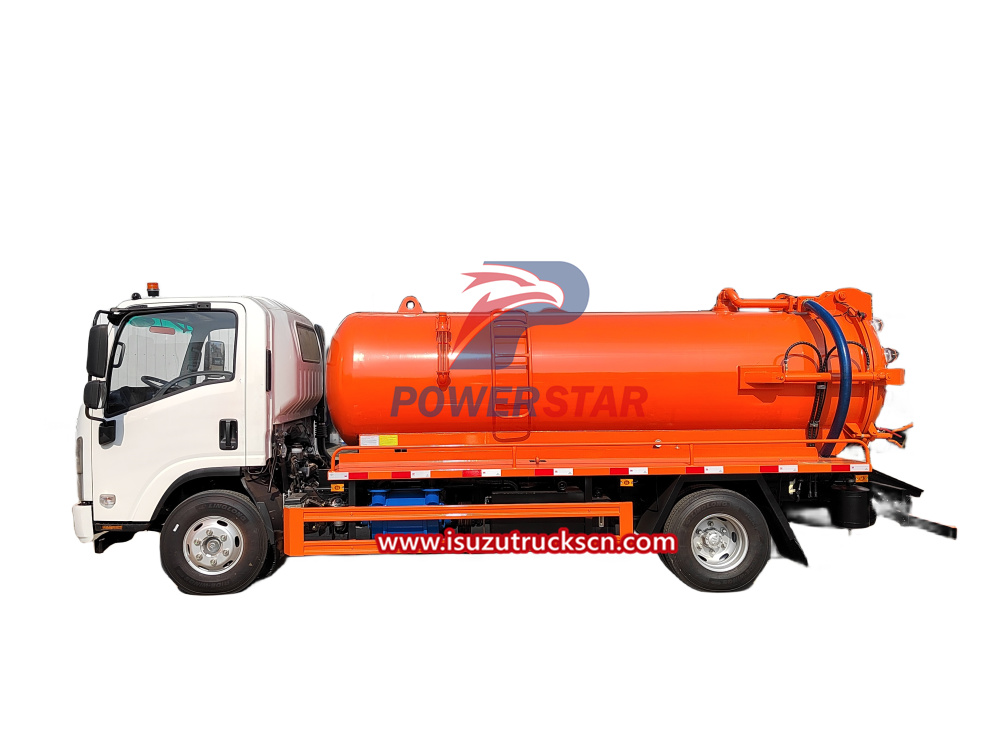

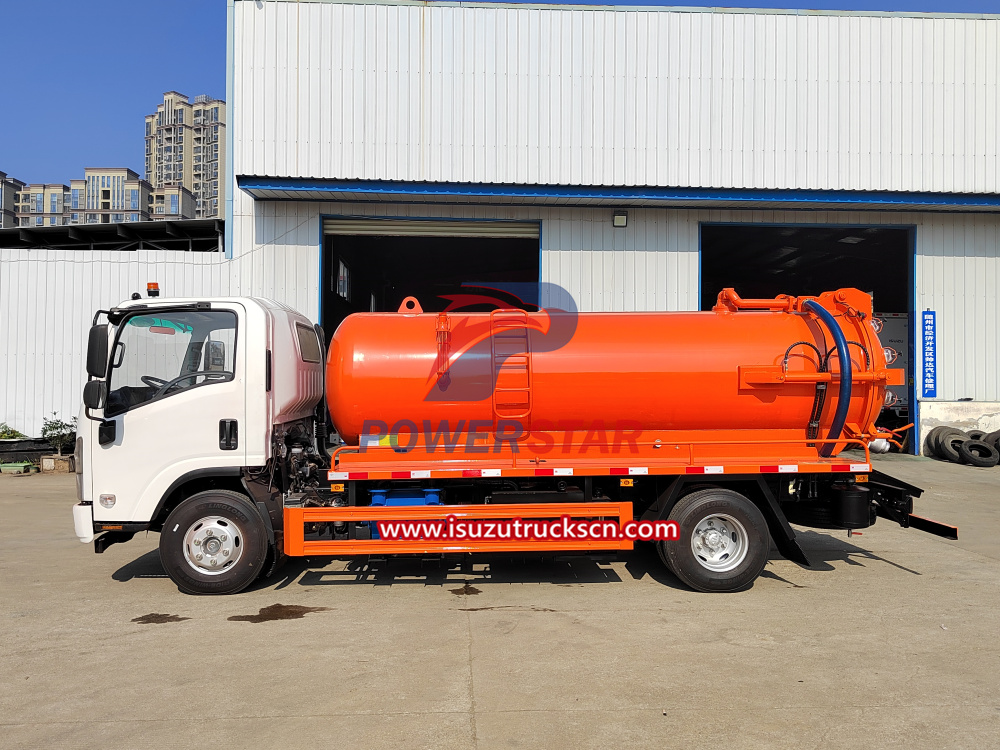

Side view of Portable Toilet Vacuum Trucks with jurop pump


Side view of Portable Toilet Vacuum Trucks with jurop pump

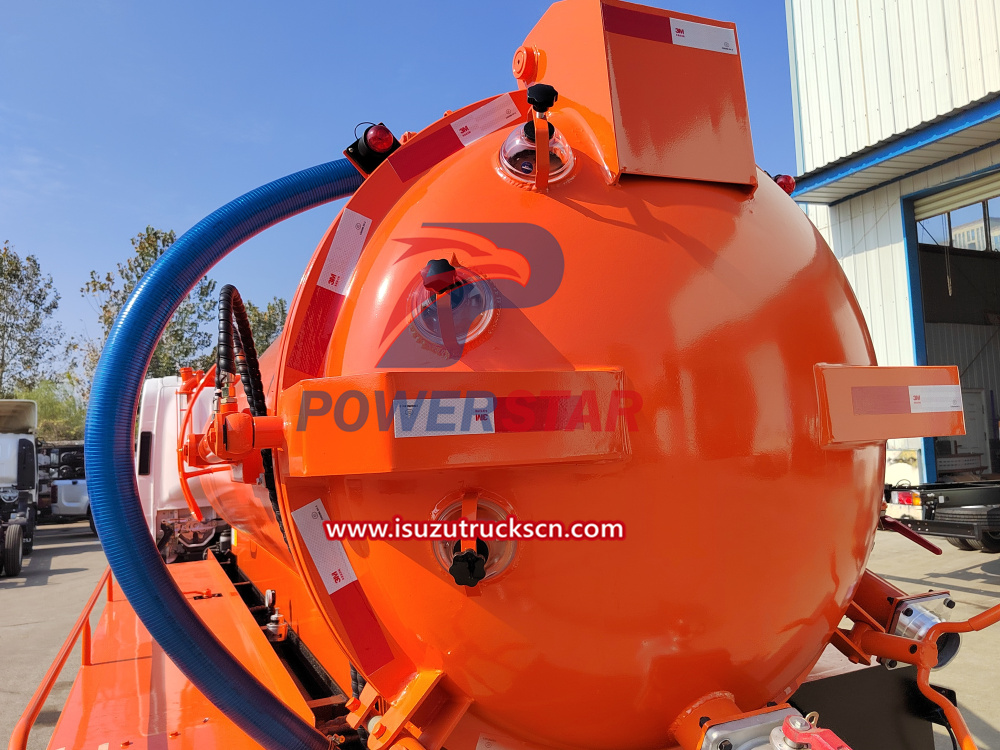

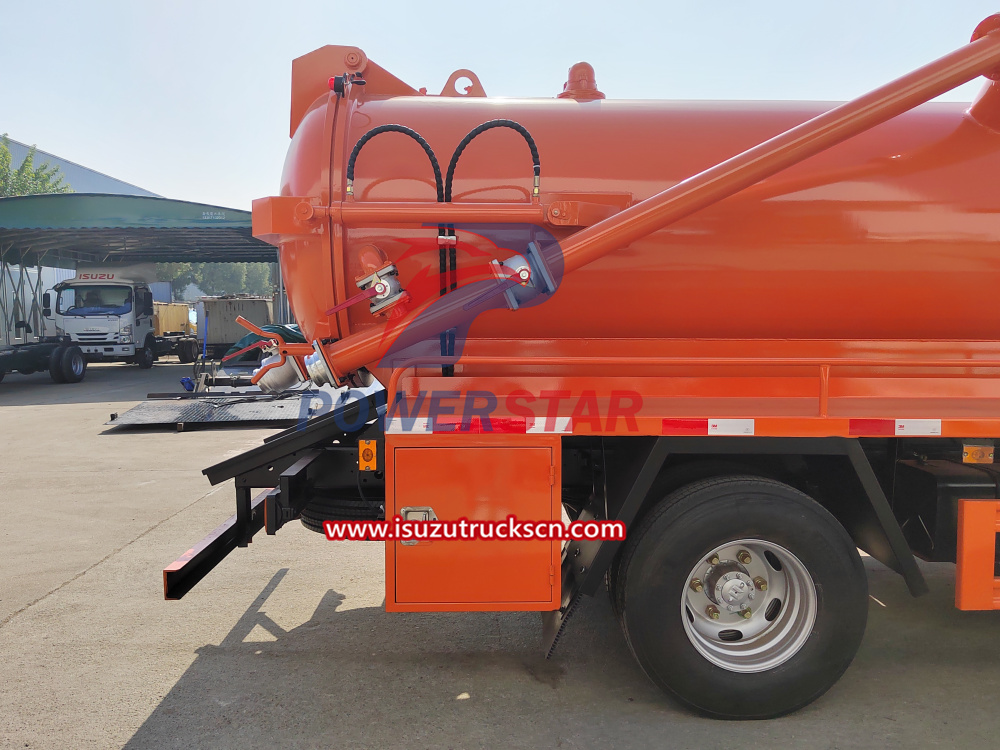

Rear door view of Portable Toilet Vacuum Trucks with jurop pump

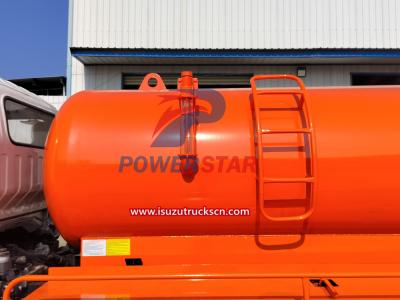

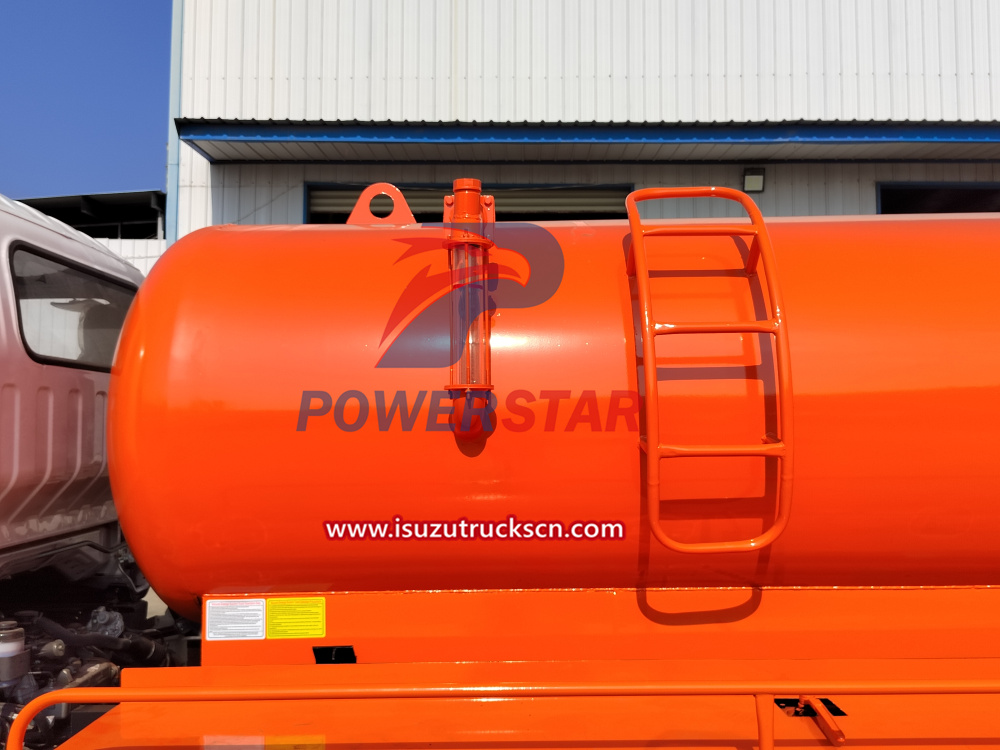

Side ladder view of Portable Toilet Vacuum Trucks with jurop pump



6. Frequently Asked Questions (FAQ):
Q1: How often does the vacuum tank need to be emptied?
A1: The emptying frequency depends on the waste volume and usage. Isuzu can provide guidance on the tank capacity and recommend emptying intervals based on specific requirements.
Q2: Can the vacuum trucks handle different types of waste material?
A2: The Isuzu kv600 Vacuum service truck for Haiti are designed to handle waste from portable toilets and sanitation facilities. However, specific waste management needs can be addressed by Isuzu through customization options.
Q3: What is the fuel efficiency of the trucks?
A3: Isuzu vehicles are known for their fuel efficiency. The exact specifications can be provided by Isuzu based on the specific model and configuration.
Q4: Are training programs available for operators and maintenance personnel?
A4: Isuzu offers training programs to ensure operators and maintenance personnel are equipped with the necessary knowledge and skills to operate and maintain the vacuum trucks effectively.
