Rear Loader Refuse Truck Isuzu

Rear loader refuse truck Isuzu also called Isuzu waste compactor truck, Isuzu garbage compactor truck, Isuzu trash compactor, Isuzu refuse collection truck, Isuzu compactor garbage truck, Isuzu rubbish truck, Isuzu waste collection vehicle.The rear loader refuse truck Isuzu has good chassis performance, strong power, curved upper body design, advanced and beautiful appearance, reasonable structure, complete configuration, new CAN bus control system, electrical integration design, automated operation, high work efficiency, and convenient operation and maintenance. Optional rear bucket flipping mechanism or garbage bucket flipping mechanism is available. The vehicle is mainly used for garbage collection, compression and transfer in municipal sanitation and large factories.

I. Description of Rear Loader Refuse Truck Isuzu

Key Features:

---Various size body from 3cbm to 20cbm.

---ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km.

---Imported SIEMENS PLC integrated control high-efficient working

---Diffient rear lifting systerm are optional.

---Can be put into 20”,40” container and ship to worldwide.

II. Specification of ELF 4*2 Rear Loader Refuse Truck Isuzu

1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. Be designed according to your requirement .

5. Small order can be accepted.

6. We accept 100% inspection, welcome to our factory at any time.

7. 12 month quality guarantee term.

III. Details of Rear Loader Refuse Truck Isuzu

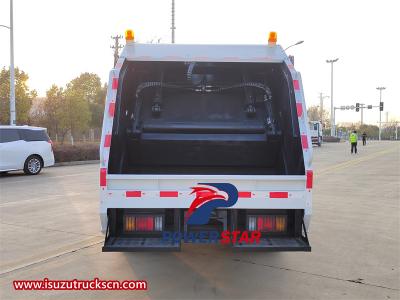

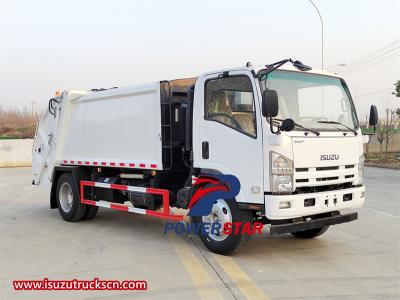

● Rear loader refuse truck Isuzu photos for reference

The rear loader refuse truck Isuzu designed to fully rely on the advantages of the original of ISUZU brand chassis, fully consider the product's convenience and reliability, also the chassis technology features. The Isuzu garbage compactor body material is international standard high strength carbon steel, both internal and external with anti-rust painting, which can effective to avoid rusting. As for compactor body capacity is 8CBM and safety enough to collecting & transporting waste on customer requirement.

Main performance and characteristics

♦    Elegant appearance, the main components made of high-quality high-strength manganese steel, sound structure, strong rigidity and high strength.

♦    Powerful loading capacity, apply the bi-axial compression technology, the volume of domestic waste can be up to 600~800Kg/m3 after compression.

♦    Combined electric-air-liquid control, utilize the advantages of electronic control, gas control and hydraulic control to control and convert the energy, thus ensuring the accurate and reliable operation of each mechanism, and improving the reliability and efficiency of operation.

♦    The electronic control system adopts the electrical components produced by well-known domestic and foreign manufacturers, and CAN-BUS integrated control is adopted to reduce the failure rate and prevent accidents caused by misoperation.

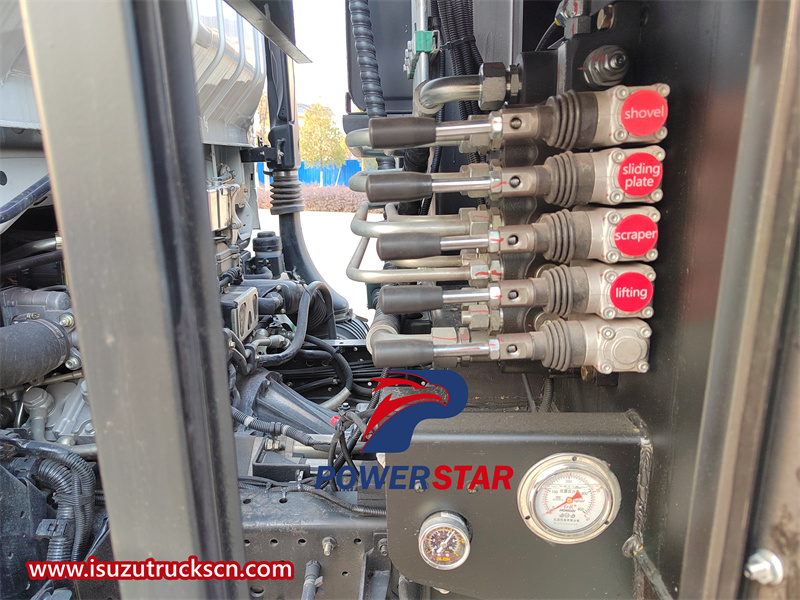

♦    Convenient operation control, the operation control box is respectively installed in the cab and the rear, the operation control box in the cab can be used to control the pushing and unloading and select the operation mode, the operation control box on the right side of the rear can be used to control the operation of the compressing-filling mechanism and the bucket-lifting mechanism, which is quite convenient; especially for working in the landfill, the operator can unload garbage without getting off.

♦    Pneumatic control is adopted to open and close the pre-compressor cover, with elegant and simple appearance and friendly operation.

♦    During the compression, filling and transportation, the garbage shall be under closed state, and unique technology of "sealing" and "dredging" is adopted to greatly reduce the dripping and spraying of sewage in the process of collection and transportation.

Applicable scope

This product is mainly used for collecting and transporting domestic waste in cans, in bags and in bulk from urban roads, urban residential areas, communities, large-scale factories and mines, etc.

This truck is not suitable for collecting and transporting construction waste, industrial waste and kitchen waste.

Working conditions

 POWERSTAR Compressed Garbage Truck shall work on flat and hard ground under the ambient temperature between -20℃～ 50℃.

Product nameplate/safety marks and location

The nameplate is located on the right side of the longitudinal beam at the front end of the garbage can of this truck.

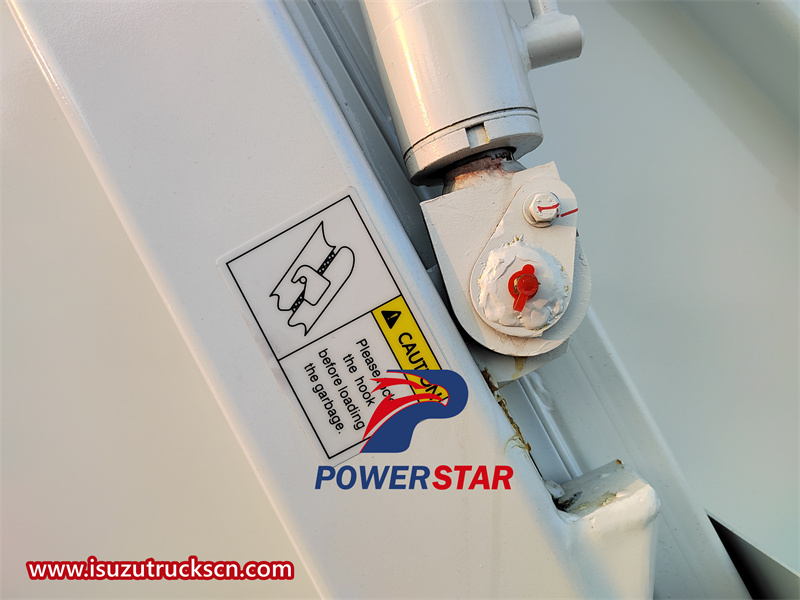

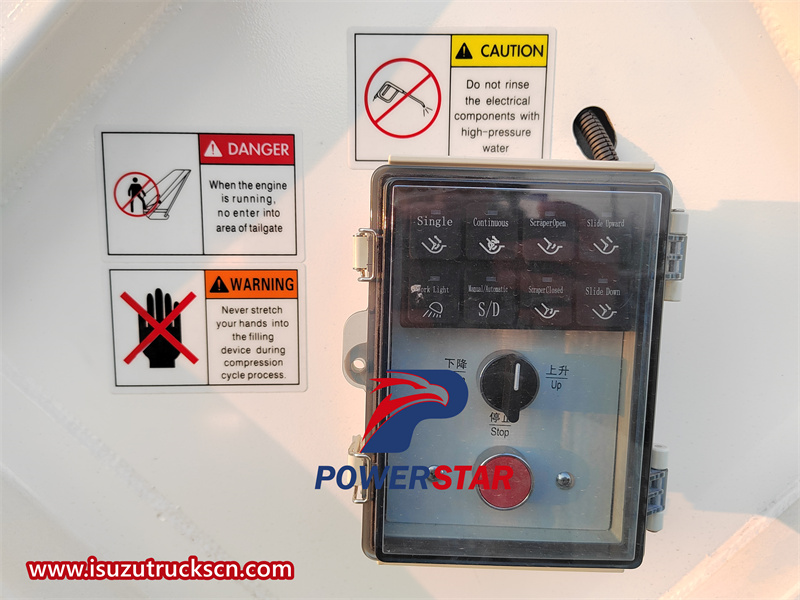

The position of security marks is shown as below.

Side protection devices

The side protection device is made of Q235 material, and connected with the vehicle with bolts. GB/11567 Motor Vehicles and Trailers-Lateral and Rear Under run Protection Requirements shall be applied.

Other requirements for products specified in GB 7258

Please refer to Table and chassis instruction manual for overall dimensions, quality parameters, main engine technical parameters and others specified in GB 7258.

Overview for garbage compactor truck technical drawing:

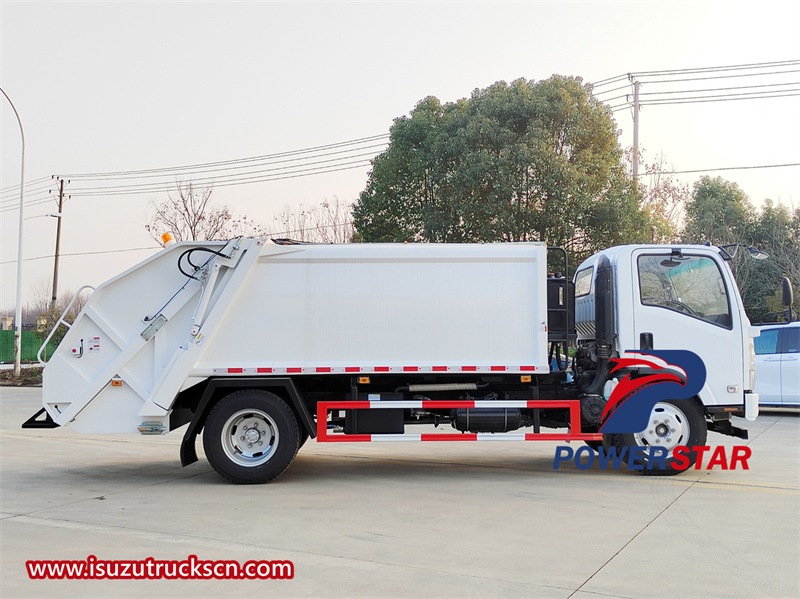

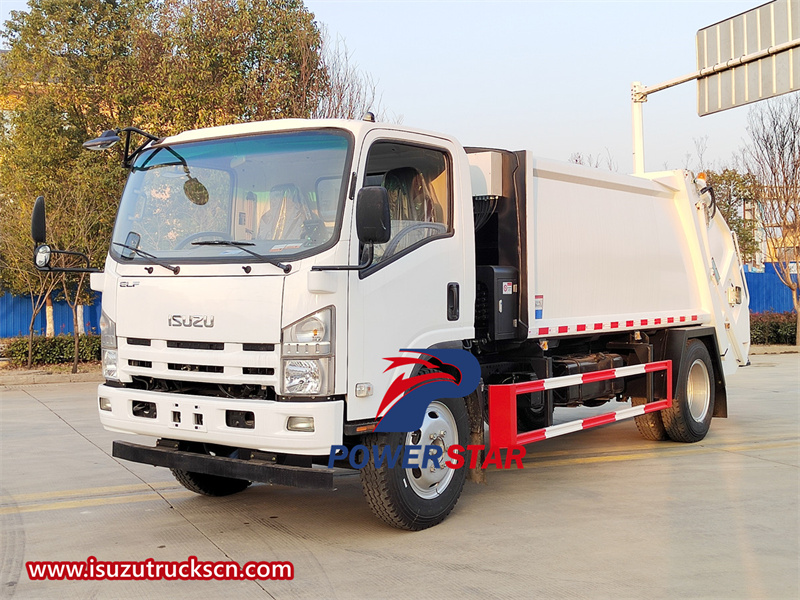

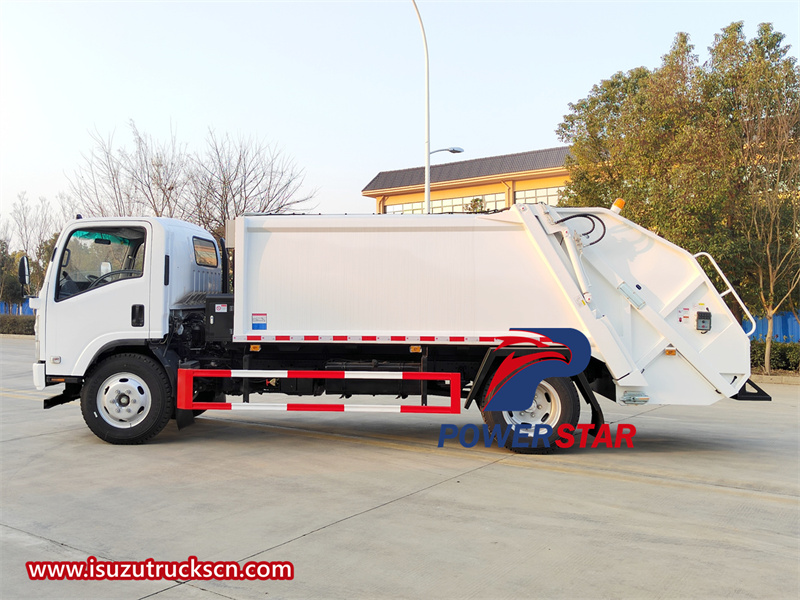

Isuzu ELF 4x2 garbage compactor truck for sale

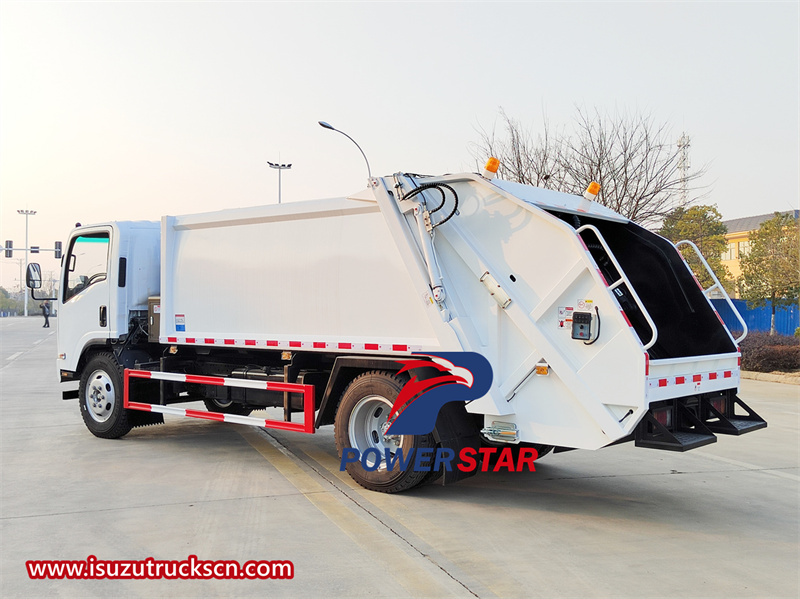

Rear loader refuse truck Isuzu

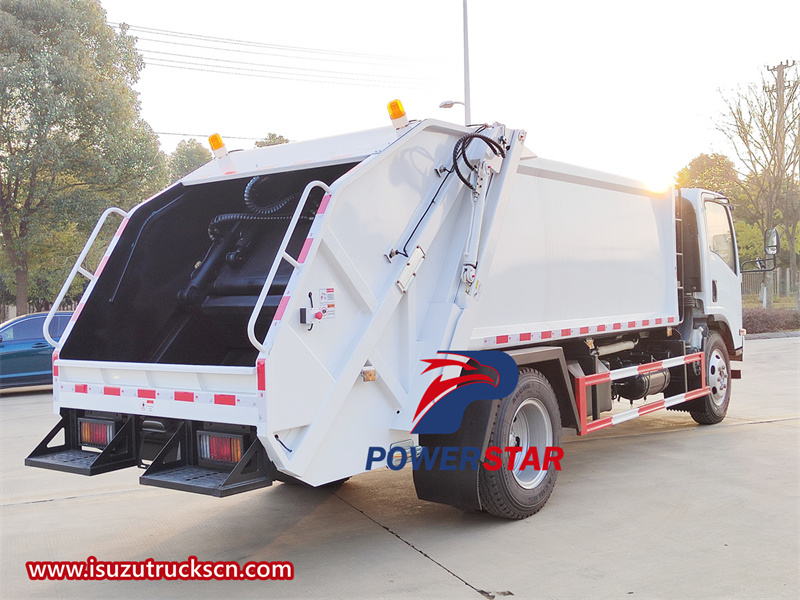

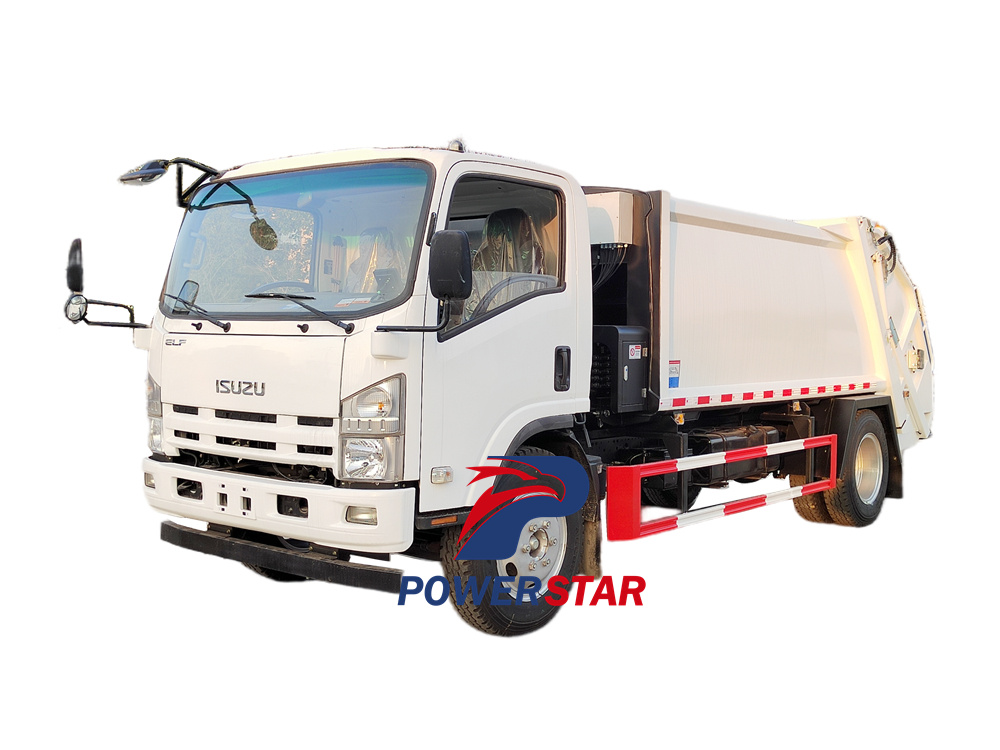

Isuzu ELF 8cbm garbage compactor truck

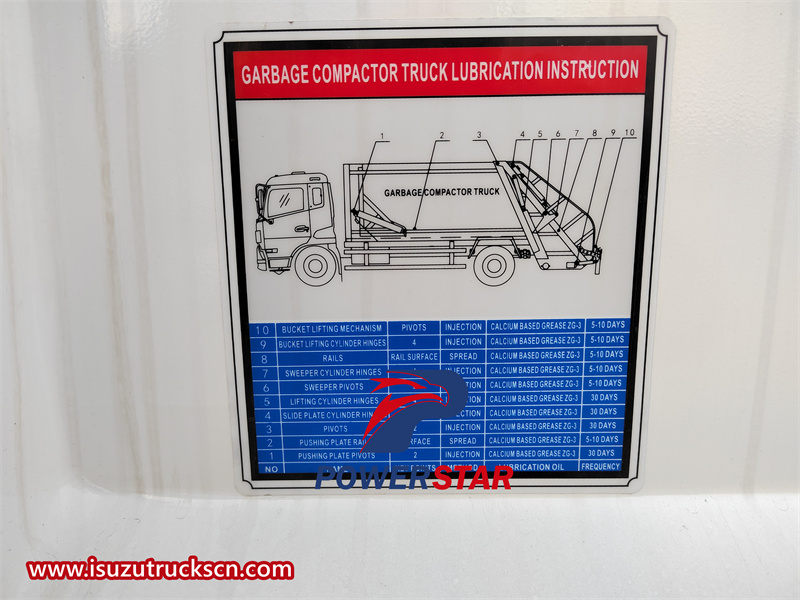

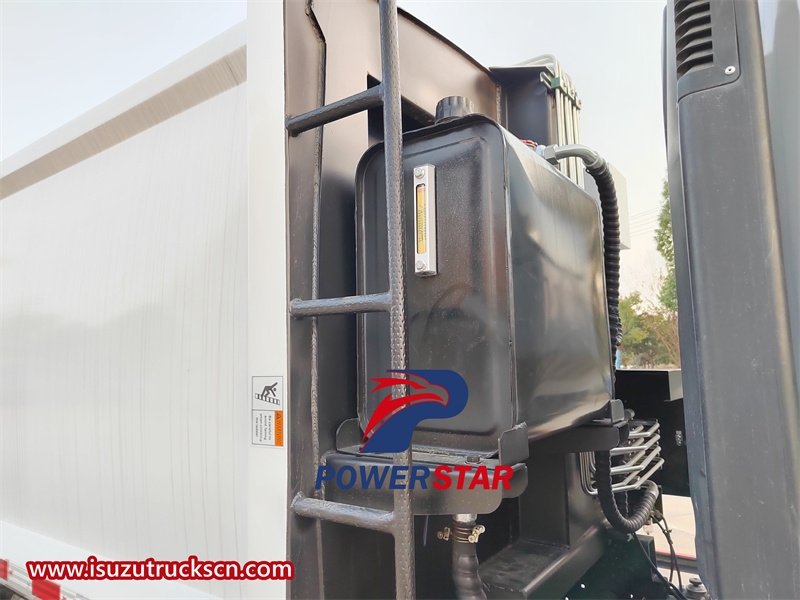

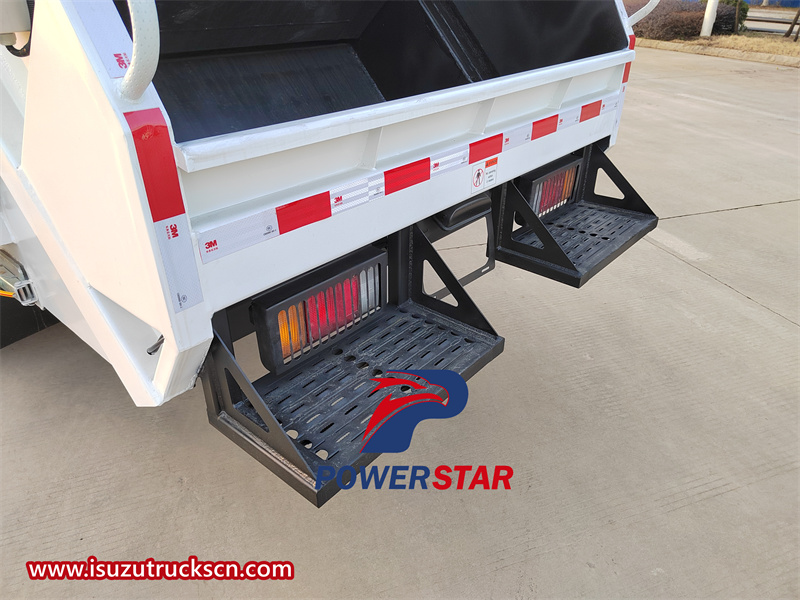

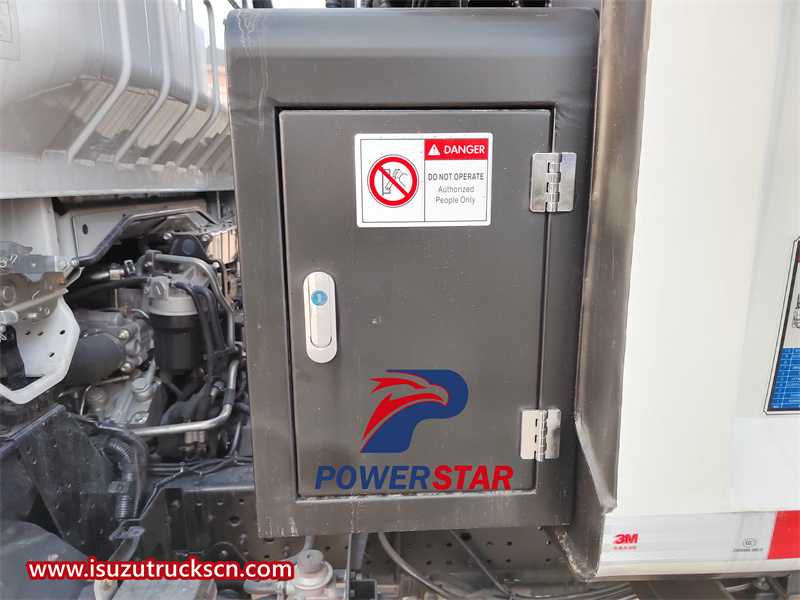

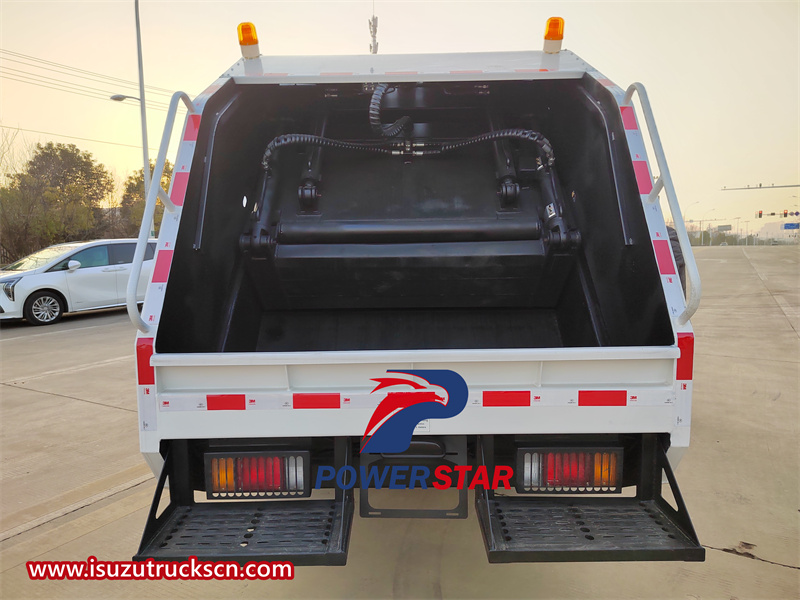

● Rear loader refuse truck Isuzu details

● Rear loader refuse truck Isuzu departure in batches
