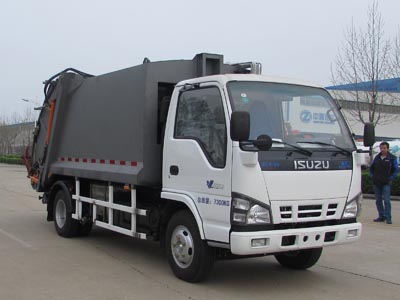

waste collection Isuzu 4*2 garbage compactor truck 4*2 garbage truck 6 wheeler

newly environmental waste garbage compactor truck ISuzu

waste collection Isuzu 4*2 garbage compactor truck 4*2 garbage truck 6 wheeler

cheap price 6ton waste compactor truck,newly environmental waste garbage compactor truck ISuzu,waste collection Isuzu 4*2 garbage compactor truck 4*2 garbage truck 6 wheeler
  • Order(MOQ):

    1

waste collection Isuzu 4*2 garbage compactor truck 4*2 garbage truck 6 wheeler

waste collection Isuzu 4*2 garbage compactor truck 4*2 garbage truck 6 wheeler



Description:

Rear loading detachable container include sealed container, hydraulic system and operating system. The whole container is sealed, self compress, self dumping, wast water kept in the tank will compress, avoid the pollute will transport. Key parts are imported, with larger pressure, better tightness, 6 wheeler truck is easy to operate, safety. Optional basket equipment and overturn mechanism increases efficiency.



Application:

Rear loading detachable container are special for collecting the urban domestic refuse and other compressible refuse.

Garbage trucks are widely used in sanitation, municipal, industrial enterprises, property plot, garbage and concentration of residential areas.

Specification:




Vehicle Model

PT5070ZYS

Chassis model

NKR77GLNACJAY

Maximum total mass

6720kg

Kerb mass

4190kg

Rated pay load

2400kg

Carriage volume

5m3

Garbage bucket volume

0.5m3

width of feeding mouth

1460mm

Hvdraulic svstern pressure

20Mpa

Outline dimensions

5575*2000*2380mm

Wheelbase

2765mm

Time of compression

14-16s

unload garbage time

≤25s







Competitive Advantage:


  1. The key units of hydraulic system are with advanced structure, more reliable, easier to operate and maintaince, such as control valve, cylinder, connection parts.
  2. Advanced electric controlled system adopts PLC (Programmable Logic Controller) integrated controls, mechatronics-hydraulics-integrated controls, reaching high automatization.
  3. Pushplate valve are equipped with balance valve which can  made  pushplate move forward to the front of the container during double compressing garbage, thus providing a big space for loading garbage.
  4. Beautiful streamline appearance,  upper vehicle adopts high strength anti-rust steel plate which can prolong the service life of vehicle.
  5. Convenient control system   It is convenient to operate, job control boxes are separately installed in the cab and vehicle end. The control box installed in the cab can control the operation of dumping garbage and selective mode( such as auto-matic or hand-operated) ; the control box installed on the vehicle end can control the operation of stuff mechanism and overturn bucket mechanism.
  6. Throttle control can be realized full-automatic control by control electric system,which meet the power needs of operation of compressing and dumping garbage; in other working condition, engine get into idle state automatically  that can reduce power wasting and faults rate.
  7. Rearview monitor system of optional is offered, it is very convenient to perform visible load and unload operation in the cab.
  8. Two controls of automatic control and hand-operated control are offered, greatly increased vehicle utilized rate.
  9. The machine was installed with emergency stop which can stop working whatever state and position stuffing mechanism reached, ensure that the staff and equipment are safety.
  10. Basket equipment and overturn mechanism are optional, user can select collecting  mecha nism of optional according to the way of collecting garbage.
