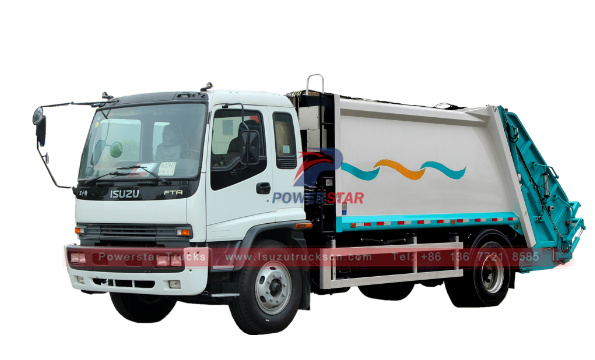

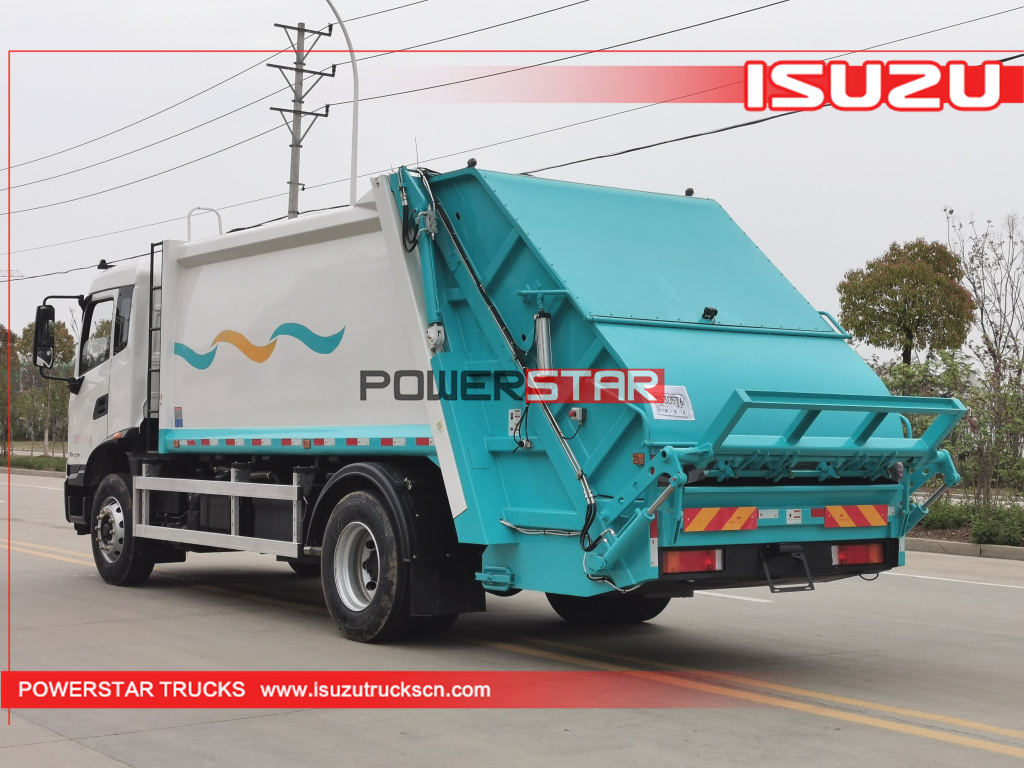

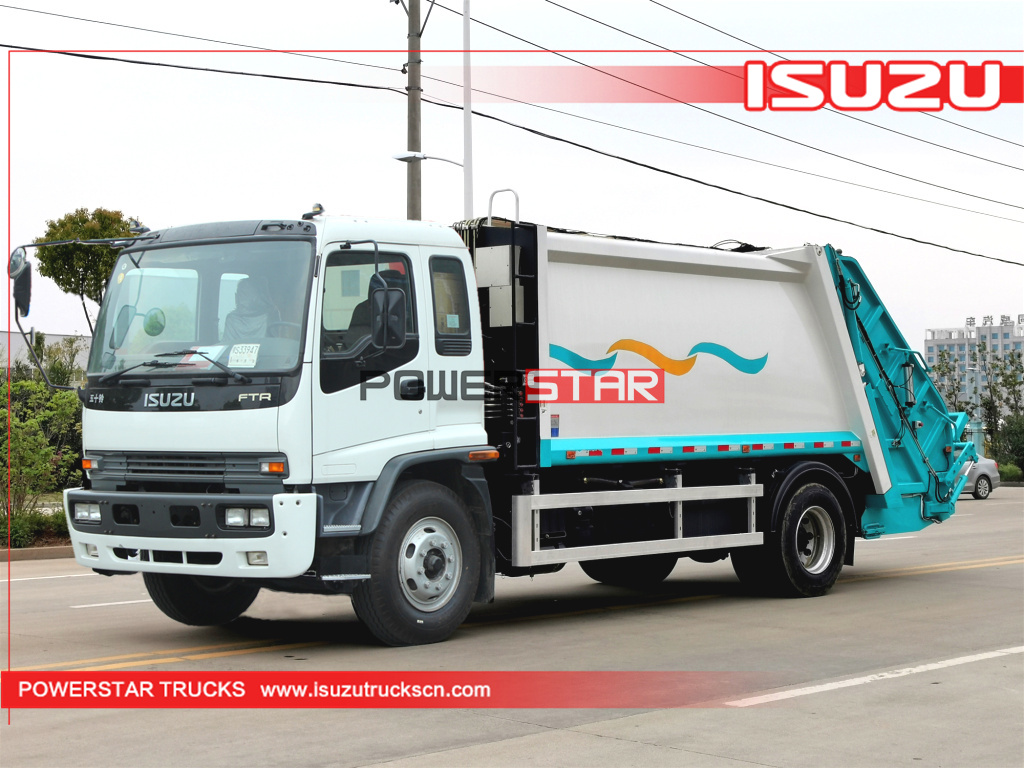

12cbm Isuzu Waste Compactor Vehicle FTR Rear Loader Garbage Truck

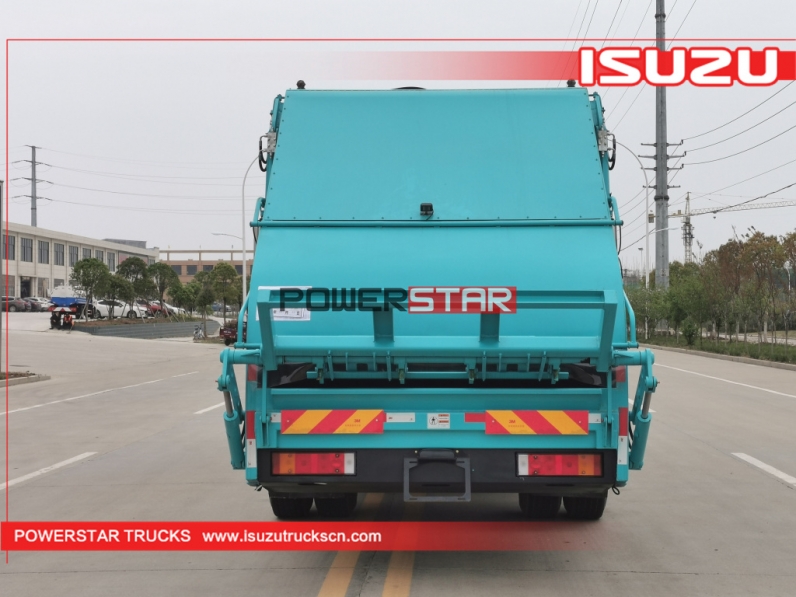

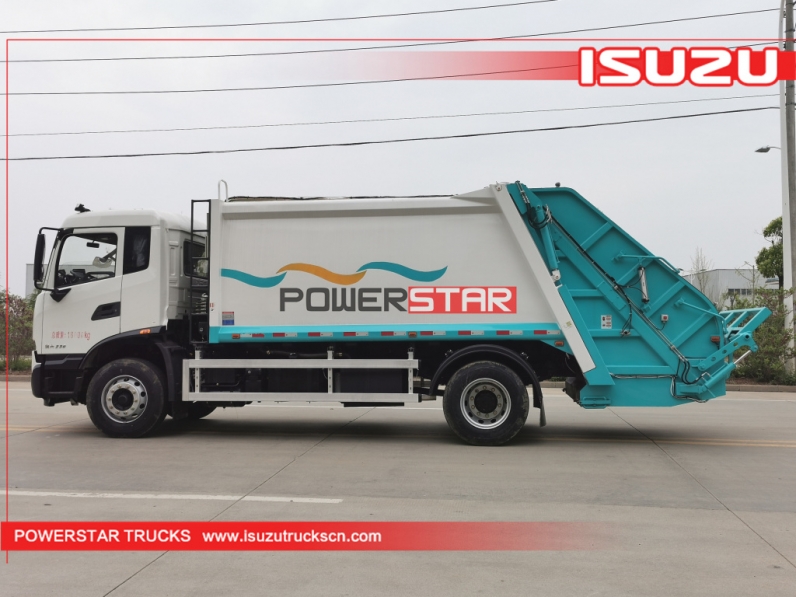

Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk
Philippines Isuzu Rear Loader Refuse Trcuk

12cbm Isuzu Waste Compactor Vehicle FTR Rear Loader Garbage Truck

Powerstar trucks can also provide many special vehicles such as Garbage compactor truck, Road sweeper truck, Hooklift truck
  • Order(MOQ):

    1

12cbm Isuzu Waste Compactor Vehicle FTR Rear Loader Garbage Truck

12cbm Isuzu Waste Compactor Vehicle FTR Rear Loader Garbage Truck



Introduction


ISUZU FTR Bin Lifter Garbage Trucks (also called FTR Environment Garbage Trucks, Refuse Trucks, Waste Transfer Compactors) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.



Advantages


  100% custom-made
  3 cbm to 22 cbm available
  Short delivery time 7~30 days
  Easy operation & Easy maintenance
  15 years spare parts & Technical support



Main Parameters


Manufacturer

PowerStar Trucks Industry Co., Limited

Product Name

ISUZU FTR Truck Compactor

Vehicle Brand Series

ISUZU

Vehicle Model

PST5160GYS

Production Time

25 days

Chassis parameters

Overall dimensions

mm

8060*2500*2960

Gross weight

kg

16,000

Kerb weight

9,260

Wheelbase

mm

4,500

Driving type

4*2

Chassis model

ISUZU FTR Heavy-duty

Tire size

10.00-20-16PR

Number of Tires

6+1

Passengers in cab

3

Engine

Engine model

4HK1-TC50

Type of fuel

Diesel

Power

205HP

Max speed

Km/h

95

Emission standard

EURO 4,5,6

Compactor performance

Compactor Body

14 Cbm

Body Material

Weather Resisting Steel

Compressing Ration

1:3.4

Dust Bin Lifter

120 lt. - 240 lt- Two bins

Optional 1100 lt,660 lt

Loading Cycle Time

15 20 sec

Discharging Time

10 18 sec

Discharging system

Horizontal ejection

Waste Water Tank

200L

Operation

Siemens Automatic-PLC system

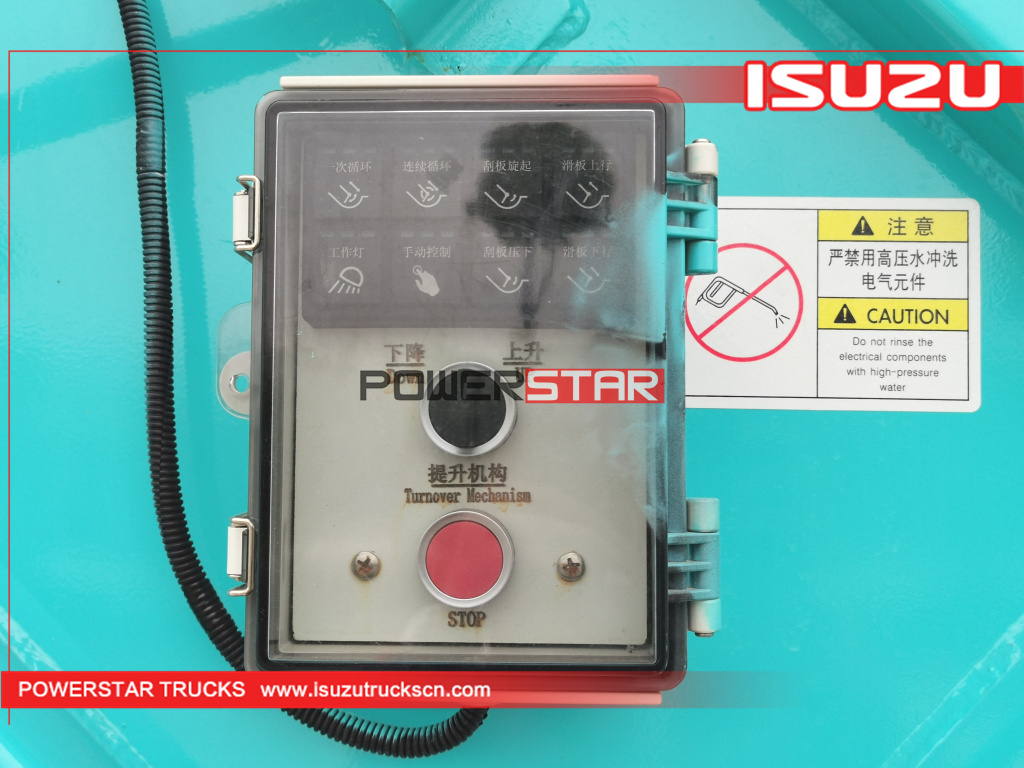

Control Panel

English

Foot Stands

2 sets with hander

Painting

Two primers, and one final paint coating

Color & LOGO

According to wish

Factory standard

  “U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps...

Documents

  English operation manual, Spare parts list, and all necessary export docs.

Optional equipment

1, Dust bin lifting system (with any option)

2, Rear vision camera

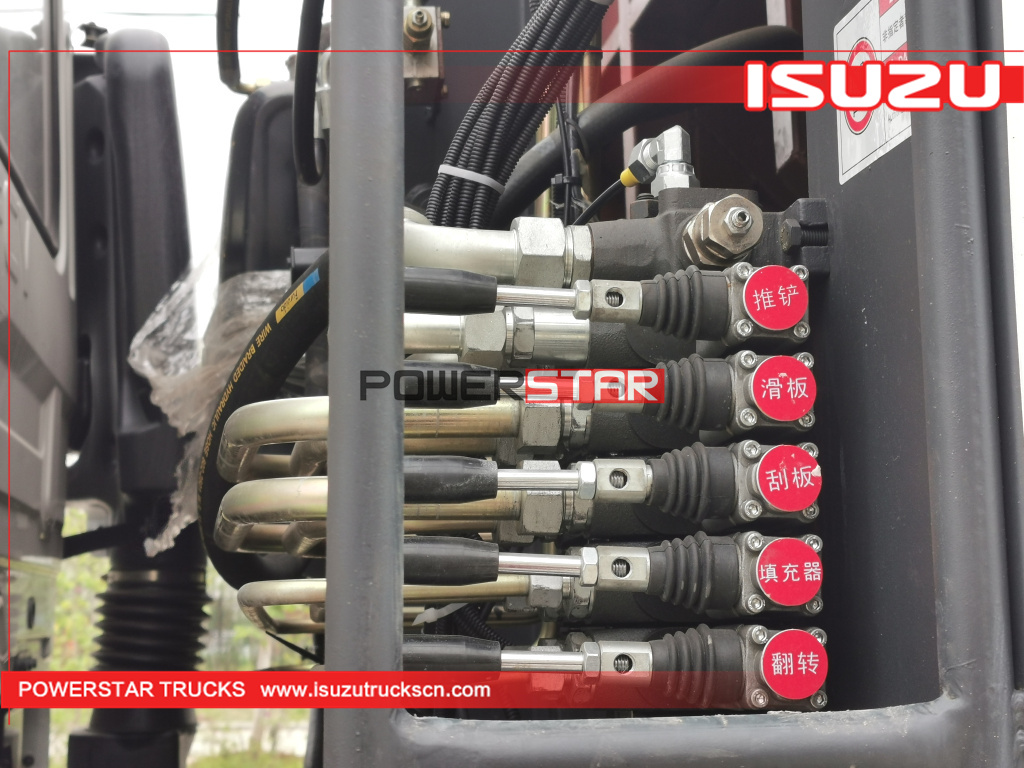

3, Italy imported multi-way valve

4, Optional stainless steel waste water tank
