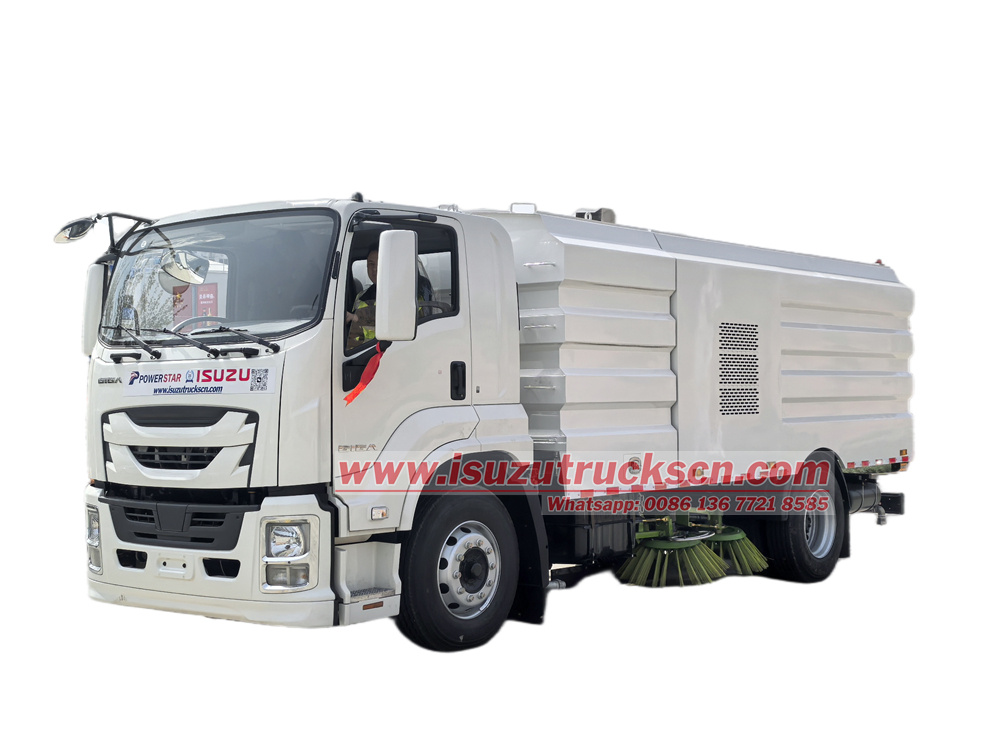

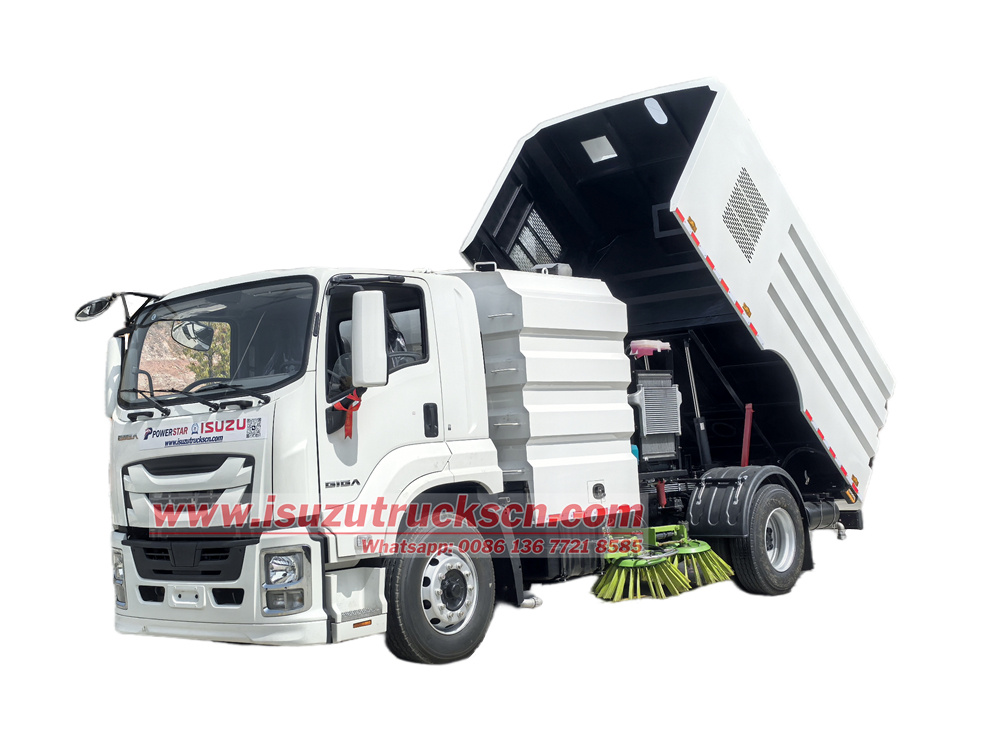

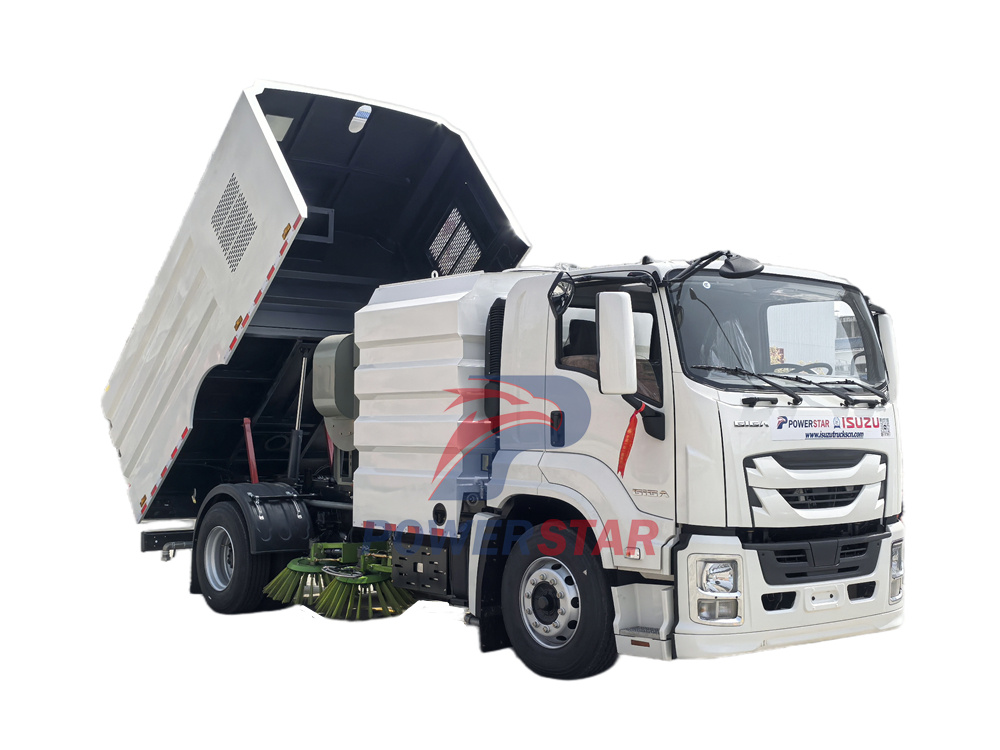

2025 year Isuzu municipal street sweeper truck
The Isuzu FTR 12m³ road sweeper truck is refitted based on the Isuzu FTR GIGA 4X cab chassis. It is equipped with an Isuzu 4HK1-TCG60 190HP diesel engine and an Isuzu MLD 6-speed transmission. The vehicle is also fitted with a Dongfeng Cummins B140 33 auxiliary engine (140HP), a 8m³ dust bin, and a 4m³ water tank. It features a Weiye (brand name) blower and is equipped with four sweeping brushes and four nozzles for front flushing and rear spraying. The sweeping width exceeds 3.5 meters, and the operating speed ranges from 5 to 20km/h. The cab is equipped with an electric control box, while the rear of the vehicle has two control methods: a control box for tailgate opening/closing and box lifting lights.
Manufacturer:
Powerstar TrucksWork capacity:
8 m³ dust bin, and a 4m³ water tankDimension:
7960 x 2500 x 3100 mmCabin type:
Isuzu FTR 4X cabin，3 seatsWheelbase:
4500mmEngine power:
205HPEngine type:
Isuzu 4HK1-TCG60Axle drive:
4X2Gear box:
Isuzu MLD 6 forward and 1 reverse speedRemarks:
Powerful engine and auxiliary engine,powerful cleaning abilityThe 2025 Isuzu Municipal Street Sweeper Truck integrates large capacity, powerful performance, and intelligent technology to redefine road cleaning standards. Equipped with four independently adjustable sweeping brushes and a centrifugal blower, it achieves a sweeping width of 3.5 meters and, paired with an 8-cubic-meter hydraulic compression garbage bin, covers over 20,000㎡ in a single operation, significantly boosting efficiency. Its innovative atomized dust suppression technology generates micron-level water mist, achieving a dust suppression efficiency of ≥95% and helping cities meet environmental standards.
The vehicle features an intelligent electric control system that supports one-touch mode switching for effortless operation and reduces energy consumption by 15%. Modular design simplifies maintenance, and an optional sewage recycling system further lowers operating costs. Whether for urban main roads or industrial parks, the truck delivers exceptional performance to meet diverse cleaning needs.
● 30 years experience on road sweeper truck designing
● 50 unit isuzu street sweepers in stock
● Container shipping, CKD & SKD parts
● 24 months long guarantee time assurance
|

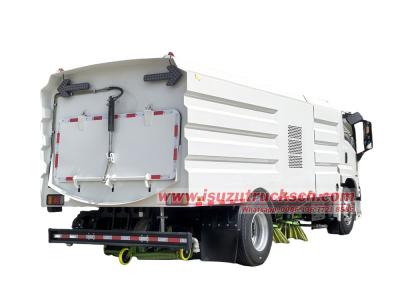

Isuzu FTR 12cbm road sweeper truck |
||
|
Sweeper Truck Main Specification |
||
|
Vehicle Brand |
POWERSTAR |
|
|
Chassis Brand |
ISUZU |
|
|

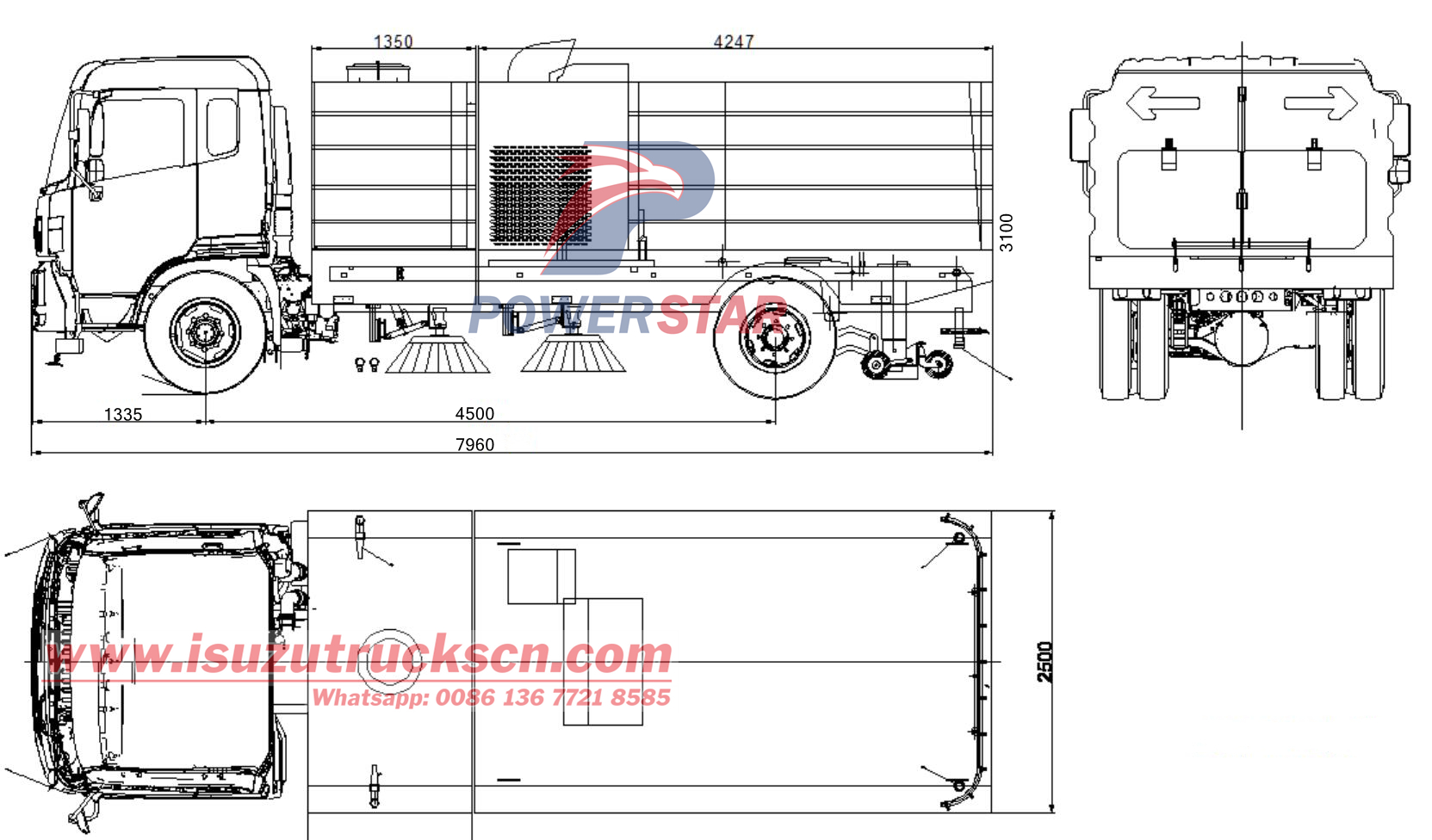

Overall dimensions (L x W x H) |
7960x2500x3100 mm |
|
|
Drive Type |
4x2 Left hand drive, 6 wheels |
|
|
Wheelbase |
4500mm |
|
|
Cabin |
ISUZU FTR GIGA 4X chassi cab, with A/C, 3 seats and a sleeper, Forward control, all steel welded construction. Manual tilt, Mechanical suspension |
|
|
Weight |
GVW |
18000kg |
|
Kerb weight |
9530kg |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Horsepower |
205 HP/151Kw |
|
|
Engine type |
Diesel |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Manual |
MLD 6 forward and 1 reverse speed |
|
Tire |
295/80R22.5 |
6+1 spare tire |
|
Upper Structure Parameter |
||
|
Volume of water tank |
4000L |
|
|
Volume of Dustbin |
8000L |
|
|
Material |
water tank: carbon steel |
|
|
garbage tank: inner stain steel,outer carbon steel |
||
|
Hydraulic valve |
Taiwan famous brand |
|
|
Hydraulic motor |
Domestic famous brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary engine |
Brand |
Dongfeng Cummins B140 33 |
|
Type |
Inline 4 cylinders, supercharged and intercooled,diesel |
|
|
Horsepower |
140HP |
|
|
Rated Power/Max Net Power |
103/101Kw |
|
|
Allowed altitude limit |
3000m |
|
|
Rated speed |
2500rpm |
|
|
Ldle Speed |
750r/min |
|
|
Max torque |
502N.m |
|
|
Displacement |
3.9L |
|
|
Fuel rate at rated HP |
88mm³/strcke |
|
|
Emission standard |
Euro 3 |
|
|
High pressure washing Technical |
washing width (mm) |
2500 mm |
|
Washing speed |
3-20km/h |
|
|
Washing water pressure |
10Mpa |
|
|
Water pump flow rate |
154L/min |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
60000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥98% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
≥400mm |
|
|
Garbage tank door max. discharge angle |
≥50° |
|
|
Sweeping system |
Type |
Total 2 pcs brushes and 1 sucking disc mounted in the medium, it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function |
|
Sweeping brush diameter |
Φ850mm |
|
|
Sweeping disk speed |
110r/min high-speed, 80r/min medium speed,50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 ° ~ 7 ° |
|
|

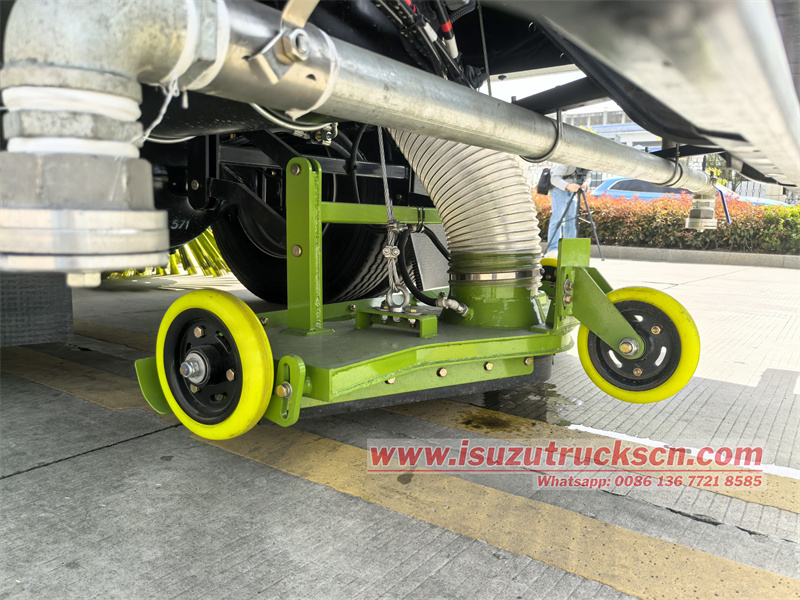

Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction disc width |
2400mm |
|
|
Hydraulic system |
Type |
Open type, electrical control |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle(front flush and back sprinkle), water filter, etc. |
|
High pressure water system |
Type |
High pressure plunger pump |
|
Model |
Germany PINFL PF36 |
|
|
System Pressure |
10Mpa |
|
|
Rotation speed |
1150r/min |
|
|
Water valve type |
hydraulic high pressure ball valve |
|
|
Water valve pressure |
7MPa |
|
|
Nozzle type |
High pressure washing type |
|
|
Water filter |
Strainer mesh |
|
|
Winch |
20m |
|
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Side spray rod |
type |
V-type spray bar, with automatic avoidance function |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
||
|
Fire hose |
2 pcs |
|
|
Fire wrench |
1 pcs |
|
|
Water filter wrench |
1 pcs |
|
|
High pressure spray gun |
1 pcs |
|
|
Manual hydraulic pump rocker |
1 pcs |
|
|
Spare parts |
||
|
Sweep brush |
88 pcs |
|
|
Fan seal |
1 pcs |
|
|
Rear door seal |
1 pcs |
|
|
Suction tube seal |
2 pcs |
|
|
Import Parts List |
||
|
High pressure water pump |
Germany PINFL PF36 |
|
|
Automatic unloading valve |
Germany PINFL VB200/150 |
|
|
Relief valve |
Germany PINFL VS200-180 |
|
|
Electric control box controller |
Germany STW |
|
|
Rotary switch |
Japan |
|
|
Sewage tank sensor |
USA |
|
|
Hydraulic valves |
Taiwan SWH-G02-C4-D2H |
|

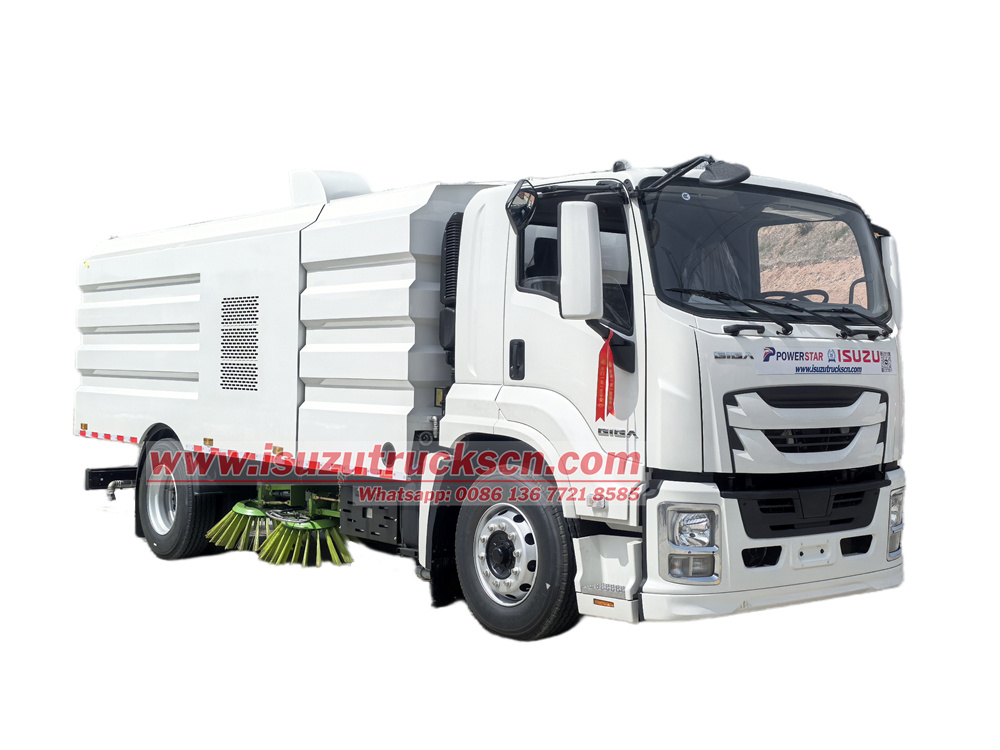

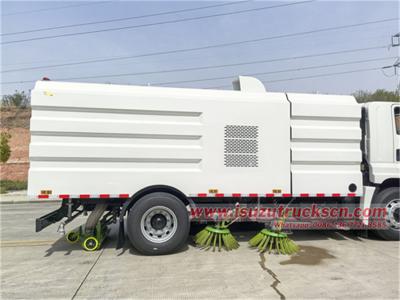

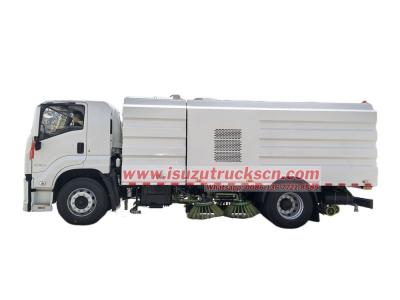

Isuzu FTR 12m³ Sweeper Truck – The Efficient Guardian of Urban Cleanliness
The Isuzu FTR 12m³ sweeper truck is a specialized sanitation vehicle meticulously refitted based on the Isuzu FTR GIGA 4× series wide-body cab chassis. It integrates road sweeping, water spraying for dust suppression, and garbage collection, making it suitable for efficient cleaning operations on urban main roads, industrial parks, and large squares.
Core Power System
• Main Engine: Equipped with the Isuzu 4HK1-TCG60 four-cylinder turbocharged diesel engine, with a displacement of 5.2L and a maximum power of 190 horsepower (140kW). It is matched with the Isuzu MLD 6-speed manual transmission, offering robust power output and excellent fuel economy, adapting to the demands of prolonged continuous operations.

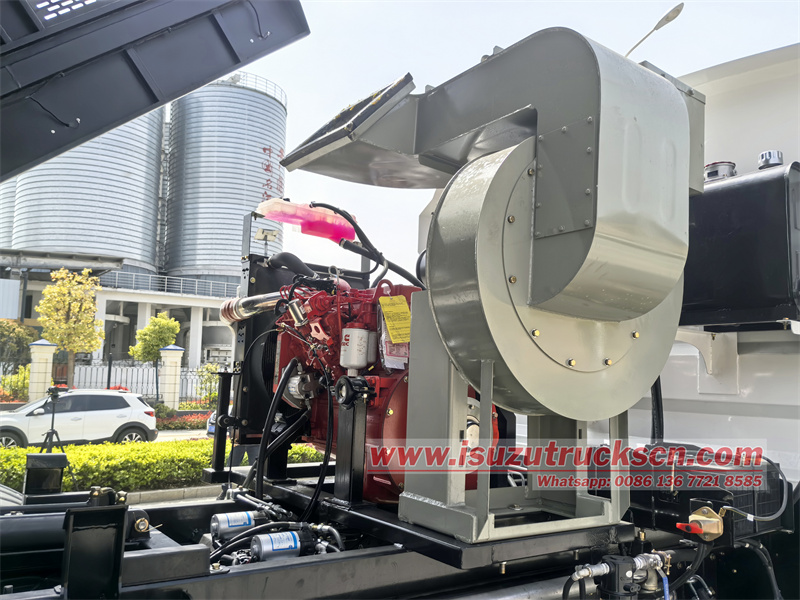

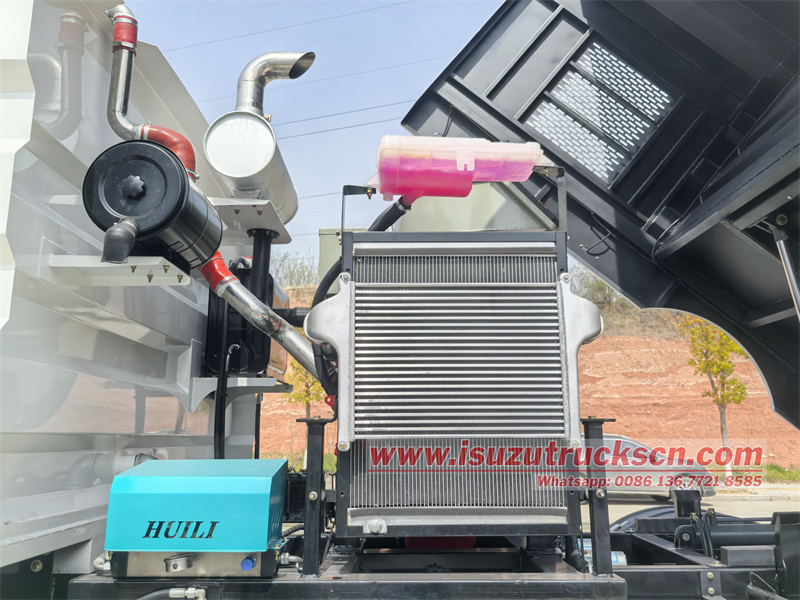

• Auxiliary Engine: Features the Dongfeng Cummins B140 33 diesel engine, with a power of 140 horsepower (103kW), providing independent power for sweeping, water spraying, and other operational systems to ensure mutual non-interference between the main and auxiliary systems, enhancing operational stability.
Sweeping System Configuration
• Brush Design: The vehicle is equipped with four high-strength, wear-resistant brushes, featuring adjustable angles and a coverage width of 3.5 meters. Coupled with an efficient suction port, it can quickly clear road dust, gravel, leaves, and other debris.
• Blower System: Utilizes the Weiye high-efficiency centrifugal blower, with strong airflow ensuring stable negative pressure in the garbage bin to prevent secondary dust pollution.

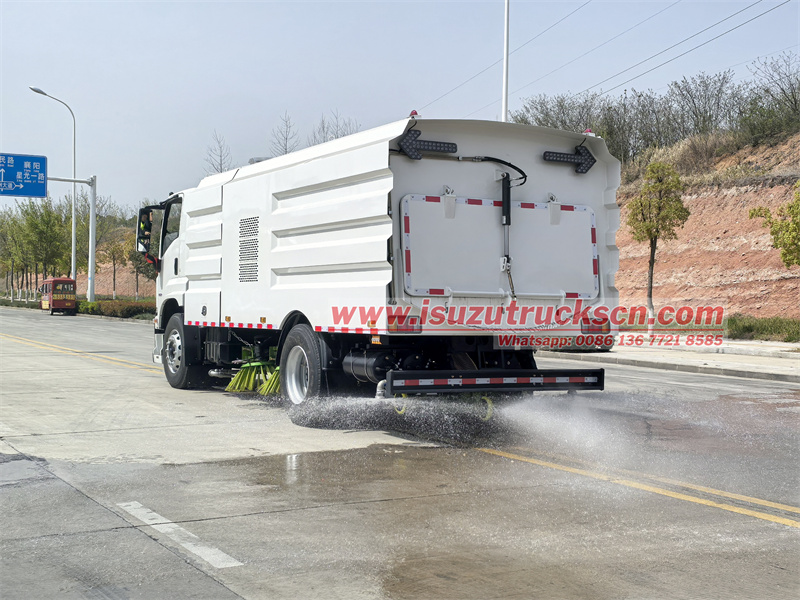

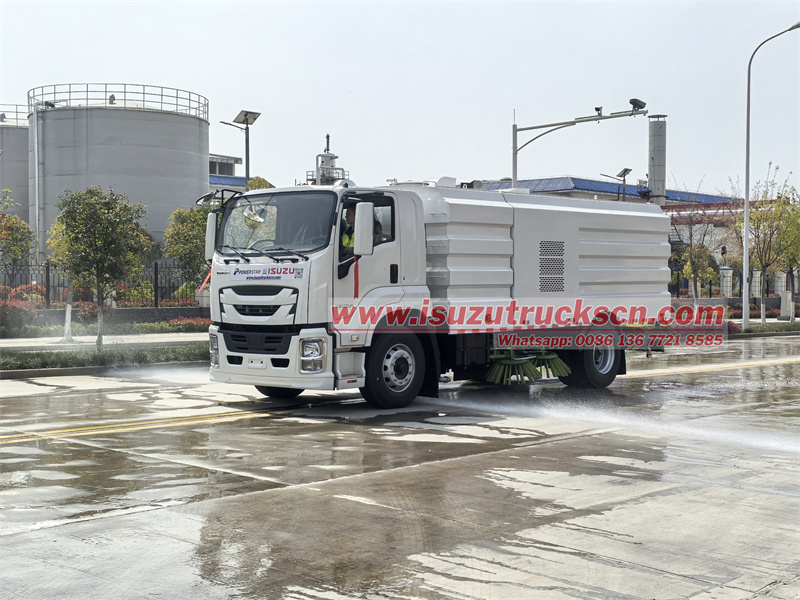

• Spraying Devices: Equipped with front flush nozzles for high-pressure road washing and rear spray nozzles for road dust suppression, offering excellent atomization effects.
Humanized Control Design

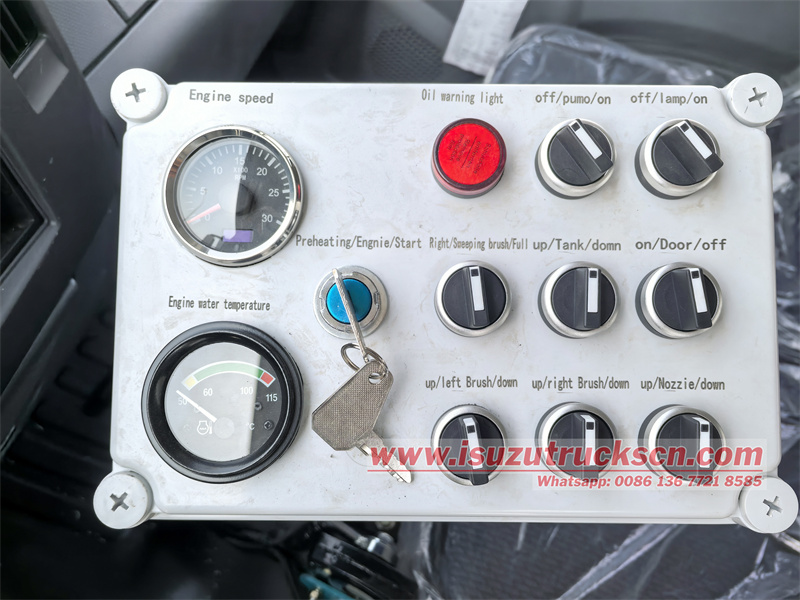

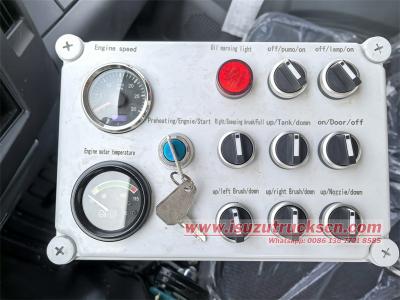

• Cab Control: The cab is equipped with an integrated electric control box, allowing one-touch start/stop of the operational system, mode switching, brush angle adjustment, and spray volume control, ensuring convenient operation.

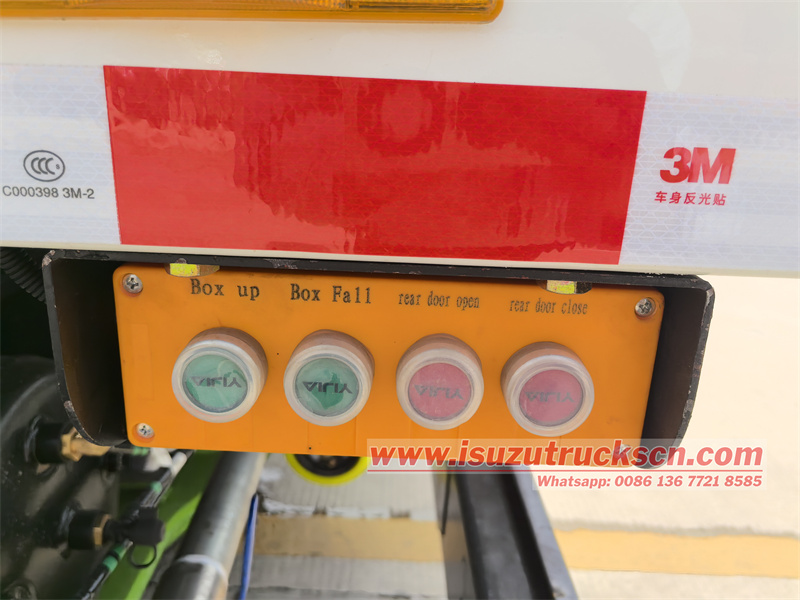

• Rear Operating Console: A separate control box is installed beneath the vehicle's rear, supporting operations such as Box up, Box Fall, rear door open, and rear door close.
Garbage Collection and Storage
• Garbage Bin Capacity: Equipped with an 8m³ large-capacity garbage bin (inner stainless steel, outer carbon steel) and a 4m³ carbon steel water tank, featuring sealed designs to prevent sewage leakage and supporting automatic garbage compression to extend single-operation durations.

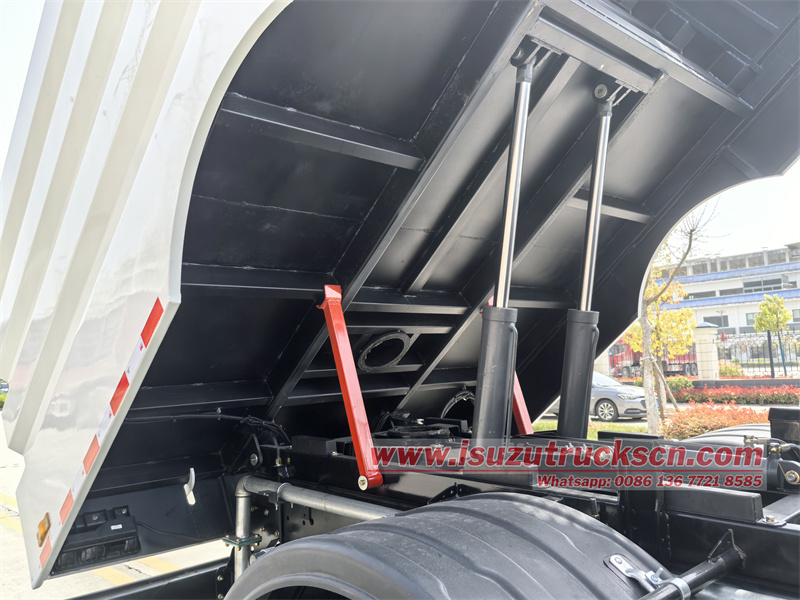

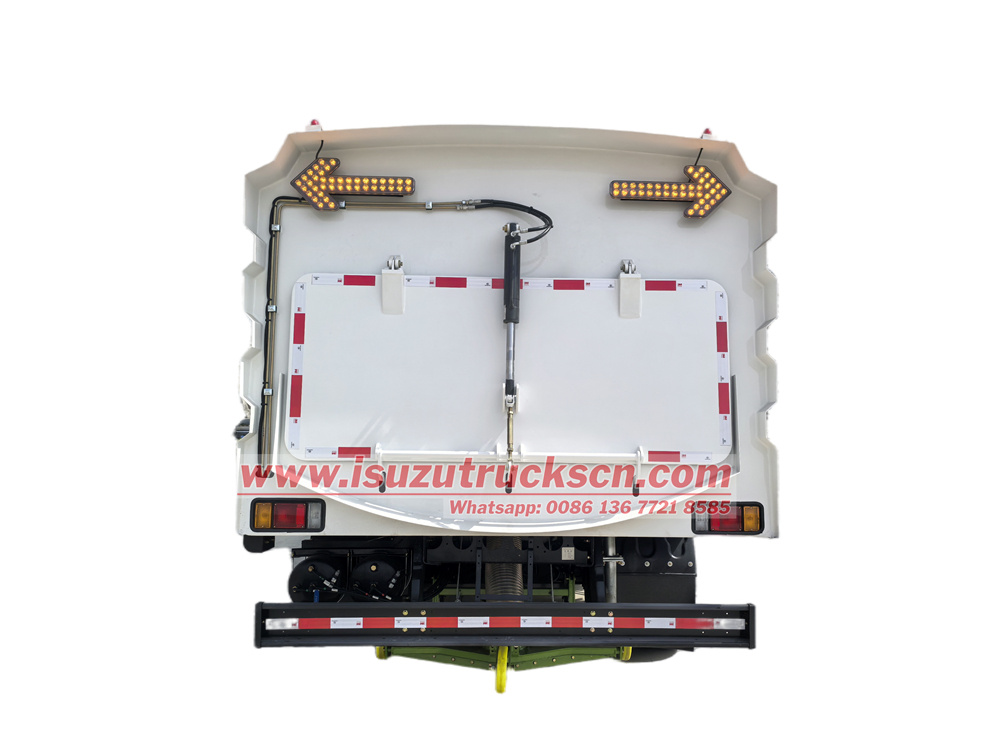

• Unloading System: Hydraulically driven rear-tilting unloading door, offering effortless and efficient operation for rapid garbage dumping.
Safety and Maintenance
• Safety Features: Equipped with reversing cameras, operational warning lights, and reflective markings to enhance safety during nighttime and complex road condition operations.
• Maintenance Convenience: Modular design facilitates maintenance, with key components (such as the blower and hydraulic system) adopting maintenance-free or long-life designs to reduce operational costs.
Working Principle
The auxiliary engine drives the hydraulic oil pump and blower. The hydraulic oil pump drives the left and right sweeping discs to extend, retract, elevate, and rotate. The left and right sweeping discs sweep debris from both sides to the front of the sweeper and suction nozzle. The blower generates high-speed airflow in the air duct formed by the garbage bin, suction pipe, and suction nozzle. Under the airflow, debris is drawn into the suction nozzle and enters the garbage bin. The chassis engine drives the sweeper forward, continuously sweeping debris into the suction nozzle and into the garbage bin, achieving road sweeping.
Applicable Scenarios
The Isuzu FTR 12m³ street sweeper truck, with its efficient sweeping, flexible control, and stable performance, is widely applied in urban sanitation, municipal engineering, and industrial parks, making it an ideal choice for enhancing urban environmental hygiene levels.
