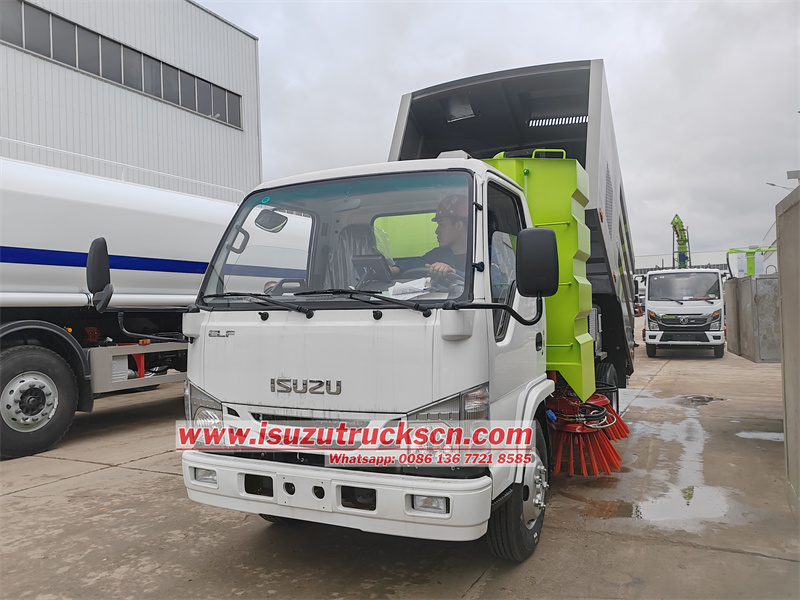

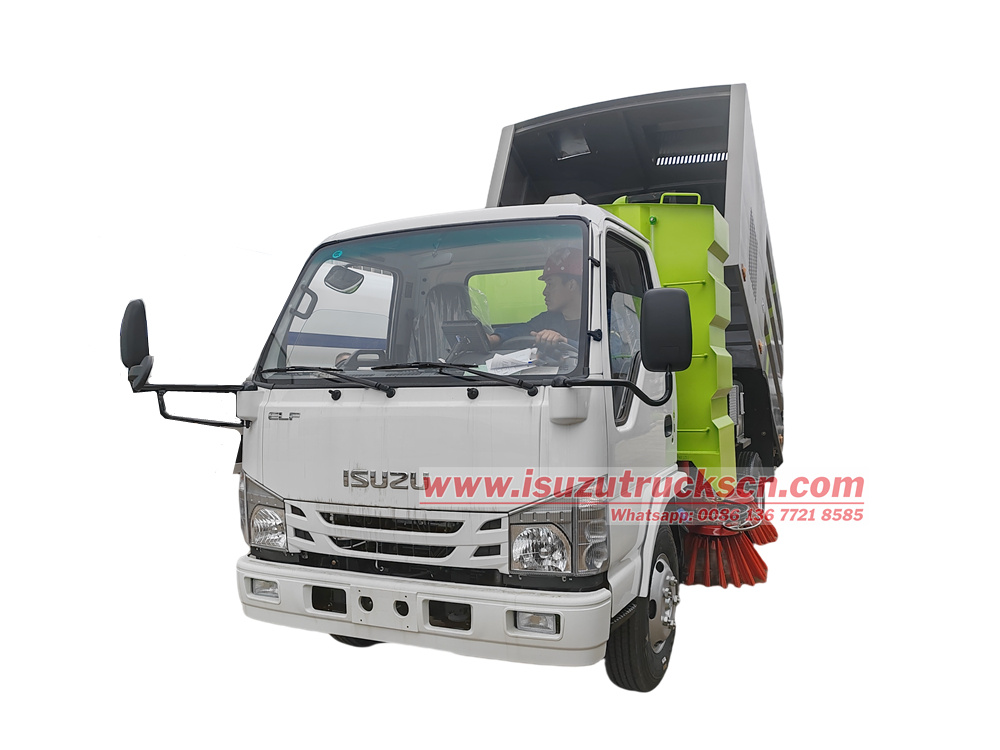

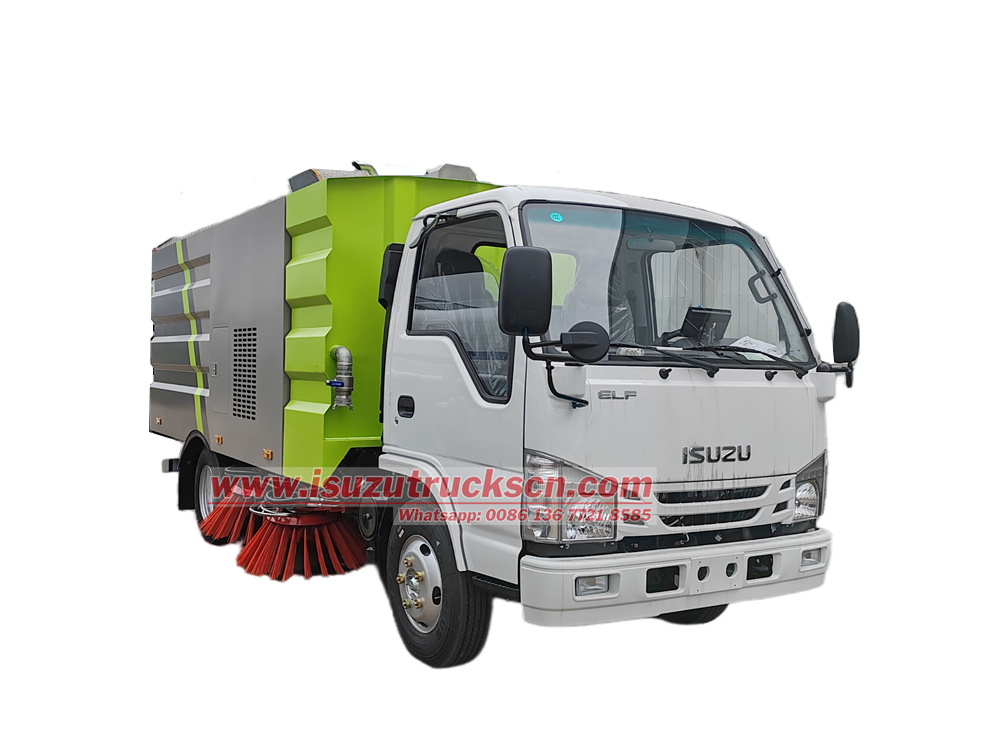

Isuzu ELF NKR stainless steel road sweeper truck

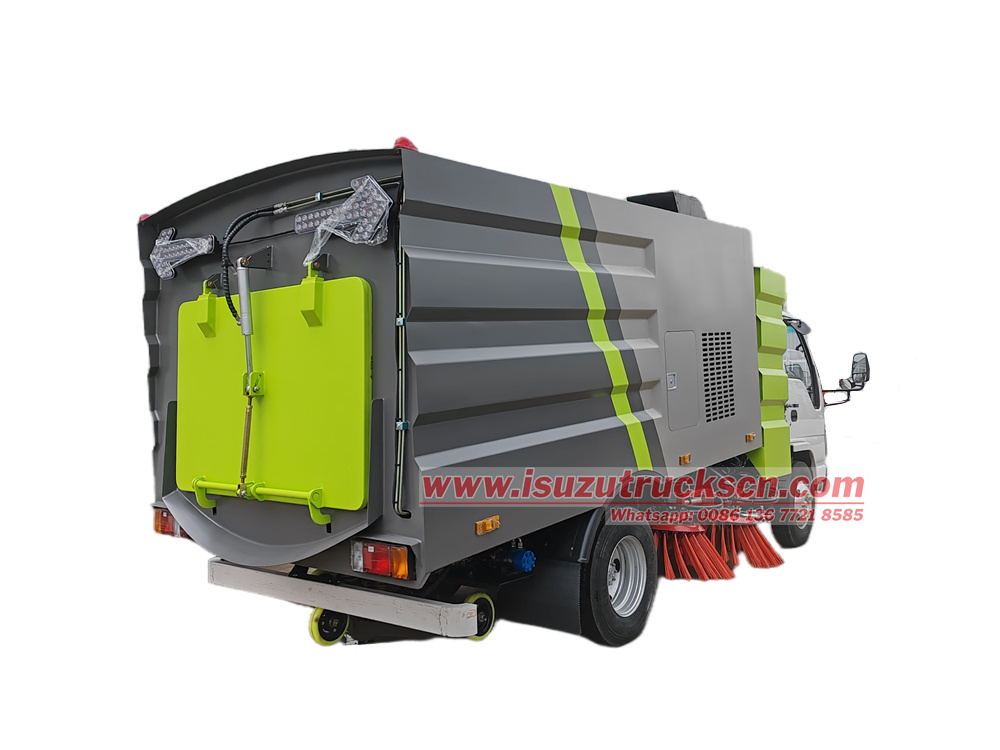

The Isuzu 100P road sweeper uses an Isuzu 100P chassis with a 3360mm wheelbase. It is equipped with an Isuzu 4KB1-TCG60 130HP engine and an MSB 5-speed gearbox. The upper part is a 4cbm trash bin with a stainless steel interior and a carbon steel exterior. 1cbm carbon steel cleaning water tank,It has four central sweeping brushes and a rear suction cup. It is equipped with a Jiangling 77-horsepower auxiliary engine, a Hyder River solenoid valve group, a Hyder River cylinder, a Siemens electronic control switch, a two-way operation button, a Sanyo motor, a Xinxishan electronic diaphragm pump, an automatic clutch, a Weiye 6.0 maintenance-free centrifugal fan, a manual pump emergency system, an LED arrow light at the rear, an all-English panel, and a PLC electronic control box.
Manufacturer:
Powerstar TrucksWork capacity:
4 cbmDimension:
5850 x 2300 x 2450 mmCabin type:
Isuzu 100P cab, with A/C and 3 seatsWheelbase:
3360mmEngine power:
130HP/96KwEngine type:
Isuzu 4KB1-TCG60Axle drive:
4x2, LHDGear box:
Isuzu MSB 5-speed,manualRemarks:
Tank capacity can be customizedThe Isuzu ELF NKR stainless steel road sweeper truck is a small- to medium-sized road sweeper that combines efficient cleaning, flexible maneuverability, and intelligent control. It is suitable for cleaning urban auxiliary roads, sidewalks, squares, factory areas, and other areas. It utilizes the Isuzu 100P's 130-horsepower chassis and is equipped with a 77-horsepower auxiliary engine, delivering powerful power and fuel efficiency. Its four center-mounted sweeping brushes, rear-mounted suction cup, and four-cubic-meter stainless steel trash bin quickly remove dust, gravel, and fallen leaves from the road, delivering high cleaning efficiency.
● China best Isuzu road sweeper truck factory
● 30 years experience on Isuzu road sweeper cleaning truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
The road sweeper truck is a new, highly efficient sweeping device that integrates road sweeping, garbage collection, and transportation. In addition to the chassis engine, the vehicle features an auxiliary engine, a stainless steel trash bin, a centrally mounted four-sweeping disc and a rear-mounted suction nozzle, a hydraulic system, and various supporting equipment, including Schneider electronically controlled switches, a hydraulic valve block, and a maintenance-free blower, all supporting centralized electronic control from the cab.
» Ⅱ.Product Parameter for Isuzu 5CBM road sweeper truck:
|
Isuzu Brush type Street sweeping Tuck |
||
|
Main Specification |
||
|
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU NEW ELF 100P |
|
|
Overall dimensions (L x W x H) |
5860x2300x2450 mm |
|
|
Drive Type |
4x2 Left hand drive |
|
|
Wheelbase |
3360mm |
|
|
Cabin |
Isuzu N-series cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension |
|
|
Weight |
GVW |
7300kg |
|
Kerb weight |
4230kg |
|
|
Engine |
Model |
Isuzu 4KB1-TCG60 |
|
Type |
Inline 4-cylinder diesel engine |
|
|
Power |
130HP/96Kw |
|
|
Displacement |
2499ml |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Manual |
ISUZU MSB 5 forward and 1 reverse speeds |
|
Tyre |
7.00R16 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
1000L |
|
|
Volume of Dustbin |
4000L |
|
|
Material |
water tank |
Carbon steel |
|
garbage tank |
Inner stainless steel, outer carbon steel |
|
|
Hydraulic valve |
Taiwan famous brand |
|
|
Hydraulic motor |
Domestic famous brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
ISUZU 493 |
|
Horsepower |
77HP |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
70000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥95% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
>400mm |
|
|
Garbage tank door max.discharge angle |
>50° |
|
|
Sweeping system |
Type |
Total 4 pcs mechanical brushes and 1 sucking discmounted in the rear, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function |
|
Sweeping brush diameter |
ф 850mm |
|
|
Sweeping disk speed |
1 10r/min high-speed,80r/min medium speed50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction performance |
Delivers air blast and suction |
|
|
Hydraulic system |
Type |
Open type, electrical |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Washing road |
Type |
Front washing bar |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker |
|
|
Spare parts |
88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal |
|
» Ⅲ. Product Details:
Chassis configuration
1. Chassis: Isuzu 100P light truck chassis, 3360mm wheelbase
Engine: Equipped with an Isuzu 4KB1-TCG60 inline four-cylinder diesel engine, 2.499L displacement, maximum power of 130 horsepower (96kW), meeting Euro VI emission standards, offering powerful power and excellent fuel economy.
Transmission: MSB 5-speed manual transmission, offering smooth shifting and high transmission efficiency.
2. Auxiliary Engine System

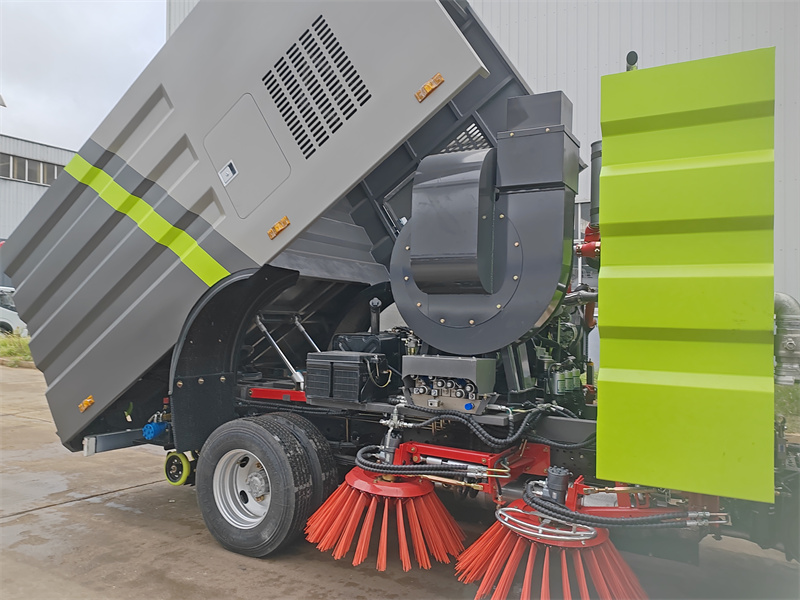

Equipped with a Jiangling 77-horsepower auxiliary engine, specifically designed for sweeping operations, it independently drives the fan, brush, and suction cup, preventing overload on the main engine and extending vehicle life.
Upper Structure

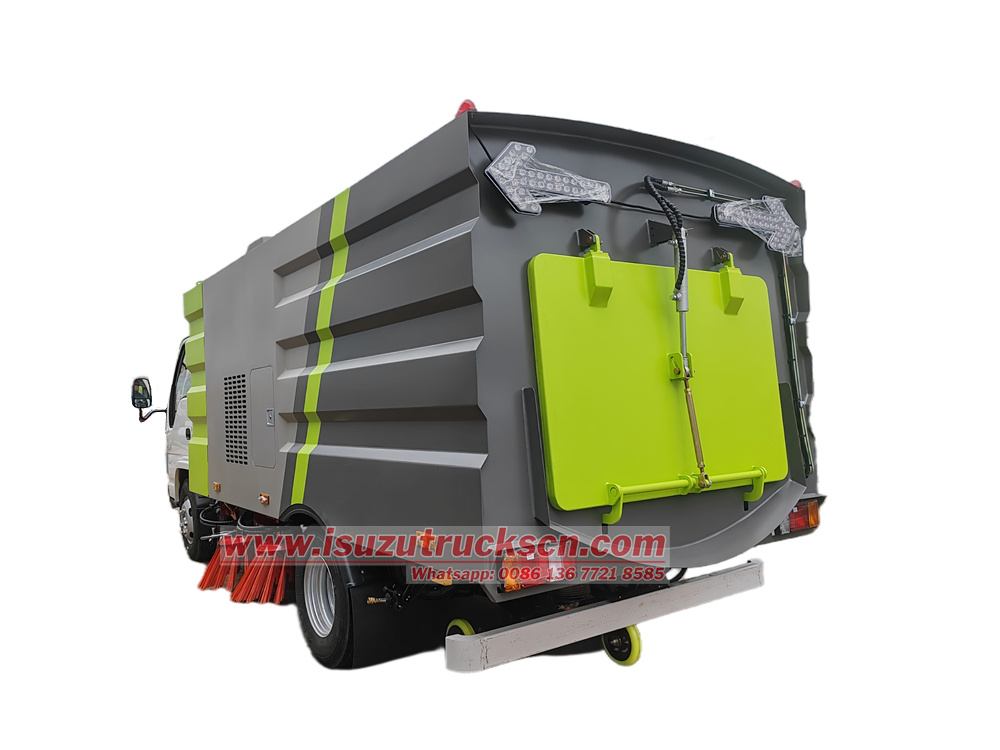

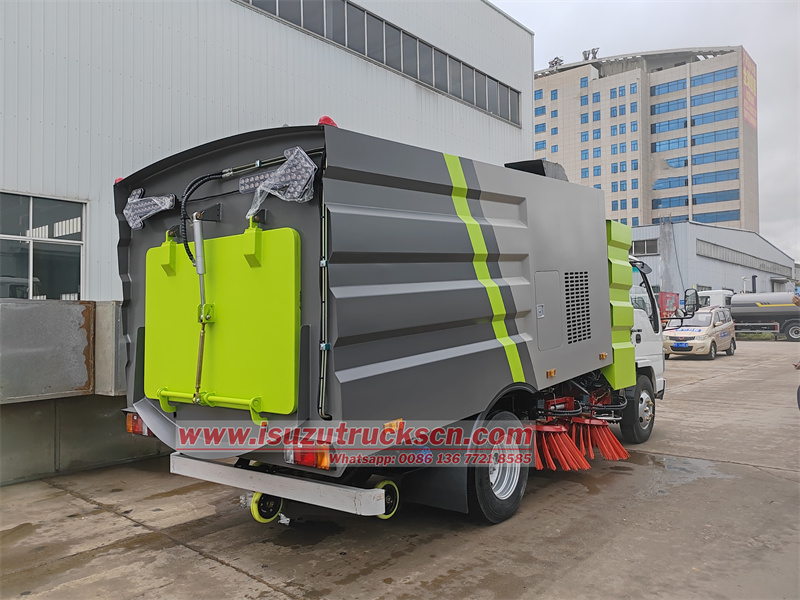

1. Trash Bin
• Capacity: 5 cubic meters, meeting the needs of long-duration single-use operations.
• Material: Inner layer of 304 stainless steel for high corrosion resistance; outer layer of high-strength carbon steel with rust-proof treatment, balancing durability and lightweight.
2. Cleaning Device

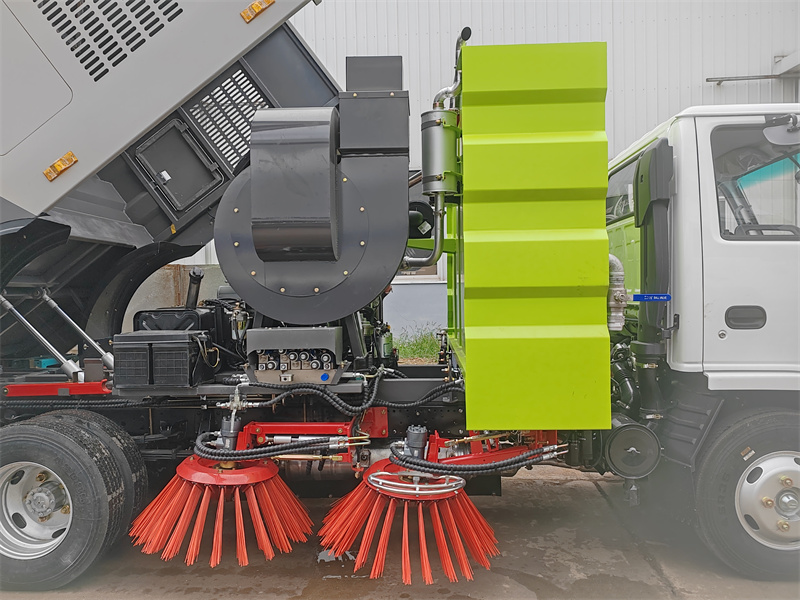

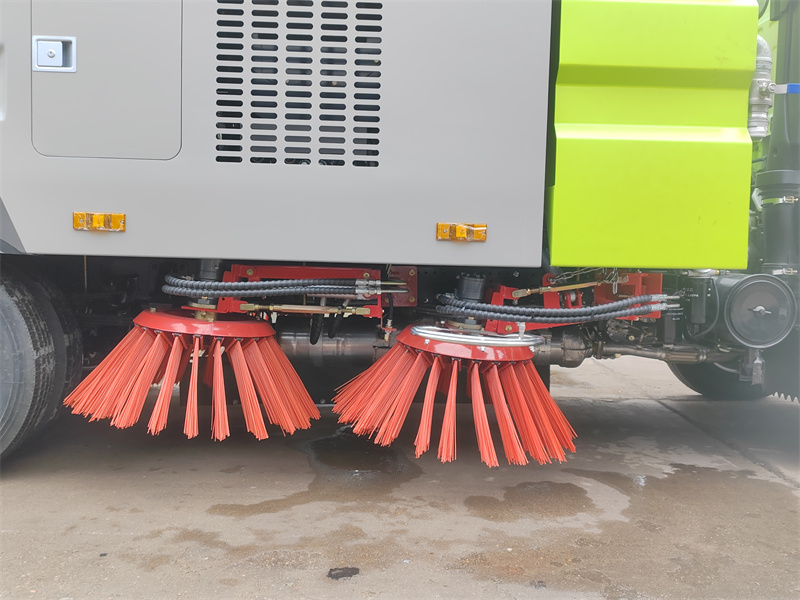

• Brush Layout: Four centrally mounted brushes (two in front and two in the rear) arranged in a spiral pattern, covering a width of up to 3.2 meters, efficiently collect trash beneath the suction cup.

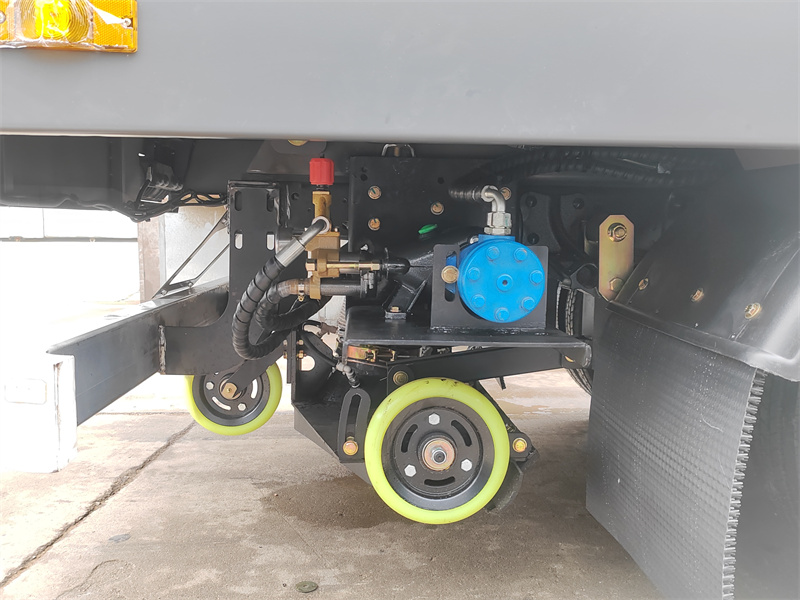

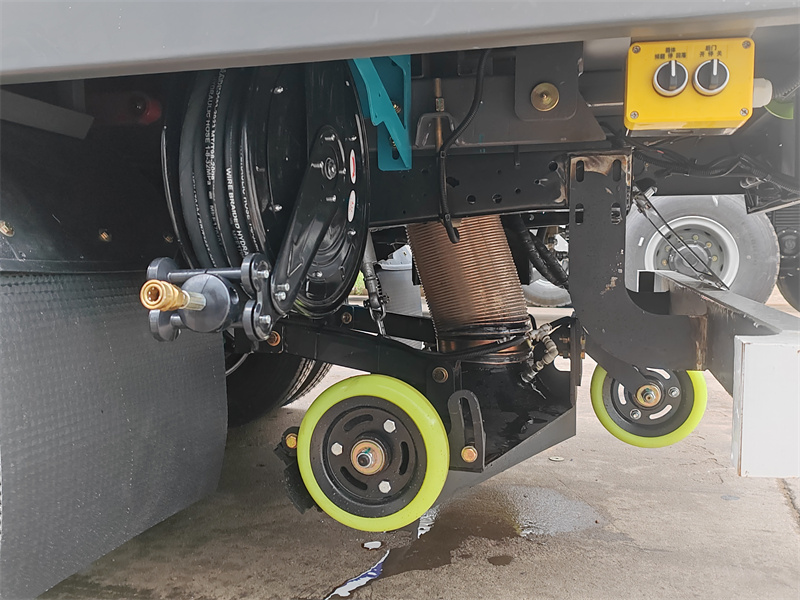

• Suction Cup System: Rear-mounted wide suction cups equipped with a high-pressure centrifugal fan provide powerful suction, capable of collecting mixed trash such as dust, stones, and fallen leaves, with a removal rate of ≥95%.
3. Core Components
• Fan: Weiye 6.0 maintenance-free centrifugal fan, with an air volume of 2800 m³/h, low noise, and long life.
• Hydraulic System: Hyder River solenoid valve assembly and cylinder for sensitive response and precise control; Sanyo motor drives the brush rotation for high stability.

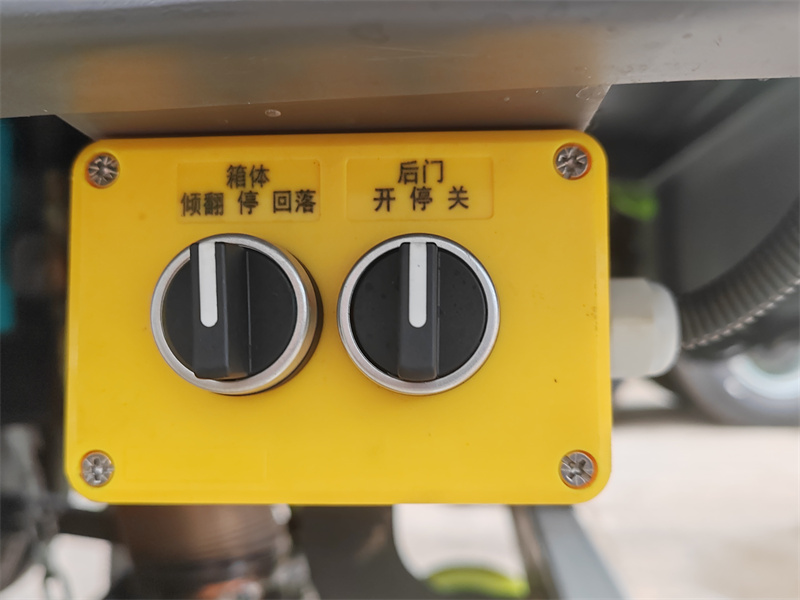

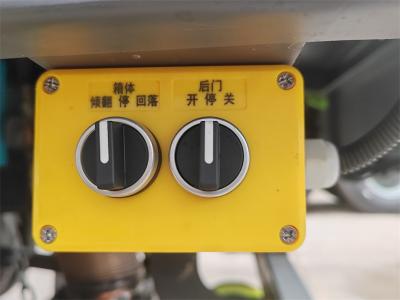

• Electronic control system: Siemens electronic control switch + PLC electronic control box, full English operation panel, supports two-way operation (cab and rear control box), functions include sweeping brush lifting and lowering, sucker opening and closing, garbage bin dumping, etc. Key electrical components use Siemens electronic control switch, Sanyo hydraulic motor, Xinxishan electronic diaphragm pump and other international and domestic well-known brands to ensure the stability and durability of the circuit
4. Safety and Emergency Systems:
• Automatic Clutch: Protects the auxiliary engine and ensures smooth starting and stopping.
• Manual Pump Emergency System: In the event of an electrical or hydraulic system failure, the sweeping brush and other mechanisms can be manually retracted, ensuring timely vehicle movement without obstructing traffic.

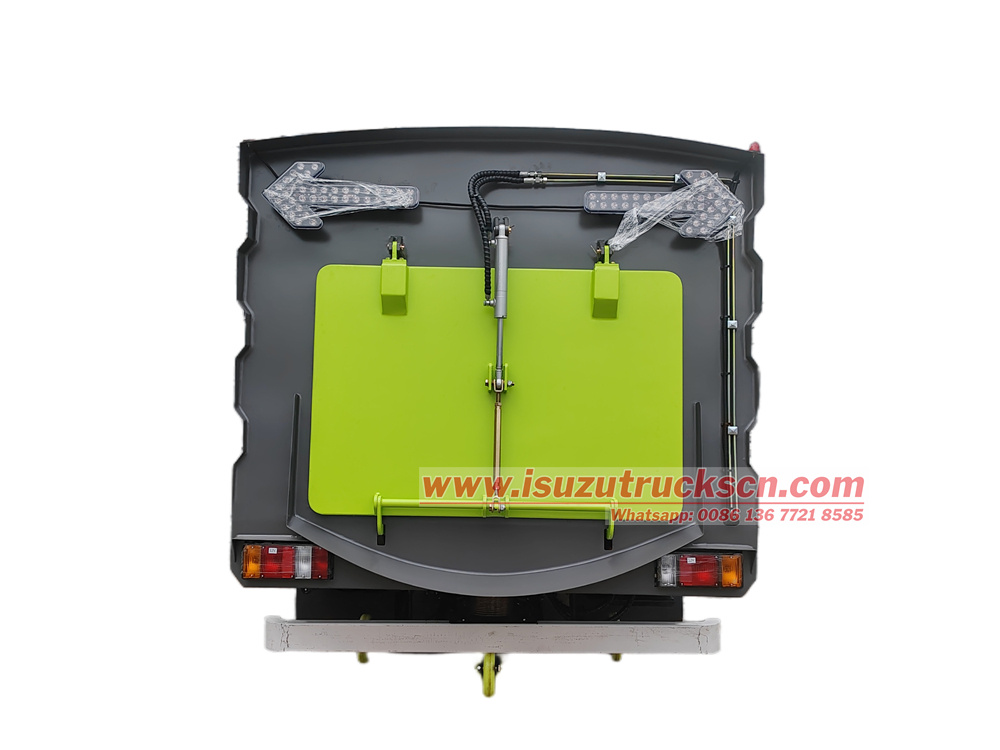

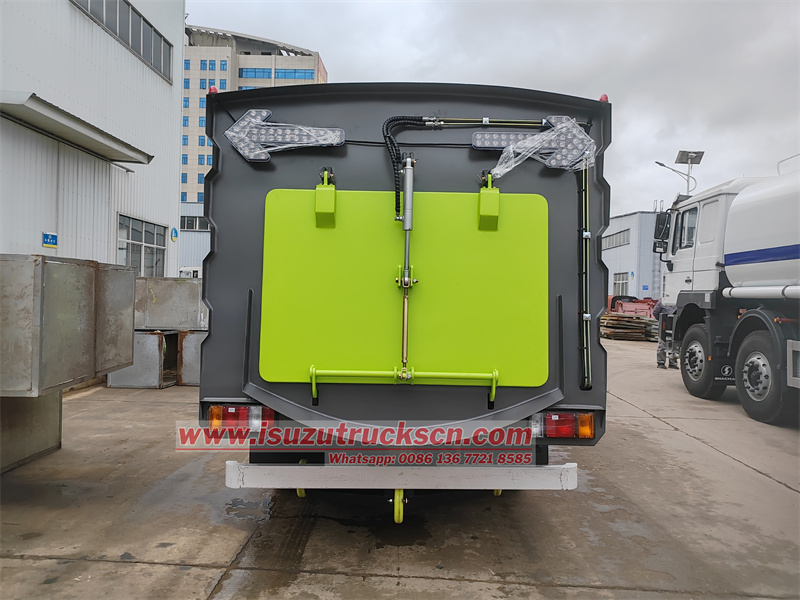

• Tail LED Arrow Light: Provides a clear warning to vehicles behind during operation, ensuring safe operation.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Application Scenarios：
The Isuzu Brush type Street sweeping Truck, with its efficient cleaning and flexible maneuverability, is widely used in urban sanitation, industrial parks, transportation hubs, and community settings. Its four sweeping brushes and powerful suction cup combination quickly remove dust, fallen leaves, and debris, meeting the daily cleaning needs of major roads. In communities and commercial areas, its one-touch operation and compact body facilitate cleaning underground garages and sidewalks.
