6000L 8000L ISUZU Asphalt Distributor Bitumen Separater

 6000L 8000L ISUZU Asphalt Distributor Bitumen Separater

Description:

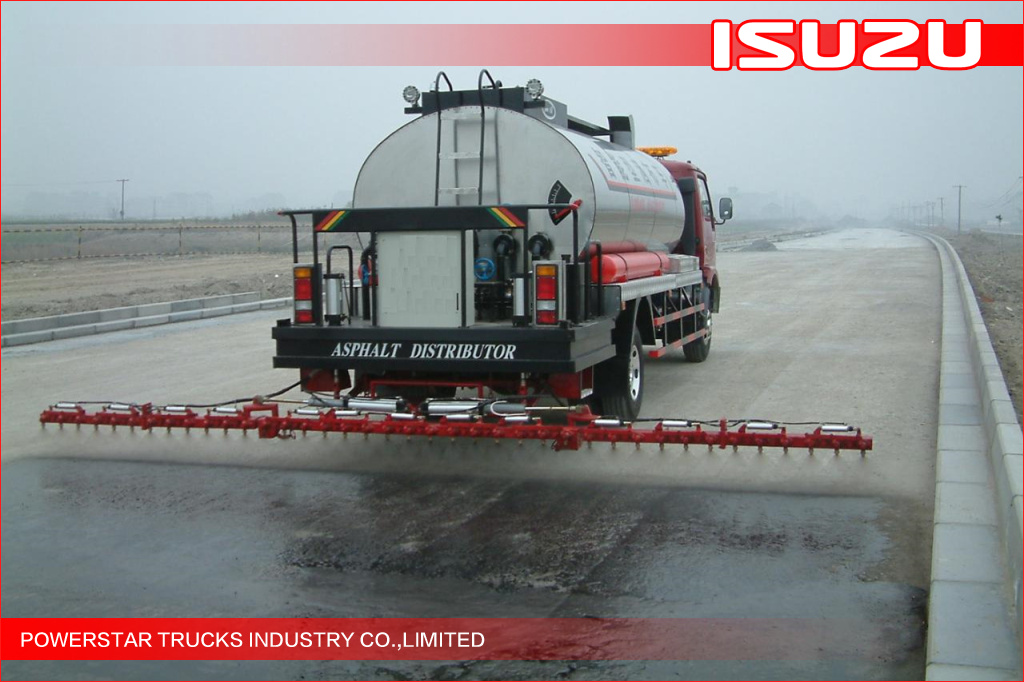

ISUZU automatic asphalt distributor is typical kind of road construction machinery. We also provide automatic asphalt distributors and rubber asphalt distributors as well as common distributors.

The asphalt distributor can transport asphalt or spray asphalt binder on the ground. It is extensively used in the construction of highways, urban roads, airports, and ports. It can be applied to seal coat, prime coat, waterproof layer, bonding layer of different grades of highway pavement, as well as transport liquid asphalt or other heavy oil.



Application
Isuzu Automatic asphalt distributor is a kind of road machinery. It is applicable for layer-penetration oil, waterproof layer and bond coat at the bottom layer of high-level asphalt road.



Key Features:

  The intelligent nozzle has strong atomization capability so that the asphalt could be evenly sprayed and the pavement could withstand more pressure and water penetration.

  PLC regulating spray volume automatically

  Imported heat-resistance seal elements

  Burner hood of optimization design preventing damages by asphalt eruption through manhole

  High-viscosity asphalt pump

  Warning signs and lighting installation for working at night

  Capacity can be customized 4000L, 6000L, 8000L, 10000L, 15000L and so on



Main specifications:

Model

PT5140GLQ

Driving Type

4x2    (Left hand drive)

Wheelbase

4475 mm

Engine

139 kw (190hp)

Tyre

9.00-20

Outline Dimension of Complete Vehicle (L/W/H mm)

8990×2350×2855

Tank Capacity (m3/density)

6000L~8000L

Seating Capacity (including the driver)

3

Top Speed (km/h)

90

Complete Vehicle Weight (kg)

12005

Rated Load (kg)

4400

Working Speed (km/h)

1.2~6.5

Asphalt Pump Discharge (L/r)

0.86

Max. Spray Width (m)

6

Asphalt Spray Volume (L/m2)

0.3~3.0

Drive System

Driven by hydraulic system

Max. Pressure of hydraulic system (MPa)

15

Asphalt Heat Preservation Way

Heat is preserved by the heat transfer oil system.

Cleaning Way

Cleaning through using the high pressure air and diesel.
