3000L~5000L Customer Isuzu Ordinary asphalt distributor Bitumen emulsion sprayer

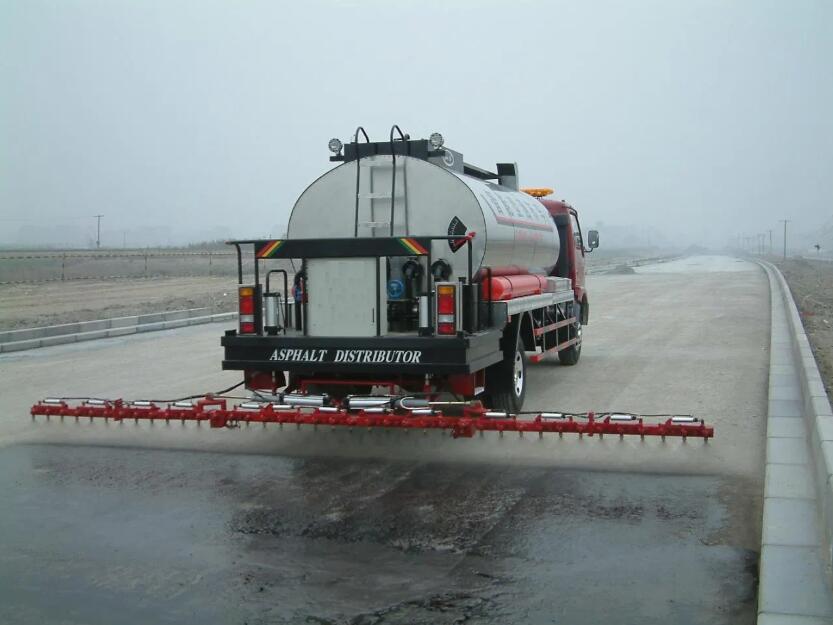

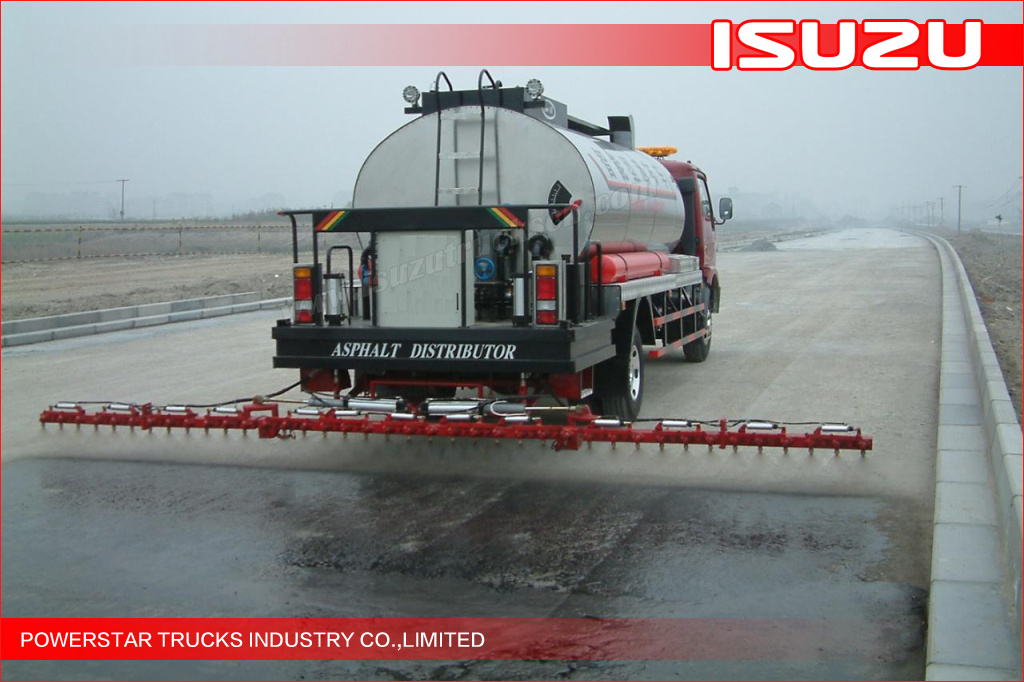

Isuzu Truck Mounted Bitumen Sprayer/distributor, Japanese Isuzu 3000L~5000L Customer Ordinary asphalt distributor Bitumen emulsion sprayer,The fully automatic spreading system of the 5-cubic-meter asphalt spreader can realize the free adjustment of the spraying width (2-6 meters). It is equipped with an intelligent control system and supports precise adjustment of the spreading amount (0.3-3L/m²). The spraying system composed of 38 nozzles ensures uniform distribution of asphalt. It can handle a variety of materials such as hot asphalt, emulsified asphalt, modified asphalt, etc.
Order(MOQ):
1Work capacity:
3000L~6000lEngine power:
120HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSB 5-shiftRemarks:
Italy burner3000L~5000L Customer Isuzu Ordinary asphalt distributor Bitumen emulsion sprayer
Isuzu Bitumen emulsion sprayer

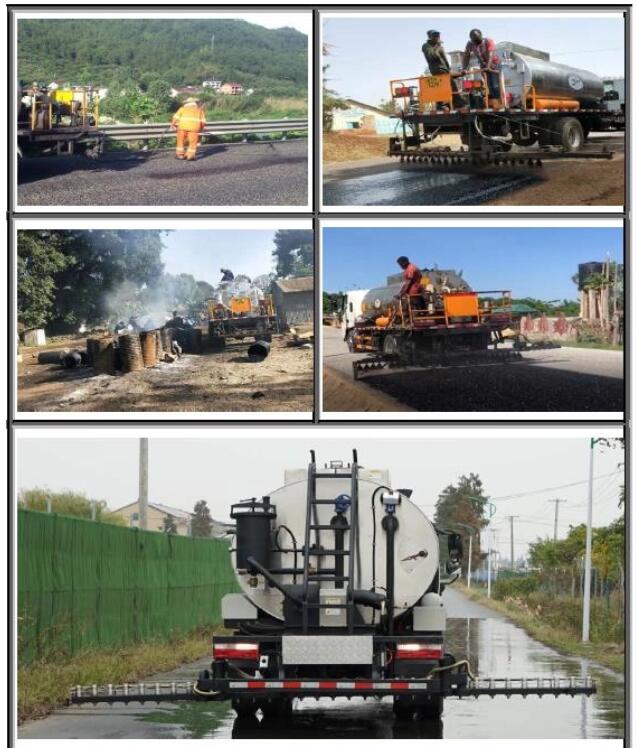

PT5090GLQ Isuzu NKR/ELF Asphalt Distributor is an intelligent high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
We also supply Automatic Bitumen Transportation Tank Truck, welcome to view more.
Advantages of PT5090GLQ bitumen emulsion sprayer
1. ISUZU NKR bearing chassis is adopted. Engine power is 88 KW. It has the largest engine power among similar chassis; imported high power burner automatically ignites. The air door is controlled;
2. Original wedge positioning stainless steel combination nozzle sprays in the fan-shaped area and positions accurately. It is wear-resisting and the quality is reliable. It is fast and convenient to replace.

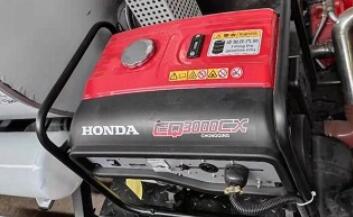

3. Equipped with high power auxiliary generator
4. Post injection switch can be turned on with one button. The operation is more convenient.
5. Asphalt pipeline has systemic circulation. It is suitable for spraying emulsified asphalt and heated asphalt.
6. PTO power take-off method is used. Zero distance spraying can be realized.
7. Three overlapping spraying ensures more uniform spreading with higher precision.
PERFORMANCE
1 Nozzle:
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep
2 Heat Conducting Oil System:
a.The new Heat Conducting Oil System can heat asphalt and pump faster
b.Especially in use of spraying emulsified asphalt,speed up the heating efficiency and save fuel
3 Controller:
a.Control system is more friendly and easier to be operated.
b.Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard..
4 Cleaning:Can use diesel fuel or high-pressure air cleaning of pipes and pumps
5 Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption
Parameter of PT5090GLQ bitumen emulsion sprayer
|
Mass parameter: |
||||
|
Kerb Weight(kg) |
4985 |
Total Weight(kg) |
8495 |
|
|
Rated loading Weight(kg) |
3315 |
Dimension(mm) |
7380×2250×2650 |
|
|
Chassis Parameter: |
||||
|
Chassis Model |
NKR |
Tyre Model |
7.50-16 |
|
|
Wheelbase (mm) |
3360 |
Max. Power(kw) |
88 |
|
|
Engine model |
4KH1-TCG40 |
Displacement(ml) |
2999 |
|
|
Spray specification: |
||||
|
Tank Capacity(m³) |
5 |
Spray width |
6000mm |
|
|
Hydraulic pump model |
CBQ-F540 |
Spray Value |
0.5-3.0(Kg) |
|
|
Hydraulic motor |
L2F63W2P2 (Liyuan Brand) |
Insulation Thickness |
50mm |
|
|
Controller |
ZM-5 |
Nozzles |
13 |
|
|
Burner |
G20(Riello) |
Asphalt pump |
CB450 |
|
|
Generator(Converter) |
YGBT2500 |
Emission Standard |
GB17691-2001(Ⅱ) GB3847-1999 |
|
|
|

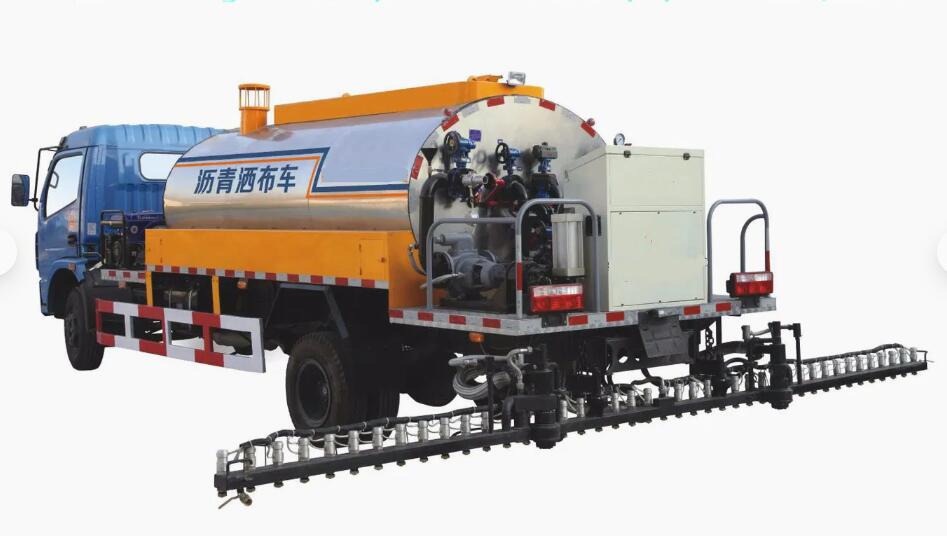

SPRAY BAR
Folding type rear spray bar, up to 29 nozzles and Spray width from 4.5m, separated pneumatic nozzles can be operated by any combination width.
|
|
|

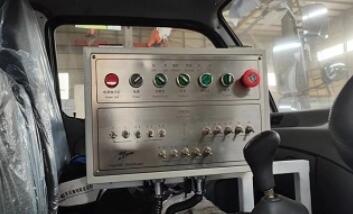

CONTROL PANEL
Integrated button control panel: PTO, asphalt pump, asphalt valve and nozzles can be operated at the cab of truck. Each nozzle can operate separately according to the work environment and easy to maintain.
|
|
|

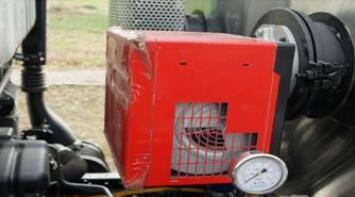

BURNER
The Italy burner is driven by the generator, so the heating system is separated with the truck, can save 70% of the fuel.
|
|
|
Separated heating system. No need to start the truck engine when heating. Generator give the power to Burner and Thermal oil pump electric motor (*Optional function), the asphalt can heat up to 210℃ maximum.
|
|
|

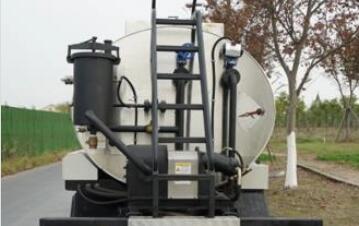

SIMPLIFIED REAR PLATFORM
Two-way asphalt circulation system makes spraying more smoothly. The innovatively designed ladder makes it easier to reach the top of the tank. CB450 high-viscosity asphalt pump is used to cooperate with exhaust heat preservation. Visualized hydraulic pipeline arrangement, convenient for maintenance.
|
|
|
HAND SPRAY GUN
The newly designed hand spray gun is convenient for the operator to hold. The integrated design of the gun head avoids disassembly. Anti-scald handle to prevent operators from getting burned. |
