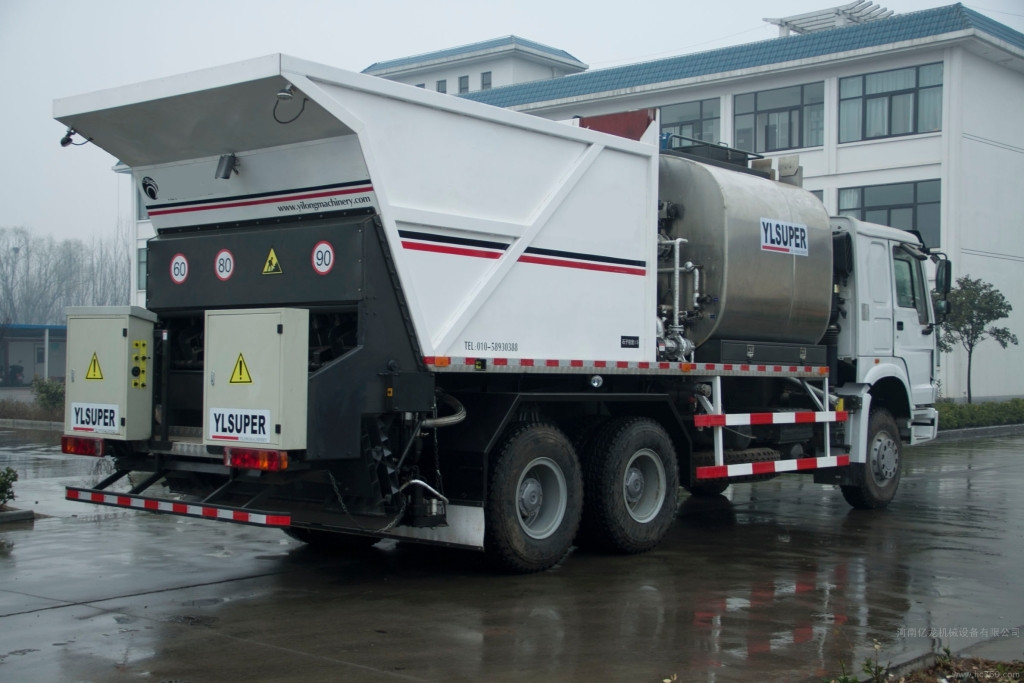

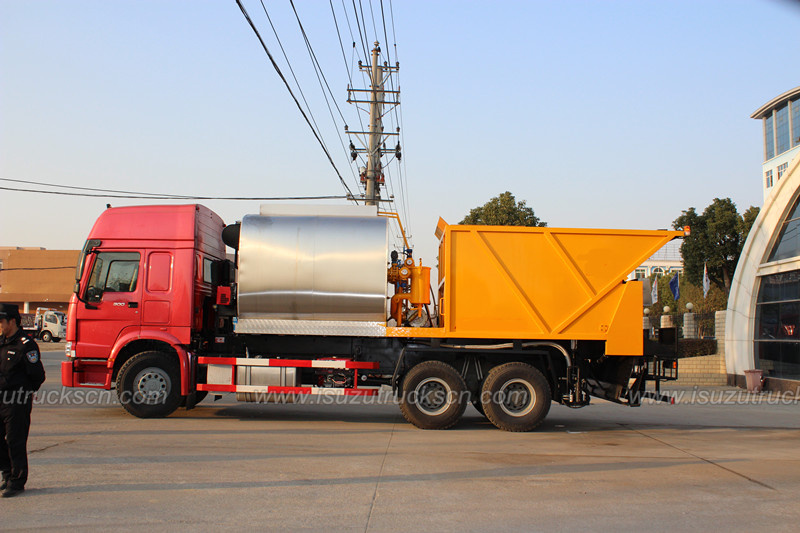

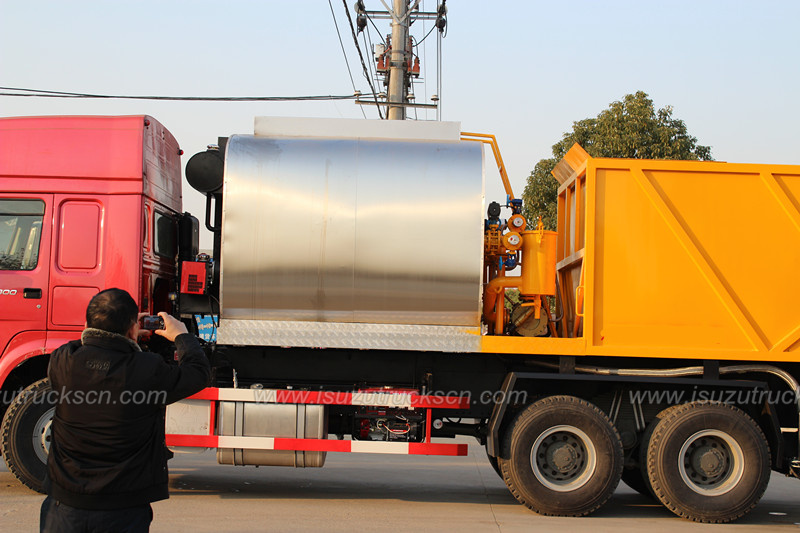

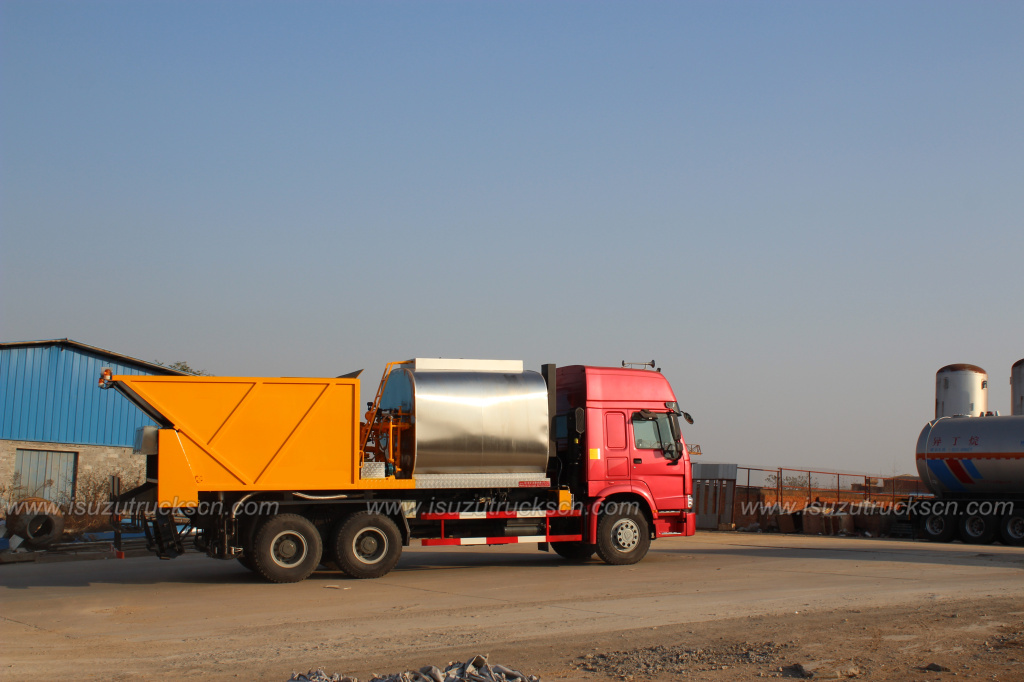

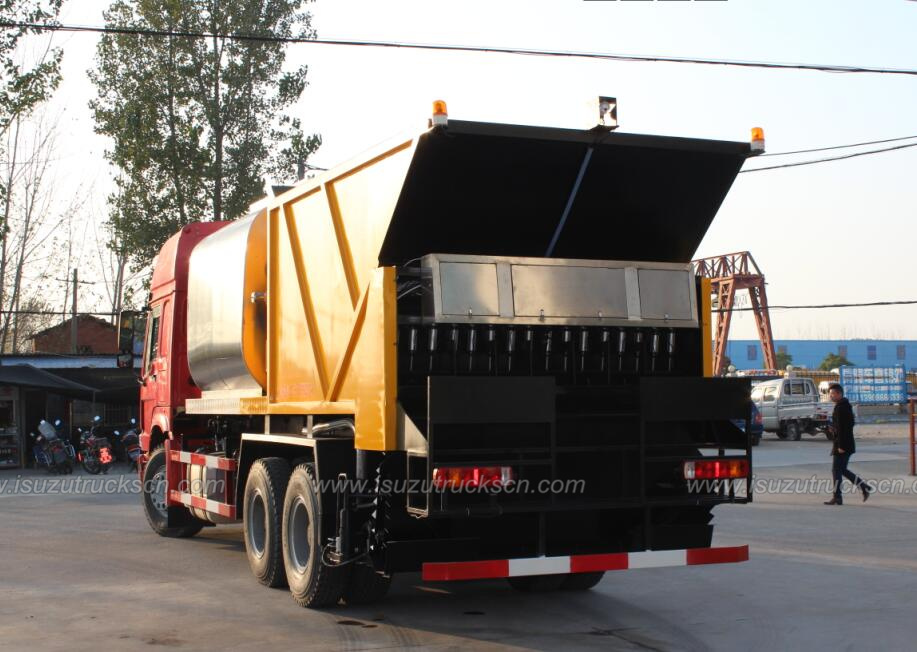

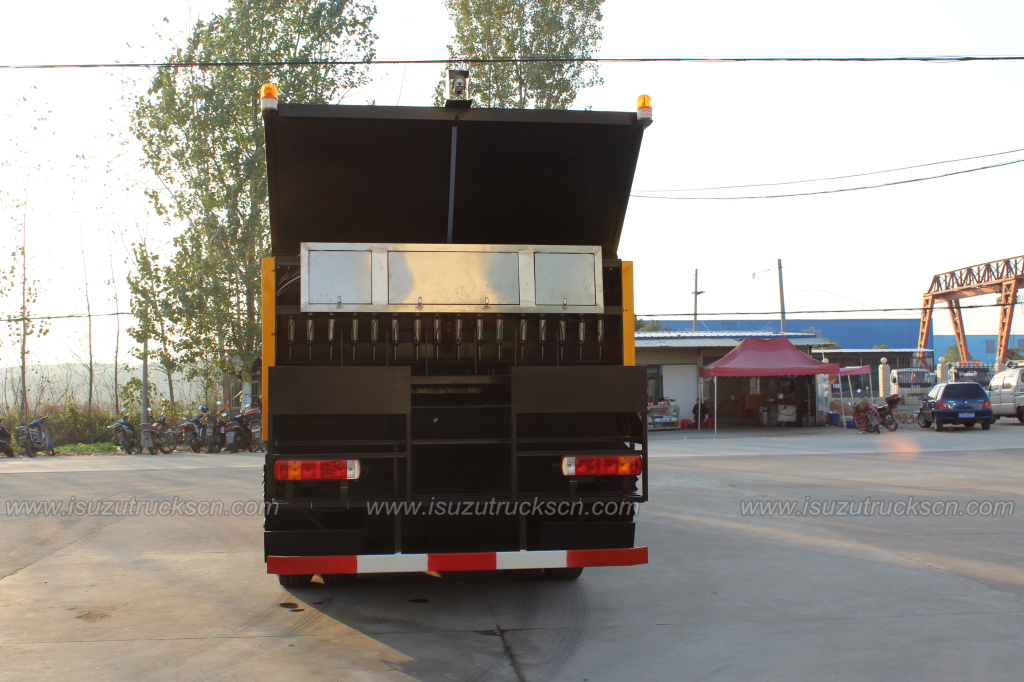

ISUZU FVZ FXZ Synchronous Chip Sealer Truck with 8m3 Aggregate Bin
Order(MOQ):
1ISUZU FVZ FXZ Synchronous Chip Sealer Truck with 8m3 Aggregate Bin
Brief Introduction
ISUZU brand synchronous chip sealer developed by our company is the special
machinery for asphalt pavement construction and can be widely applied into the
highway operation work of fast synchronous spraying. It features cost-saving,
surface wear-resistant, anti-skidding and waterproof. The normal traffic could
be resumed soon after the construction. It applies to the construction of the
highways at different levels.
Advantages
1. The accurate spraying volume promised the perfect realization of asphalt
spraying threefold with good evenness.
2. The complete computer touch screen with video monitoring system makes it
possible for us to observe the whole working process.
3. The intense spray system and asphalt aggregate stone collinear spraying
system ensure that the asphalt and the building stones will be simultaneously
sprayed.
4. ISUZU synchronous chip sealer has the most effective heating and circulating
thermal system to smooth the pipelines and nozzles. Thus, there is no need to
clean them.

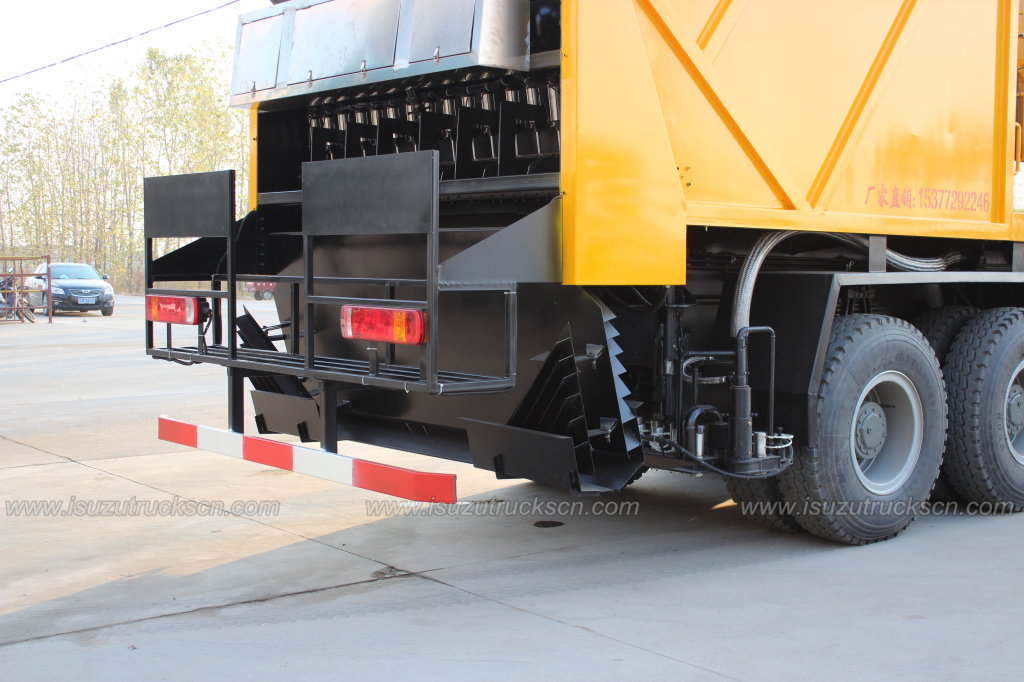

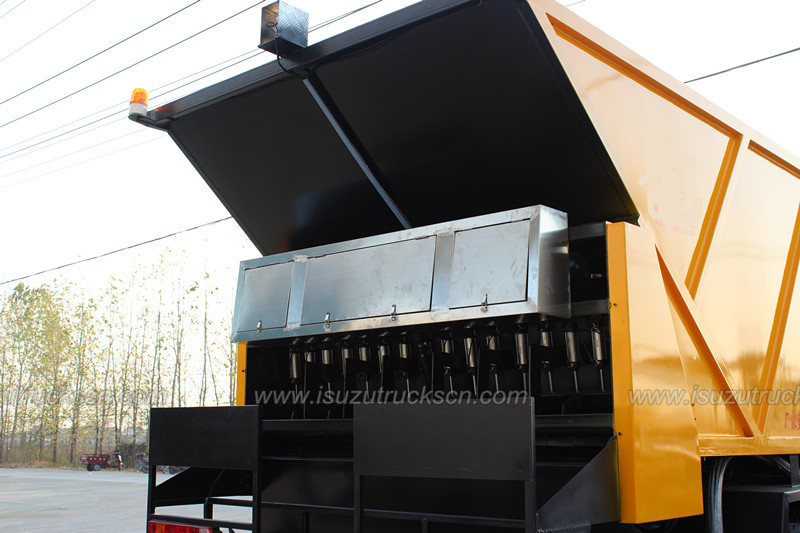

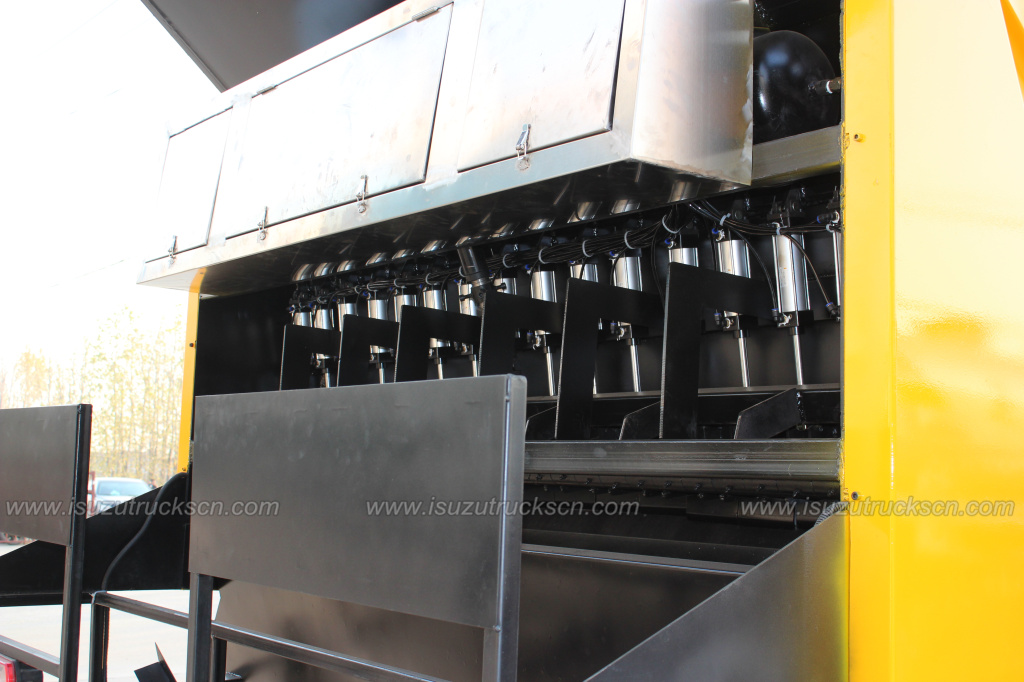

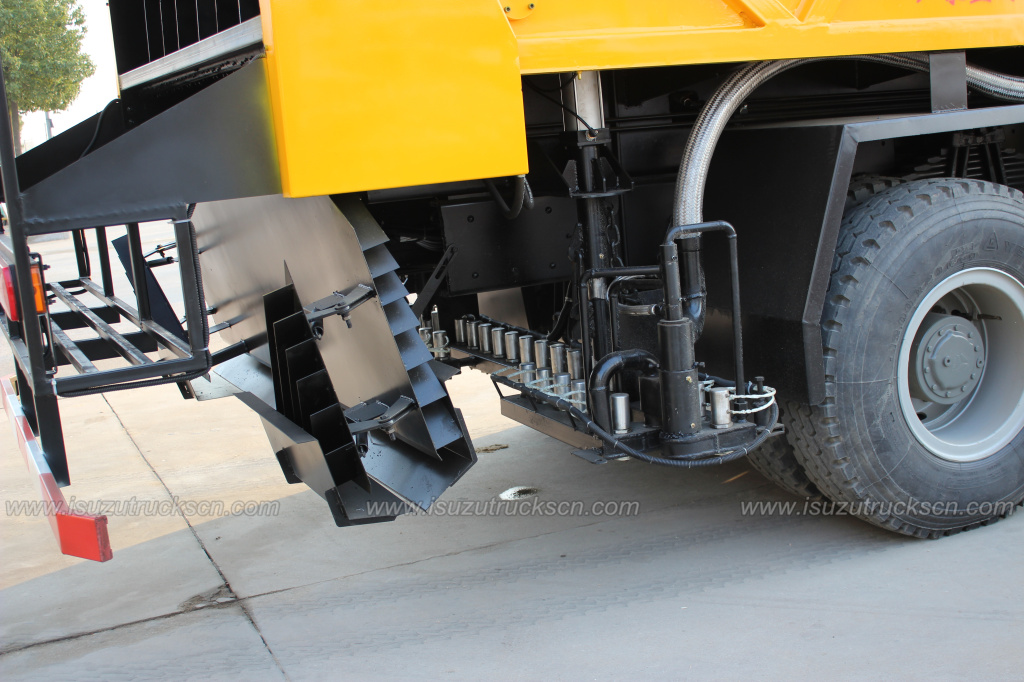

5. The nozzles and aggregate doors are controlled by pneumatic system. Each
aggregate door and nozzle could be independently controlled by the computer.
6. ISUZU synchronous chip sealer could automatically feed and discharge asphalt
to improve its working efficiency.
7. It is characterized by its compact size and good-looking appearance.
Technical Parameters
|
Item |
Parameter |
|
Model |
PT5250TFC |
|
Chassis Model |
FVZ / FXZ |
|
Pattern |
Flathead, 6×4 rear drive |
|
Power (HP) |
240HP or 350HP |
|
Seating Capacity |
2 persons |
|
Outline Dimension (mm) |
10200×2490×3430 |
|
Curb Weight of Complete Vehicle (kg) |
15540 |
|
Max. Total Weight (kg) |
25000 |
|
Wheelbase (mm) |
4350+1300 |
|
Front Overhang (mm) |
1525 |
|
Rear Overhang (mm) |
3000 |
|
Top Speed (km/h) |
90 |
|
Fuel Consumption for one hundred kilometers (L) |
<19 |
|
Working Speed (km/h) |
1.2~6.5 |
| Rated Capacity for Asphalt Tank (L) |
5000 |
|
Capacity of Aggregate Bin (m3) |
8 |
|
Stone Diameter (mm) |
5-25 |
|
Spray Width (m) |
≤3.5 |
|
Asphalt Spray Volume (L/m2) |
0.6~2.5 |
