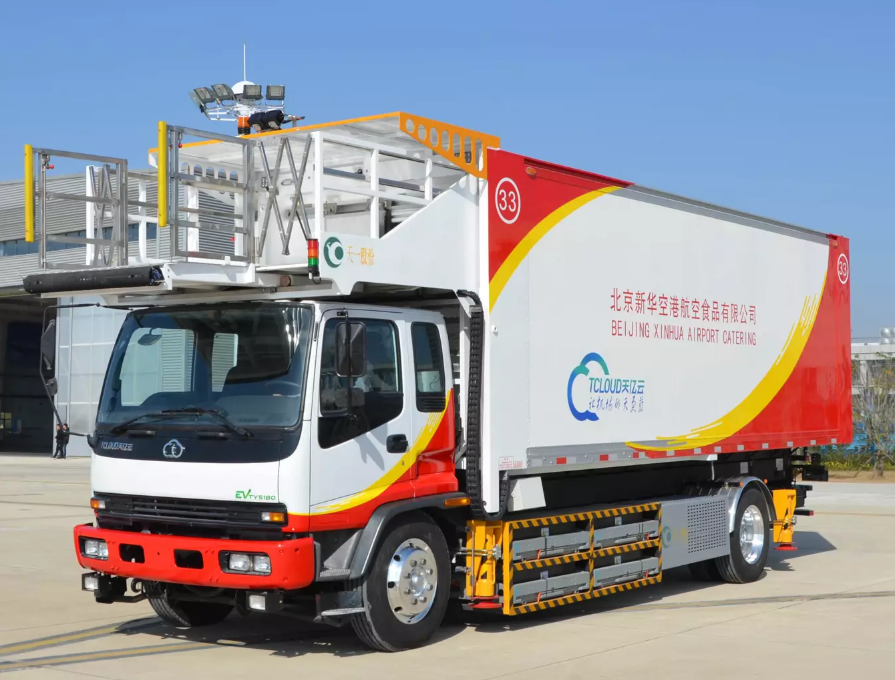

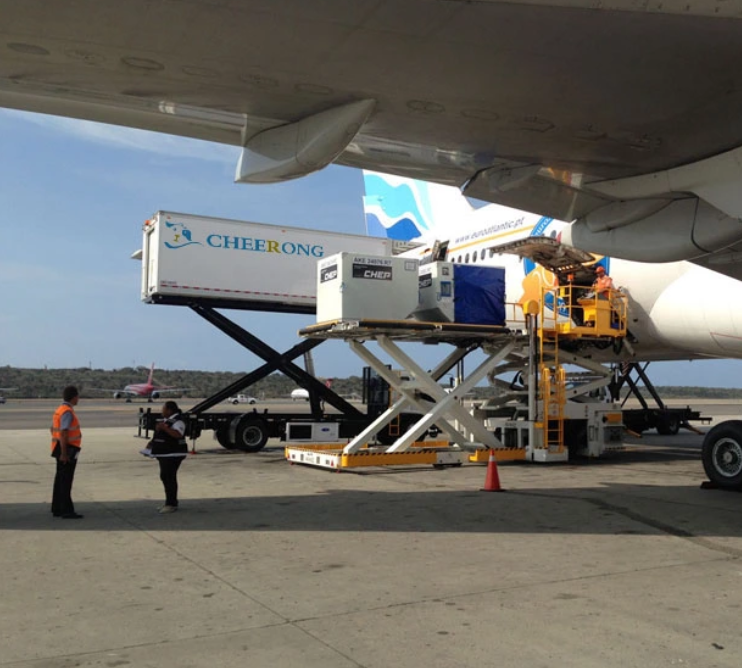

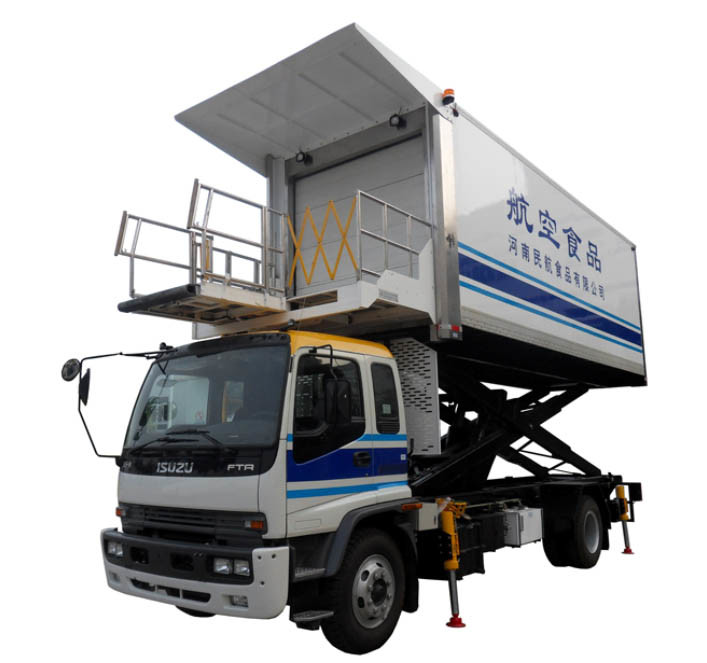

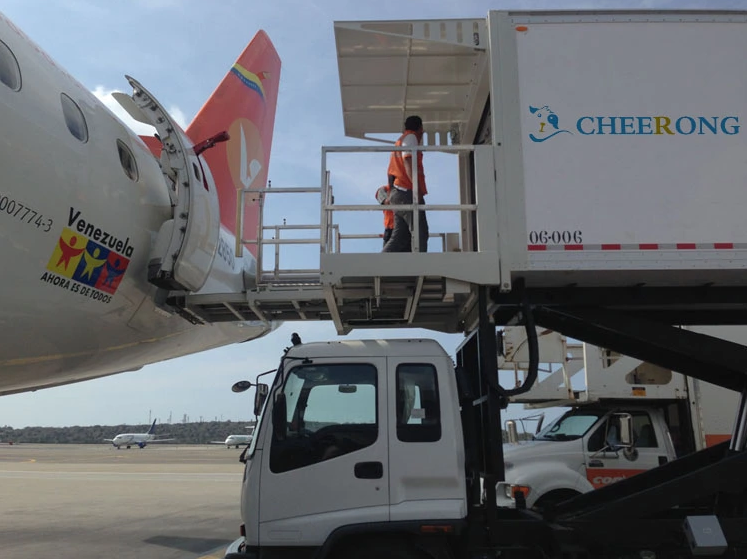

The HD-CT60 aircraft catering truck is used to transport food to the aircraft, and is suitable for use on Boeing B727, B737, B747, B757, L-1011 TriStar, McDonnell MD90, MD-11, DC10, Airbus A300, A340, A380 (one door), CONCORDE, TU-154M, TL-96-300 and other aircraft models.

The truck is mainly composed of a chassis, lifter, thermal door, carriage, supporting feet, workbench, hydraulic system, electrical system, and refrigeration unit.

Feature of Catering Truck
  • The chassis adopts Euro V emission standard.
  • The fork rack uses a special manganese steel material with a high hardness and strong compressive resistance.
  • The hydraulic and electrical parts of the truck are all from Western brands, ensuring the stable performance and long service life.
    • Aircraft Catering Truck
  • The emergency electric pump can independently lift and load the box for 30 minutes. The box itself is 4 tons.
Automation of Catering Truck
High Security of Catering Truck
  • The aircraft catering truck is easy and safe to operate thanks to the manual emergency system.
  • The protection and warning system are both complete, thus ensuring operator safety.
  • The truck is equipped with a safety interlock and emergency unlocking system with a high degree of safety
  • The catering tuck features an intelligent, highly secure monitoring system.
Technical Specifications of Catering Truck
Project CT60A Configuration 1 (FTR MT/EURO 4)  CT60B Configuration 2 (FVR MT/EURO 4)  CT60C Configuration 3 (FVR MT/EURO 5)  CT60D Configuration 4 (FVR AT/EURO 5)
Platform Working Height 2720~6050mm 2720~6050mm 2720~6050mm 2720~6050mm
Carriage Rated Load 4000kg 4500kg 4500kg 4500kg
Fixed Platform Rated Load 1100kg 1100kg 1100kg 1100kg
Mobile Platform Rated Load 450kg 450kg 450kg 450kg
Platform Left-to-Right Adjustment Range 0~800mm 0~800mm 0~800mm 0~800mm
Platform Scale Adjustment Range 0~600mm 0~600mm 0~600mm 0~600mm
Fixed Platform Dimension (Length *Width) 1400×2500 mm 1400×2500 mm 1400×2500 mm 1400×2500 mm
Mobile Platform Dimension (Length*Width) 1100×1200 mm 1100×1200 mm 1100×1200 mm 1100×1200 mm
Curb Weight 14000 kg 14000 kg 14000 kg 14000 kg
Boundary Dimension (Length *Width*Height) 9880×2550×3800 mm 9880×2550×3800 mm 10200×2550×3800 mm 10200×2550×3800 mm
Carriage External Dimensions (Length * Width * Height) 7200×2500×2400 mm 7500×2500×2400 mm 7500×2500×2400 mm 7500×2500×2400 mm
Engine Manufacturer/Model ISUZU (ChongQing) Engine Co., LTD 4HK1-TCG40 ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL
Underpan) QingLing Motor Co., LTD / QL5160XXY9QFRY QingLing Motor Co., LTD /QL1160AQFRY QingLing Motor Co., LTD /QL1180XQFRY QingLing Motor Co., LTD /QL1180XQFRY
Gearbox) QingLing Motor Co., LTD MLD-6Q QingLing Motor Co., LTD MLD-6Q QingLing Motor Co., LTD MLD-6Q General Motors Co., LTD
1 Model XC6000
2 Truck Dimensions Overall Length 9,460mm
    Overall Width 2,500mm
    Overall Height 3,800mm
3 Truck Cab & Chassis Brand ISUZU
    Model QL1180XQFRY
    Drive Type 4X2
    Chassis Curb Weight 7,300kg
    Max. GVW 18,000kg
    Wheel Base 5,550mm
    Max. Speed 90km/h
    Driver Cabin Capacity 1 driver + 2 passengers
    Engine
  • Model: ISUZU 6HK1-TCL
  • Type: 6-cyilinder, water cooling, turbo charged and intercooled
  • Displacement: 7790ml
  • Rated Power and rotate speed: 177kw/2400rpm
  • Maximum torque speed: 706NM/1450rpm
  • Emission standard: Chinese V
    Transmission
  • Model: ISUZU MLD-6Q
  • Type: manual transmission with 6 forward and 1 reverse gears


Air Conditioning

(driver cabin)

Cooling capacity 5.7kw
    Steering Hydraulic power steering
    Tire
  • Type: 295/80R22.5 16PR, 11.00R20 16PR
  • Number: 6
    Fuel Tank 150L
4 Vanbody Kitchen Dock Height 1450±50mm onwards
    Payload 4,000kg
    Vanbody Dimensions
  • Overall external Length: 7,500mm
  • Overall external Width: 2,500mm
  • Overall external Height: 2,400mm
    Doors
  • Type: Front and rear Insulated sliding Doors
  • Dimensions: length 1,900mm, width 1,100mm
    Walls & Roof
  • Rigid press injected CFC polyurethane foam sandwich panels (80 -100 mm). One piece panels are full-width/full-height & full- length panels manufactured under high pressure in a special autoclave with metal plates inserted in between
  • Internal and external faces are covered with white smooth board
    Floor
  • The floor thickness is approx. 108mm
  • Has an impact resistance of up to 7kg/cm2
  • The floor material isnon slip aluminum plate, machine welded to enhance consistency and reliability.
5 Platform Type Working platform and 4-way operation platform
    Dimensions
  • Working platform (L×W): 1,400mm×2,380mm
  • 4-way operation platform (L×W): 1,100mm×1,100mm
    Payload
  • Working platform: 1,000kg
  • 4-way operation platform: 400kg
    4-way side shift 800mm
    4-way max. extension 600mm
    Min. Servicing Height 2,800±50mm
    Max. Servicing Height 6,100±50mm
    Safety Handrails 900mm high extendable tubular steel protective handrails mounted at platform sides, handrails extend to leading edge of platform
    Others
  • Platform operation is powered by advance systems allowing piston, auxiliary & hand pump to drive the platform
  • 25mm Non-slip aluminum alloy profiles floor surface
  • Non-marking rubber bumper mounted at leading edge of platform
  • Control panel for vanbody and platform is fitted into the internal of vanbody and waterproof
  • Fixed canopy
6 Refrigeration System (vanbody)
  • Model: CARRIER 850U
  • System is equipped with cable and socket to connect the external electric supply
7 Hydraulic System Max. Work Pressure 14Mpa
    Hydraulic Oil Tank 125L
    Gear Pump
  • Rated power: 23Mpa
  • Displacement: 45ml/r
  • Brand: CASAPPA
    Manual Emergency Pump
  • Rated power: 22Mpa
  • Displacement: 45ml per time
  • Brand: Hipo
    Electric Emergency Pump
  • Rated power: 13Mpa
  • Displacement: 4.3L/min
  • Max. Duration: 2min
    Cylinder Twin telescopic chrome plated lift cylinders.
    Functions
  • All hydraulic operations are easy accessible at ground level including vanbody up/down, stabilizers up/down, platform left/right, platform in/out, etc.
  • Internal emergency power allows retraction of all hydraulic cylinders without acceleration of the truck engine.
  • In the event of failure of the hydraulic systems, all functions can be controlled via the manual emergency pump.
  • Velocity fuses mounted at each cylinder to halt rapid descent of hoist in the event of a sudden system pressure loss. Pilot operated check valves have to be mounted onto the cylinder.
8 Electric System Voltage 24V
    Battery 2 units, 12V/115Ah
    Light System
  • Four flash LED lights to be fixed at the 4 bottom corners of the van body
  • Amber flashing warning light mounted at center of van body roof.
  • Back-up spotlight mounted at rear of chasiss.
  • headlights and clearance lights
  • Eight (8) LED lights for van body interior are mounted flush to the van body ceiling to avoid damages during loading & unloading.
    Safety Features
  • Interlock to prevent raising the van body or extending the stabilizers unless transmission is in neutral and parking brake
  • Van body cannot be raised above platform height from driver control panel
  • Van body cannot be raised above the (1700mm) unless the stabilizers are fully extended.
  • Stabilizers cannot be retracted unless van body is fully lowered.
  • Left Front stabilizer (nearest driver cabin) is the last to fully retract, providing the operator with a visual indication that all stabilizers are fully retracted.
  • Warning light on dash to indicate van body is raised.
  • Warning light on dash to indicated stabilizers are extended
  • Engine starter protection to prevent the starter from being engaged while the engine is running
  • The truck is equipped with an automatic sound alarm (buzzer) activatedduring each of the following operation with different tone: Reversing of the truck; Raising and lowering of the van body; Extend and retract of stabilizers.
  • When engine stop function is activated, non-essential electrical devices is disconnected form their power source to conserve battery power.
  • Engine stops if transmission is being engaged while stabilizers are not fully retracted.
  • Retraction of stabilizers is only possible if the van body is fully down.
  • The vehicle cannot move when the PTO is engaged.
  • Warning flash light to be fixed to the nearest point of each Stabilizer and should flash whenever stabilizer are extended or retracted.
9 Painting Chassis cab, platform and van body White RAL 9003
    Chassis frame and mounted equipment Black
    Stabilizers Red
    Main cylinders Black
    Platform cylinders White
    Customized paiting & logo decoration Included

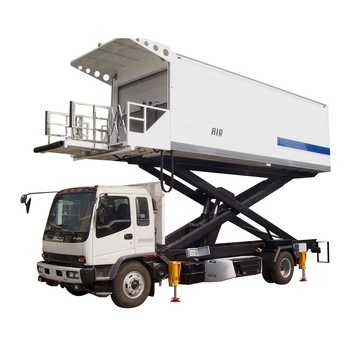

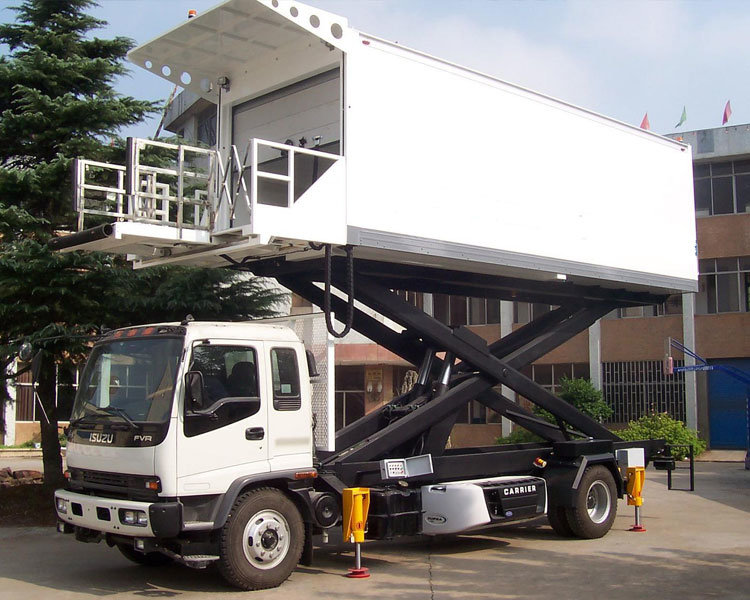

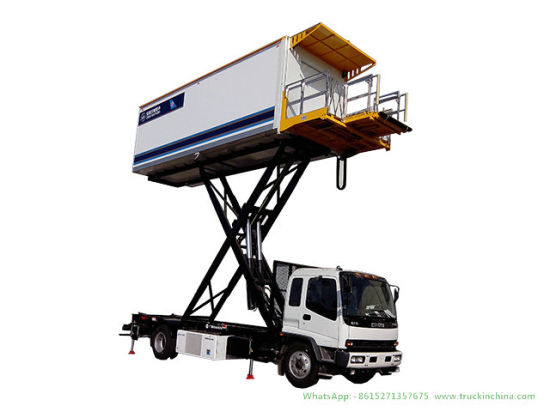

Figure 2: Van body up with stablizers extended



Figure 3: 4-way operation platform



Figure 4: Hydraulic System



Figure 5: Ground Operation Panel
