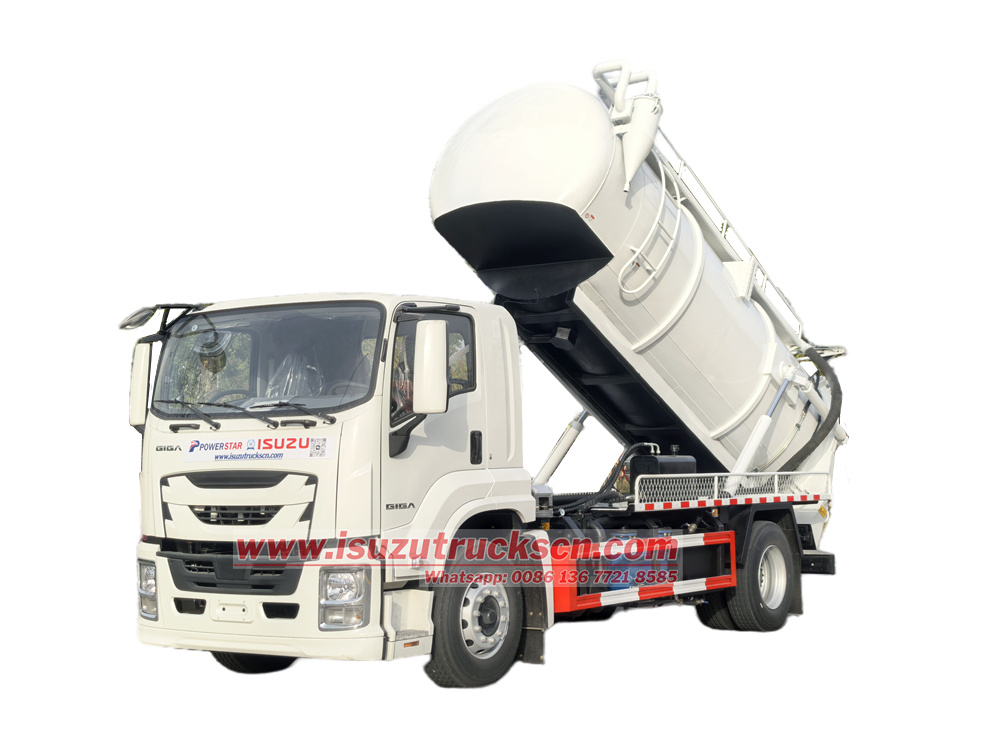

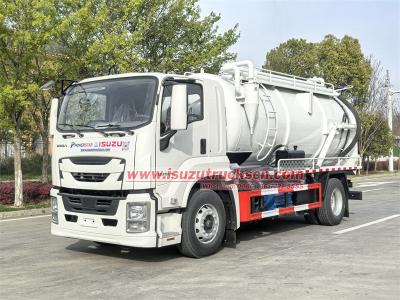

Albania Isuzu 10,000 liters septic pump tanker

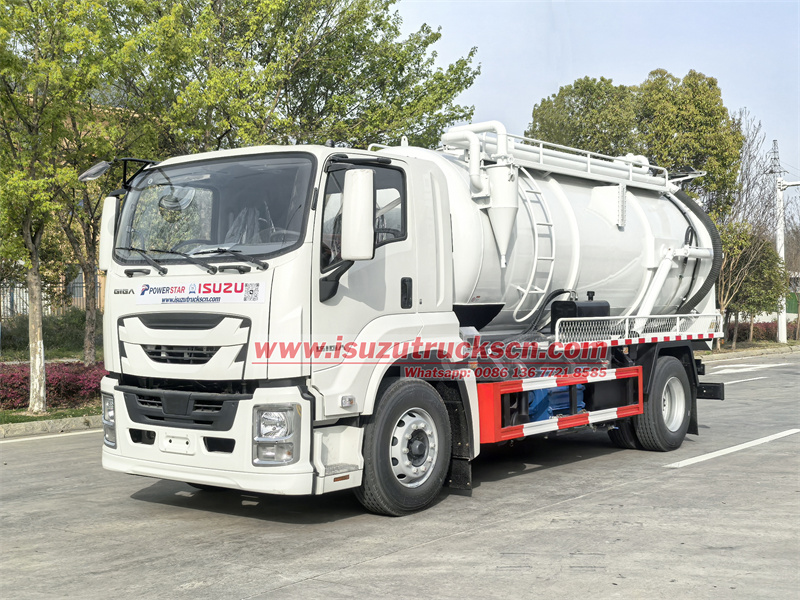

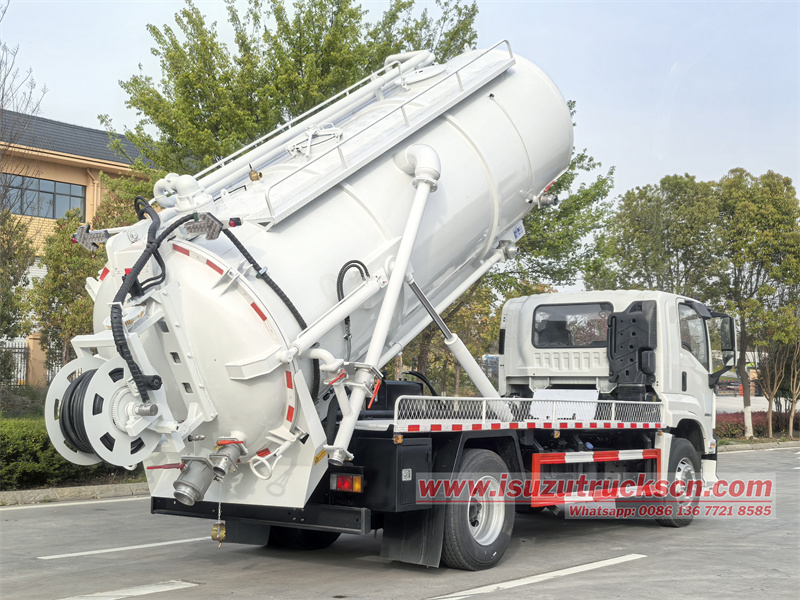

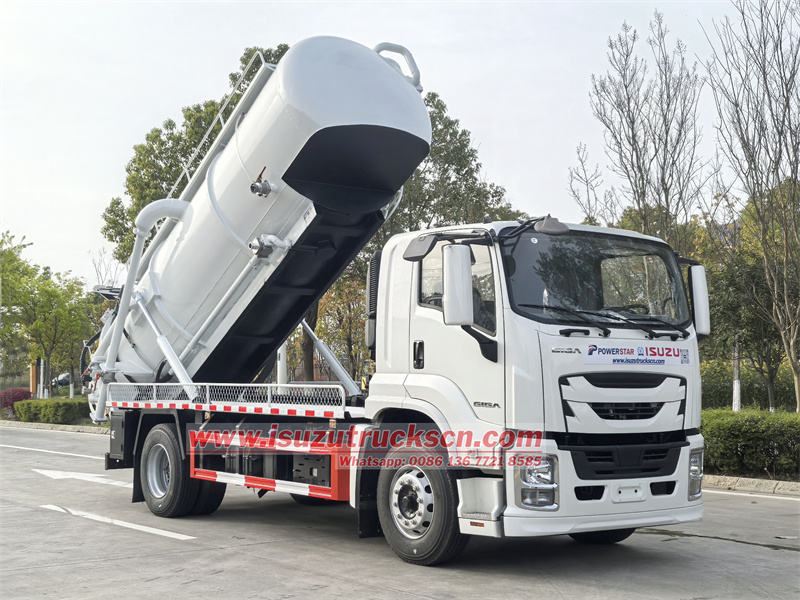

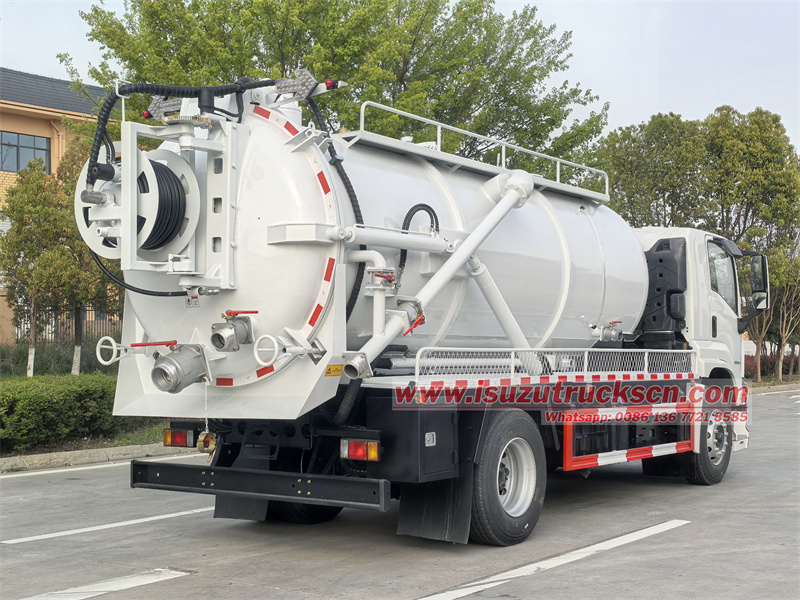

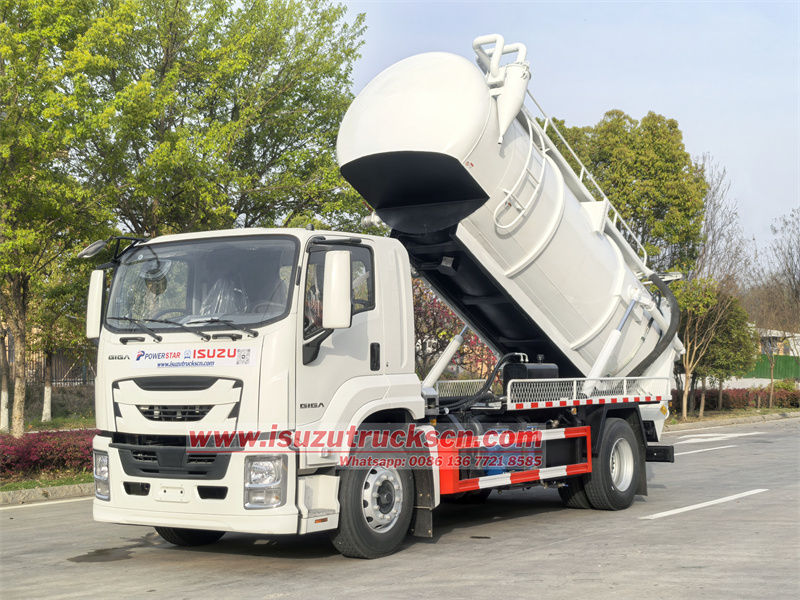

Isuzu FTR 10cbm combined dredging vehicle is modified on the basis of Isuzu's new FTR 4X chassis, with a wheelbase of 4500mmz, equipped with Isuzu 4HK1-TCG60 engine, Isuzu MLD 6-speed gearbox, and vehicle dimensions of 8540 x 2500 x 3200mm. The upper tank body is composed of 8 cubic meter suction tank and 2 cubic meter clean water tank, made of carbon steel, equipped with Italy HPP High pressure water pump and 2BE-204 Vacuum pump, respectively controlled by two power take-offs, the vehicle is equipped with a ladder, a secondary filter, a reel and a discharge valve, and the operation is controlled by two control boxes.
Manufacturer:
Powerstar TrucksWork capacity:
8cbm sewage tank and 2 cbm clean water tankDimension:
8540 x 2500 x 3200mmCabin type:
Isuzu new FTR GIGA 4X chassis cabin,2-3 passengersWheelbase:
4500mmEngine power:
205HP/150kWEngine type:
Isuzu 4HK1-TCG60Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed, manual operatedRemarks:
Tank capacity avaiableAlbania Isuzu 10,000 liters septic pump tanker is an efficient sanitation operation vehicle modified based on the Isuzu FTR 4X chassis. The vehicle's power system is an Isuzu 4HK1-TCG60 National VI engine and a 6-speed gearbox, which is powerful. The upper body is made of carbon steel, equipped with an 8 cubic meter suction tank and a 2 cubic meter clean water tank, equipped with an Italian HPP ESL122/160 high-pressure water pump and Yifeng 2BE-204 vacuum pump, which are driven by dual power take-offs to achieve the dual functions of high-pressure cleaning and vacuum suction.
● China best Isuzu combined jetter truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
The vehicle is equipped with a hydraulic ladder, a secondary filtration system, a high-pressure reel and a discharge valve group, and is equipped with dual control boxes on the cab side and the tank tail, which is easy to operate. Its core advantage lies in the use of imported core components to ensure operating efficiency, the dual tank design realizes integrated suction and discharge operations, and has the high reliability of the Isuzu chassis. The vehicle is particularly suitable for sanitation operation scenarios such as municipal pipe network maintenance, industrial pipeline dredging and septic tank cleaning, and is an ideal choice for modern urban sanitation work.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Core Features:
1. Strong adaptability between power and chassis: equipped with Isuzu 4HK1-TCG60 engine, 4500mm wheelbase chassis
2. Efficient split operation system: sewage suction tank (8cbm) and cleaning water tank (2cbm) are independently designed
3. Dual pump independent drive technology: high-pressure water pump and vacuum pump are independently controlled by dual power take-offs, and sewage suction and flushing can be operated synchronously or in steps to improve operation efficiency and flexibility.
4. Humanized design: dual control boxes are easy to operate, secondary filters reduce clogging, and carbon steel tanks are corrosion-resistant.
Combined vacuum jetting truck (also called combined jetting tanker truck, jet vacuum cleaner truck, combined jetting tanker, sewage suction jet tank, hydro jetting drain cleaning truck, etc.) will be used to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
» Ⅱ.Product Parameter for Isuzu FTR combined jetter truck:
|
Isuzu 10,000 liters septic pump tanker |
||
|
Vehicle Parameter |
||
|
Vehicle model |
PT5180GXK |
|
|

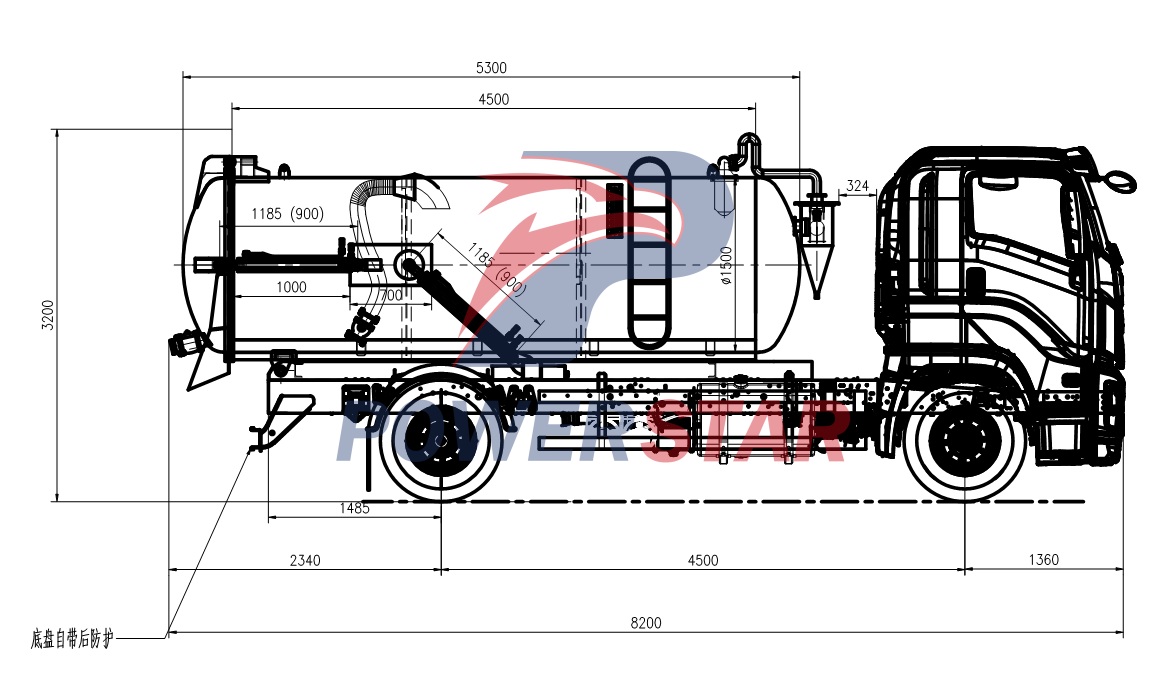

Overall dimensions |
8540 x 2500 x 3200mm |
|
|
Gross Vehicle Weight |
18000kg |
|
|
Curb weight |
9450kg |
|
|
Wheelbase |
4500mm |
|
|
Max speed (Km/h) |
95km/h |
|
|
Chassis Parameter |
||
|
Cabin |
Isuzu new FTR GIGA 4X cabin,power steering,with air conditioner, 2-3 passengers,left hand drive. |
|
|
Drive type |
4x2,LHD |
|
|
Engine |
Brand |
ISUZU |
|
Type |
Isuzu 4HK1-TCG60 |
|
|
Horsepower |
205HP/150kW |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
647N·•m |
|
|
Max torque speed |
1600rpm |
|
|
Displacement |
5193ml |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Isuzu MLD 6-speed, manual operated |
|
|
Tire model |
295/80R22.5 |
|
|
No.of tire |
6 pcs,with a spare tire |
|
|
Superstructure Parameter |
||
|
Tank |
8000L sewage tank,2000L cleaning water tank |
|
|
Standard configuration |
1. Sewage tank and cleaning water tank material are carbon steel plate. 2. Equipped with 60m high pressure tube,diameter 19mm. 3. Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 4. Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m. |
|
|
High pressure water pump |
Brand |
Italy HPP |
|
Model |
ESL122/160 |
|
|
Pressure |
16Mpa |
|
|
Flow |
122L/min |
|
|
Power |
39kW |
|
|
Vacuum pump |
Model |
2BE-204 |
|
Type |
Water circulation vacuum pump |
|
|
Ultimate vacuum |
3300Pa |
|
|
Speed |
980r/min |
|
|
Allowed speed |
740～1300 r/min |
|
|
Power |
37kW |
|
|
Maximum pumping speed |
21 m³/min |
|
|
Hydraulic system |

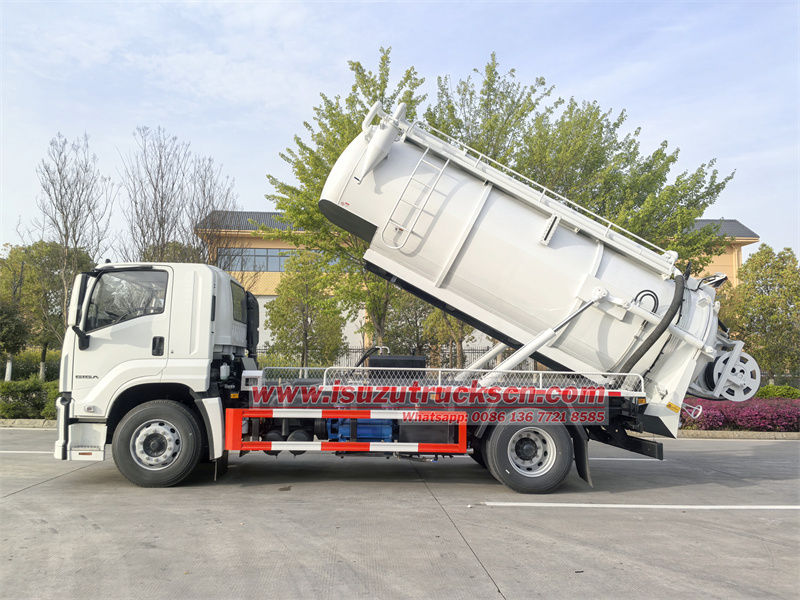

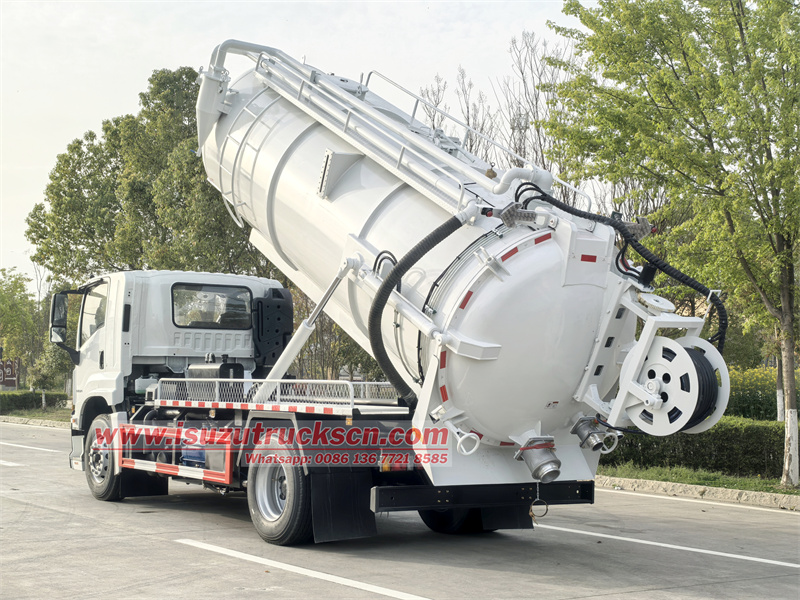

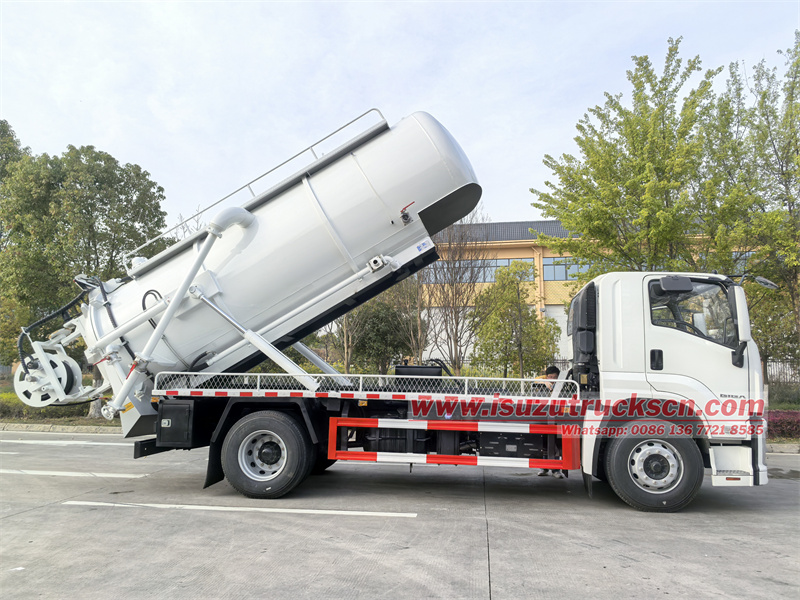

Sewage suction tank can lifting through hydraulic cylinder |
|
« Ⅲ.Product Details & Advantages
★. Chassis and power
● Modified based on Isuzu's new FTR 4X chassis, with a wheelbase of 4500mm, taking into account the passability of narrow urban roads and operational stability.
● Equipped with Isuzu 4HK1-TCG60 engine (inline four-cylinder, turbocharged), with a maximum power of 205 horsepower and a torque of 647N·m, it has strong power and excellent fuel economy; matched with Isuzu MLD 6-speed gearbox, the gear shifting is smooth and can adapt to complex working conditions.
★. Vehicle size and tank design
● The size is 8540×2500×3200mm, which can flexibly shuttle on municipal roads; the upper tank adopts an 8-cubic-meter suction tank + 2-cubic-meter clean water tank split structure, and the carbon steel material is treated with anti-corrosion, which has strong corrosion resistance and extends the service life.
★. Core equipment and functional configuration

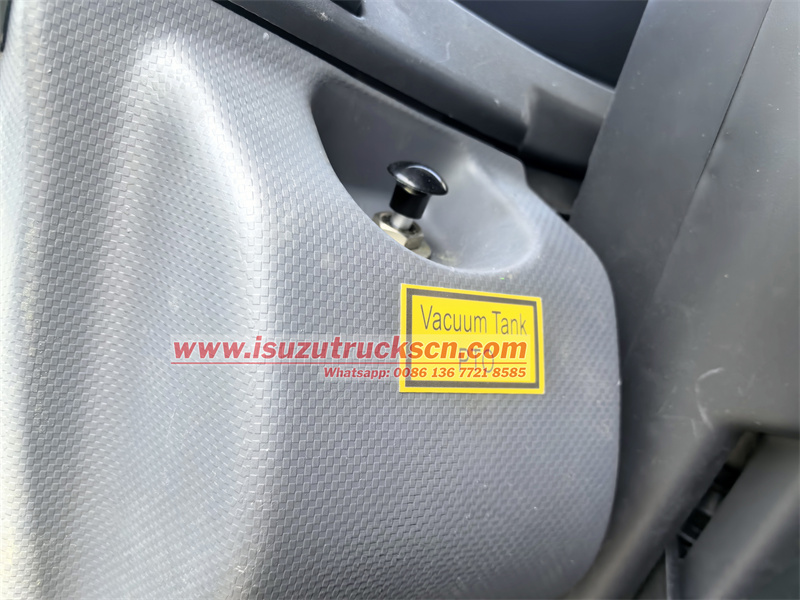

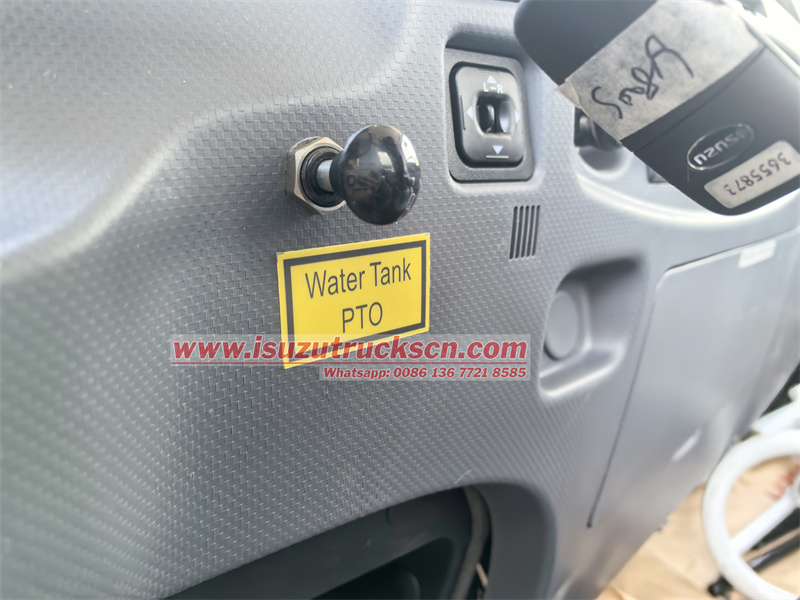

● Dual pump system: Italian HPP high-pressure water pump (pressure 16MPa, flow rate 122L/min) and 2BE-204 vacuum pump (vacuum degree 3300Pa, maximum pumping speed 21m³/min), respectively driven by independent power take-offs, to achieve separate control of suction and flushing functions.

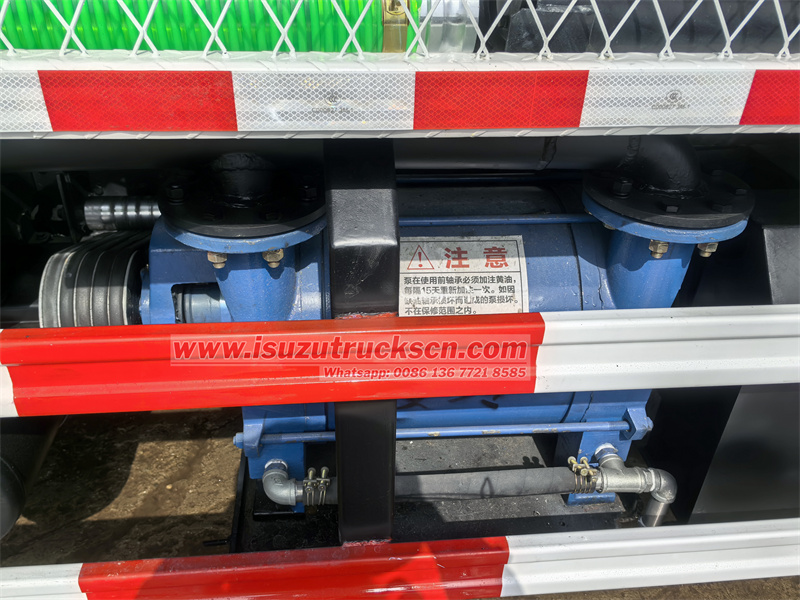

2BE-204 Vacuum pump

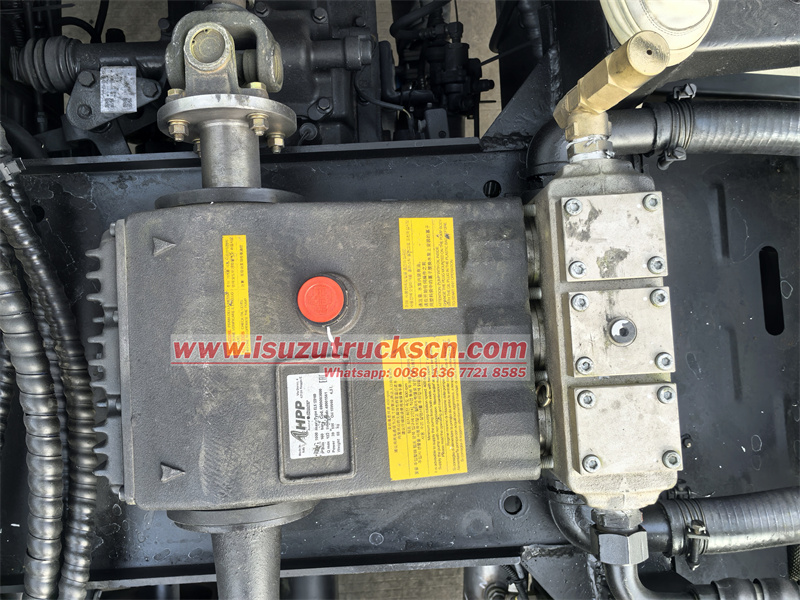

Italy HPP High pressure water pump

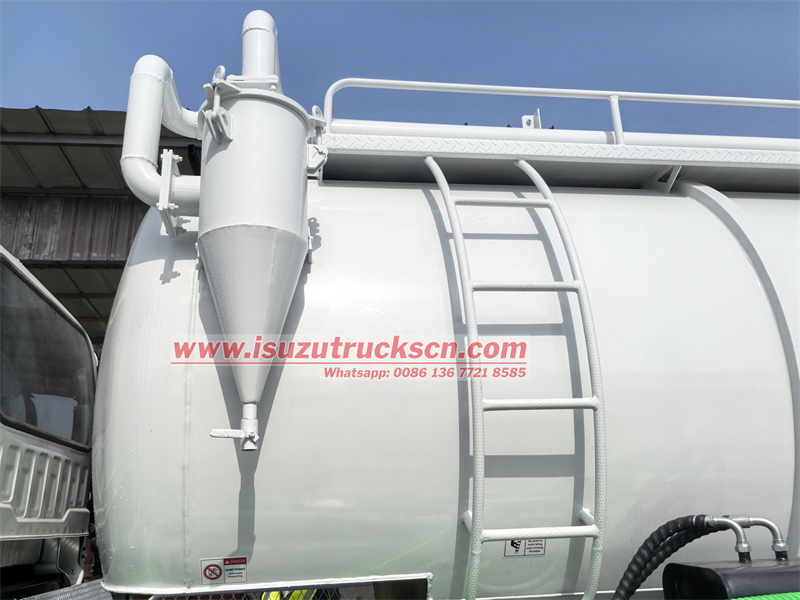

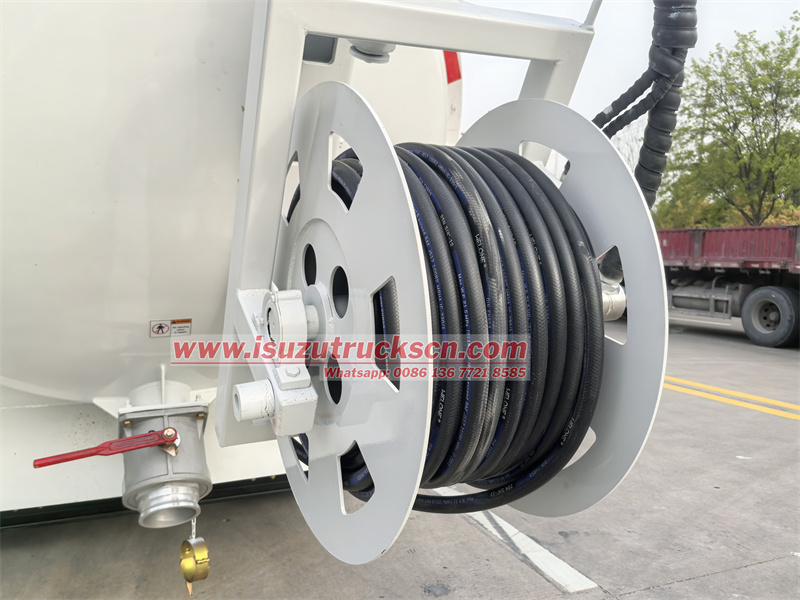

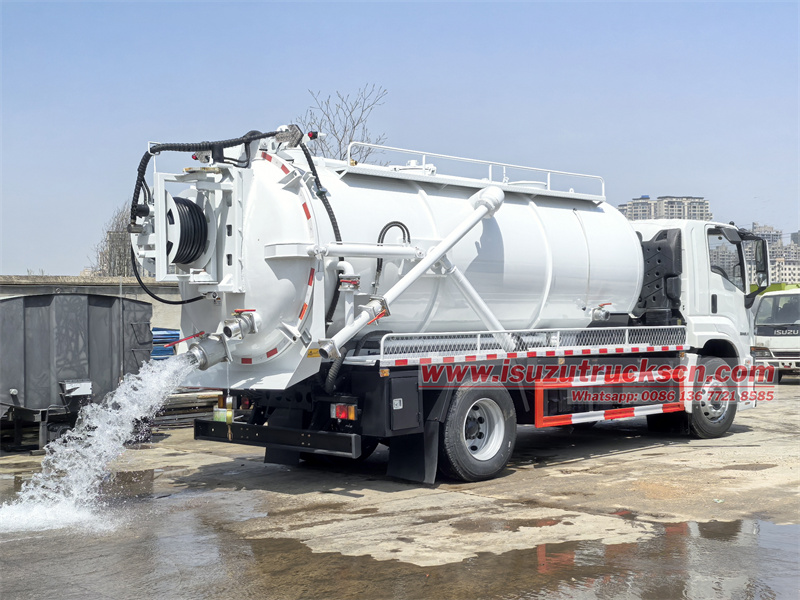

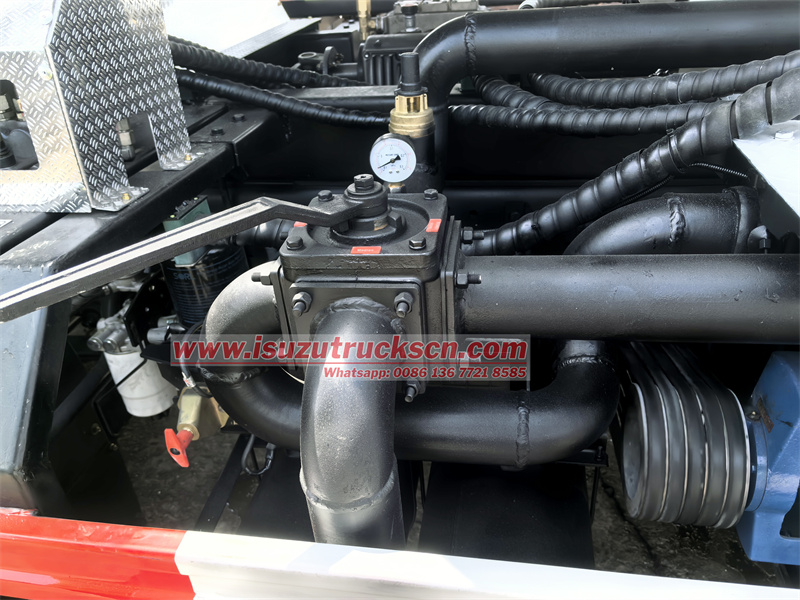

● Auxiliary equipment: equipped with ladder (for easy maintenance of tank), secondary filter (to intercept impurities and protect pump body), reel (to store high-pressure water gun, operating radius ≥30m), discharge valve (quick sewage discharge) and dual control box (simultaneous operation of cab and rear of vehicle).
★. Control system

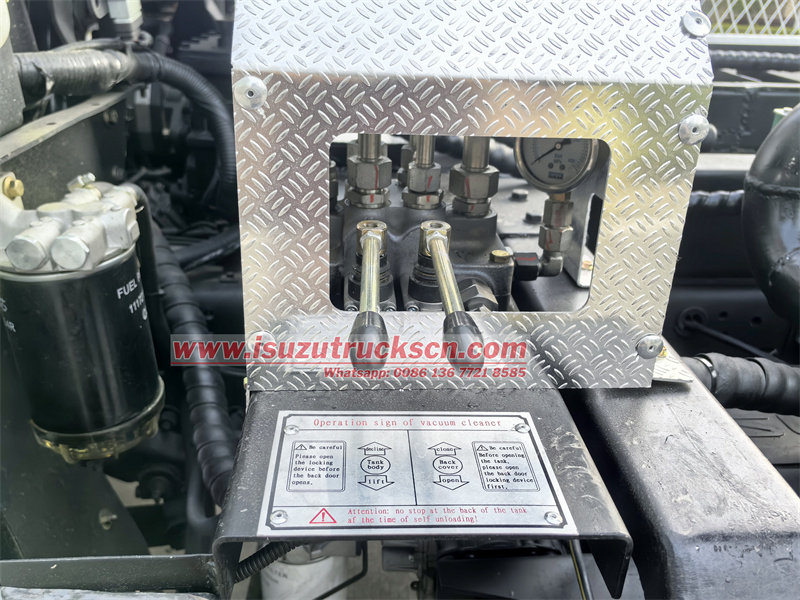

● Manual operating lever on the driver's side: two operating handles, which respectively control the lifting of the tank and the opening/closing of the tailgate cover.

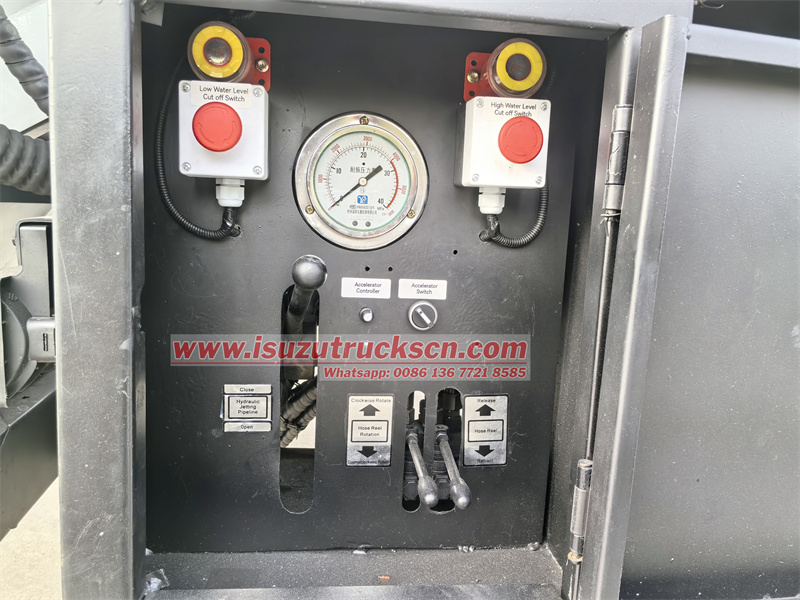

● Control box on the rear: including Low Water Level Cut off Switch, High Water Level Cut off Switch, pressure gauge, Hydraulic Jetting Pipeline open/close, Hose Reel Rotation Clockwise Rotate/Counterclockwise rotation, Hose Roel Release/Ratract and other operating levers
 |
 |
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
« Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
2. Working principle
①. Sewage suction process
Start the vacuum pump (2BE-204), drive the pump body to rotate through the power take-off, form negative pressure in the tank, and suck sewage/dirt into the suction tank through the suction pipe; the secondary filter intercepts large particles of impurities to prevent clogging.
②. Flushing process
The high-pressure water pump (Italy HPP) extracts liquid from the clean water tank and sprays it out through the reel high-pressure water gun. The pressure can reach the standard requirements of the operation, and the inner wall of the pipeline or the blockage is strongly flushed.
③. Combined operation mode
Select "suction first and then flush" or "simultaneous operation" according to the working conditions, for example: flush the pipeline residue after suction, or dilute the high-concentration dirt while suctioning to improve the cleaning effect.
