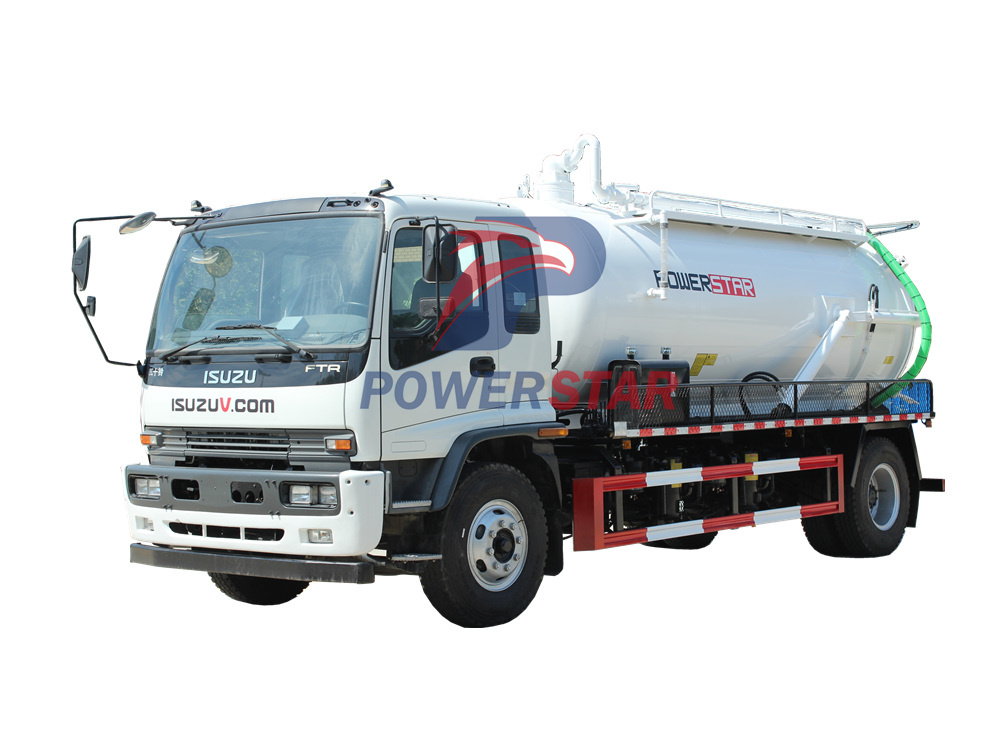

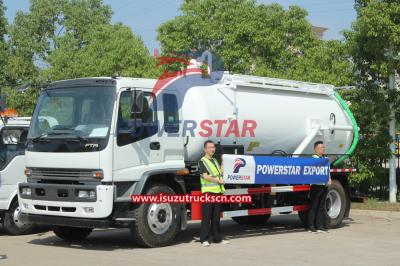

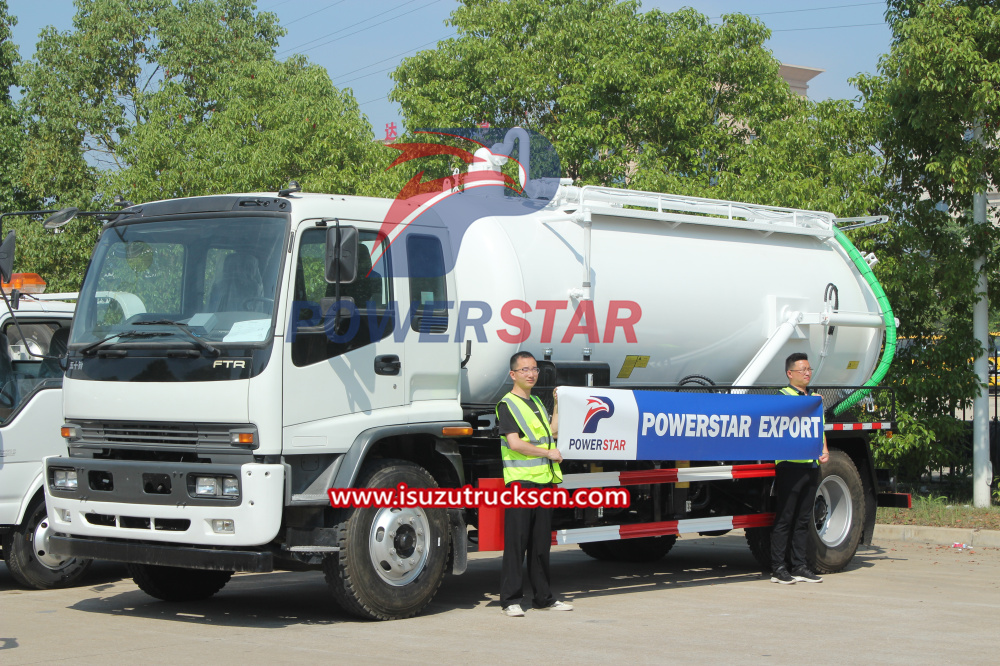

Algeria Isuzu Fecal Suction Truck Jurop PN106D
Algeria Isuzu FTR Fecal Suction Truck with Jurop PN106D is a state-of-the-art solution for fecal waste management in Algeria. Its powerful vacuum capabilities, large holding tank, and versatile design make it an ideal choice for efficient fecal waste collection and transport. Isuzu's after-sales service ensures the longevity and optimal performance of the suction truck, supporting sustainable fecal waste management practices in Algeria.
Work capacity:
12000LTruck model:
PT5180GXWEngine power:
205 HPEngine type:
ISUZU 4HK1Axle drive:
4x2Gear box:
Isuzu MLD6sRemarks:

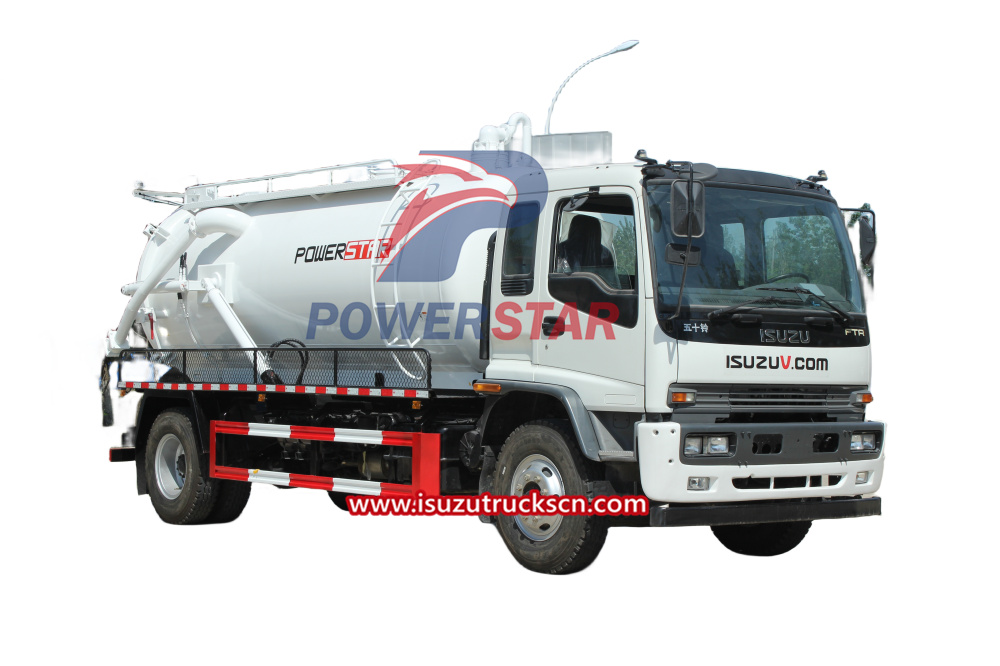

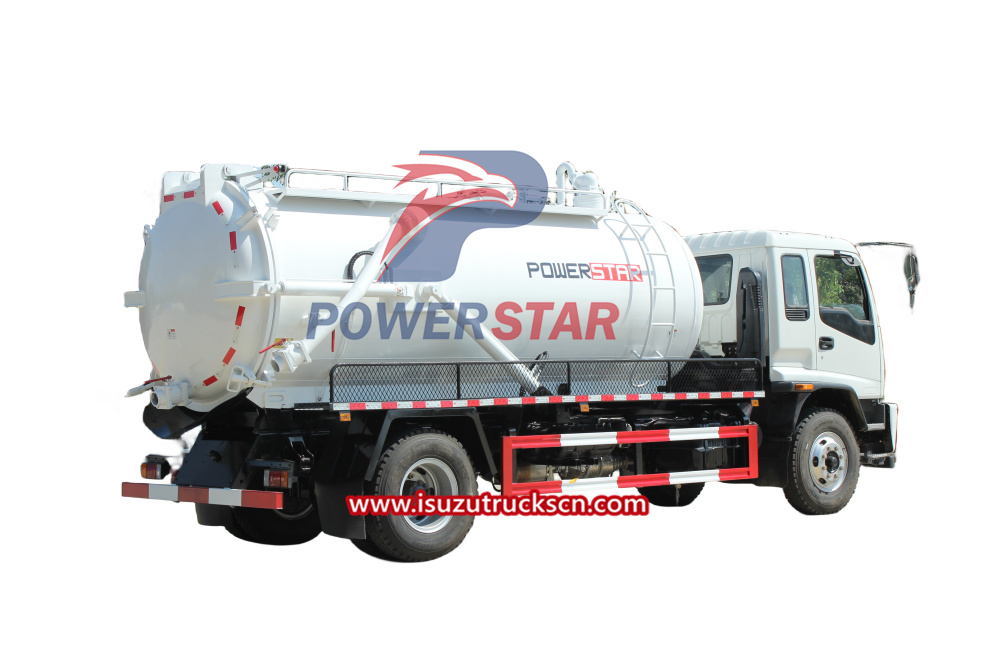

Italy Jurop PN106DThe Algeria 12000L Isuzu FTR Fecal Suction Truck with Jurop PN106D is a cutting-edge solution designed for efficient fecal waste management in Algeria. Manufactured by Isuzu Motors, a renowned automotive company, this specialized suction truck is tailored to address the specific needs of fecal waste disposal in the country. With its powerful vacuum capabilities and reliable performance, the Algeria Isuzu Fecal Suction Truck offers a sustainable and hygienic solution for fecal waste management.
2. Features:
- High-Capacity Vacuum Pump: The Jurop PN106D vacuum pump Isuzu FTR installed in the suction truck provides superior suction power, enabling efficient extraction of fecal waste from septic tanks, portable toilets, and other sanitation facilities.
- Large Holding Tank: The FTR Isuzu vacuum suction truck is equipped with a spacious holding tank, allowing for the collection and transport of significant amounts of fecal waste. This minimizes the need for frequent emptying, maximizing operational efficiency.
- Versatile Design: The Isuzu septic pump tanker truck's versatile design ensures easy maneuverability and accessibility to various locations, including tight urban areas. Its compact dimensions enable it to navigate narrow streets and congested neighborhoods with ease.
- Reliable Performance: With its robust construction and high-quality components, the Algeria Isuzu Fecal Suction Truck ensures reliable performance, delivering consistent results in fecal waste management operations.
- Easy Maintenance: The suction truck is designed for simple maintenance, with easily accessible components and user-friendly systems. This facilitates routine inspection and servicing, reducing downtime and promoting optimal performance.
3. Advantages:
- Enhanced Sanitation: The Algeria Isuzu Fecal Suction Truck plays a crucial role in improving sanitation levels in Algeria by effectively addressing fecal waste management needs. It helps minimize the risk of contamination and the spread of diseases, ensuring a cleaner and healthier environment.
- Increased Efficiency: The powerful vacuum pump and large holding tank allow for efficient collection and transportation of fecal waste. This significantly reduces the frequency of emptying, optimizing time and resources.
- Versatility: The suction truck's versatility enables it to handle diverse fecal waste management requirements across different areas, including urban centers, remote regions, and construction sites.
- Environmental Compliance: The suction truck conforms to international sanitation and environmental standards, ensuring proper disposal of fecal waste in a responsible and sustainable manner.
| Sewage Suction Vacuum Truck Technical Specification | ||
| Product Name | ISUZU FTR 4*2 HEAVY DUTY SEWAGE SUCTION TRUCK | |
| Chassis Model | ISUZU FTR | |
| Fuel type | Diesel | |
| Emission Standard | Euro 5 | |
| Cabin | ISUZU F series | |
| Whole Vehicle main dimensions (mm) |
Overall dimensions (LxWxH) | 8550*2500*3100 |
| Wheel base | 4500 | |
| Min. ground clearance | 480 | |
| Weight data (kg) | G.V.W | 18000 |
| Curb weight | 7395 | |
| Max payload | 8000-12000 | |
| Whole vehicle main performance |
Max. speed (km/h) | 90 |
| Max. slope of climb (%) | 30 | |
| Engine |
Model | ISUZU 4HK1 |
| Maximum power | 205HP | |
| Number of cylinders | 4 | |
| Displacement (ml) | 5900 | |
| Gear box | Model | ISUZU MLD 6S |
| Number of gears | 6 forward gears &1 reverse | |
| Axle | Front Load capacity (ton) | 6.3 |
| Rear Load capacity (ton) | 13 | |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres&Quantity | 9.00-20& 6+1 | |

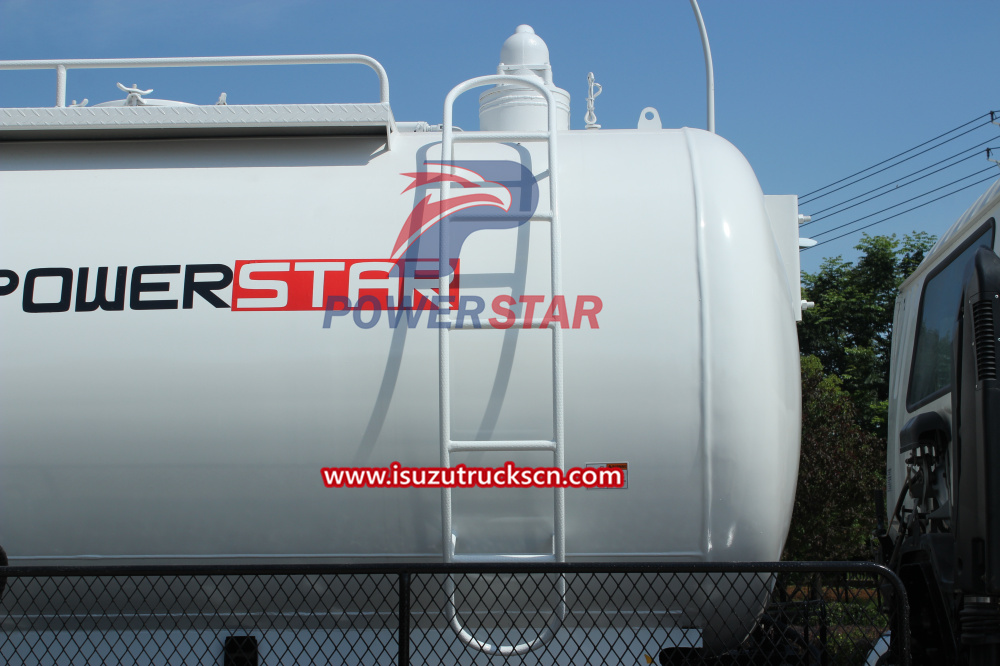

| Sewage Suction Vacuum Truck Special Tank Description | ||

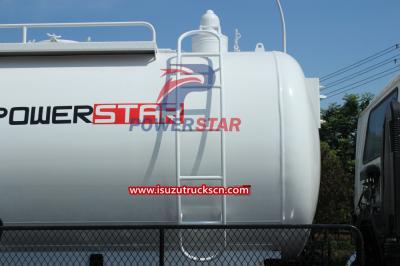

| Tank |

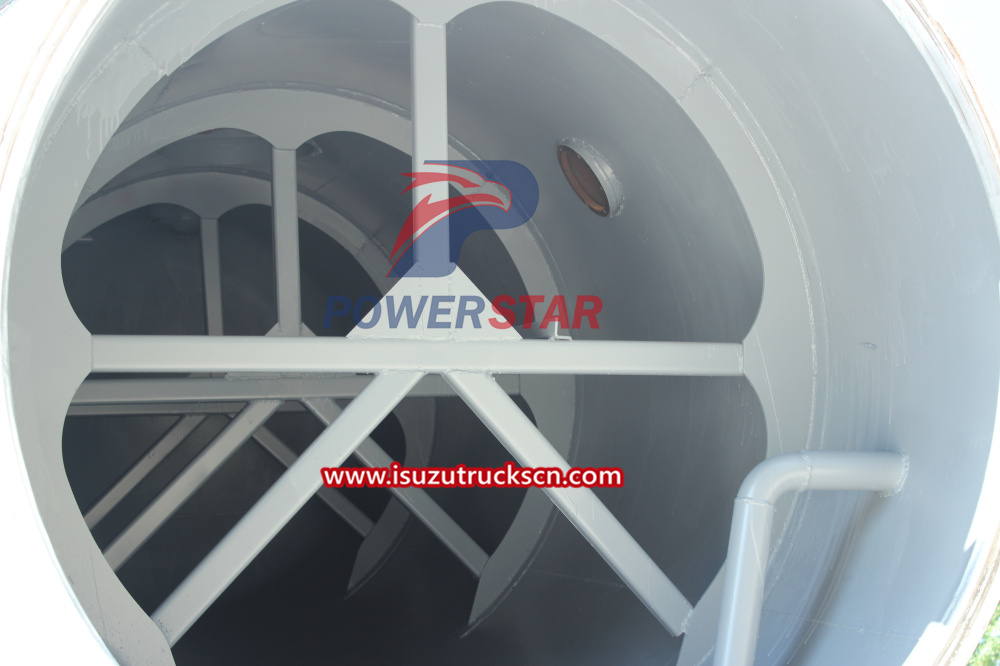

Material:high quality carbon steel Structure:welding,vacuum tank,Cylindrical |
|
| capacity(L) | 8000-12000 | |
| thickness of material | 6mm | |

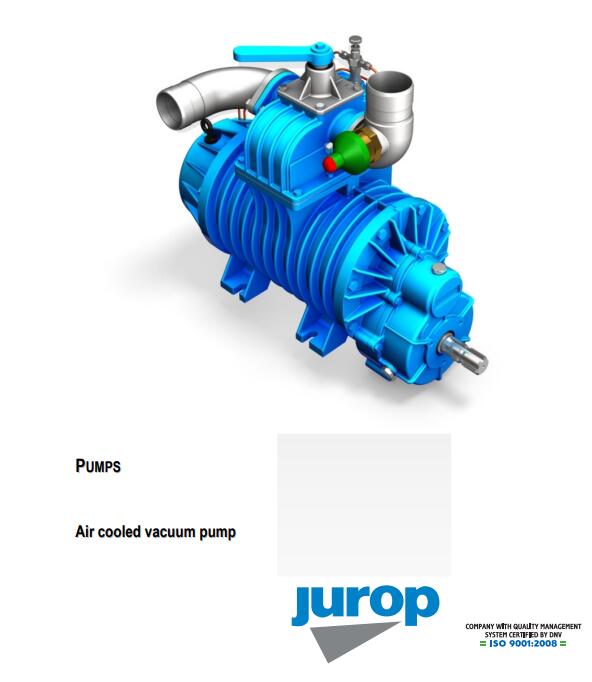

| pump |
type | vacuum pump |
| model | JUROP PN106D | |
| flux(L/min) | 11000L/min | |
| rating speed(r/min) | 540 | |
| shaft power(kw) | 13.6 | |
| features | Low speed,low fuel consumption,low noise,high vacuum,high efficiency | |
| manufacture | Italy JUROP | |
| pipe | 65-100mm suction and discharge pipe | |

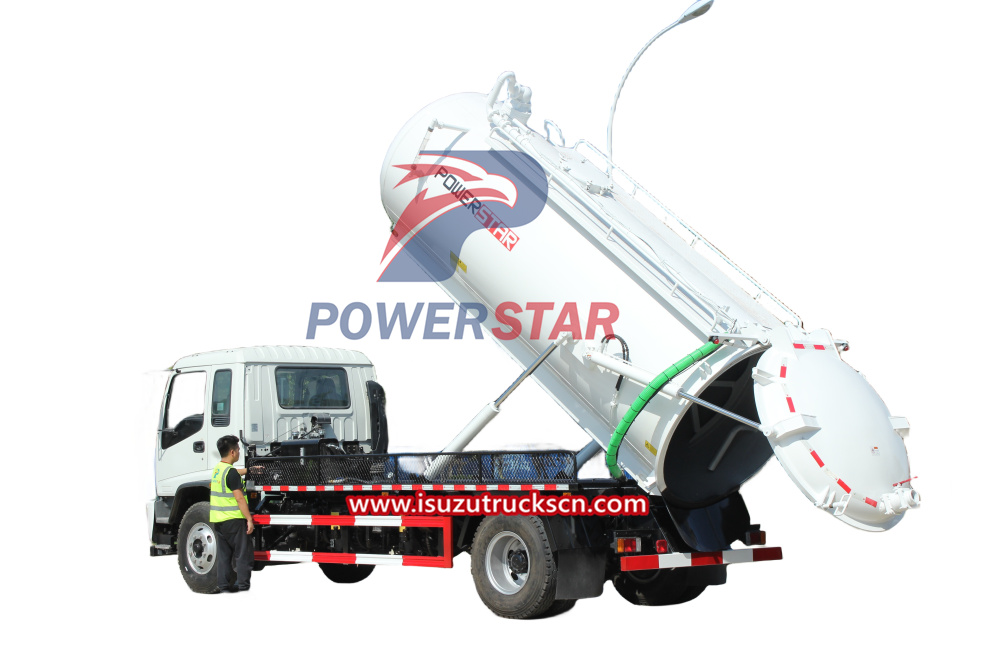

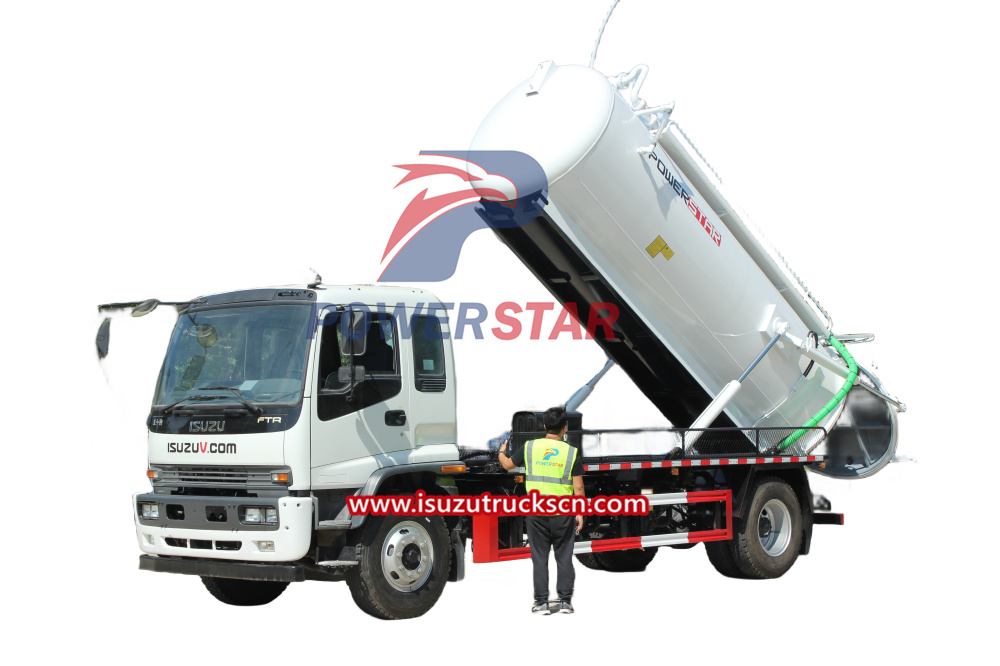

| special function | suction time ≤ 5min, effective suction range ≥ 8, max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 |
|
| equipment | Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment Time for full suction less than 5min |
|
| hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc | ||
4. Application:
The Algeria Isuzu Fecal Suction Truck with Jurop PN106D finds application in various settings, including:
- Residential Areas: It effectively serves residential areas in Algeria by safely removing and transporting fecal waste from septic tanks and portable toilets.
- Construction Sites: The suction truck plays a vital role in construction sites by providing efficient fecal waste management solutions, meeting the needs of workers and promoting a hygienic work environment.
- Public Events: It is well-suited for use at public gatherings, festivals, and events, offering convenient and swift fecal waste disposal options for attendees.
5. After-sales service:
Isuzu Powestar trucks provides comprehensive after-sales service to support the Algeria Isuzu Fecal Suction Truck. This includes routine maintenance, availability of spare parts, and access to authorized service centers. Isuzu aims to ensure the longevity and optimal performance of the suction truck, assisting in maintaining effective fecal waste management practices in Algeria.
6. Frequently Asked Questions (FAQ):
Q1: What is the capacity of the holding tank?
A1: The holding tank capacity can vary based on the specific configuration and requirements. Isuzu Motors can provide details on the available tank size options.
Q2: How often does the holding tank need to be emptied?
A2: The emptying frequency depends on the volume of fecal waste and its usage. Isuzu can offer guidance on the tank capacity and recommend suitable emptying intervals based on specific needs.
Q3: What is the maintenance schedule for the suction truck?
A3: Regular maintenance, including inspections, lubrication, and filter replacements, is necessary for optimal performance. Isuzu can provide the recommended maintenance schedule and support for servicing the truck.
Q4: Can the suction truck handle a variety of fecal waste types?
A4: Yes, the suction truck is designed to handle various types of fecal waste, including that from septic tanks and portable toilets. It ensures efficient and effective management of different fecal waste compositions.
