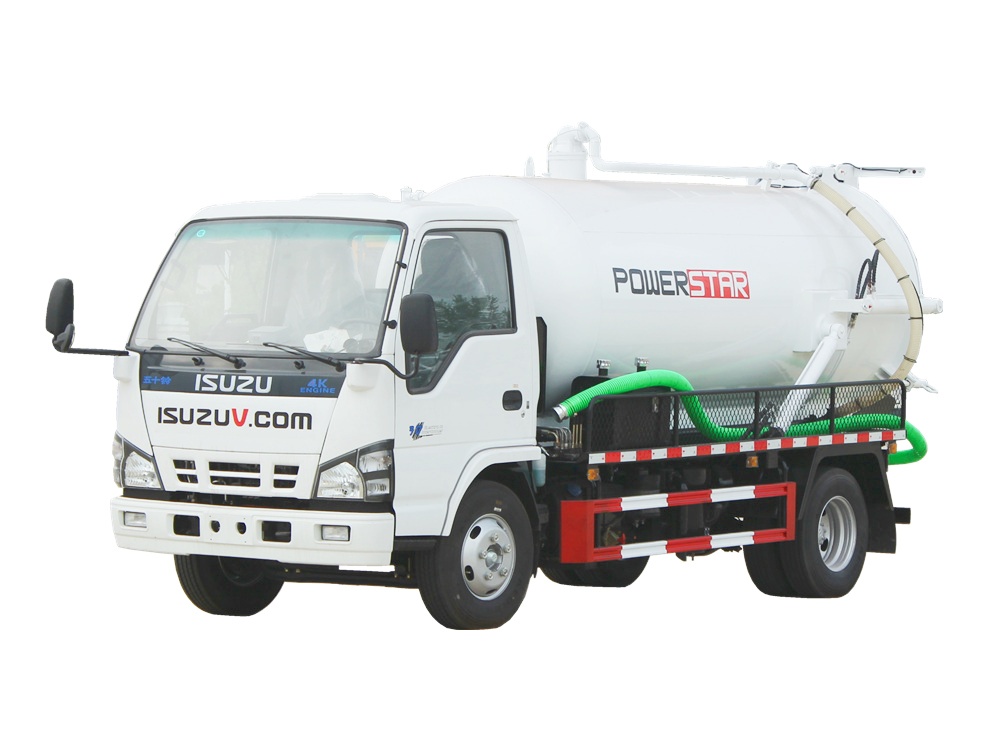

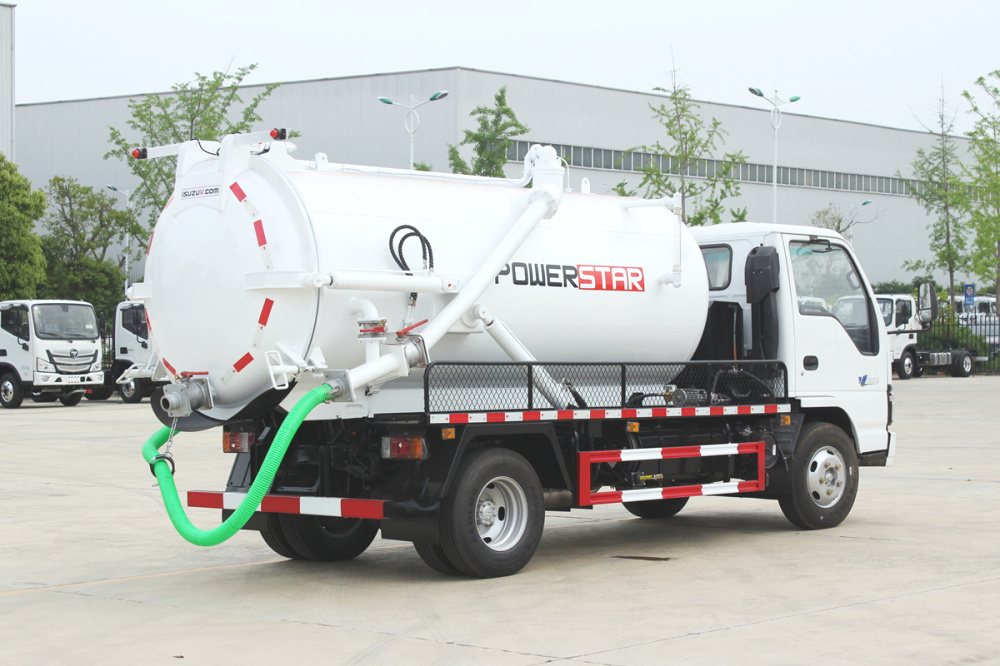

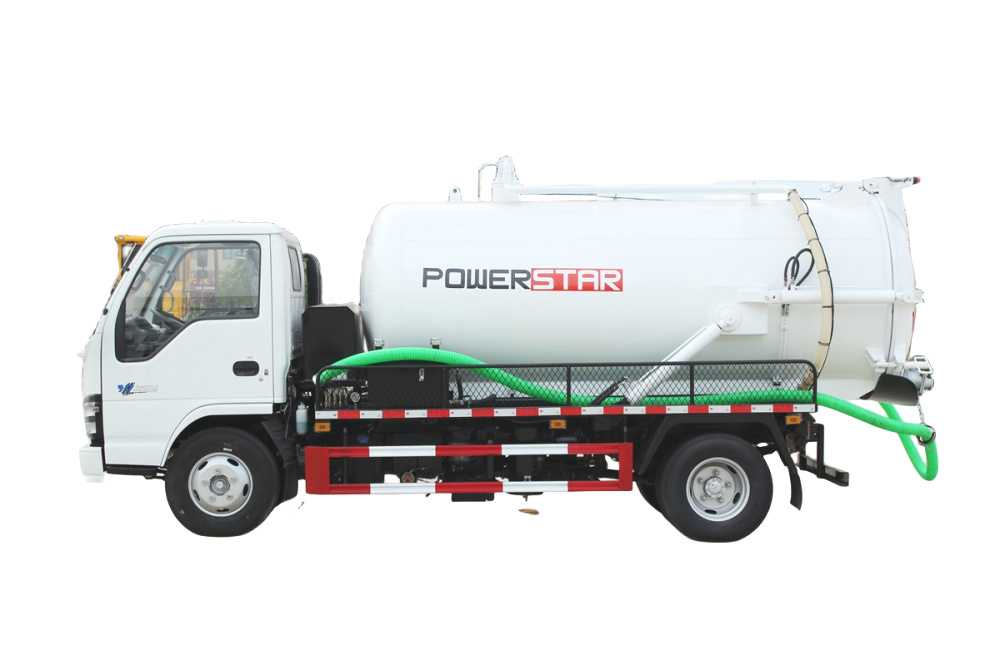

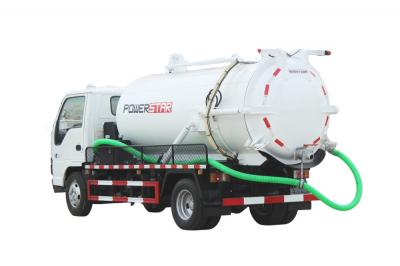

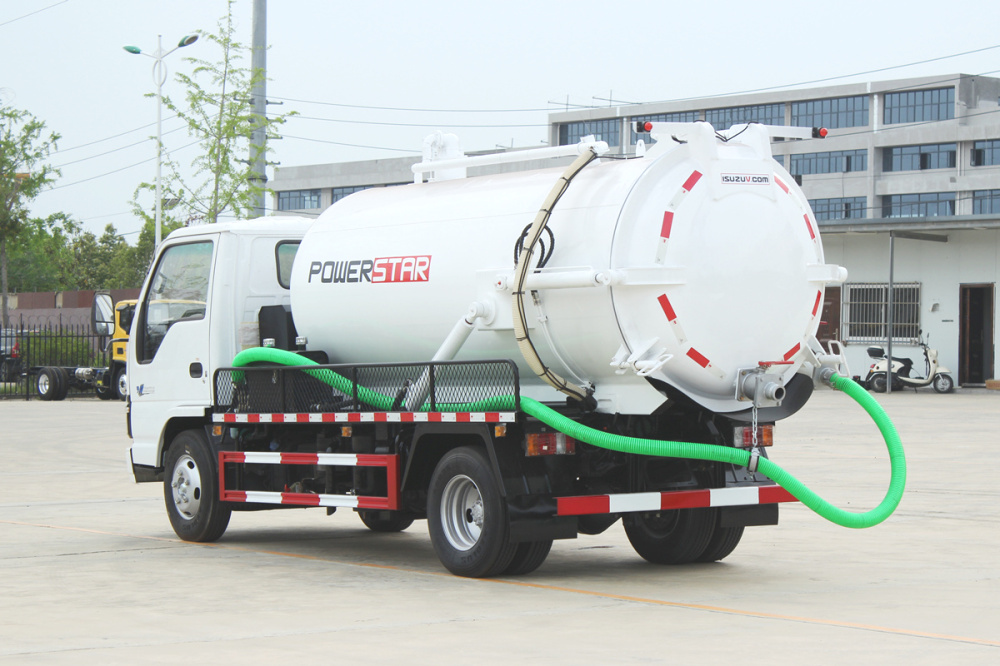

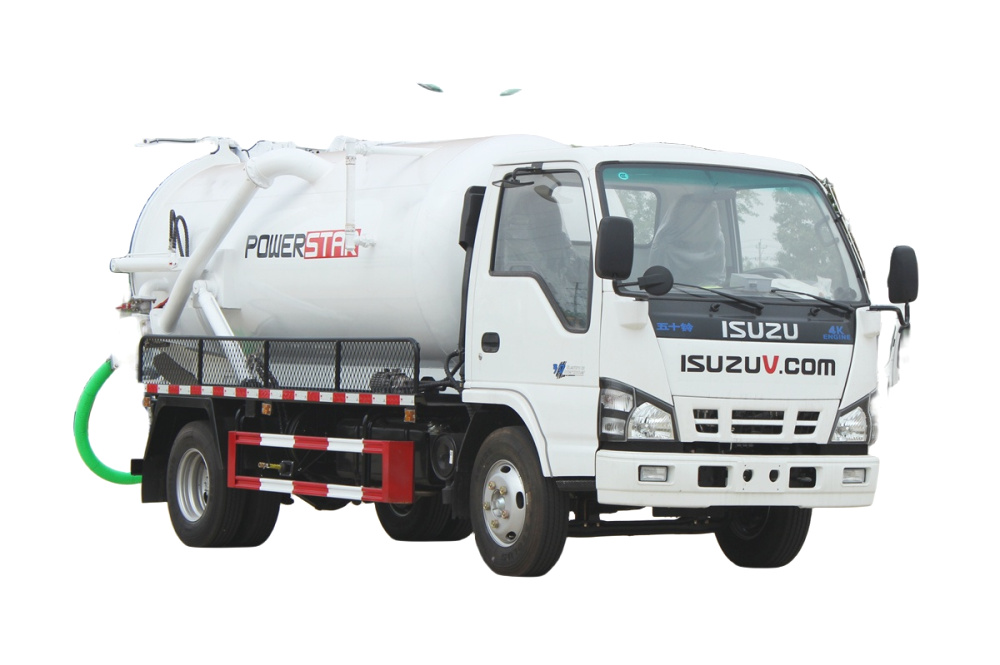

Isuzu Septic Truck with Vacuum Pump by the Guam government has the potential to significantly improve the municipal environmental hygiene and wastewater management practices on the island. With its powerful vacuum capabilities, versatility, and adherence to sustainable practices, this advanced truck offers a robust solution for the effective collection and transport of wastewater. Guam's commitment to embracing such environmentally friendly technologies reinforces its position as a frontrunner in environmental consciousness and paves the way for other regions to follow suit.
Work capacity:
5000LTruck model:
PT5070GXWEngine power:
130 HPEngine type:
Isuzu 4KH1Axle drive:
4x2Gear box:
Isuzu MSB5SRemarks:
Hydraulic lock and openIn a move towards enhancing the municipal environmental hygiene on the island, the Guam government has recently announced the introduction of a brand-new Waste Water Vacuum Pump Truck from Isuzu Motors. This advanced truck, equipped with cutting-edge technology and powerful features, holds promising prospects for improving the overall sanitation and wastewater management on Guam.
The Waste Water Vacuum Pump Truck from Isuzu offers remarkable capabilities in the effective removal and transportation of wastewater and sewage. With its state-of-the-art vacuum pump system, the truck can readily suck up substantial volumes of wastewater from various sources, including septic tanks, drainages, and industrial facilities. This greater capacity not only expedites the wastewater collection process but also reduces the frequency of emptying, increasing operational efficiency.
A key advantage of the Isuzu Waste Water Vacuum Pump Truck is its versatility. The truck's design enables it to navigate through narrow streets and congested areas, ensuring accessibility to different regions of the island. This flexibility is crucial for addressing wastewater management needs in both urban and rural settings on Guam.
The introduction of the Isuzu Waste Water Vacuum Pump Truck holds significant positive implications for the municipal environmental hygiene on Guam. Firstly, it enhances the island's wastewater management system by efficiently collecting and transporting sewage, reducing the risk of contamination and the spread of diseases. This, in turn, promotes a healthier and safer living environment for residents and visitors alike.

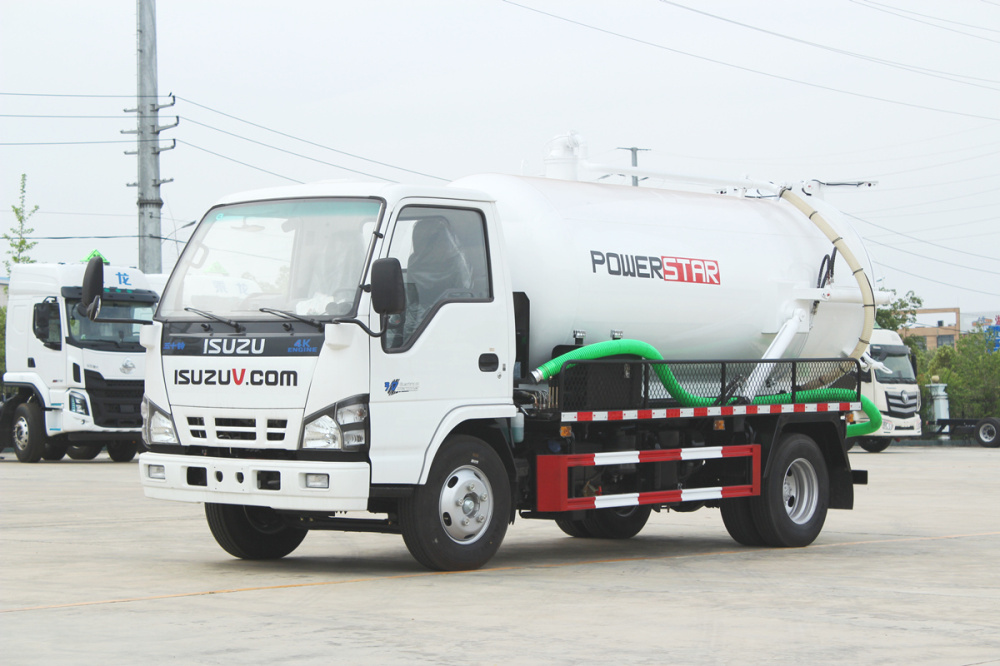

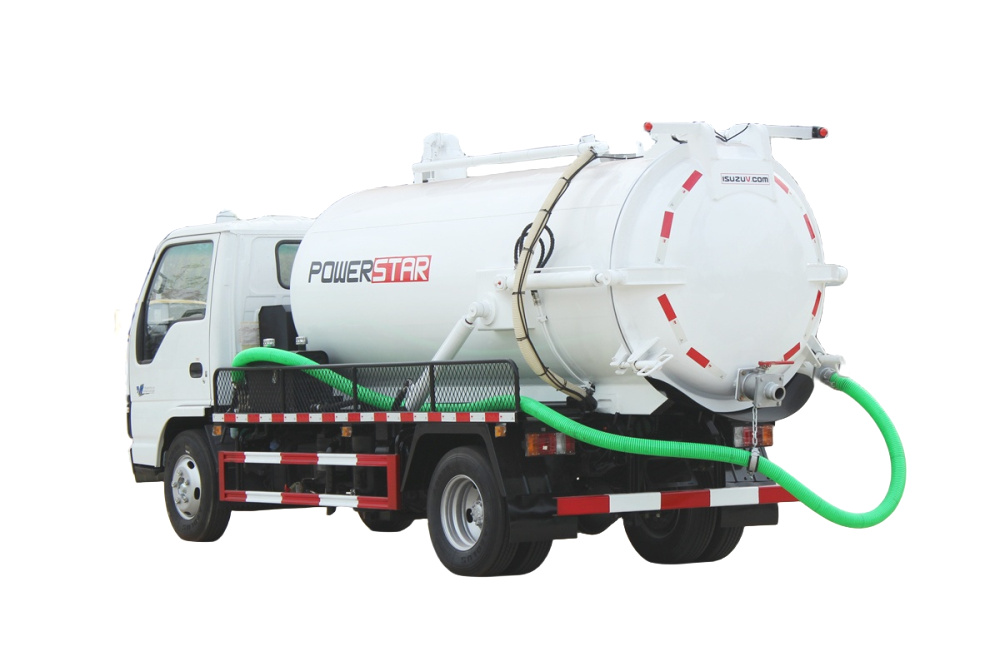

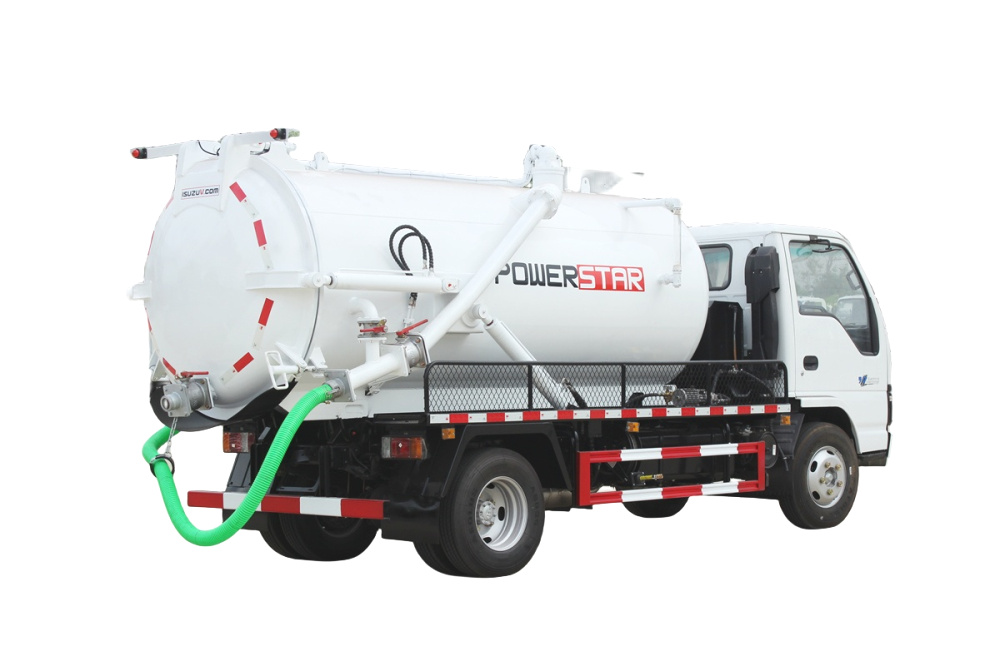

Technical parameter of 5,000liters ISUZU NKR sewage drainage truck
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | isuzu NKR | |
| Curb weight(kg) | 4350 kg | ||
| Wheelbase(mm) | 3815 mm | ||
| Dimensions(mm) | 6300*2400*2900 mm | ||
| Front/Rear Axle loading(kg) | 3000/5000 kg | ||
| Wheel track (front/rear) (mm) | 1960/1855 mm | ||
| Front/Rear overhang(mm) | 1335/1880 mm | ||
| Approach/Departure angle(°) | 26/20 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Battery | 12V*2 115Ah*2 | ||
| Clutch | Reinforced diaphragm clutch | ||
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 7.00R16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
Engine |
Brand | ISUZU | |
| Model | 4KH1 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 3000 ml | ||
| Power(kw) | 96 kw | ||
| Horsepower(HP) | 130 HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 5 | ||
| Sewage Suction & Cleaning System | |||

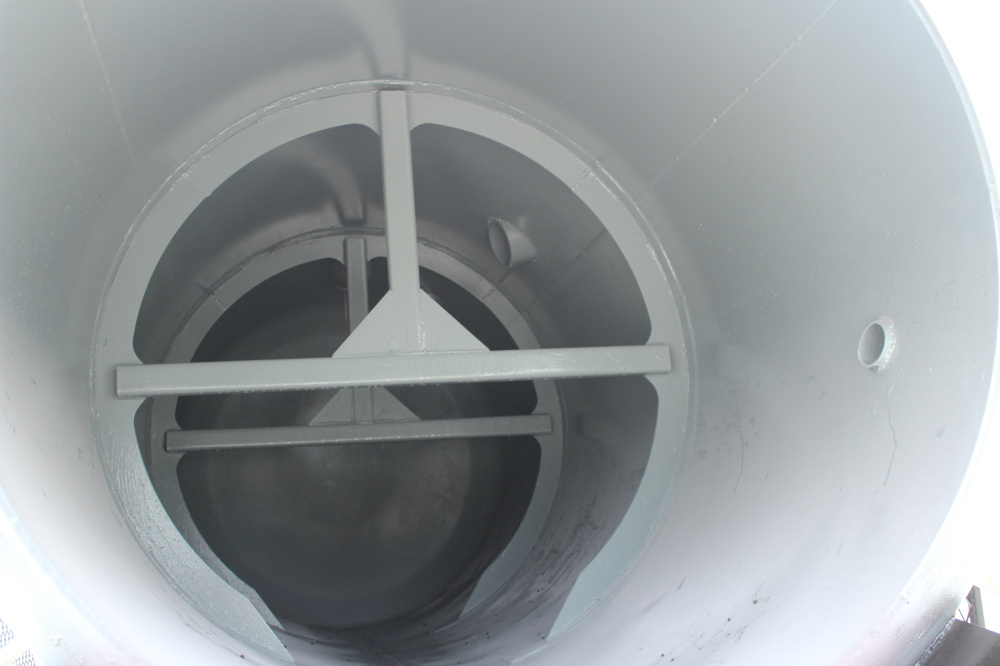

| Sewage tank | Capacity(cbm/liters) | 6.0 cbm/6,000 liters | |
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 6.0 mm | ||

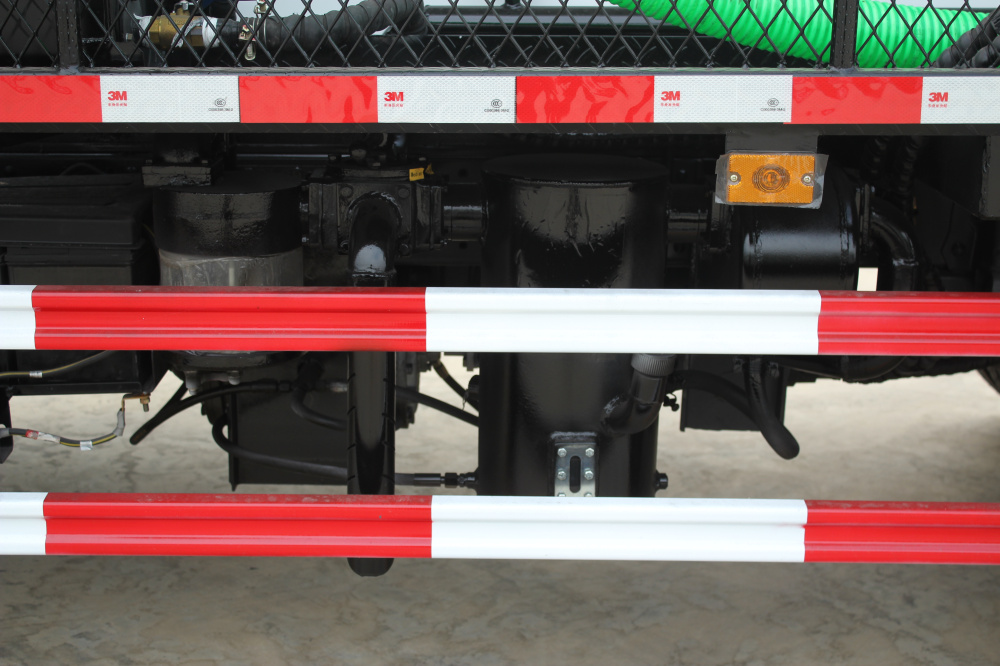

| Vacuum pump | Absolute working pressure(Pa) | 400 Pa(99.6%vacuum degree) | |
| Academic suction speed(L/s) | 45 L/s | ||
| Rotation speed(rpm) | 500 rpm | ||

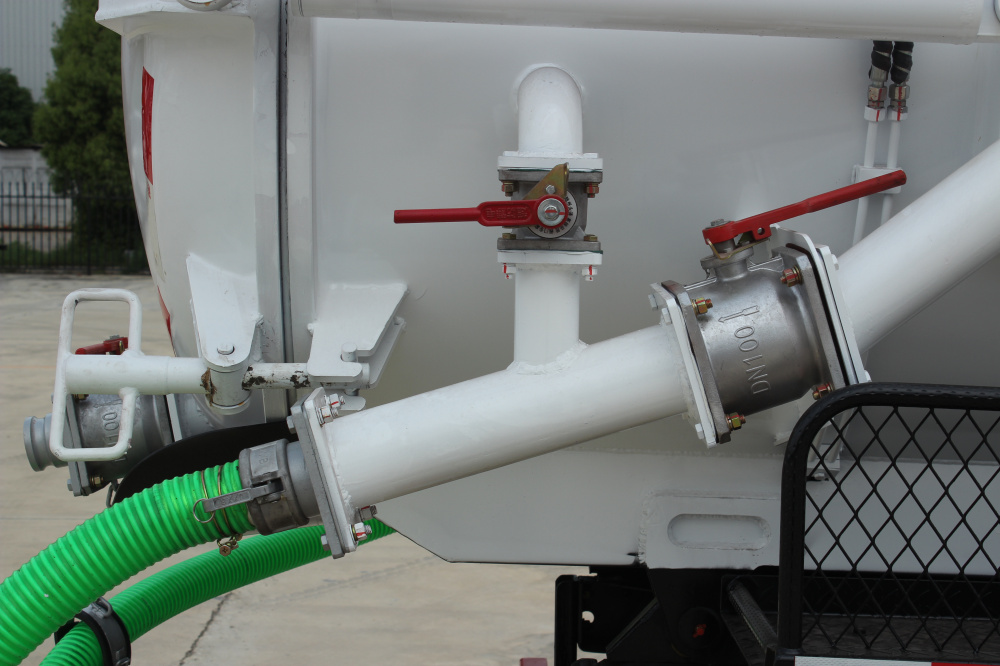

| Inlet and Outlet pipe | Diameter(mm) | 108 mm | |
| Length(m) | 5.0 m | ||
| Quantity(pcs) | 1 pc | ||

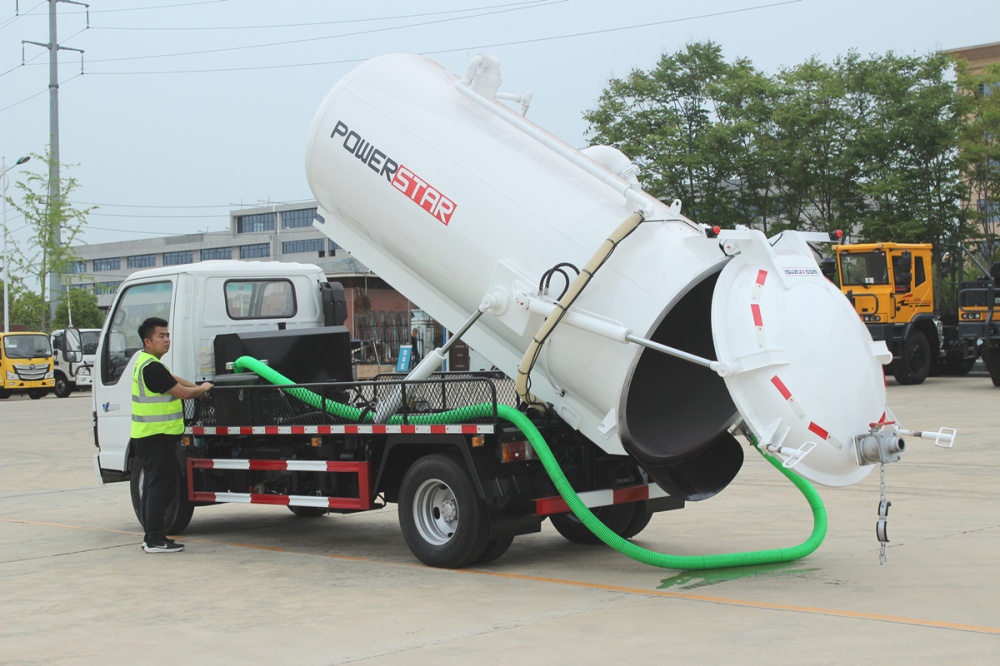

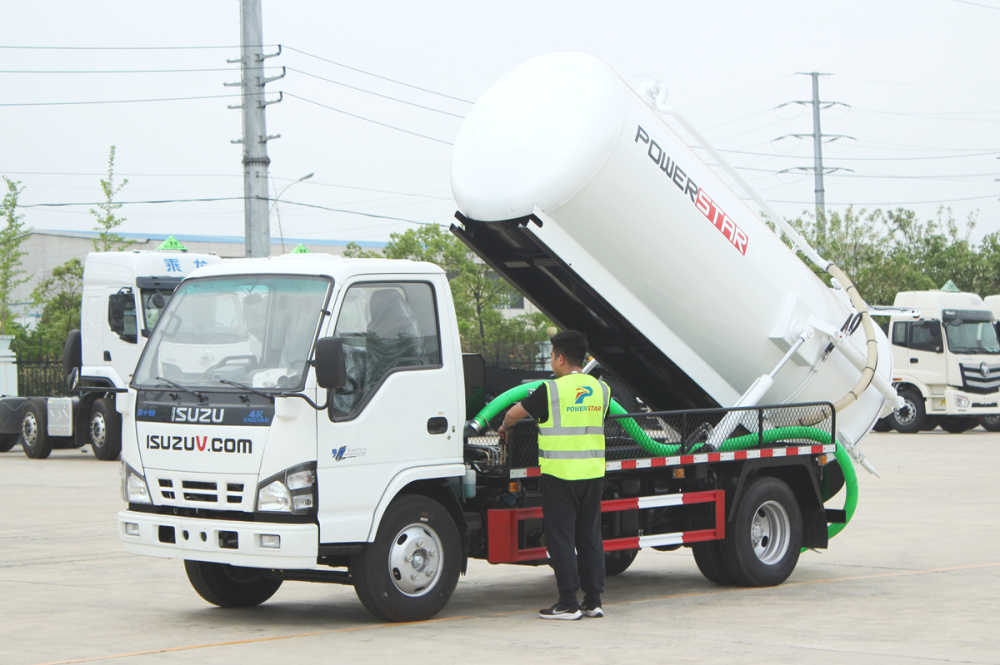

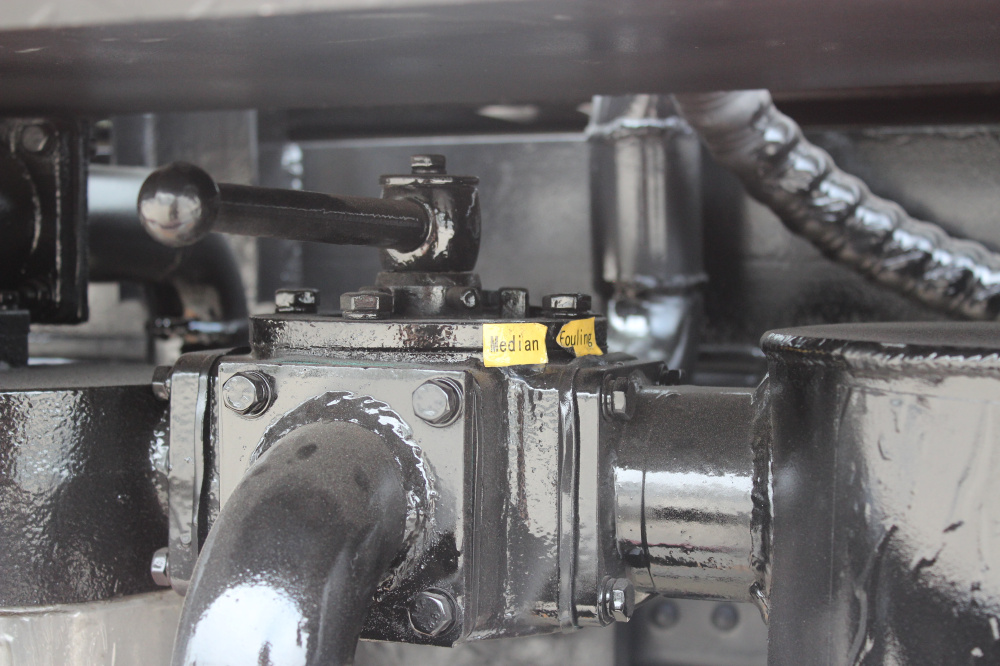

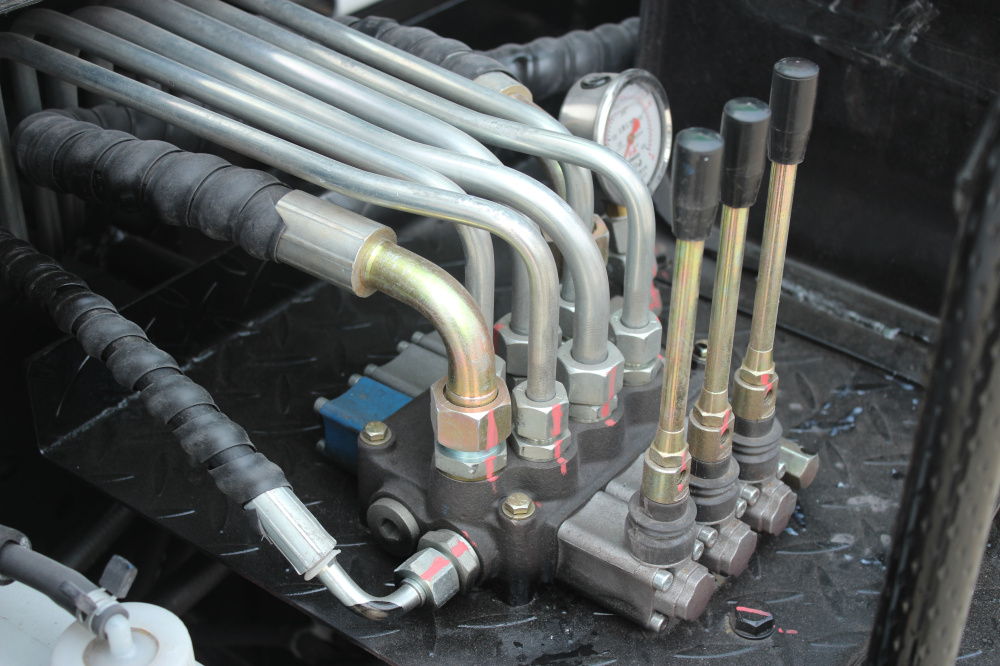

| Main parts | 1. Water-gas separator 2. Oil-gas separator 3. Four way valve 4. Safety valve 5. Anti overflow valve 6. Anti overflow warning device 7. Hydraulic control rear cover 8. Tipping sewage tank body |
||
Additionally, the enhanced wastewater management capabilities of the Isuzu waste water vacuum truck contribute to preserving the natural beauty of Guam's coastal areas and beaches. By minimizing wastewater spills and leakages, the truck helps to maintain the pristine condition of the island's surrounding marine ecosystem. This not only benefits the locals but also ensures the sustained attraction of tourists to the island, boosting Guam's economy.
Furthermore, the utilization of the Isuzu Waste Water Vacuum Pump Truck exemplifies Guam's commitment to sustainable and responsible development. The truck is designed to meet international standards and regulations for wastewater management, ensuring compliance with environmental guidelines. By adopting such advanced and environmentally friendly technologies, Guam sets an example for other regions and reaffirms its dedication to preserving the natural resources of the island.
