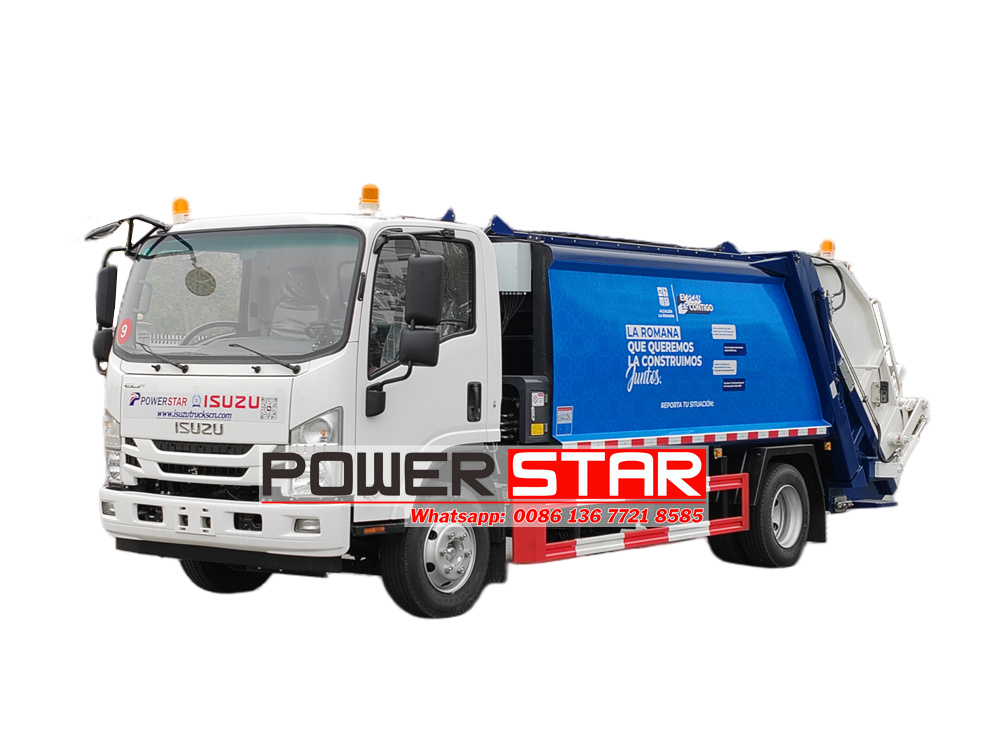

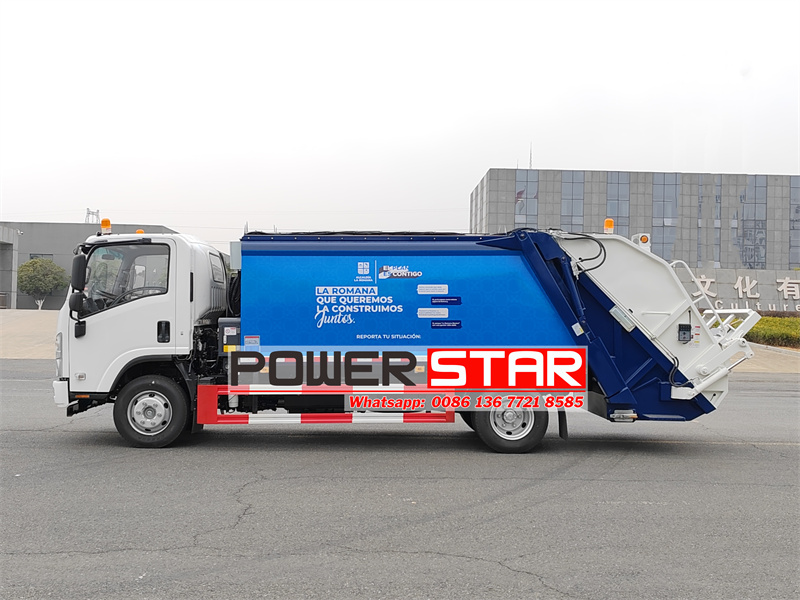

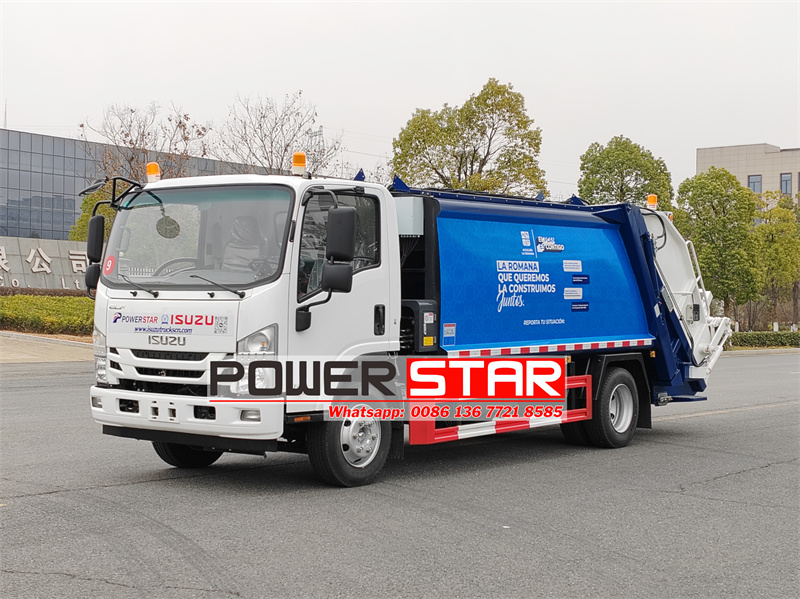

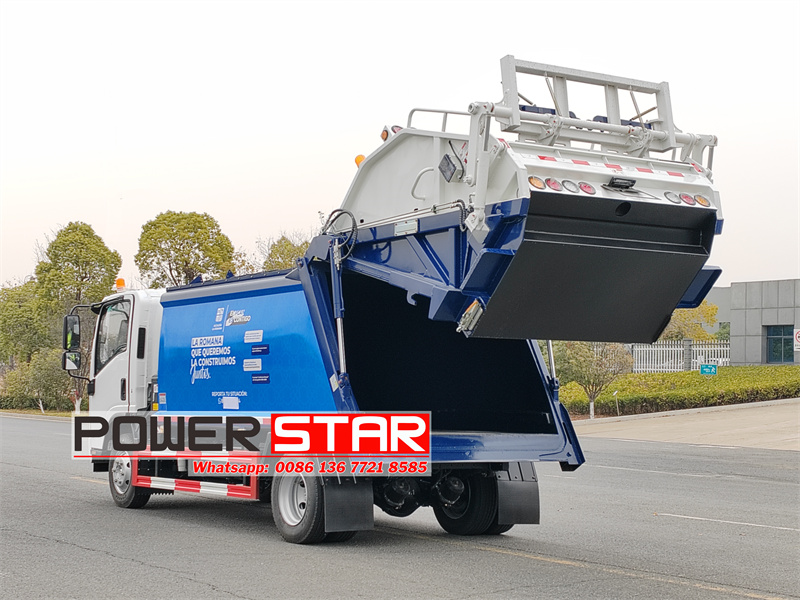

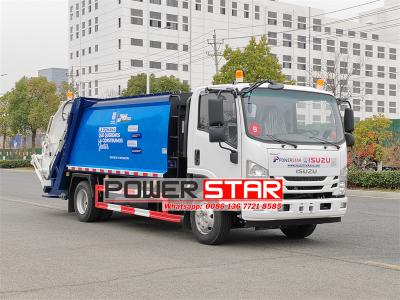

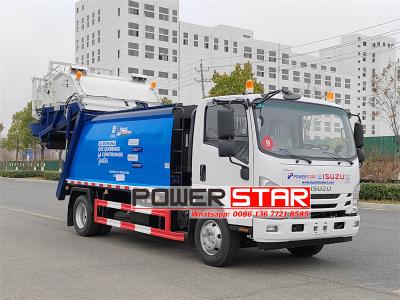

Isuzu 8cbm garbage compactor truck, which is modified based on Isuzu 700P chassis, 3815mm wheelbase, Isuzu 4HK1-TCG61 engine, 139Kw, EURO 6 emission, 5193ml displacement. The vehicle's compressed volume is 8cbm. The vehicle's garbage loading and unloading has four operating controls, including the electric control box in the cab, the manual hydraulic operating lever on the driver's side, the electric control box on the left side of the tailgate, and the manual operating lever on the right side of the tailgate.
Work capacity:
8cbmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
Isuzu 8cbm garbage capacity,strong compression capabilityIsuzu 10 Yard Rear Lift Garbage Truck is a garbage collection and transportation vehicle professionally modified based on Isuzu 700P chassis. It is equipped with an advanced rear lift mechanism and an efficient compression system, which can compress garbage to a compact volume of 8 cubic meters, significantly improving transportation efficiency. The vehicle provides multiple operating modes, including an electronic control box in the cab, a manual hydraulic operating lever on the driver's side, and an electronic control box and manual operating lever on the left and right sides of the tailgate, ensuring that the driver can flexibly control it according to different scenarios. The vehicle has become an important tool in the field of urban garbage disposal with its powerful functionality and efficient operation capabilities.
● 30 years experience on ISUZU rear loader truck designing
● 50 units Isuzu refuse compactors in stock
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
Key Features:
★ Various size body from 3cbm to 25cbm,with beautiful appearance
★ ISUZU 4HK1 engine,super powerful;reliable performance. no overhaul,within 1000000km
★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage
★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes
★ Diffient rear flip systerm are optional
★ Can be put into 20",40"container and ship to worldwide
Product Parameters
|
Isuzu 700P 8cbm rear loader compactor |
||
|
Vehicle Model: |
PT5110GYS |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7600x2300x2450mm |
|
Wheelbase: |
3815mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2675mm |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Weights and Capacities |
Curb Weight: |
6750Kg |
|
GVW: |
10550Kg |
|
|
Axle Loads: |
4000/6550kg |
|
|
Engine |
Type: |
4 cylinder inline,4 strokes,water cooling,turbo inter cooling,diesel engine |
|
Engine Model: |
Isuzu 4HK1-TCG61 |
|
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Exhaust Gas Treatment Technology： |
EGR |
|
|
Max Torque |
507N.m |
|
|
Rated speed |
2600rpm |
|
|
Maximum torque speed |
1600-2600rpm |
|
|
Transmission |
Transmission: |
Isuzu MLD-6 speed,manual |
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
24V-80A |
|
|
Cab |
Number of Seats: |
3 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7(Including Spare Tire) |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Top Parameters |
Garbage Container Capacity |
8cbm |
|
Compression ratio |
1:3.4 |
|
|
Cycling time of Filling |
≤25S |
|
|
Lifting time of Filler |
8-10S |
|
|
Time of Discharging |
≤45S |
|
|
Hydraulic System Pressure |
16Mpa |
|
|
Hydraulic system control mode |
Manual/electric integrated control |
|
|
Oil cylinder type |
Double-acting piston type |
|
|
Oil pump |
Dual gear pump |
|
|
Directional control valve |
Multiple way reversing valve |
|
|
Manipulator configuration |
Standard double barrel manipulator |
|
|
Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Retro-Reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Tubeless Tire |
|
|
6 |
Free Maintenance Battery |
|

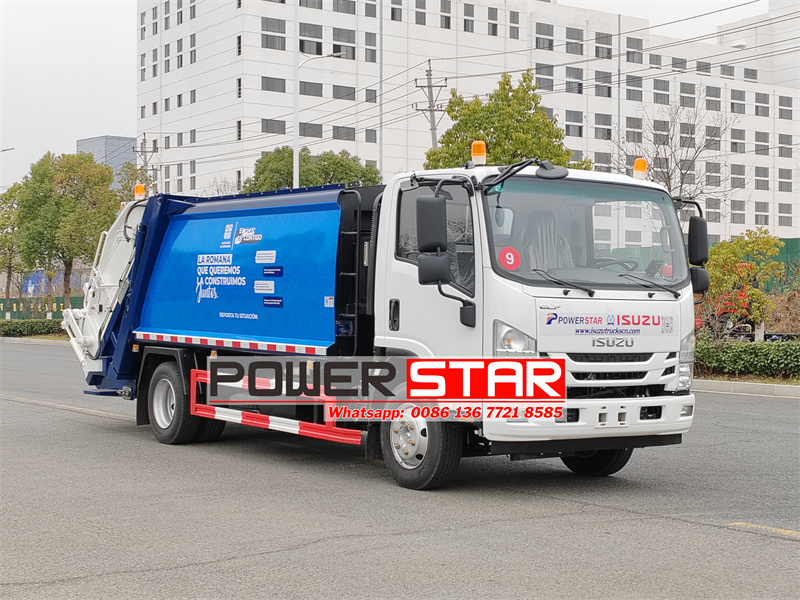

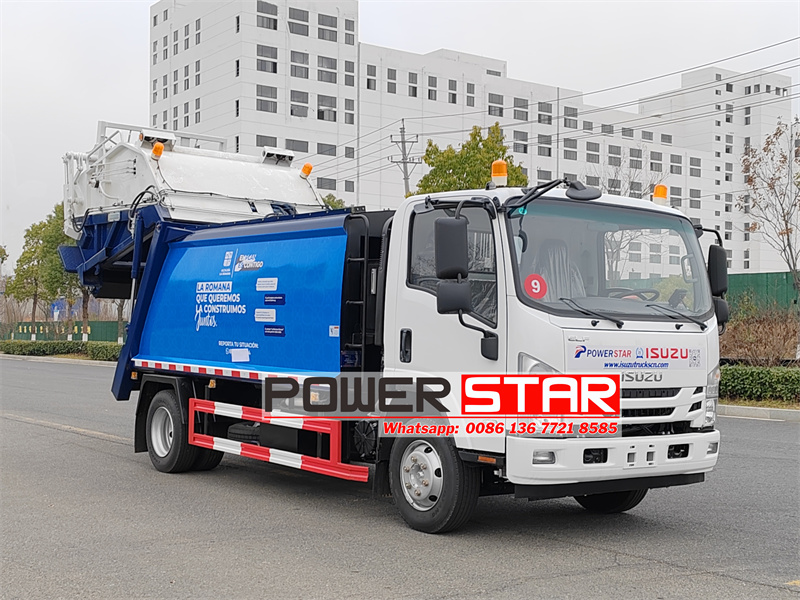

Isuzu 10 Yard Rear Lift Garbage Truck Overview
The Isuzu 10 Yard Rear Lift Garbage Truck is a specialized vehicle built upon the robust chassis of the Isuzu 700P. This truck is designed for efficient waste management, incorporating advanced features for enhanced performance and operator convenience.
Main Information:
Base Model: Isuzu 700P
Wheelbase: 3815mm
Overall Dimension(L x W x H):7600x2300x2450mm
GVW:10550Kg
Engine: Isuzu 4HK1-TCG61
Power Output: 190HP/139Kw
Emission Standard: EURO 6
Displacement: 5193ml
Garbage bin capacity:8cbm

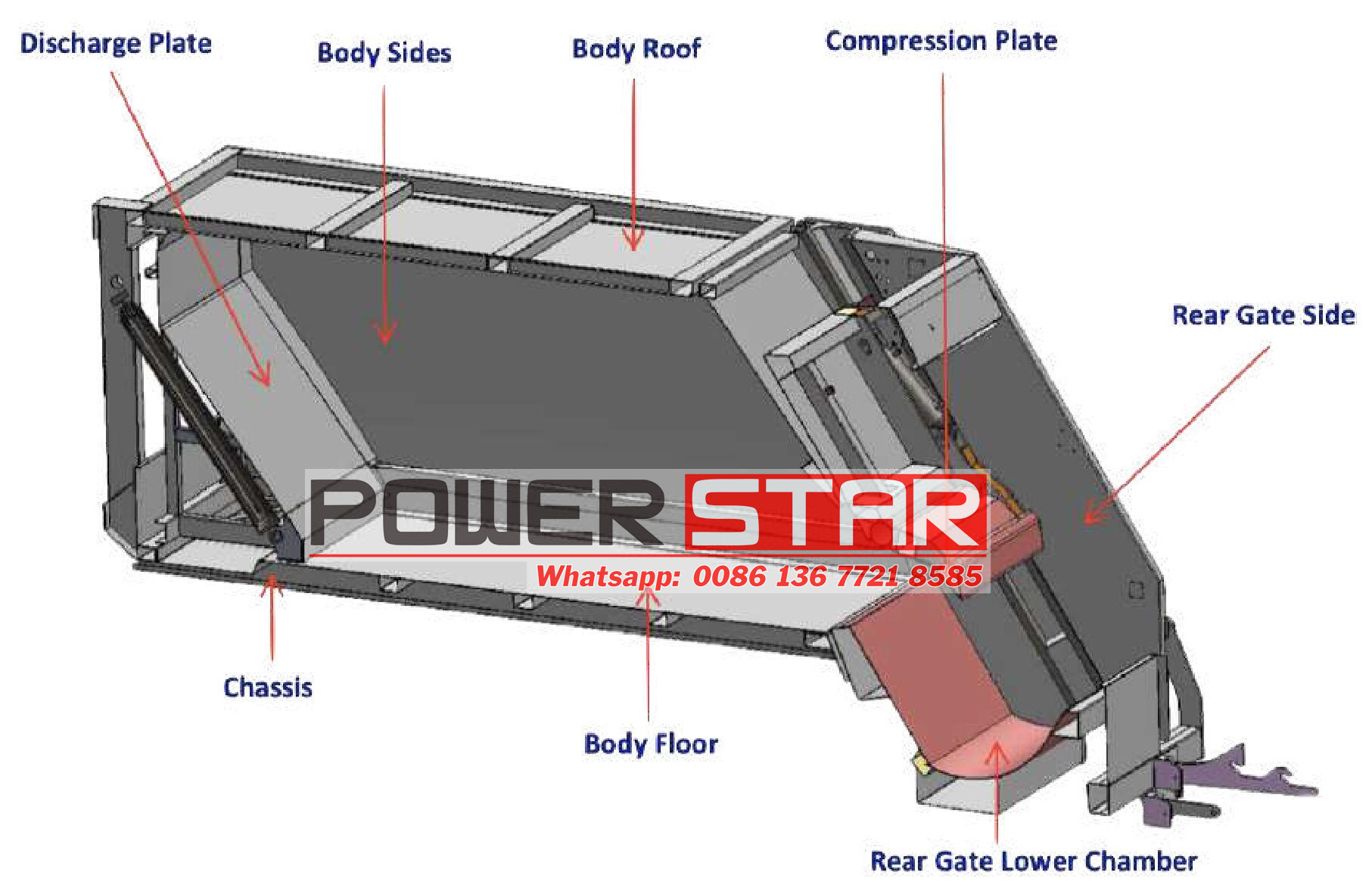

Filling steps of the compression garbage truck:
Scraper preparation: When the filling hopper is full of garbage, the scraper opens and is ready to be inserted into the loose garbage.
Preliminary compression: The slide plate drives the scraper to move downward together, inserting into the garbage for crushing and initial compression.
Further compaction: The scraper rotates forward to further compact the garbage.
Garbage filling: After the scraper is in place, it moves upward with the slide plate, compacts the garbage into the garbage bin, and returns to the starting position. During the continuous compression and filling of garbage, the push shovel overcomes the back pressure under the action of the extrusion force and gradually retreats, so that the garbage fills the entire garbage bin evenly.
Closed garbage bin: After the garbage truck is full of garbage, the garbage bin is completely closed and will not pollute the environment during transportation.
Unloading garbage: When the garbage truck unloads garbage at the treatment (or landfill) site, first lift the filler, open the rear end of the garbage bin, and the push shovel originally parked at the front end of the garbage bin moves backward, and pushes the garbage out of the garbage bin in the horizontal direction.
Operation control methods:

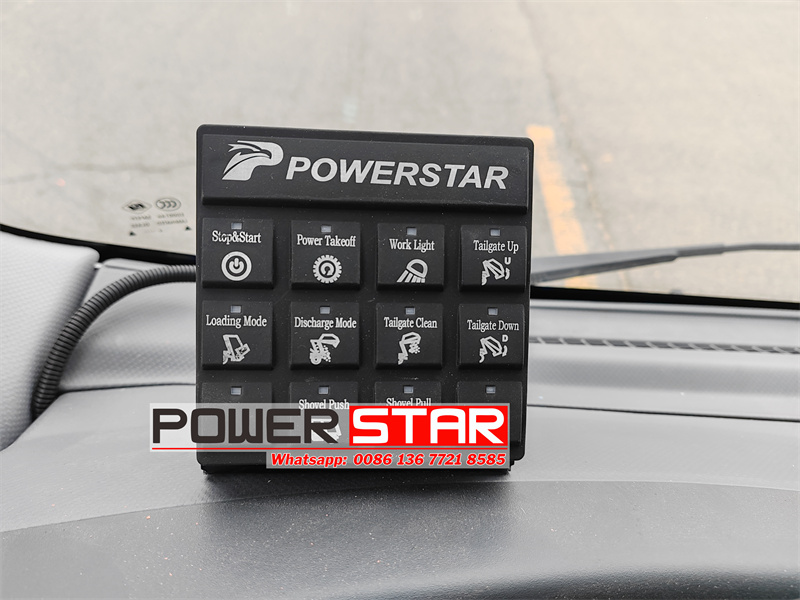

★ Electrical control box in the cab:
Tailgate lifting/cleaning: Press the corresponding button, and the tailgate will automatically rise or fall for easy cleaning and maintenance.
Loading mode: Press this button to switch to loading mode, which can control the loading operation button at the rear of the vehicle to perform loading operations, and interlock with "unloading".
Unloading mode: Press this button to switch to unloading mode, which can control the unloading operation button inside the cab to perform unloading operations, and the loading operation cannot work at the same time, which is interlocked with "loading".
Shovel: Operate this button in the "unloading" mode to control the extension and retraction of the shovel.
Advantages: Provides a centralized, ergonomic control point for the driver, allowing easy and safe operation without leaving the cab.

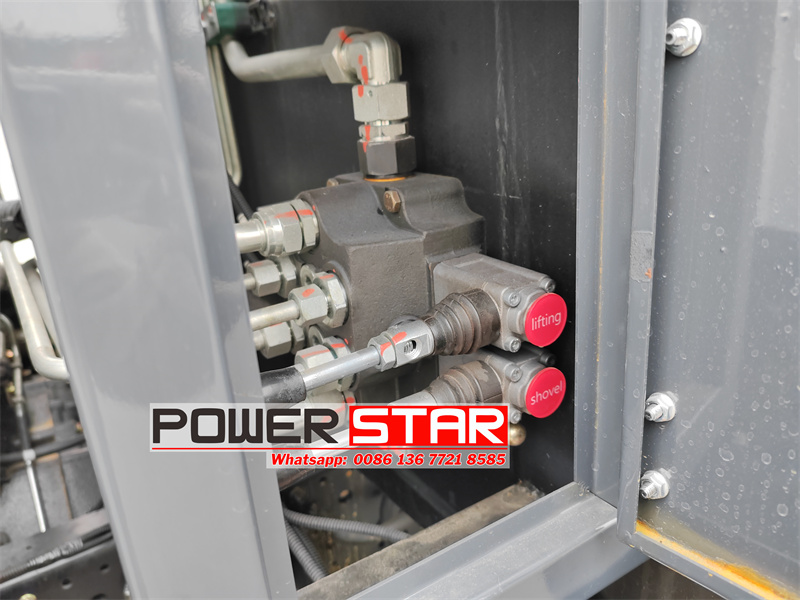

★ Manual hydraulic lever on the driver's side:
Tailgate lift: Manually control the raising and lowering of the tailgate by pulling or pushing the operating lever.
Shovel: Also manually control the extension and retraction of the dozer blade through the operating lever.
Advantages: Some basic operations can be performed on the tailgate and dozer blade on the ground.

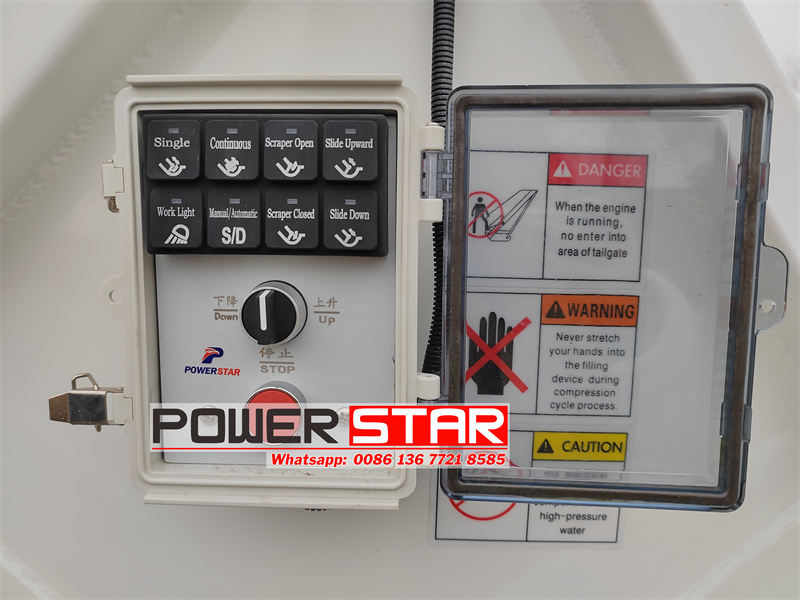

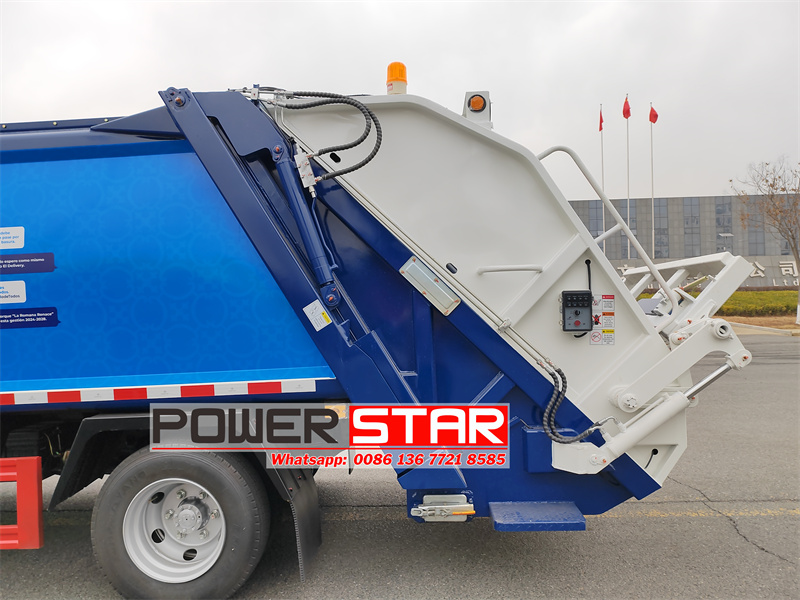

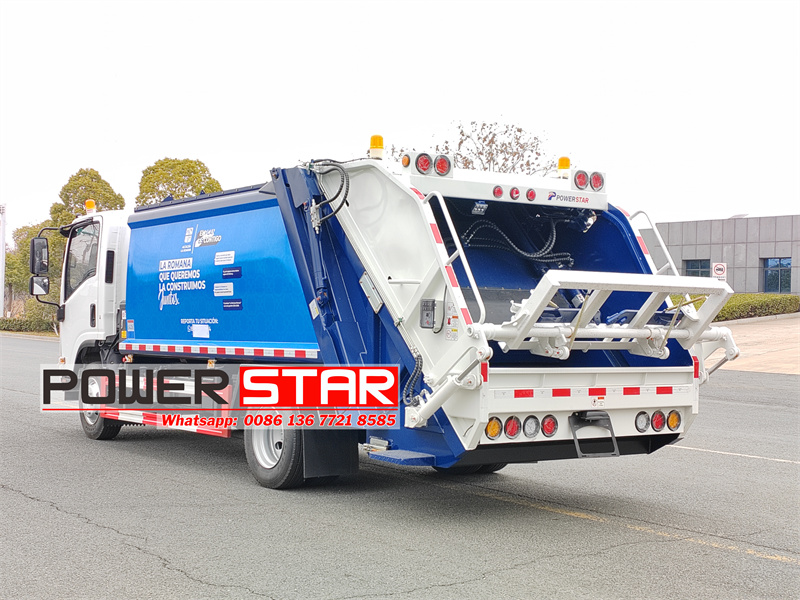

★ Electric control box on the left side of the tailgate:
Single/Continuous cycle: Select single execution or continuous execution of a series as needed Operation.
Scraper Open/Close: Control the opening and closing of the scraper to better scrape and compress the garbage.
Slide Plate Down/Up: Control the slide plate to slide along the inside of the garbage truck to assist in loading the garbage.
Automatic/Manual Mode: In automatic mode, the vehicle will automatically perform operations according to the preset program; in manual mode, the driver needs to manually control various functions.
Flipping Mechanism Flip: Used to flip the hanging bucket on the flipping mechanism to tilt the garbage into the filler.
Advantages: Specific operations can be performed directly at the rear of the truck, which is very useful in precise waste handling tasks.

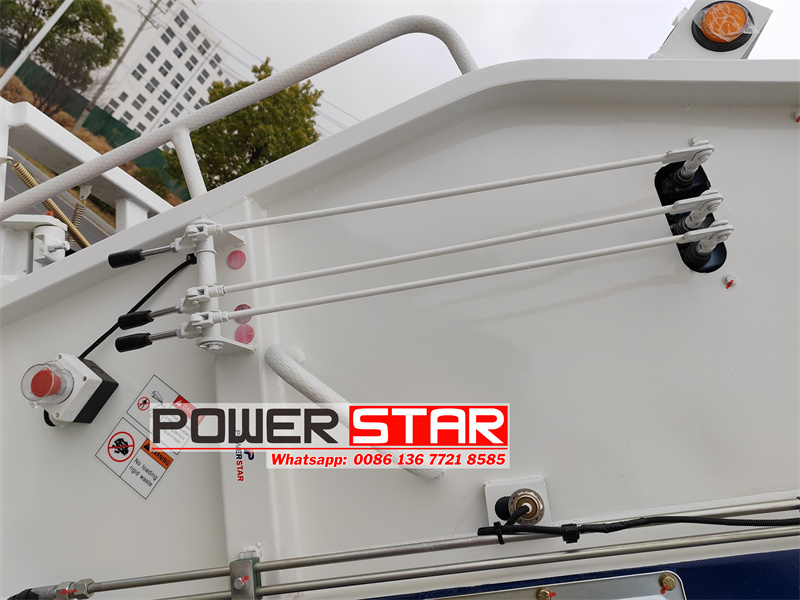

★ Manual operating lever on the right side of the tailgate:
Rolling Over: Manually control the flipping action of the flipping mechanism at the rear of the garbage truck through the operating lever.
Sliding Plate: Manually control the movement of the slide plate to assist in loading the garbage.
Scraper: Manually control the opening and closing of the scraper for better handling of the garbage.
Advantages: Provides direct manual control of key functions, ensuring reliability and flexibility in various operating scenarios, especially in the event of electrical system failure.
