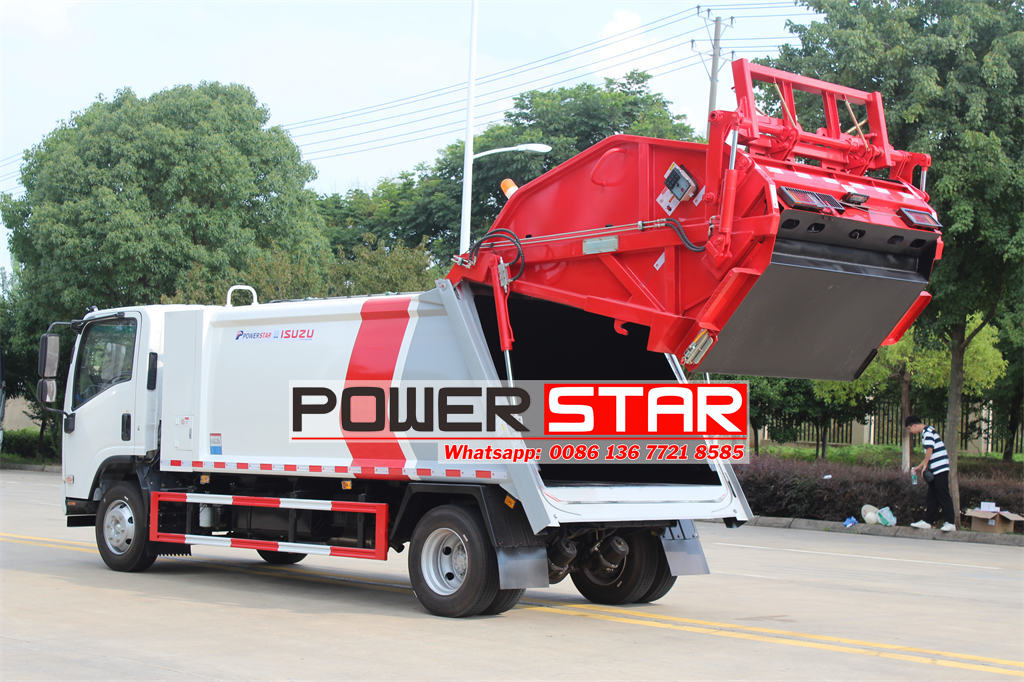

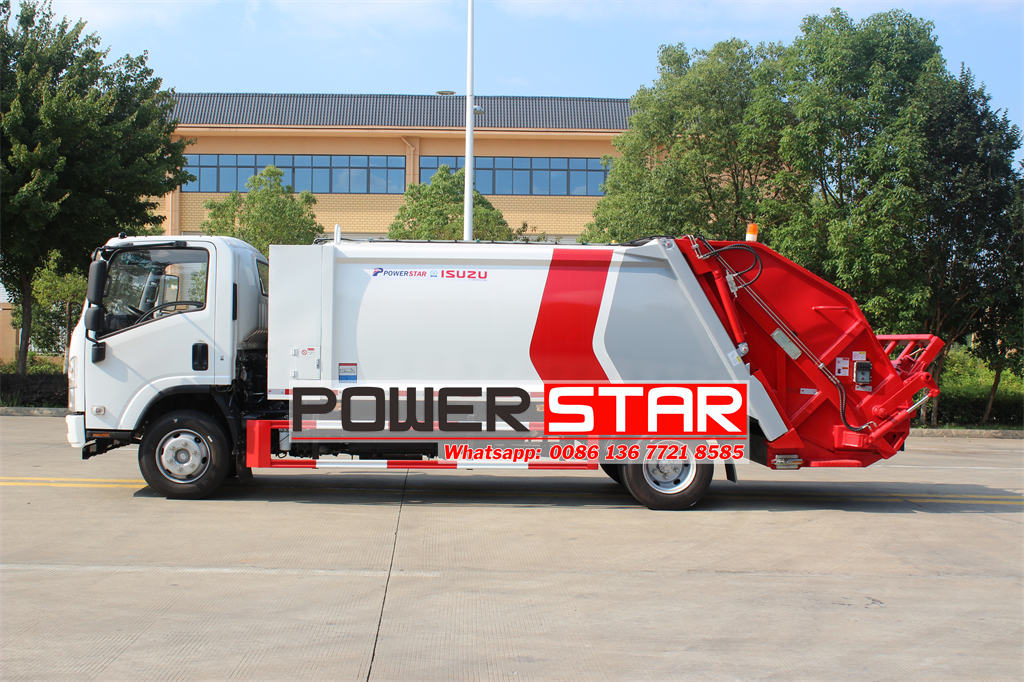

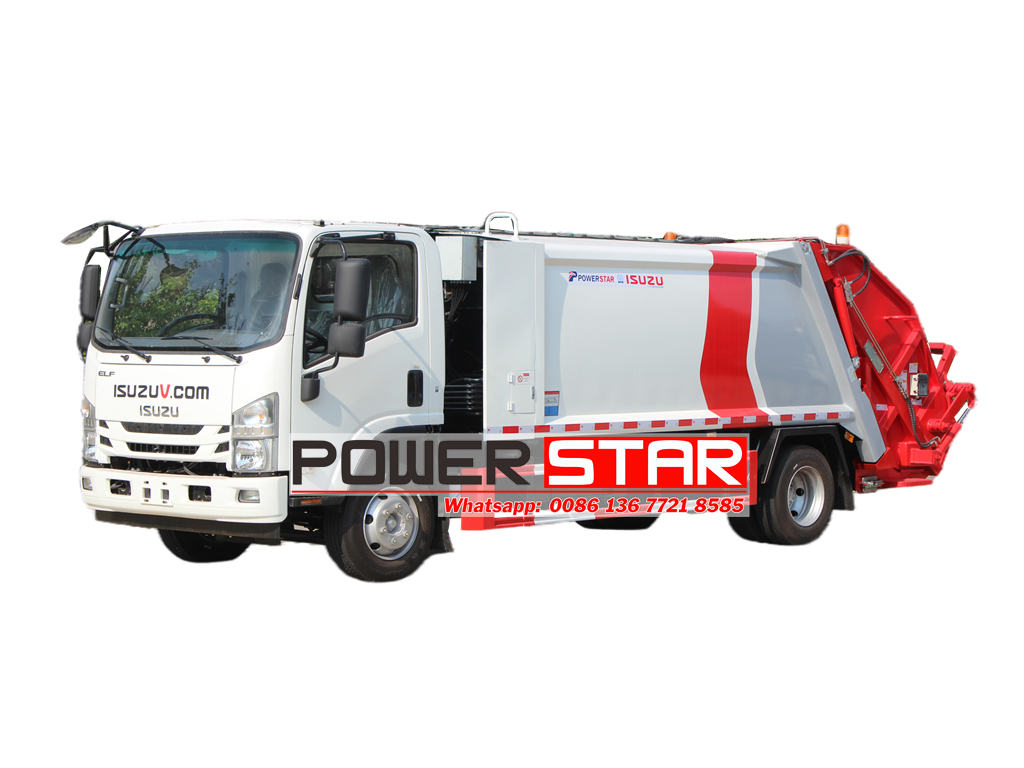

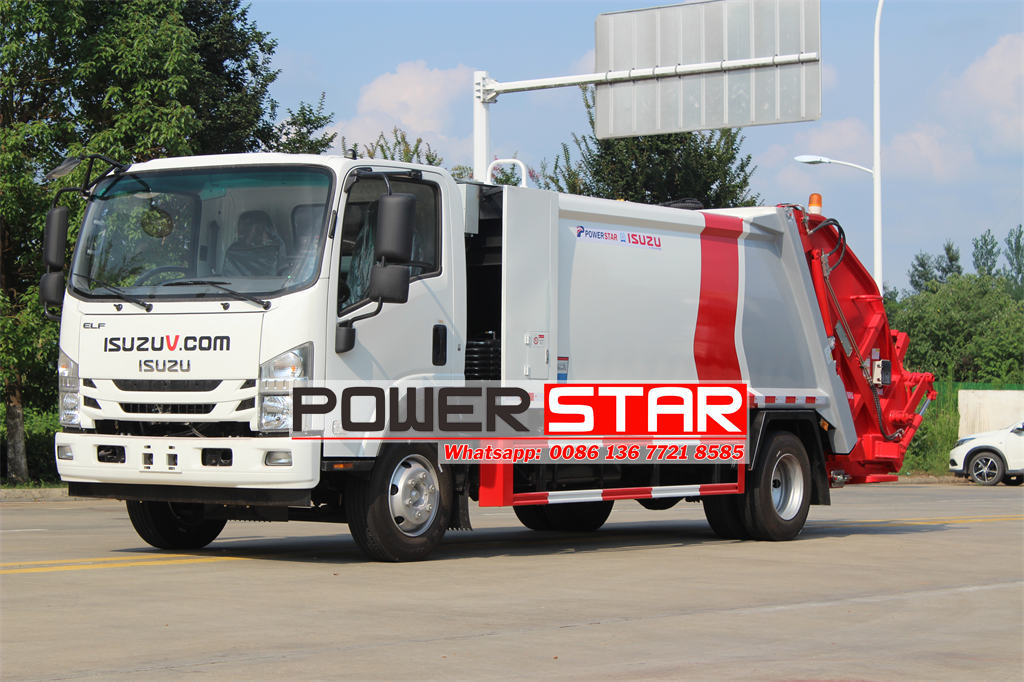

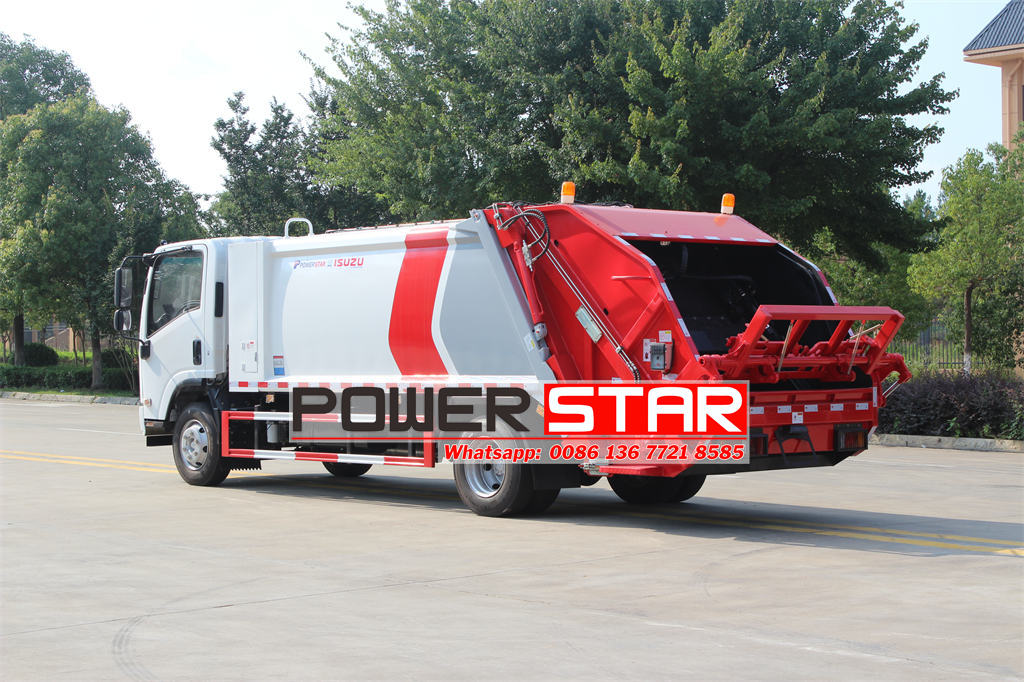

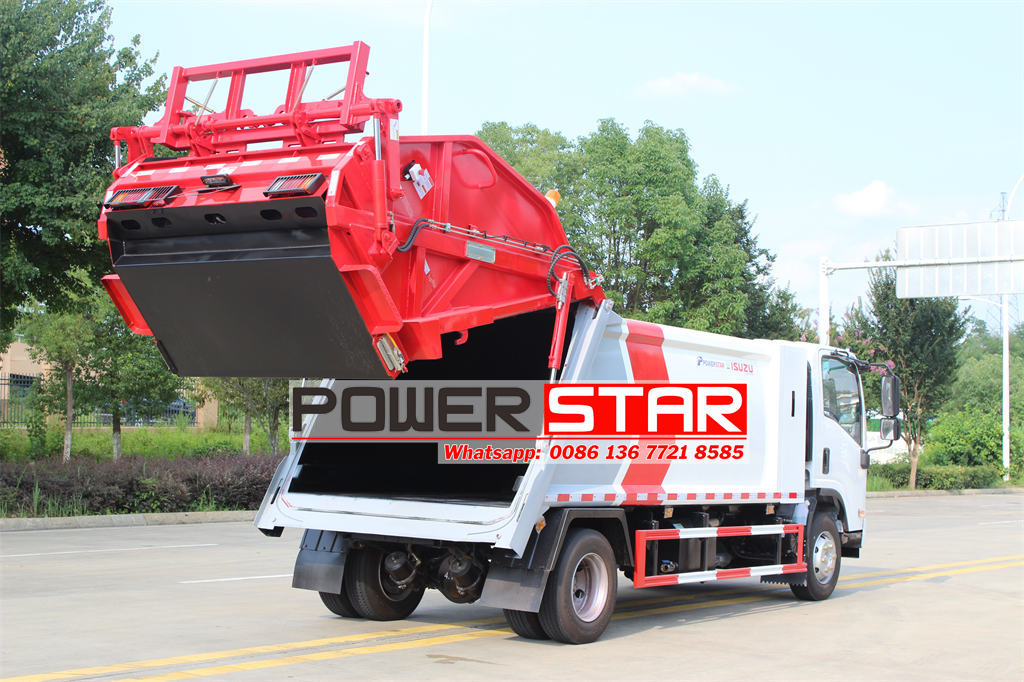

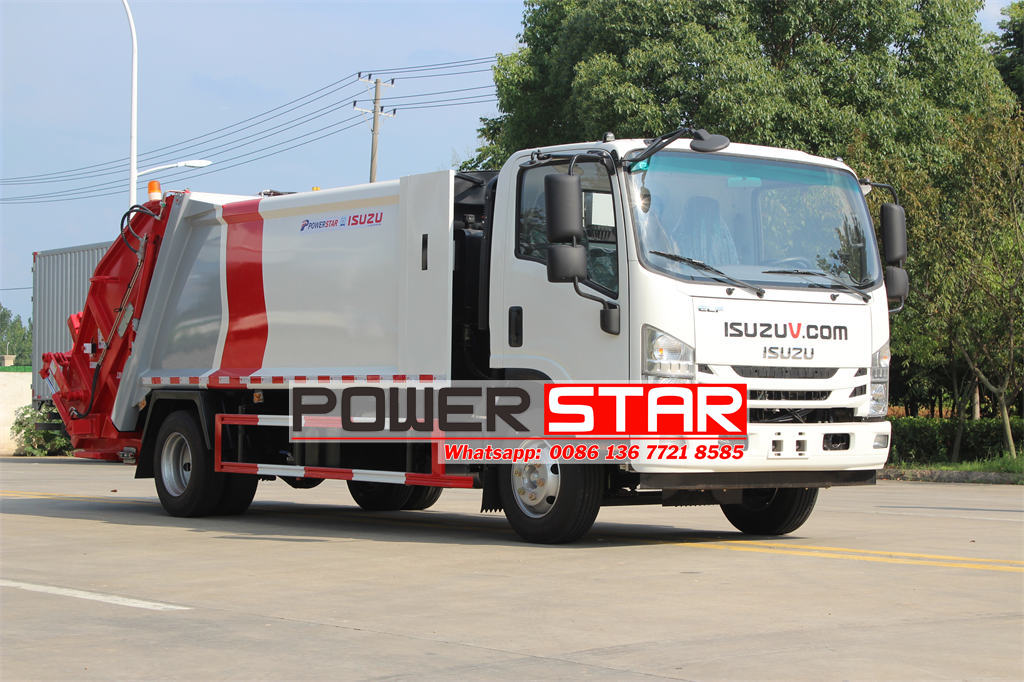

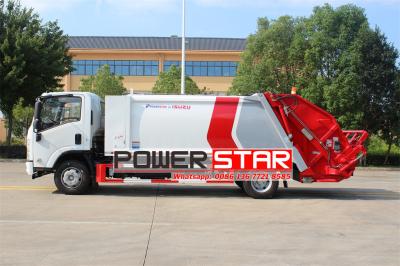

The ISUZU NPR 10 Yard Refuse Compactor Truck is a highly efficient urban waste disposal equipment, equipped with a powerful ISUZU 190HP engine. Its core feature is an 8-cubic-meter compactor that utilizes a hydraulic system to compress garbage, enhancing loading efficiency. The vehicle adopts an advanced CAN-bus control system for intelligent operation. The tailgate is equipped with a garbage bin lifting device, compatible with various sizes of garbage bins including 120L, 240L, 480L, and 660L. The compact design of the vehicle makes it suitable for operating in narrow city streets, combining both environmental friendliness and efficiency. It is an ideal choice for urban sanitation work.
Work capacity:
10 yard (8 CBM)Engine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4x2, left hand driveGear box:
MLD 6-speed,manualRemarks:
Custom compactor body and paitingThe ISUZU 10 Yard Rear Loader Garbage Truck is a specialized vehicle designed for efficient waste management, based on the Isuzu NPR chassis. It is primarily used for the collection, compression, and transportation of municipal solid waste. Its core feature is an 8-cubic-meter (10 cubic yards) compactor body that utilizes a hydraulic system to powerfully compress waste, significantly increasing load capacity, reducing the number of transport trips, and lowering operational costs.
The ISUZU 10 yard garbage compactor truck is equipped with Isuzu's advanced 4HK1-TCG61 diesel engine, which delivers strong power and excellent fuel economy, making it suitable for operation on urban roads and in complex environments. The vehicle is fitted with an automatic loading and unloading system that is easy to operate, enhancing work efficiency.
Furthermore, the ISUZU NPR Refuse Compactor Truck boasts good sealing properties, effectively preventing waste from scattering and odors from spreading, thus complying with environmental protection requirements. It is suitable for the collection and transportation of barrelled, bagged, and bulk household waste in urban residential areas, communities, large factories and mines, as well as government and educational institutions. It is an ideal choice for urban waste management.
● 30 years experience on ISUZU rear loader truck designing
● 50 units Isuzu refuse compactors in stock
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
Product Specifications
|
Chassis parameters |
|||
|
Chassis model |
QL1110AN |
Chassis brand |
ISUZU |
|

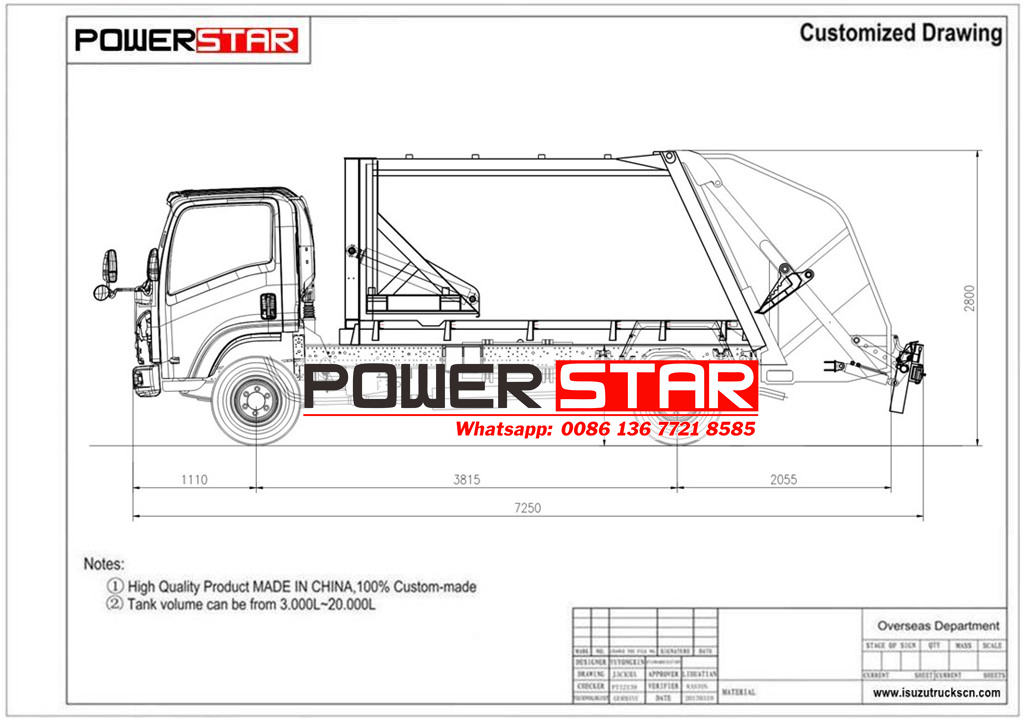

Overall dimensions |
7800×2300×2650mm |
Wheelbase |
3815 |
|
Front/rear wheel track |
1680/1650mm |
Front/rear overhang |
1110/2055mm |
|
Approach/departure angle |
24/14° |
Maximum speed |
110 km/h |
|

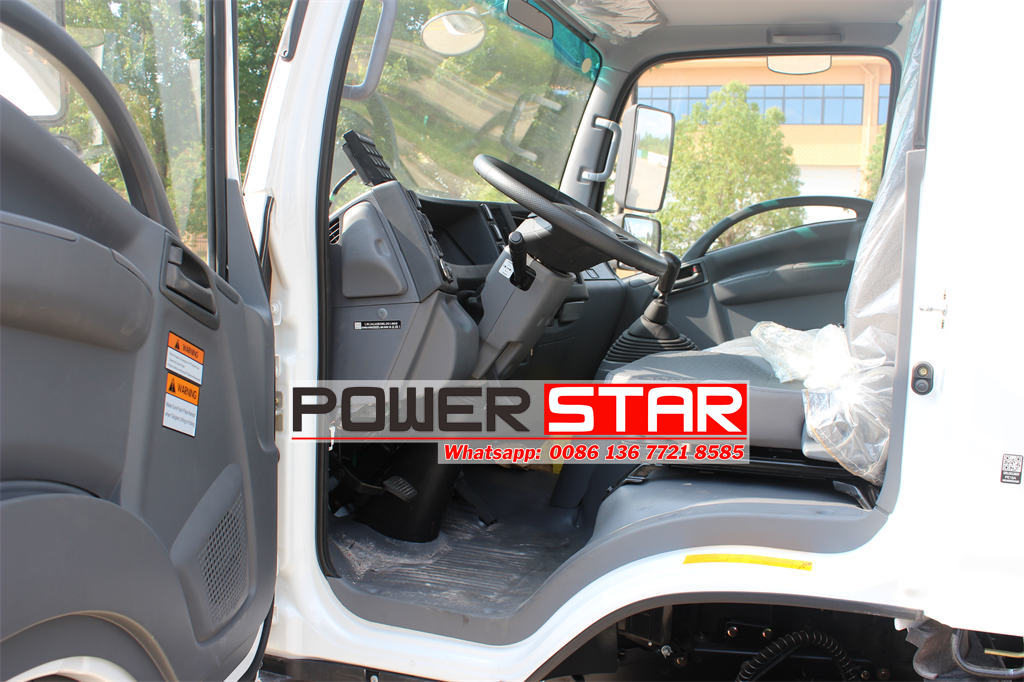

Cab |
Configuration |
ELF single cab, hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers |
|
|
Color |
White, other color is optional |
||
|
Engine |
Model |
4HK1-TCG61 |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, 4-stroke, water-cooled, inter-cooling, turbocharged, diesel engine |
||
|
Rated power |
189 hp |
||
|
Displacement |
5193 ml |
||
|
Max. torque |
507 N·m |
||
|
Bore x stroke |
115*125mm |
||
|
Tire |
Size |
235/75R17.5 |
|
|
Number |
6+1 nos |
||
|
Front axle |
3500 kg |
||
|
Rear axle |
7050 kg |
||
|
Drive form |
4*2 |
||
|
Rated voltage |
24V, DC |
||
|
Transmissions |
MLD six speed transmission, 6 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Refuse compactor structure parameters |
|||
|
Compactor body volume |
8 CBM |
||
|
Compactor body shape |
Arc-shaped |
||
|
Compactor body material |
T420 special steel, sidewalls 4mm, bottom 5mm |
||
|

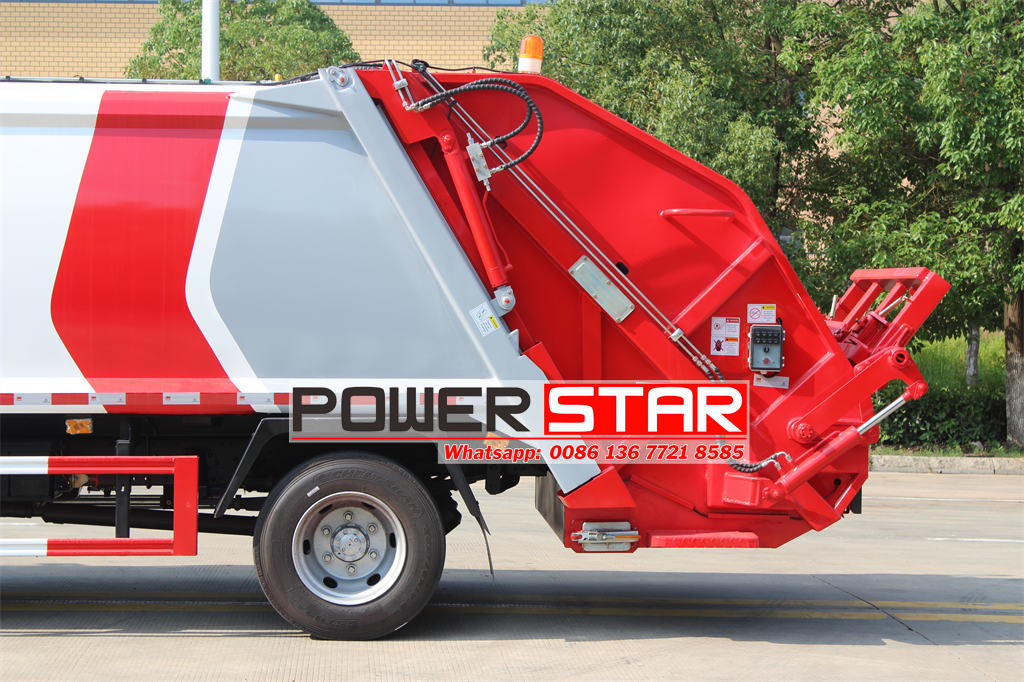

Tailgate capacity |
1 CBM |
||
|

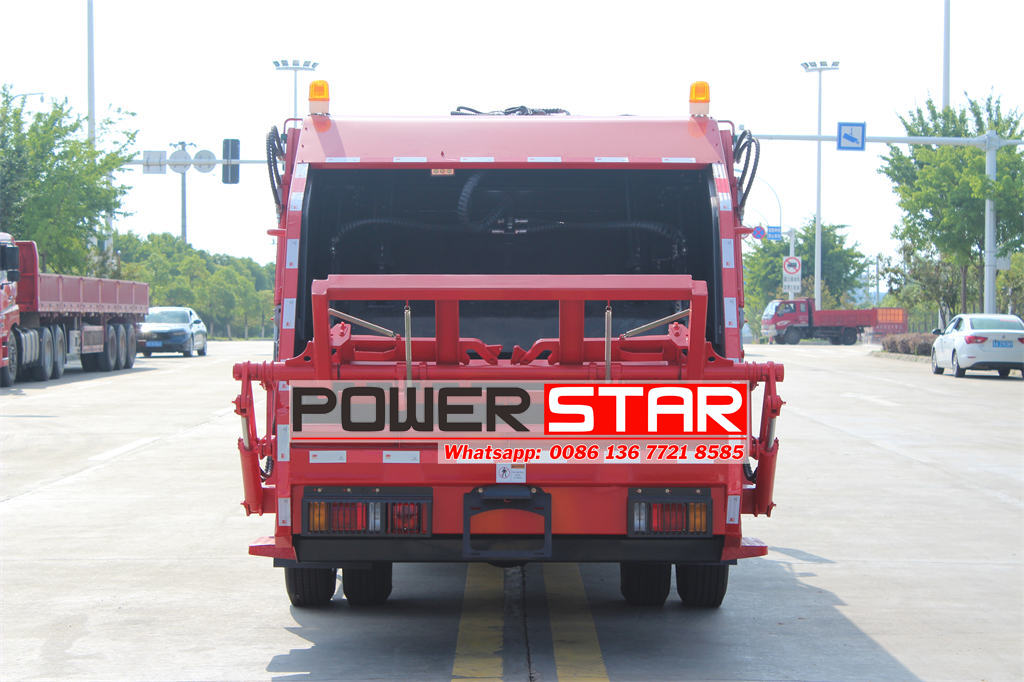

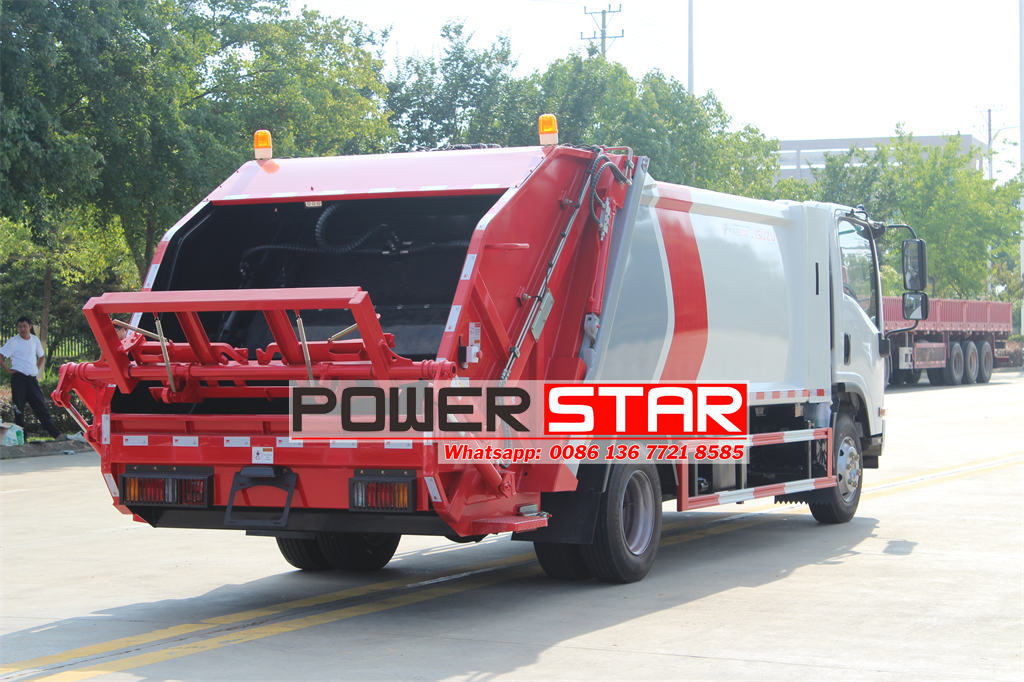

Bin lifter |
Suitable for 120L,240L,480L,660L waste bins |
||
|
Waste water tank capacity |
200 L |
||
|
Compression ratio |
≥2.5 |
||
|
Compression ratio |
≥2.5 |
||
|
Loading cycle time |
≤25s |
||
|
Garbage unloading time |
≤45s |
||
|
Control method |
Automatic+Manual |
||
Product Characteristics
1. High Compression Ratio: The ISUZU 10 yard rear loader truck features a high compression ratio of up to 1:2.5 or above, allowing it to compress a large volume of garbage into a smaller space, significantly increasing loading capacity.
2. Efficient Operation: With a loading time of less than 30 seconds and an unloading time of less than 45 seconds, the truck greatly improves operational efficiency.

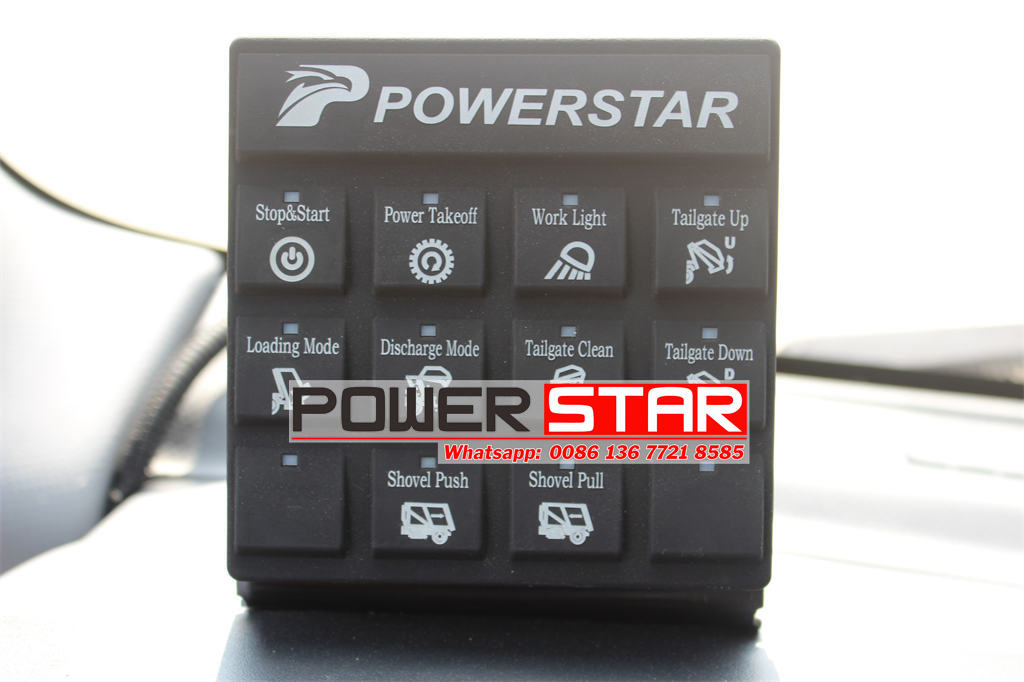

3. Intelligent Control: The CAN-bus control system enables intelligent operation, making it easier for drivers to control and monitor the truck's functions.
4. Versatile Compatibility: The tail-mounted garbage bin lifting device is compatible with multiple bin sizes, including 120L, 240L, 480L, and 660L, enhancing its flexibility and applicability in various urban sanitation scenarios.
5. Environmentally Friendly: The fully sealed design of the garbage bin prevents garbage from spilling during transport, reducing environmental pollution and improving urban sanitation standards.
6. Reliability and Durability: Core components such as the hydraulic system and compression mechanism are made of high-quality materials, ensuring the truck's reliability and durability.
Factory direct sale ISUZU ELF 700P rear loader garbage truck, high quality ISUZU 190HP 8CBM garbage compression trucks, ISUZU rubbish compactor manufacturer.
Learn More
Custom-made ISUZU ELF 700P hook lift garbage compactor truck, high quality ISUZU 190HP medium duty hook lift waste compactor truck, ISUZU rear loader manufacturer.
Learn More
This ISUZU trash truck rear loader is equipped with an advanced compression device that uses high-pressure air to compress the garbage into small pieces, thereby reducing the volume of the garbage and improving the removal efficiency. At the same time, the vehicle is also equipped with environmental protection equipment, which can effectively reduce exhaust gas and noise pollution, making a positive contribution to urban environmental protection.
Learn More
The ISUZU rear load trash truck is a modern environmentally friendly garbage cleaning equipment produced by POWERSTAR. It integrates mechanical, electrical, hydraulic, control and other technologies into one, and can efficiently and quickly collect, compress and remove garbage. It is an important tool for urban cleaning work.
Learn More

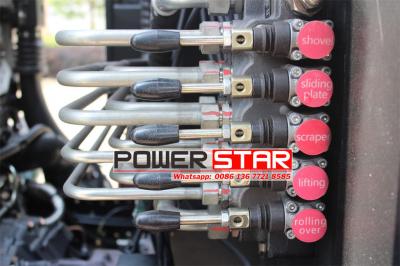

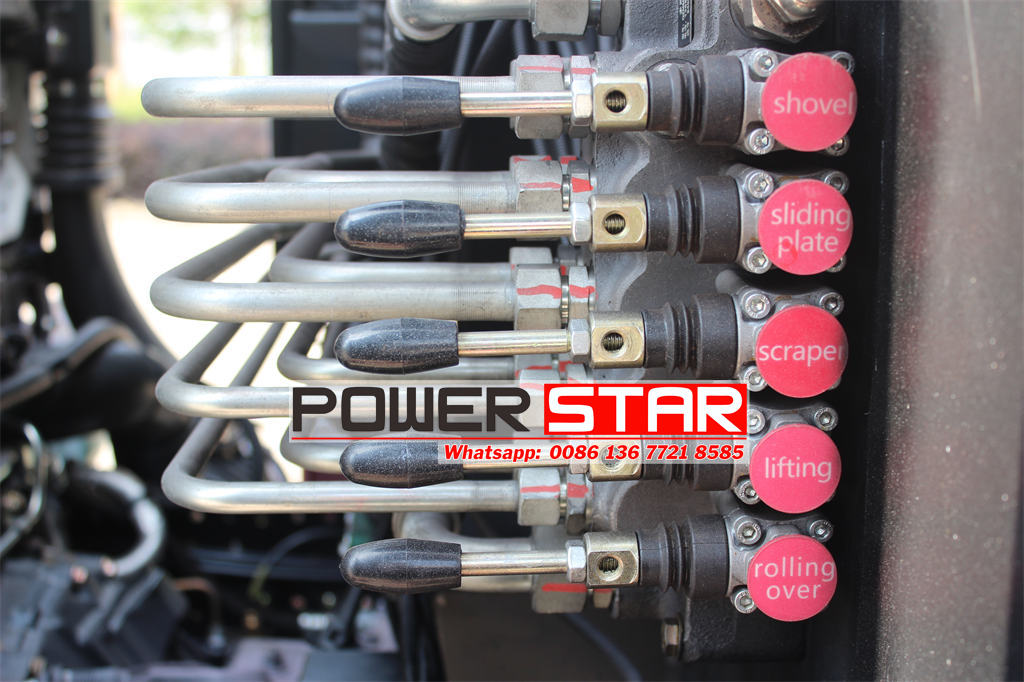

Isuzu 700P 4x4 8 cubic garbage compactor is a professional vehicle for garbage collection and transportation. It is modified on the basis of Isuzu 700P all-wheel drive chassis, with a wheelbase of 4175mm. The vehicle is equipped with Isuzu 4HK1-TCG61 diesel engine, 5193ml Euro 6 emission, and Isuzu MLD 6-speed gearbox; the vehicle is equipped with an 8-cubic arc-shaped carbon steel compactor garbage bin, and the tail is equipped with a bucket flipping mechanism, which can hang such as 240L, 660L, and 1100L garbage bins. The vehicle is controlled by a PLC electronic control system and a manual hydraulic system. The operator can control the loading and unloading of garbage through three operating methods: the electronic control box in the cab, the manual hydraulic operating valve on the driver's side, and the tailgate electronic control box.
