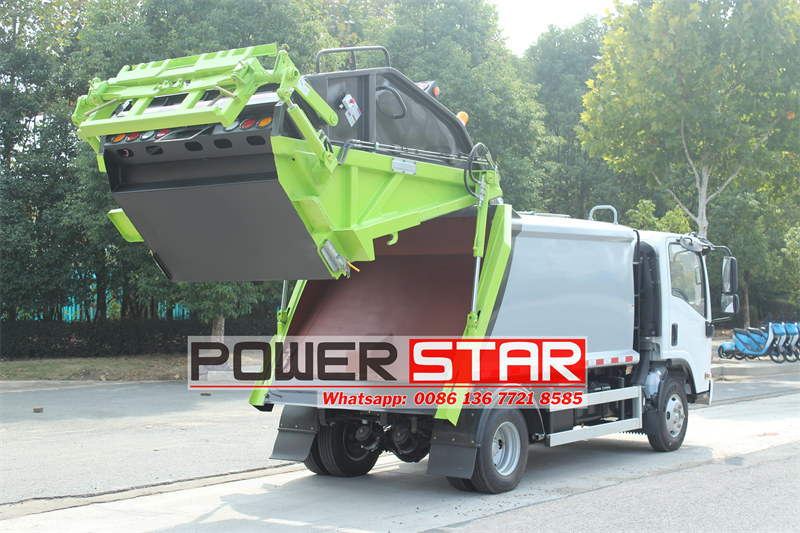

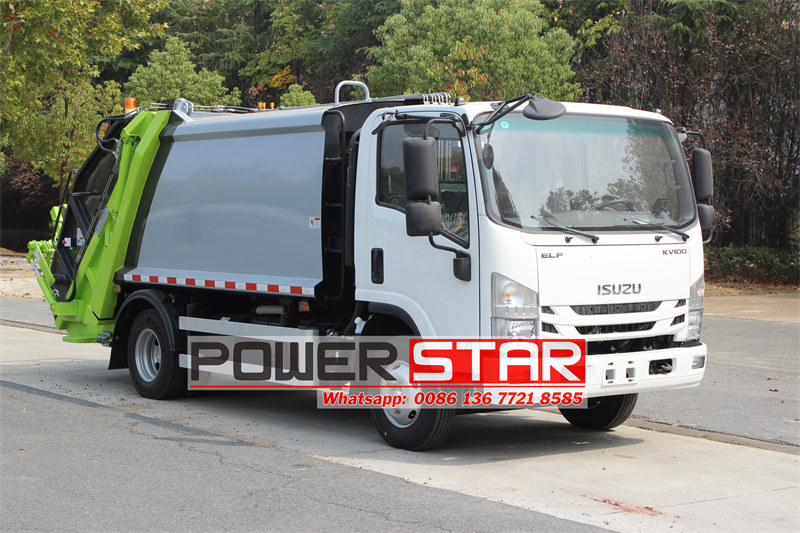

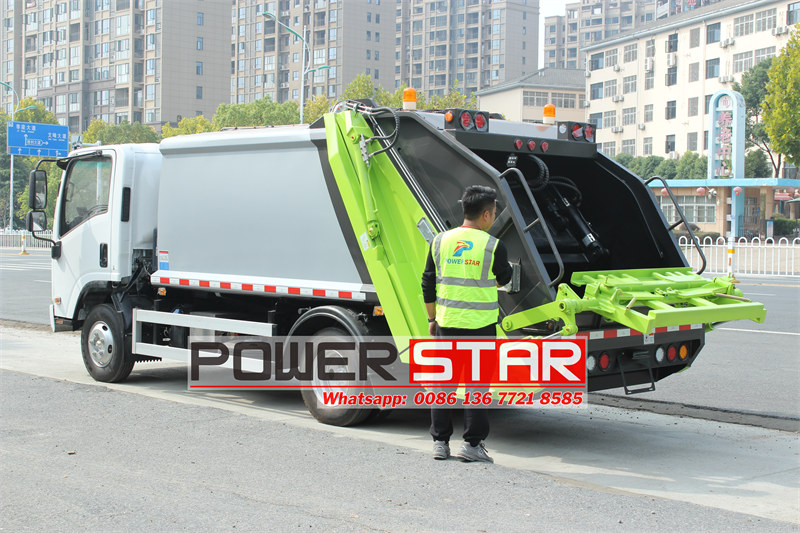

Compressed garbage truck ISUZU new NPR is composed of sealed garbage compartment, hydraulic system and operating system. Isuzu rear loader compactor truck equipped with 4KH1CN6LB diesel engine and 88KW / 120HP, which is fully sealed type, compression, compression in the process of sewage into the water, more thoroughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people, the key parts adopt imported components, high pressure, good sealing, convenient operation, safety, etc.
Work capacity:
6CBMEngine power:
120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4x2Gear box:
MSB 5-shift with 5F & 1RRemarks:
Customized painting and rear 1100L bin lifterEuropean clients visiting POWERSTAR factory and purchase ISUZU 6cbm garbage compactor truck new NPR 8 yard rear loader compactor truck.

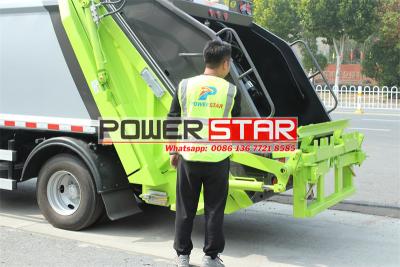

The Isuzu new NPR rear loader garbage truck is for garbage loading and unloading, also known as the Isuzu rear loader garbage truck, which is a special vehicle used for the collection, transportation and unloading of bagged, barreled and bulk domestic garbage in cities and towns. The garbage is scraped into the car by the scraping mechanism, and the garbage is distributed in the car with a higher density and more evenly through the squeezing between the push plate and the push plate until it is full; the collection and transportation method of this garbage truck is currently the most widely used garbage collection and transportation method in the world. The functions of its special devices are all powered by automobile engines and are realized manually or electronically through hydraulic mechanisms. The vehicle's box body, loader, also known as bucket body, and sewage tank are all made of high-quality carbon steel plate fully sealed welded structure, which has the advantages of high strength, light weight, and no secondary pollution.
This series of models can be equipped with a hydraulic flip mechanism for garbage cans, which is suitable for 120-liter, 240-liter, 660-liter, 1100-liter plastic garbage cans and 350-liter, 770-liter, 1100-liter metal garbage cans.

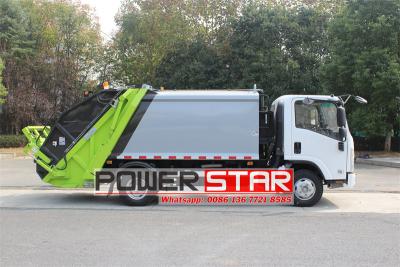

The year 2025 newly designed Isuzu garbage trucks produced by POWERSTAR can be divided into 3.5 cubic meters, 6 cubic meters, 8 cubic meters, 10 cubic meters, 12 cubic meters, 14 cubic meters, 17 cubic meters, 18 cubic meters, 20 cubic meters, 22 cubic meters and other specifications.
● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
Advanced features for ISUZU 8 yard rear loader compactor truck:
1. The arc-shaped box greatly increases the box volume and the beauty of the whole vehicle.
2. The Isuzu rear loader truck equipped power take-off adopts a well-known domestic brand, specially matched with the car, perfectly matched with the engine and gearbox, and has a low failure rate.
3. The oil pump adopts a well-known domestic brand Hypuris hydraulic oil pump, and a compaction valve is installed to increase the compression density and load capacity. The load capacity is equivalent to two and a half times that of non-compressed garbage of the same tonnage.
4. The oil tank is enlarged and the volume is increased to prevent the high temperature of the hydraulic oil. All hydraulic oil must be added to the oil tank through a hydraulic oil filter to filter the impurities in the hydraulic oil, reduce the failure rate, and effectively prevent damage to accessories. The multi-way valve adopts a Sino-foreign joint venture brand. The Hypuris multi-way valve is matched with the Hypuris oil cylinder, with a low failure rate, and the CAN bus controls the switch; less wiring, low failure rate, and convenient maintenance and repair.
5. Operation automation: photoelectric switch plus time dual system control, with one-button unloading, only the driver needs to operate all the filling and unloading operations, and two operation modes can be set: fully automatic and semi-automatic, which not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
6. Double insurance system: The operation system has the dual functions of computer control and manual operation, which greatly guarantees and improves the utilization rate of the vehicle. The pressure regulating valve changes position to prevent customers from adjusting the pressure without authorization, reminding customers to switch the power take-off to prevent damage to the power take-off.
7. Turnover mechanism: A turning mechanism with a garbage can (or bucket) can be optionally configured.
8. Light weight: Due to the complex structure of the compression garbage truck, the self-weight of the compression garbage truck is large, reducing the self-weight of the compression garbage truck and improving its load utilization will reduce the vehicle operating cost. Therefore, POWERSTAR ISUZU refuse compactor trucks use high-strength materials are used to reduce the self-weight of the upper body; auxiliary parts such as fenders, decorative parts, and cover plates can use injection molding parts with lower density, and use parts with a higher degree of integration to reduce space occupancy and self-weight, which is also conducive to improving the working performance of the hydraulic system.

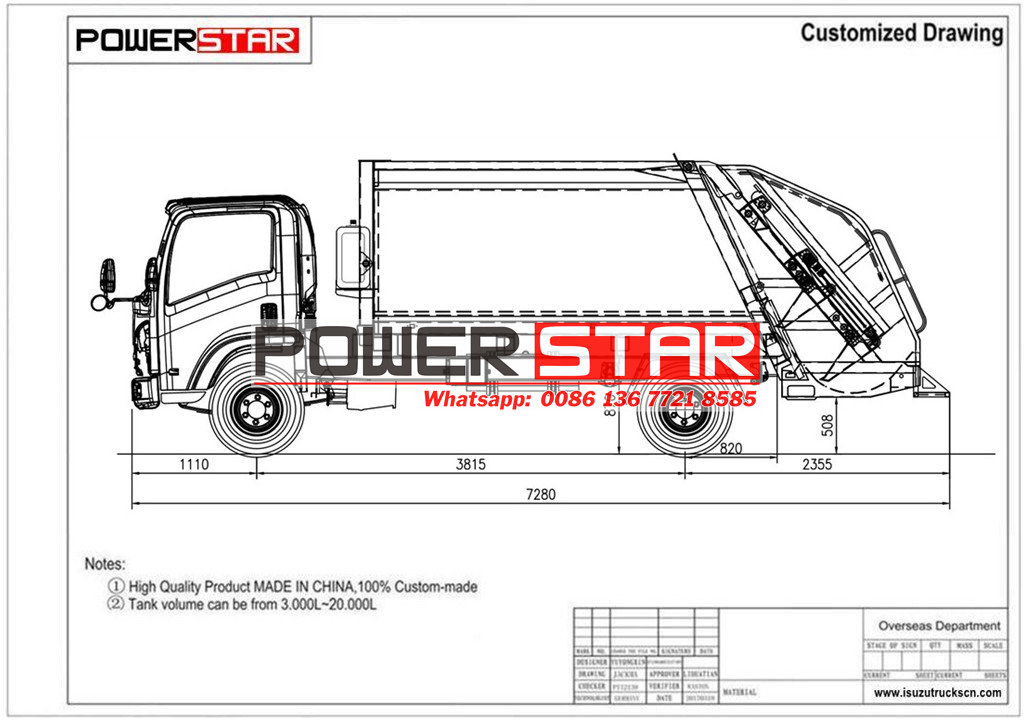

Technical Parameters for ISUZU 8 yard refuse compactor garbage truck:
| Truck Specification | |||
| Chassis model | PT5073ZYS | ||
| Cab | ISUZU new NPR single row cab | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 115 | ||
| Overall dimension(mm) | 6865×1870×2500 | ||
| GVW( kg) | 7300 | ||
| Mass in working order ( kg) | 4200 | ||
| Wheelbase(mm) | 3360 | ||
| F/R track base (mm) | 1569/1530 | ||
| F/R overhang (mm) | 1068/1997 | ||
| Approach/Departure Angel | 22/25 | ||
| Tire | 7.00R16 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | ISUZU MSB 5-speed | ||
| Bridge | Front axle | 2.5T | |
| Rear axle | 4.8T | ||
| Enging | Model | 4KH1CN6LB | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 2999 | ||
| Max output power (hp) | 120HP / 88KW | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 12v | ||
| Upper-Body specification | |||
| Material of tank | material : T420 / Q550, Thickness :4(mm) side /4(mm) rear | ||
| dirty tank volume | 6m³ / 8 cubic yard | ||
| filler volume | 900L | ||
| filing time(s) | 10~12s | ||
| filling cycle time(s) | 50~60s/once | ||
| Discharge type | Dumping | ||
| Time for dumping | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and CAN BUS electrical control | ||
Application and Advantages for ISUZU 8 yard hydraulic garbage compactor truck:
Isuzu compressed rubbish trucks are built to handle waste collection and disposal with ease, providing a reliable solution for maintaining cleanliness in residential and commercial areas. Isuzu hydraulic garbage compactor truck is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic waste is to be collected. The 2025 year garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed It can compact and dump the garbage automatically. Sewage will flow in the compartment completely to avoid re-pollute during transportation.
