ISUZU 1600 gallons Sludge Pumper Truck 4KK1N6HD

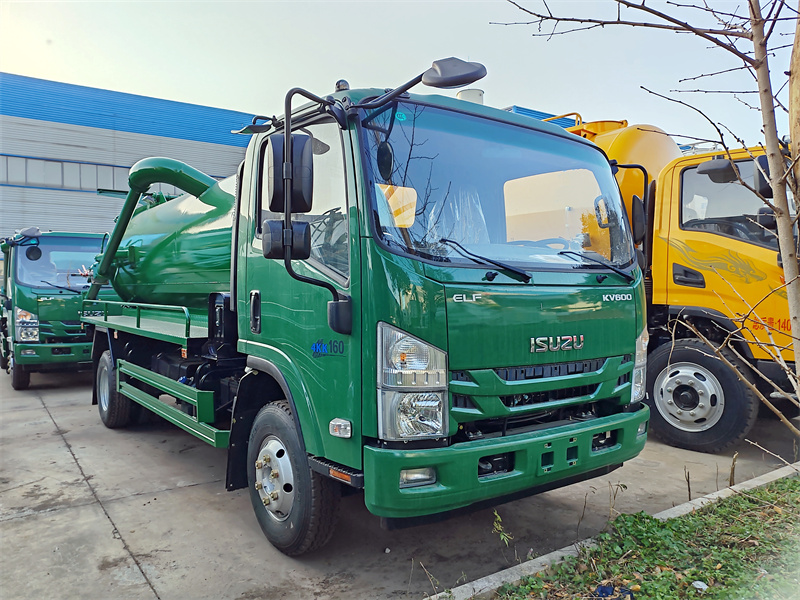

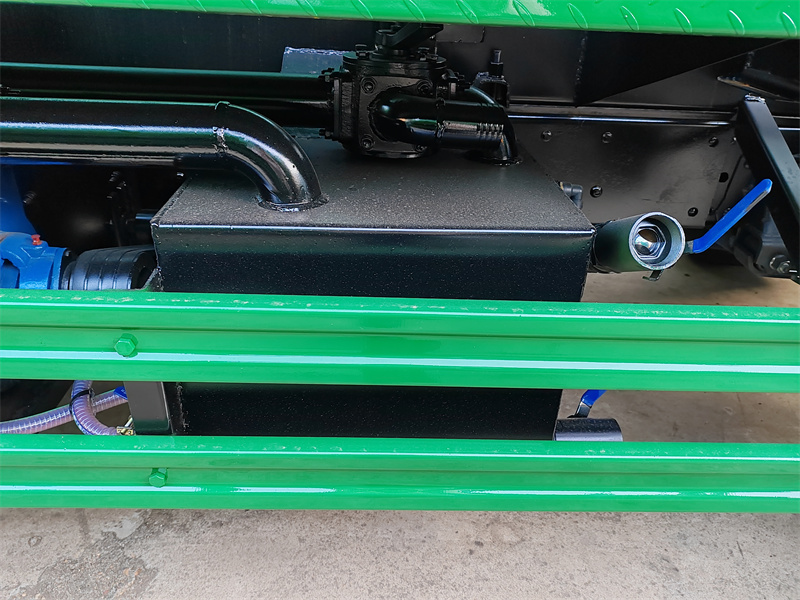

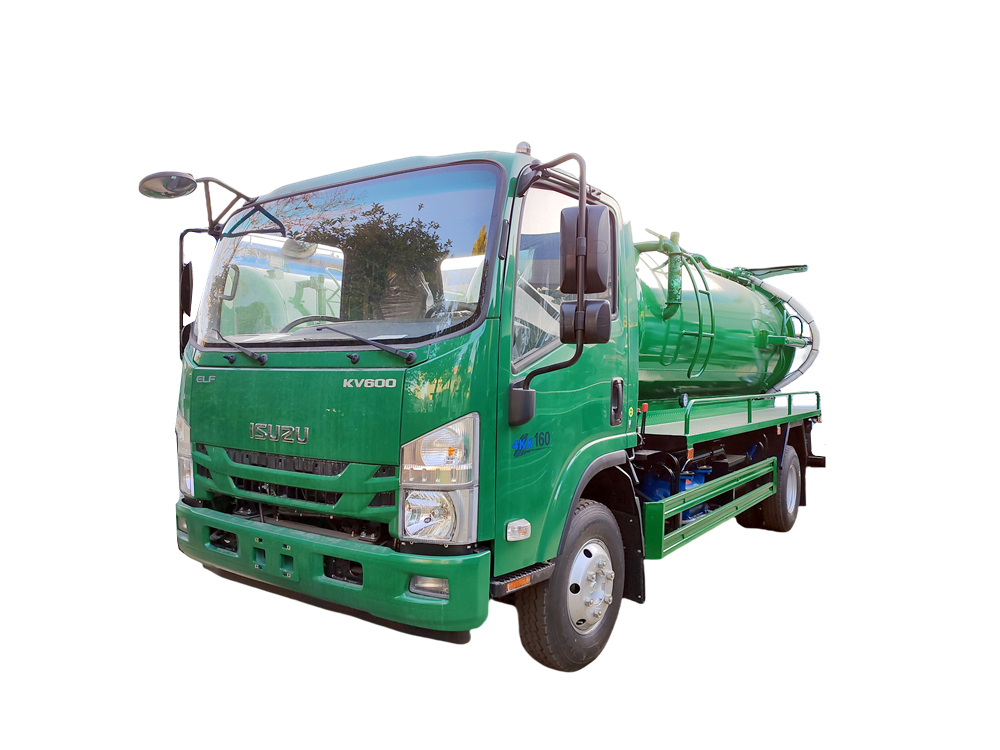

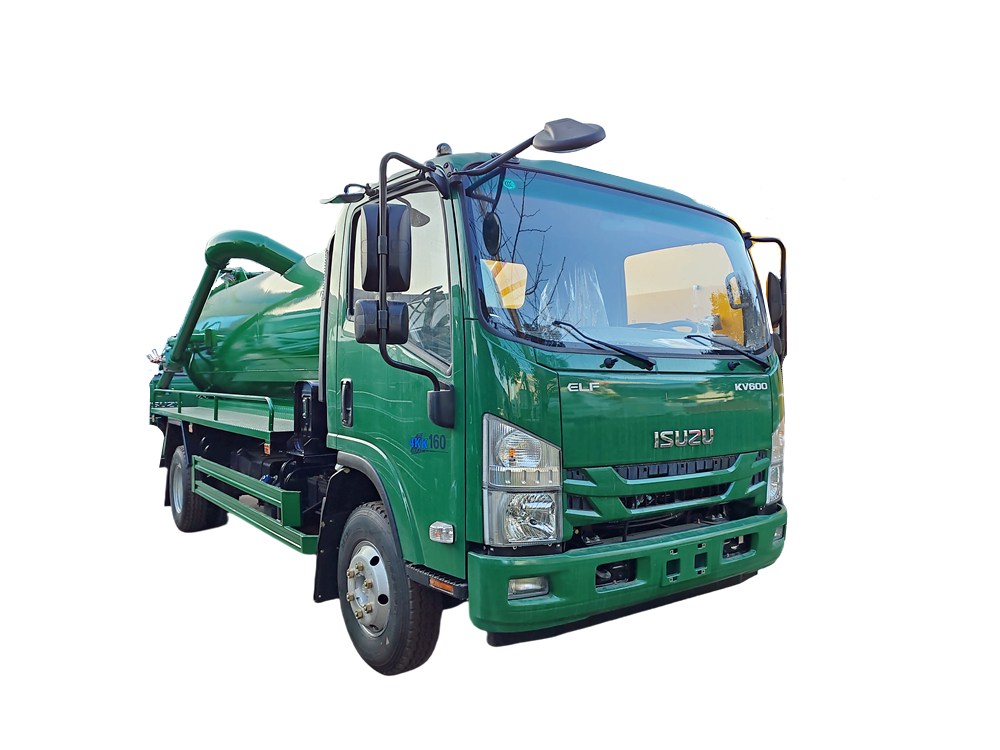

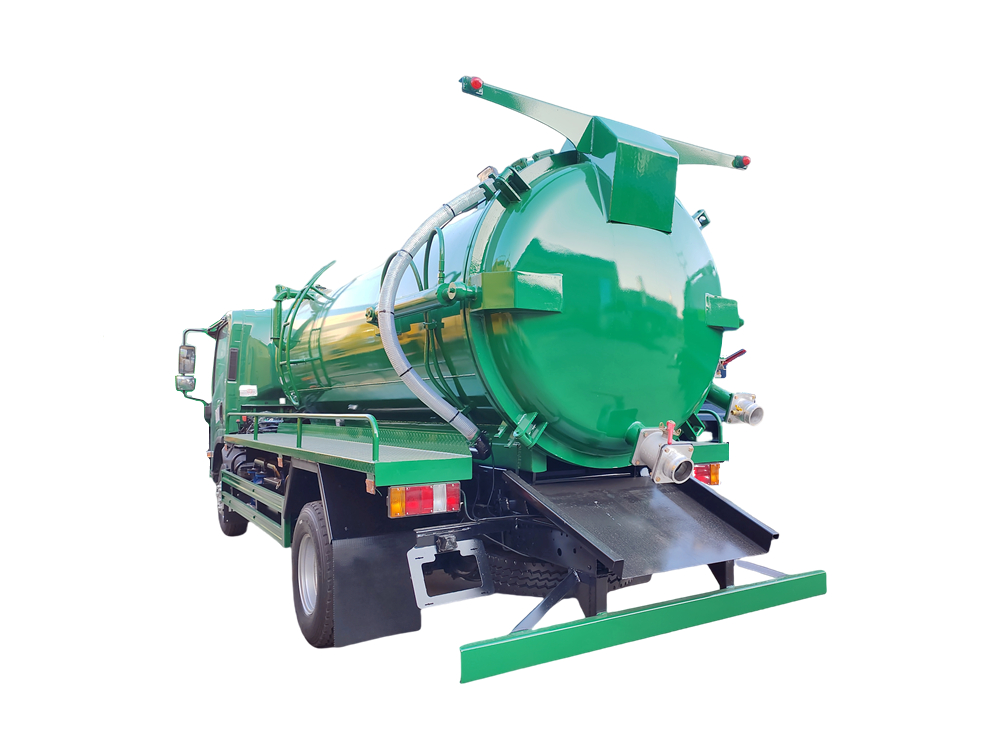

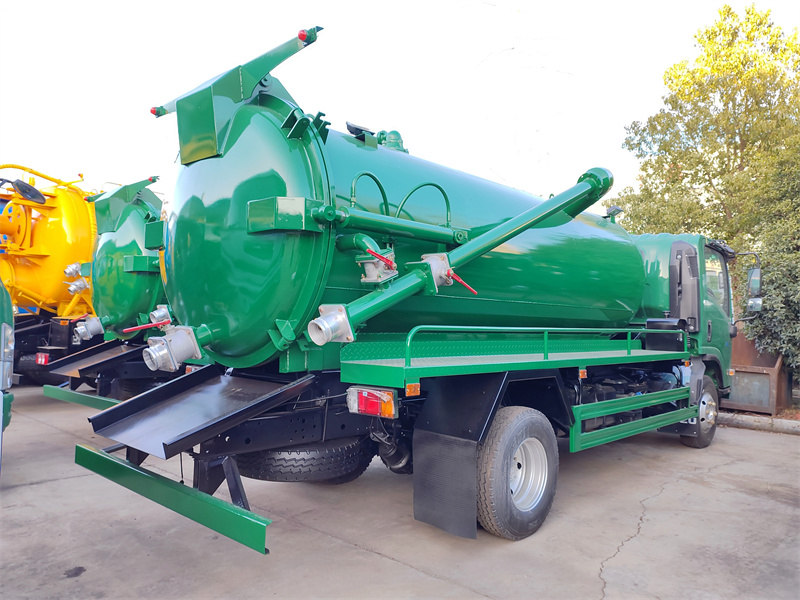

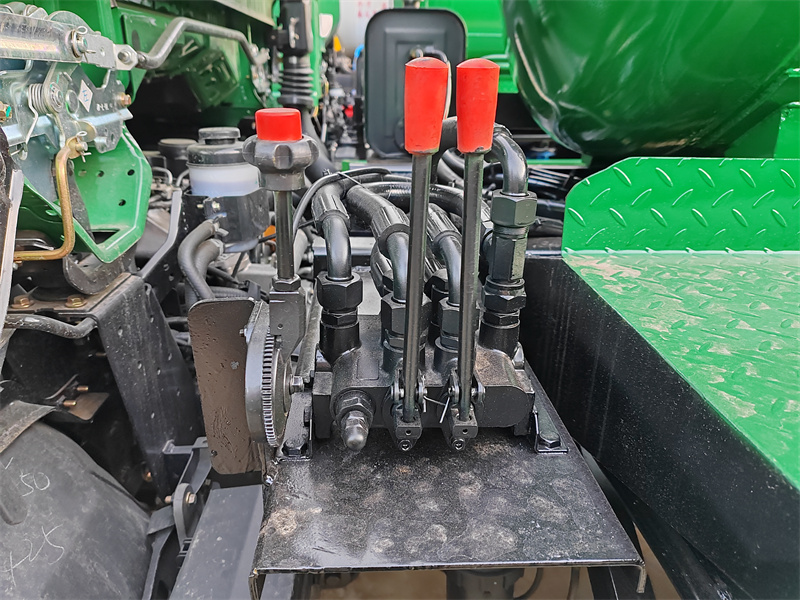

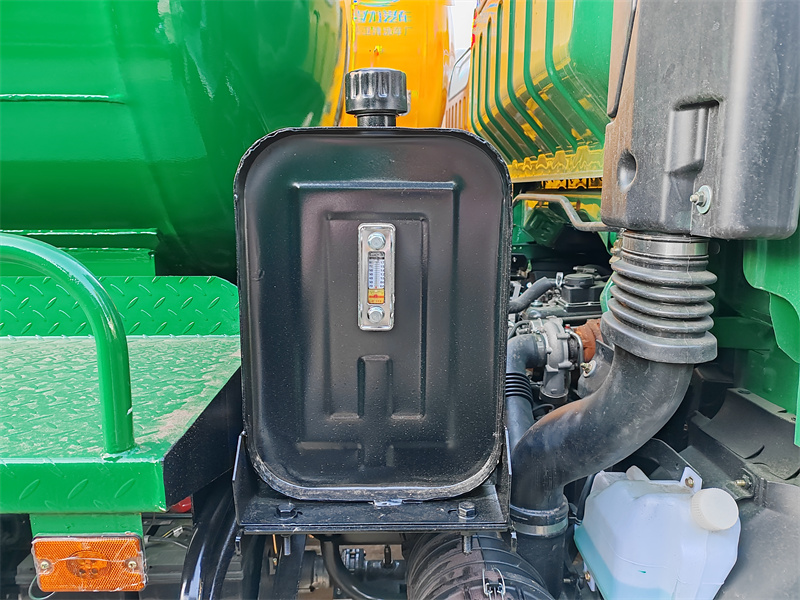

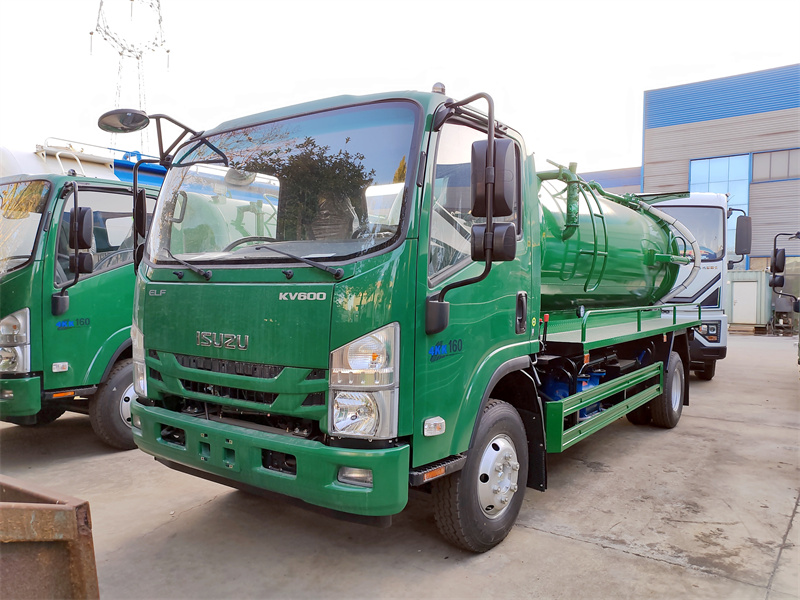

The Isuzu KV600 6 cbm vacuum tanker truck is based on the Isuzu KV600 chassis, with a 3365mm wheelbase. It is equipped with an Isuzu 4KK1N6HD engine and a MYY 6-speed transmission. The upper body consists of a 6 cubic meter carbon steel vacuum tank with anti-corrosion and rust-proof treatment. It features an SK-9 water ring vacuum pump, hydraulic oil tank, sight glass, ladder, overflow valve, tailgate discharge valve, and a driver-side hydraulic multi-way valve for manual control of tank lifting and tailgate opening.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
6200 x 2350 x 2460 mmCabin type:
Isuzu KV600 cab,3 passengersWheelbase:
3365mmEngine power:
160HP/118kWEngine type:
ISUZU 4KK1N6HDAxle drive:
4x2,LHDGear box:
Isuzu MYY 6-speed,manualRemarks:

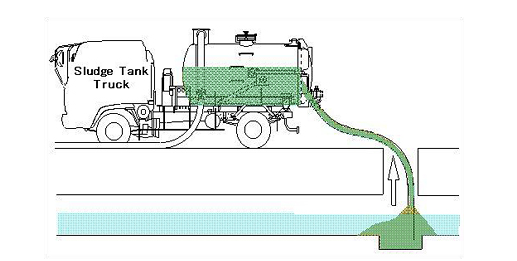

Tank capacity can be customizedThe ISUZU 1600 gallon Sludge Pumper Truck 4KK1N6HD is a specialized vehicle for pumping solid-liquid mixed waste, including municipal sanitation, industrial wastewater treatment, septic tank cleaning, and pipe dredging. It features a 6-cubic-meter corrosion-resistant carbon steel tank, a high-efficiency SK-9 water circulation vacuum pump, and a user-friendly integrated operating system with hydraulic control for tank lifting and tailgate opening and closing. The vehicle is fully equipped with various auxiliary equipment, including anti-overflow valves, sight glasses, and ladders, making it highly practical, easy to operate, reliable, and durable.
▶ Features:
---- Isuzu KV600 chassis, perfect performance
---- Isuzu 4KK1 160HP engine, MYY 6-speed gearbox,super powerful; reliable performance, no overhaul within 100,000 km.
---- Tank body capacity from 2 to 35 Cubic Meter.
---- Easy operation and easy maintenance.
---- Chinese,Italy or Spain brand are available.
▶ Product Parameters:
| Isuzu KV600 6CBM vacuum suction truck | |||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Vehicle Model |
PT5080GHW |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
6200 x 2350 x 2460 mm |
||
|
GVW / Kerb Weight |
8280 kg / 4350 kg |
||
|
Axle loads |
3000/5280 kg |
||
|
Cab |
Cab Capacity |
ISUZU KV600 cabin,single row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
|
|
Brand |
ISUZU |
||
|
Model |
4KK1N6HD |
||
|
Power |
160 HP / 118kW |
||
|
Max torque |
435 N·m |
||
|
Max torque speed |
1400-2400rpm |
||
|
Displacement |
2.499L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4x2, left hand drive |
|
|
Transmission |
Isuzu MYY 6-speed transmission, manual |
||
|
Wheelbase |
3365mm |
||
|
Number of axle |
2 |
||
|

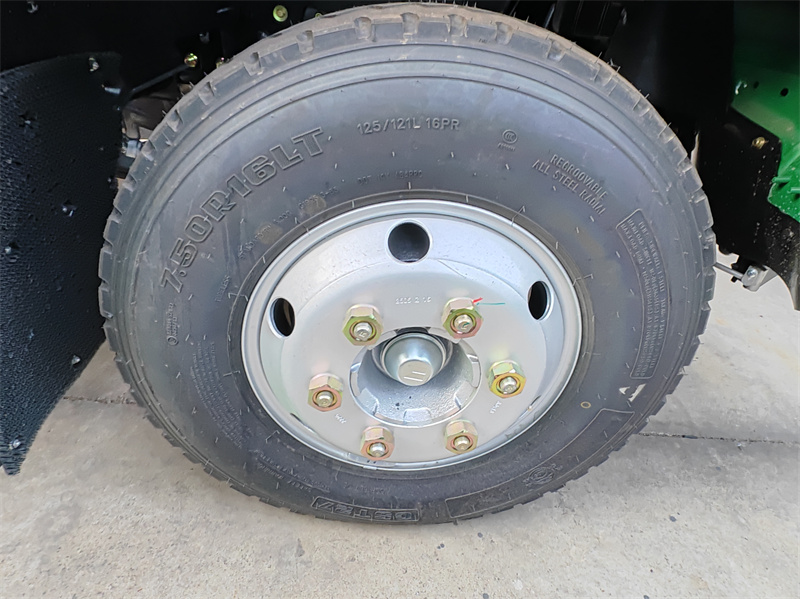

Tyre Specification |
7.50R16 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
105km/h |
||
|
Fuel tank |
100L |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
6000 liters |
|
Tank Material |
5mm carbon steel with antiseptic treatment |
||
|
Tank lifting angle |
≥45° |
||
|
Vacuum Pump |
Vacuum Pump |
SK-9 water circulation pump |
|
|
Ultimate vacuum |
-0.093MPa |
||
|
Pumping rate |
9m³/min |
||
|
Speed |
1450r/min |
||
|
Motor power |
Vacuum pump 15kW, compressor 22kW |
||
|
Compressor Pressure |
0-0.1MPa |
||
|

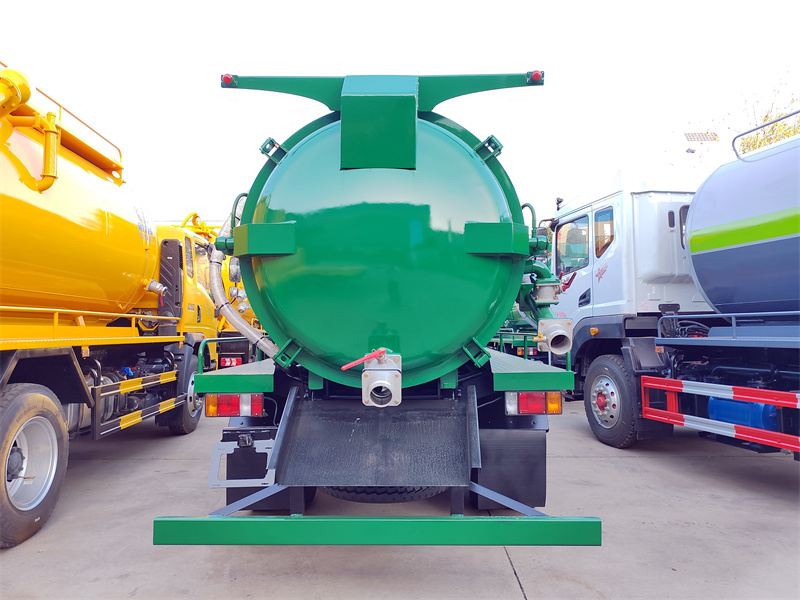

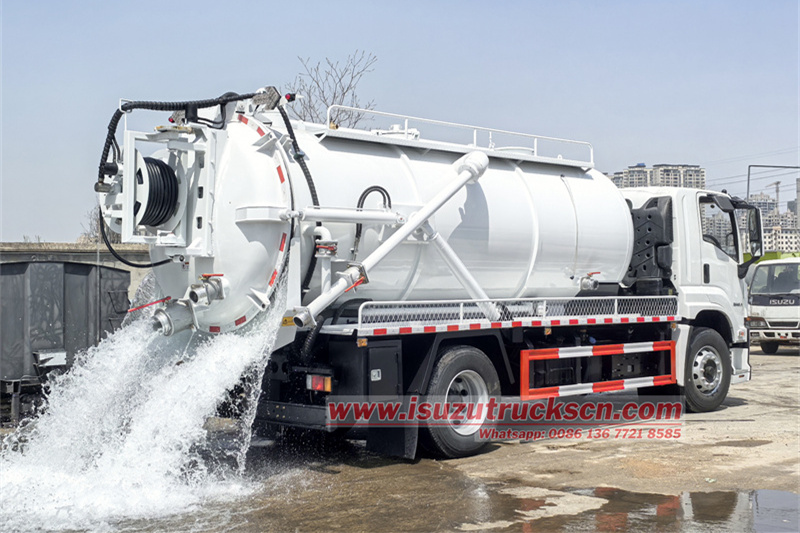

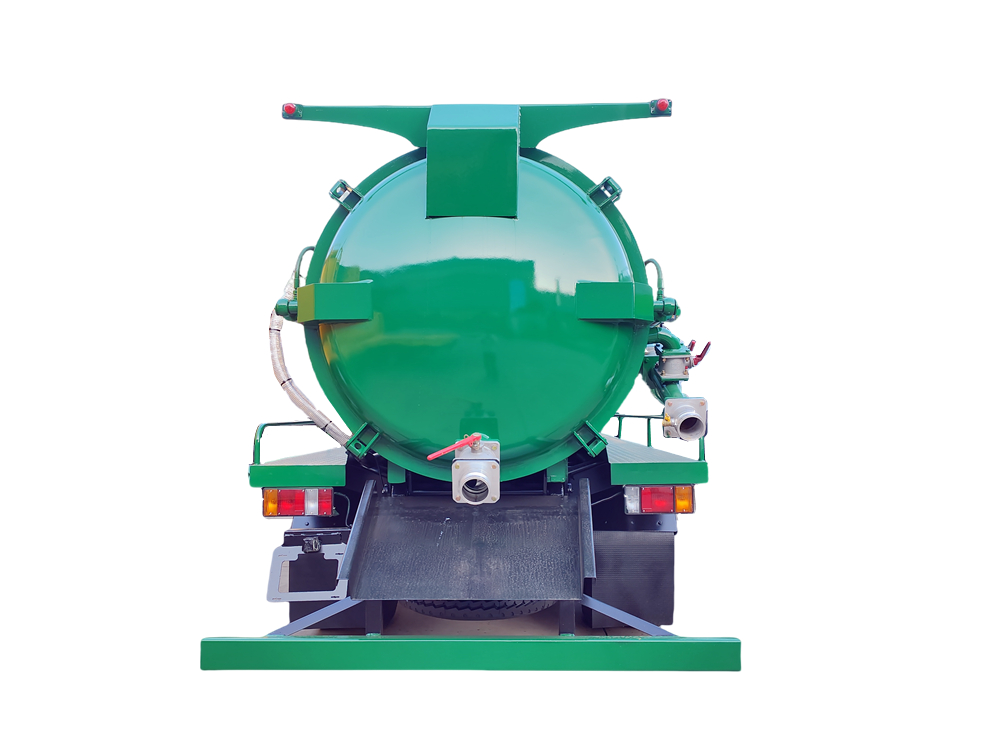

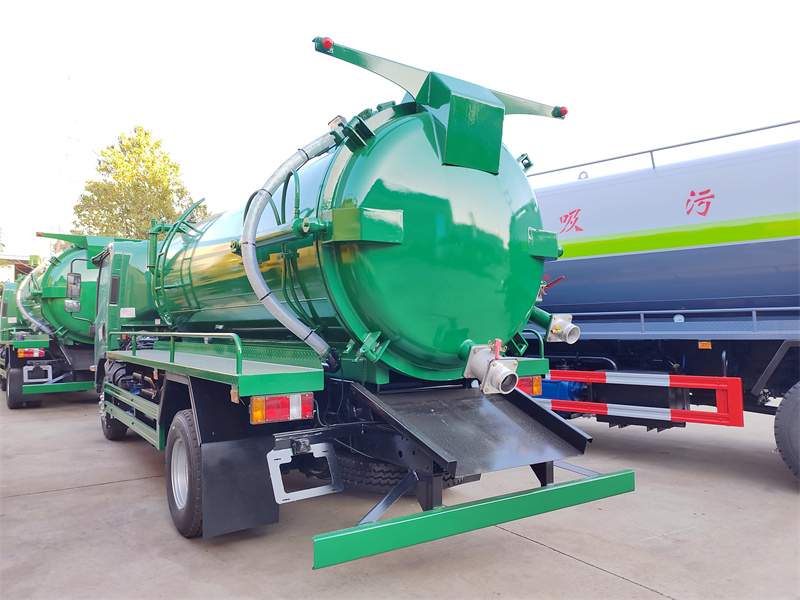

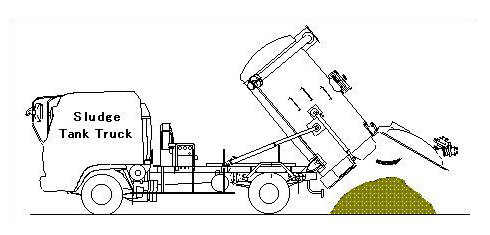

Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. ** Italy or Spain vacuum pumps |
||
▶ Chassis System:
• Chassis Model: Isuzu KV600 Series Dedicated Chassis
• Wheelbase: 3365mm short wheelbase design
• Engine: Isuzu 4KK1N6HD Diesel Engine
Displacement 2.499L, China VI emission standard, maximum power 118kW (160 hp), peak torque 435 N·m.
Low-speed high torque characteristics, suitable for frequent start-stop sewage suction operations, excellent fuel economy.
• Transmission: MYY 6-speed manual transmission
Smooth shifting, close gear ratios, adaptable to different working conditions and load requirements, effortless operation.
▶ Upper Structure Configuration:

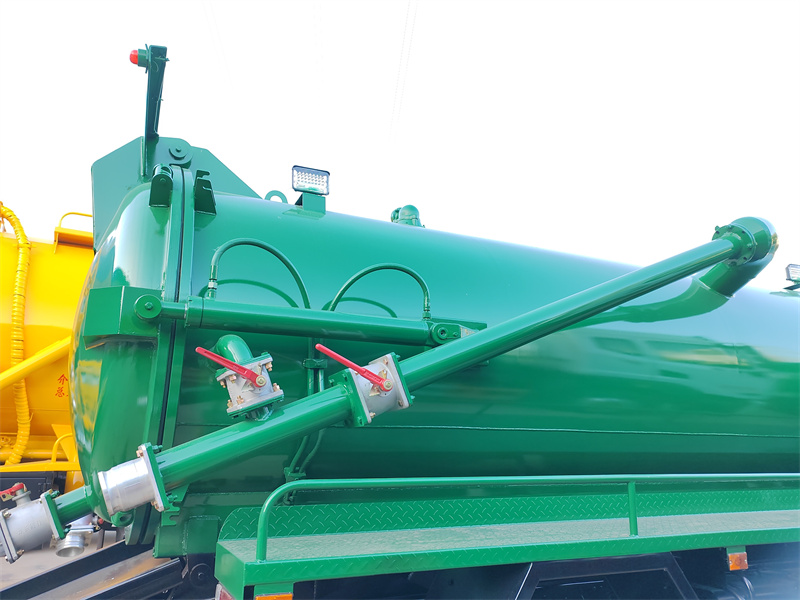

1. Sewage Suction Tank
◆ Capacity: 6 cubic meters, cylindrical design, carbon steel (Q345B), 5mm thick, treated for corrosion and rust prevention.

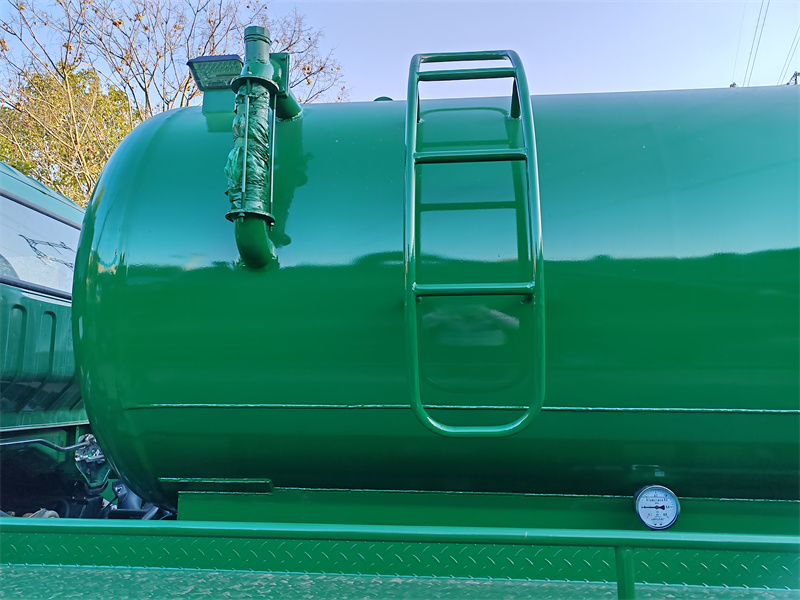

◆ Functions: Top-mounted manhole (with safety lock), side ladder for easy daily maintenance and cleaning.
2. Vacuum System
◆ Vacuum Pump: SK-9 water circulation vacuum pump
◆ Pumping speed 9m³/min, ultimate vacuum -0.093MPa, quickly establishes negative pressure, high sewage suction efficiency.
◆ Water circulation design, capable of pumping sewage containing particulate matter, highly adaptable, long service life.
◆ Auxiliary Devices: Sight pipe (real-time oil level monitocirculation), anti-overflow valve (prevents tank overflow).

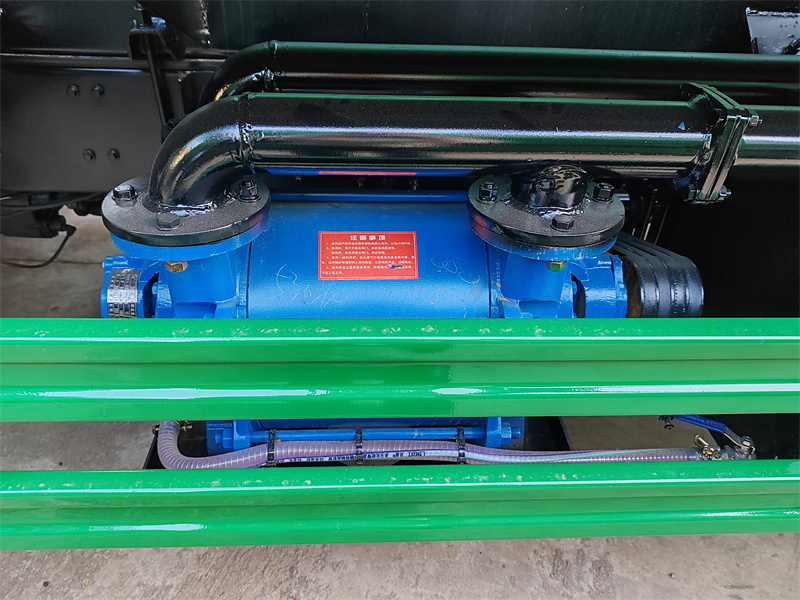

SK-9 water circulation vacuum pump
|
Vacuum pump model |
Max pumping rate |
Pumping rate(-0.06MPaG) |
Ultimate vacuum |
Vacuum pump power |
Compressor power |
Speed |
Compressor Pressure |
Water consumption |
|
SK-9 |
9m³/min |
8.1m³/min |
-0.093MPa |
15 kW |
22kW |
1450 rpm |
0-0.1MPa |
30~40L/min |

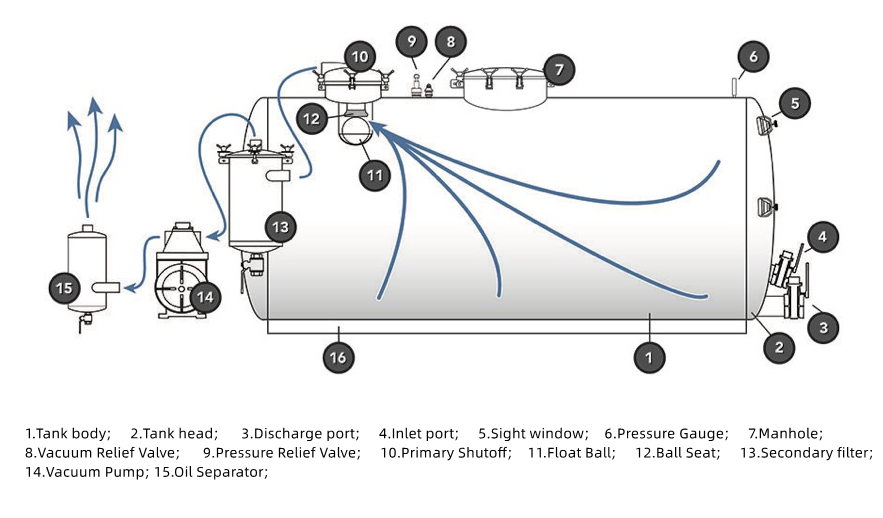

Upper body structure

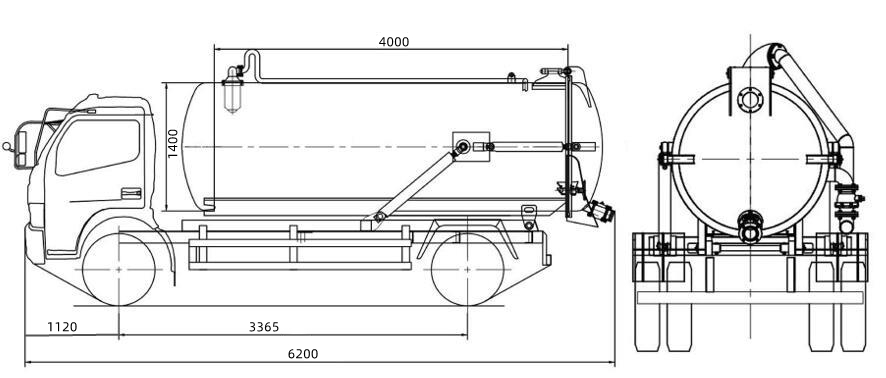

Technical drawing of Isuzu KV600 6cbm vacuum pump truck
Before delivery the truck, we will conduct multiple and repeated inspections, including manufactucirculation processes, paint, control valves for tank lifting and lowecirculation, tailgate opening and closing, water testing, and many other tests.
