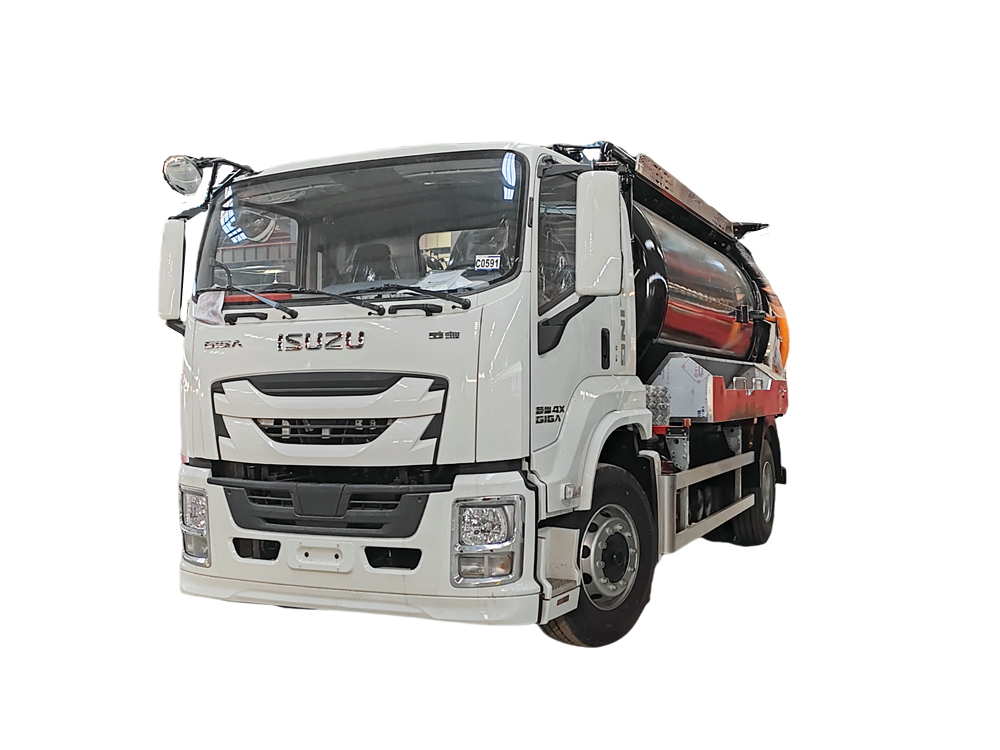

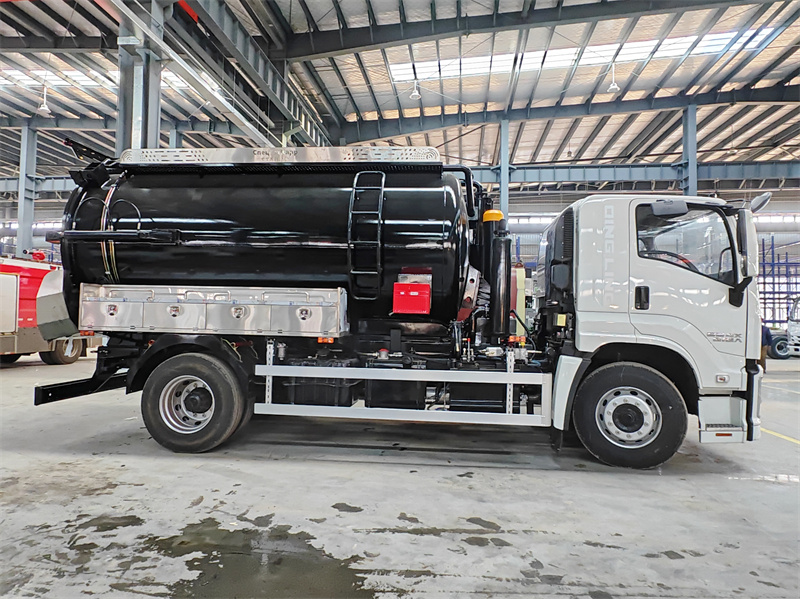

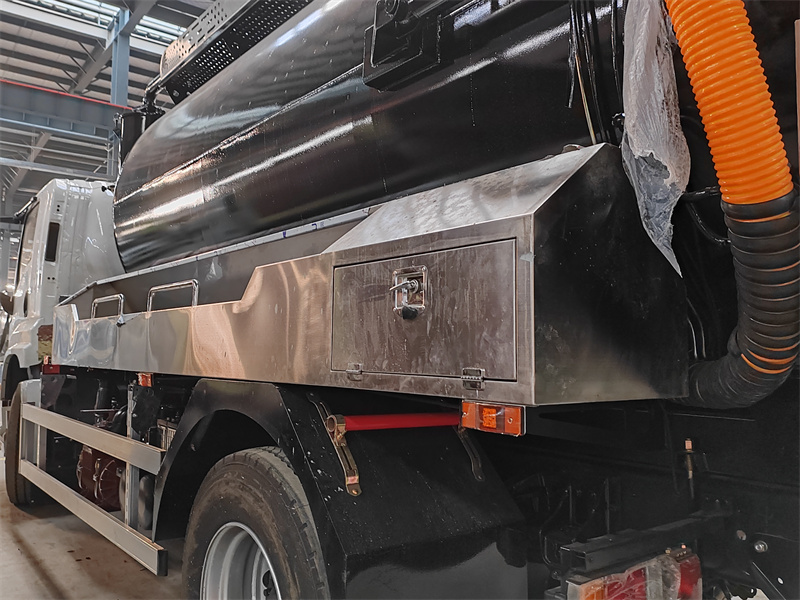

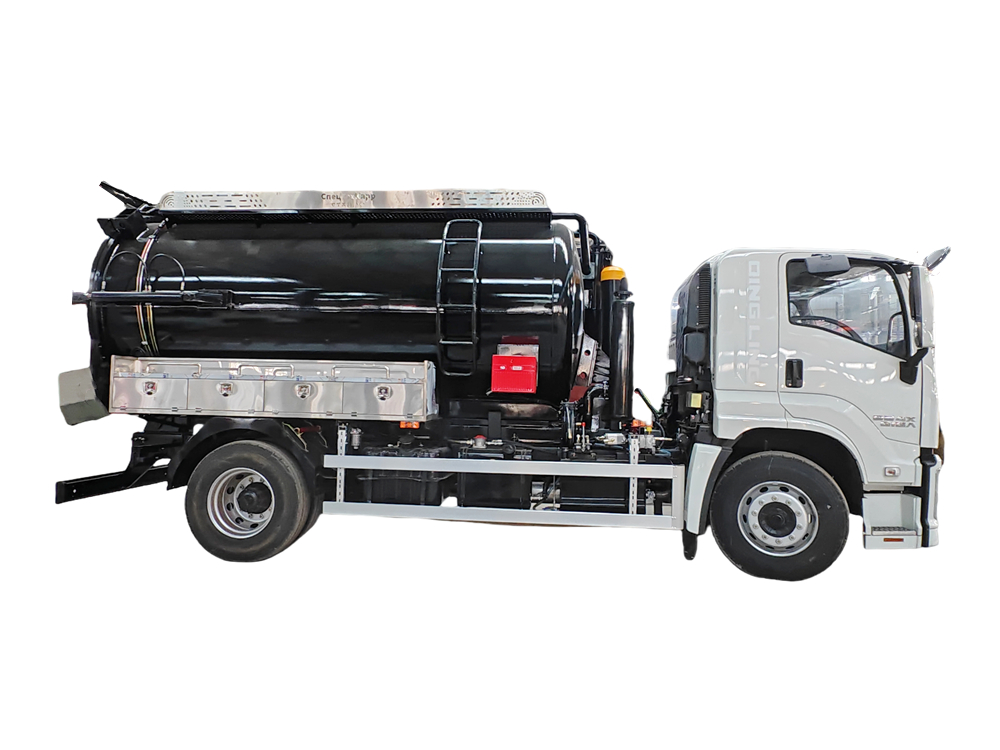

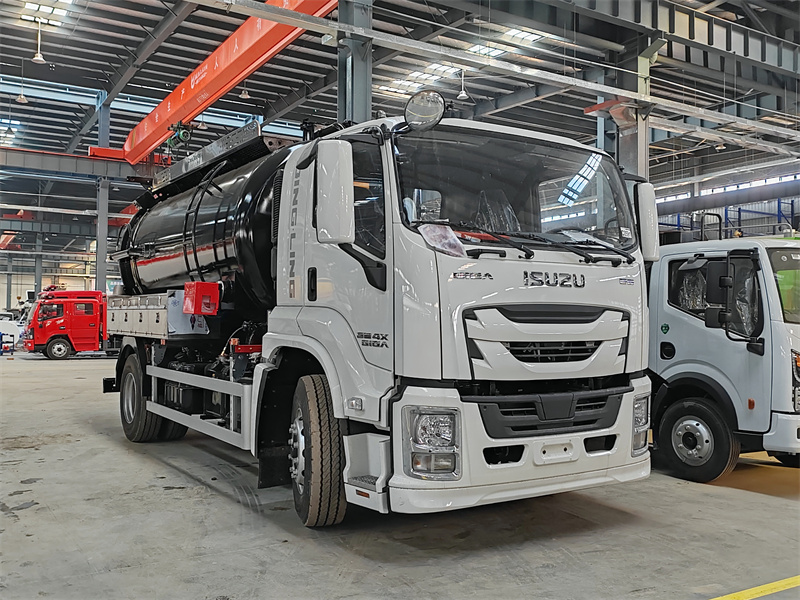

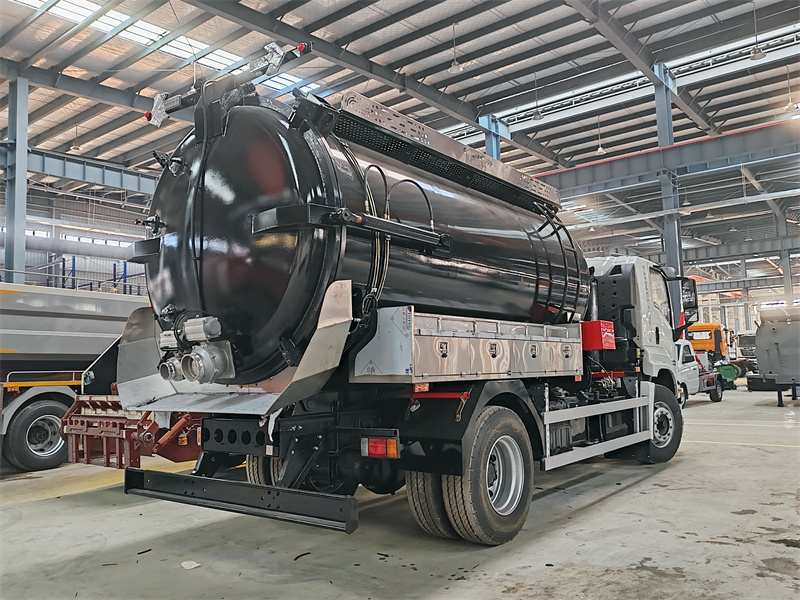

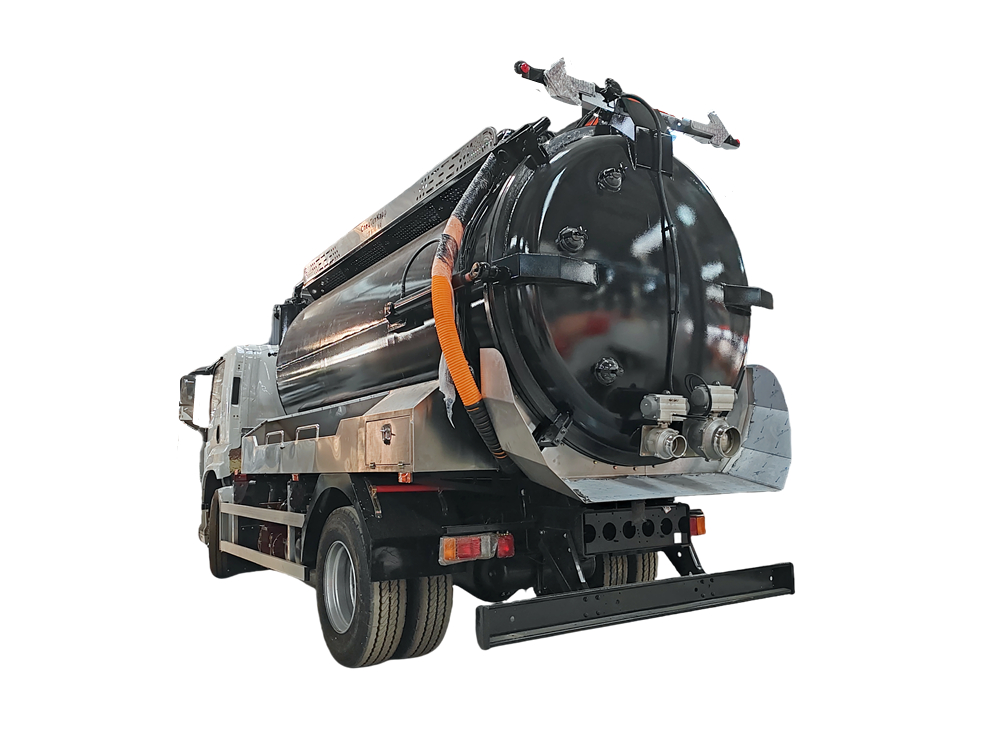

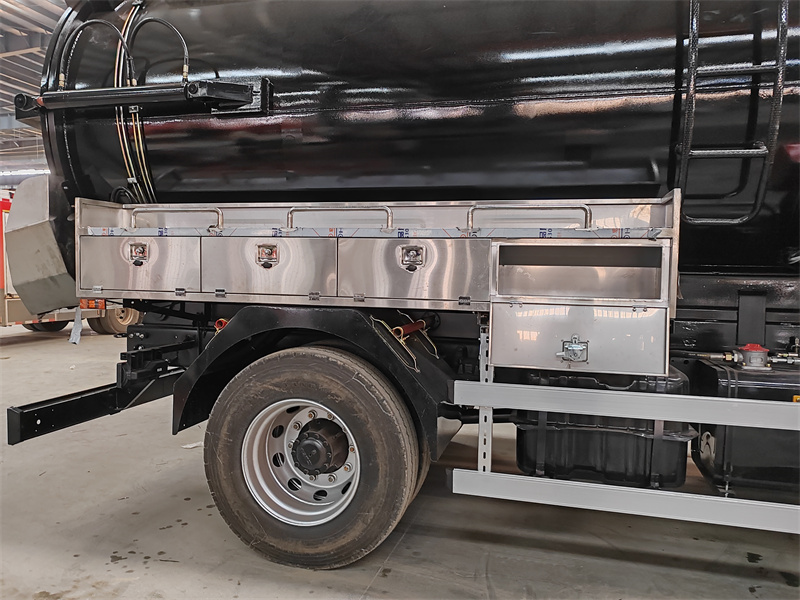

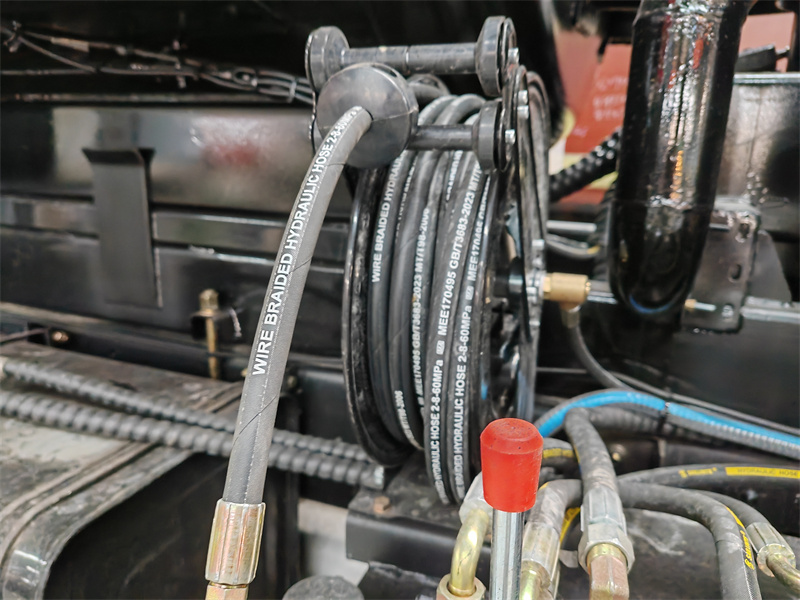

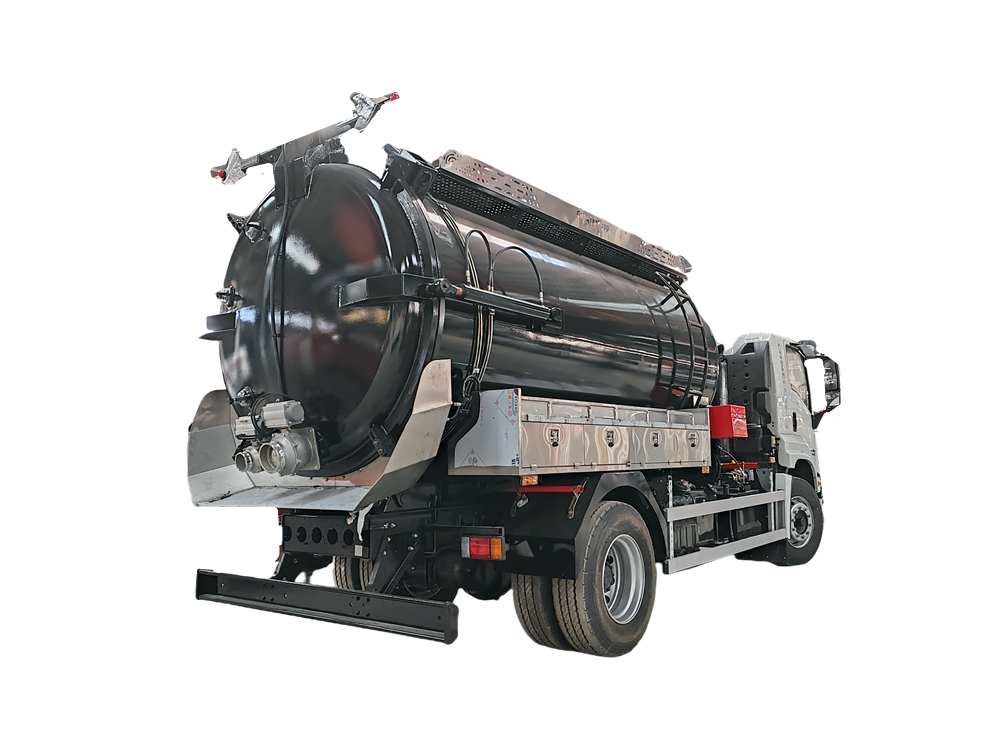

Isuzu FTR 15cbm sewage suction truck, 4500mm wheelbase, Isuzu 4HK1-TCG60 engine, MLD 6-speed gearbox, equipped with a 15cbm sewage tank, matched with Jurop 155D Vacuum pump, secondary filter, front lifting cylinder of the tank, cleaning reel, operating valves on both sides, tool boxes on both sides of the tank, ladder, tailgate sewage suction valve, discharge valve, view window.
Manufacturer:
Powerstar TrucksWork capacity:
15cbmDimension:
8350 x 2550 x 3460 mmCabin type:
Isuzu FTR GIGA cab,3 passengersWheelbase:
4500 mmEngine power:
205HP/151kWEngine type:
ISUZU 4HK1-TCG60Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:

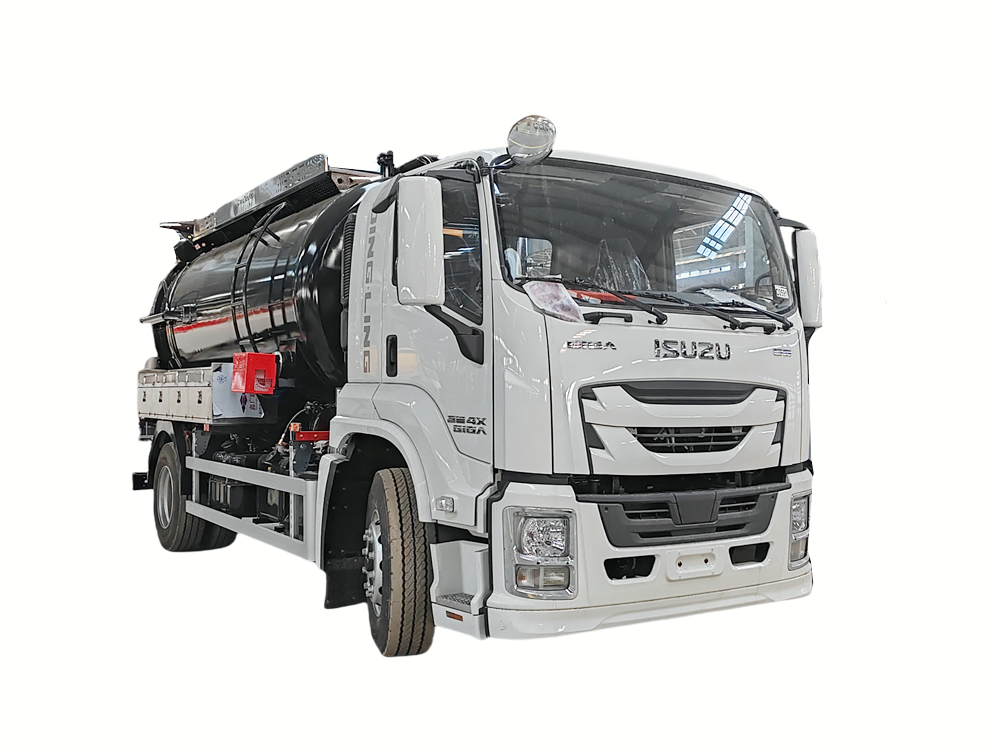

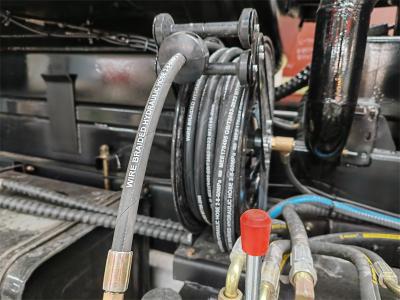

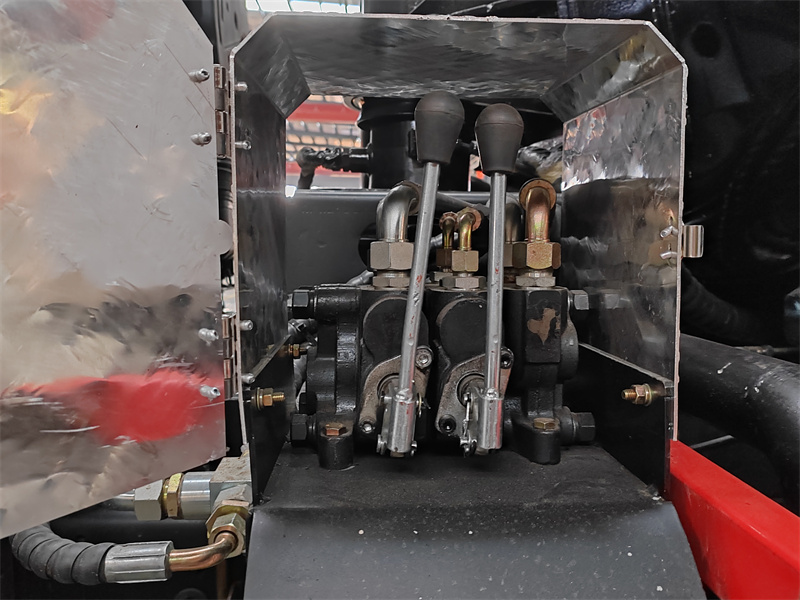

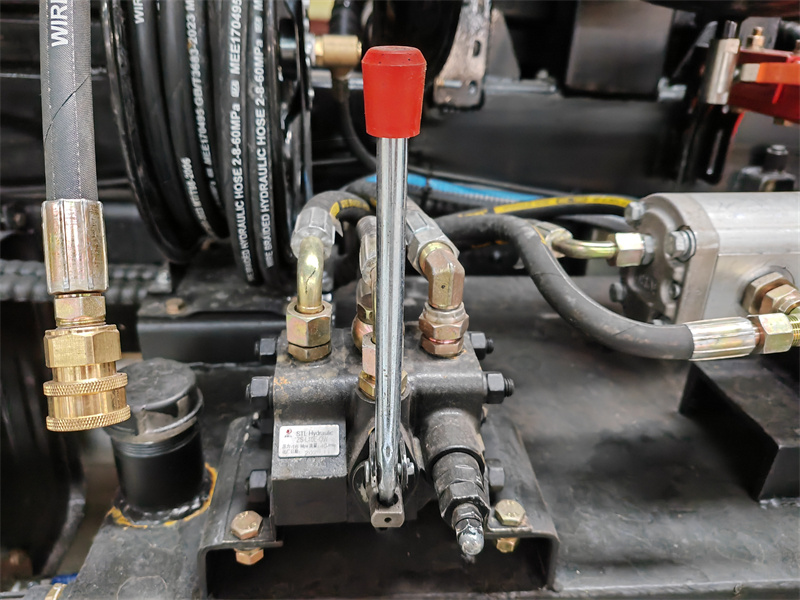

Tank capacity can be customized15000L Vacuum suction Isuzu Giga Trucks is a high-performance special operation vehicle specially used for urban sewage, septic tank cleaning and industrial waste treatment. It is carried by the Isuzu FTR GIGA chassis, equipped with a 15-square tank body, and is equipped with a front hydraulic lifting cylinder. The key to the suction system is the Jurop 155D vacuum pump. Its pumping rate of 15,200L/min can quickly establish vacuum and complete efficient extraction. The secondary filter at the front of the tank can effectively protect the vacuum pump. Its operating valve, sewage suction valve, discharge valve, high-pressure cleaning reel, tool box and other auxiliary equipment are complete, making the operation convenient and safe.
▶ Features:
---- Isuzu FTR GIGA chassis, perfect performance
---- Isuzu 4HK1 205HP engine, MLD 6-speed gearbox,super powerful; reliable performance, no overhaul within 100,000 km.
---- Tank body capacity from 2 to 35 Cubic Meter.
---- Easy operation and easy maintenance.
---- Chinese or Spain brand are available.
▶ Product Parameters:
|
Isuzu FTR 15000L sewage suction truck |
|||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Vehicle Model |
PT5180GHW |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
8350 x 2550 x 3460 mm |
||
|
GVW / Kerb Weight |
18000 kg / 8750 kg |
||
|
Axle loads |
6500/11500 kg |
||
|
Cab |
Cab Capacity |
ISUZU FTR GIGA 4X cabin,one and half row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
|
|
Brand |
ISUZU |
||
|
Model |
4HK1-TCG60 |
||
|
Power |
205 HP / 151kW |
||
|
Rated speed |
2600rpm |
||
|
Max torque |
650 N·m |
||
|
Max torque speed |
1600rpm |
||
|
Displacement |
5.193L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4x2, left hand drive |
|
|
Transmission |
Isuzu MLD 6-speed transmission, manual |
||
|
Wheelbase |
4500mm |
||
|
Number of axle |
2 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
105km/h |
||
|
Fuel tank |
200L |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
15000 liters |
|
Tank Material |
6mm carbon steel with antiseptic treatment |
||
|
Tank lifting angle |
≥45° |
||
|
Vacuum Pump |
Vacuum Pump |
Jurop PN155D |
|
|
Pumping rate |
910m³/h,15200L/min |
||
|
Rotation speed |
1150r/min |
||
|
Vacuum |
27.8Hg,93% |
||
|
Continuous vacuum |
18Hg,60% |
||
|
Max Pressure |
2 bar |
||
|
Power Vacuum Max. |
Vacuum pump 19kW, 25.5HP |
||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. ** Chinese or Spain vacuum pumps |
||
▶ Chassis System:
• Chassis model: Isuzu FTR GIGA
• Wheelbase: 4500mm
• Engine: Isuzu 4HK1-TCG60 diesel engine
Displacement: 5.2L, Euro 6 emissions
Power: 151kW/205 horsepower @2600rpm
Torque: 650N·m@1600rpm
• Transmission: MLD 6-speed manual transmission
• Cab: Semi-flat-top cab, can accommodate 3 people
• Tires: 295/80R22.5 steel tires
▶ Tank assembly:
• Capacity: 15 cubic meters. The tank adopts an oval cross-section design and is made of high-strength carbon steel. The tank thickness is 6mm and has been treated with anti-corrosion.
• Structure: There are multiple wave-proof partitions inside to reduce the shaking of dirt during transportation and improve driving stability.

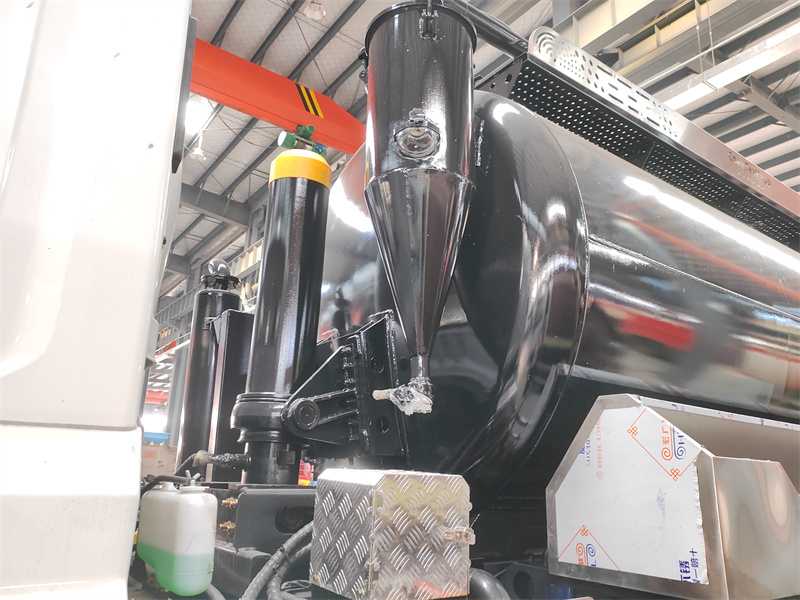

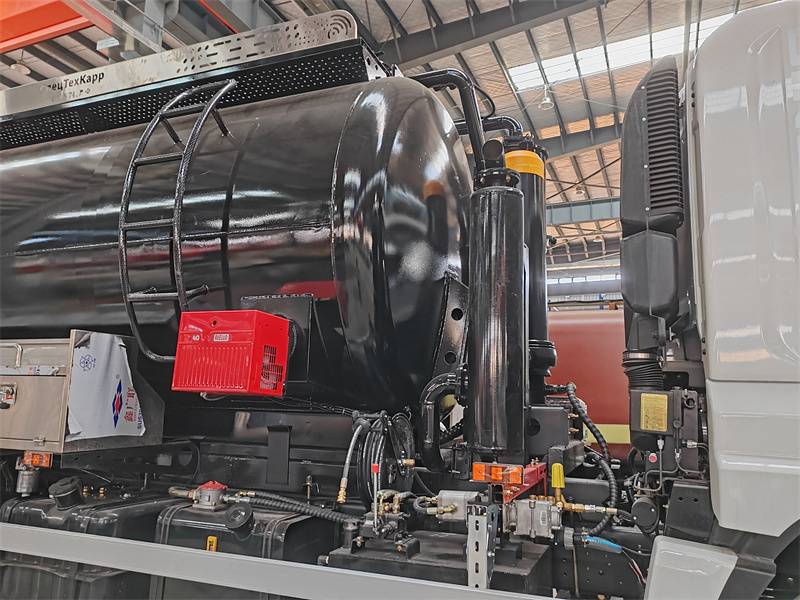

Secondary filter: The front end of the tank is equipped with a high-efficiency filter, which can intercept solid particles and impurities, prevent the vacuum pump from clogging, and extend the life of the equipment.

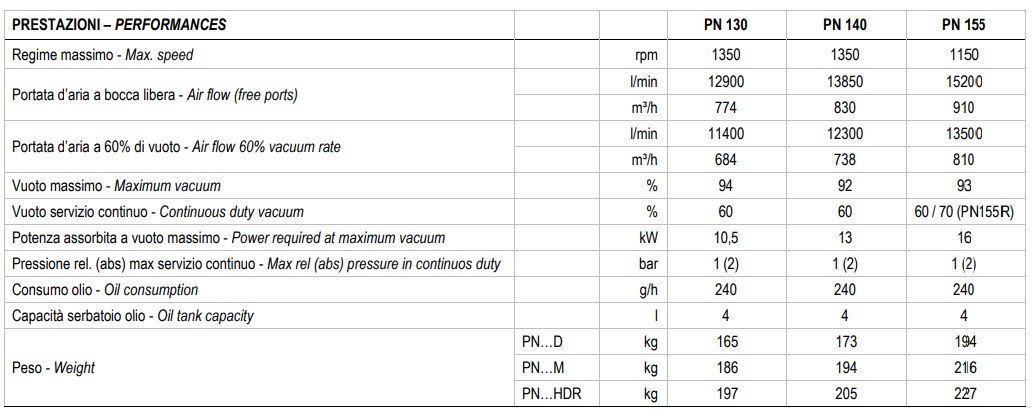

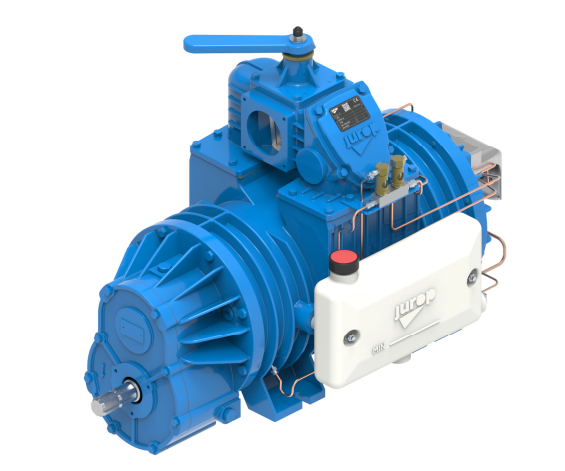

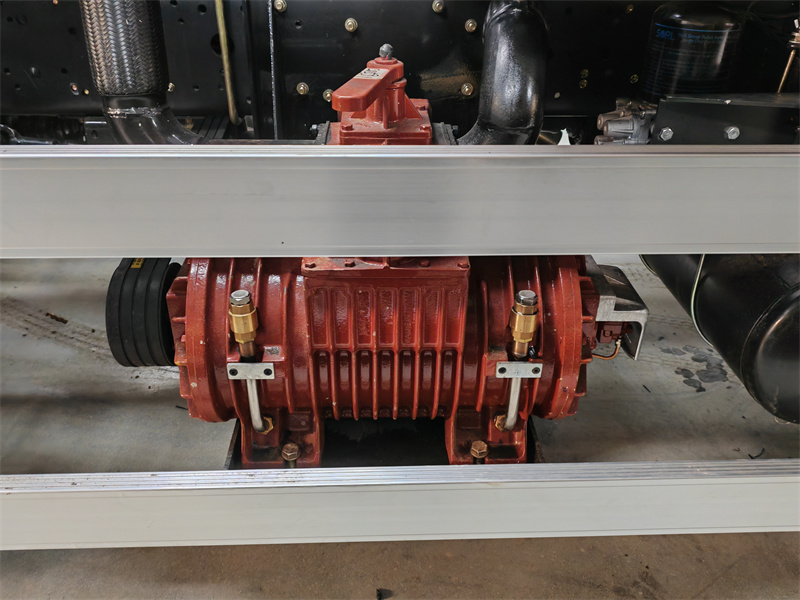

▶ Jurop 155D Vacuum Pump:
▶ Other auxiliary design:

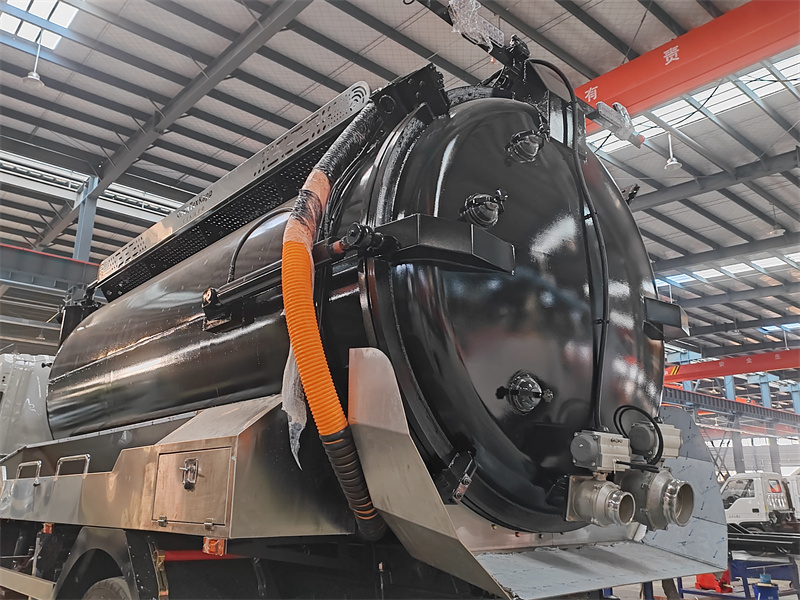

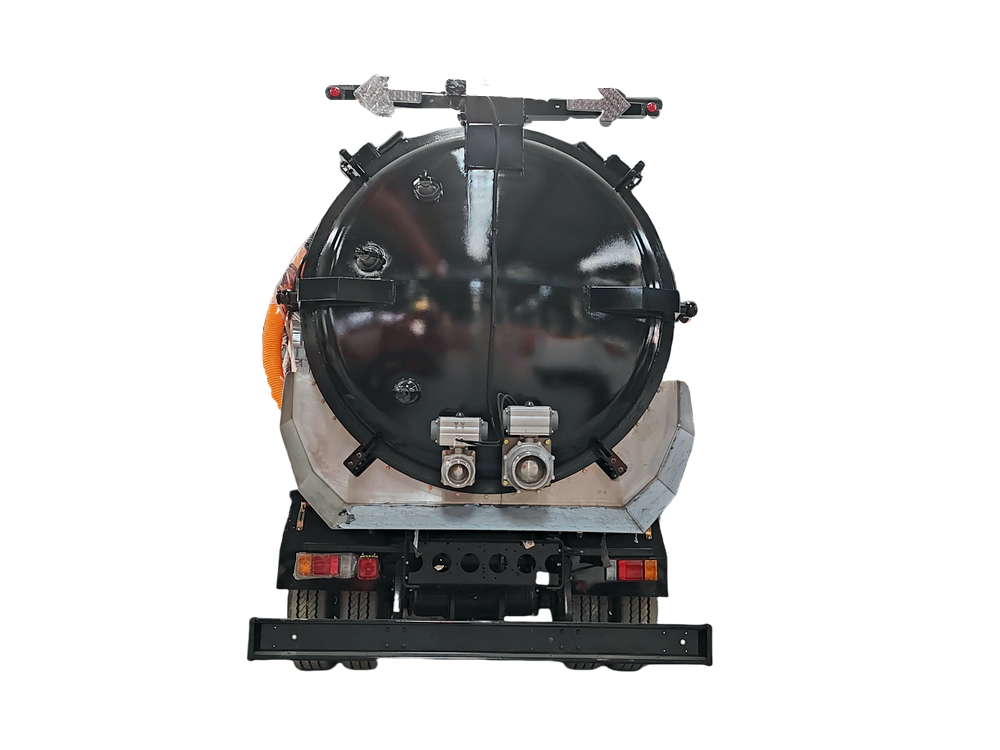

• Visible liquid level window: Multiple transparent pressure-resistant windows are designed on the tailgate to observe the liquid level in the tank in real time and prevent tank overflow.
