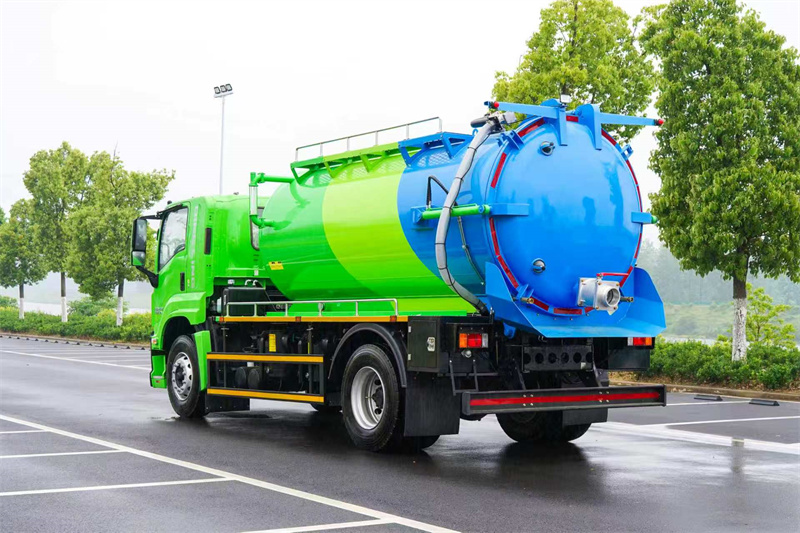

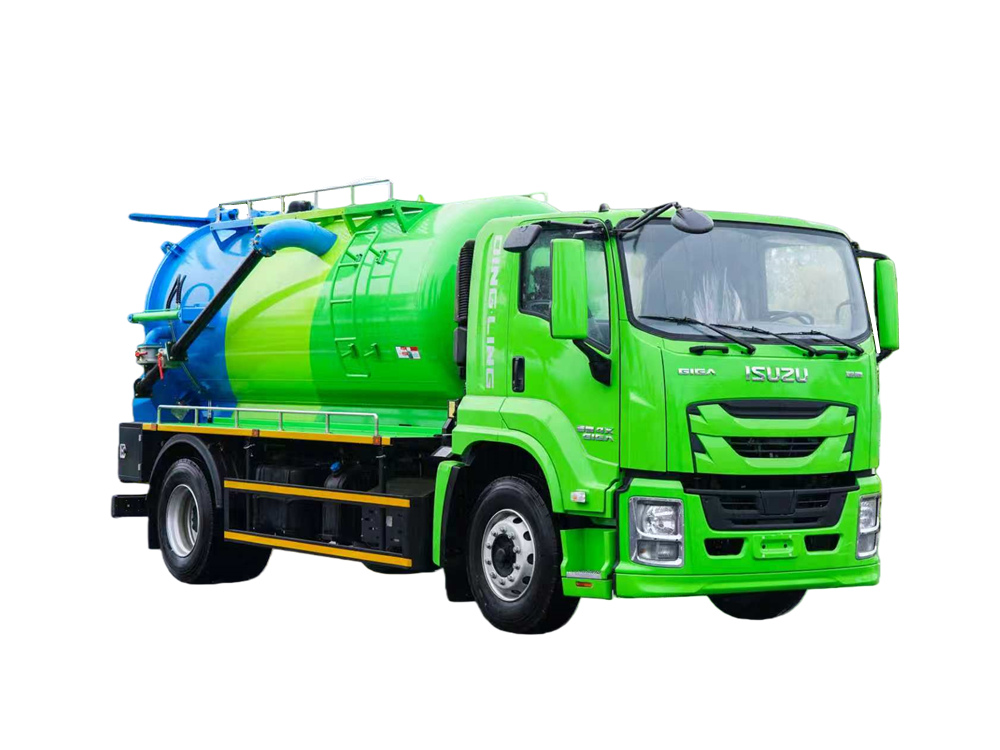

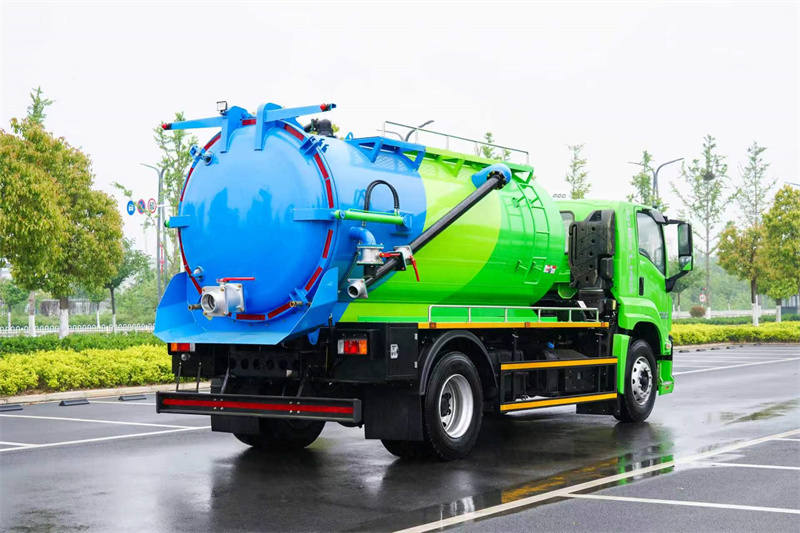

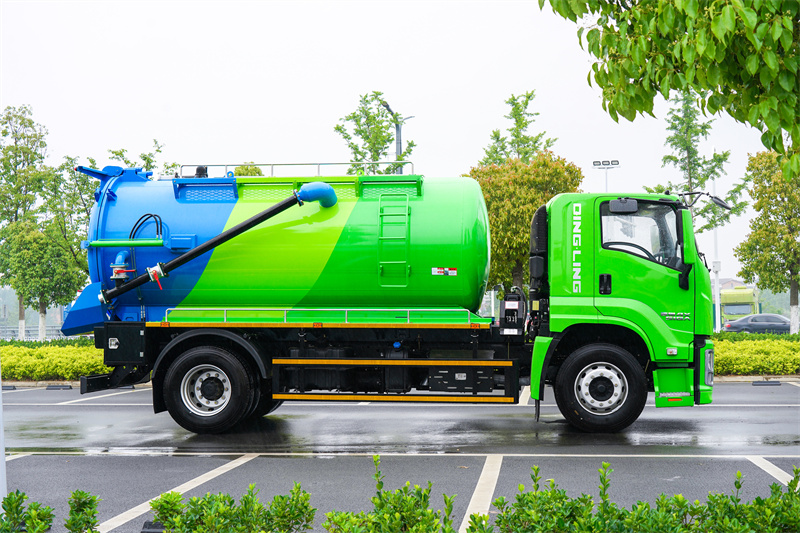

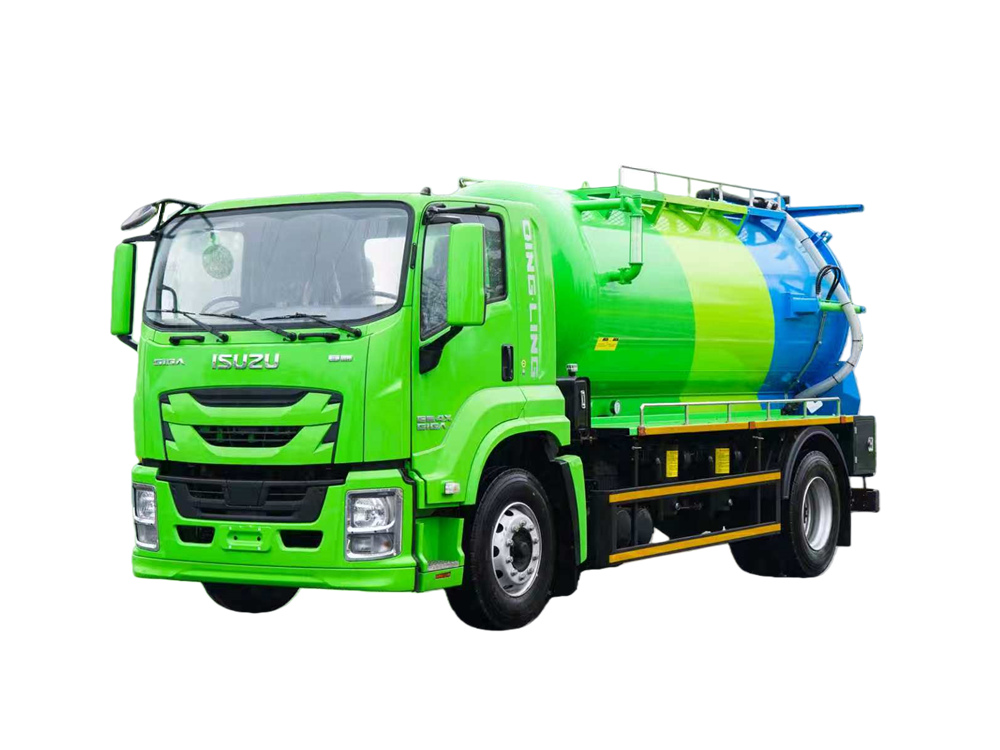

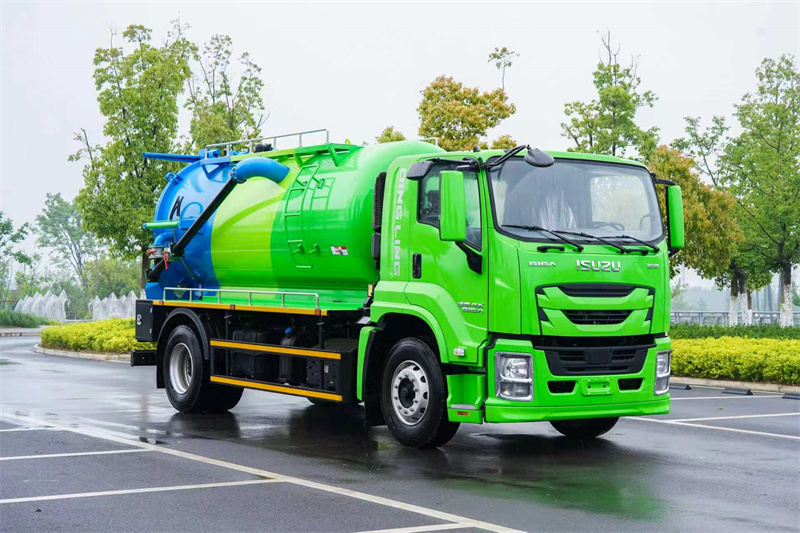

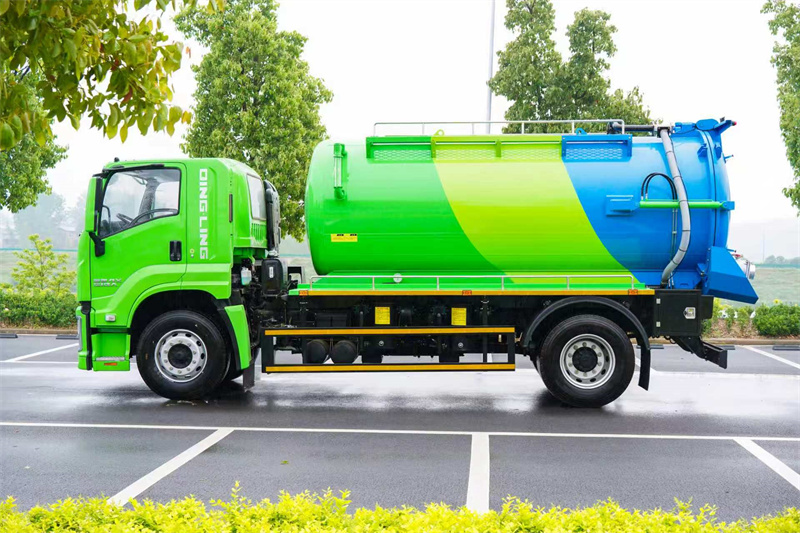

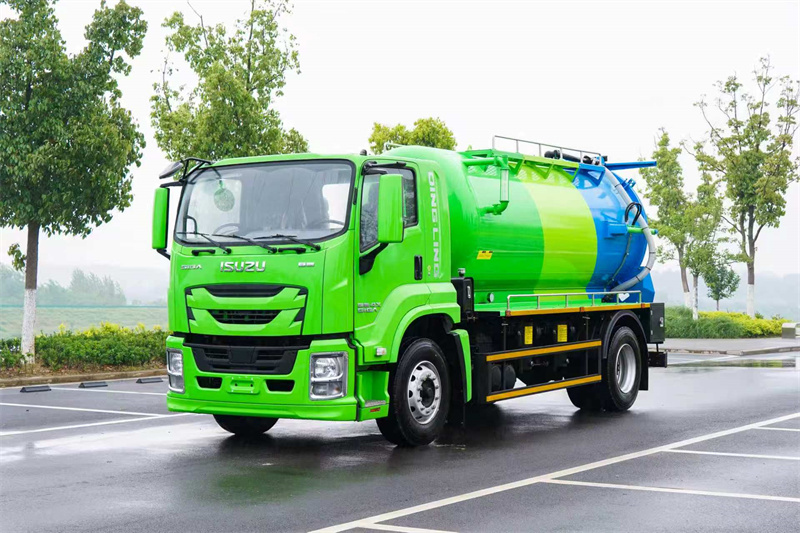

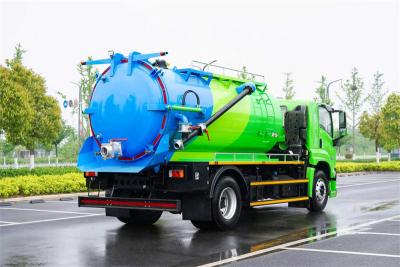

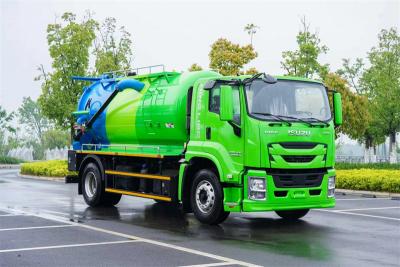

ISUZU GIGA 4X sewer vacuum tanker truck 10000 Liters
The Isuzu FTR GIGA vacuum truck features a 4500mm wheelbase, an Isuzu 4HK1-TCG60 engine, an MLD 6-speed transmission, a 10-cubic-meter carbon steel vacuum tank, a SK-12 vacuum pump, a rear suction valve, a discharge valve, and an inspection window. The tank has a sight glass on the left side, a hydraulic oil tank on the right, a ladder on the right, and a manual control valve for the tank lifting and tailgate opening.
Manufacturer:
Powerstar TrucksWork capacity:
10000LDimension:
8250 x 2500 x 3350 mmCabin type:
Isuzu FTR GIGA cabWheelbase:
4500mmEngine power:
205HP/151KwEngine type:
ISUZU 4HK1-TCG60Axle drive:
4x2,LHDGear box:
ISUZU MLD 6-speed,manualRemarks:
Tank capacity availableThis ISUZU GIGA 4X sewer vacuum tanker truck 10000 Liters is procured by the Philippine municipal sanitation department for sewage operations such as septic tank cleaning, pipeline dredging, and sewage sludge transfer. It features an ISUZU FTR chassis, a 4HK1 engine, and an MLD transmission, paired with a large 10-cubic-meter tank and an SK-12 vacuum pump, providing strong suction capacity and high operational efficiency. It is easy to operate and has a convenient and rational design.
▶ Product Advantages :
1. Powerful Engine: ISUZU 4HK1 engine + MLD transmission.
2. High-Efficiency suction: SK-12 vacuum pump with strong suction, high vacuum level, and fast pumping speed; the 10 cubic meter tank meets the needs of continuous operation.
3. Easy Operation: The manual hydraulic valve assembly is easy to operate; one person can complete the tank lifting and tailgate operation.
4. Safe and Reliable: Multiple safety protection designs including anti-corrosion treatment of carbon steel tank, hydraulic locking tailgate, anti-overflow valve, tank guardrail, and rear night lighting.
▶ Product Parameter :
|
ISUZU GIGA 10cbm vacuum tanker truck |
||||
|
General |
Vehicle Brand |
POWERSTAR |
||
|
Vehicle Model |
PT5180GXW |
|||
|
Overall Dimension |
8250 * 2500 * 3350 mm |
|||
|
GVW / Kerb Weight |
18000 kg / 10500 kg |
|||
|
Axle loads |
6300/13000kg |
|||
|
Cab |
Cab Capacity |
ISUZU FTR GIGA 4X, with A/C,USB,dirfection assistance |
||
|
Engine |
Fuel Type |
Diesel, 4 cylinders in-line |
||
|
Model |
ISUZU 4HK1-TCG60 |
|||
|
Power |
205HP(151kW) |
|||
|
Displacement |
5193ml |
|||
|
Emission Standard |
Euro VI |
|||
|
Chassis |
Drive Type |
4x2, left hand drive |
||
|
Transmission |
MLD 6-speed,manual |
|||
|
Wheelbase |
4500mm |
|||
|
Tyre Specification |
295/80R22.5，6+1 |
|||
|
Sewage Vacuum System |
Sewage tank |
10000L |
||
|
6mm carbon steel Q235 |
||||
|
Vacuum Pump |
Model |
SK-12 |
||
|
Pumping speed |
12m³/min@-0.041MPa |
|||
|
Ultimate vacuum |
-0.093 MPa |
|||
|
Power |
Vacuum:18.5kw;compressor:30kw |
|||
|
Rated speed |
970rpm |
|||
|
Hydraulic System |
Tank hydraulic lift |
|||
|
Equipment |
Rear door hydraulic opening and closing , ≥50° opening angle. |
|||
|
The rear head features hydraulic opening/closing and integrated hydraulic locking |
||||
|
Outlet: Stainless steel pneumatic ball valve (100N+150N) |
||||
|
Sight glass, pressure gauge, hand-washing device，tool box |
||||
|
1 suction hose, 8m |
||||
▶ Chassis Configuration:
• Model: ISUZU FTR GIGA 4X chassis, air conditioning, power steering, central locking with remote key, power windows, multi-function steering wheel, multi-function LCD instrument panel, ABS, air brakes.
• Wheelbase: 4500mm
• Engine: ISUZU 4HK1-TCG60, 205HP, 5.2L emission
• Transmission: ISUZU MLD 6-speed manual transmission
• Axles: 6.3-ton front axle, 13-ton rear axle
• Tires: 295/80R22.5 tires
▶ Upper Structure Functional Configuration:
1. Tank Structure
• Material: Q235B carbon steel, 6mm thick, treated with anti-corrosion coating, highly corrosion resistant.
• Volume: 10 cubic meters, tank body designed with baffles, front and rear high-strength arc-shaped end caps.
• Observation Window: Transparent observation window at the rear door of the tank, sight glass on the left side for real-time monitoring of liquid level and contaminant status inside the tank.
2. Vacuum System

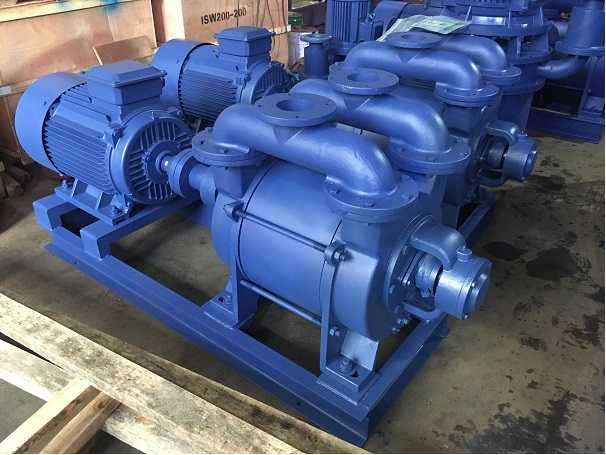

• Vacuum Pump: SK-12 Water Circulation Vacuum Pump
• Pumping Speed: 12 m³/min, quickly creating negative pressure inside the tank, improving suction efficiency.
• Ultimate Vacuum: -0.093 MPa, capable of suctioning and discharging mixtures containing solids and liquids (particle size ≤ 50 mm).
• Cooling Method: Water-cooled circulation, extending pump lifespan.
3. Tailgate and Discharge System

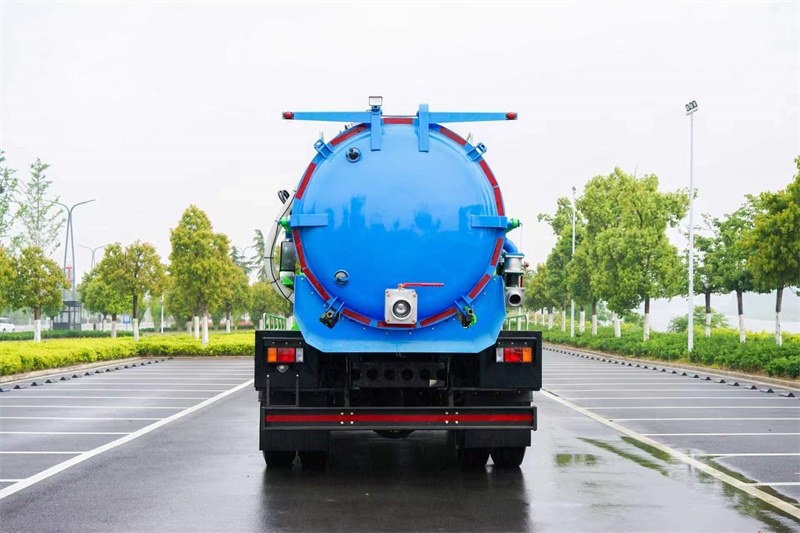

• Tailgate Structure: Hydraulically locking tailgate with strong sealing to prevent leakage during transportation.
• Suction Port: DN100mm large-diameter suction valve on the right side of the tank tail, supporting quick connection to the discharge port.
• Discharge Port: The tailgate is equipped with a DN150mm discharge valve, supporting gravity flow or pressurized discharge.
4. Operation
• Hydraulic oil tank: Used for opening the tailgate and lifting the tank.
• Manual operation valve assembly: Hydraulic control valve on the right side of the front of the tank, allowing manual operation of tank lifting (lifting angle ≥50°) and tailgate opening and closing.
▶ Working Principle:
▶ Application Scenarios:
• Municipal sewer dredging and septic tank cleaning
• Construction site sludge pumping
• Industrial wastewater pool cleaning
• River and lake silt treatment
