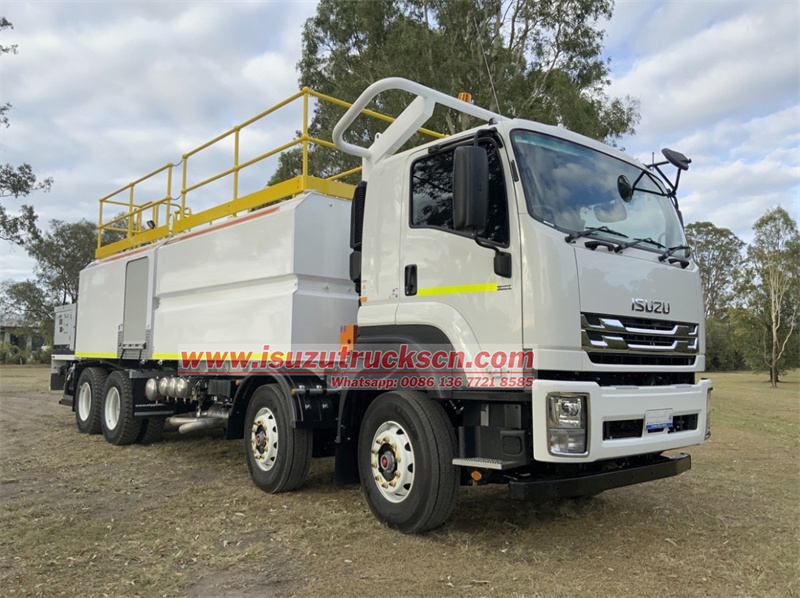

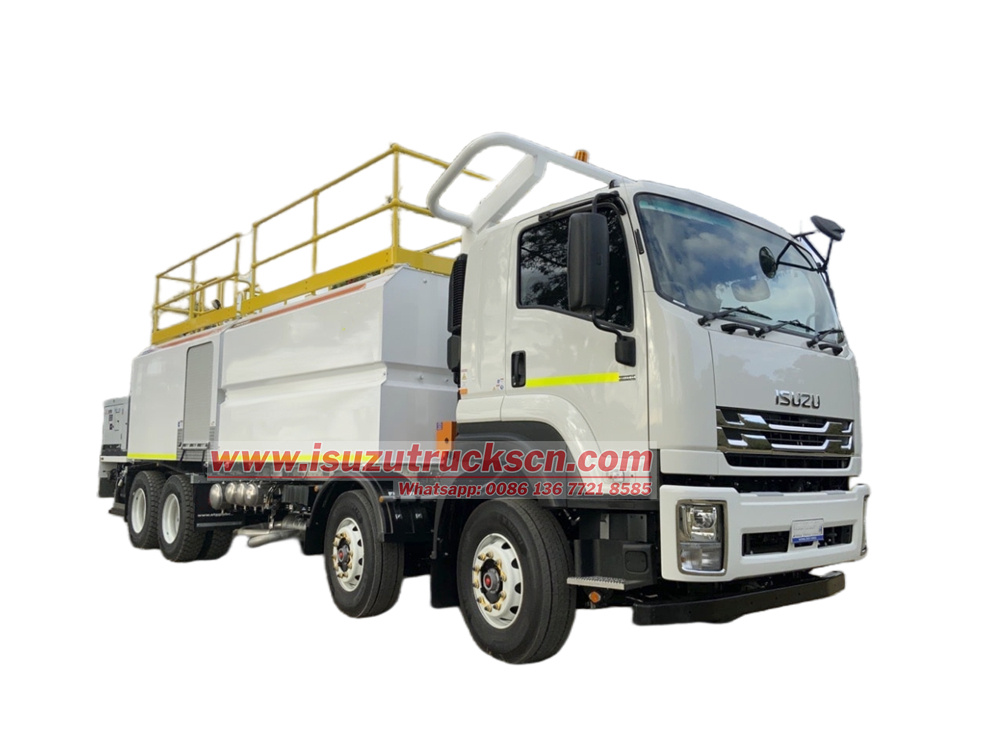

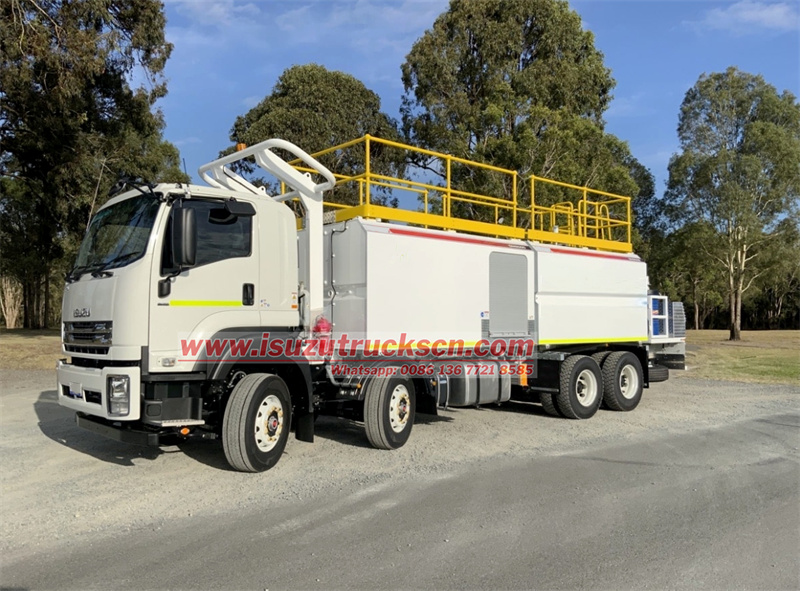

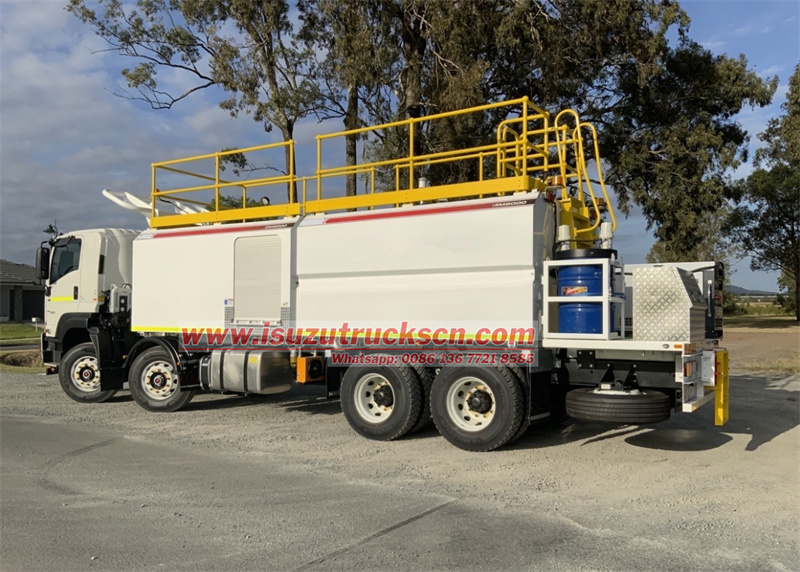

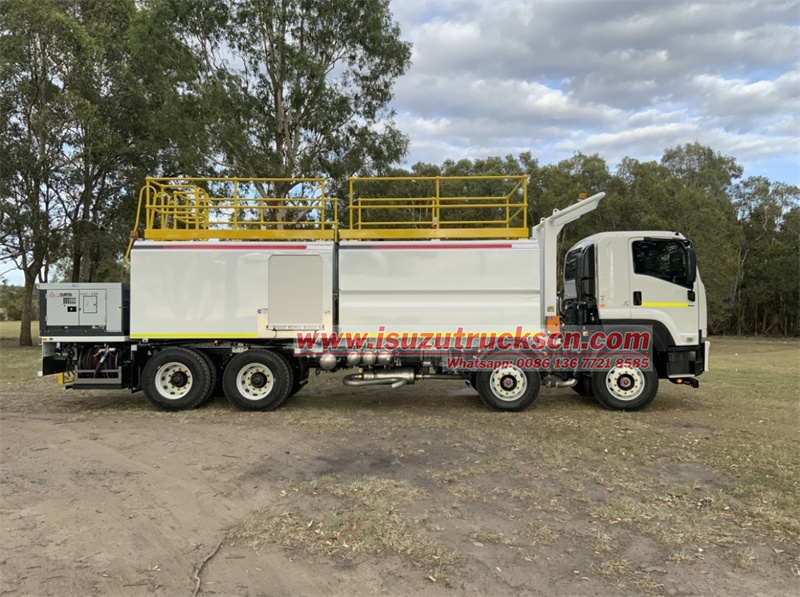

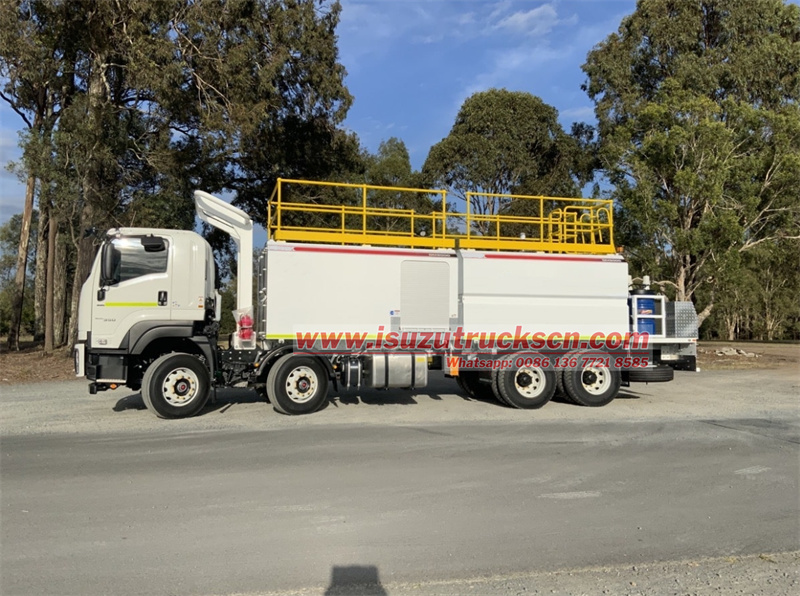

Isuzu 25,000 liters refined fuel delivery truck

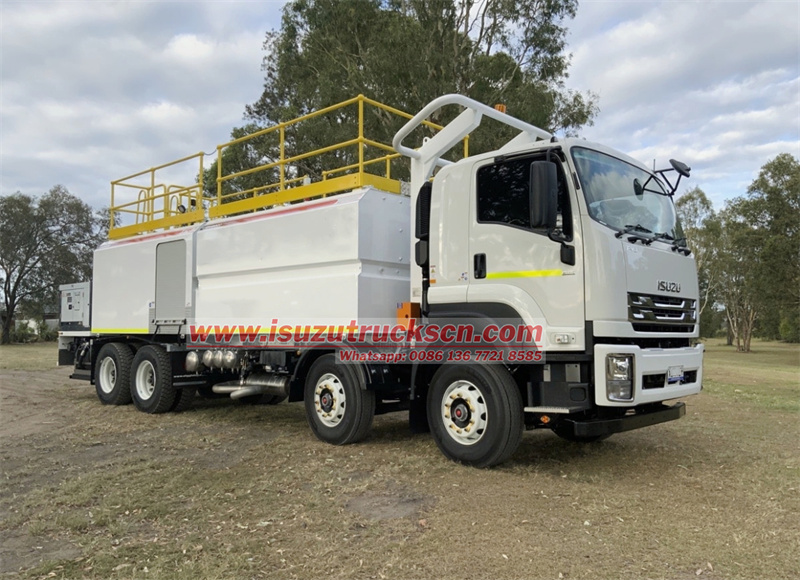

Isuzu GIGA 8x4 fuel tanker truck is modified on the basis of Isuzu GIGA 8X4 chassis, with a wheelbase of 2100+4325+1370 mm, equipped with Isuzu 6WG1-TCG61 460 horsepower engine, Fast 12-speed gearbox, the front of the upper body is a HALO ROPS (optional), ISOLATORS & E-STOPS, in the middle is a 25 square carbon steel tank, equipped with Beijing Sanjin fuel dispenser, fuel gun, reel, flow meter, liquid level meter, manhole on the top of the tank, anti-skid walkway, handrail, FS-Curtis FAC-23B compressor, ladder, tool box.
Manufacturer:
Powerstar TrucksWork capacity:
25000LDimension:
11650×2550×4050mmCabin type:
Isuzu FVZ GIGA 6x4 VC61 cab,3 persons allowedWheelbase:
2100+4325+1370 mmEngine power:
460HP /338kWEngine type:
Isuzu 6WG1-TCG61Axle drive:
8x4,LHDGear box:
FAST 12 speed,manualRemarks:
Tank capacity can be customizedThe Isuzu 25,000 liters refined fuel delivery truck is based on the Isuzu GIGA 8X4 heavy-duty chassis and is built through professional modification. It is designed for medium and long-distance fuel transportation and efficient refueling operations. The vehicle is equipped with a 25 cubic meter carbon steel tank with a large fuel storage capacity. The internal wave-breaking plate design ensures transportation stability and integrates the Beijing Sanjin intelligent refueling system with a metering accuracy of ±0.2%. The vehicle is equipped with multiple safety protections, including an emergency cut-off system, an anti-static device and an optional roll cage, which meets the standards for the transportation of dangerous goods. An air compressor and a working platform are installed at the rear to meet different operational needs.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
Tank material : ◇ 4-6mm thick carbon steel with high quality .
◇ carbon steel and stainless steel or aluminum alloy can be choose.
Tank shape: ◇ square-round, oval, round;
Pump : ◇ can be choose self-priming pump, gear pump or double pump;
◇ the pump can help the oil pump in and out or self-flow.
Special design:◇ can be designed to an independent sub-warehouse to transport different oil with the same time.
◇ 15 meters refueling reel (can automatically return to position),
◇ the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity,
◇ delivery safety and other characteristics in the transportation.
» Ⅱ. Product Parameter for Isuzu GIGA diesel dispenser truck:
|
Isuzu GIGA 8X4 25CBM fuel refueling truck |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
Isuzu |
|
|
Overall Dimension |
11650×2550×4050mm |
|
|
GVW / Kerb Weight |
44000/19850kg |
|
|
Cab |
Type |
Isuzu FVZ GIGA 6x4 VC61 cab,3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Brand |
Isuzu |
|
|
Type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
|
Model |
6WG1-TCG61 |
|
|
Power |
460HP /338kW |
|
|
Max torque |
2250N.m |
|
|
Rated speed |
1500rpm |
|
|
Max torque speed |
900-1300rpm |
|
|
Displacement |
15.681L |
|
|
Emission Standard |
Euro 6 |
|
|
Chassis |
Drive Type |
8x4,LHD |
|
Transmission |
FAST 12 speed,manual |
|
|
Wheelbase/No. of axle |
2100+4325+1370 mm |
|
|
Tire Specification |
385/65R22.5 / 315/80R22.5 |
|
|
Tire Number |
12 tires and 1 spare tire |
|
|
Max Speed |
89 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body capacity |
25,000 Litres |
|
Tanker Material |
Carbon Steel，6mm thickness |
|
|
Compartments |
5 (5000L,5000L,5000L,5000L,5000L) |
|
|
Pump |
Fuel pump equipped for overhead delivery |
|
|
Suction head |
7 m |
|
|
Hose |
High quality, wire strengthened hose,with cooper wire, anti-static |
|
|
Refueling Machine |
Equipped based on customer requirement |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: |
Flow meter, refueling machine, spring return hose reel and oil gun, liquid level meter, compressor,etc. |
|
|
manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers… |
||
|
Optional |
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). ** It can be divided into many. ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
» Ⅲ. Product Details & Advantages:
Core configuration analysis
1. Chassis and power system
● Based on the Isuzu GIGA 8X4 chassis, it adopts 8×4 drive mode, with a wheelbase of 2100+4325+1370mm, taking into account both load stability and turning flexibility.
● Equipped with Isuzu 6WG1-TCG61 inline six-cylinder diesel engine, with a maximum power of 460 horsepower and a peak torque of 2250N·m, matched with Fast 12-speed gearbox, low-speed torque output is strong, heavy-load climbing ability is improved by 20%, and fuel economy is 8% better than similar models.
2. Safety protection module
● Front protection: Standard ISOLATORS power isolation device and E-STOPS emergency stop system, which can cut off the engine power output within 0.3 seconds; optional HALO ROPS roll cage provides additional rollover protection.

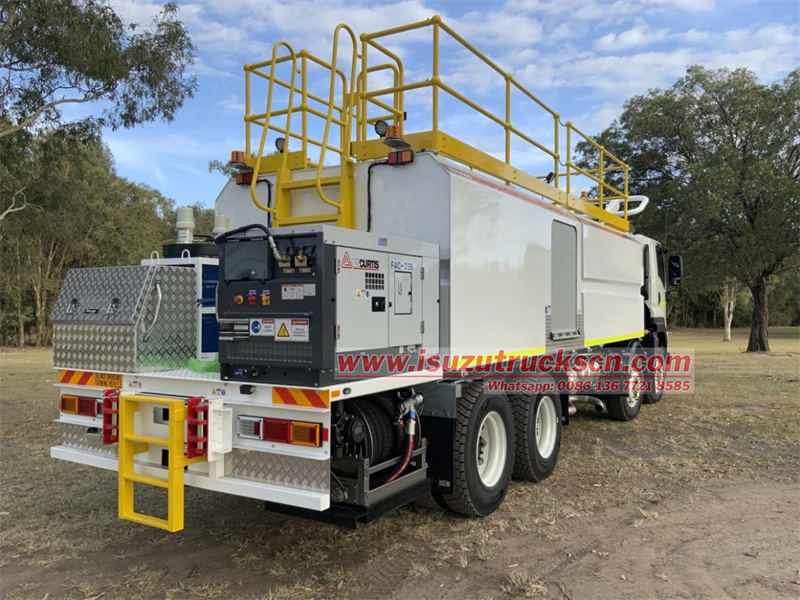

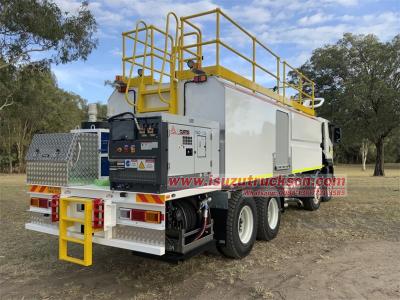

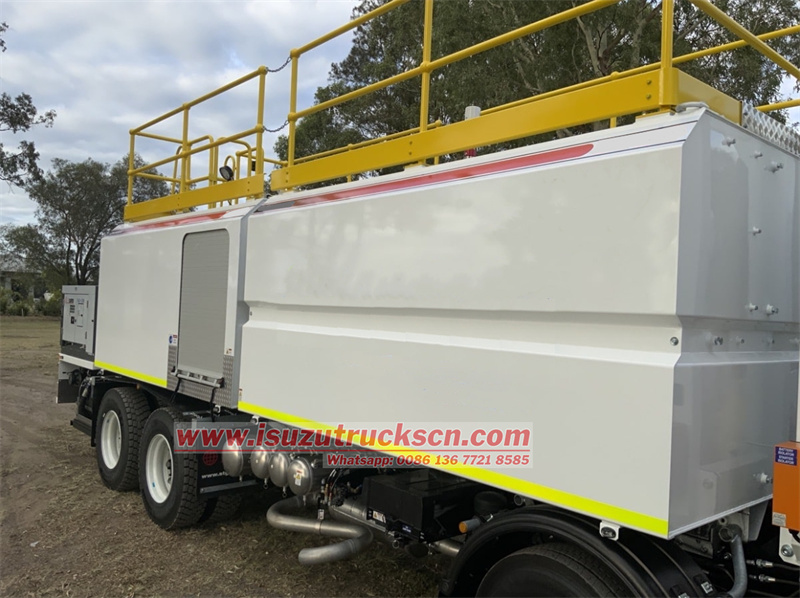

● Tank safety: The 25-cubic-meter carbon steel tank adopts a multi-wave plate design, equipped with a liquid level alarm device and an anti-overflow valve, and a European standard manhole with a breathing valve and an anti-slip walkway on the top for easy maintenance; the tail is integrated with a FS-Curtis FAC-23B air compressor (exhaust volume 23m³/min) to support rapid inflation of engineering vehicles.
3. Intelligent refueling system
● The middle tank area integrates the Beijing Sanjin SK-3D series refueling machine, with a standard flow of 50L/min, which is adjustable, and the flow meter accuracy is ±0.2%. It supports multiple guns to operate simultaneously, and is equipped with an automatic reel and a 15-meter refueling hose for rapid recovery.
● The tail platform is equipped with a ladder, tool box and LED lighting system to meet the needs of night operations;
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ. Main application scenarios:
1. Petrochemical industry:
• Transit transportation from refinery to gas station
• Fuel allocation between oil depots
2. Engineering construction:
• Mechanical fuel supply at large construction sites
• Fuel supply for mining equipment
3. Emergency support:
• Emergency fuel supply during natural disasters
• Fuel supply for military exercises
4. Special application scenarios:
• Refueling of airport ground vehicles
• Fuel supply for port machinery
