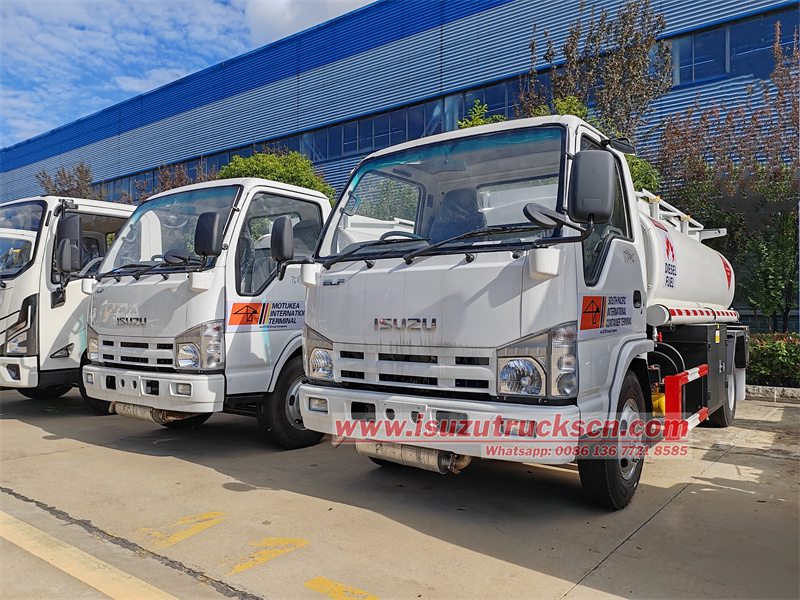

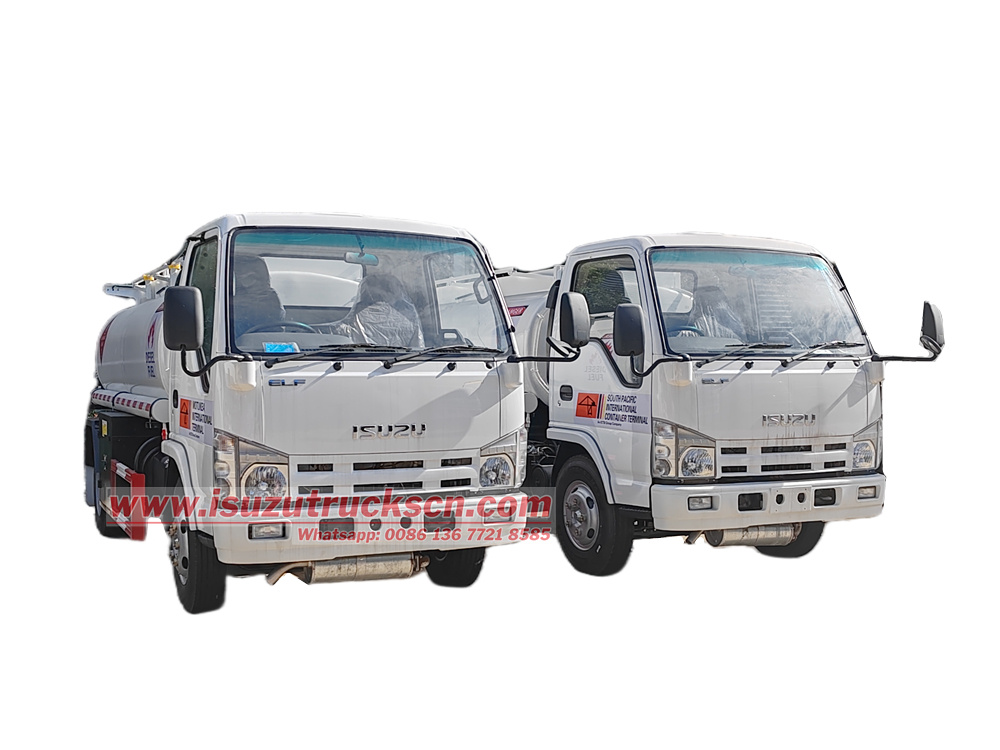

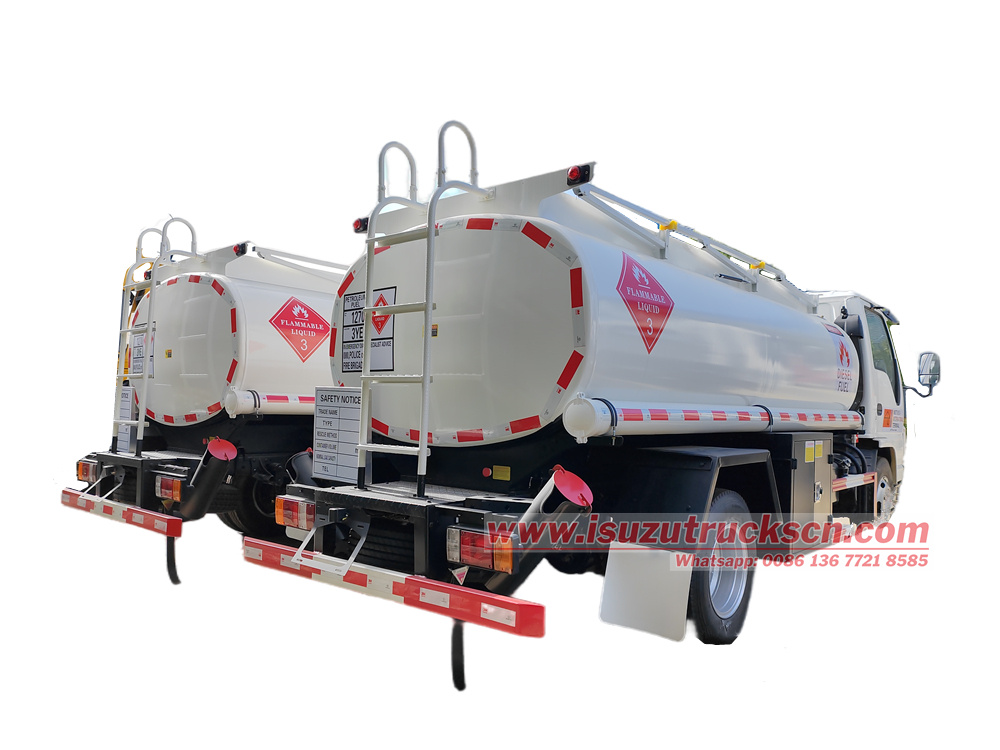

The Isuzu 100P 4cbm fuel tanker refueling truck adopts the Isuzu ELF 100P light truck chassis with a 3360mm wheelbase. It is equipped with an Isuzu 4KB1-TCG60 130-horsepower engine and an Isuzu MSB 5-speed transmission. The maximum speed is 115km/h. The upper part is a 4-cubic-meter oil tank, which is curved, made of carbon steel, and is 5mm thick. The tank has a European standard manhole, an aluminum alloy bottom valve, a discharge valve, and an emergency shut-off device. It is equipped with a Chinese-made oil pump with a flow rate of 30m³/h, a censtar fuel dispenser, a 15m fuel reel with a fuel gun, inlet and outlet pipelines, a tool box, a ladder, handrails, a fire extinguisher, and a fuel hose.
MarketPrice:
$19870Manufacturer:
Powerstar TrucksWork capacity:
4,000 litersDimension:
5995*2000*2400 mmCabin type:
Isuzu 100P cab,2 seatsWheelbase:
3360mmEngine power:
130HP/96kWEngine type:
ISUZU 4KB1-TCG60Axle drive:
4X2,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:

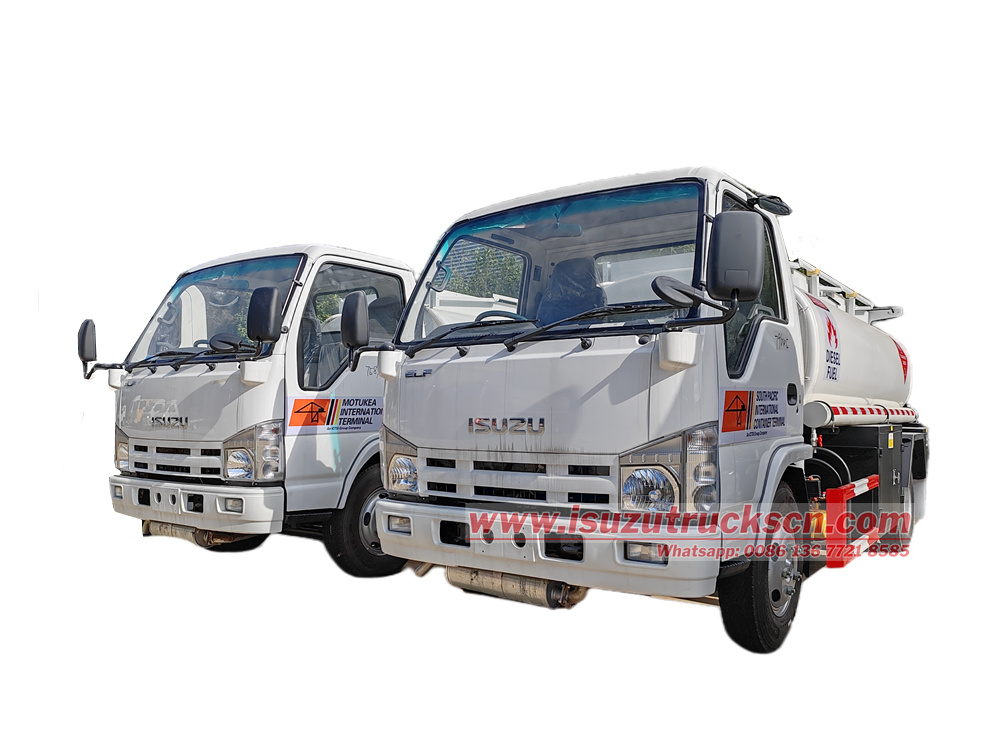

Tank capacity can be customizedThe Isuzu 4000L Fuel Dispenser Truck is an efficient, safe, and flexible mobile refueling vehicle based on the classic Isuzu ELF light truck chassis. It is equipped with a 130-horsepower Isuzu 4KB1 engine and a 5-speed transmission, providing reliable power. The core of the vehicle is a 4-cubic-meter curved carbon steel fuel tank. The refueling system utilizes a Chinese-made fuel pump (30 m³/h flow rate) and a Censtar fuel dispenser, along with a 15-meter reel and fuel nozzle. This allows for fast and efficient on-site fuel replenishment at construction sites, mining areas, farms, logistics fleets, and other locations.
● China best Isuzu fuel refueling truck factory
● 30 years experience on diesel dispenser truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Key Features and Advantages
1. Efficient and Convenient: A high-flow 30m³/h fuel pump, coupled with a dispenser and 15-meter reel, allows for quick refueling of equipment without moving the vehicle.
2. Safe and Reliable:
The tank is sturdy and equipped with a European-standard manhole and emergency shut-off valve.
It comes standard with safety features such as a fire extinguisher and static grounding cable, meeting safety standards for hazardous materials transport vehicles.
3. Economical and Practical: Equipped with the classic Isuzu powertrain, it offers low fuel consumption, minimal failure rates, and low maintenance costs.
4. Flexible and Maneuverable: The 4-cubic-meter capacity is suitable for daily refueling needs and offers flexibility and maneuverability.
» Ⅱ.Product Parameter for Isuzu 100P refined fuel tanker truck:
|
Isuzu 4000L Fuel Dispenser Truck |
||
|
Vehicle |
Model |
PT5070GHW |
|
Overall dimension |
5995*2000*2400 mm |
|
|
Curb weight |
4100 kg |
|
|
Axle load |
2580/4720 kg |
|
|
Front /Rear hanging |
1110/1525 kg |
|
|
Speed limitation |
115 Km/h |
|
|
Chassis |
Brand |
Isuzu |
|
Model |
Isuzu ELF 100P |
|
|
Wheelbase |
3360mm |
|
|
Tire |
7.00R16LT |
|
|
Steering |
LHD |
|
|
Gearbox |
Isuzu MSB 5-speed,manual |
|
|
Cab |
2 passenger,Direction power assistance,A/C,DRIVING RECORDER, center lock,electric lock and window |
|
|
Engine |
Model |
4KB1-TCG60 |
|
Brand |
ISUZU |
|
|
Power |
130HP/ 96 kW |
|
|
Displacement |
2499 ml |
|
|
Emission standard |
Euro 6 |
|
|
Tank |
Volume |
4000 Liters ( petrol / diesel ) |
|
Tank Material |
Q235B carbon steel,5mm thickness |
|
|
Compartment |
1 |
|
|
Function |
Manhole on top tanker |
European standard, including pressure relief valve |
|
Safety Valve |
European Standard |
|
|
Discharge Valve |
Alluminum Alloy Ball Valve type |
|
|
Emergency Cutoff Device |
Alluminum Alloy Bottom Valve |
|
|
Oil Pump |
Chinese brand,30m³/h |
|
|
Fuel Dispenser |
1pcs,censtar brand |
|
|
Refueling reel |
15M Refueling reel with refueling gun |
|
|
Liquid level display |
Computer control system |
|
|
Standard configuration |
Tool box, climbing ladder, handrail, fire extinguisher, 1pcs oil hose |
|
» Ⅲ. Product Details:
Chassis Configuration
• Chassis Model: Isuzu ELF 100P Light Truck Chassis
• Wheelbase: 3360mm (Ensuring excellent driving stability and passability)
• Engine: Isuzu 4KB1-TCG60 inline four-cylinder diesel engine
• Maximum Horsepower: 130 hp, 96 kW; 360 Nm of Torque
• Transmission: Isuzu MSB 5-speed Manual Transmission
• Max Speed: 115 km/h (Ensuring efficient transitions)
Upperbody Configuration

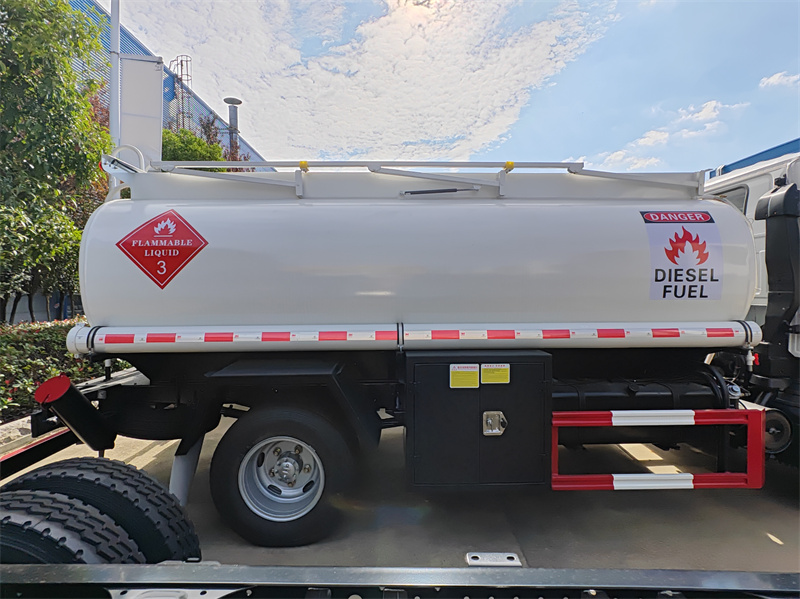

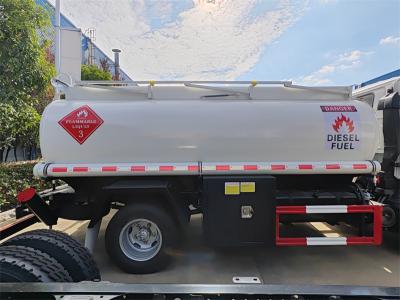

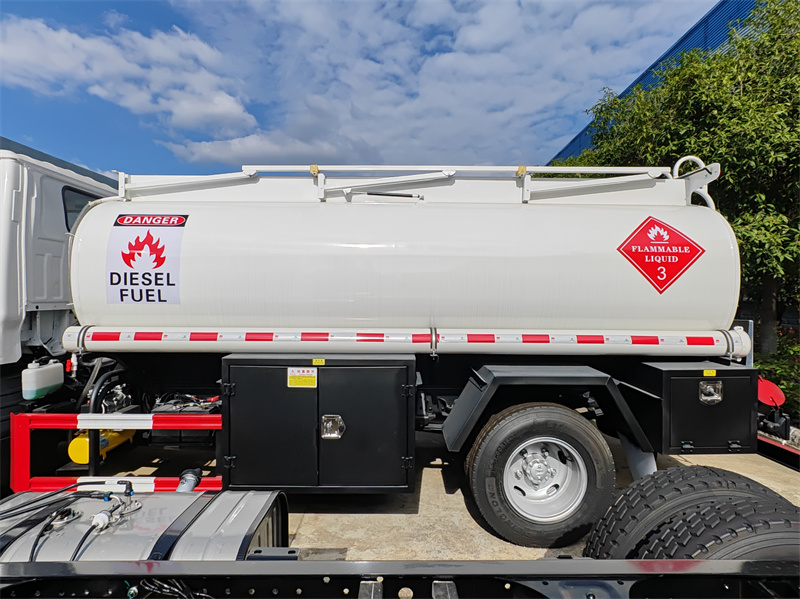

1. Oil Tank
• Capacity: 4 cubic meters
• Shape: Curved tank (stable structure, facilitates liquid flow)
• Material: Carbon steel, 5mm thickness (durable, ensures tank strength)

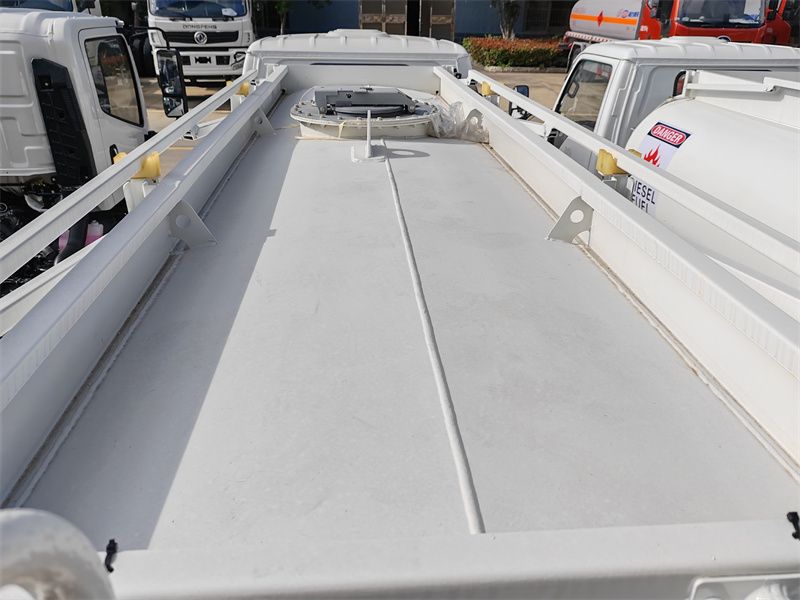

• Manhole: One European standard manhole cover (good sealing, safe and convenient operation)

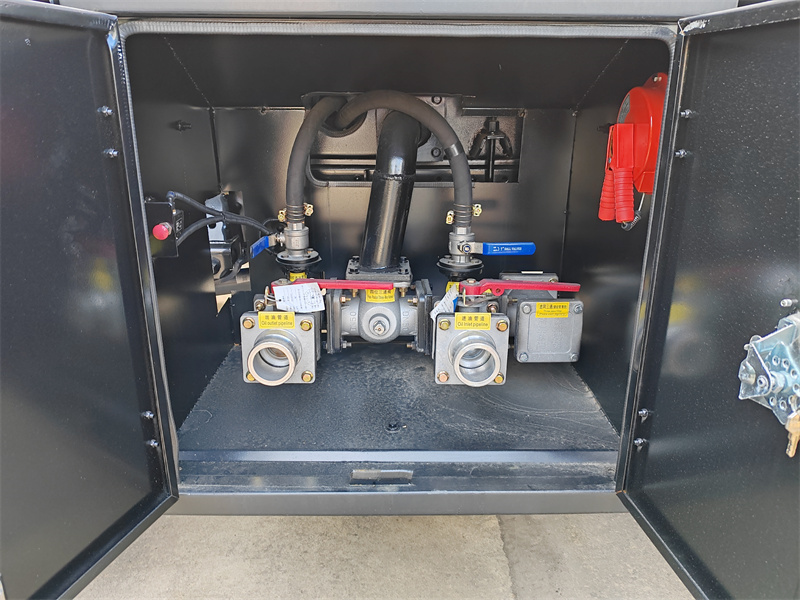

• Safety Devices:
o Emergency shut-off device: Quickly shuts off the oil line in an emergency, ensuring safety.
o Aluminum alloy bottom valve: Corrosion-resistant, controls the main outlet of the tank oil.
o Discharge valve: Controls the discharge of oil.
2. Fueling System
• Fuel Pump: High-quality, Chinese-made pump
• Flow Rate: 30 cubic meters/hour (Fast fueling, high efficiency)

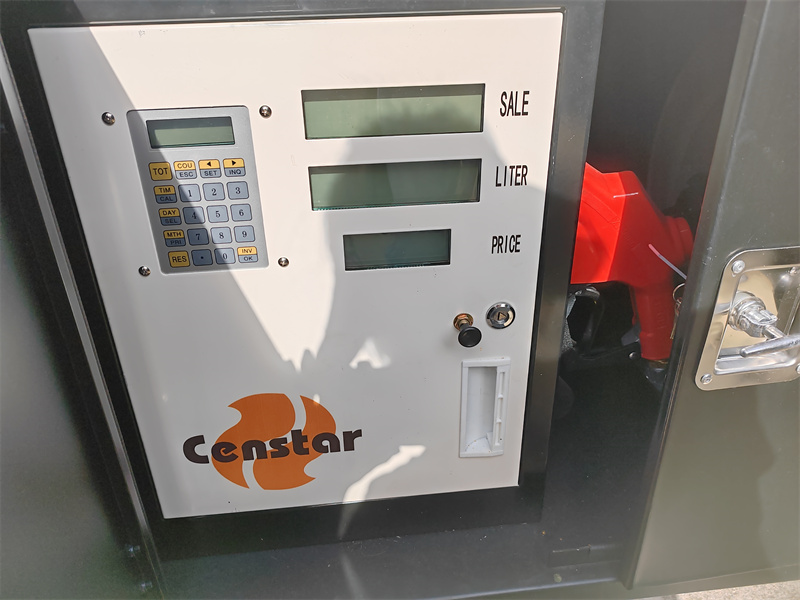

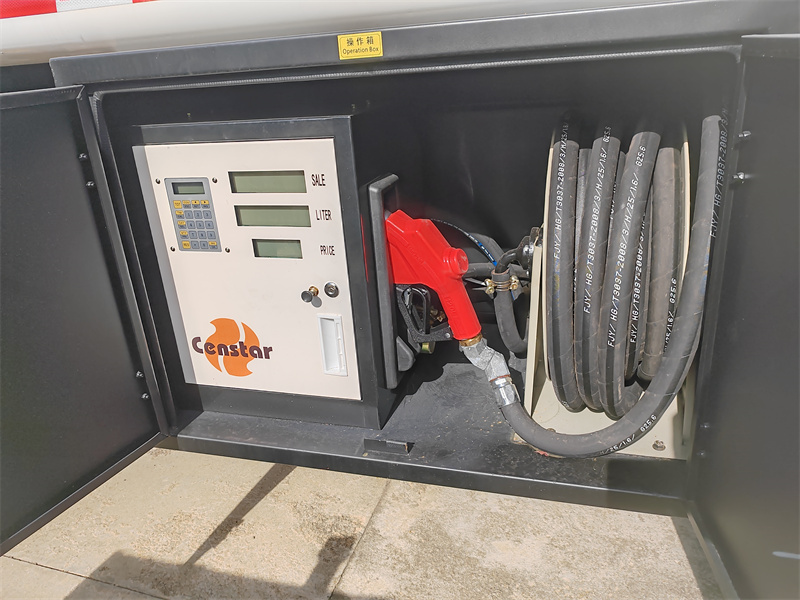

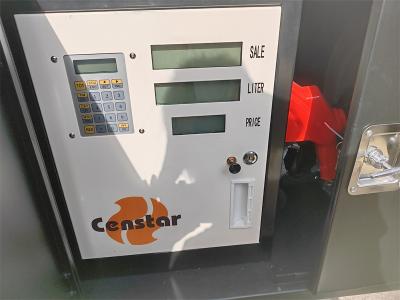

• Fuel Dispenser: Censtar brand (Accurate metering, clear display, stable performance)
• Fuel Reel: 15 meters long (Wide coverage, flexible operation)
• Fuel Gun: Standard self-sealing type
• Inlet and Outlet: Complete oil pipeline system with reliable connections.
3. Other Configuration

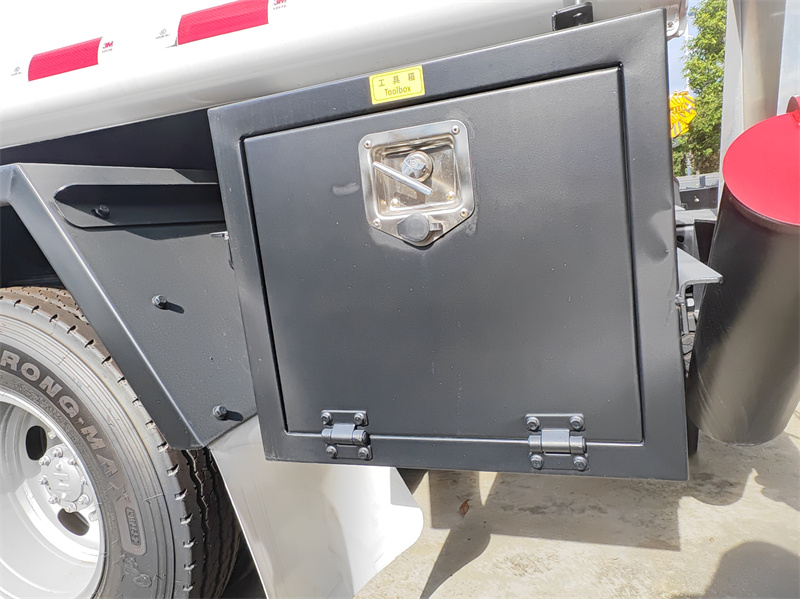

• Tool Box: For storing on-board tools and spare parts.

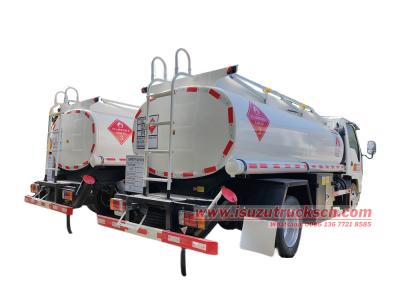

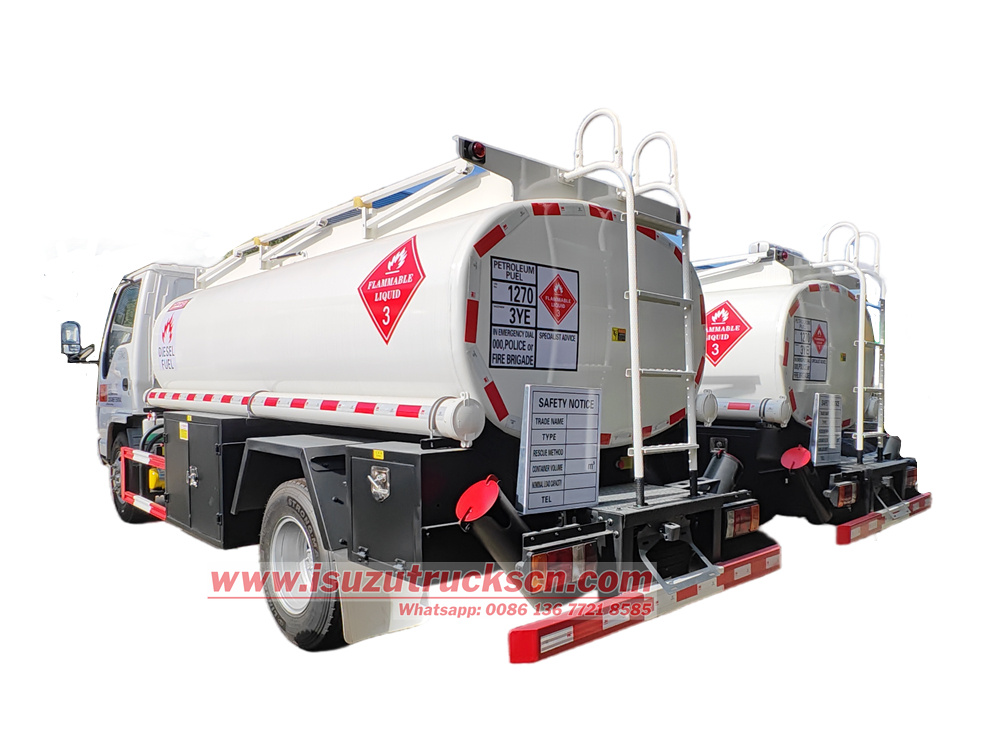

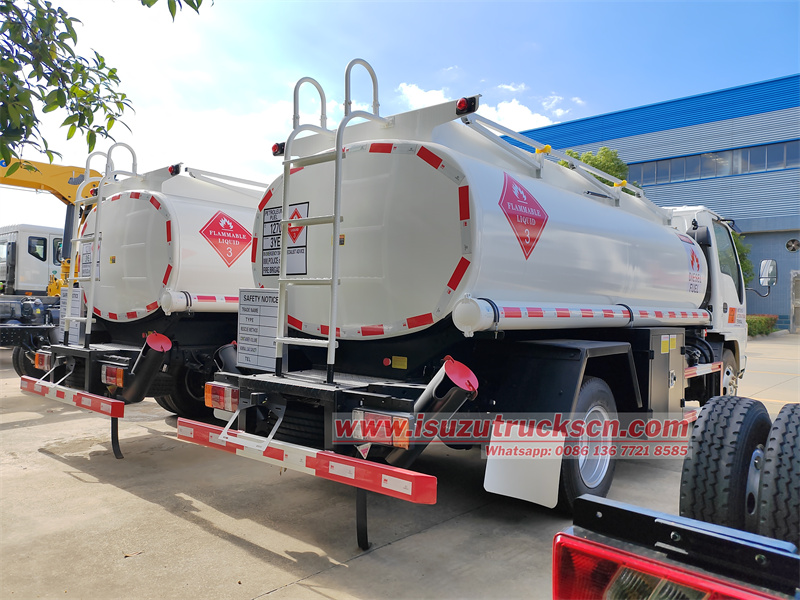

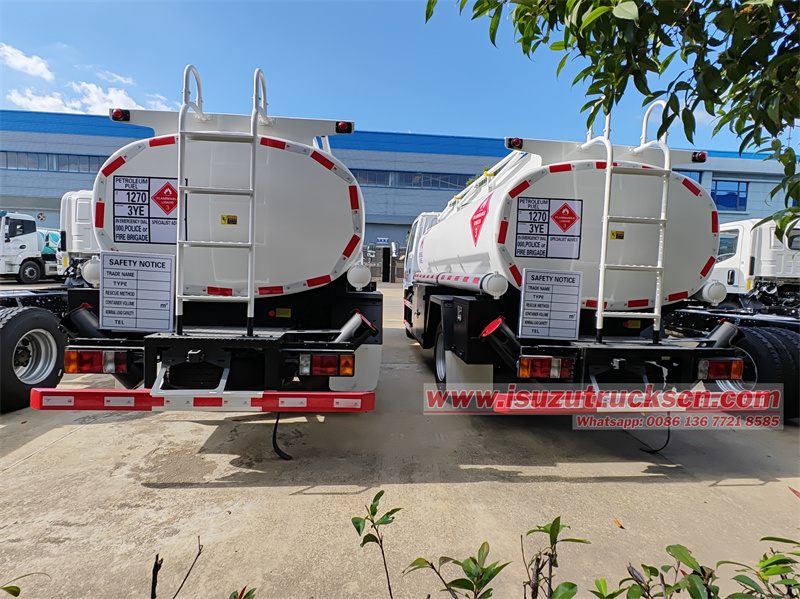

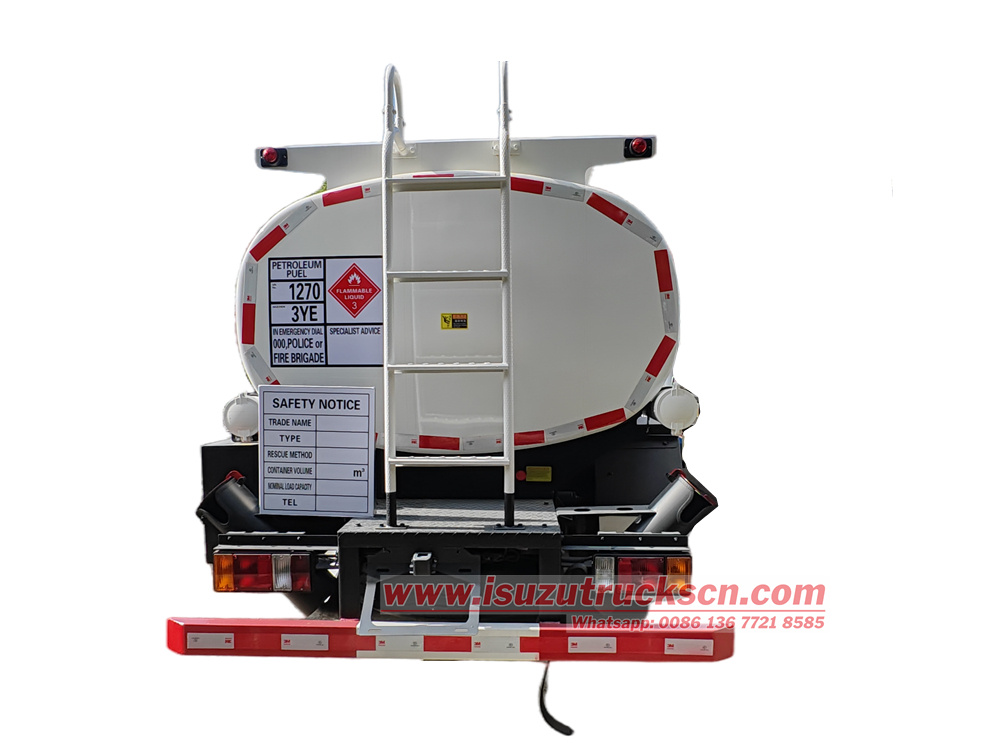

• Ladder & Handrail: For easy access to and from the tank roof for operation and inspection.

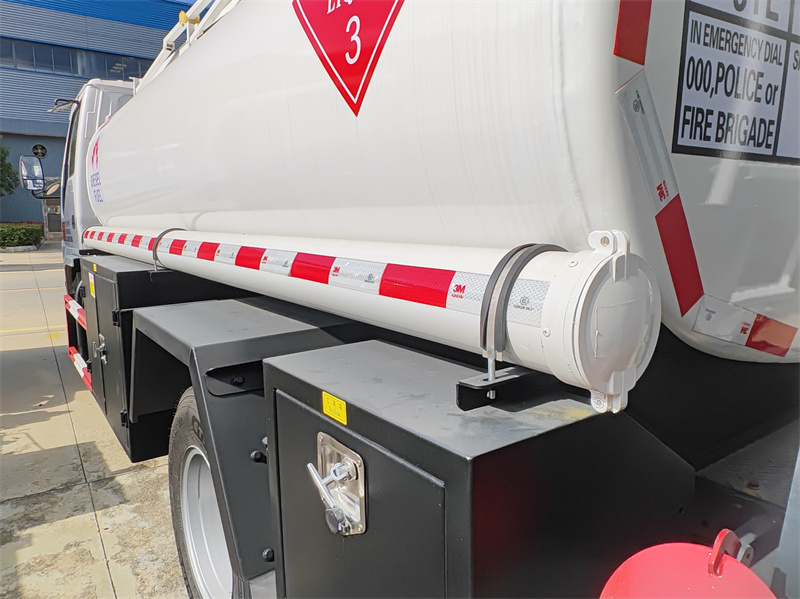

• One spare oil hose: For emergency use, enhancing operational continuity.
• Fire Extinguisher: Included on-board, in compliance with safety regulations.
• Grounding Wire & Conductive Reel: Standard equipment, used to dissipate static electricity during operation, ensuring safety.
» Ⅳ. Key Applications:
• Fuel supply at construction sites, mining sites, and quarries
• Field refueling of agricultural and forestry machinery
• Internal refueling for logistics companies and transport fleets
• Fuel supply for equipment at ports and terminals
• Fuel support at emergency rescue sites
