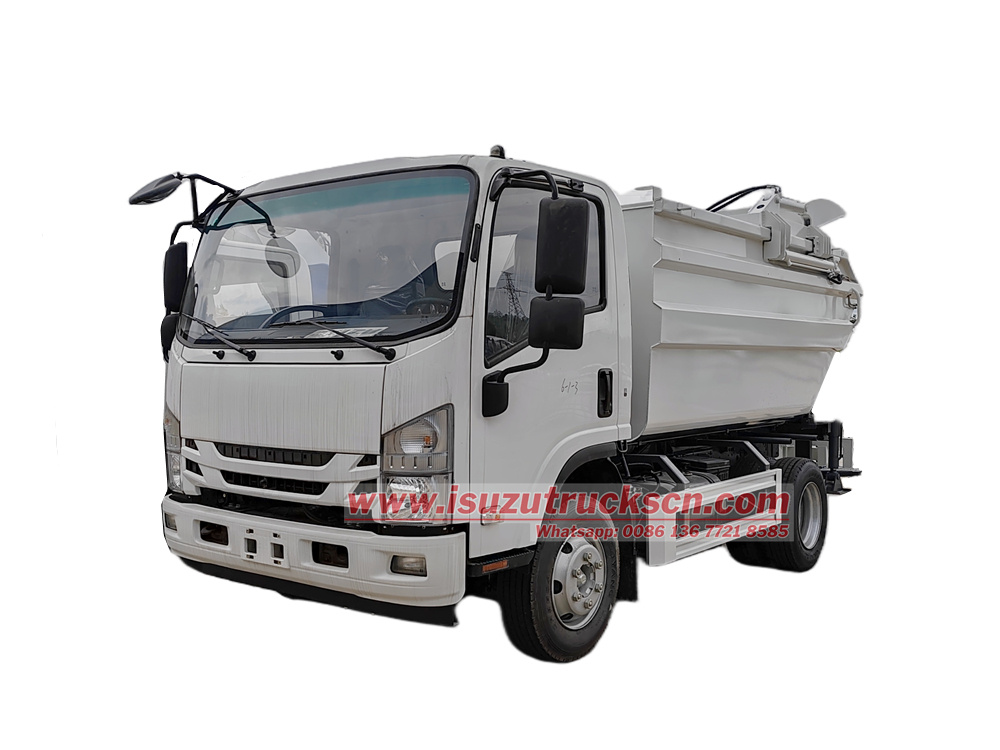

Isuzu 4x2 hydraulic lifting rear loader truck

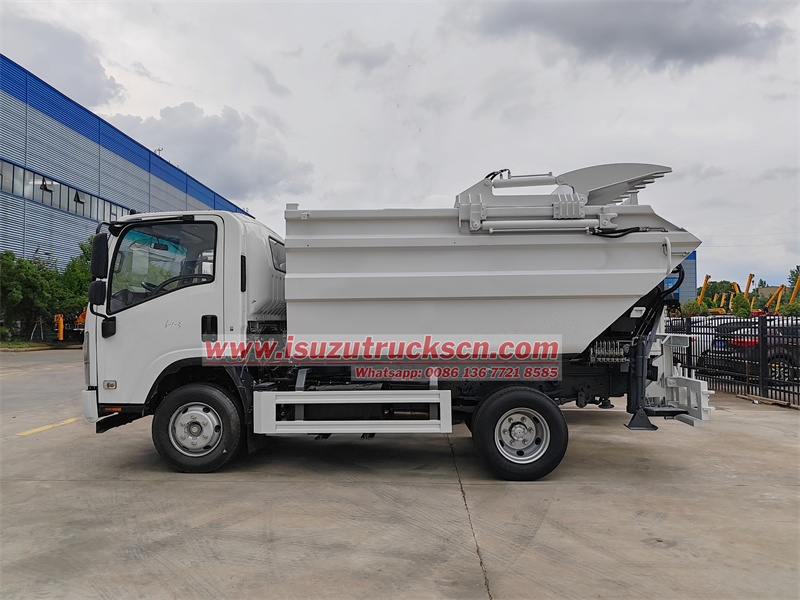

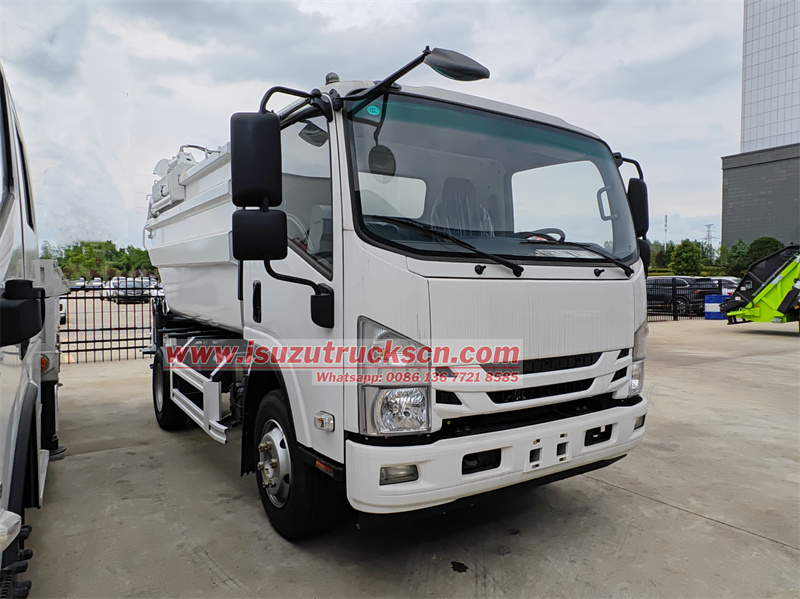

Isuzu 700P 6cbm self-loading garbage truck is modified on the basis of Isuzu 700P chassis, with a wheelbase of 3815mm, equipped with Isuzu 4HK1-TCG61 190HP engine, Isuzu MLD 6-speed gearbox, and a 6cbm self-loading and unloading garbage box. It adopts a ship-shaped box and high-position loading technology. The garbage port of the box is at the top of the box. It is a high-position loading and unloading structure, with hydraulic outriggers at the rear and operating valves. It adopts a PLC intelligent control system.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
6480*2200*2780mmCabin type:
Isuzu 700P cabin,single row,3 passengers, A/C,USBWheelbase:
3815mmEngine power:
190HP/139kWEngine type:
Isuzu 4HK1-TCG61Axle drive:
4x2，LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
4X4, RHD avaiableIsuzu 4x2 hydraulic lifting rear loader truck is a high-level, leak-free self-loading garbage truck. It adopts a ship-shaped box body with high structural strength and good sealing. It adopts high-level loading technology. The garbage port of the box body is at the top of the box body, which prevents secondary pollution such as garbage leakage and sewage leakage during garbage collection and transportation. It is mainly used for garbage collection in narrow streets, township streets, communities and other places where medium and large vehicles are difficult to enter. The bottom of the ship-shaped box body has no openings around it, and the bottom plate and side plates are arc-shaped to reduce welds and reduce the risk of leakage.
● China best Isuzu self-loading garbage truck factory
● 30 years experience on High-position self-loading waste vehicle designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance

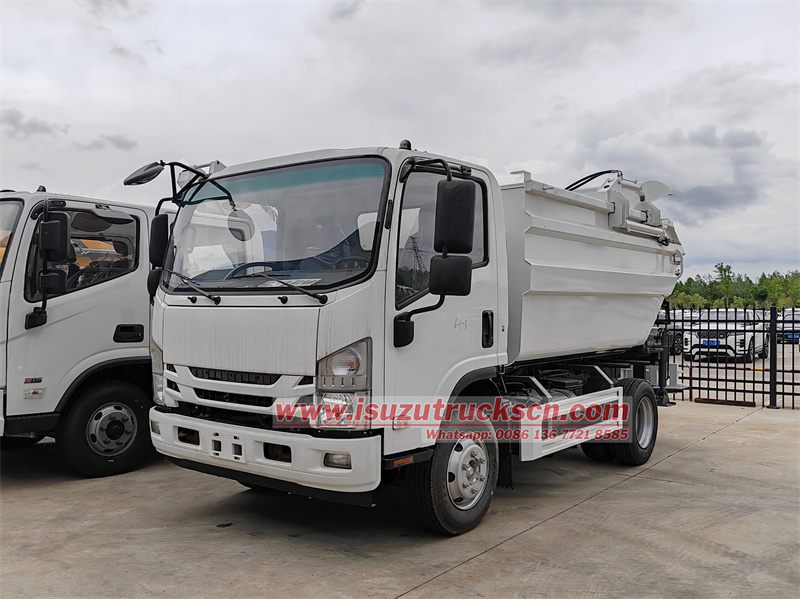

*ISUZU NPR 6CBM High-position Self-loading Garbage Truck*
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features:
1. The truck body has fewer welds, which reduces the risk of sewage leakage. The overall appearance is beautiful and highly recognizable.

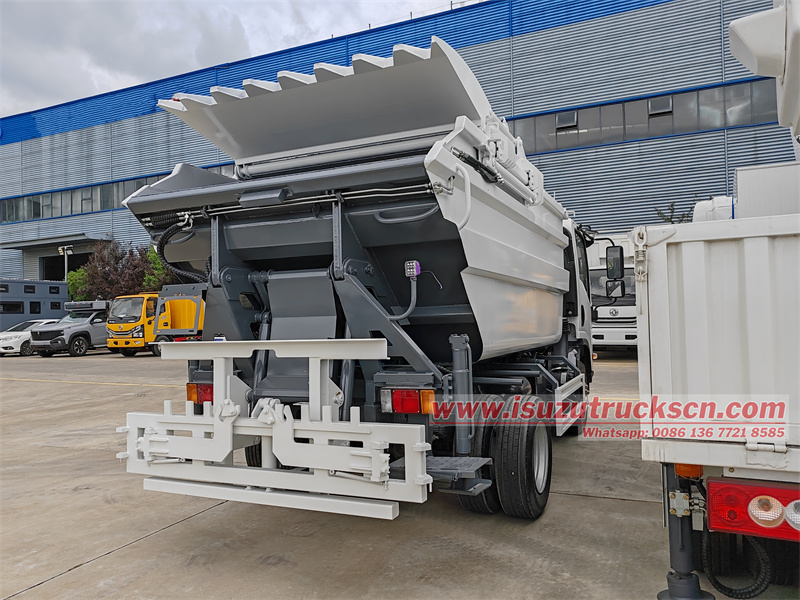

2. The scraper mechanism is used on the top to effectively increase the garbage loading capacity.
3. The one-button control system is adopted, which is easy to operate and highly safe.

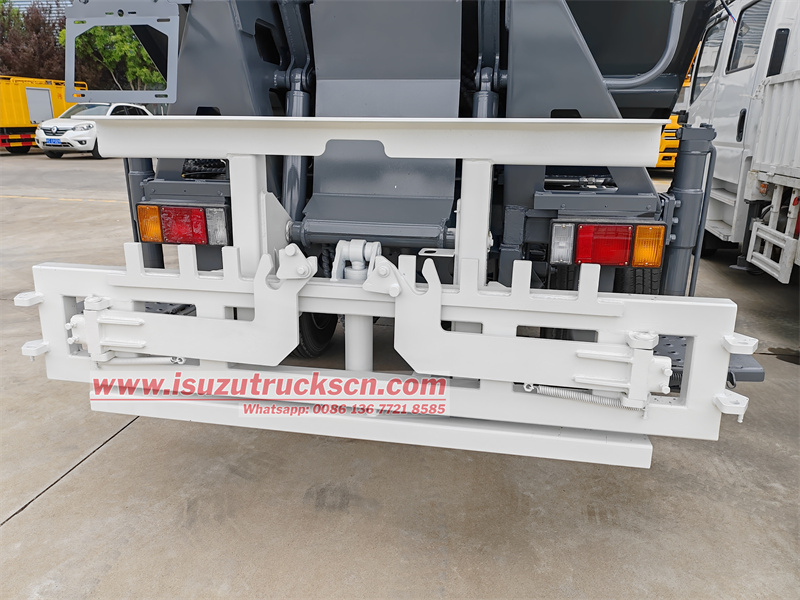

4. The collection device adopts three sets of cylinders, a parallelogram mechanism, a short rear extension, a light structure, and the garbage bin rises nearly vertically to ensure that the garbage does not fall during the rise.
5. The high-position self-unloading structure is adopted, and the garbage and sewage will not leak. It can be directly connected with large garbage compression trucks, mobile stations, etc.
6. Good compatibility, can be adapted to 120L, 240L, and 660L garbage bins at the same time.

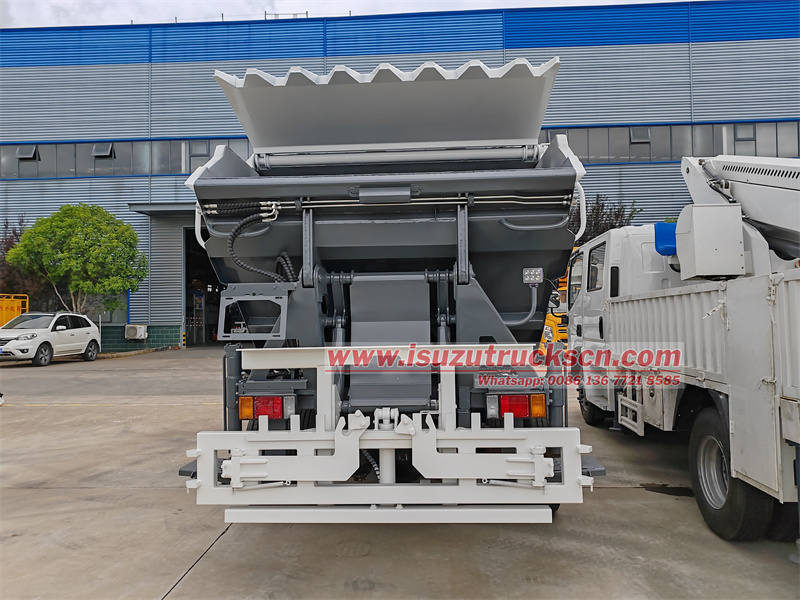

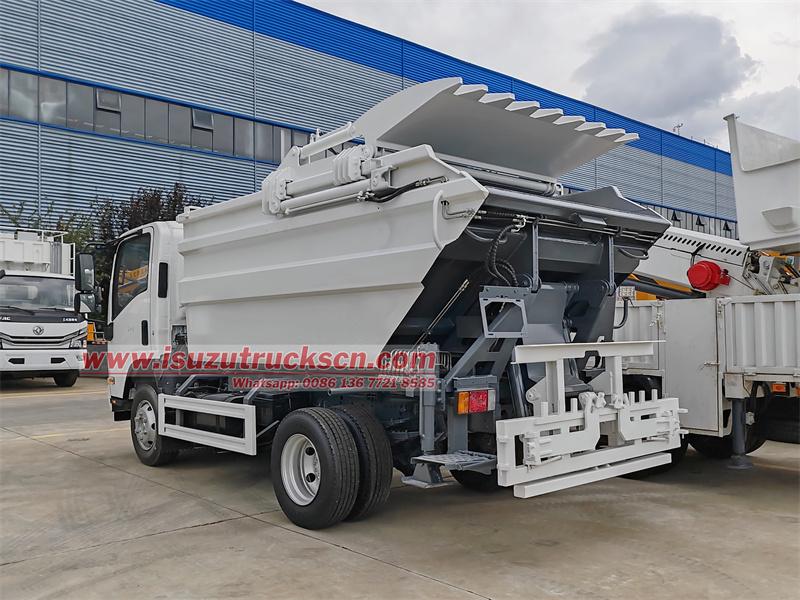

Rear high-position flip self-loading garbage truck
The "rear high-position flip" has two meanings. The first is the high-position flip of the garbage bin: after the garbage bin is hung, the lifting mechanism is horizontally lifted to the highest position of the bin, and then the garbage in the bin is flipped and poured into the garbage bin.

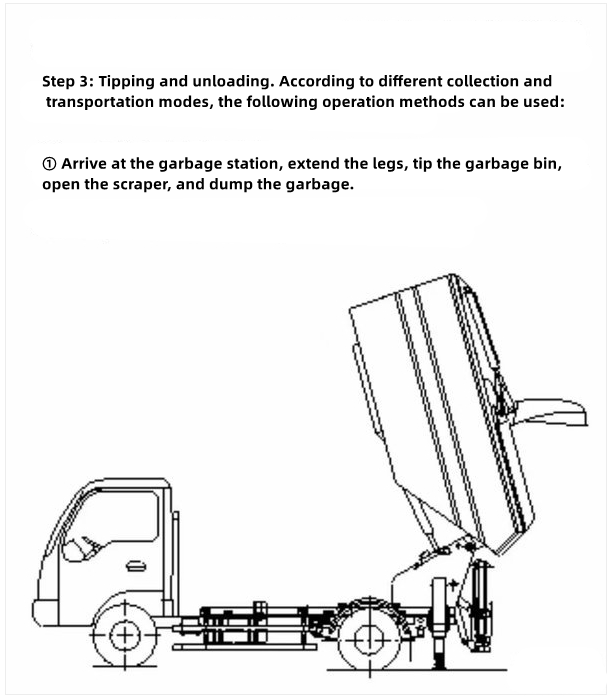

The second is the dumping and unloading of the garbage truck's compartment, which also starts from the high position of the rear of the compartment as the axis. Because the compartment is a ship-shaped structure, the compartment has no rear door, is fully sealed, and does not leak, so it is flipped and dumped from a high position.
It ensures that there is no dripping during the entire collection/transportation process, which is very suitable for collecting and transporting domestic garbage or kitchen waste with a high water content, and can also be used as a kitchen waste truck to transport kitchen waste.
» Ⅱ.Product Parameter for Isuzu self-loading garbage truck:
|
Isuzu 700P 6cbm Leak-proof Self-loading Garbage Truck |
||
|
Truck model |
PT5110GLS |
|
|
Cabin |
Isuzu 700P cabin,driving type 4*2 LHD,single row,3 passengers, air conditioner,USB |
|
|

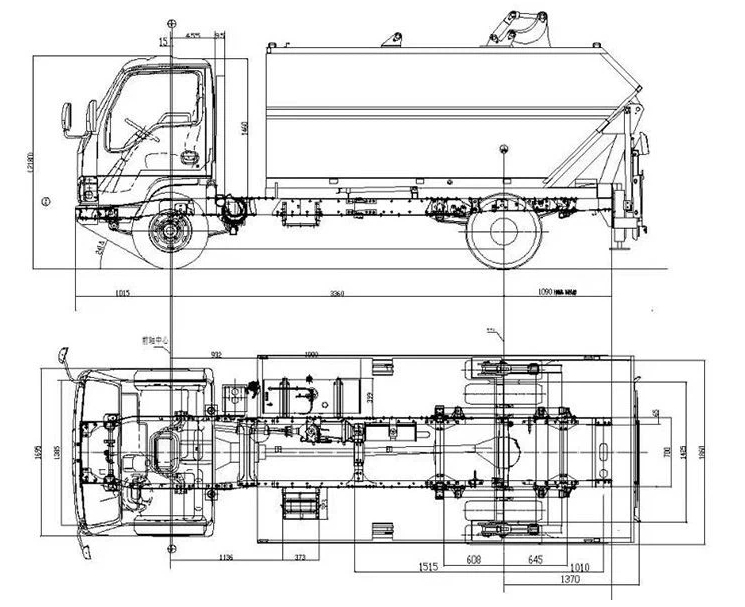

Overall Size |
6480*2200*2780mm |
|
|
Bin capacity |
6CBM |
|
|
Wheel base |
3815mm |
|
|
GVW |
10550kg |
|
|
Curb weight |
5540kg |
|
|
Axle loading |
4000/7000kg |
|
|
Engine |
Model |
Isuzu 4HK1-TCG61 |
|
Type |
4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
190HP/139kW |
|
|
Displacement |
5193ml |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
507N.m |
|
|
Max torque speed |
1600-2600rpm |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
105km/h |
|
|
Tire |
235/75R17.5 (6+1 tires) |
|
|
Transmission |
Isuzu MLD 6-speed,manual |
|
|
Superstructure |
Body capacity |
6cbm |
|
Box material |
Side 4mm,bottom 5mm |
|
|
Design |
Rear High-position Self-loading design |
|
|
Sewage tank |
200 liters |
|
|
Loading cycle time |
20~25 s |
|
|
Scraper cycle time |
20~25 s |
|
|
Unloading cycle time |
45 s |
|
|
Unloading angle |
45° |
|
|
Garbage Compact Ratio |
≥2.5:1 |
|
|
Matching garbage bin |
120L,240L,660L |
|
|
Filling mechanism |
Scraper+Skateboard |
|
|
Fully enclosed dumpster |
Dumpster is sealed, no spillage on the road |
|
|
Control system |

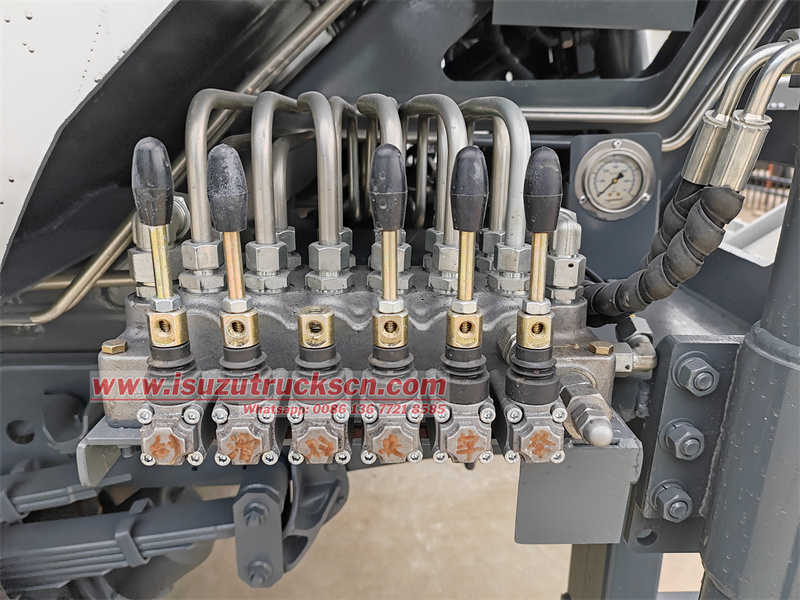

PLC control system,with rear manually hydraulic operation lever |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin tipping mechanism, hydraulic legs, warning lights, fire extinguisher, basic tool kit, English manual... |
||
» Ⅲ. Product Details & Advantages:
Chassis
The vehicle is carefully built based on the classic chassis of Isuzu 700P, with a wheelbase design of 3815mm. In terms of power, it is equipped with Isuzu 4HK1-TCG61 190HP powerful engine, and the transmission system is matched with Isuzu MLD 6-speed gearbox, which is powerful.

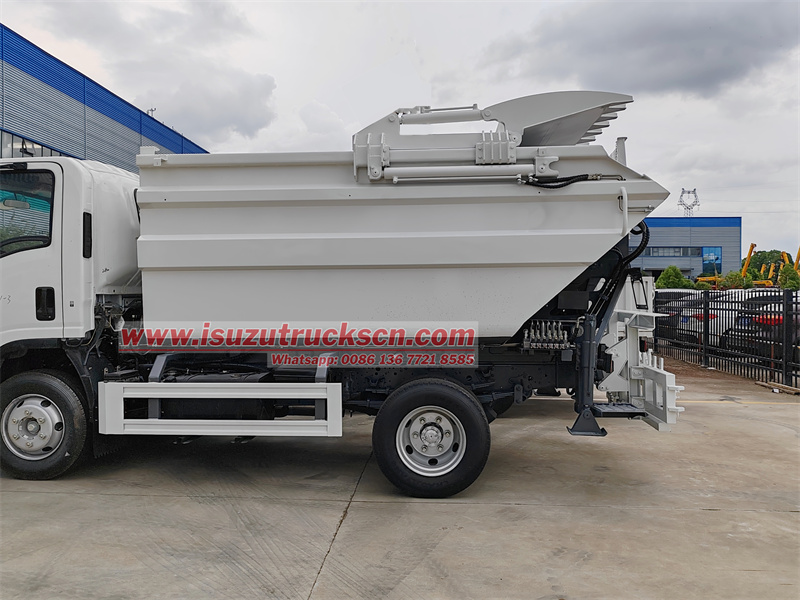

Upper body
In the upper body part, Isuzu 700P 6cbm self-loading garbage truck adopts the innovative 6cbm self-loading and unloading garbage box design, which is strong and corrosion-resistant, and the ship-shaped box structure achieves 100% leakage-free: the box is welded with strong weather-resistant steel plates, and the whole vehicle structural parts are laser cut to improve the strength and durability of the box. The ship-shaped structure avoids the traditional old-style box + the sealing structure at the back, fundamentally solving the secondary pollution problem during the transportation process.
Compaction and loading/unloading system

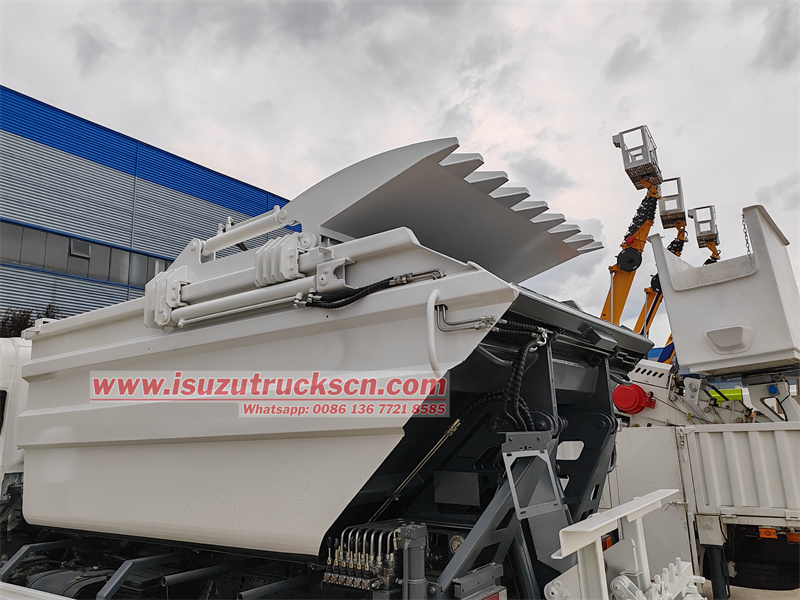

High efficiency Scraper loading + compaction: rear-mounted scraper compaction technology greatly compresses and reduces the volume of domestic garbage, with a volume of 6 cubic meters, and a compression ratio of more than 1:2.5, which can be docked with 120L/240L/660 plastic barrels.
The use of high-position loading technology makes the garbage port located at the upper part of the box body. This design greatly improves the loading efficiency. At the same time

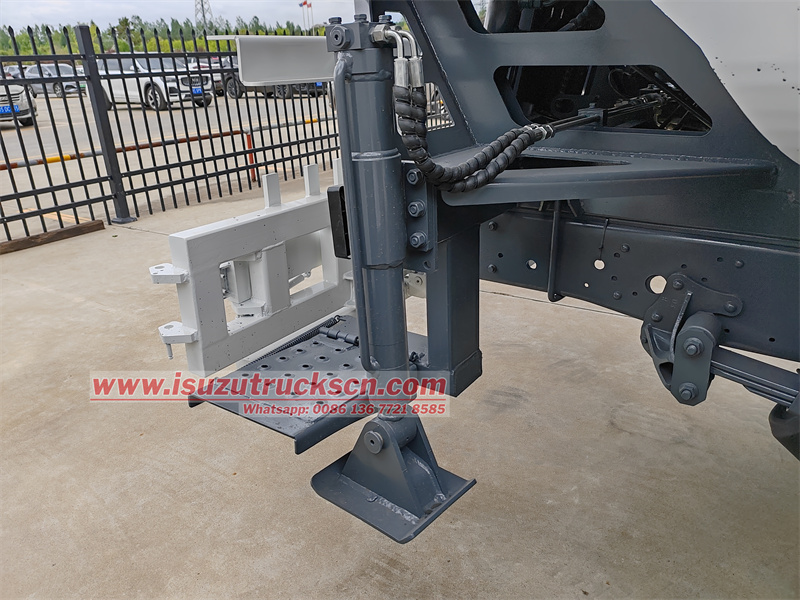

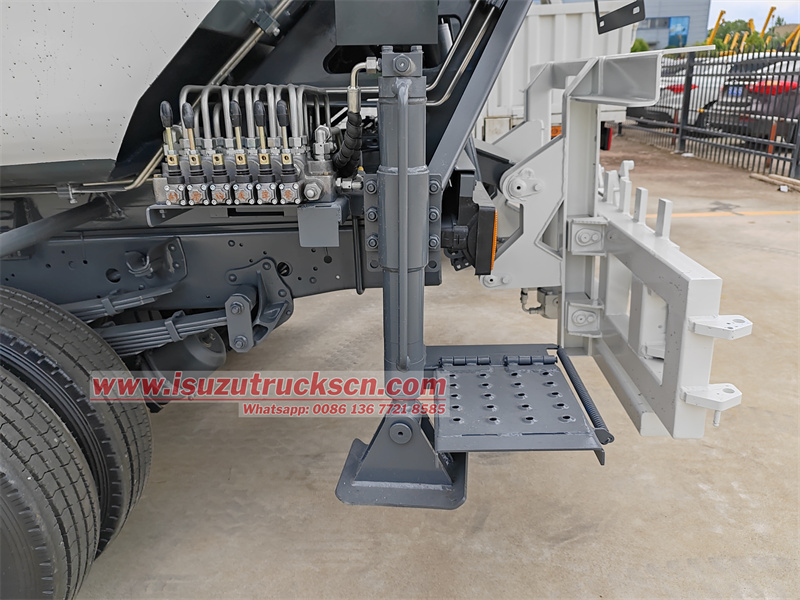

The high-position lifting and self-loading structure ensures that the garbage is completely and cleanly unloaded, avoiding secondary pollution, and is easy to dock. The rear of the vehicle is equipped with hydraulic legs to ensure the stability and safety of the unloading operation.

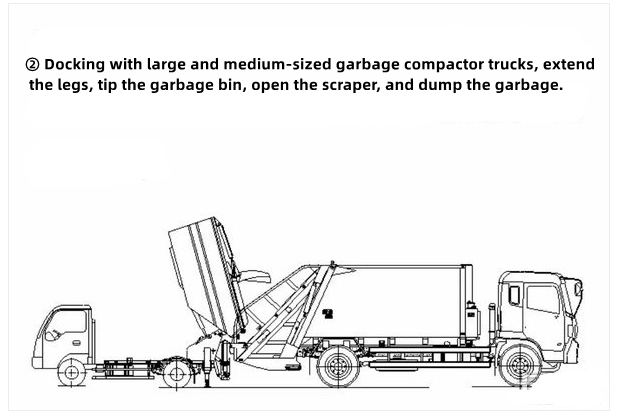

This rear high-position flip non-leakage self-loading garbage truck can be directly dumped into the treatment pool after collecting garbage, and can also be used in conjunction with large and medium-sized compression garbage trucks/fixed/mobile garbage compression stations, etc., and directly docked to the hoppers of large and medium-sized garbage trucks and garbage stations for further processing.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
« Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.

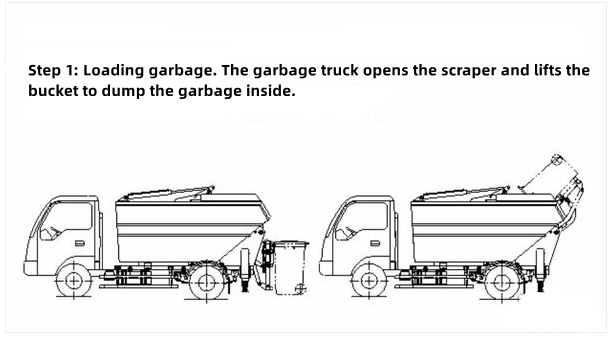

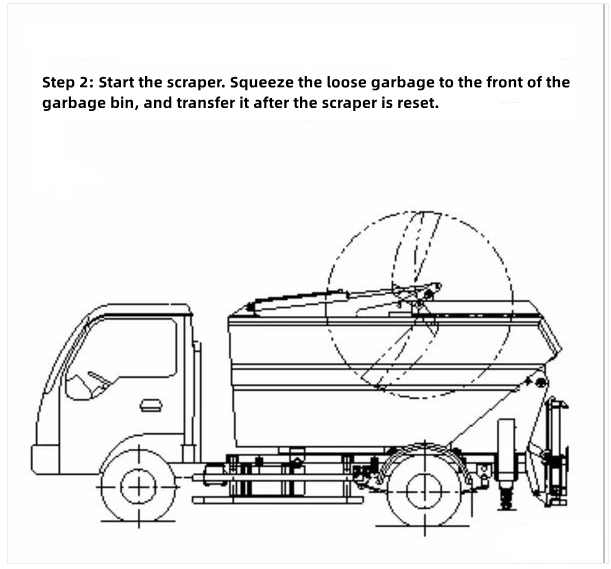

2. Working principle
