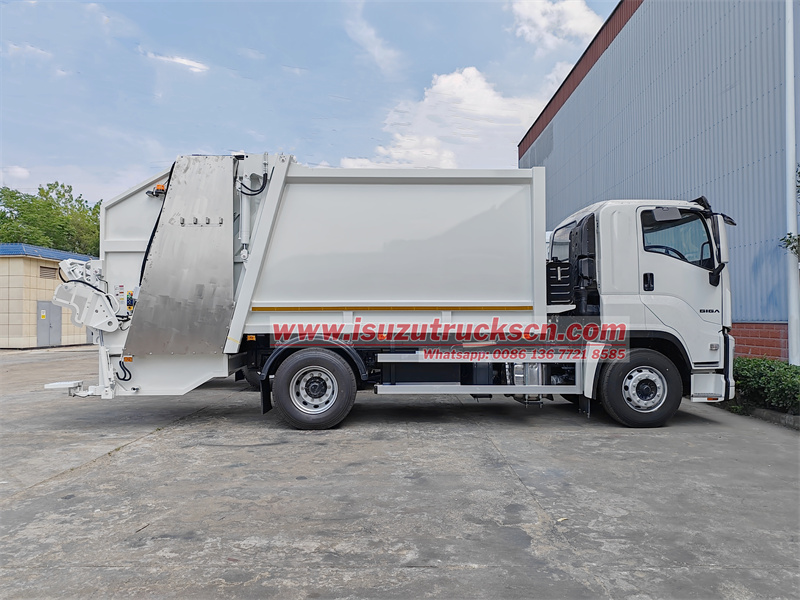

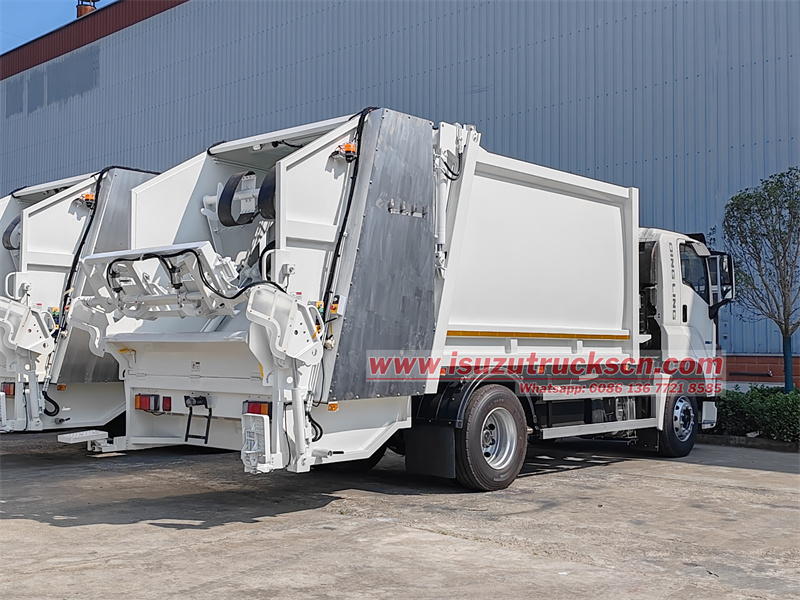

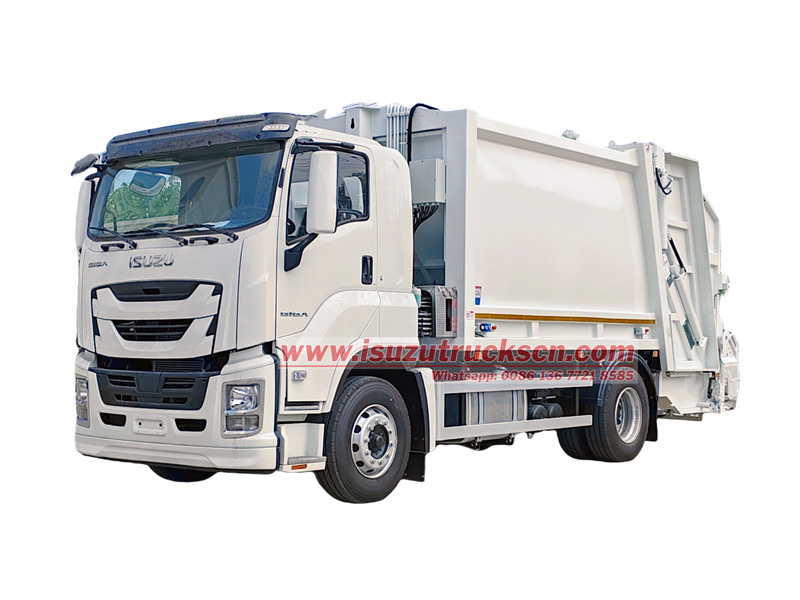

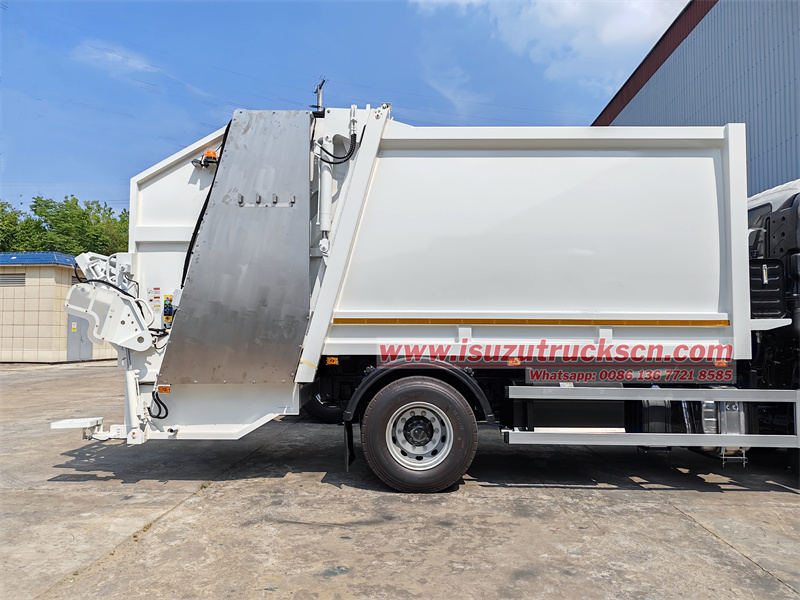

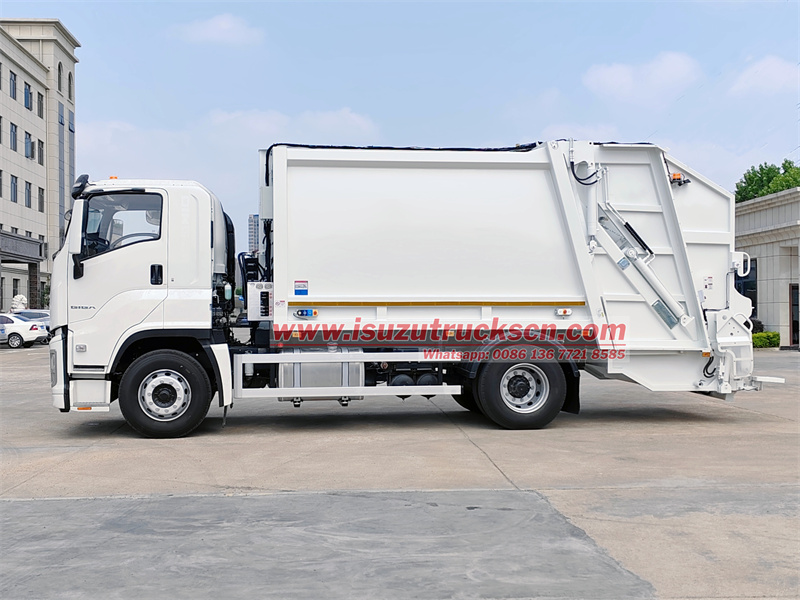

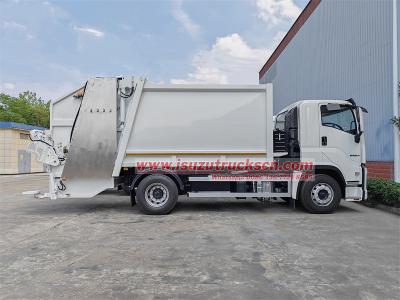

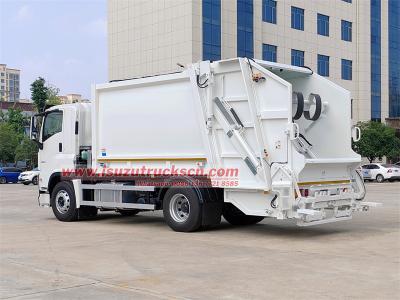

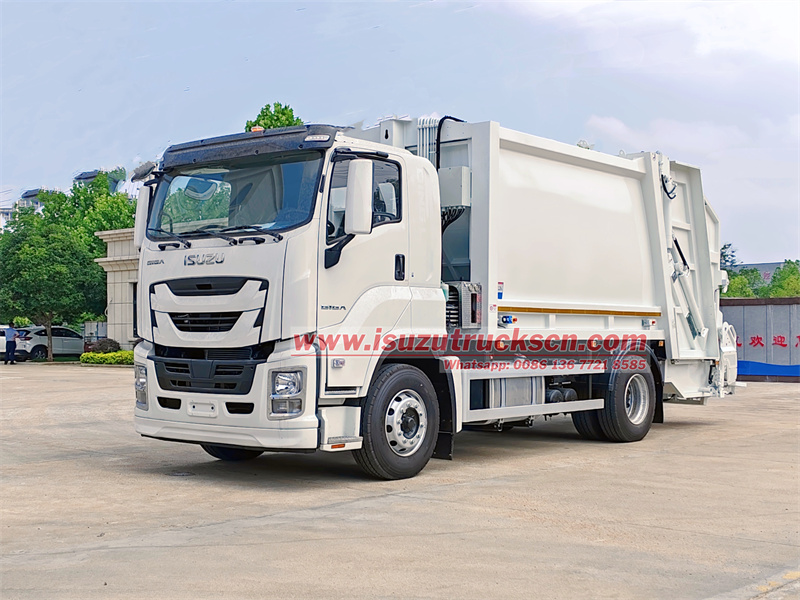

Isuzu FVZ GIGA 16 cubic rear loader is modified based on the Isuzu GIGA FVZ 5X chassis, with a 4800mm wheelbase, equipped with an Isuzu 6HK1-TCG60 engine and a FAST 9-speed gearbox. The upper body is a 16 cubic stainless steel compression box, with a rear bucket flip mechanism and a bucket blocking device. The garbage loading and unloading is mainly operated by three places including the electronic control box in the cab, the manual hydraulic operating lever on the driver's side, and the tailgate electronic control box. There are also two single operation control boxes on the lower left side of the box. The vehicle is equipped with multiple emergency brake operation knobs, lights on both sides of the tail, and folding foot pedals.
Manufacturer:
Powerstar TrucksWork capacity:
16cbmDimension:
8845 x 2520 x 3530 mmCabin type:
Isuzu FVZ GIGA 5X cabinWheelbase:
4800 mmEngine power:
300HP/221kWEngine type:
Isuzu 6HK1-TCG60Axle drive:
4x2,LHDGear box:
Fast 9-shift gearbox,manualRemarks:
European design upper bodyThe 16CBM GIGA Series Refuse Rear Loader is a high-end, efficient compression garbage truck built on the Isuzu GIGA FVZ 5X Class II chassis. Its upper body features a 16-cubic-meter stainless steel compression box, which is corrosion-resistant and rust-resistant, with a compression ratio of 1:2.5, significantly reducing garbage volume and extending the operating cycle. It features multiple operating positions and an emergency brake for flexible and safe operation. It utilizes an automated rear bucket mechanism and a bucket retaining device, significantly improving collection efficiency. Its practical taillights and folding footrests make it a highly effective solution for urban sanitation upgrades, particularly suitable for applications where both performance and image are crucial.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Product Features
1. European Design, Innovative Styling
• Streamlined body design subverts the traditional image of sanitation vehicles and is suitable for high-end applications
2. Large-Capacity Stainless Steel Tank
• 16 cubic meters of capacity, stainless steel is corrosion-resistant and rust-resistant, suitable for handling a wide range of waste types
3. Efficient Powertrain
• Isuzu 6HK1-TCG60 engine (300 horsepower) + FAST 9-speed transmission, delivering powerful power and excellent fuel economy.
4. Multi-Dimensional Intelligent Control
• Three core control points: cab electronic control, driver-side manual control, and rear electronic control, supplemented by a single control box on the left side of the tank, provide flexible and efficient operation.
5. Safety and User-Friendly Design
• Multiple emergency brake knobs throughout the vehicle, rear high-intensity headlights, and folding footrests ensure both safety and convenience.
» Ⅱ. Product Parameter for Isuzu GIGA 16cbm rear loader :
|
16CBM GIGA Series Refuse Rear Loader |
||
|
Truck model |
PT5180ZGH |
|
|
Cabin |
Isuzu FVZ GIGA 5X cabin ,3 passengers, air conditioner,USB |
|
|
Overall Size |
8845 x 2520 x 3530mm |
|
|
Bin capacity |
16CBM |
|
|
Wheel base |
4800mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
9850kg |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Model |
Isuzu 6HK1-TCG60 |
|
Type |
6-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling,diesel |
|
|
Hose Power(HP) |
300HP/221kW |
|
|
Displacement |
7.79L |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
105km/h |
|
|
Tire |
295/80R22.5 16PR(6+1 tire) |
|
|
Transmission |
FAST 9-speed,manual |
|
|
Superstructure |
Body capacity |
16cbm |
|
Box material |
Side 5mm,bottom 6mm,stainless steel |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
20~25 s |
|
|
Garbage Compact Ratio |
≥1:3.4 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Operate modes: cab electric control box,drive side manual joystick,tailgate electric control box |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
» Ⅲ. Product Details & Advantages:
Core Chassis Configuration
• Chassis Model: Isuzu GIGA FVZ 5X Class II Chassis
• Wheelbase: 4800 mm. This ensures excellent maneuverability and agility in complex urban areas, while also providing a stable layout for the 16-cubic-meter large-capacity superstructure.
• Transmission: Equipped with a FAST 9-speed transmission. The multi-gear design ensures smooth power delivery and a wider range of gear selection, meeting the high torque requirements of low-speed operation while ensuring economical operation during high-speed transfers, providing an excellent operating experience.
• Engine: Equipped with the Isuzu 6HK1-TCG60 inline six-cylinder diesel engine, with a displacement of 7.79L and a maximum power of 221kW (300 horsepower). This engine boasts large displacement, abundant torque, and durability, providing the powerful power required for garbage collection and transportation operations, ensuring efficient operation and easily handling frequent starts and stops and heavy loads.
Advanced Loading System
• Housing Material: Adopt 16-cubic-meter stainless steel compactor bin. Stainless steel offers excellent corrosion and rust resistance, effectively resisting the complex composition of waste (especially food waste), extending the vehicle's service life and reducing maintenance costs.
• Unique Styling: The entire vehicle features a European-inspired design with sleek, flowing lines and a strong sense of modernity, setting it apart from conventional garbage trucks. Beyond its aesthetically pleasing appearance, the design also optimizes structural strength and fluid dynamics performance.

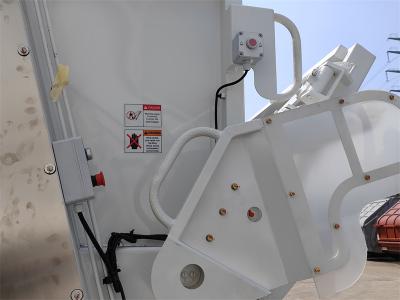

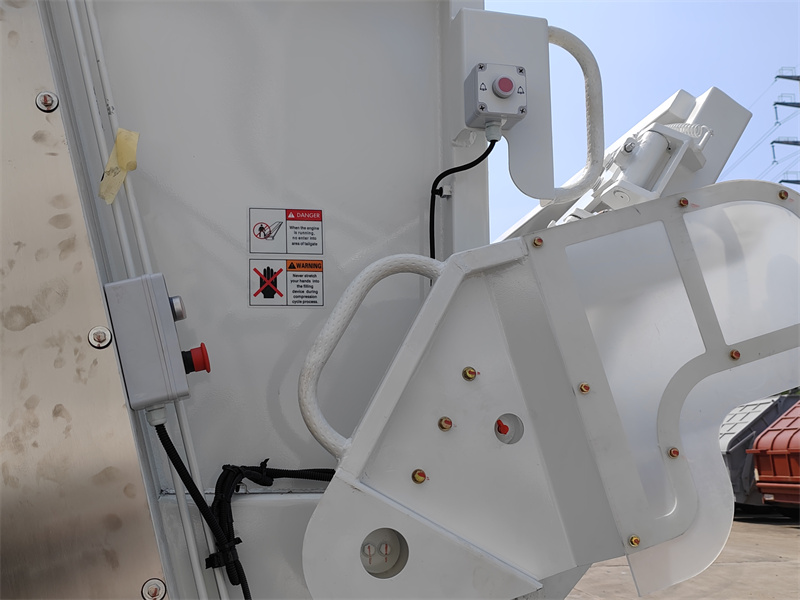

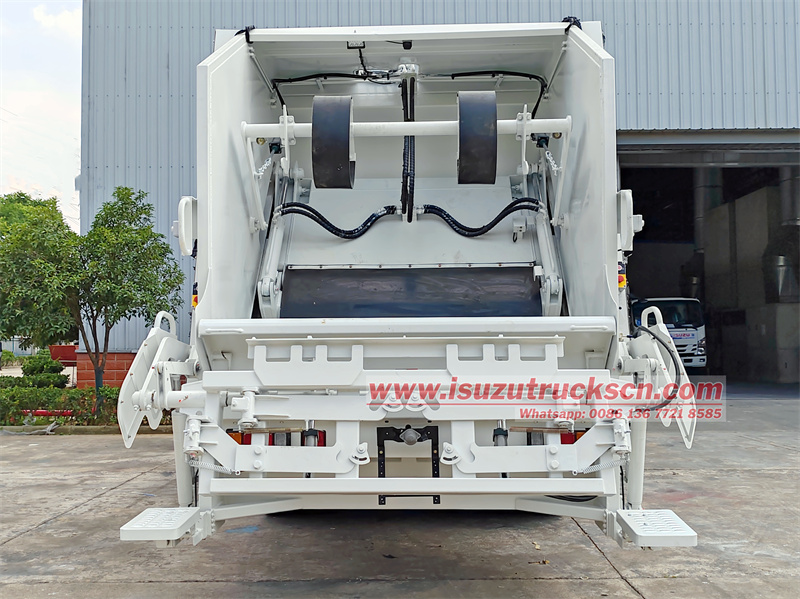

• Operation: The standard rear-mounted bucket flip mechanism seamlessly connects to standard 120L/240L/660L plastic trash cans, enabling automated collection and significantly reducing worker workload. A bucket retaining device effectively secures the trash can during lifting and tilting, preventing it from slipping and ensuring safe and smooth operation.
Humanized and Safe Operation Design
Multi-mode Control: Loading, compacting, and unloading operations can be flexibly controlled from three key locations:

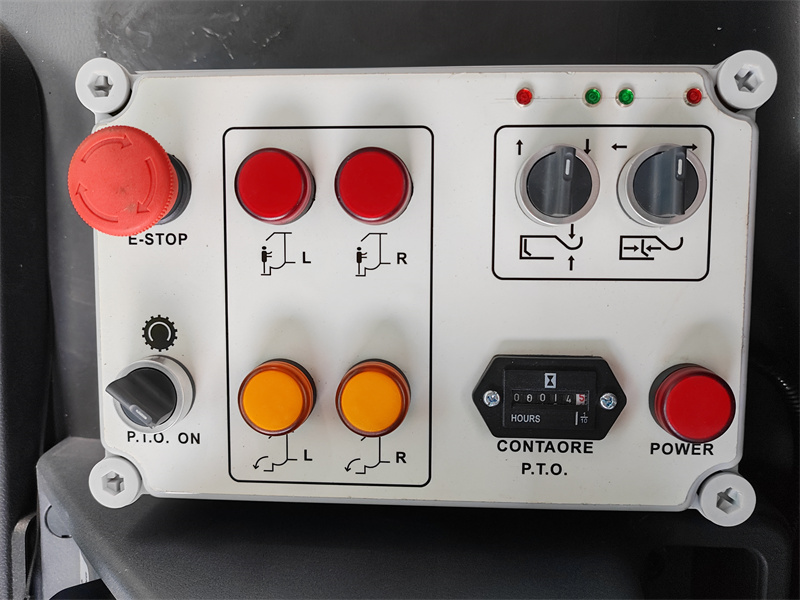

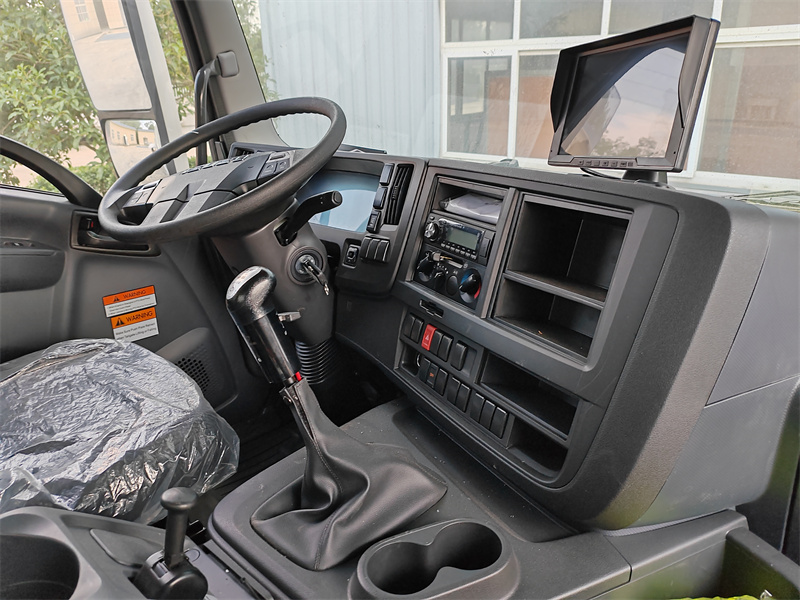

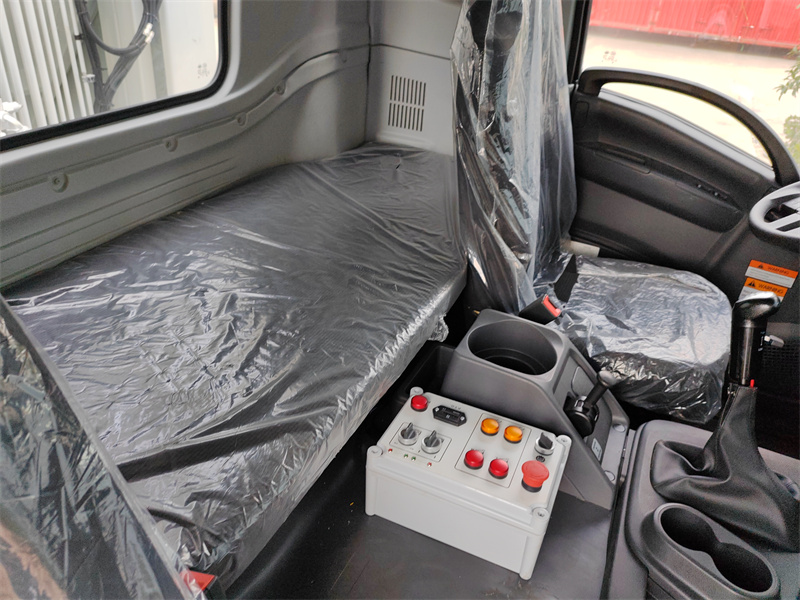

1. In-cab control panel: The driver can collect and operate the push shovel safely and conveniently without exiting the vehicle.

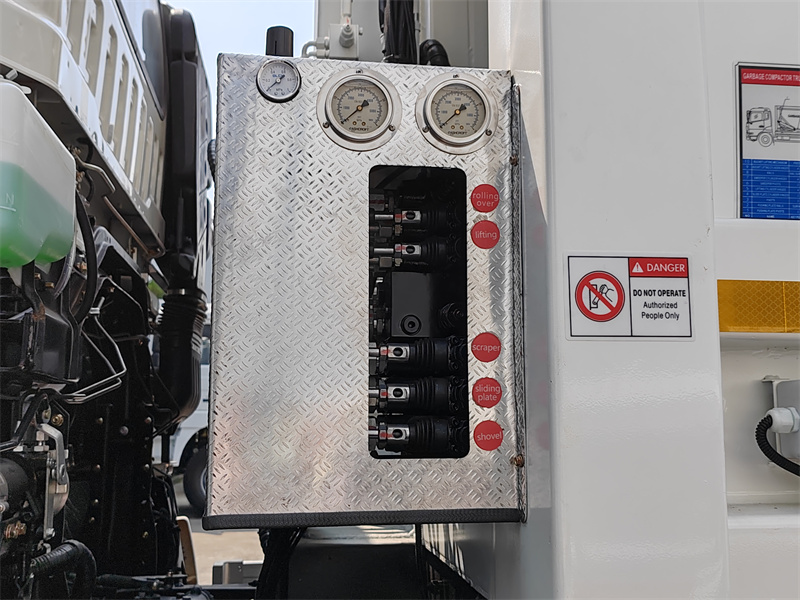

2. Manual hydraulic joystick on the driver's side: At the ground, operators can manually control the flip mechanism, tailgate raising and lowering, scraper blade closing and scraping, slide plate movement, and push shovel extension and retraction.

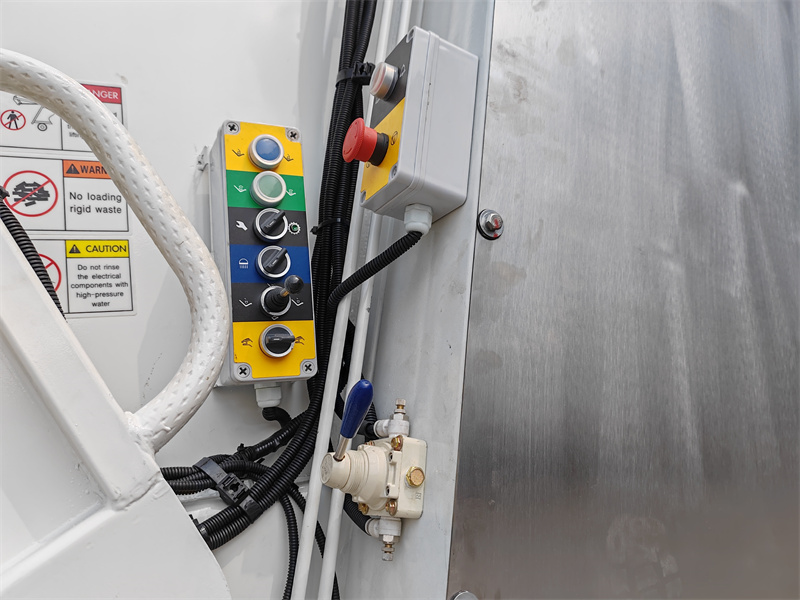

3. Rear control panel: This allows the operator to operate directly from the rear of the vehicle, providing optimal visibility.

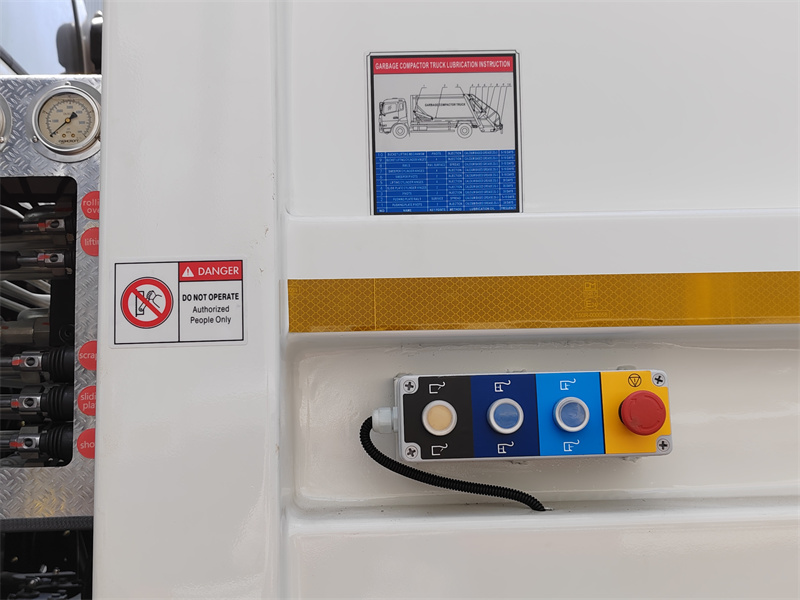

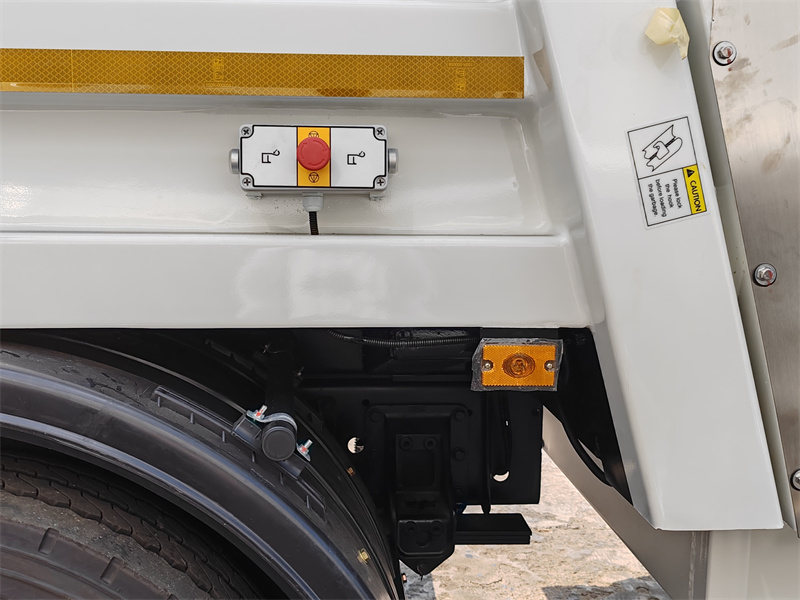

In addition, two single-function control panels are located on the lower left side of the vehicle for precise operation of specific functions.
• Comprehensive Safety:

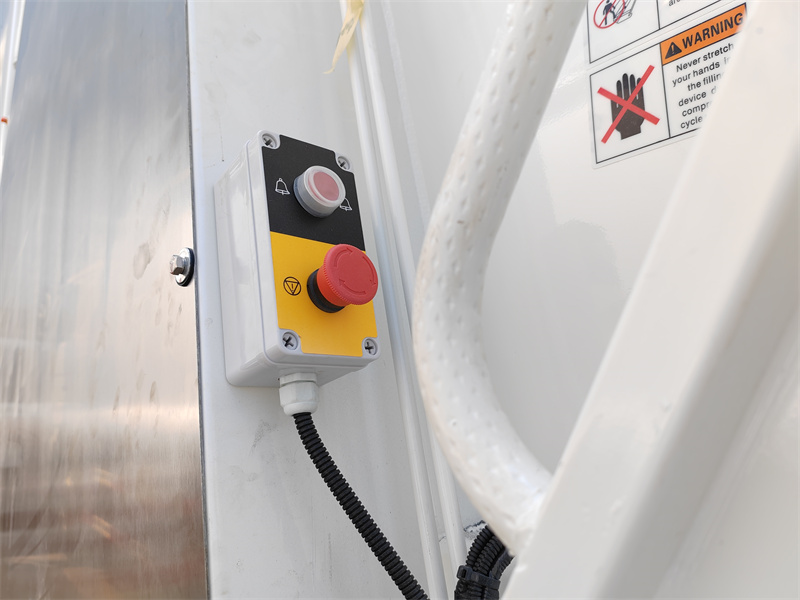

The vehicle is equipped with multiple emergency stop switches located in the cab, on both sides of the vehicle, and at the rear. In the event of an accident, power can be cut off at any time, immediately stopping all operations and maximizing the safety of personnel and equipment.
-
• Considered Details:

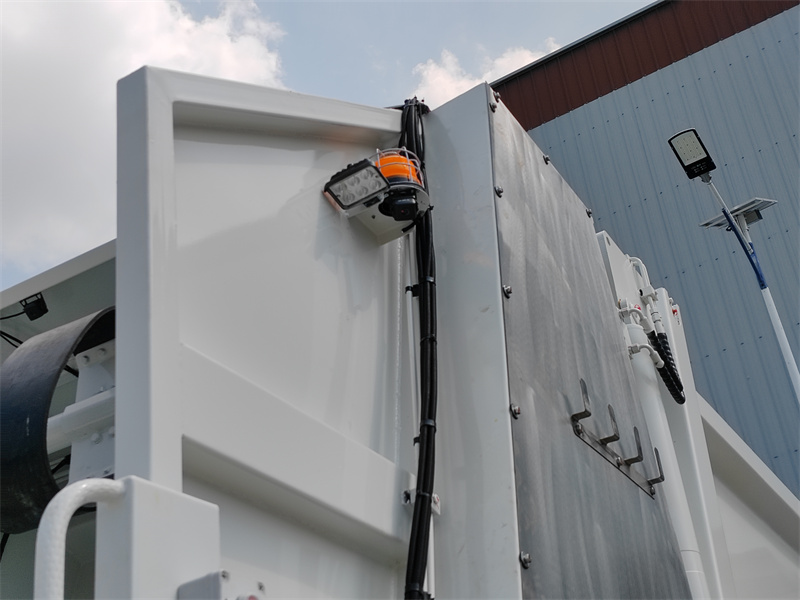

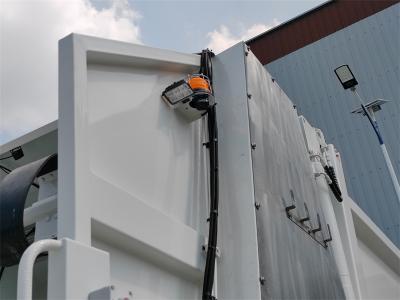

◇ Lights on both sides of the tailgate: Ensure adequate illumination for nighttime operations or in dimly lit environments, ensuring safe nighttime operation.

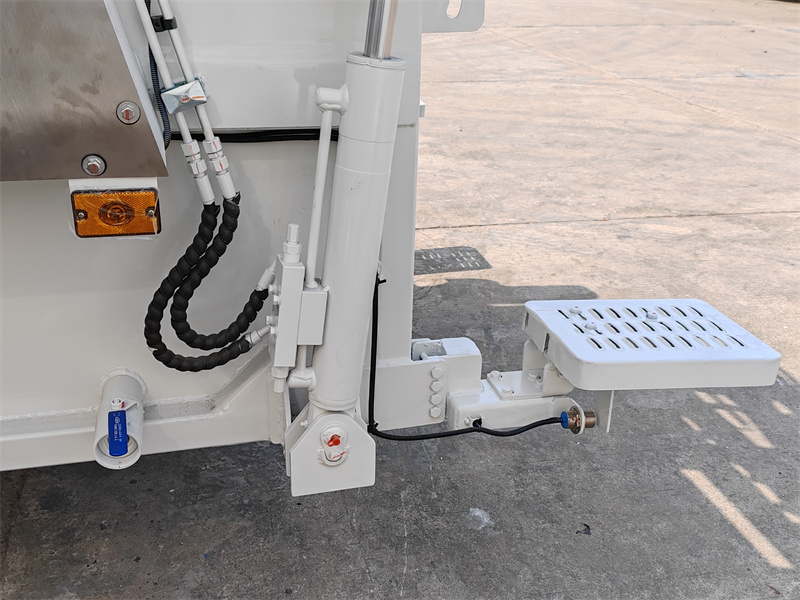

◇ Folding foot pedal: It is convenient for workers to climb to the upper part of the box for inspection or maintenance. It can be folded away when not in use without affecting the passability.
-
