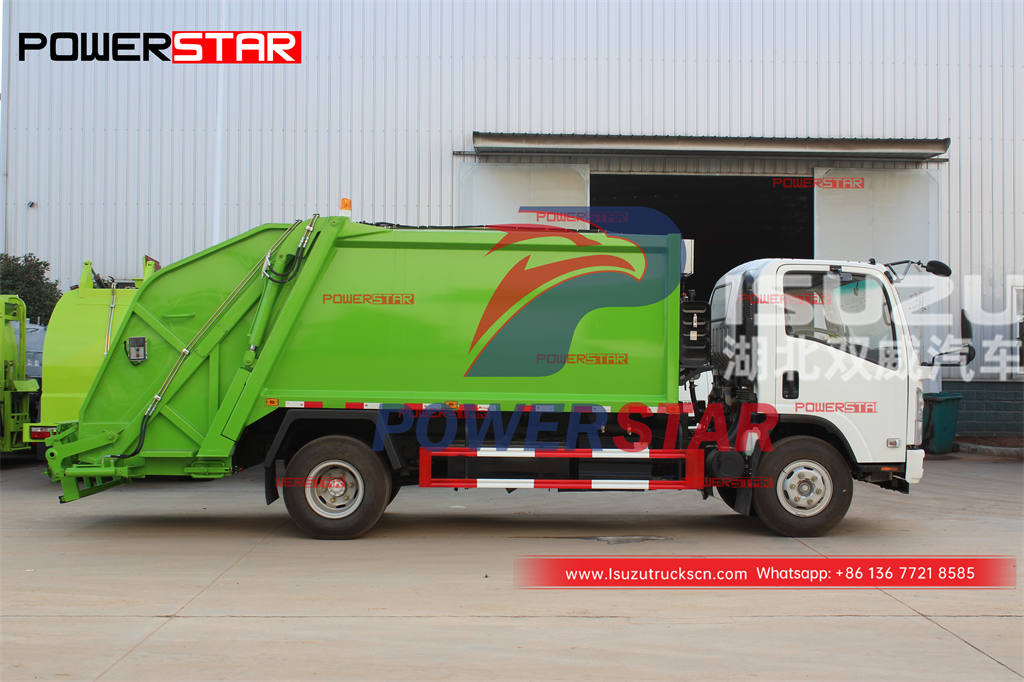

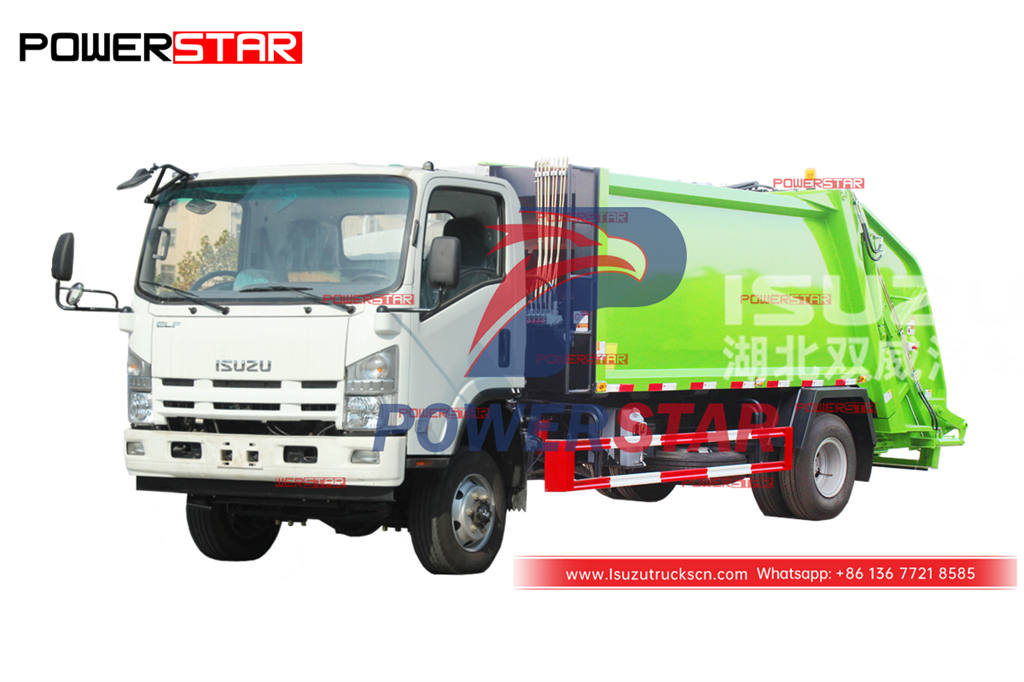

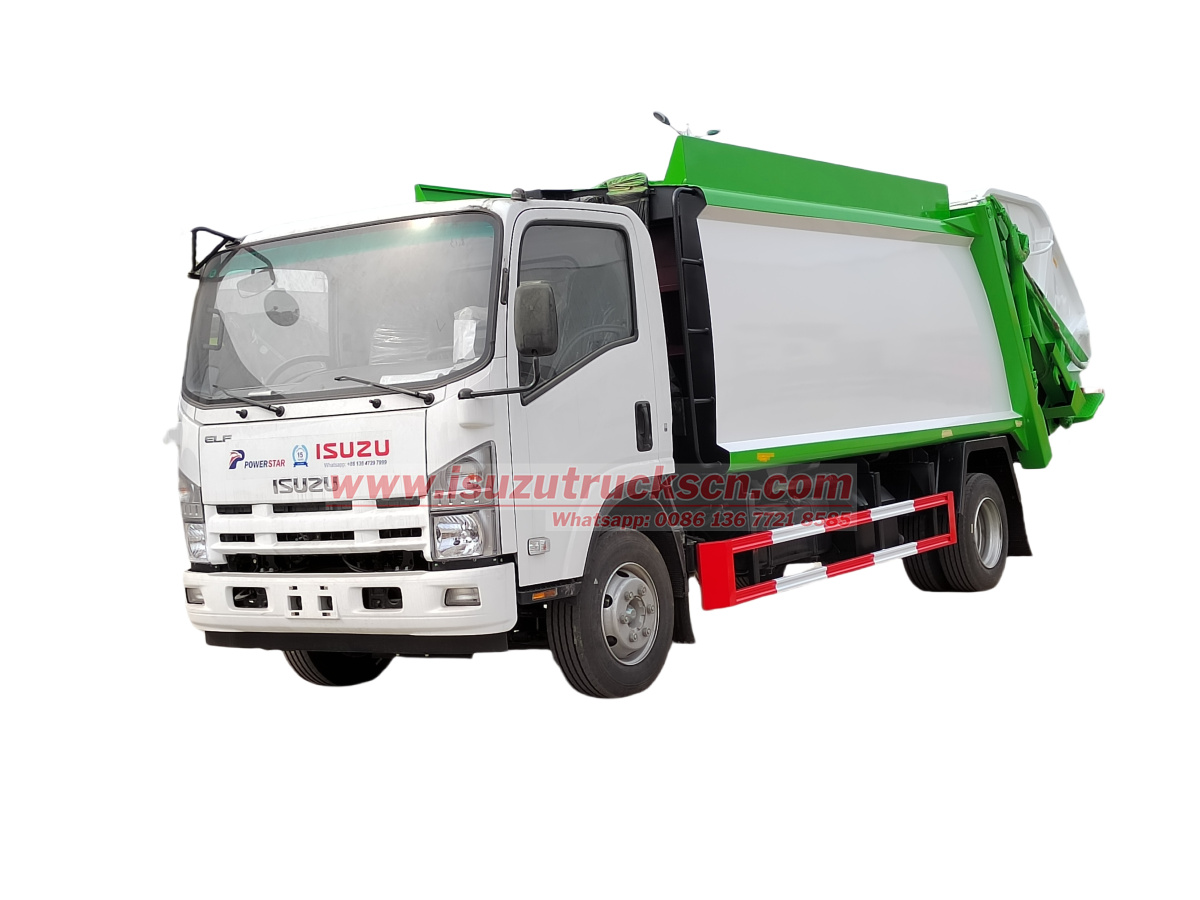

ISUZU 700P 4×4 Waste Compactor 10CBM Rear Loader for sale
Best price ISUZU ELF 700P 4×4 AWD garbage compressor truck, customized ISUZU 4×4 190HP refuse compression trucks, ISUZU 4WD off-road rear load garbage truck manufacturer.Please noted Isuzu NPR Rear-loading compression garbage trucks are highly efficient in garbage disposal, but there are restrictions on the following types of garbage: Extra-long/extra-large garbage, such as old furniture and large branches, will jam the compression device and cause equipment failure. High-hardness garbage, such as construction waste (bricks, concrete blocks) and large metal products may damage the compression mechanism. Strong acid and alkali wastes will corrode sealing rubber parts and metal boxes. Unextinguished coal slag, organic solvents, etc. have the risk of combustion and explosion.
Order(MOQ):
1Work capacity:
10 CBMEngine power:
190HPEngine type:
ISUZU 4HK1Axle drive:
4X4 off roadGear box:
ISUZU MLDRemarks:
Customer color and LOGOBest-seller ISUZU 700P 4×4 Off-road Rubbish Compactor 10CBM Rear Loading Garbage Truck, The advantages of the Isuzu 4x4 rear-loading compression garbage truck are mainly reflected in its efficient loading and compression capabilities. It adopts bidirectional compression technology, with a compression ratio of more than 1:2.5, and a loading capacity that is 2.5 times that of a non-compression garbage truck of the same ton level. The compression device can significantly reduce the volume of garbage, improve the efficiency of single transportation, and reduce the number of transportation times and costs.The fully sealed design with special rubber sealing strips and sewage tanks can effectively prevent the odor of garbage, sewage leakage and secondary pollution during transportation.The sewage generated during the compression process is directly introduced into the sewage tank to avoid road pollution.

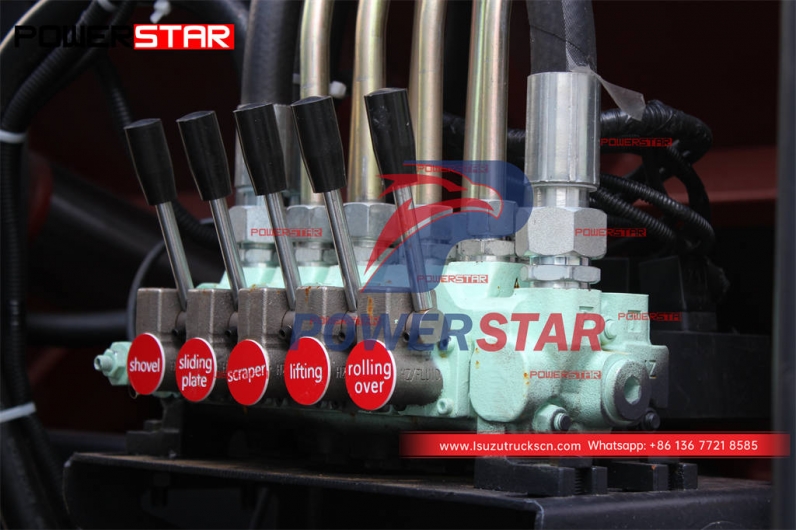

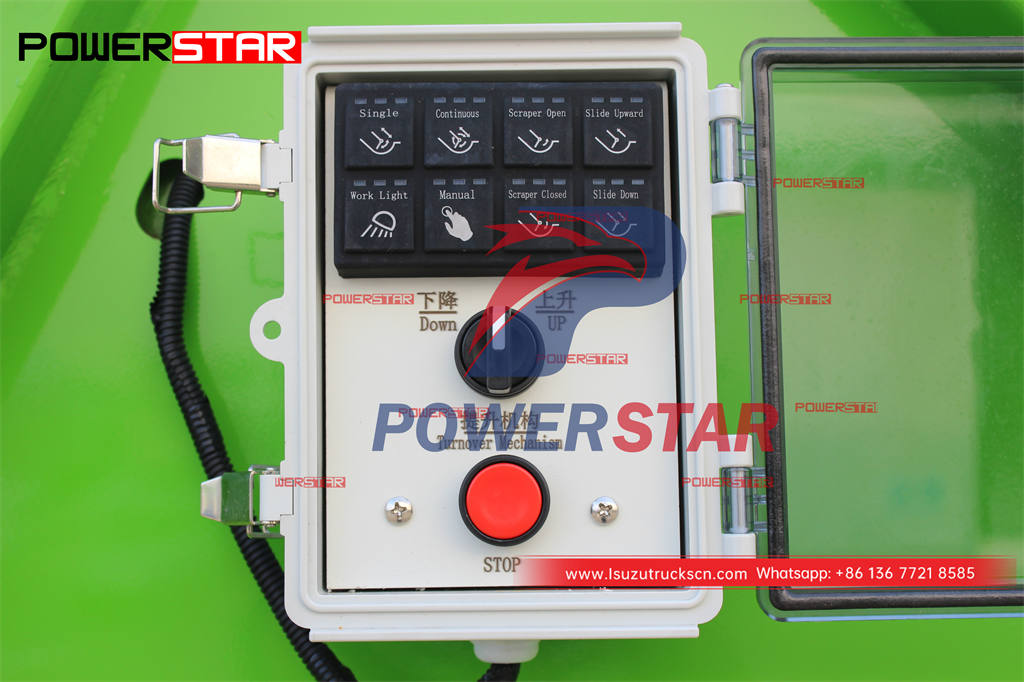

The electro-hydraulic joint control system (including imported PLC) realizes fully automated operation.
ISUZU 4×4 AWD waste compressor truck (also called ISUZU 4×4 garbage compression truck, ISUZU 4WD trash compactor truck, ISUZU 4×4 off-road trash compactor truck ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
 |
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU 700P 4×4 rear loading garbage truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5100ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |

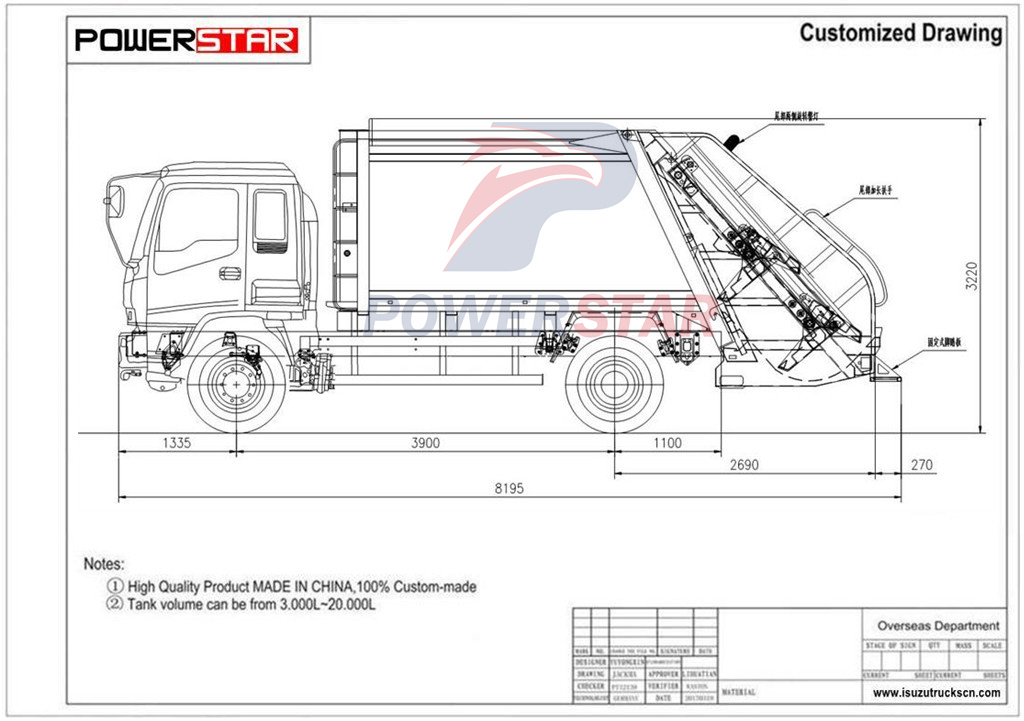

Overall dimensions |
mm |
7900*2200*2600 |
|
Gross weight |
kg |
10,000 |
|
|
Kerb weight |
5,600 |
||
|
Wheelbase |
mm |
4,175 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF 700P |
||
|
Tire size |
235/75R17.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC51 |
|
|
Type of fuel |
Diesel |
||
|
Power |
190HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
10 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with handle |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
ruck with 380Hp for

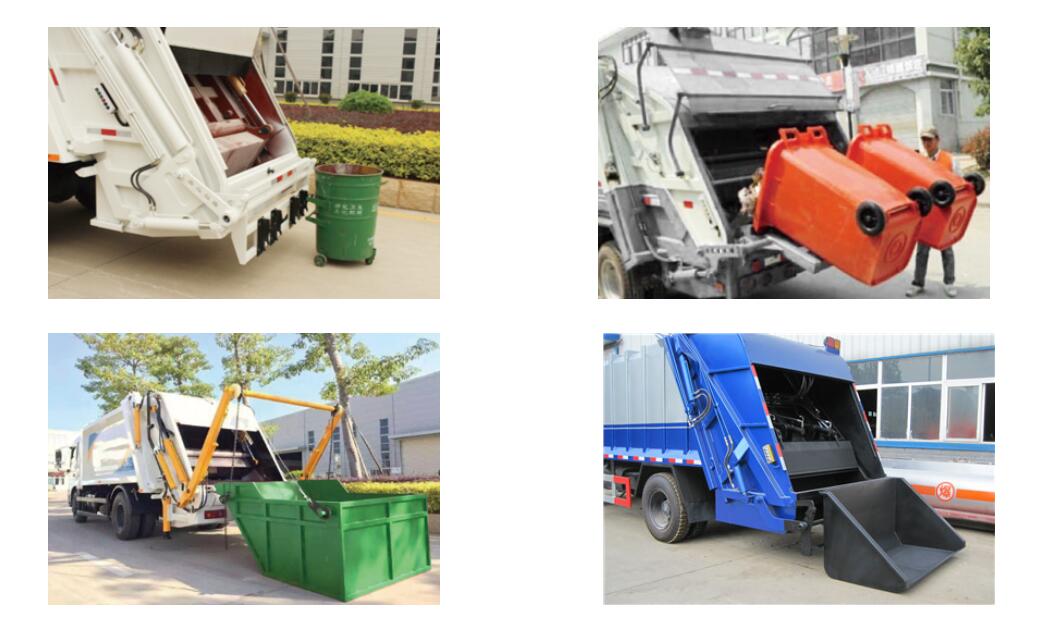

The following are professional suggestions for selecting the loading mechanism of the Isuzu 4x4 rear-loading compression garbage truck for different types of garbage:
1. Standard barrel garbage (120L-240L)
Applicable mechanism: hanging barrel flipping mechanism (compatible with 2-3 national standard square barrels for simultaneous dumping)
Applicable scenarios: daily mixed garbage or classified garbage in residential areas (need to be equipped with a pneumatic sealing cover to prevent drifting)
2. Non-standard large-capacity garbage (300L-1100L)
Round iron barrel/660L square barrel: flipping mechanism with special hanging barrel hook
Extra-large garbage can: fully sealed bucket mechanism (can be connected to a forklift or dump truck)
3. Bulk /Scattered garbage
Rickshaw/tricycle garbage:
Use triangular floor bucket (can be placed flat on the ground to connect to small vehicles)
Optional hooks compatible with standard barrels
Construction waste:
Requires large floor bucket + hydraulic legs (to carry heavy objects such as bricks)
4. Special treatment of classified garbage
Wet garbage: sealed bucket + sewage tank expansion design (leakage prevention)
Recyclables: hanging bucket mechanism + sorting platform (for manual pre-sorting)
5. Special restricted types
Medical/hazardous waste: ordinary compression mechanism is prohibited (special sterilization container is required)
Liquid garbage: requires independent sealed tank (to avoid mixing into the compression box)
