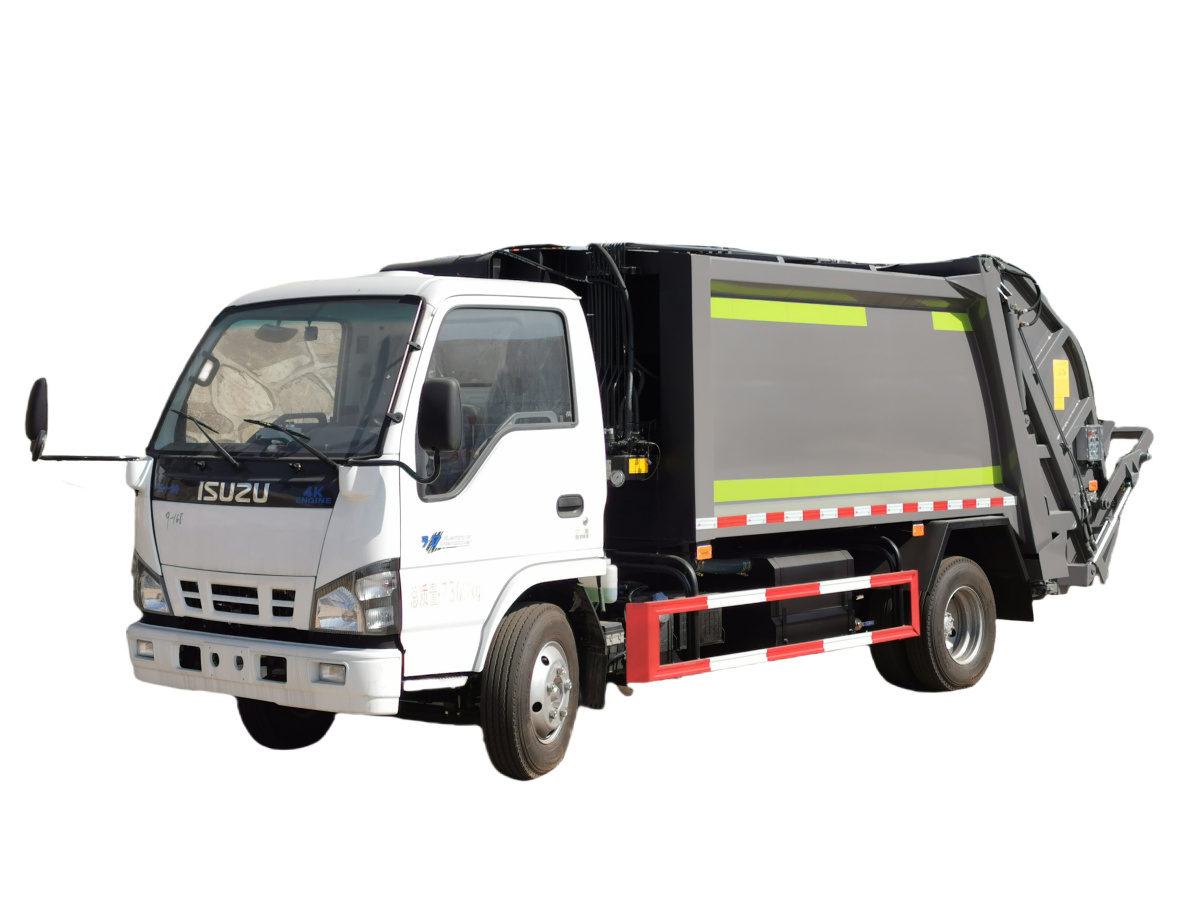

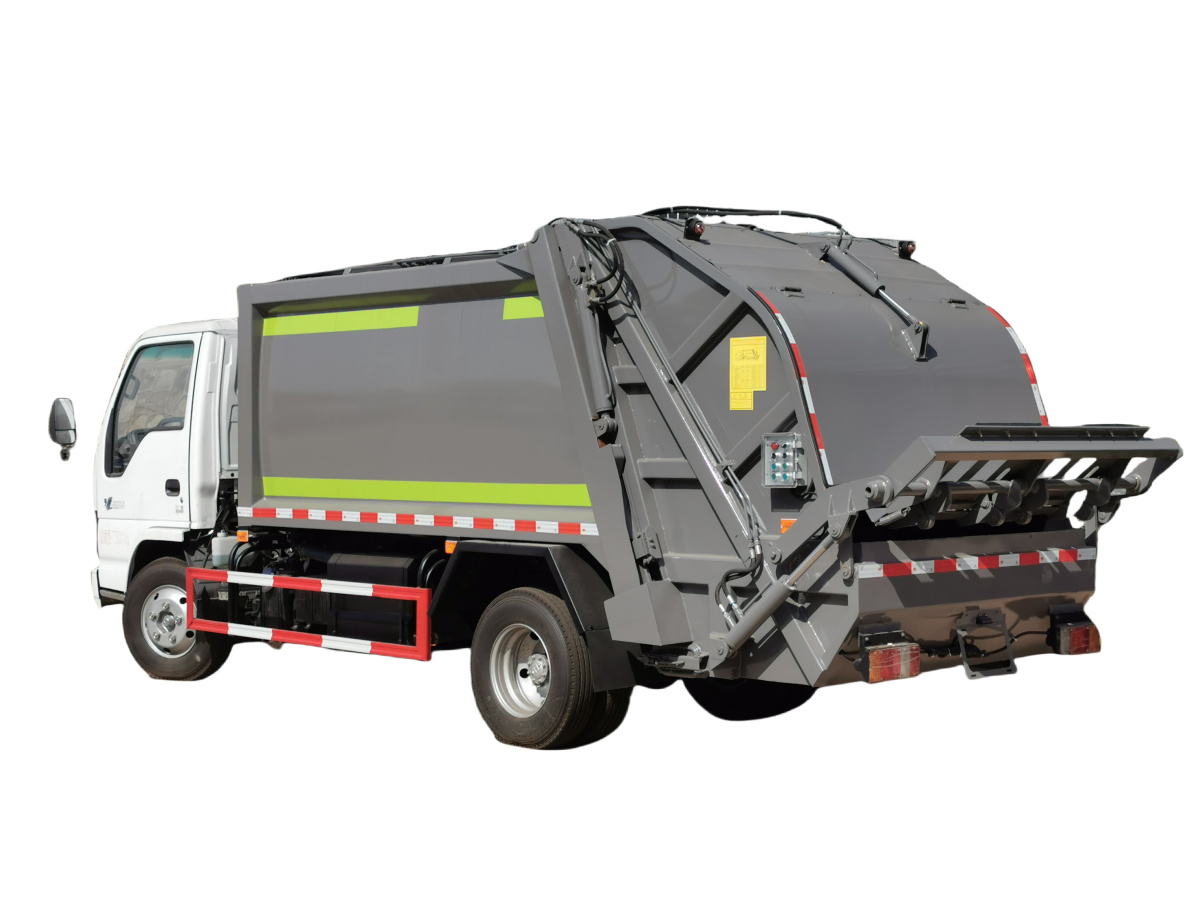

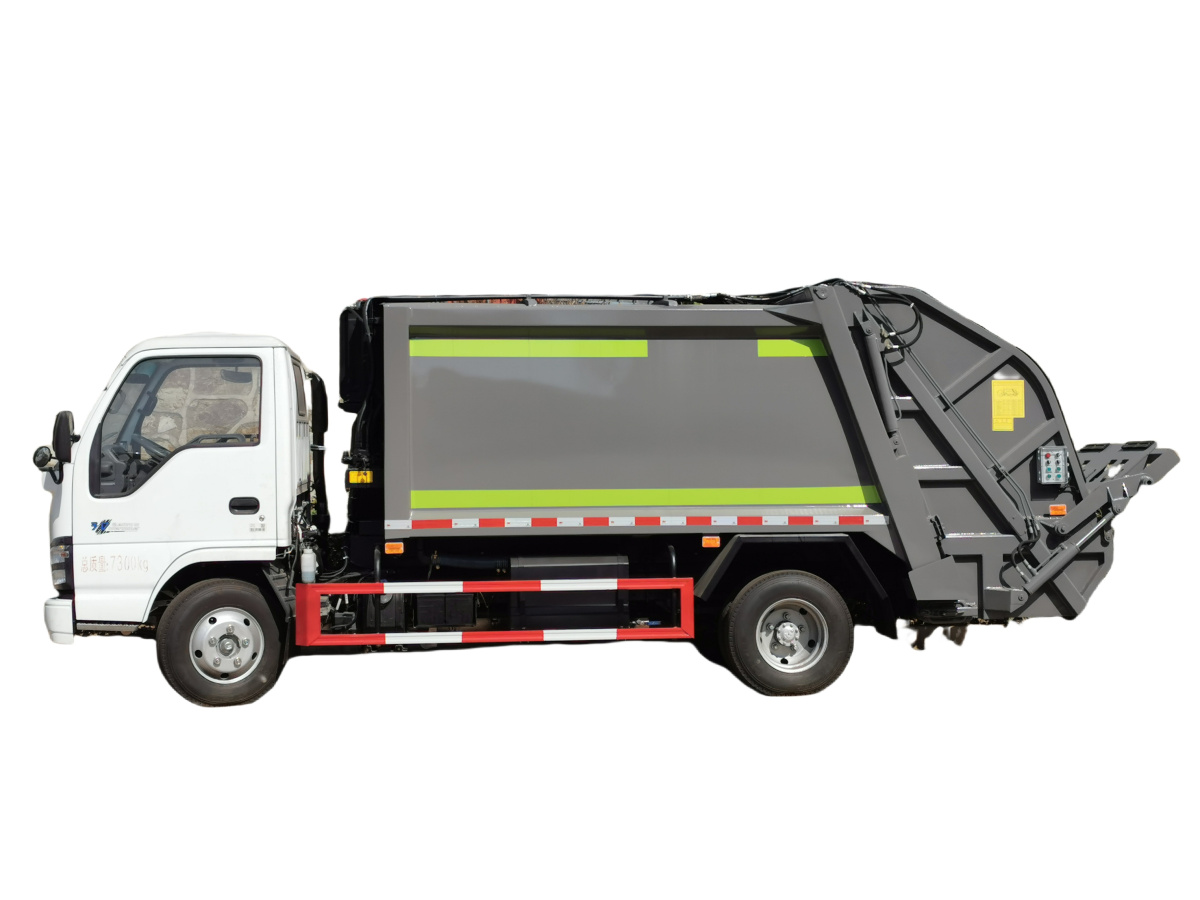

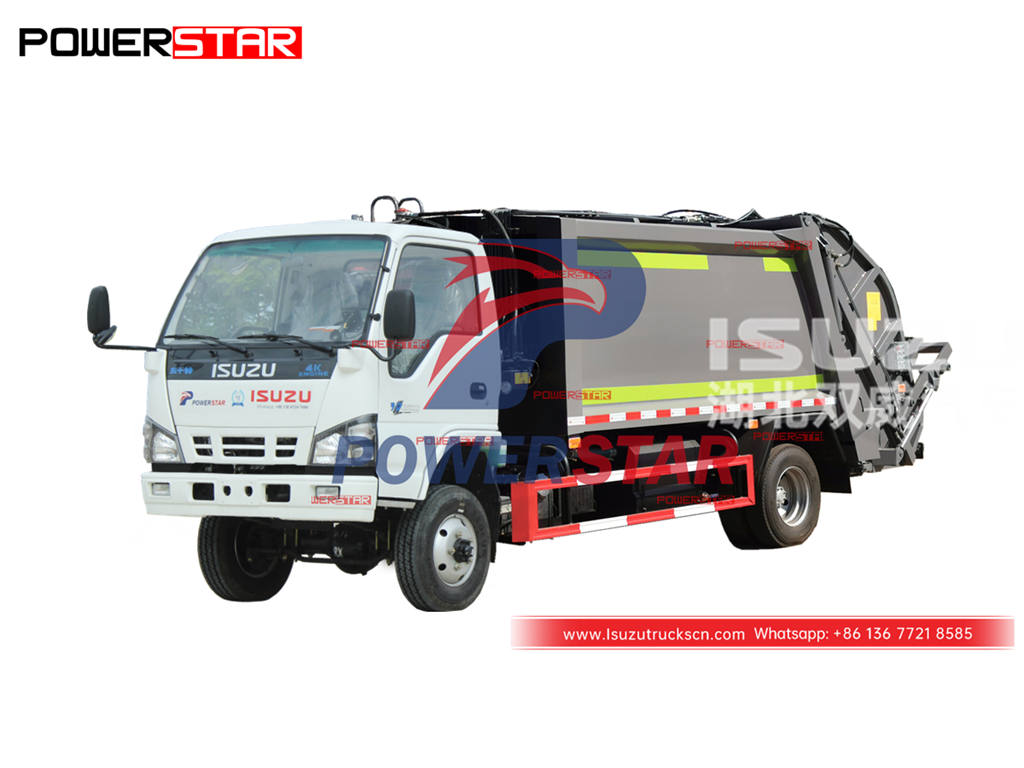

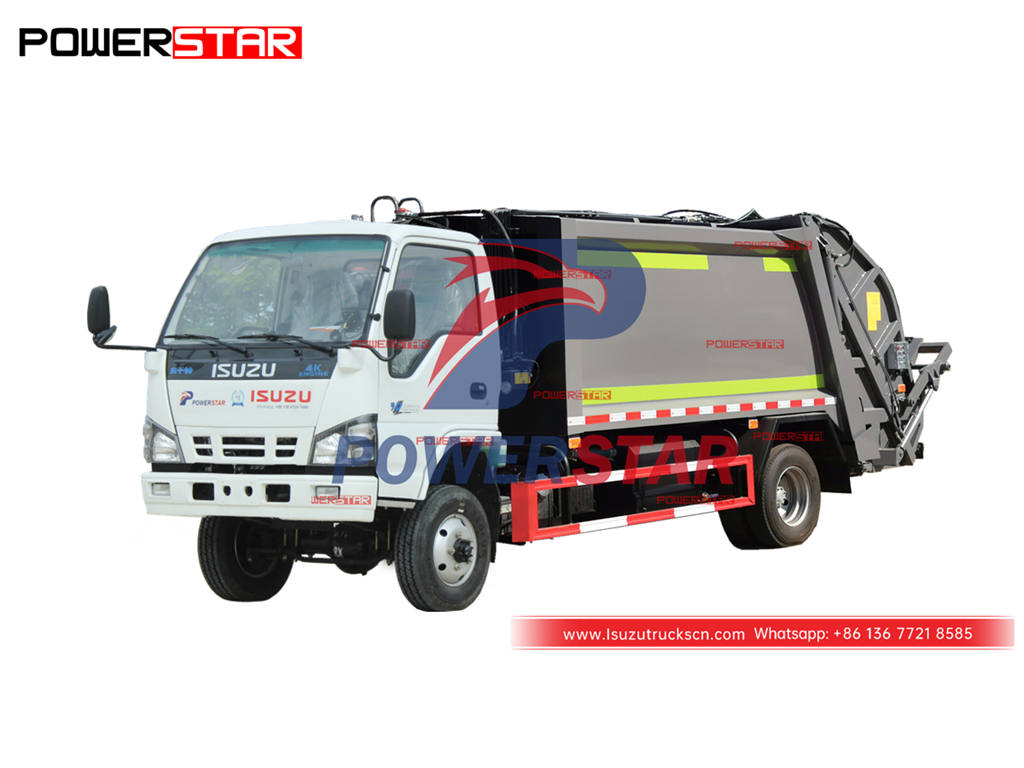

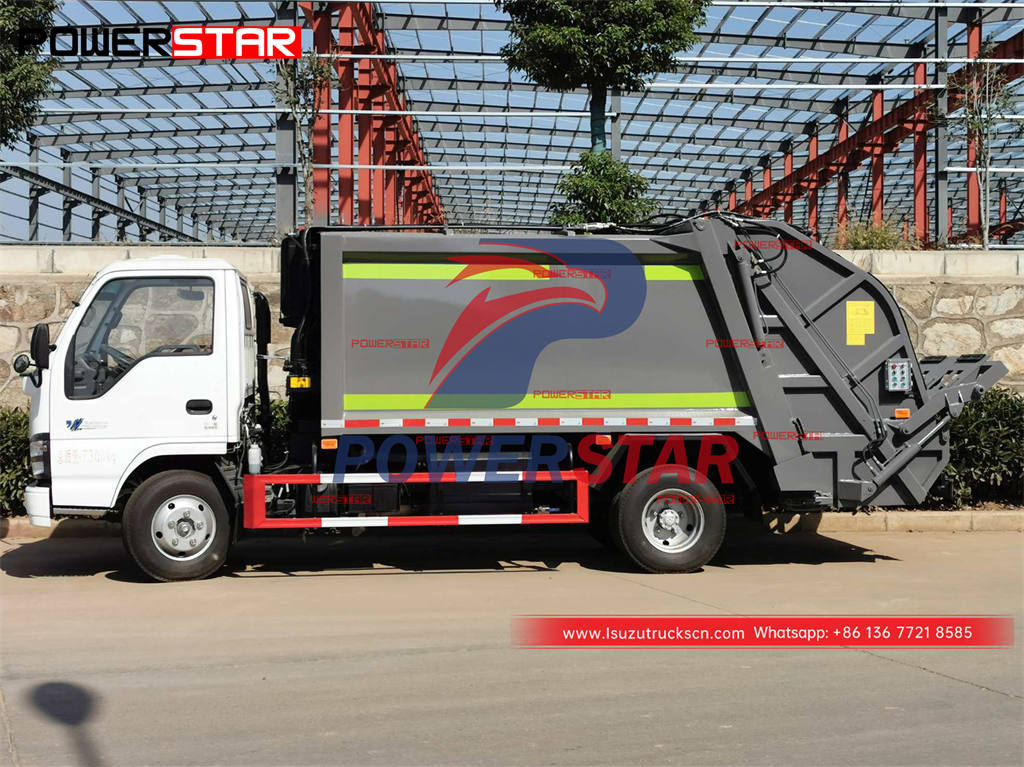

ISUZU 600P 130HP 4×4 rear loading garbage truck for sale
High quality ISUZU 600P 4×4 AWD rear loader refuse truck, new designed ISUZU NKR/600P 130HP 4WD back loading garbage trucks, ISUZU rubbish compactor manufacturer.Isuzu's all-wheel drive compression garbage truck has off-road performance. It is equipped with a 4HK1 diesel engine (170 horsepower), which can output high torque at low speed, suitable for the garbage truck's climbing and escape needs under complex road conditions. The all-wheel drive system supports a time-sharing four-wheel drive mode, which can be manually switched to adapt to harsh roads such as ice, snow, and mud. The approach angle is 28°, the departure angle is 25°, and the minimum ground clearance is 230mm, which is better than ordinary garbage trucks and ensures passability.
Order(MOQ):
1Work capacity:
6-8 CBMEngine power:
120HPEngine type:
ISUZU 4KH1Axle drive:
4X4 off roadGear box:
ISUZU MSB 5-shiftRemarks:
different bin lifting system availableBest quality ISUZU 600P 4×4 back loading garbage truck at discount price,Qingling Isuzu's off road compression garbage truck, as a special environmental protection model, has been successfully exported to the Russian market, helping the development of local environmental protection. This model uses compression technology to process garbage, which can effectively improve the efficiency of garbage transportation. Exports to the Russian market can be completed through the Horgos Port or Suifenhe Port. Isuzu's after-sales service system in Russia is maintained by local partners (such as Sollers) to ensure vehicle maintenance and parts supply.
ISUZU 600P 4WD back loader garbage truck (also called Isuzu 4×4 refuse compressor truck, ISUZU AWD rear loading garbage truck, ISUZU 4×4 rubbish compactor truck ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
 |
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU 4WD Refuse Compactor Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5070ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
6800*2200*2680 |
|
Gross weight |
kg |
7,300 |
|
|
Kerb weight |
4,800 |
||
|
Wheelbase |
mm |
3,360 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF |
||
|
Tire size |
7.00R16 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
2 |
||
|
Engine |
Engine model |
4KH1CN5HS |
|
|
Type of fuel |
Diesel |
||
|
Power |
130HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
6 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |

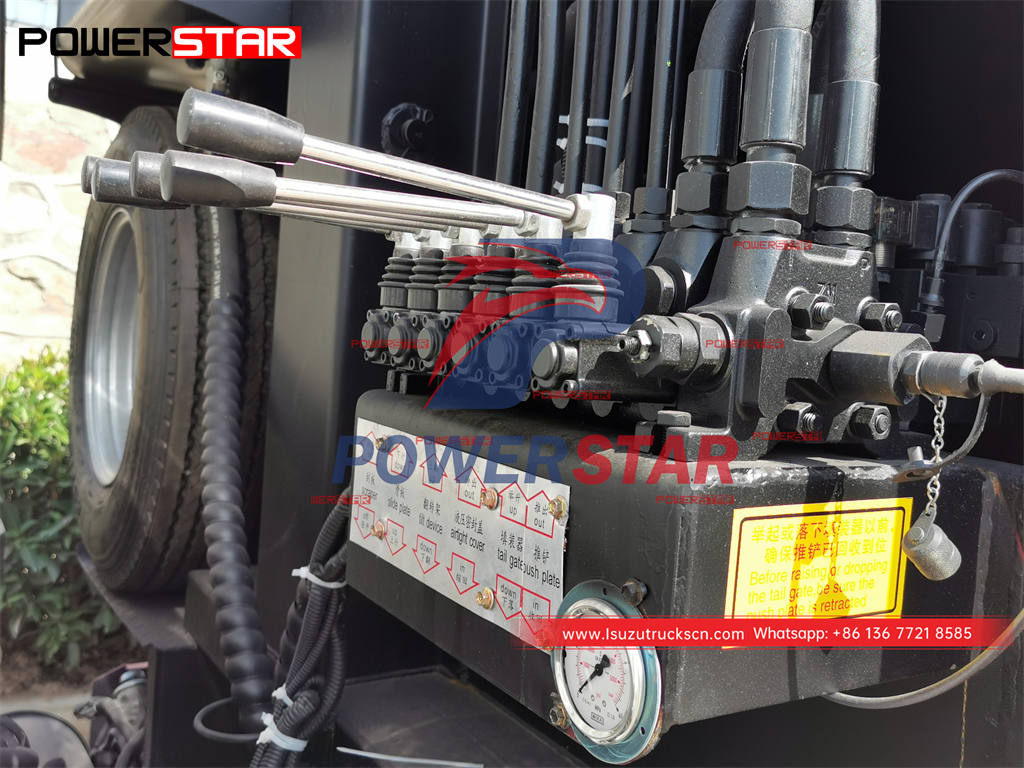

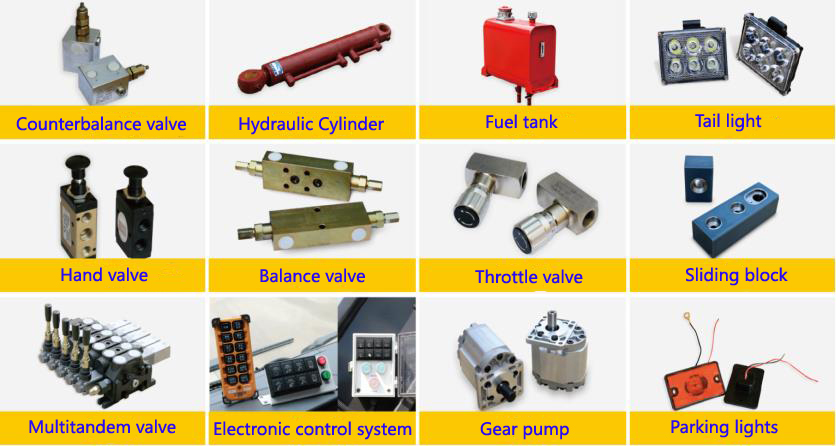

1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
Key words: ISUZU AWD Compression Garbage Truck, ISUZU 4×4 Back Loading Refuse Truck, ISUZU 4WD Waste Compactor Supplier, ISUZU off-road Rear Load Rubbish Truck
