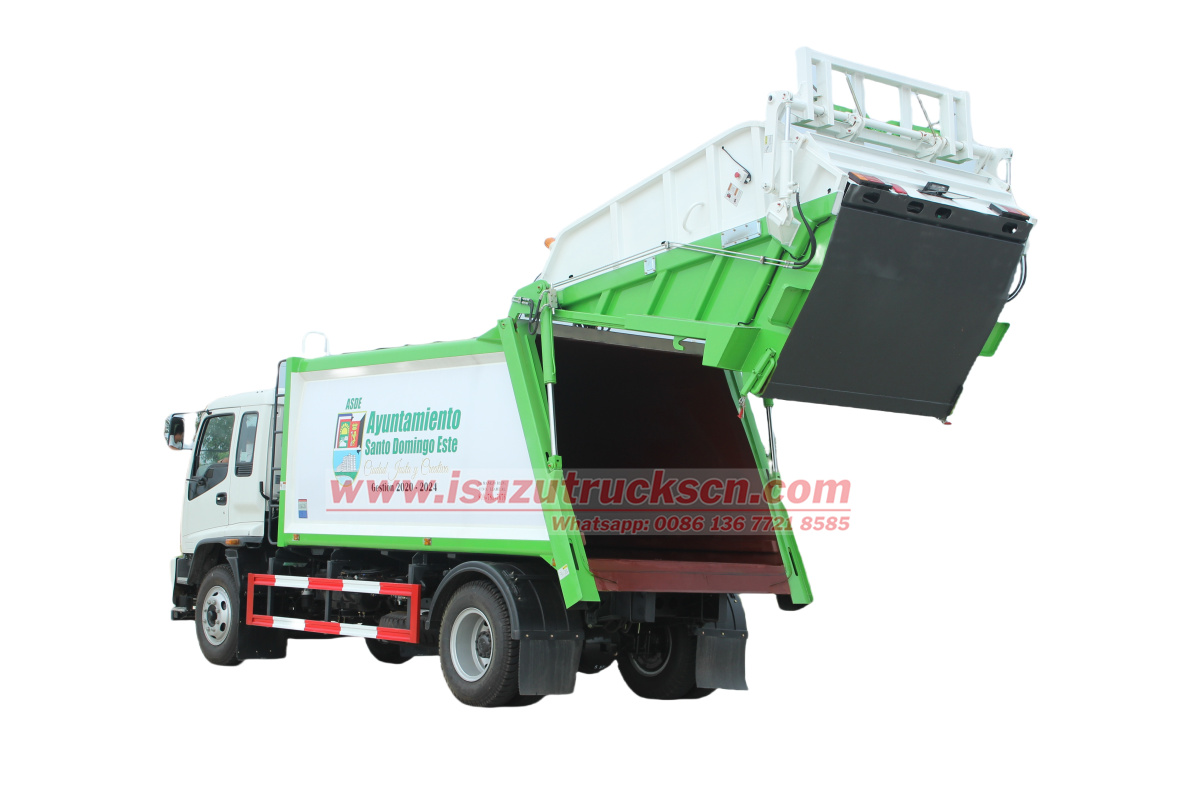

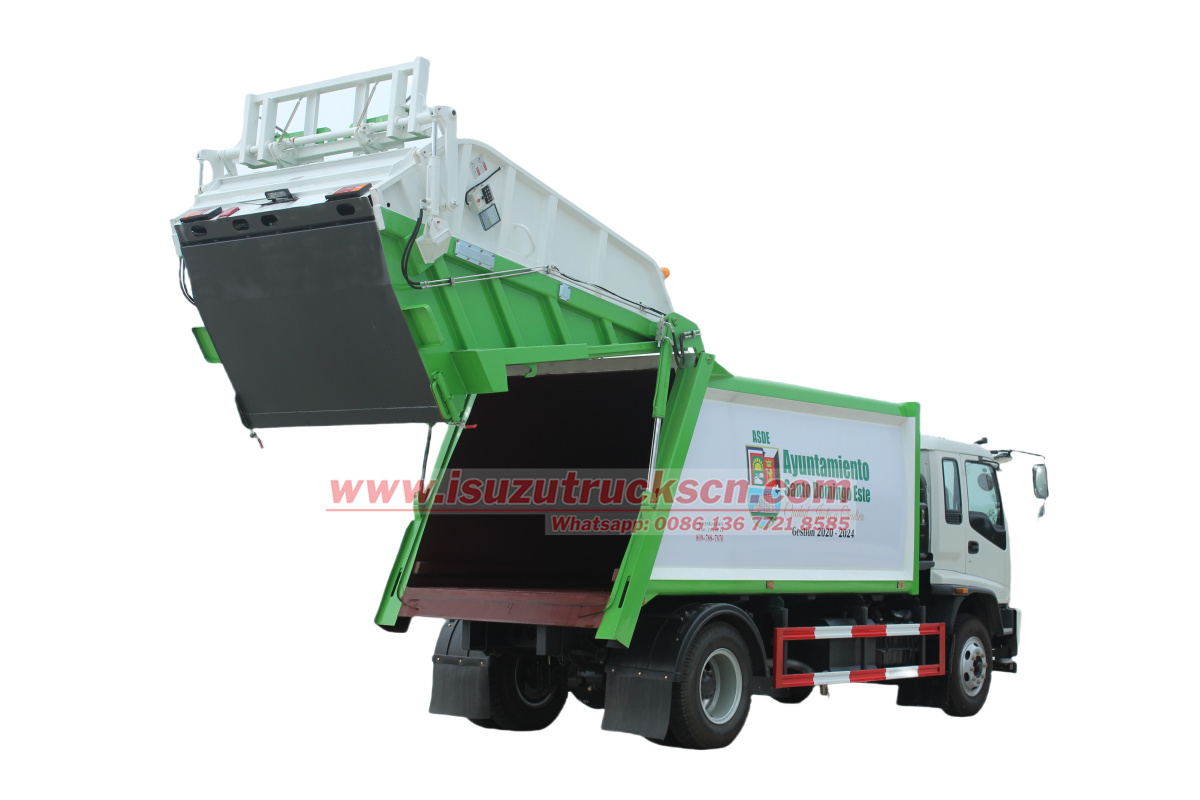

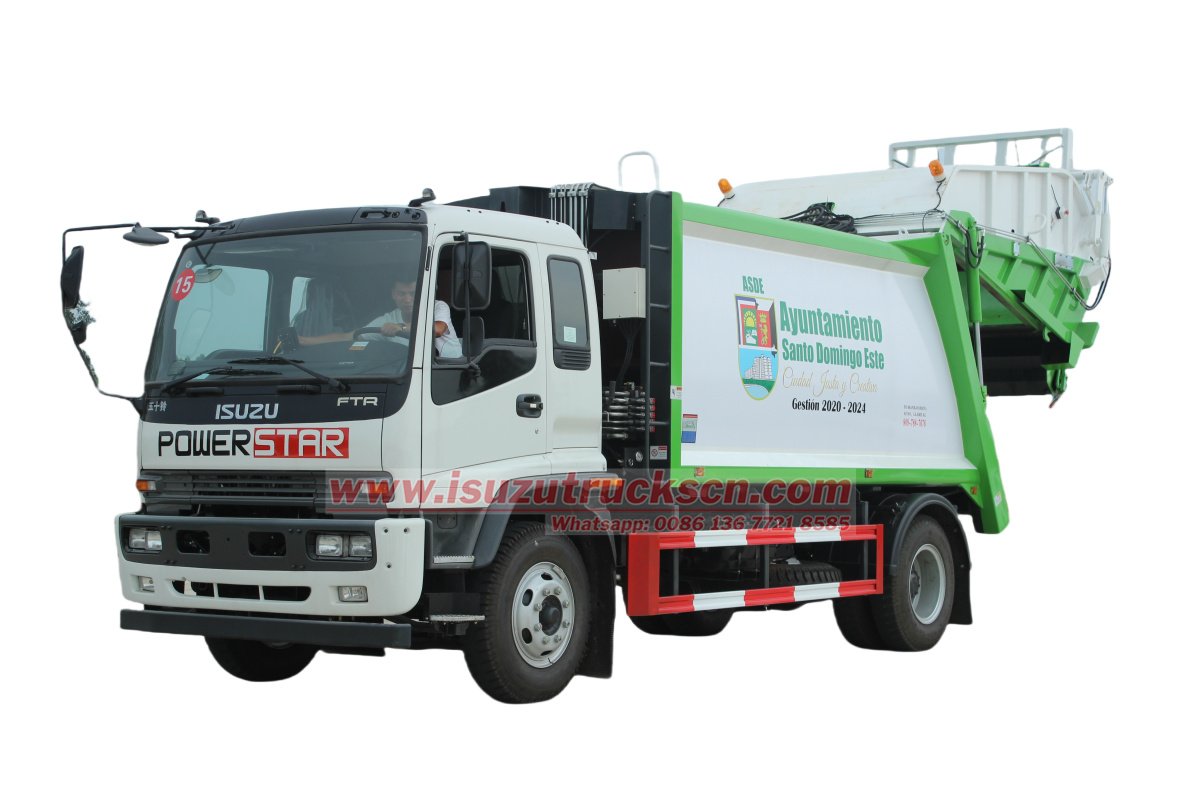

ISUZU FTR/FVR 4×4 AWD Garbage Compactor 12CBM 4WD Rear Loader
Best price ISUZU FTR 4×4 12CBM refuse compactor truck, customized ISUZU FTR 4WD rear loading garbage trucks, ISUZU AWD trucks supplier.The Philippines' special requirements for garbage trucks require a four-wheel drive system and a reinforced chassis to cope with the complex local terrain (such as steep slopes). The vehicle needs to operate stably at a high temperature of 45°C, and the battery and motor need to use independent liquid cooling technology. The garbage truck needs to have an efficient sealing design to prevent garbage leakage and odor diffusion, and reduce secondary pollution. The joint surface between the body and the loader needs to be equipped with a rubber sealing strip and a hydraulic automatic locking device.
Order(MOQ):
1Work capacity:
12 CBMEngine power:
190HPEngine type:
ISUZU 4HK1Axle drive:
4X4 off roadGear box:
ISUZU MLD 6-shiftRemarks:
4 wheels also availableBrand New ISUZU FTR 4×4 AWD 12CBM Refuse Compactor Truck At Discount Price，Japanese Isuzu FTR12 cubic 4WD compression garbage truck exported to the Philippines, using Isuzu FTR4x4 chassis, equipped with ISUZU 4HK1 190 horsepower engine and ISUZU MLD 6-shift gearbox. Off-road four-wheel drive system, adapted to the complex terrain requirements of the Philippines. 12 cubic meters, made of manganese steel (side 3 bottom 4/side 4 bottom 5). Pressure 18MP, supports electronic control/manual/remote control operation.
It must comply with Philippine technical standards and can be completed with the assistance of domestic certification agencies. It is recommended to entrust a professional international logistics company to handle transportation, customs clearance and other links.
ISUZU FTR 4WD rear loader (also called ISUZU 4×4 garbage compression truck, ISUZU 4WD rear loading refuse truck, ISUZU 4×4 AWD waste compressor truck ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
 |
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU FTR 4WD rubbish compactor truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5160ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
8900*2300*2850 |
|
Gross weight |
kg |
16,000 |
|
|
Kerb weight |
8,200 |
||
|
Wheelbase |
mm |
4,700 |
|
|
Driving type |
4*4 |
||
|
Chassis model |
ISUZU FTR |
||
|
Tire size |
10.00R20 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC50 |
|
|
Type of fuel |
Diesel |
||
|
Power |
205HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
12 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |

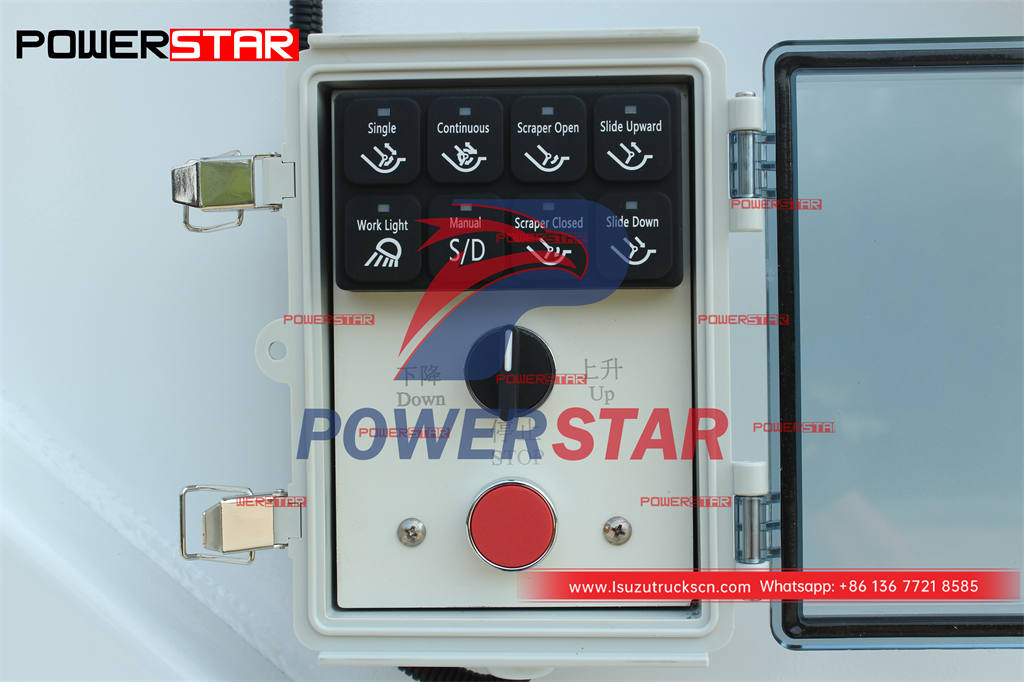

Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |

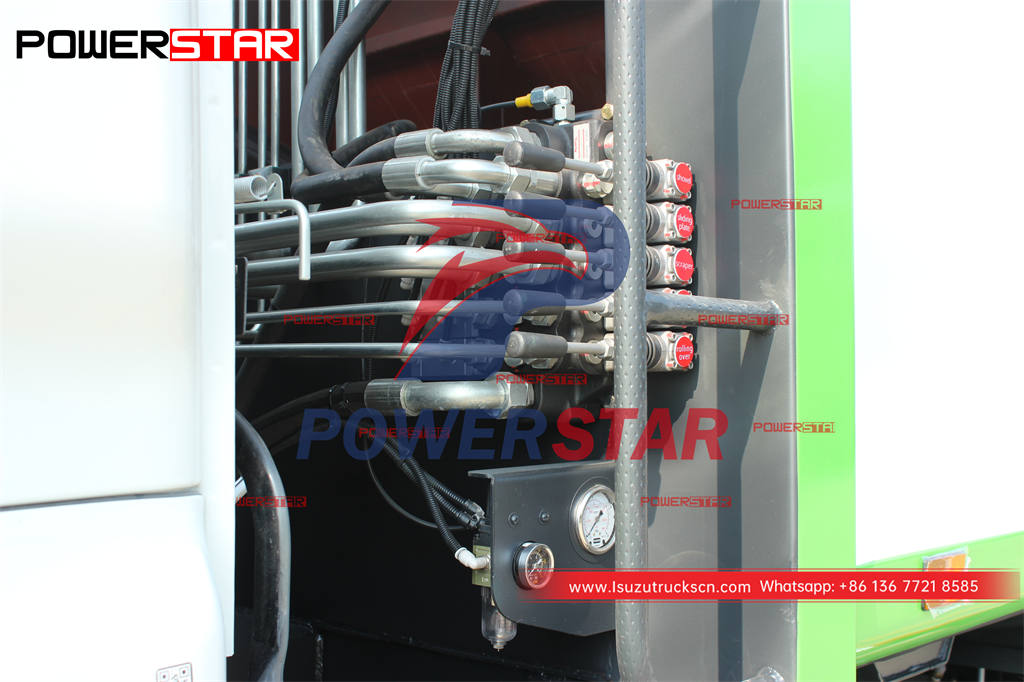

“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
ruck with 380Hp for
Key words: ISUZU FTR 4×4 Rear Loader Truck, ISUZU FTR 4WD Refuse Compactor Truck, ISUZU FTR/FVR 4×4 garbage compressor truck, ISUZU 4×4 off-road Back Loading Garbage Truck
