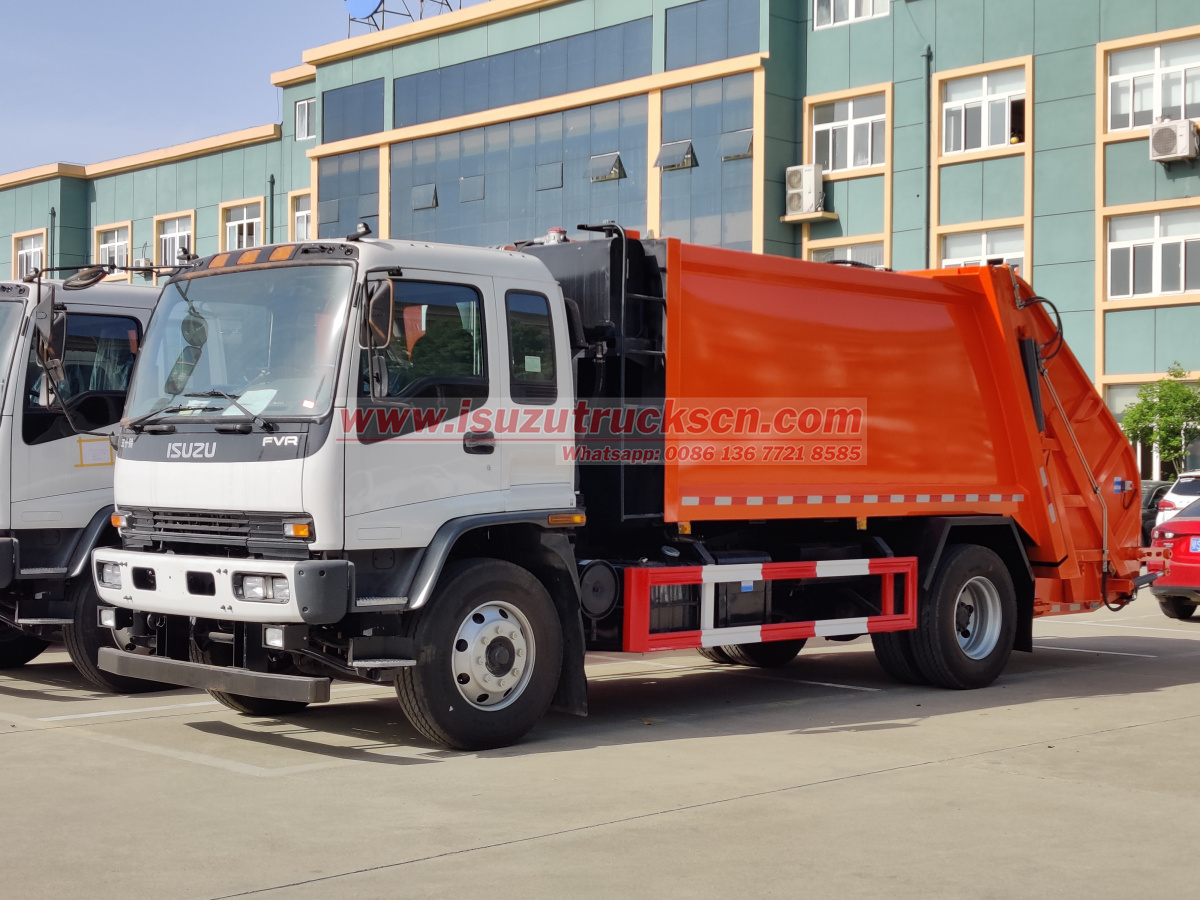

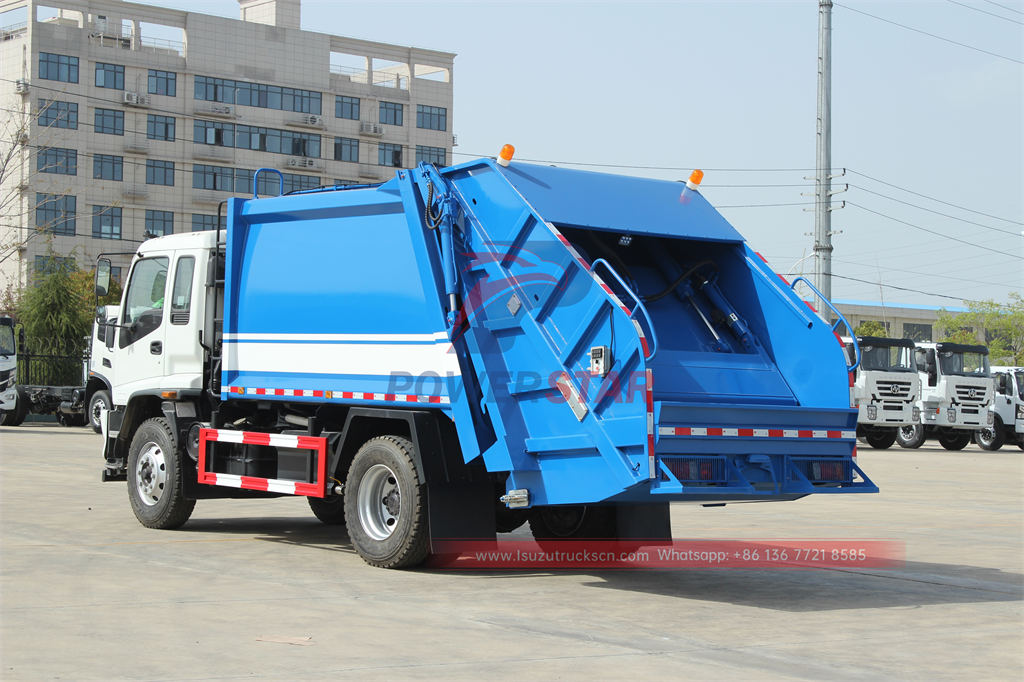

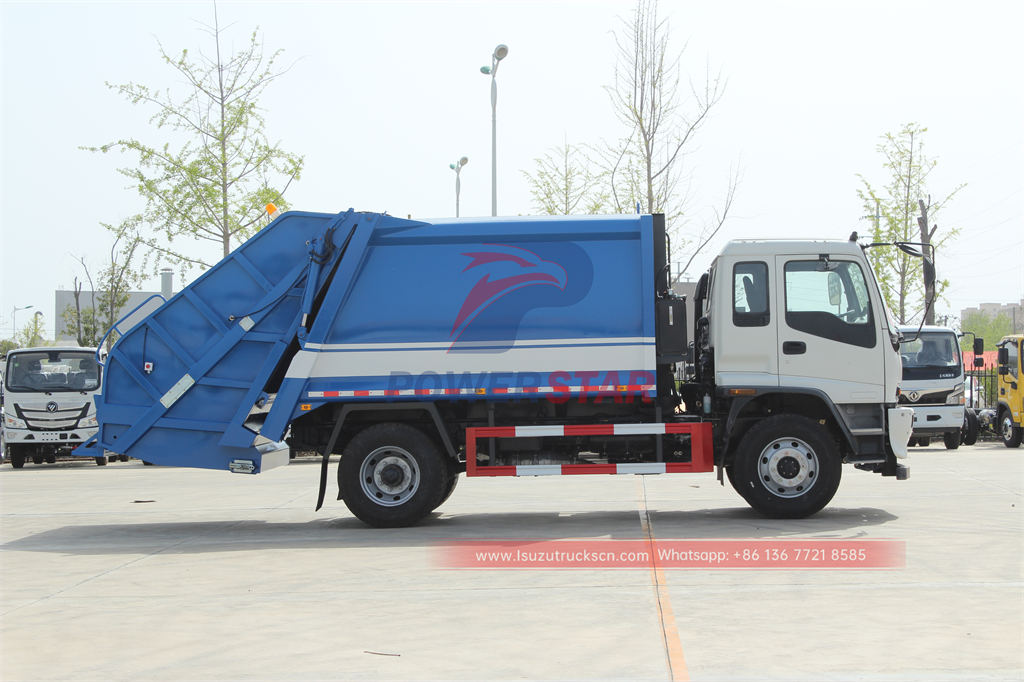

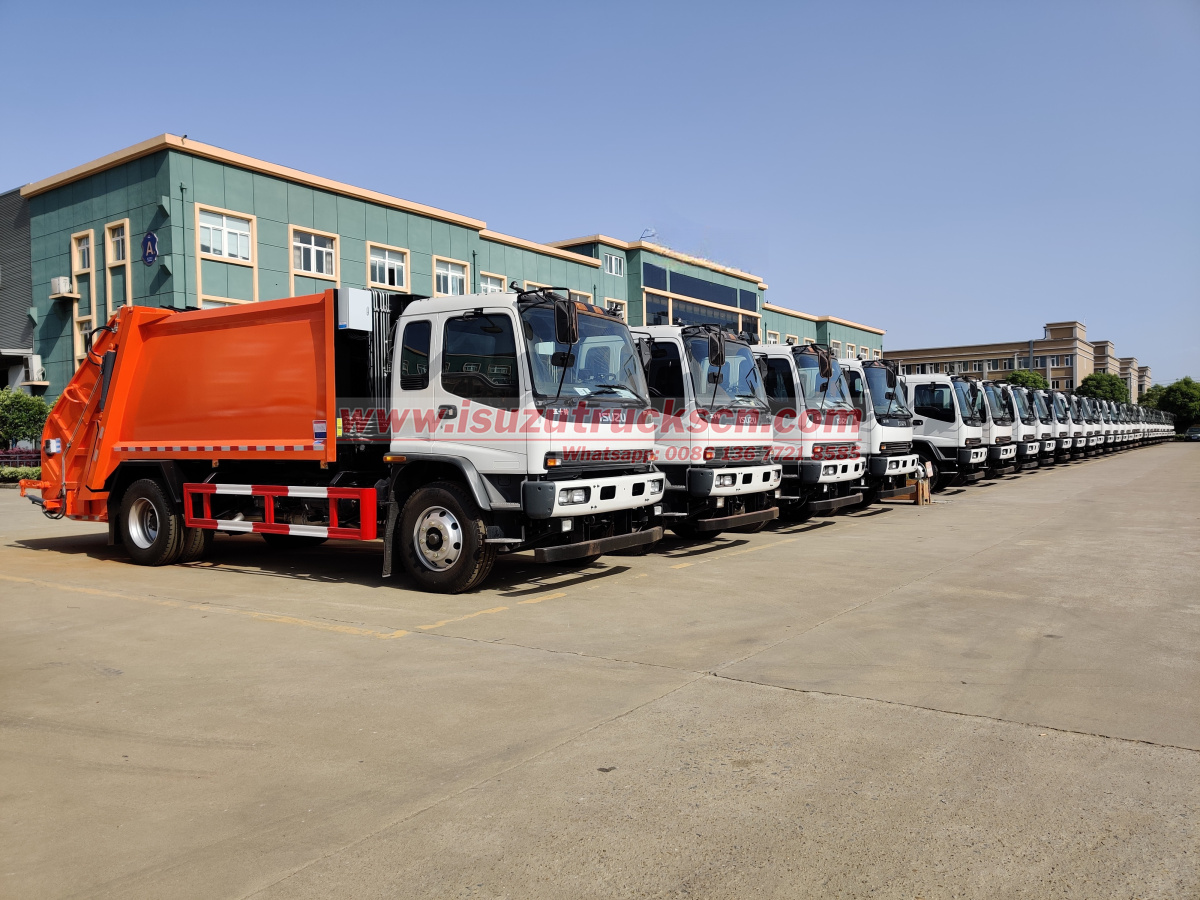

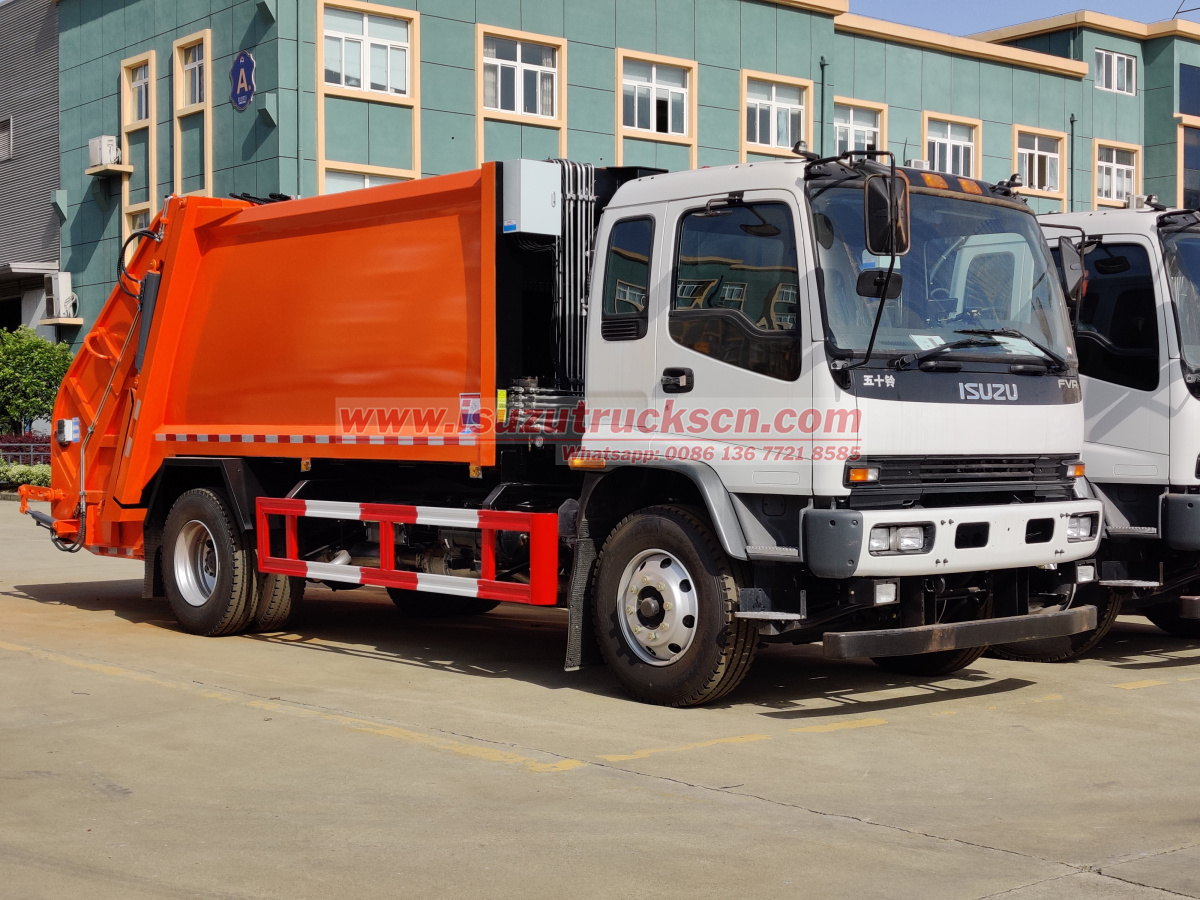

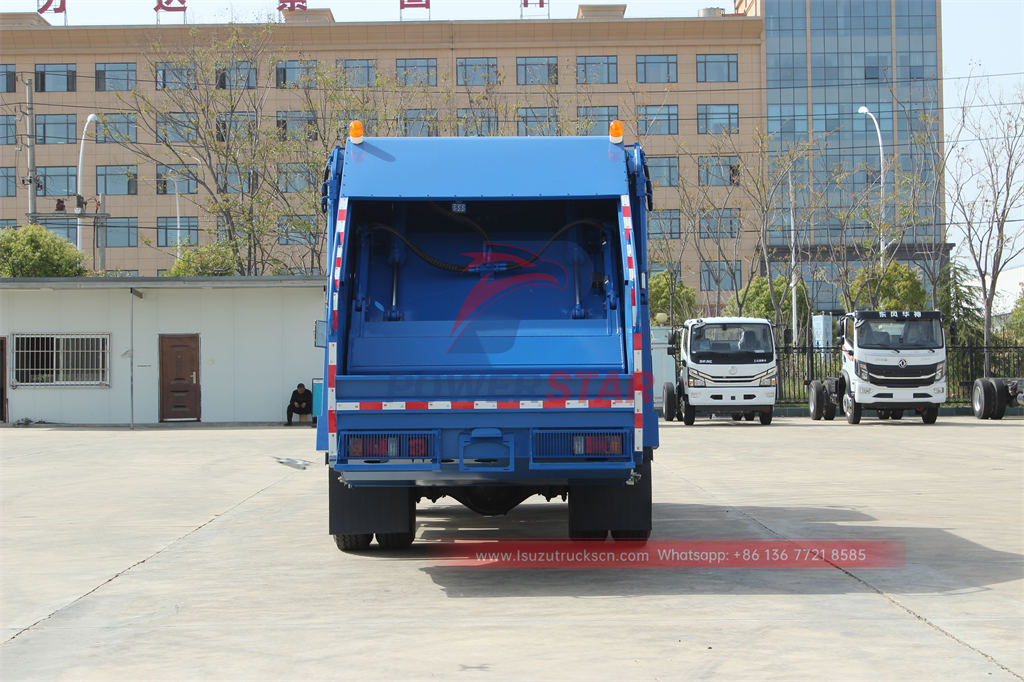

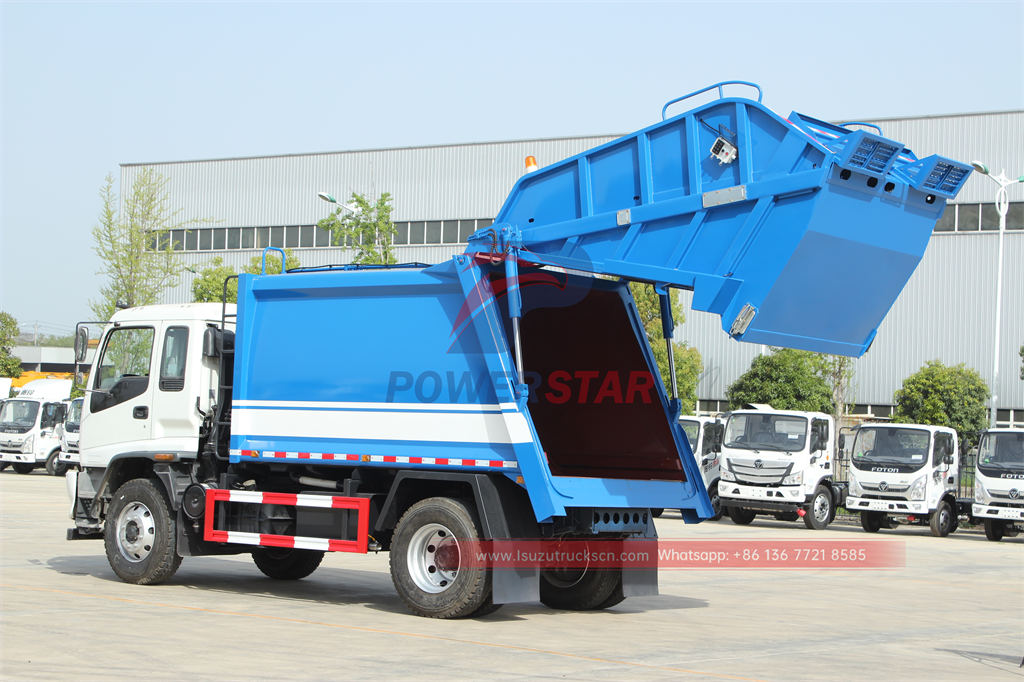

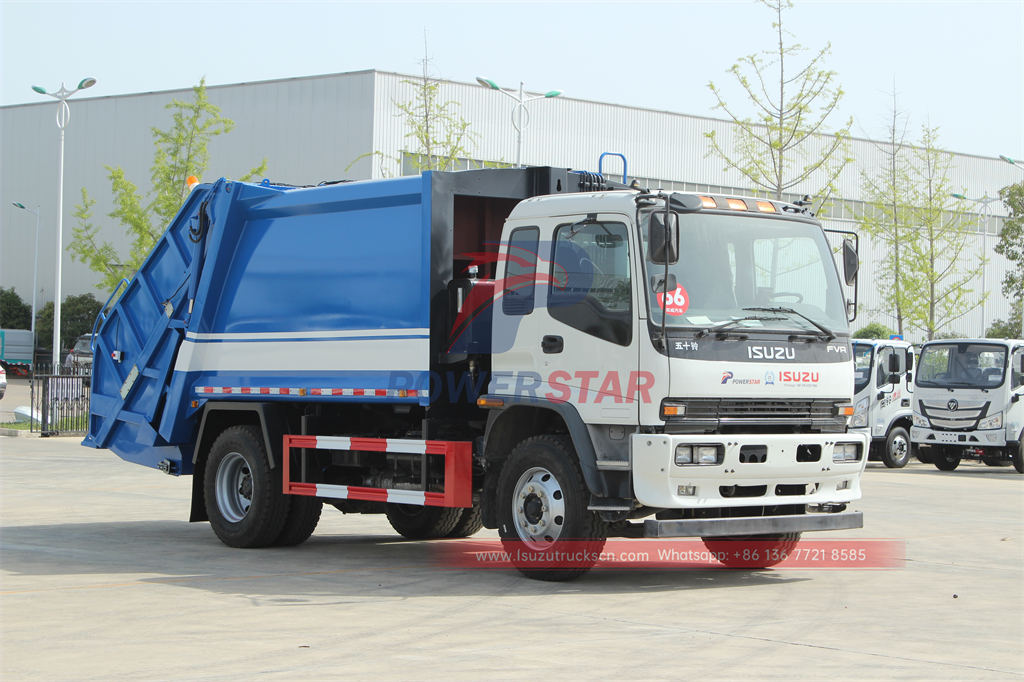

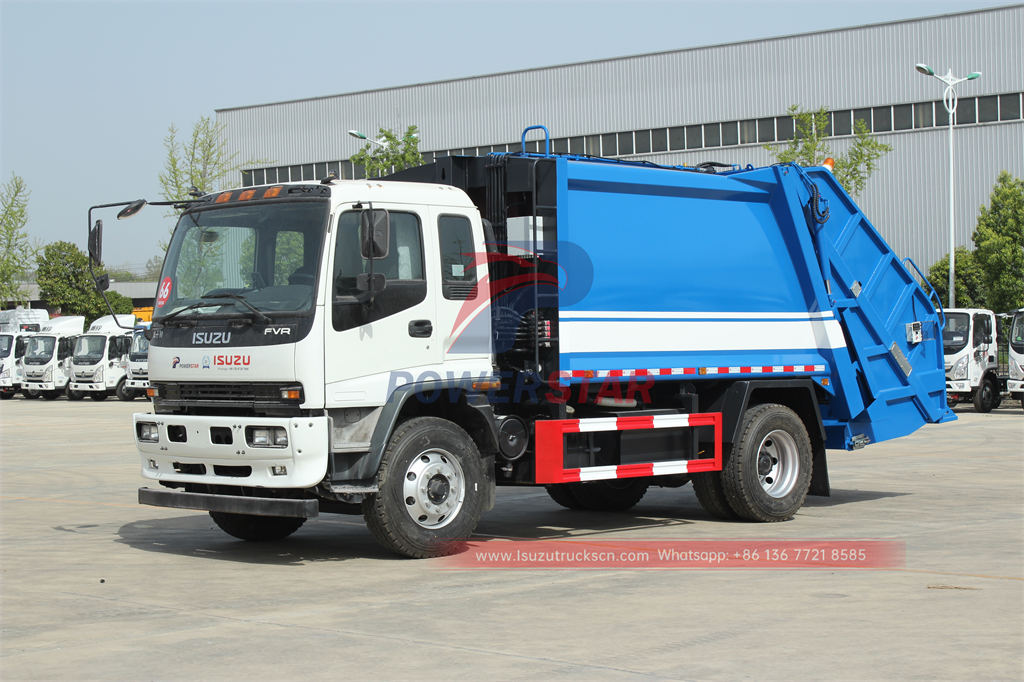

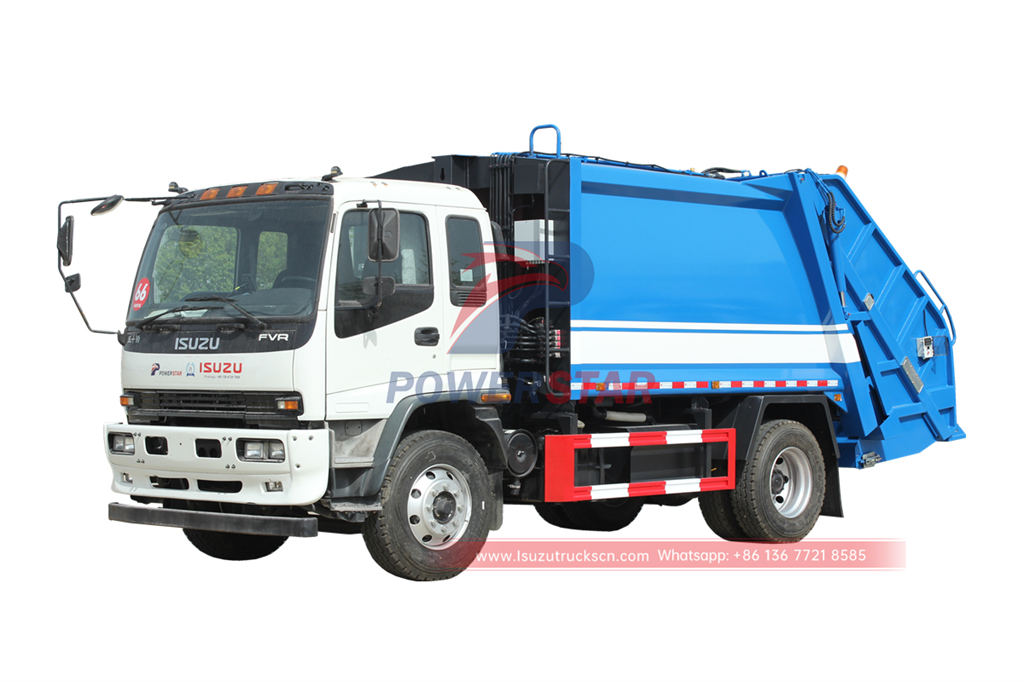

ISUZU FVR 10CBM Garbage Compactor for sale

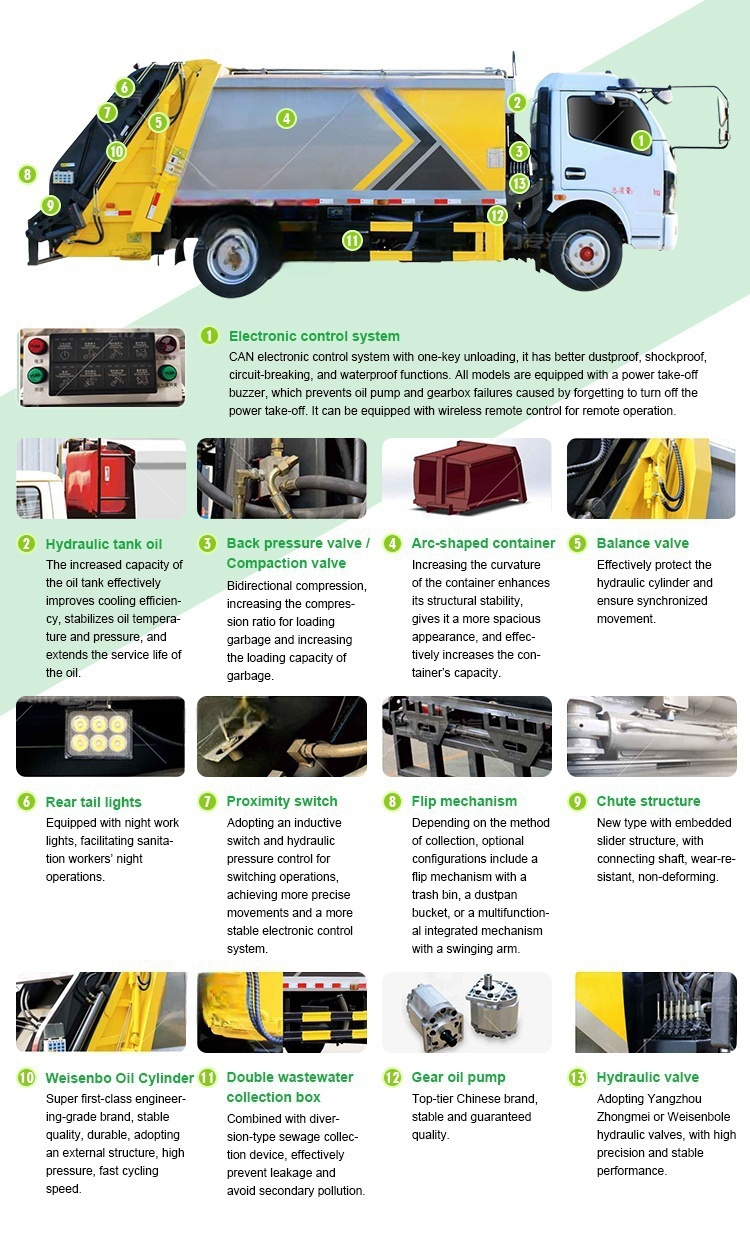

Japan brand ISUZU FVR waste compactor truck, factory price ISUZU FVR 10CBM rear loader truck, ISUZU garbage compactor manufacturer. Adopt imported PLC or CAN bus design, and achieve precise control through proximity switch and oil pressure sensing. Sealing rubber pad and rear cover hydraulic sealing structure effectively prevent sewage leakage and odor diffusion. Double sewage tank configuration: Some models are equipped with double sewage tanks and drain pipes to further reduce environmental pollution. The engine power is automatically controlled, and the acceleration/idling speed is intelligently switched during operation, and the comprehensive fuel consumption is as low as 18L/100km. The manganese steel box is corrosion-resistant and deformation-resistant, and the hydraulic pipeline uses a high-pressure filter (precision 0.01 micron) to reduce failures. Computer control and manual operation are double guarantees, and the pressure valve is designed to prevent misadjustment.
Order(MOQ):
1Work capacity:
10 CBMEngine power:
240HPEngine type:
ISUZU 6HK1-TCAxle drive:
4x2Gear box:
ISUZU MLD 6shiftRemarks:

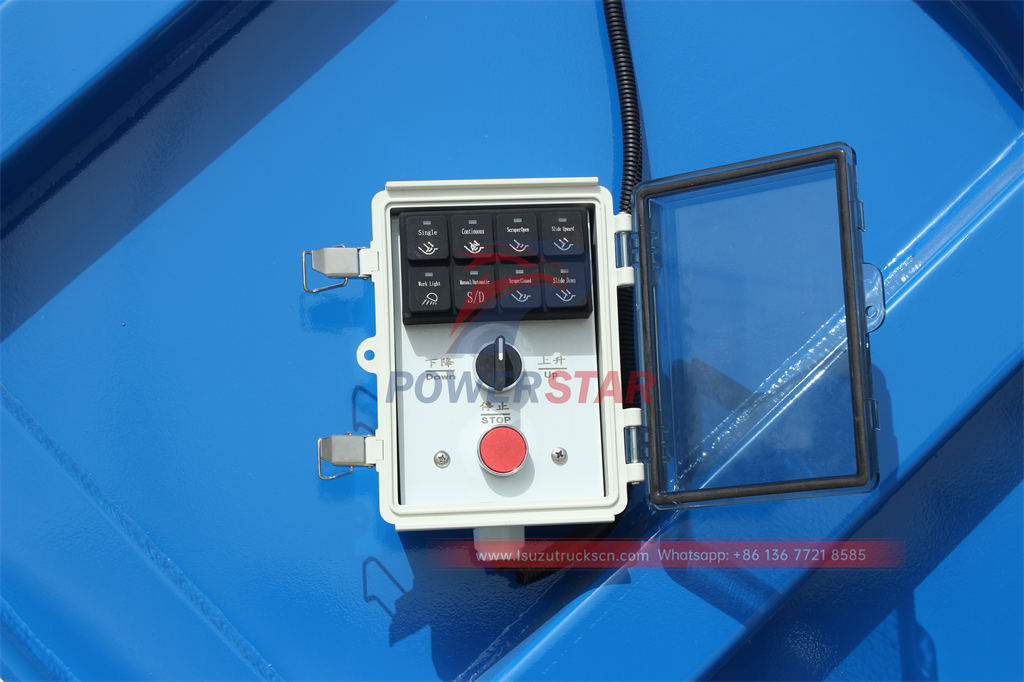

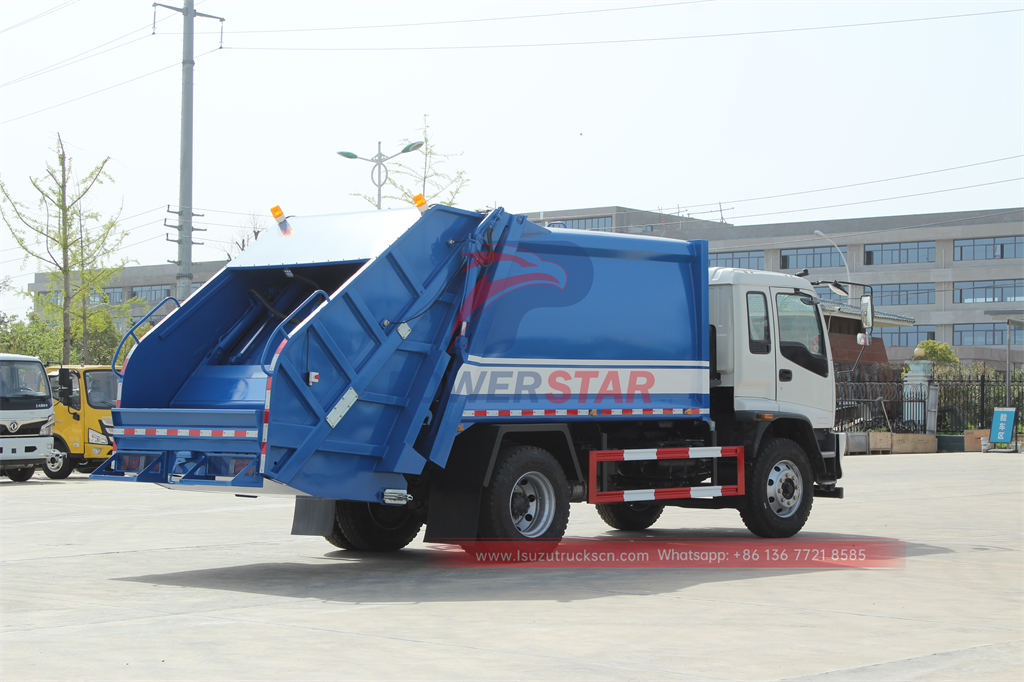

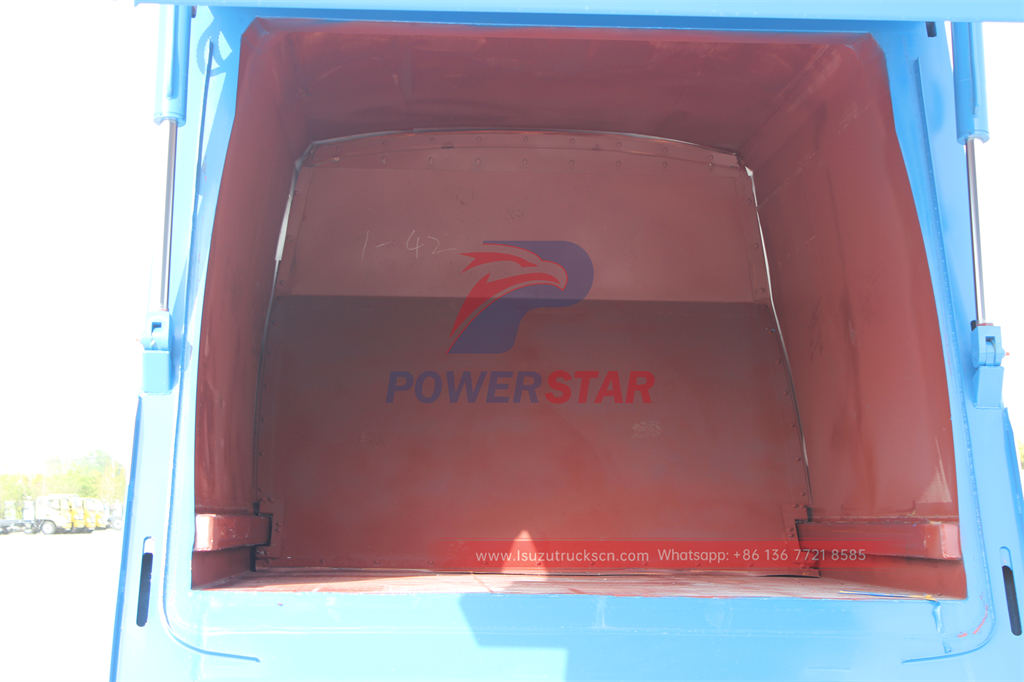

different bin lifter availableCustom-made ISUZU FVR 10CBM Rear Load Garbage Truck For Sale，The Isuzu FVR cab chassis 10-cubic-meter compression garbage truck adopts two-way compression technology, with a compression ratio of 1:2.5 to 1:4, and a single loading capacity that is 2.5 times that of non-compression models. The single compression cycle time is ≤20 seconds, and it is equipped with a compaction valve to further increase the compression density. The box body adopts Q345 manganese steel arc design, with an effective volume of 10-12 cubic meters, a bottom plate thickness of 5mm, and a side plate of 4mm, and a solid structure. The arc streamlined appearance reduces dead angles, and the overall folding edge of the bottom plate is not welded, which increases the actual loading capacity. It supports three sets of manual, automatic, and semi-automatic operation modes, and the cab and the front and rear of the box can be controlled, and it is equipped with a remote controller..

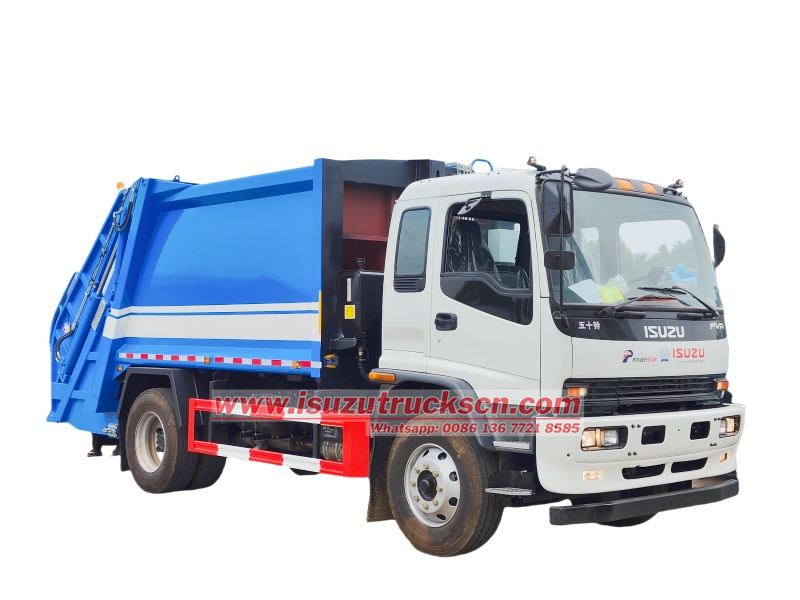

ISUZU garbage compactor truck (also called Isuzu waste compactor truck, ISUZU rear loader truck, ISUZU refuse compactor truck ) is an ideal special purpose vehicle for waste collection and transportation in urban areas. The truck offers standard compaction, which helps compress the waste, allowing for more efficient storage and transportation.
 |
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU FVR Refuse Compactor Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5180ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |

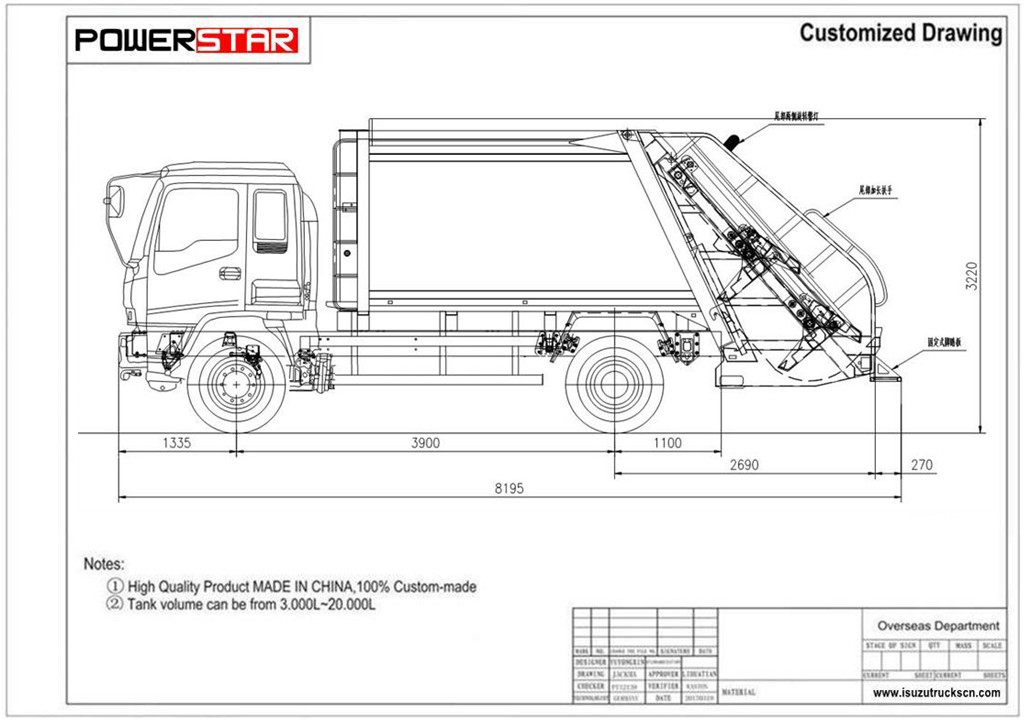

Overall dimensions |
mm |
8200*2500*3300 |
|
Gross weight |
kg |
18,000 |
|
|
Kerb weight |
9,910 |
||
|
Wheelbase |
mm |
4,500 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU FVR |
||
|
Tire size |
295/80R17.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
6HK1-TCL |
|
|
Type of fuel |
Diesel |
||
|
Power |
240HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
10 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|

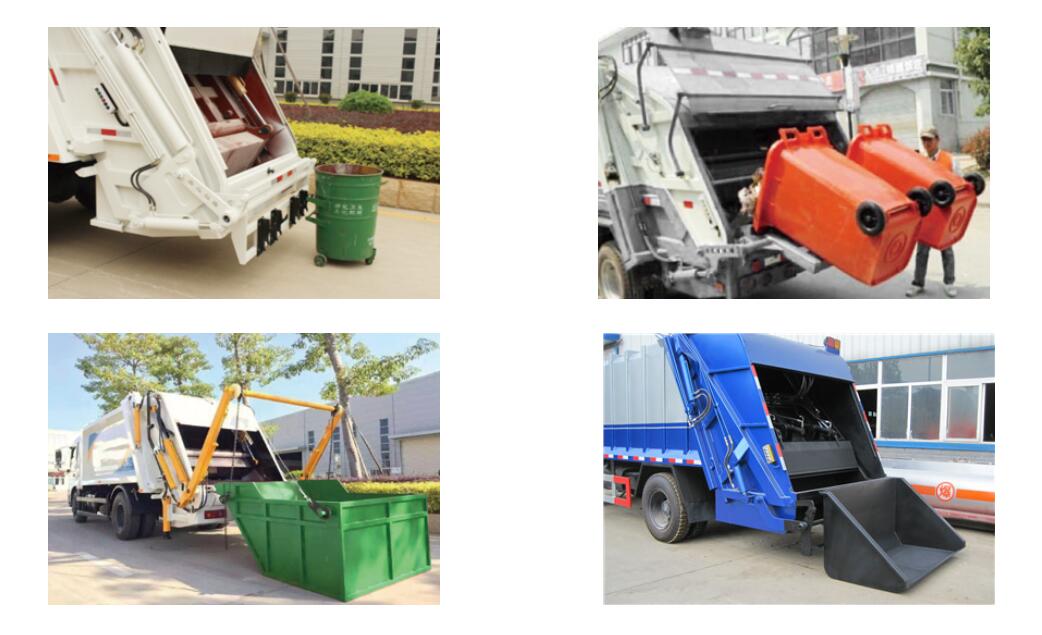

Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |

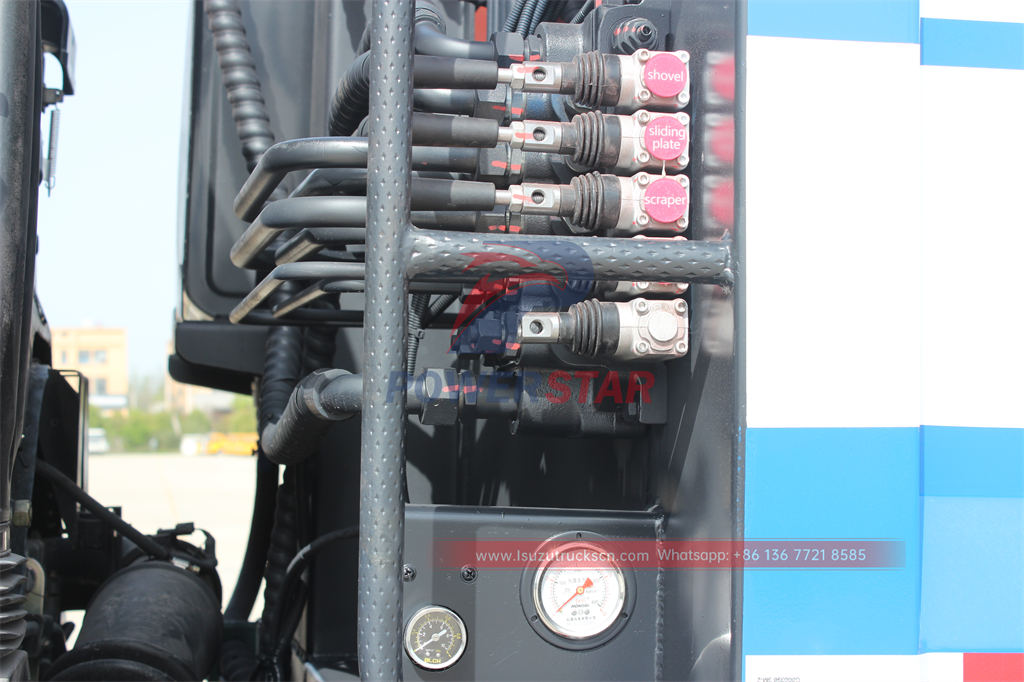

1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
Key words: ISUZU Rear Loader Truck, ISUZU Garbage Compactor Price, ISUZU Refuse Compactor manufacturer, ISUZU rubbish compactor truck specifications
