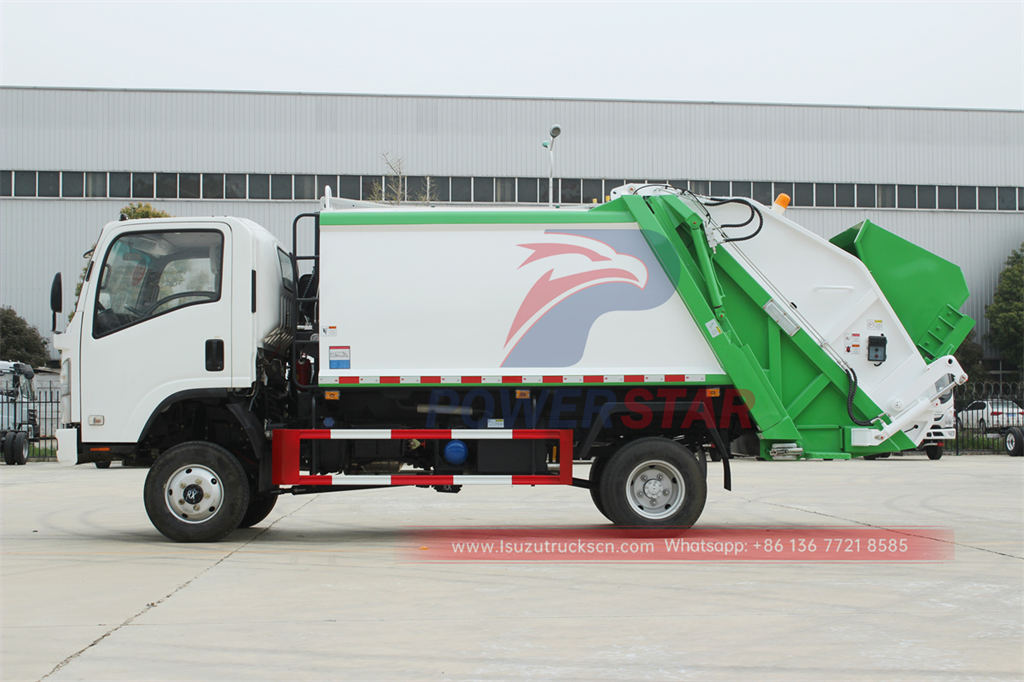

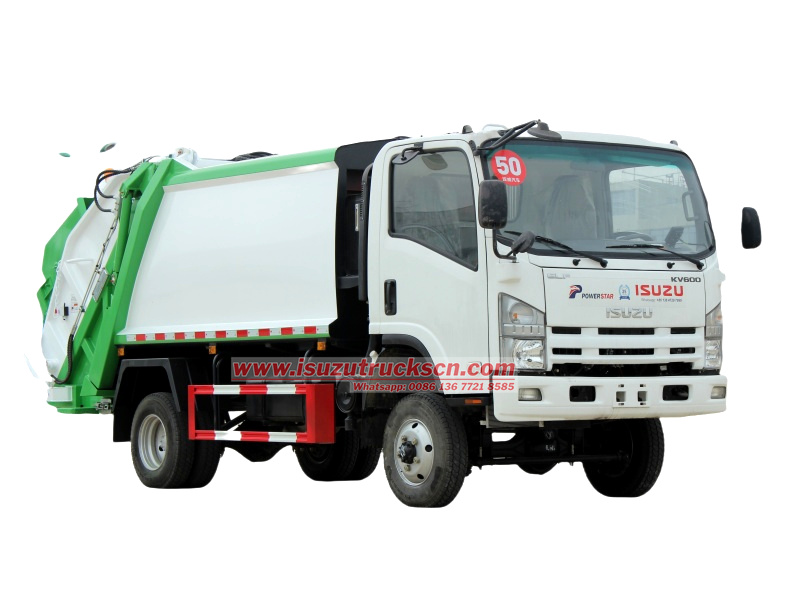

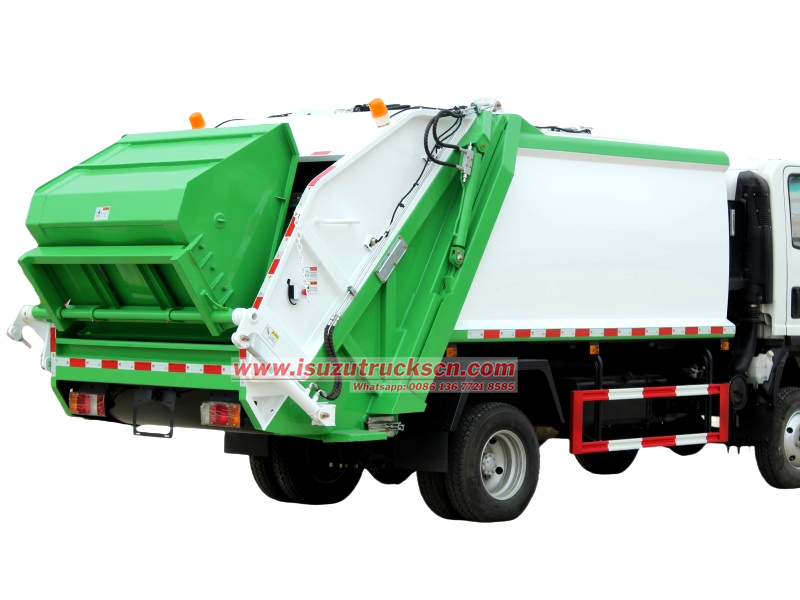

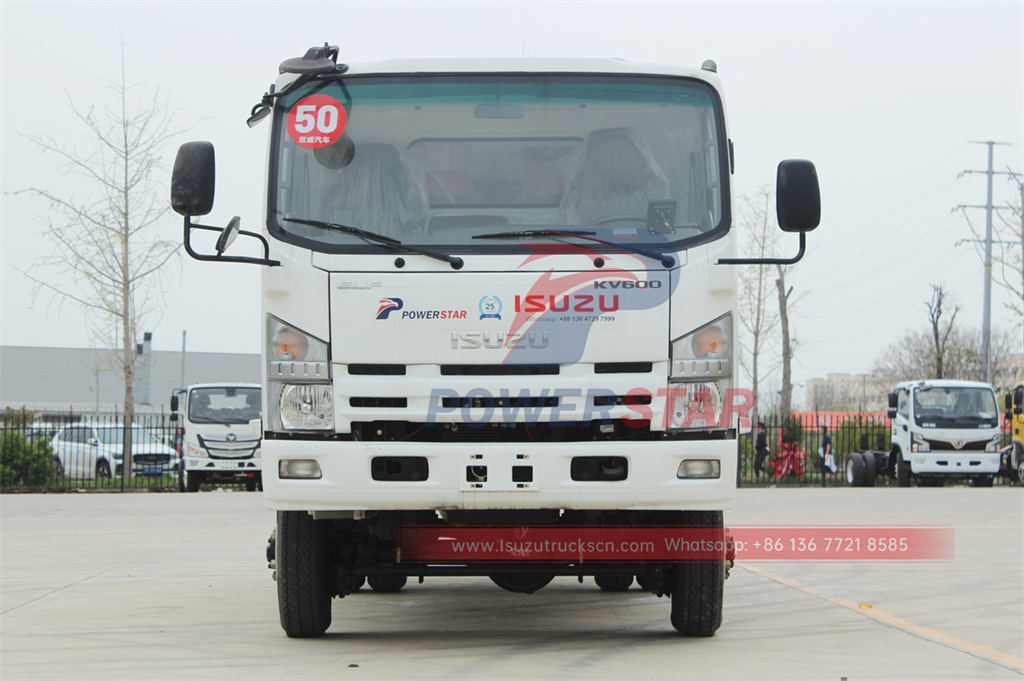

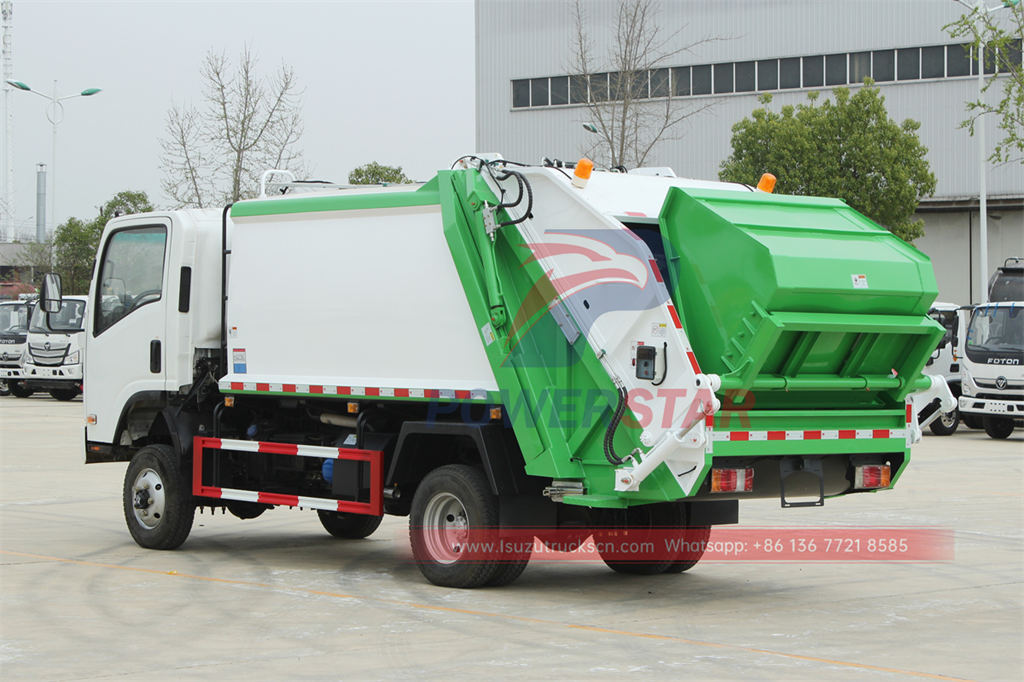

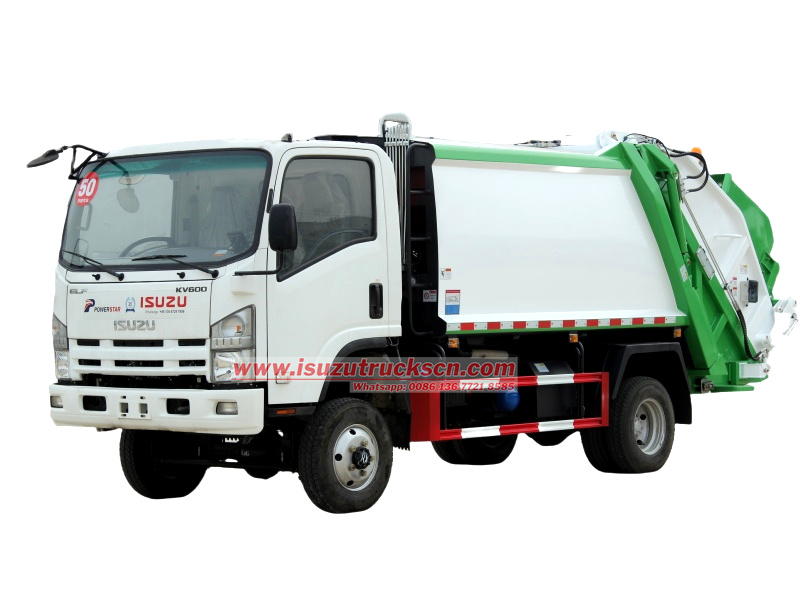

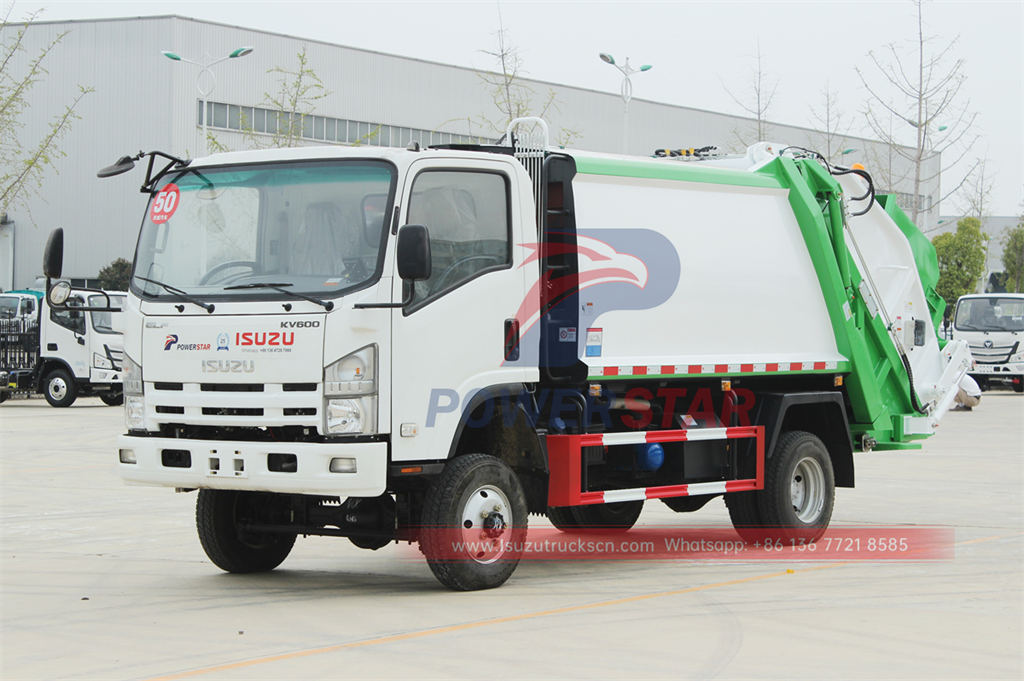

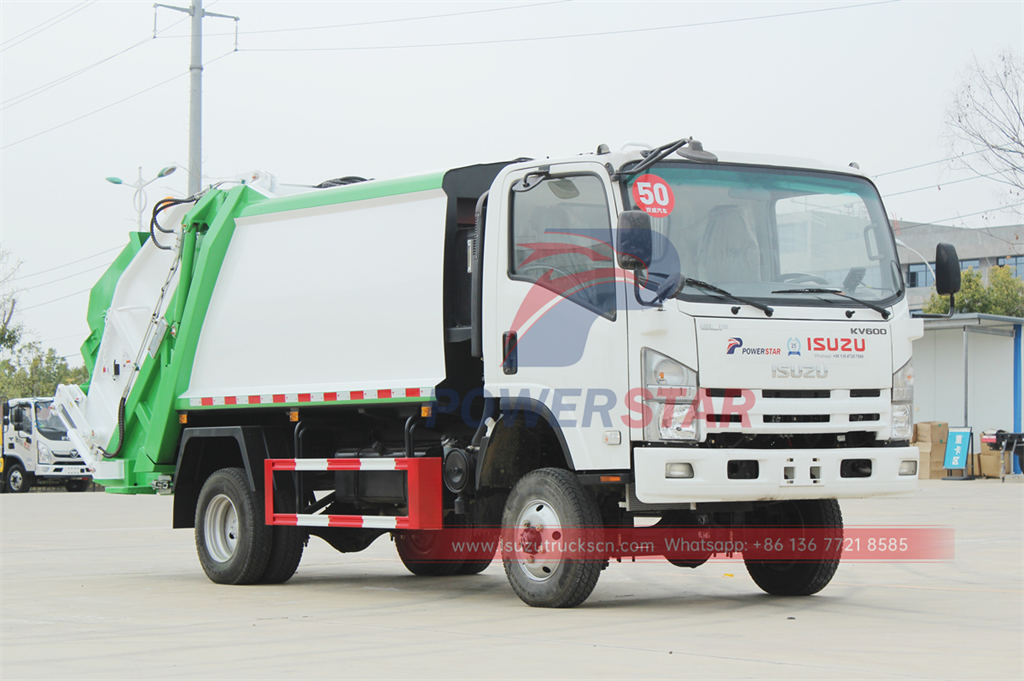

ISUZU NKR 4x4 Rear loader garbage truck
Hot sale ISUZU NKR 4x4 garbage compactor truck, custom-made ISUZU 130HP 6CBM refuse compactor truck, factory outlet ISUZU waste compactor truck at best price.The truck is equipped with domestic advanced Isuzu chassis, imported hydraulic and electrical components, which are stable and reliable performance. The drum shape structure is simple and elegant, and made of high-strength manganese, which is strong and durable.Big carriage volume, two-way compression technology, horizontally compression cylinder, high compressed capacity and strong loading capacity.Using composite seal and good anti-acid EPDM seal, they are both good sealing performance. There are sewage tanks to collect water in front and rear compartments, to prevent secondary pollution.
Order(MOQ):
1Work capacity:
6 cbmEngine power:
120HPEngine type:
ISUZU 4KH1Axle drive:
4X4 off-roadGear box:
ISUZU MSB 5-shiftRemarks:
4 wheels for optionalCustom-built ISUZU NKR 6CBM Waste Compactor Truck For Sale
ISUZU NKR 4x4 refuse compactor truck (also called Isuzu garbage compactor truck, ISUZU rear load garbage truck, ISUZU rubbish compactor truck ) is a sanitation vehicle designed to manage and transport large volumes of waste. The truck is equipped with a hydraulic compaction system that reduces waste volume, frees up space and improves waste transport efficiency.
 |

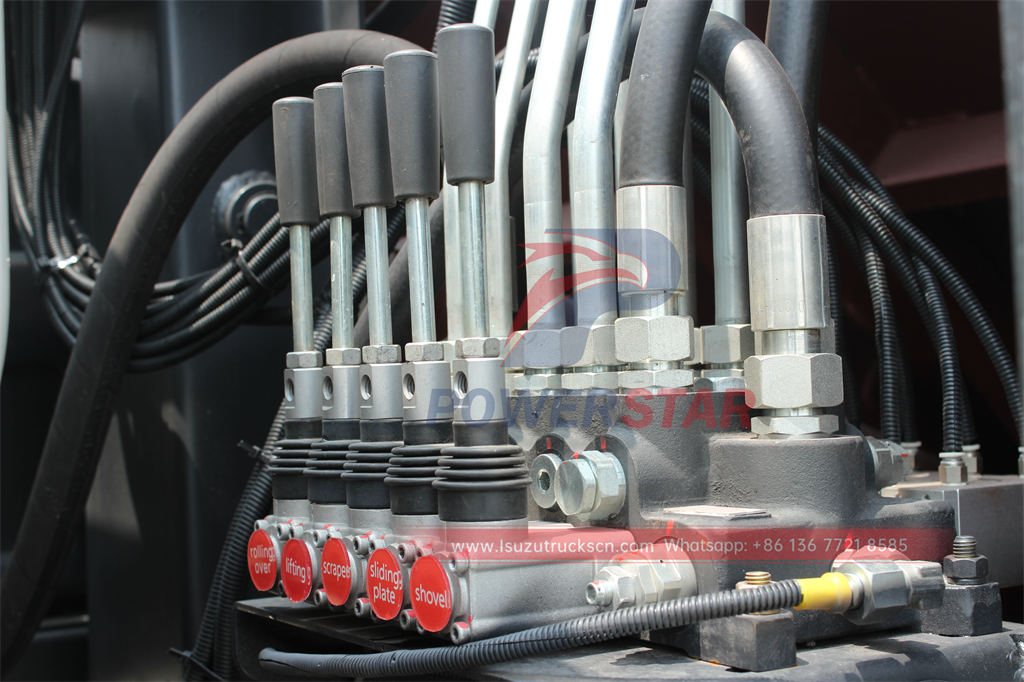

Equipped with reliable hydraulic system,
|
|
|
High compression ratio
|
|
|
Durable compactor body
|
|
|
All-wheel drive chassis, suitable for mountainous terrain
|
|
|
Technical support to ensure optimal performance
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU NKR Waste Compactor Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5070ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |

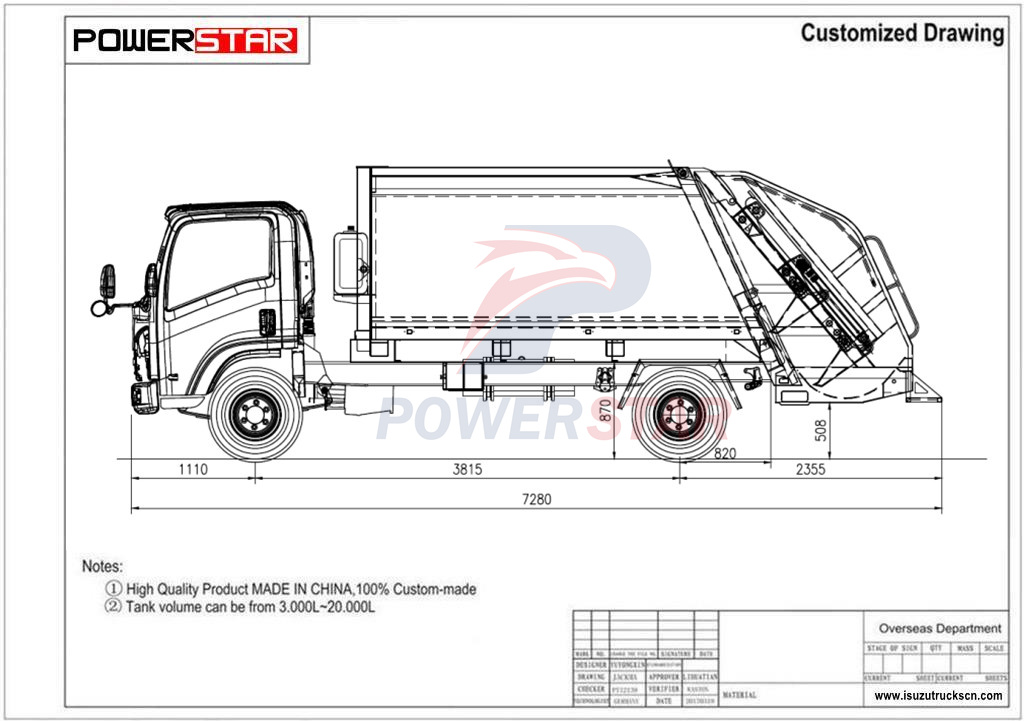

Overall dimensions |
mm |
6500*2300*2600 |
|
Gross weight |
kg |
7,300 |
|
|
Kerb weight |
3,800 |
||
|
Wheelbase |
mm |
3,360 |
|
|
Driving type |
4*4 |
||
|
Chassis model |
ISUZU NKR |
||
|
Tire size |
7.00R16 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
2 |
||
|
Engine |
Engine model |
4KH1CN5HS |
|
|
Type of fuel |
Diesel |
||
|
Power |
130HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
6 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|

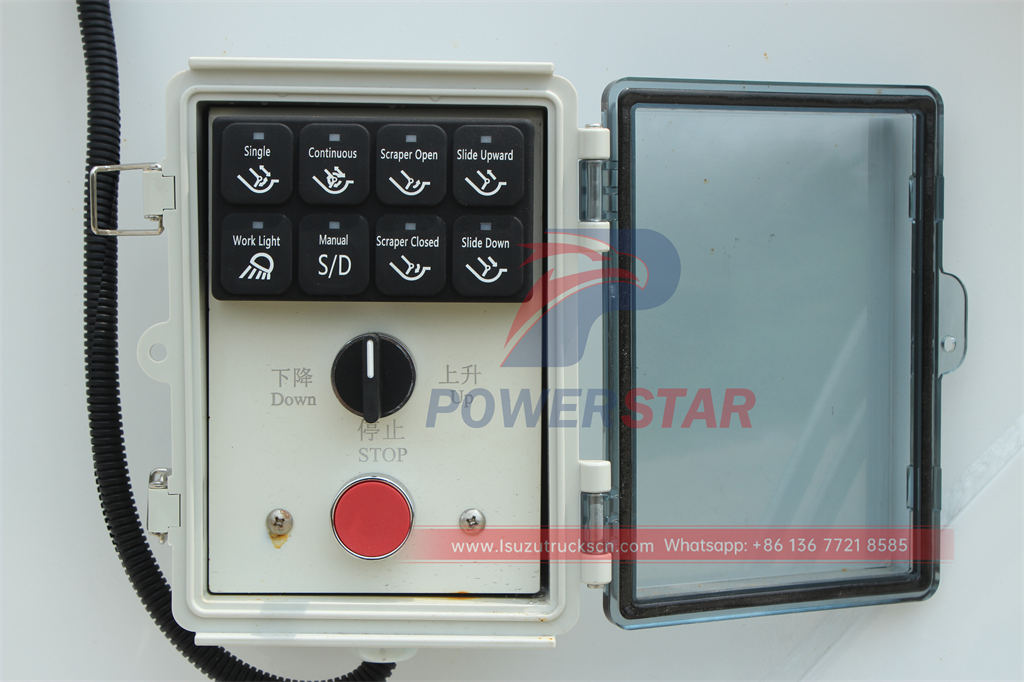

Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||

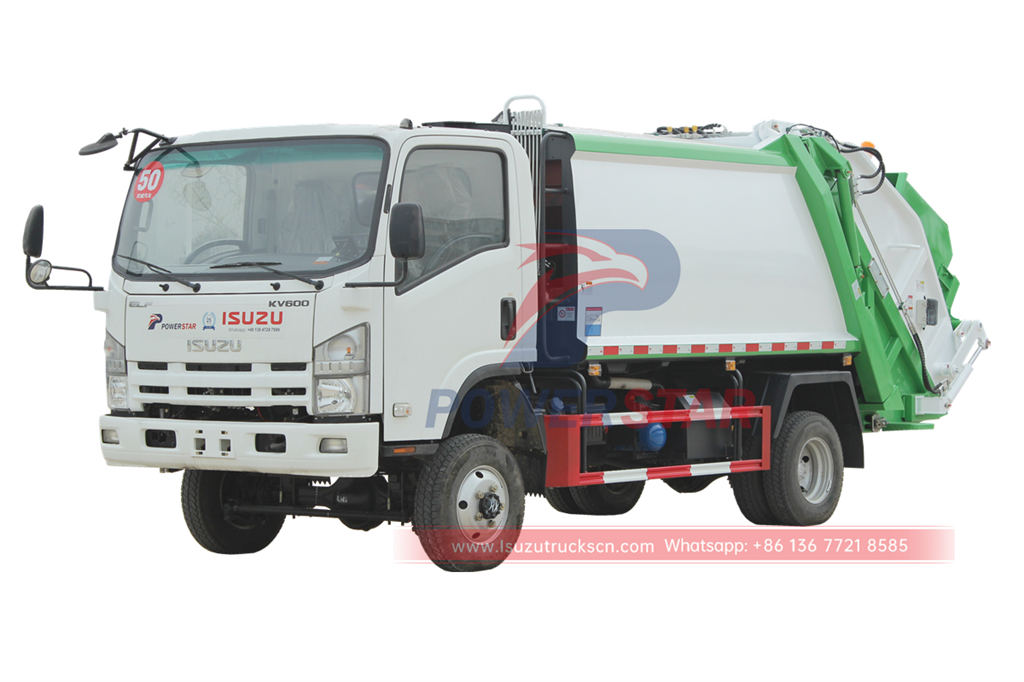

High quality ISUZU NKR off-road 130HP rear loader for sale
