Isuzu 8 yard mobile compactor vehicle

Isuzu 8 yard mobile compactor vehicle also called Isuzu garbage compactor truck, Isuzu rear loader compactor, Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu compactor garbage truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor，Isuzu waste collection vehicle. The Isuzu 8 yard mobile compactor vehicle is suitable for garbage collection and disposal in urban, rural and other areas. It can quickly and efficiently handle various types of household waste, contributing to the improvement of urban environment.

I.Description of Isuzu 8 Yard Mobile Compactor Vehicle

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU KV800 engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 30 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

II. Specification of Isuzu 8 Yard Mobile Compactor Vehicle

1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.

2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6

3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.

4. we can do the designs according to the your requirement .

5. we can offer you the high quality & reasionalble price

6. We accept 100% inspection, welcome to our factory at any time.

7. promptly delivery. any order is welcome.

III. Details of Isuzu 8 Yard Mobile Compactor Vehicle

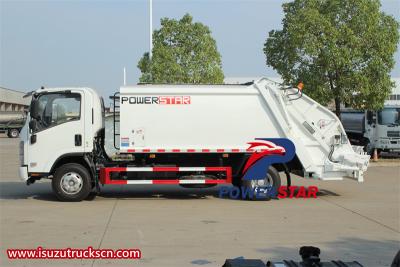

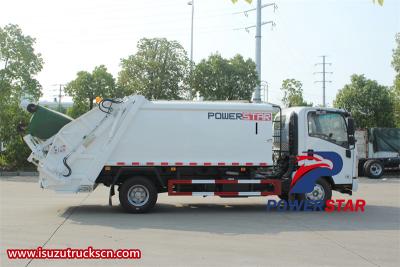

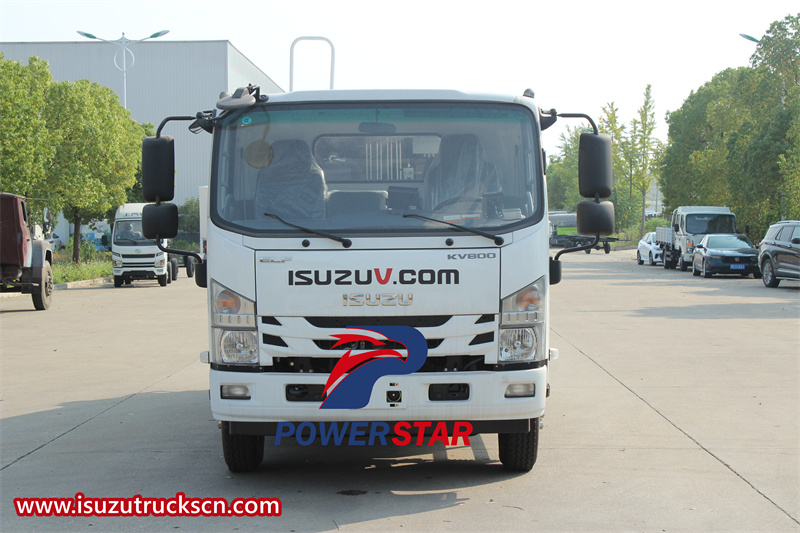

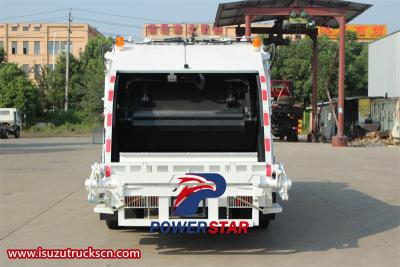

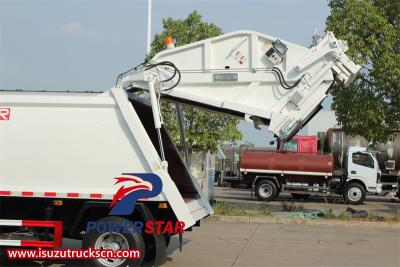

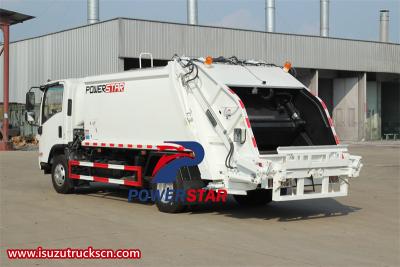

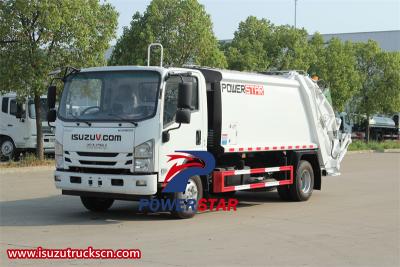

● Isuzu 8 yard mobile compactor vehicle photos for reference

Technical drawing for Isuzu KV800 mobile compactor vehicle

The Isuzu 8 yard mobile compactor vehicle is a special vehicle that combines Isuzu's advanced technology with garbage compression functions. Here are some key features and information about this model:

1. Power performance: The KV800 compactor garbage truck is equipped with a new generation Isuzu 4JZ1 engine with a displacement of 3.0L, a maximum output of 150 horsepower and a peak torque of 375 Nm. This engine adopts the liquid-cooled EGR+DOC+DPF+SCR+ASC after-treatment technology route, which helps improve fuel economy. In terms of gearbox, the Isuzu MYY6 gearbox is selected, with a speed ratio range of 0.759~5.979, which can better match the power output of the engine and improve the operating efficiency of the vehicle.

2. Appearance design: The Isuzu KV800 compressed garbage truck adopts the Isuzu family design language, with smooth and powerful body lines. The entire vehicle is painted in white metallic paint, which has an outstanding texture, and is matched with Isuzu's classic exterior design elements, showing a strong Japanese light truck style. On the front face, both side corner panels and grille are decorated with chrome plating, which enhances the overall aesthetics. At the same time, in order to provide better visibility and safety, the vehicle adopts a door combination rearview mirror design, and a door lower view mirror is installed on the passenger side door to facilitate the driver to view the blind spot.

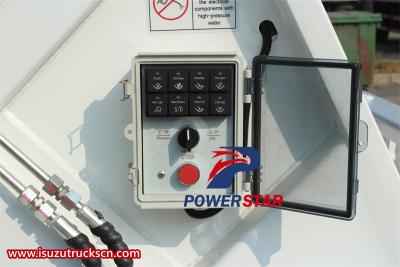

3. Garbage compression function: As a compactor garbage truck, KV800 has efficient garbage compression capabilities, which can greatly improve the efficiency of garbage collection and processing. The compression ratio is high. Through compression technology, the volume of garbage can be reduced, thereby saving transportation costs and reducing the impact on the environment. During the compression process, a precise control system ensures that the garbage is compressed evenly and continuously, avoiding uneven distribution and agglomeration in the garbage. This uniform compression method ensures the quality and stability of the garbage blocks and facilitates subsequent transportation and processing. The compression process of the compressed garbage truck is completely automated, and the driver only needs to operate the control switch without manual intervention.

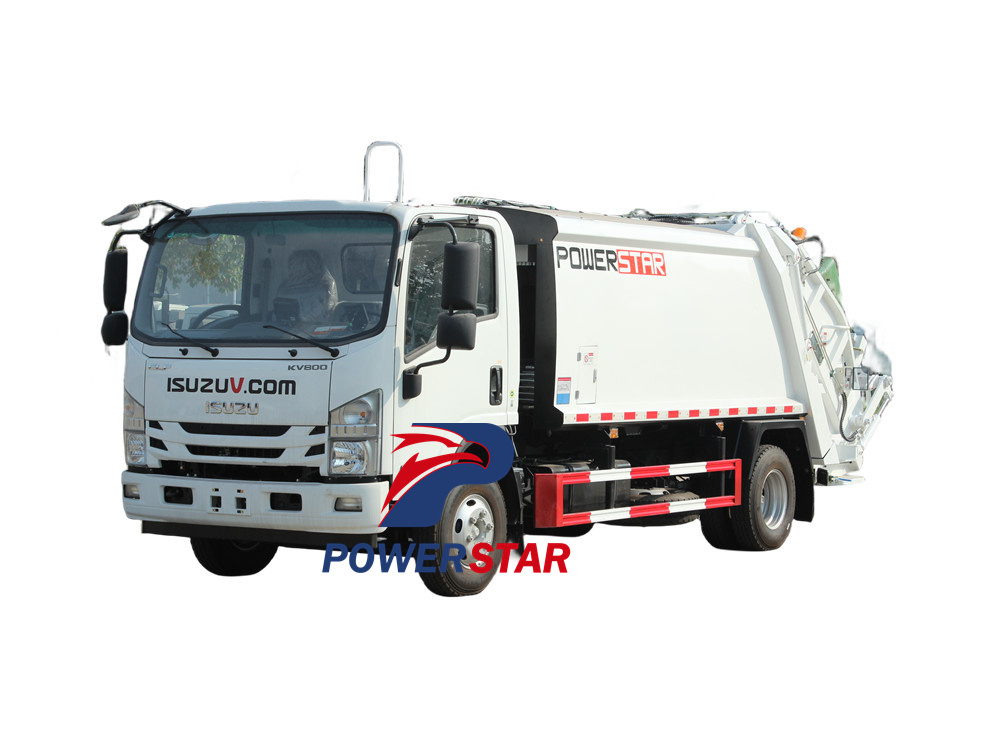

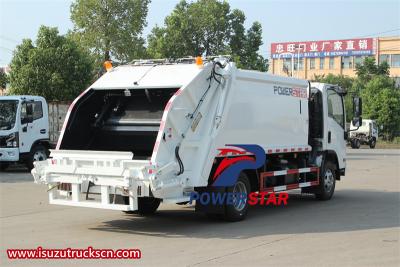

Isuzu 4x2 KV800 rear loader compactor

The technological features of Isuzu 8 yard mobile compactor vehicle：

1. Box structure: The garbage bin is welded with reinforced beams and high-strength steel plates to form a solid frame structure. The sides are made of whole panels without tailor-welding processes. The upper and lower reinforced beams on the side panels are integrally formed with the side panels. Special equipment is used to cool the bin. Bend forming, large R-angle forming improves rigidity, and there are no longitudinal welds on the side panels, effectively avoiding defects such as weld fatigue failure caused by long-term use of the traditional tailor welding process. The top surface is an arc surface, and the bottom plate of the cabinet is inseparable from the cabinet body. The side panels adopt advanced tailor welding technology to avoid the phenomenon of box leakage caused by long-term use of traditional welding processes. A large-capacity sewage collection tank is installed in the front and lower part of the box, which improves the vehicle's sewage storage capacity. The overall box appearance is beautiful and light in weight. , good stress resistance and not easy to deform.

2. Pushing shovel assembly: The pushing shovel is composed of a rectangular steel pipe frame and a welded bending plate. Adjustable sealing strips are installed on both sides and top of the pushing shovel to ensure the gap between the pushing shovel and the box. It is not only lightweight in structure, but also can make the garbage Evenly distributed, clean and thorough discharge.

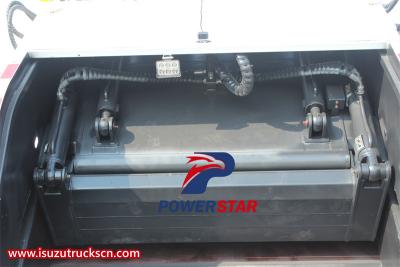

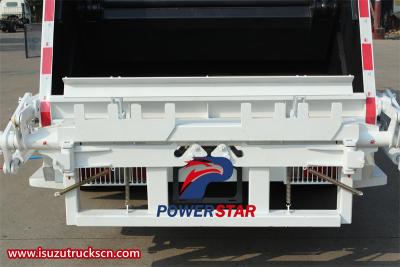

3. Filler assembly: Mainly composed of filler shell, slide plate, scraper and other components. The filler slide is cold-formed with high-strength wear-resistant materials, and the lower arc plate is made of high-strength wear-resistant materials. It is made into a shape, and a leakage hole is processed on the curved plate to facilitate the flow of sewage inside the filler into the lower sewage storage tank to avoid leakage of sewage and wine during transportation. There is a large-capacity sewage storage tank at the bottom of the filler. The sewage tank has two large caliber sewage discharge port; both sides of the slide plate are made of integral nylon sliders, which are self-lubricating, highly stable, and have better wear resistance: the stressed parts of the scraper are locally strengthened, with a solid structure and light weight.

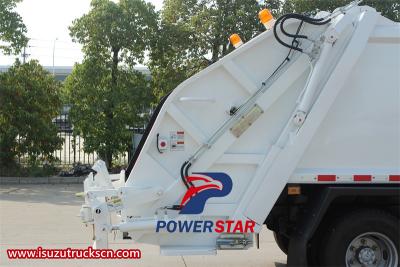

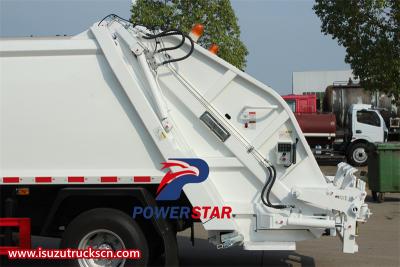

4. The flipping mechanism is made of bending materials and profile welding, with a solid structure and beautiful appearance.

5. The oil cylinder support, trash can lifting component, bucket guide plate, connecting rod support and other stress-bearing parts are integrally cast from steel castings, with a solid structure and not easy to break.

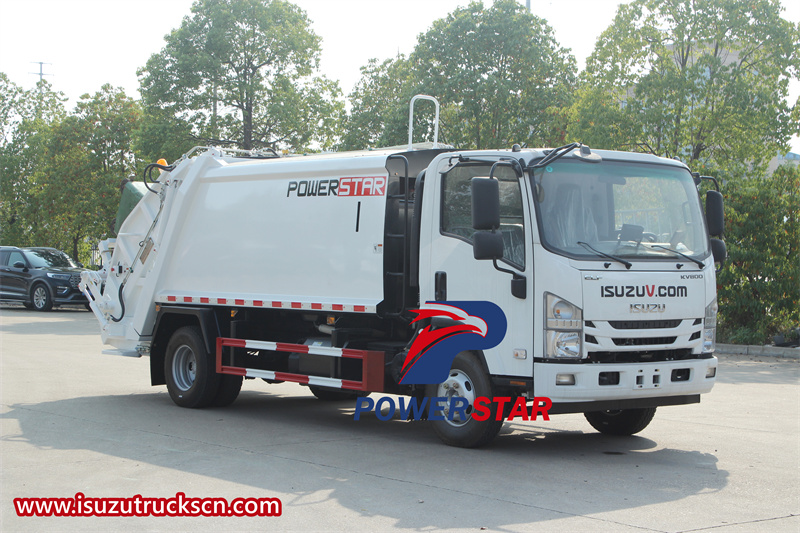

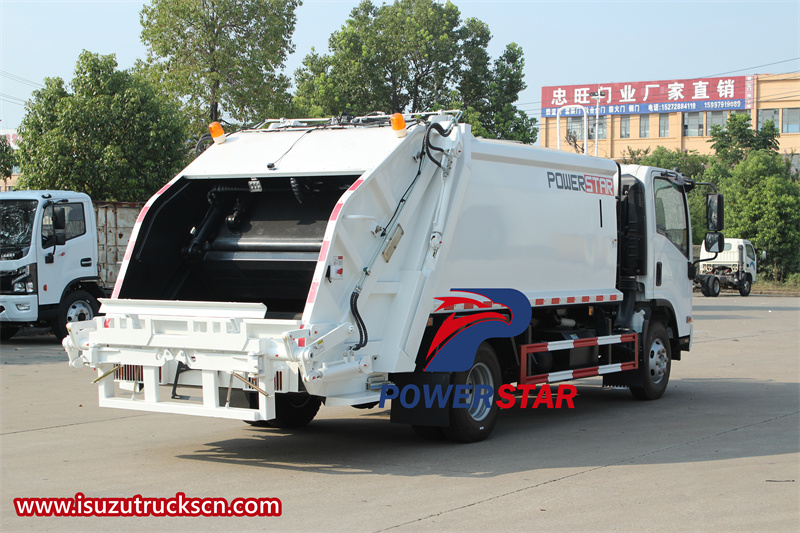

Isuzu 8 yard mobile compactor vehicle for sale

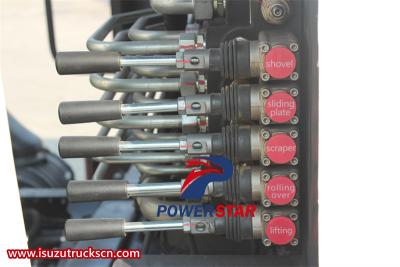

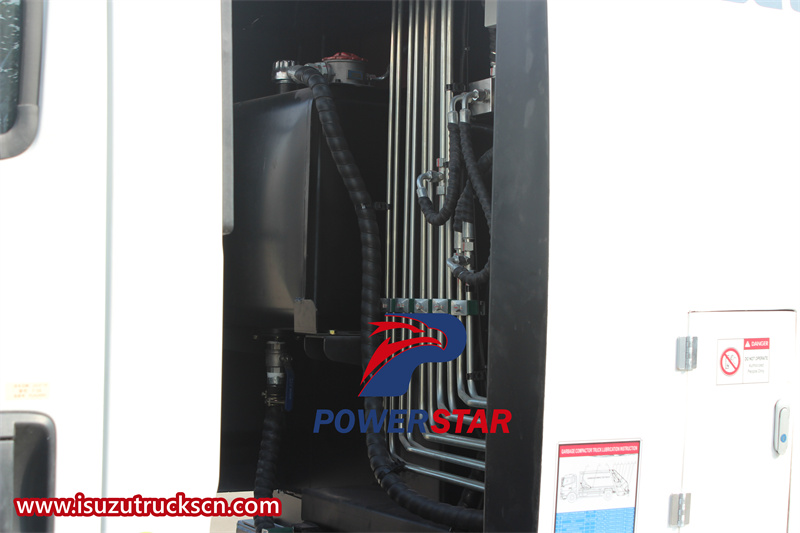

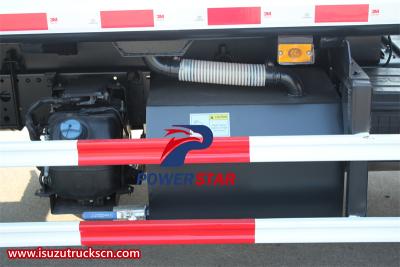

●  Isuzu 8 yard mobile compactor vehicle details

● Isuzu 8 yard mobile compactor vehicle departure in batches
