Isuzu electricity 6 cbm rear loader for Dominica

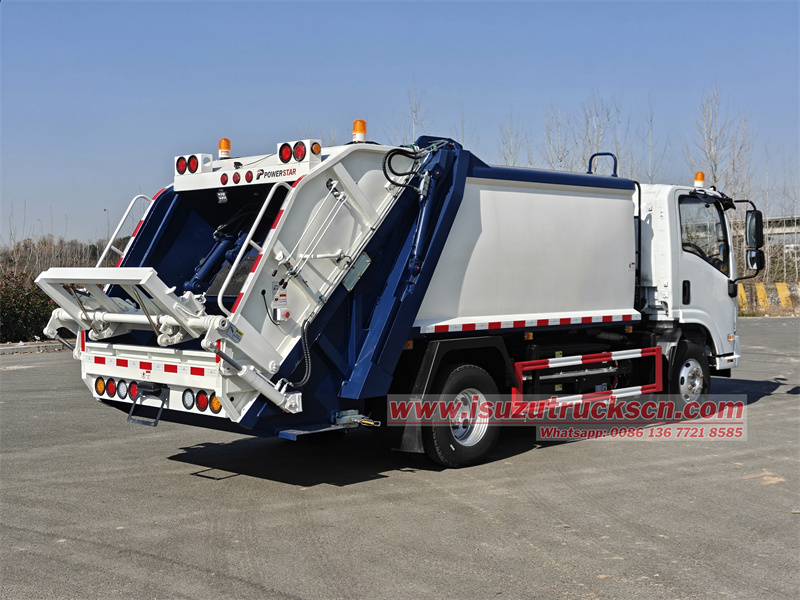

The Isuzu EVM600 electric garbage compactor truck,with 3360mm wheelbase， a CATL 106.95kWh battery, a Suzhou Green Control TZ370XS-LKM1201 drive motor, and a 6-cubic-meter carbon steel garbage bin with anti-corrosion and rust-proof treatment. It also has a rear-mounted bin-tipping mechanism that can suspend a 240L standard garbage bin. The vehicle is controlled by a CAN-BUS electronic control system and a hydraulic system, and can be operated via the cab, the left-side electrical control box on the tailgate, the driver's side manual hydraulic control valve, and the right-side manual control lever on the tailgate. The compression ratio is ≥3:1.
MarketPrice:
$41700Manufacturer:
Powerstar TrucksWork capacity:
3 tonsDimension:
6850 x 2100 x 2350 mmCabin type:
Isuzu EVM600Wheelbase:
3365 mmEngine power:
106.95 kwhEngine type:
CATL Lithium iron phosphateGear box:
TZ370XS-LKM1201 Driving MotorRemarks:
Fast charge(1.5h), 240km endurance mileageIn today's sanitation sector, pure electric garbage compactor trucks, characterized by zero emissions and low noise, are ideal equipment for building green and smart cities. The Isuzu electricity 6 cbm rear loader for Dominica was developed to meet this market demand. It features a high-capacity CATL 106.95kWh battery and a high-efficiency drive motor, is environmentally friendly, and is controlled by an intelligent CAN-BUS system. With a compression ratio of up to 3:1, it boasts a large single-load capacity and multiple flexible and reliable operating positions, significantly improving urban waste collection efficiency and enhancing the city's cleanliness.
▶ Features:
★ Isuzu EVM600 electric chassis,240km Endurance mileage
★ TZ370XS-LKM1201 Drive Motor，Rated 100/ Peak 185kw Power
★ CATL 106.95kwh 106.95kwh Battery
★ High compression ratio, large loading capacity
★ CAN bus control, high integration,multiple operation points
▶ Product Parameters:
|

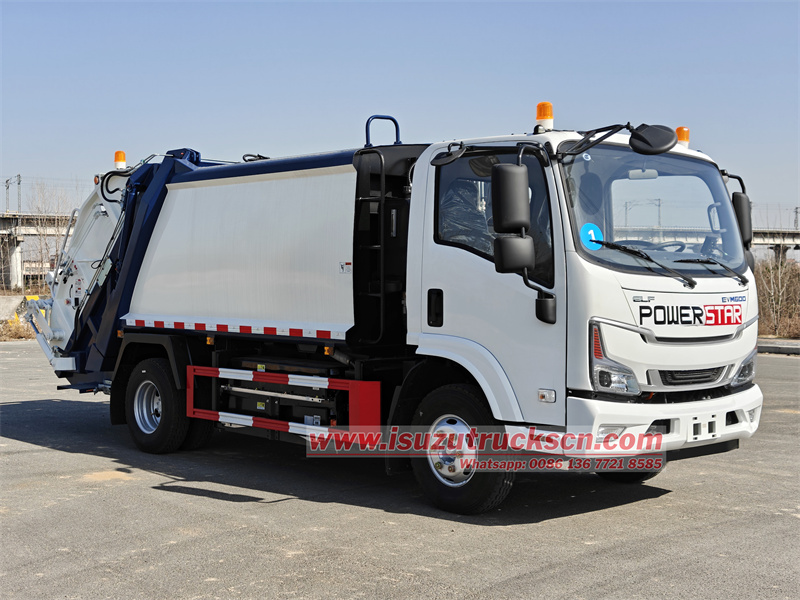

Isuzu EVM600 6cbm electric rear loader truck |
||
|
Parameters |
Overall Dimension(L x W x H) |
7030x2095x2560mm |
|
Curb Weight |
4850kg |
|
|
GVW |
8995kg |
|
|
Wheelbase |
3365mm |
|
|
Drive Type |
Motor Direct Driving |
|
|
Motor |
Motor Model |
TZ370XS-LKM1201 |
|
Motor Type |
Permanent magnet synchronous motor |
|
|
Rated /Peak Power |
100/185kw |
|
|
Auxiliary motor controller |
Rated input voltage |
600Vdc |
|
DC/AC Output voltage |
380Vac |
|
|
DC/AC rated/peak power |
5.5/7.5kW |
|
|
DC/AC rated/peak Current |
13/19.5A |
|
|
DC/DC rated power/ current |
3Kw/110A |
|
|
Battery |
Battery Brand |
CATL |
|
Battery Type |
Lithium iron phosphate |
|
|
Battery Capacity |
106.95kwh |
|
|
Rated capacity of power battery system |
173Ah |
|
|
Rated voltage of power battery system |
618.2V |
|
|
Nominal voltage |
154.56V |
|
|
Nominal energy |
26.73 kwh |
|
|
Performance |
Maximum Speed |
100km/h |
|
Endurance mileage |
240km |
|
|
Charge mode |
Fast charge(1.5h) |
|
|
Chassis |
Seat |
3 |
|
Axle Loads |
3300/5695kg |
|
|
Tire Model: |
7.50R16LT 16PR |
|
|
Upper body |
Garbage container |
6CBM |
|
Material |
Carbon steel, Side 4mm, Bottom 5mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
20~25 s |
|
|
Garbage Compact Ratio |
≥3:1 |
|
|
Control system |
CAN-BUS electric control system and manual operation device |
|
|
|
Working Pressure |
16 MPa |
▶ Chassis System:

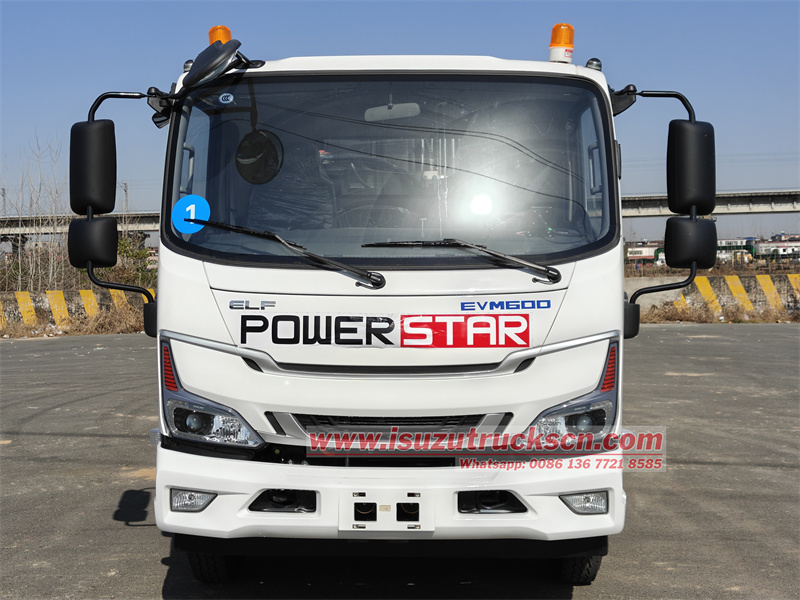

• Brand/Model: Isuzu EVM600
• Drive Type: Pure Electric
• Wheelbase: 3360mm

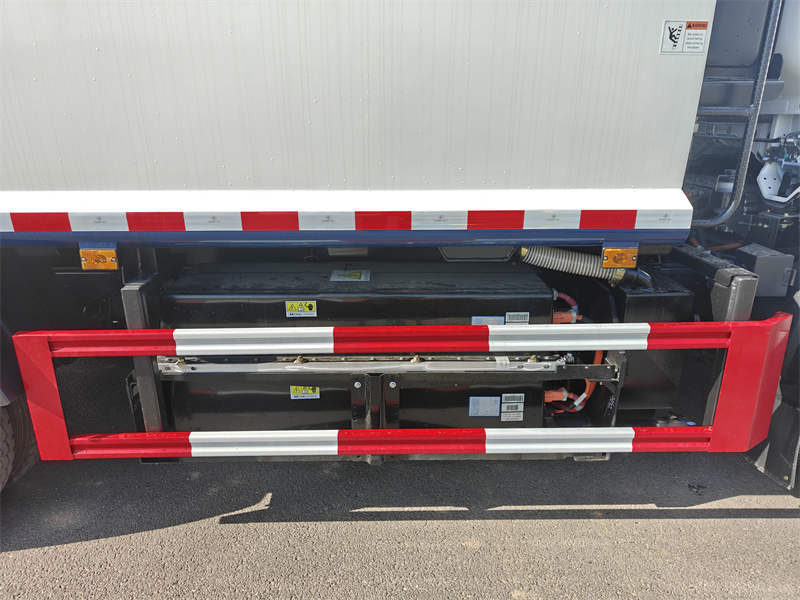

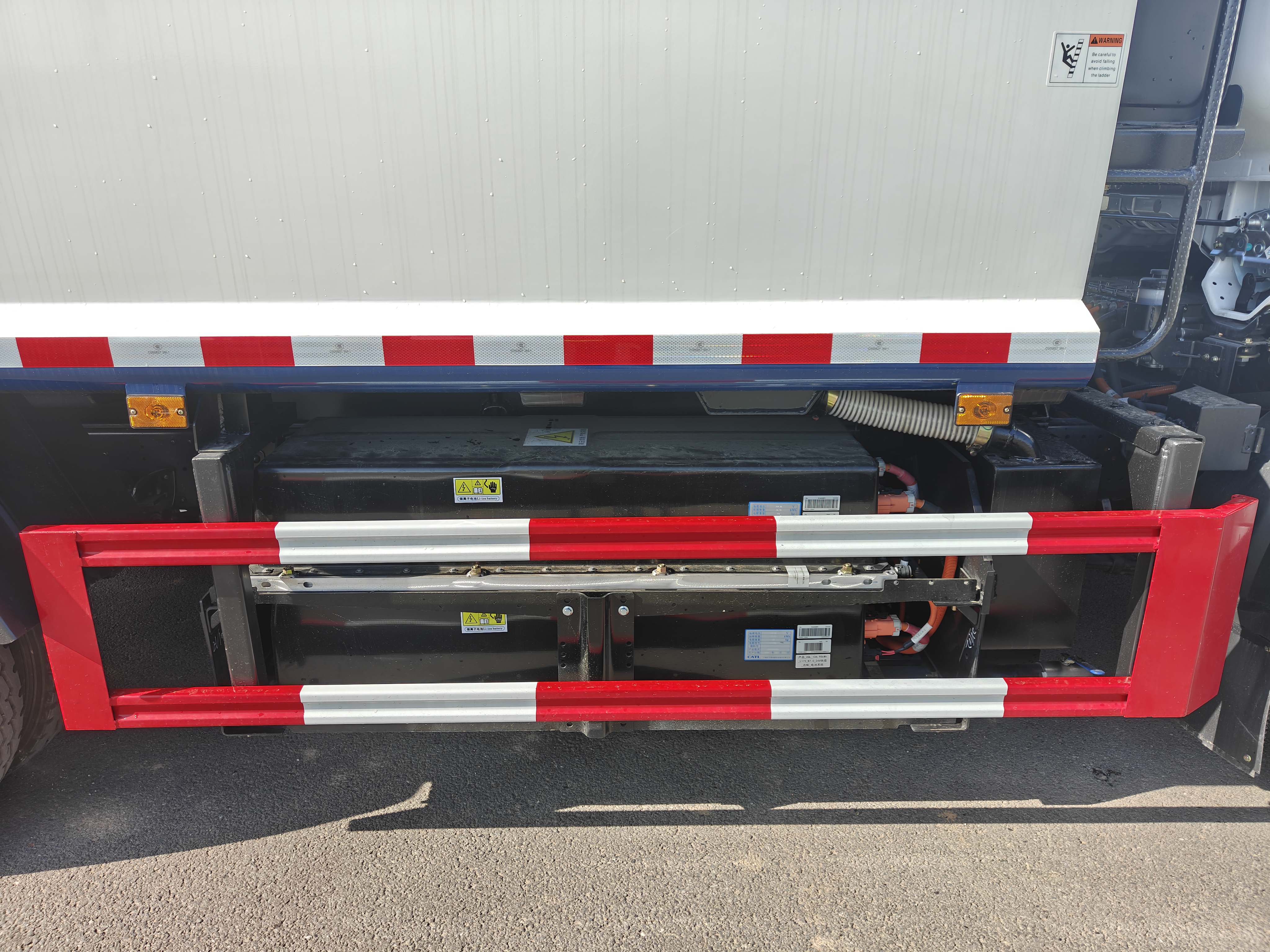

• Battery System: Equipped with high-quality CATL lithium iron phosphate batteries, with a total capacity of 106.95 kWh. The battery system features high energy density, long cycle life, and high reliability, meeting the endurance requirements of all-day high-intensity operation.
• Drive Motor: Utilizes Suzhou Green Control TZ370XS-LKM1201 permanent magnet synchronous drive motor, offering strong power, efficient and stable operation, good energy recovery, a range of 240km, support for 1.5h fast charging, and a 600Vdc auxiliary motor controller.
▶ Upper Structure Design:
• Container Volume: 6 cubic meters (large effective loading capacity after compression)
• Container Material: High-strength carbon steel, with anti-corrosion and rust-proof treatment
• Compactor Mechanism: Utilizes efficient push-plate compression technology with a compression ratio ≥ 3:1, significantly increasing the single-load garbage capacity, reducing transfer frequency, and improving operational efficiency.

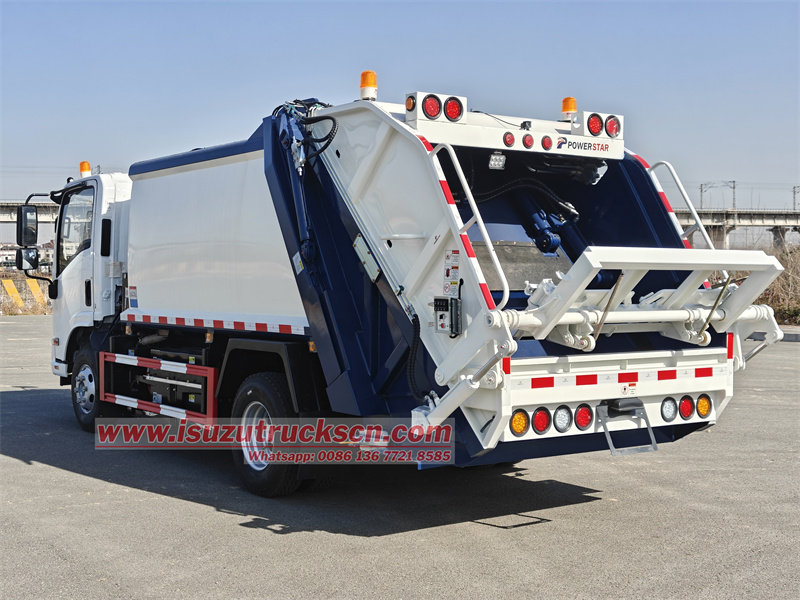

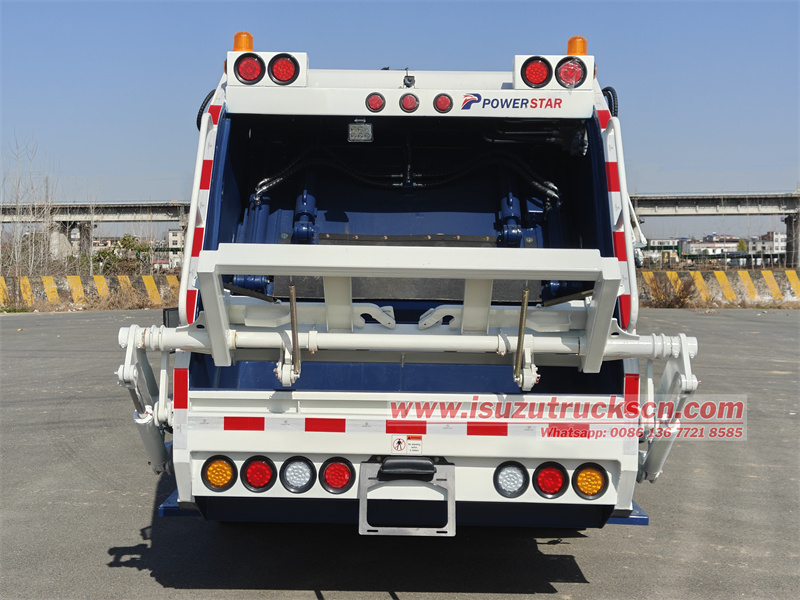

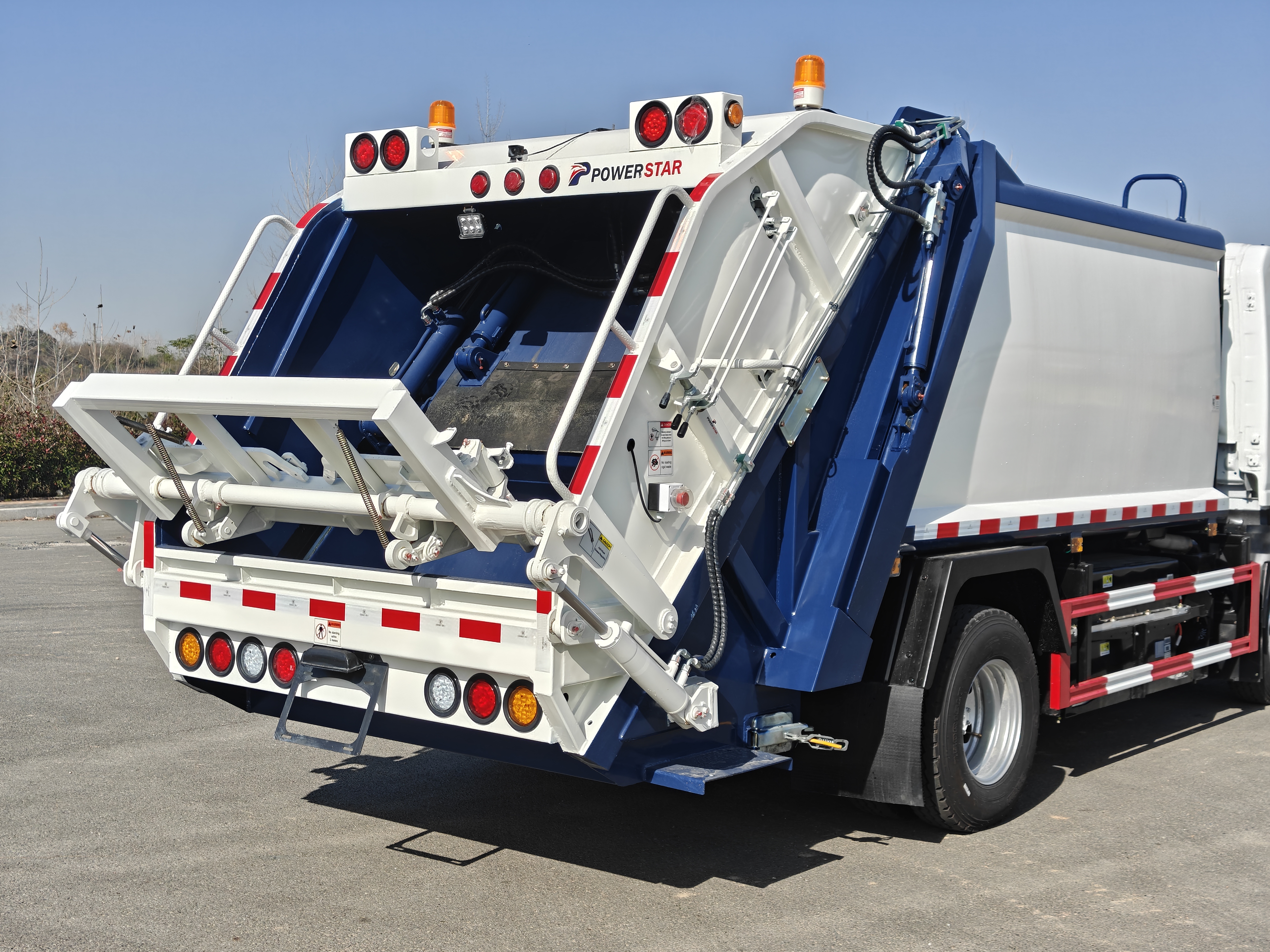

• Bin Hanging Mechanism: Equipped with a standard bin tilting mechanism at the rear, it can adapt to and automatically tilt 240L standard plastic garbage bins, achieving automated and sealed garbage collection, saving labor and ensuring hygiene.
▶ Intelligent control and diverse operation:

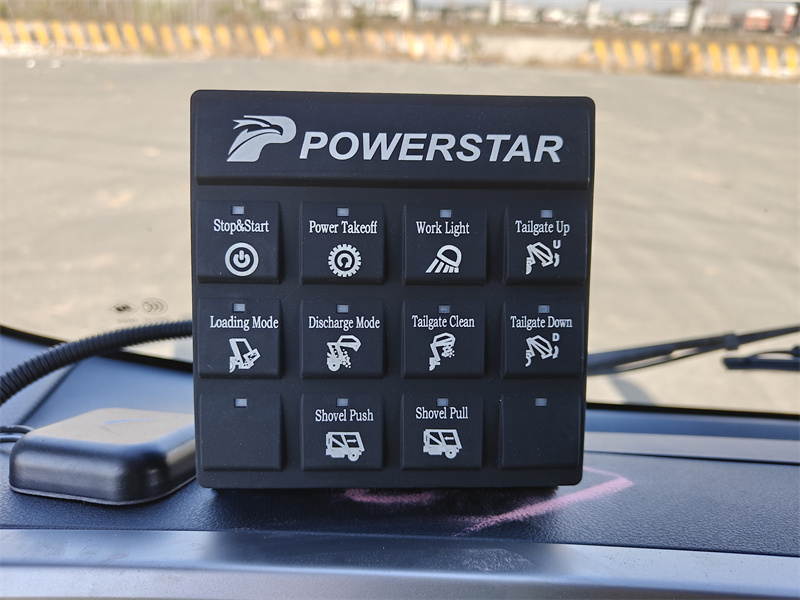

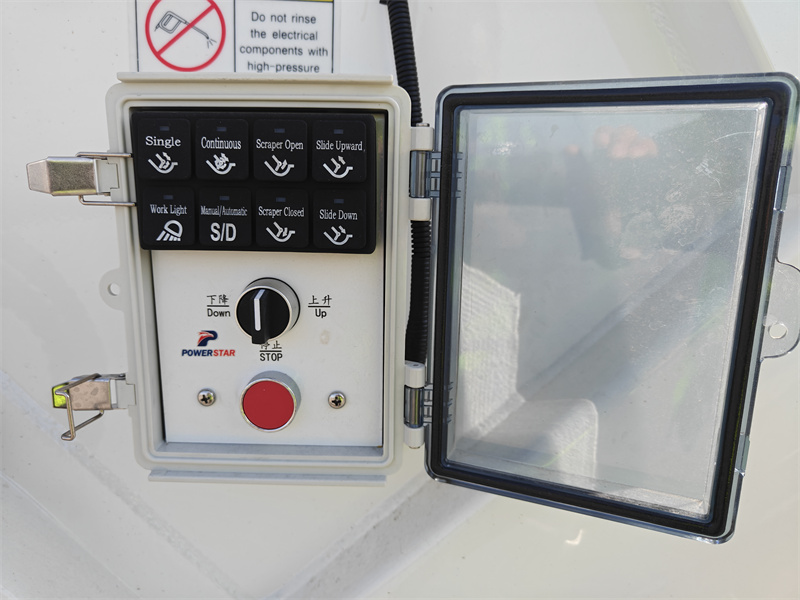

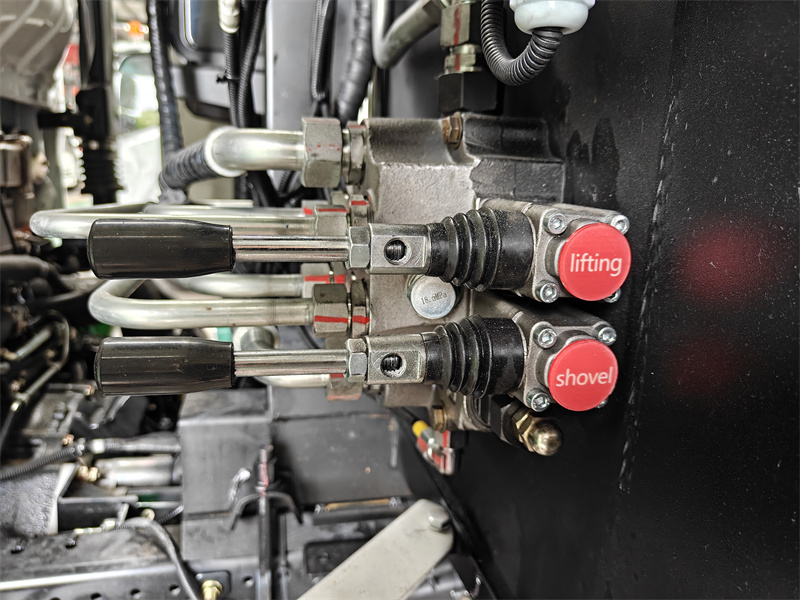

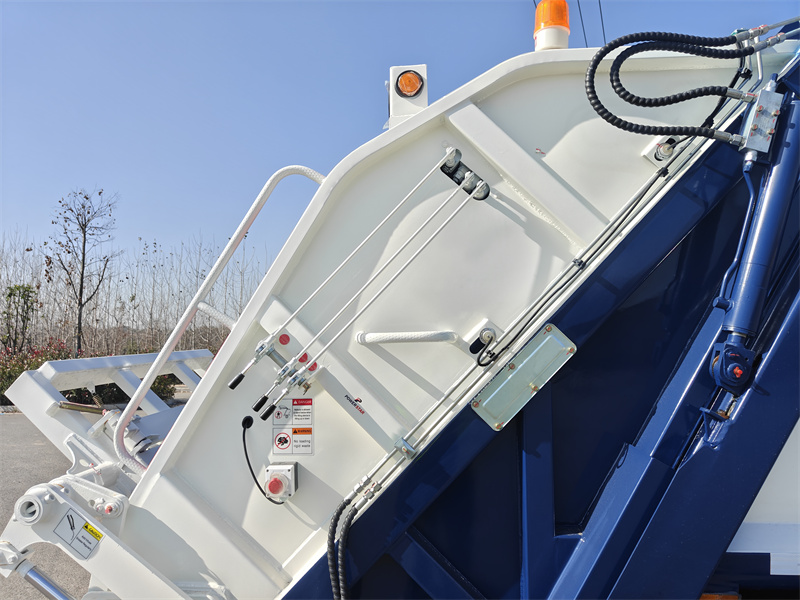

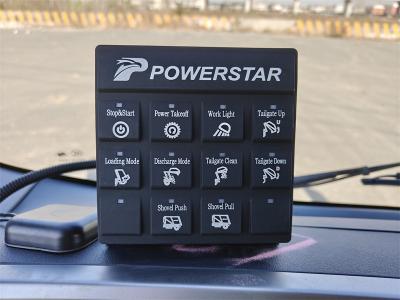

It adopts an advanced CAN-BUS digital electronic control system, which controls the collection, compression, and unloading of garbage through multiple points, including the electronic control box in the cab, the manual hydraulic operating valve on the side of the cab, the electronic control box on the left side of the tailgate, and the manual operating lever on the right side of the tailgate.

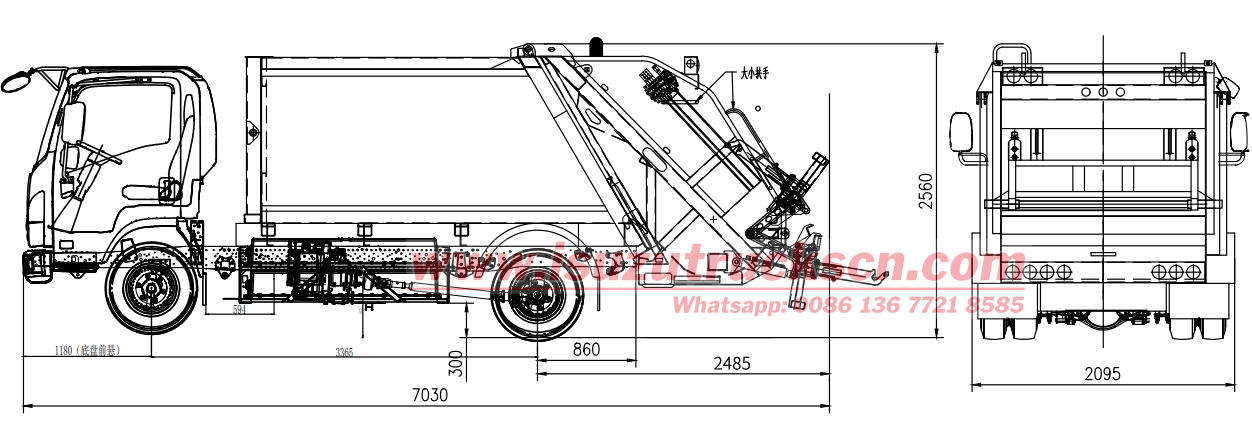

Technical drawing of Isuzu EVM600 6cbm waster compactor truck
▶ Test:

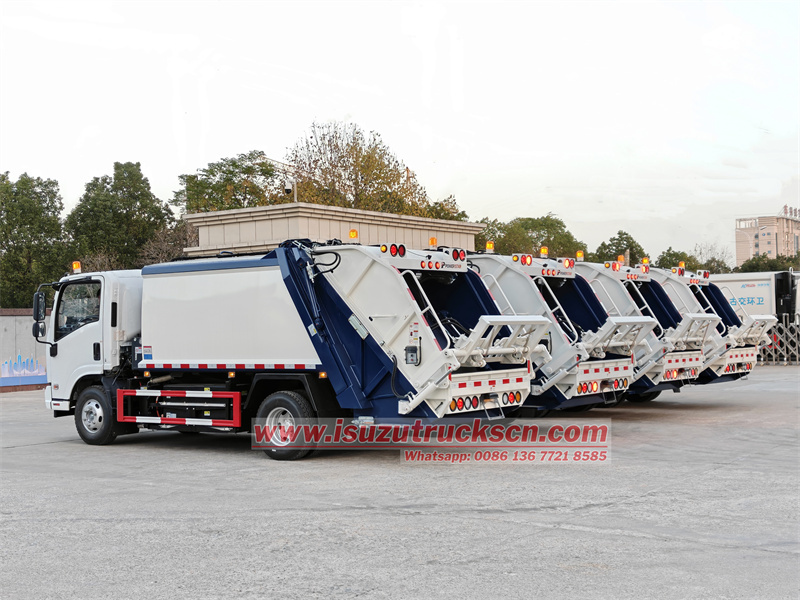

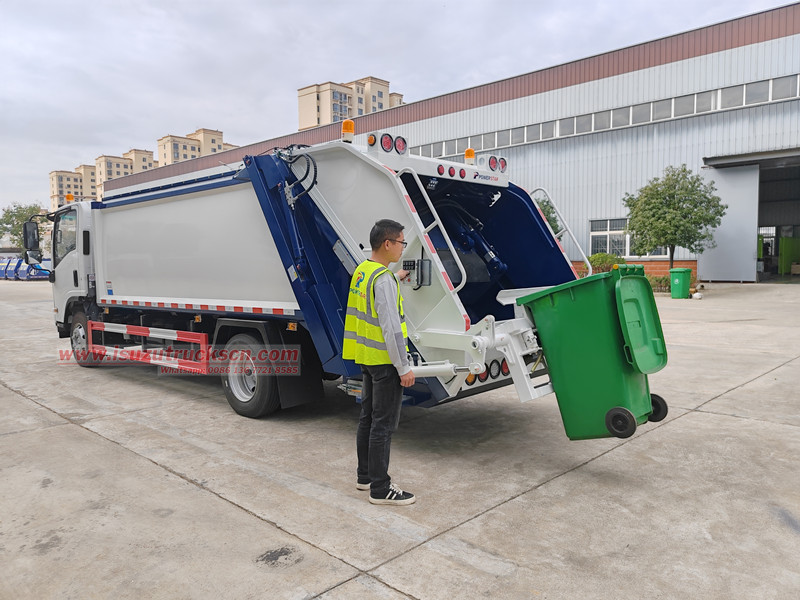

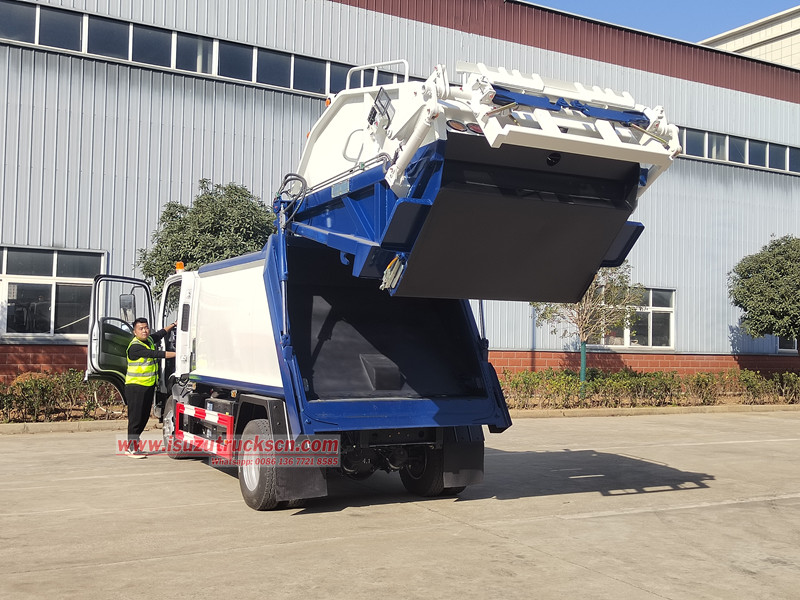

Before shipping this batch of Isuzu electric rear lift garbage trucks, we conducted performance tests, including battery endurance tests, compression tests, loading and unloading operations (various operating buttons, levers, etc. of each operating device), and exterior paint checks, to ensure that the vehicles were delivered to customers in perfect condition.
▶ Application:
In the Dominican market, the Isuzu EVM600 6-cubic-meter electric compactor garbage truck, with its powerful 106.95kWh battery and efficient motor, easily handles the frequent collection operations in tropical cities like Santo Domingo. The 6-cubic-meter carbon steel body offers moderate garbage carrying capacity, and the vehicle employs bidirectional compression technology with a compression ratio ≥ 3:1, further increasing the amount of garbage loaded per load. The rear-mounted bin-lifting mechanism is compatible with local 240L standard garbage bins, enabling automated garbage collection. The CAN-BUS bus electronic control system, combined with multiple electronic and manual controls, ensures smooth operation and high efficiency. Pure electric drive achieves zero emissions and low noise, aligning with the vision of sustainable urban development and improving the quality of sanitation services.
