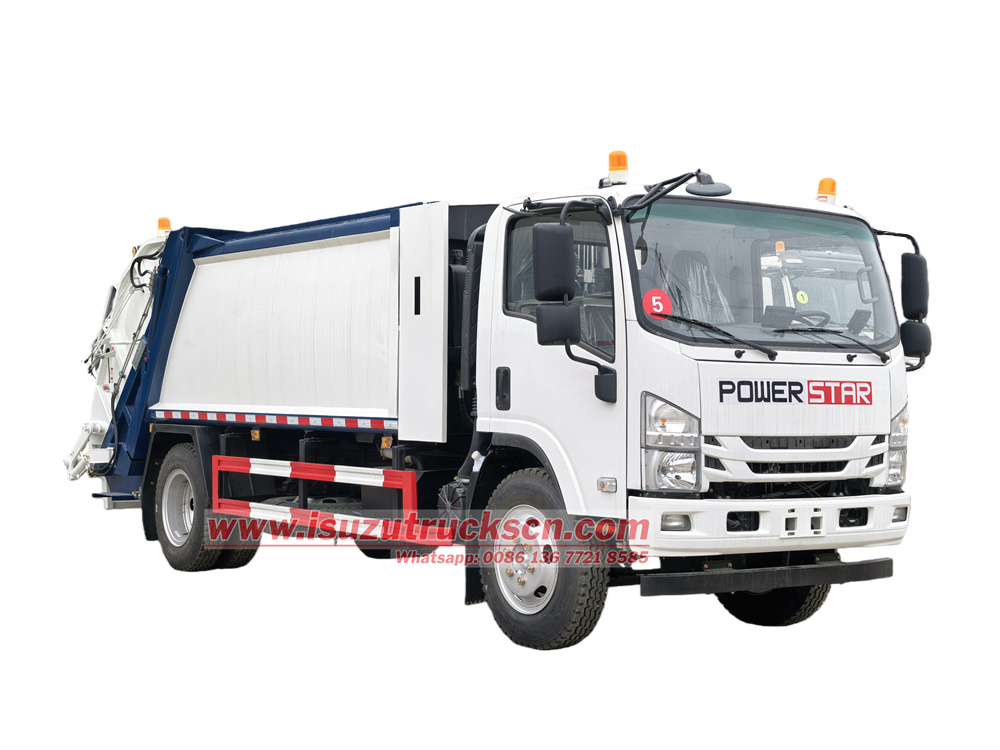

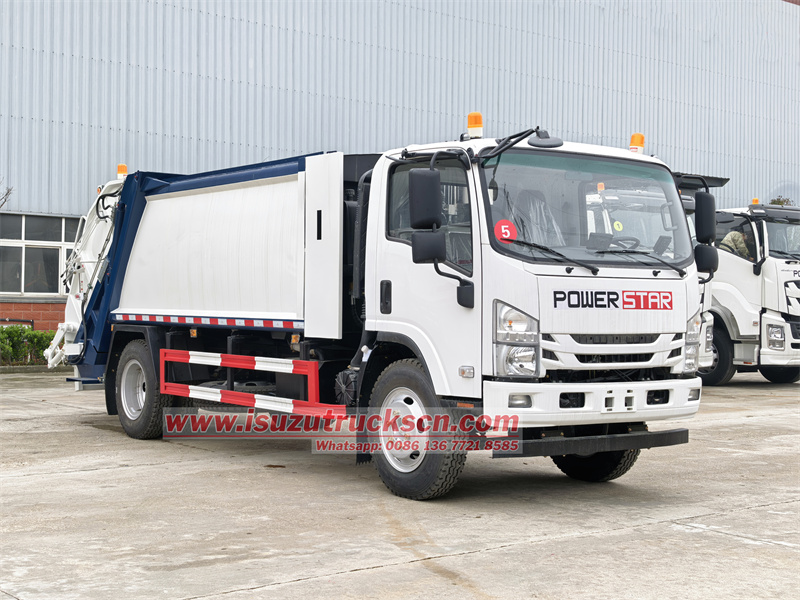

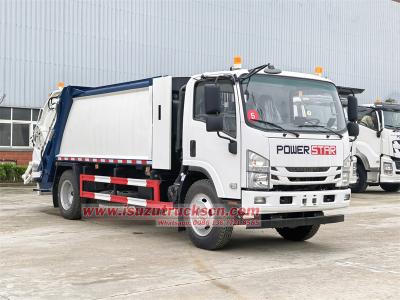

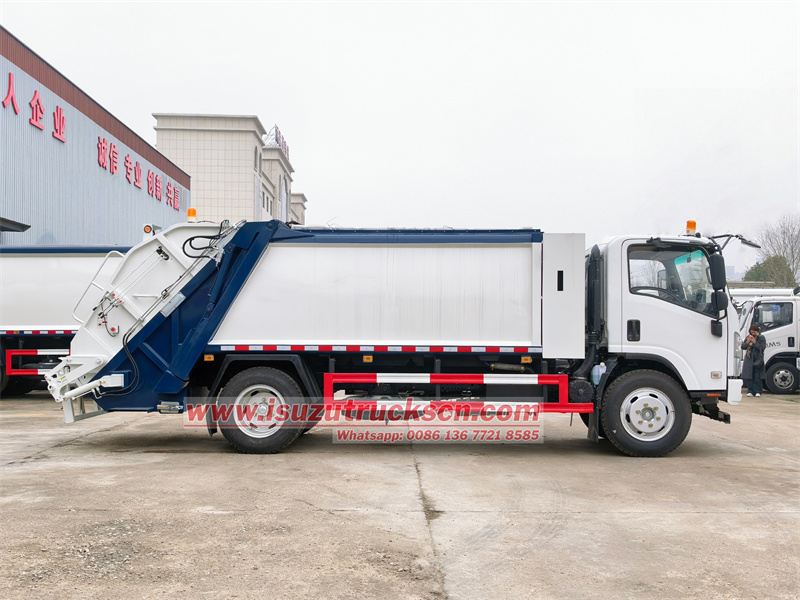

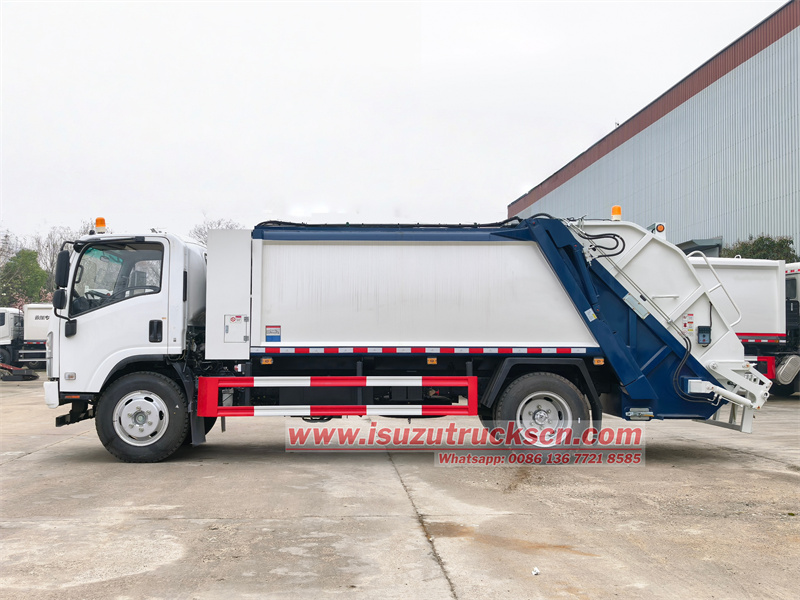

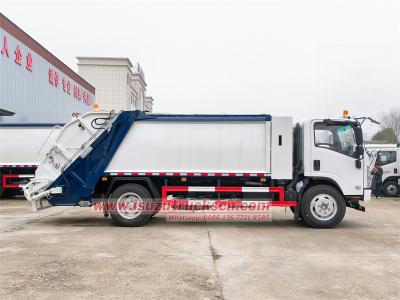

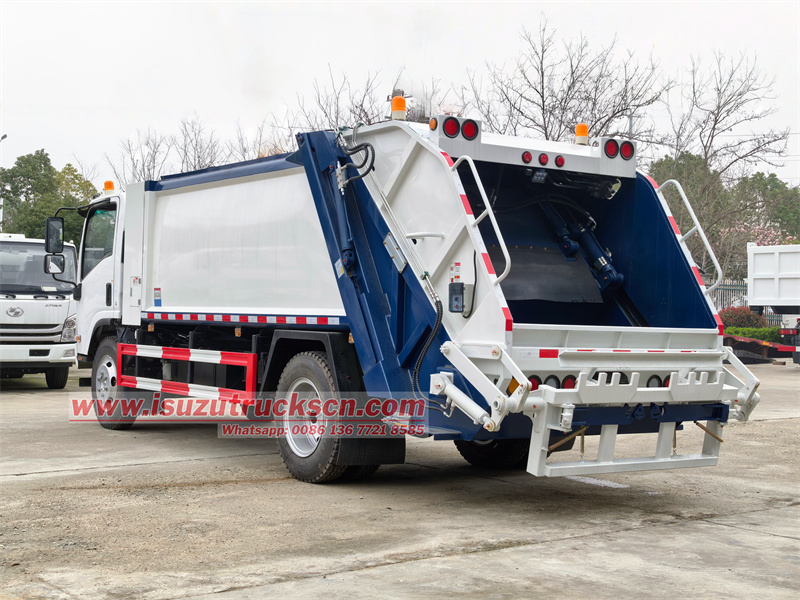

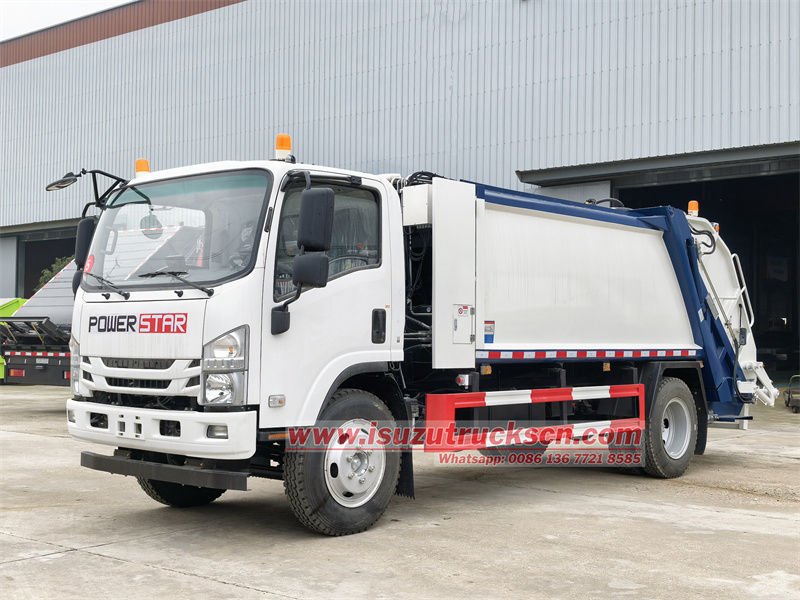

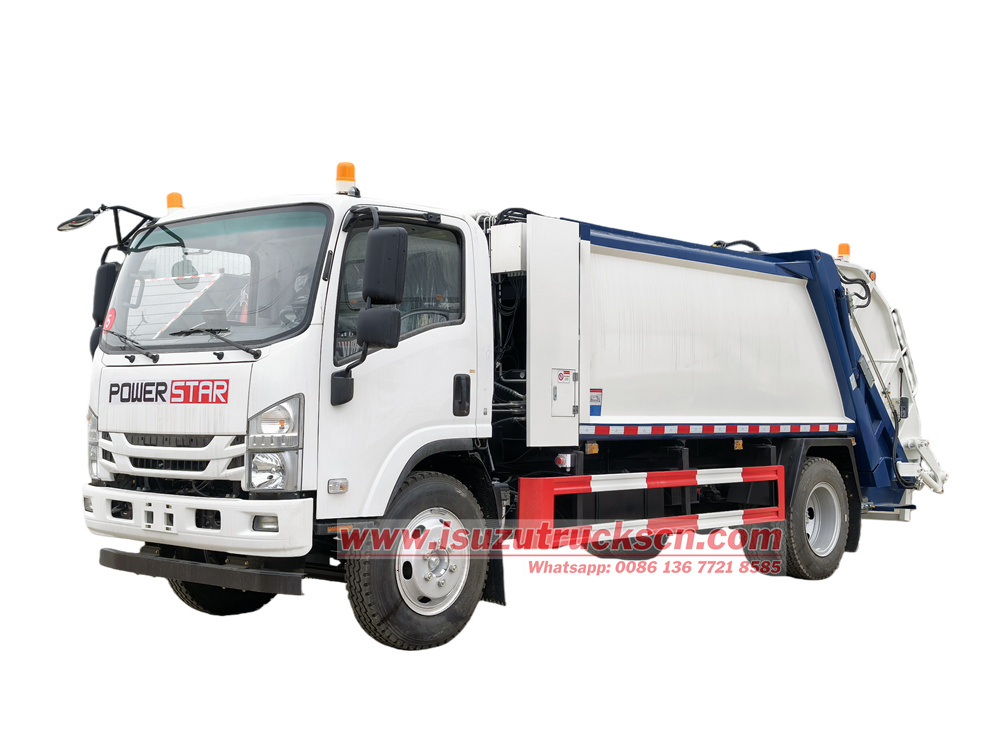

Qingling Isuzu QL1110ANLAY rear loading garbage truck
The Isuzu 700P 8.5 cbm garbage compactor truck adopts isuzu 700P chassis，4175mm wheelbase,Isuzu 4HK1-TCG61 engine, MLD 6-speed gearbox, 8.5 cbm garbage container made of 4mm T420 high-strength steel plate. It features a rear-mounted flip mechanism and a CAN bus electronic control system (with one-button operation and manual operation modes, and electronic throttle). The control box can be operated from inside the cab and on the left side of the tailgate, while the manual operation valves are located on the driver's side and the right side of the tailgate. It also includes front and rear sewage tanks.
Manufacturer:
Powerstar TrucksWork capacity:
8.5cbmDimension:

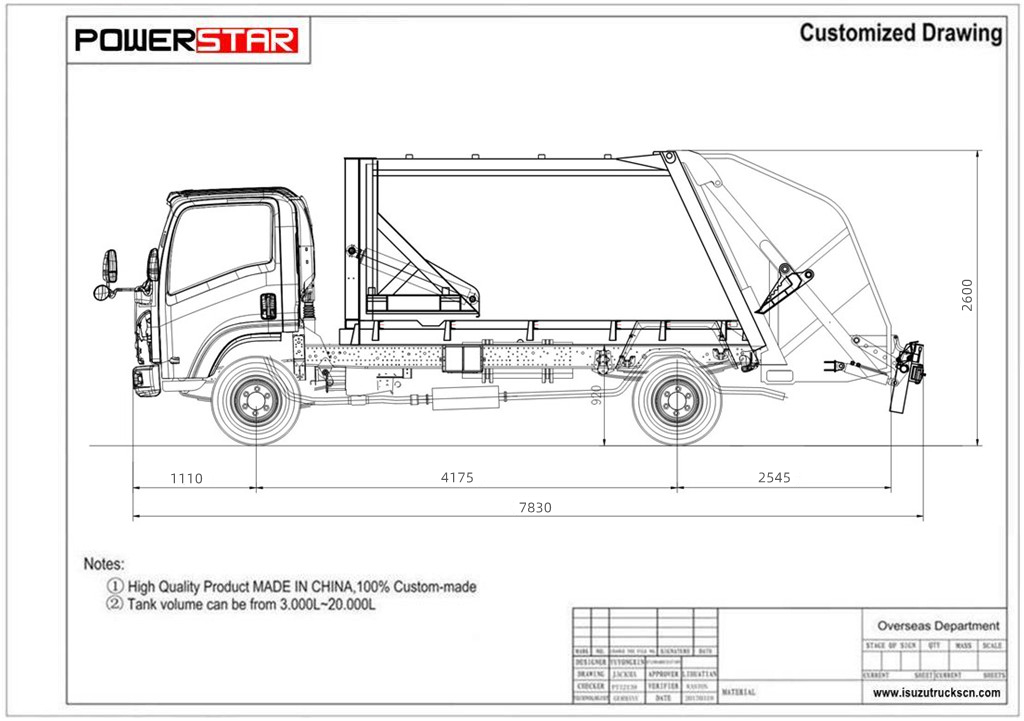

7830x 2260 x 2600 mmCabin type:
Isuzu 700P cab,3 passengersWheelbase:
4175mmEngine power:
190HP/139kWEngine type:
ISUZU 4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
Garbage container capacity can be customizedThe Qingling Isuzu QL1110ANLAY rear loading garbage truck is equipped with an Isuzu 4HK1 engine and a MLD 6-speed transmission, offering powerful performance and fuel efficiency. Its 8.5 cubic meter high-strength steel body, combined with a highly efficient compression system, can easily handle various types of household waste. The rear tipping mechanism is compatible with 240L and 1100L garbage bins, adapting to multiple operating scenarios. The CAN bus electronic control system supports both electric and manual operation modes. With its high compression ratio and large loading capacity, it is primarily used for daily garbage collection in urban streets, residential areas, and commercial districts.
▶ Performance Characteristics:
1. High Compression Ratio: Compression ratio can reach 1:3.4 or higher, allowing for large loading capacity.
2. Sealing: Utilizes a dual-tank design to prevent secondary contamination during transportation.
3. Safety: Multiple safety interlock mechanisms prevent accidental triggering.
4. Reliability and Durability: Core components use leading domestic brands (Yinhua hydraulic cylinders, Xinyun valves, Wanye pumps), resulting in a low failure rate.
▶ Product Parameters:
|
Isuzu NPR 8.5CBM rear loader garbage truck |
||
|
Cabin |
Driving type 4x2, Left Hand Drive. |
|
|

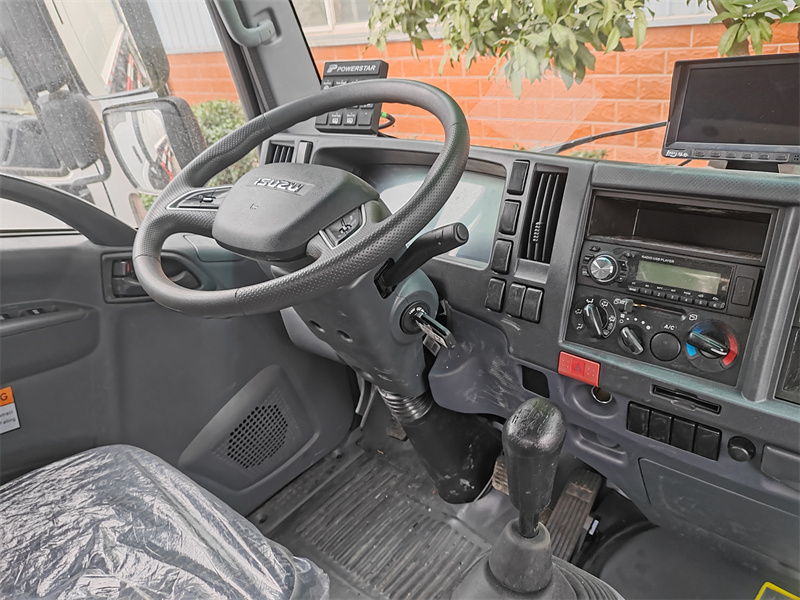

Isuzu 700P single row,3 seats,with A/C,USB,direction assistance. |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) |
7830 x 2260 x 2600 mm |
|
Wheel base |
4175mm |
|
|
Weight in KGS |
GVW |
10550kg |
|
Curb weight |
7110kg |
|
|
Front/Rear axles loading |
4/7tons |
|
|
Max. driving speed |
110km/h |
|
|
Engine |
Model |
Isuzu 4HK1-TCG61 |
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling,diesel |
|
|
Horse Power |
190HP/139kW |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
507N.m |
|
|
Max torque speed |
1600-2600rpm |
|
|
Displacement |
5193ml |
|
|
Emission standard |
Euro VI |
|
|
Gearbox |
Isuzu MLD-6 speed, 6 forwards &1 reverse,manual |
|
|
Clutch |
Diaphragm spring clutch |
|
|
Steering Gear |
Power steering |
|
|
Tire |
8.25R20, 7 pieces with one spare, |
|
|
Compression garbage box body system |
||
|
Body Volume |
8.5CBM |
|
|
Material |
T420 high strength wear resistance steel |
|
|
Thickness |
Side 4mm, Bottom 4mm |
|
|
Bin lifter |
Can lift 2 units 240L bin or a 1100L bin |
|
|
Cycle Time of Filling |
25-35s |
|
|
Lifting Time of Filler |
8-10s |
|
|
Time of Discharging |
≤40s |
|
|
Working Pressure |
18 MPa |
|
|
Hydraulic system |
||
|
Shovel cylinder |
1 |
|
|
Scraper cylinder |
2 |
|
|
Slide plate cylinder |
2 |
|
|
Rear flip cylinder |
2 |
|
|
Lifting cylinder |
2 |
|
|
Hydraulic tank |
150L |
|
|
Hydraulic oil pump |
Hefei Wanye Oil Pump |
|
|
Multi-way valve |
Yangzhou xinyun multi-way valve |
|
|
Electric control system |
||
|
Operating system |
CAN-BUS electric control system |
|
|
Electronic control operation button |
1 set in the cabin, 1 set at the tailgate |
|
|
Manually control system |
||
|
Drive side manually control system, Manual lever on the right side of the tailgate |
||
|

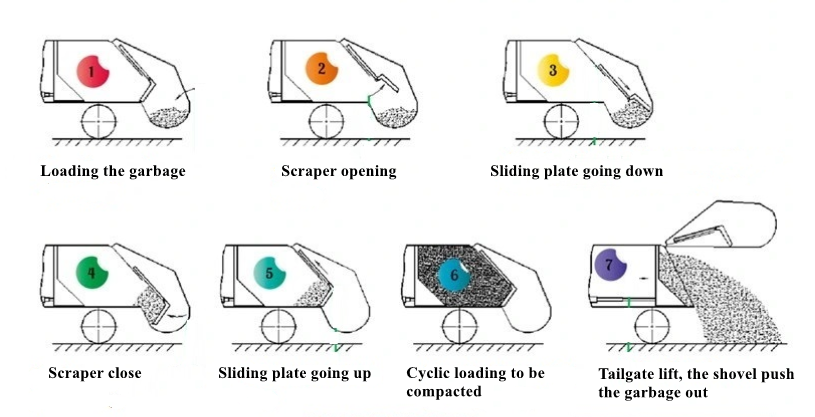

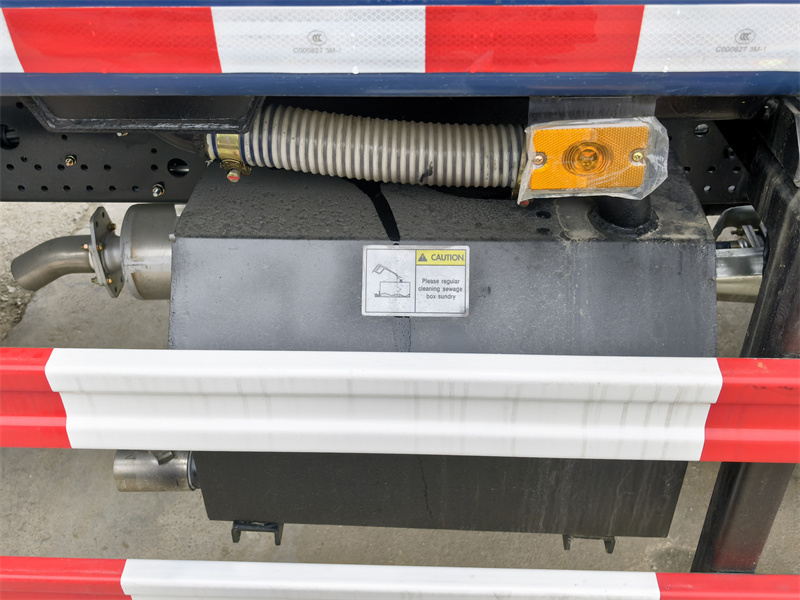

Composed by hermetic garbage container, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. |
||
▶ Chassis System:
1. Chassis Model: Isuzu 700P Series Dedicated Chassis
2. Wheelbase: 4175mm
3. Engine: Isuzu 4HK1-TCG61 High-Pressure Common Rail Diesel Engine
o Displacement: 5.2L
o Maximum Power: 139kW (190 hp)
o Maximum Torque: 507 N·m
4. Transmission: MLD 6-speed manual transmission (smooth shifting, high transmission efficiency, adaptable to complex working conditions)
5. Tire Specifications: 8.25R20,6+1

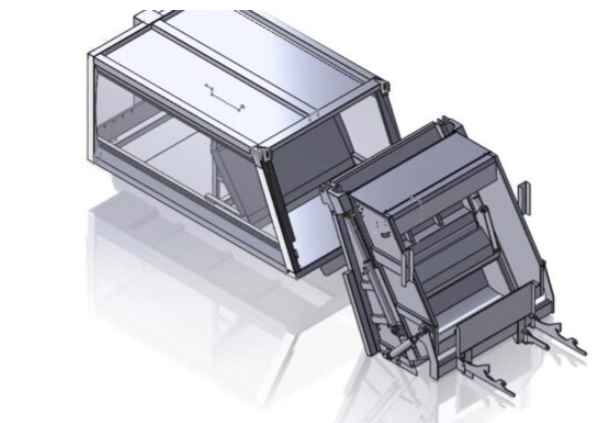

▶ Upper Structure Configuration:
◆ Compactor Garbage Container
• Volume: 8.5 cubic meters
• Material: T420 high-strength steel plate
• Thickness: 4mm for side panels
• Structure: Curved container design, optimized compression ratio, for more compact garbage loading

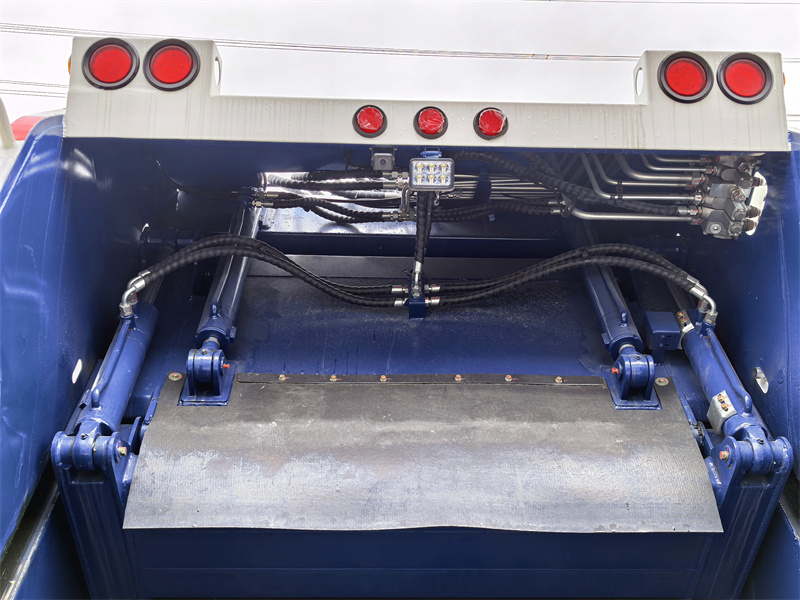

◆ Core Components of the Compact System
• Hydraulic Cylinder: Xiamen Yinhua double-acting hydraulic cylinder (high pressure resistance, good sealing, stable operation)
• Hydraulic Multi-way Valve: Yangzhou Xinyun multi-way directional valve (precise control of the hydraulic system, rapid response)
• Hydraulic Pump: Hefei Wanye double gear pump (large flow design, high operating efficiency)
• Loader: Lifting cylinder equipped with a two-way balance valve

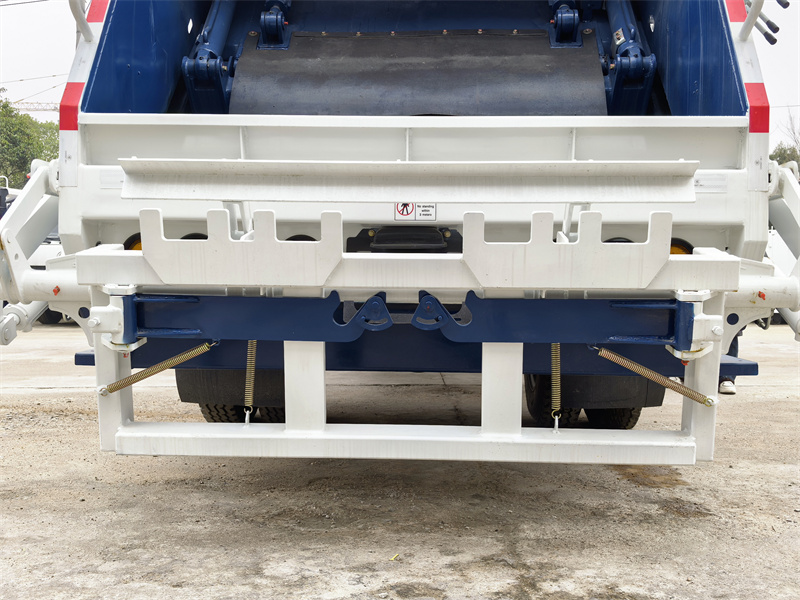

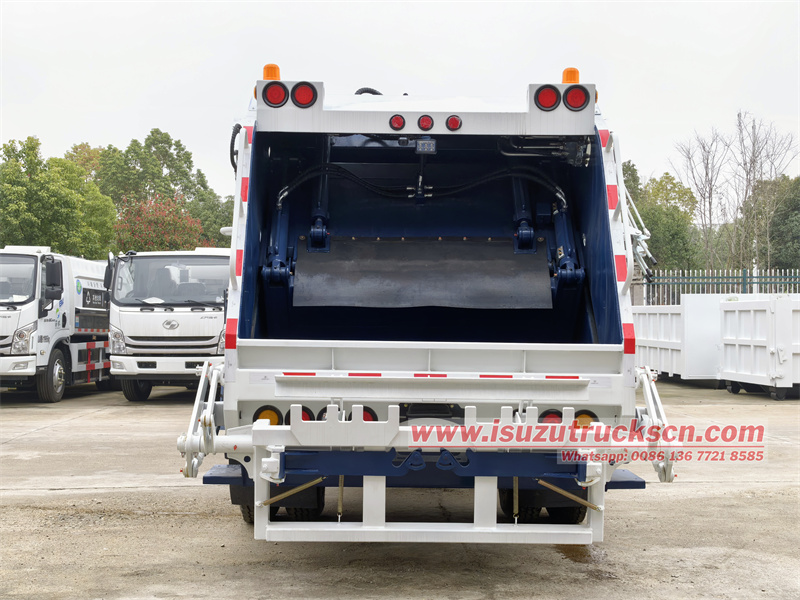

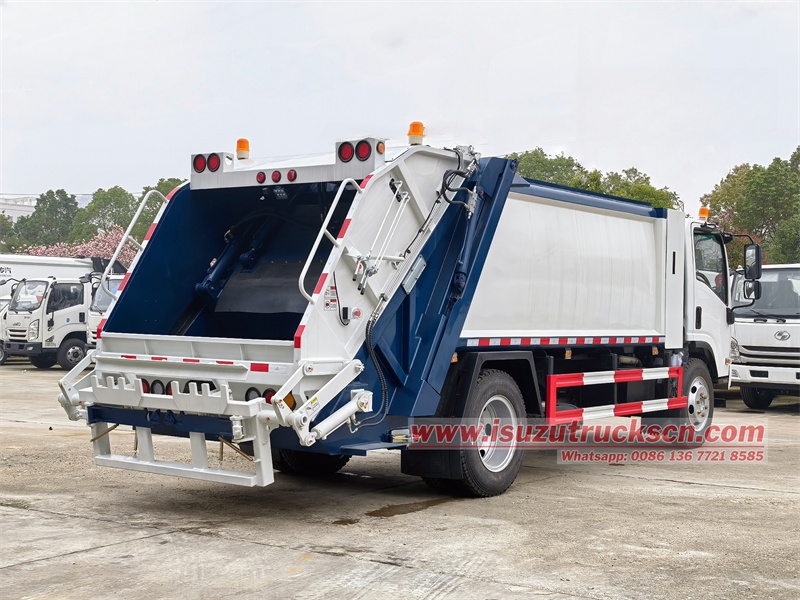

◆ Loading Mechanism

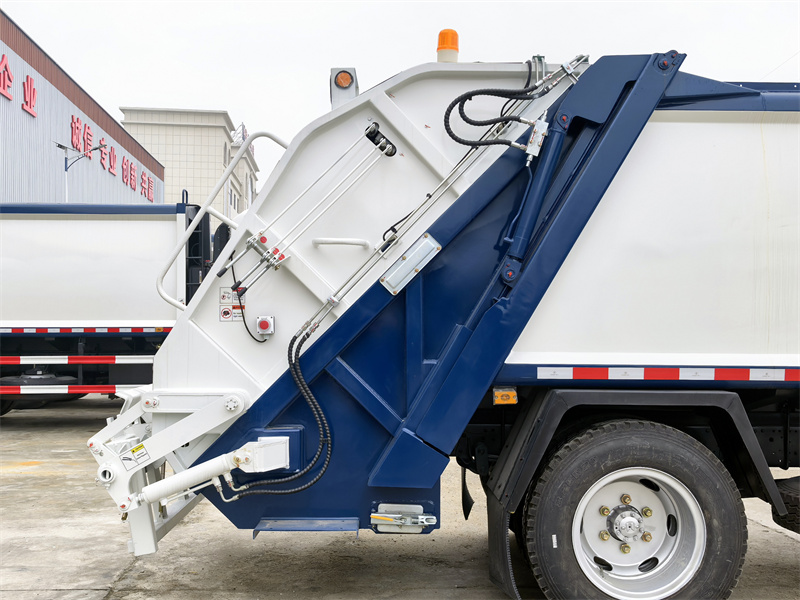

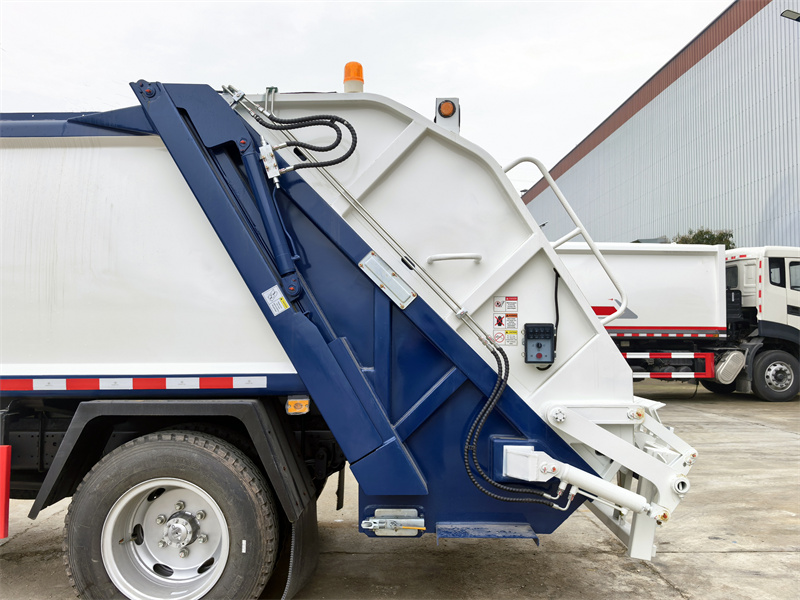

• Tail-mounted bin tipping:
Can tip two 240L standard garbage bins or one 1100L large garbage bin simultaneously.
The tipping mechanism is made of high-strength alloy steel, wear-resistant and long-lasting.
• Optional configurations: Fully enclosed hopper, semi-enclosed hopper, or swing-arm loading device (customized according to requirements)

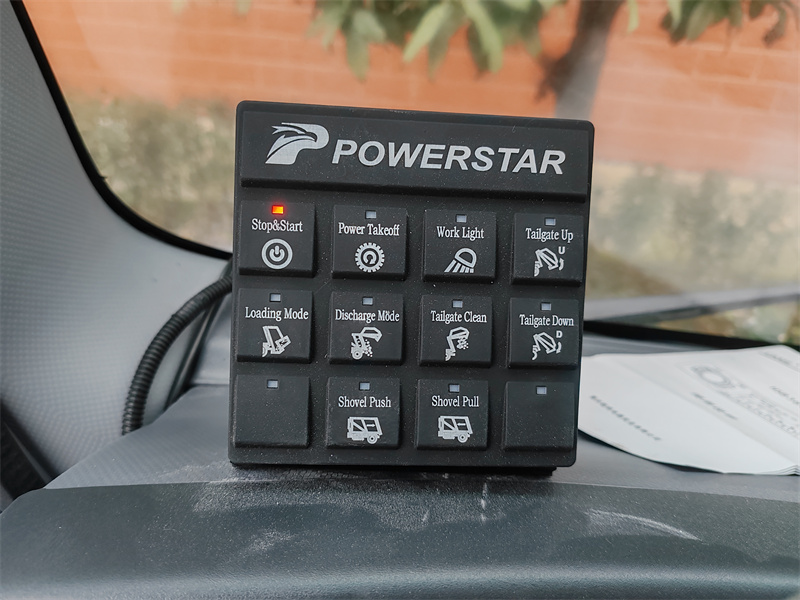

 Cab Electrical Control Box |

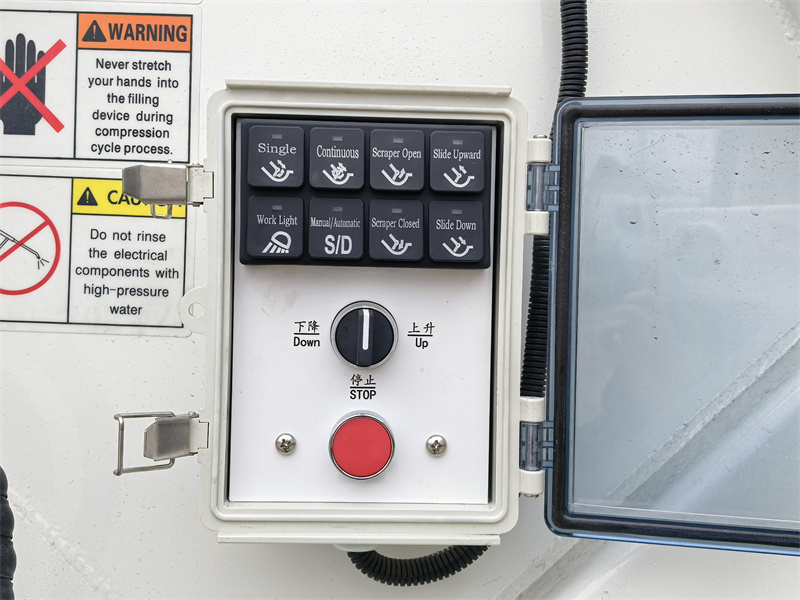

 Tailgate Left Side Electrical Control Box |

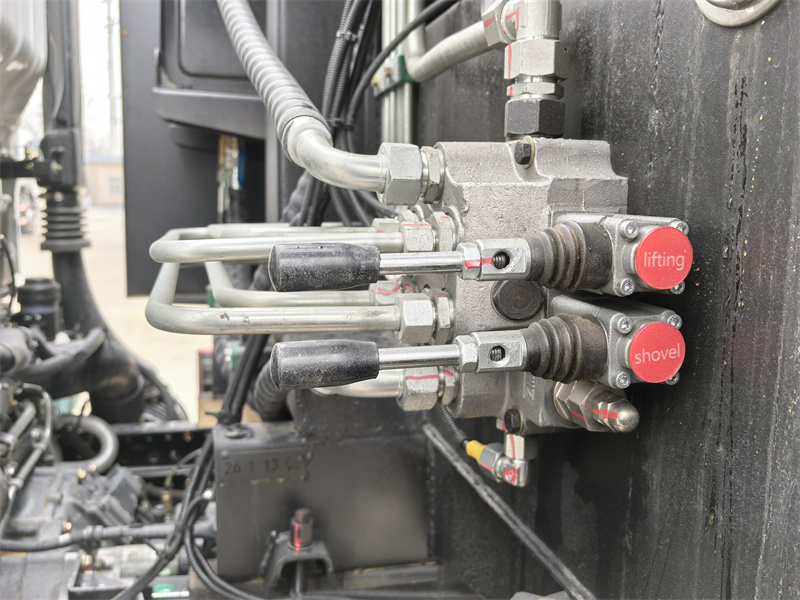

 Driver's Side Manual Operating Valve |

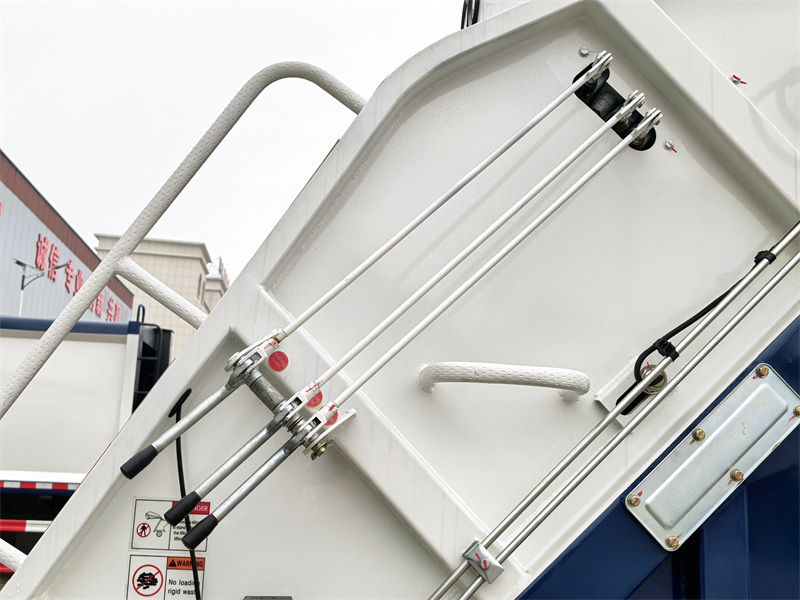

 Tailgate Right side Manual Operating Lever |
