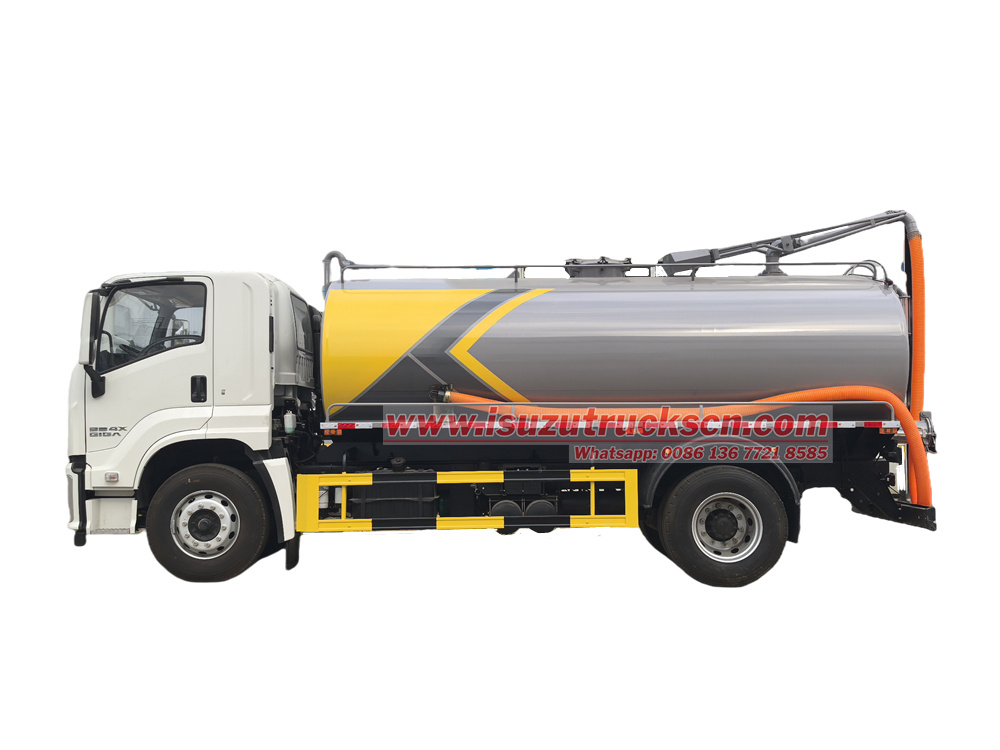

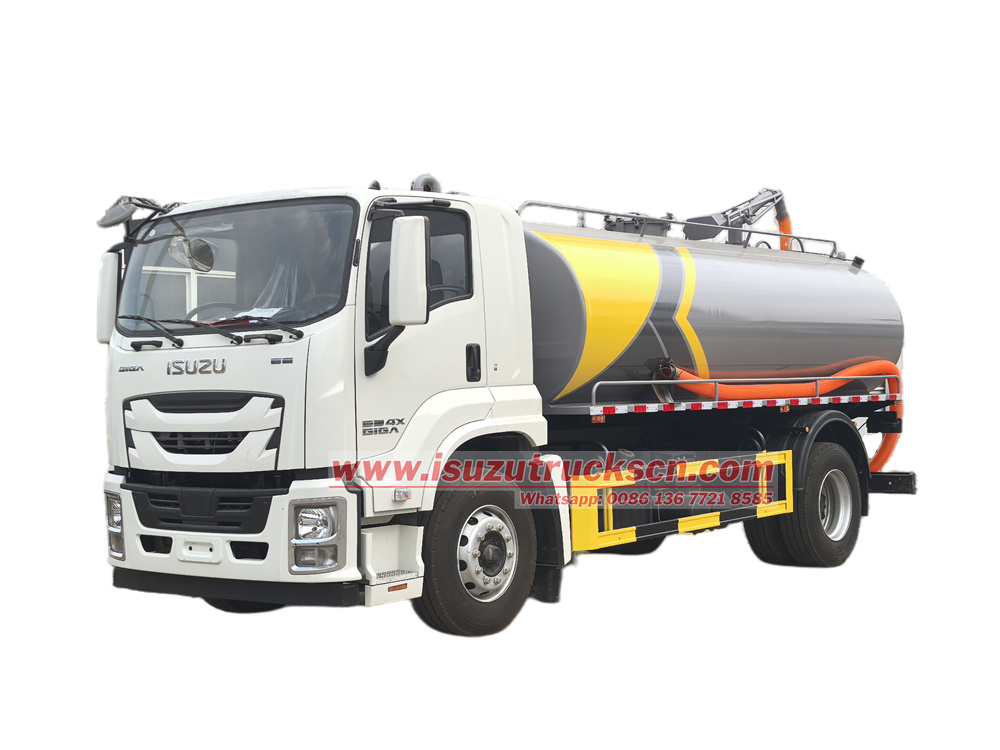

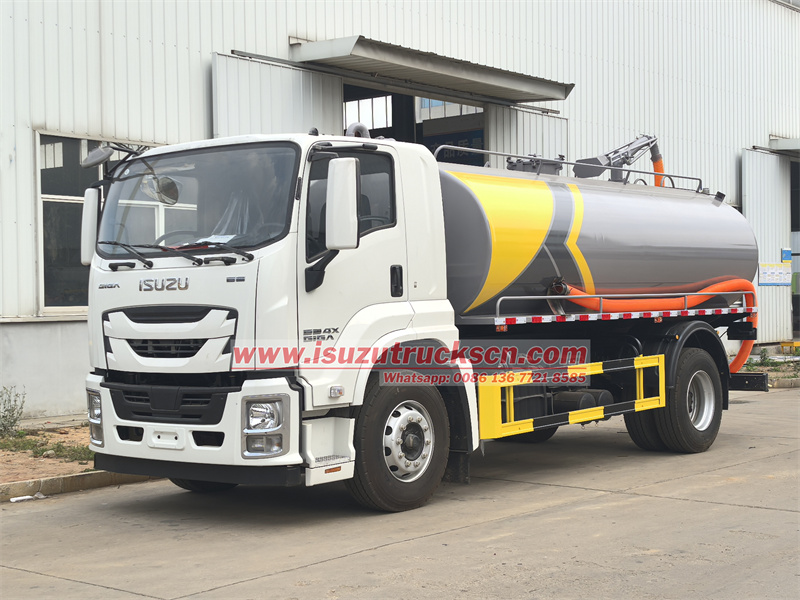

Isuzu FTR 10,000 liters cesspit emptier truck

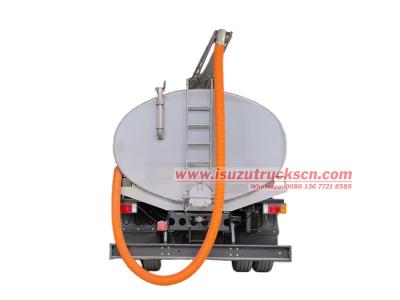

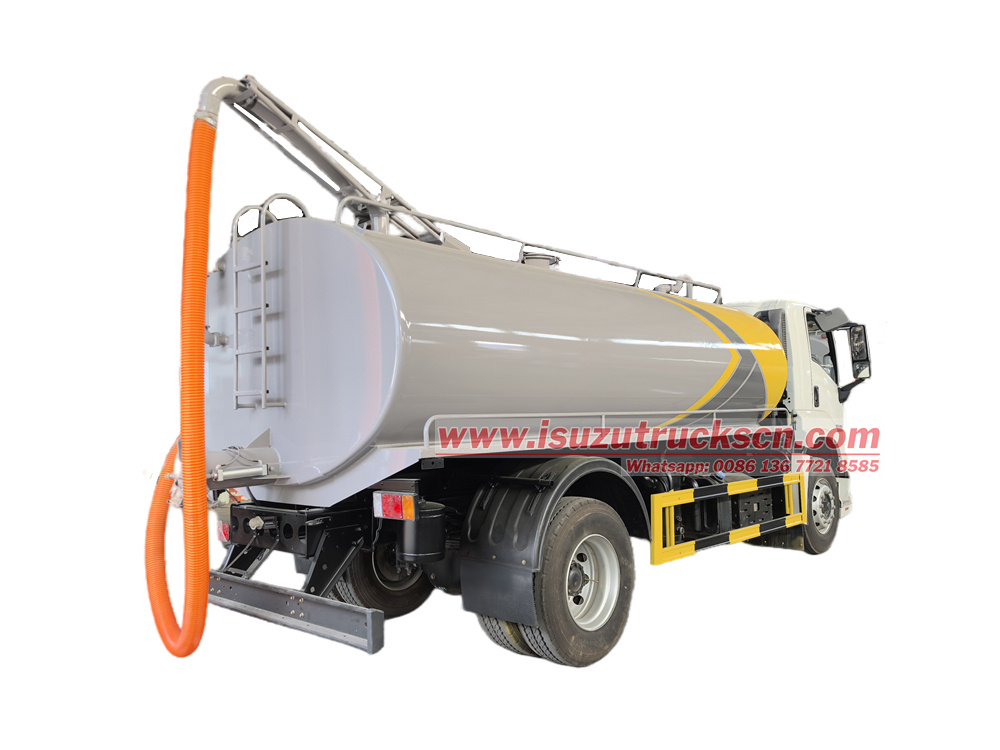

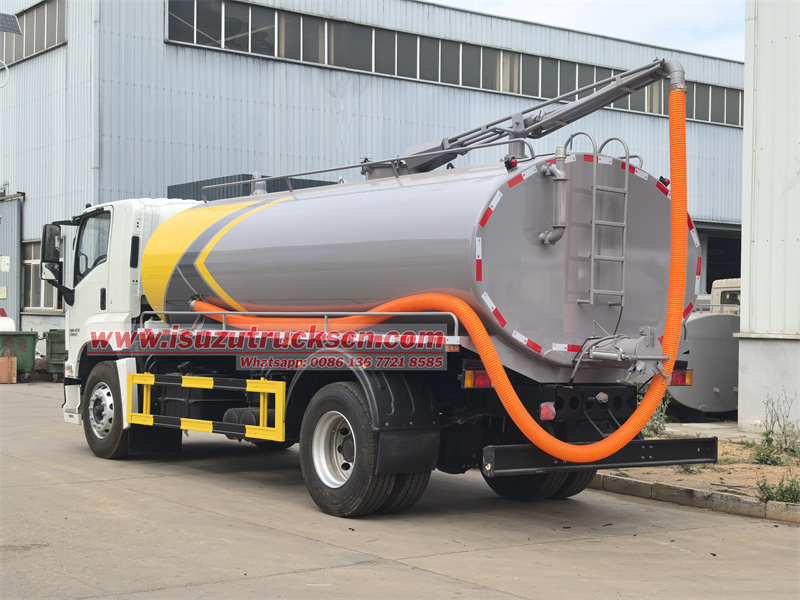

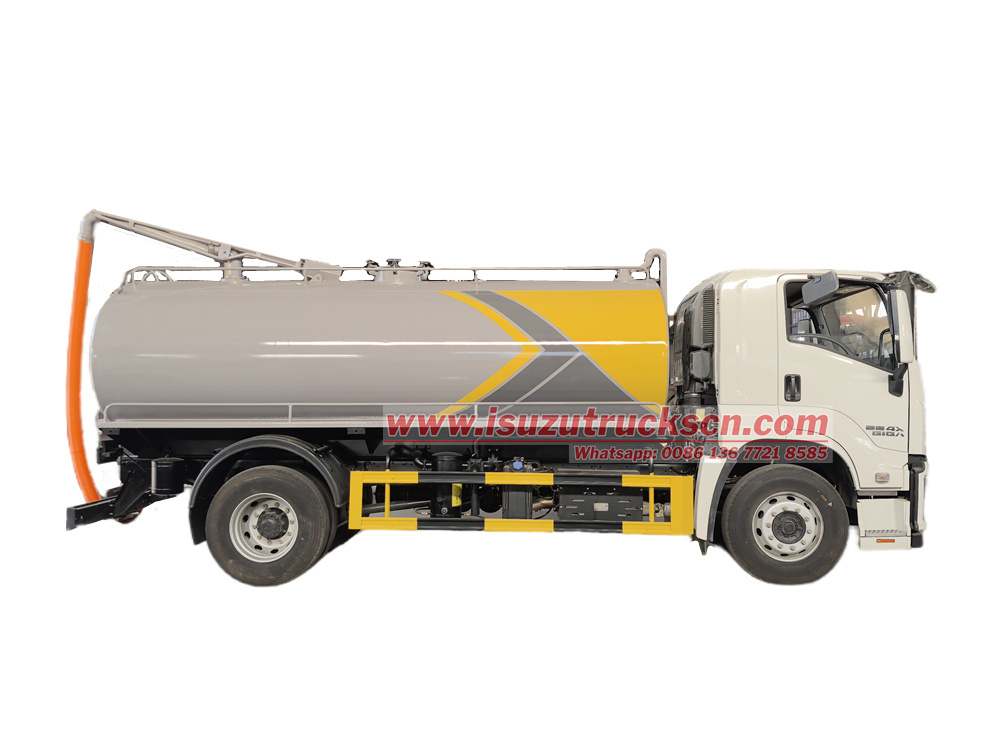

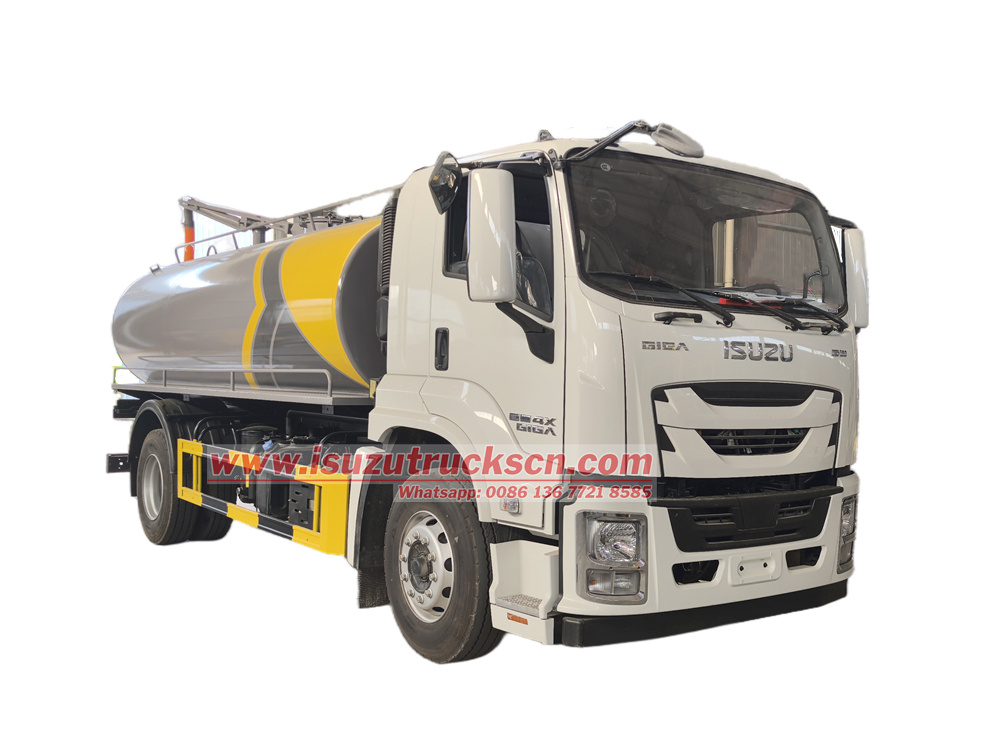

Isuzu FTR 10cbm fecal suction truck is modified on the Isuzu's new FTR GIGA chassis, with a wheelbase of 4500mm, equipped with Isuzu 4HK1-TCG60 engine, Isuzu MLD 6-speed gearbox, and a 6mm thick carbon steel tank with a large capacity of 10 cubic meters, with a thickened sewage observation pipe to prevent overflow, equipped with Yifeng 10 tons oil pump, water-oil separator, anti-overflow valve, 8m fecal suction pipe, 360° rotating boom mount, 220 sewage outlet (pneumatic control) at the tail, and hand washing device.
Manufacturer:
Powerstar TrucksWork capacity:
10cbmDimension:
8750*2550*3200mmCabin type:
Isuzu FTR GIGA 4X cabin,3 passengersWheelbase:
4500mmEngine power:
205HP/151 KWEngine type:
Isuzu 4HK1-TCG60Axle drive:
4x2 LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
With 360° rotating boom mountIsuzu FTR 10,000 liters cesspit emptier truck is a special vehicle specially used for cleaning sewage, feces and other wastes. Its core power is equipped with Isuzu 4HK1-TCG60 205HP engine, matched with Isuzu MLD 6-speed gearbox, providing strong power and low fuel consumption. The upper body adopts 6mm thick carbon steel tank with a capacity of 15 cubic meters. The internal wave plate is equipped with Yifeng 10-ton oil pump, which realizes rapid suction and self-drainage through the principle of air pressure negative pressure. The suction range is 8 meters, the diameter of the sewage outlet is 220mm, and it supports pneumatic control. The vehicle integrates safety devices such as overflow valve and water-oil separator to eliminate the risk of leakage during operation; It is suitable for sucking feces, sewage, sludge and liquids mixed with small suspended debris.
● China best Isuzu sewage suction truck factory
● 30 years experience on vacuum pumper truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: POWERSTAR TRUCKS INDUSTRY CO., LIMITED.
Cesspit emptier truck also called fecal suction truck,septic tank pumper truck, toilet vacuum truck,manure tanker truck,gully suction truck, is a special vehicle used for cleaning work in septic tanks, sewage ditches and sewers.
» Ⅱ.Product Parameter for Isuzu FTR septic tank truck:
|
Isuzu FTR GIGA Septic Tank Pumper Trucks |
|||
|
Vehicle |
Manufacturer |
POWERSTAR |
|
|
Brand |
ISUZU |
||
|
Overall Dimensions L*W*H |
8750*2550*3200mm |
||
|
Weights |
GVW. |
18000kg |
|
|
Curb Weight |
8540kg |
||
|
Chassis |
Chassis Brand |
ISUZU |
|
|
Drive Type |
4x2 |
||
|
Steering |
LHD |
||
|
Engine |
Brand |
ISUZU 4HK1-TCG60 |
|
|
Power |
205HP/151KW |
||
|
Emission Level |
EURO 6 |
||
|
Performance |
Max. Speed |
105km/h |
|
|
Wheel base |
4500mm |
||
|
Gearbox |
Isuzu MLD 6-speed,manual |
||
|
Tyre Specifications |
295/80R22.5 |
||
|
No. of Tyre |
6 pcs (1 spare tire included) |
||
|
Cab |
Cab Capacity |
ISUZU new FTR GIGA 4X cab, 2 seats+1 bed, |
|
|
Body/Superstructure |
Tank |
Capacity |
10000L |
|
Material |
6mm high quality carbon steel |
||
|
Vacuum pump |
China famous vacuum pump |
||
|
Suction head |
6m-8m |
||
|
Rotation speed |
950r/min,low noise,high efficiency |
||
|
Basic |
Install vacuum pumps and hydraulic systems driven by engine through |
||
|
Equipments
|
PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, 8m sewage suction pipe, 360°rotating boom mount |
||
|
Paint |
Tank color is according to client's requirements. |
||
|
Optional Equipment |
Italy or Spain vacuum pumps |
||
|
Stainless steel |
|||
|
Anti-rust coating inside tank |
|||
» Ⅲ. Product Details & Advantages:
1. Chassis configuration
▪ Modified based on Isuzu's new FTR GIGA chassis, with a wheelbase of 4500mm, strong load-bearing capacity and high stability, suitable for urban sanitation operations.
▪ Equipped with Isuzu 4HK1-TCG60 engine, it has abundant power, good fuel economy, meets the National VI emission standards, and is environmentally friendly and efficient.
▪ Matched with Isuzu MLD 6-speed gearbox, it has smooth gear shifting, adapts to complex road conditions, and is easy to operate.
2. Tank structure
▪ The upper body adopts a 6mm thick carbon steel tank, which is sturdy and durable, highly corrosion-resistant and has a long service life.
▪ 10 cubic meters large capacity design, high single operation efficiency, suitable for municipal and community septic tank cleaning and other scenes.

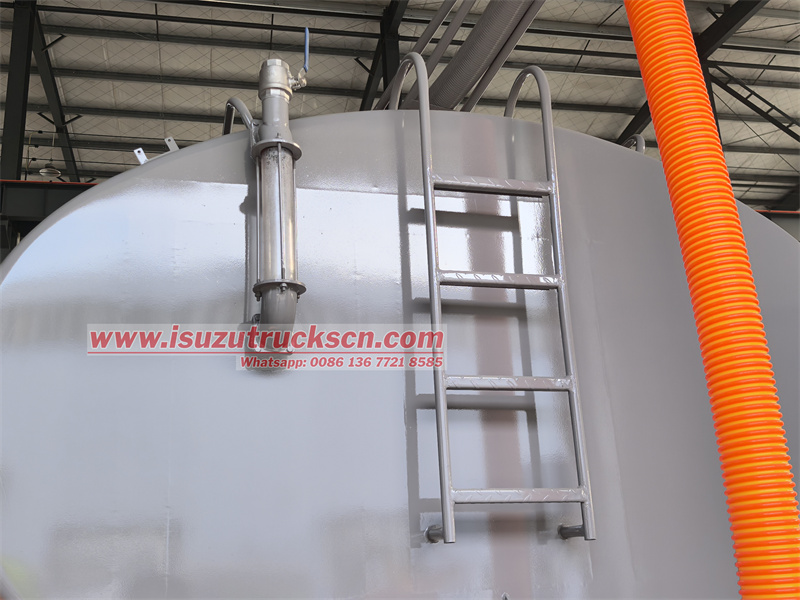

▪ Equipped with a thickened sewage observation pipe, it is convenient to monitor the liquid level in the tank in real time to prevent overload.
3. Safety and overflow prevention design

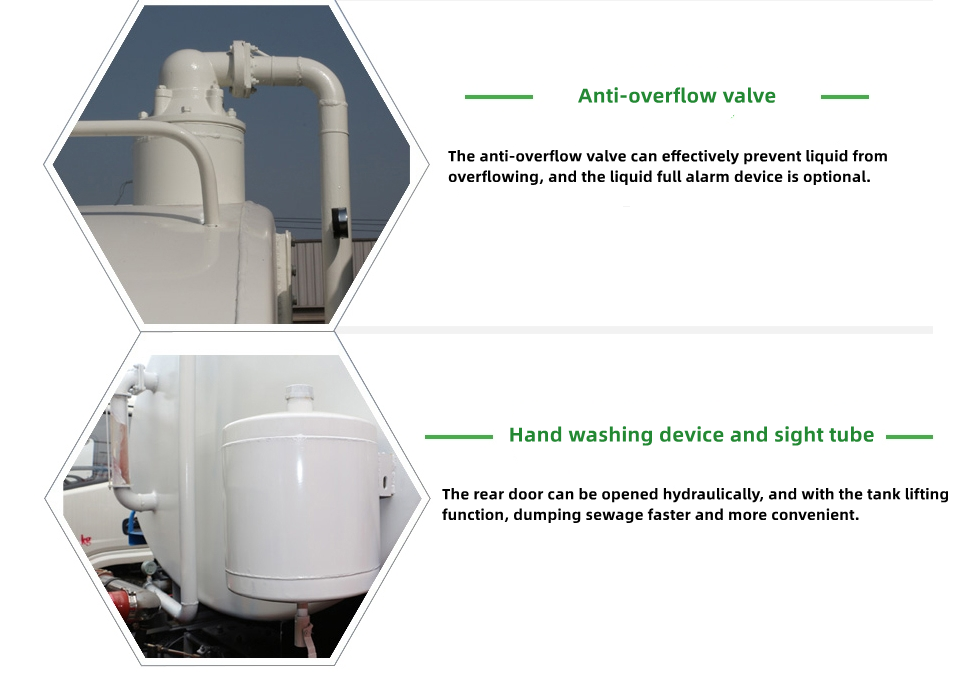

▪ Standard overflow prevention valve effectively prevents sewage leakage due to overfilling of the tank and ensures operation safety.

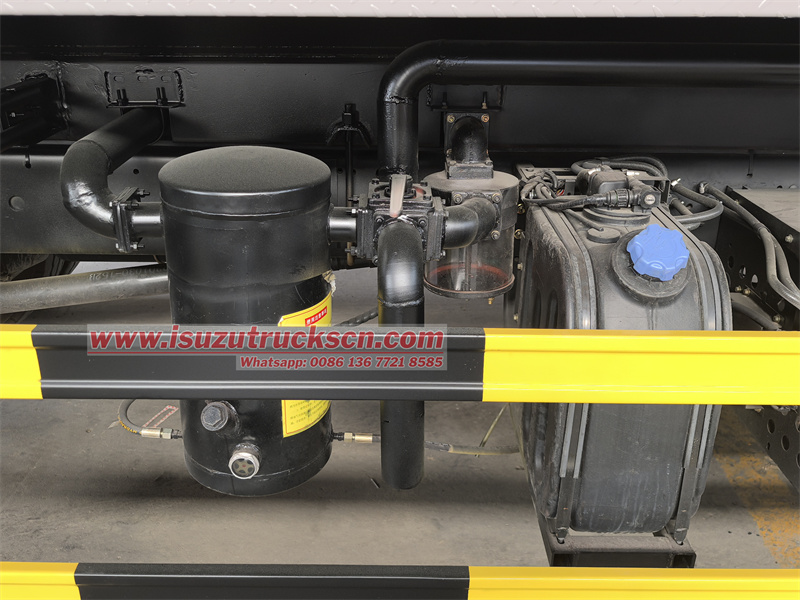

▪ The water-oil separator can separate the oil and grease impurities in the sewage, reduce the difficulty of subsequent treatment, and comply with environmental protection regulations.
4. Core operating system
▪ Yifeng 10-ton vacuum oil pump is used, which has strong suction, fast suction speed and high work efficiency.
▪ Equipped with an 8-meter feces/sewage suction pipe, with a wide coverage range, which can meet the operation requirements of different depths and distances.
5. Humanized function

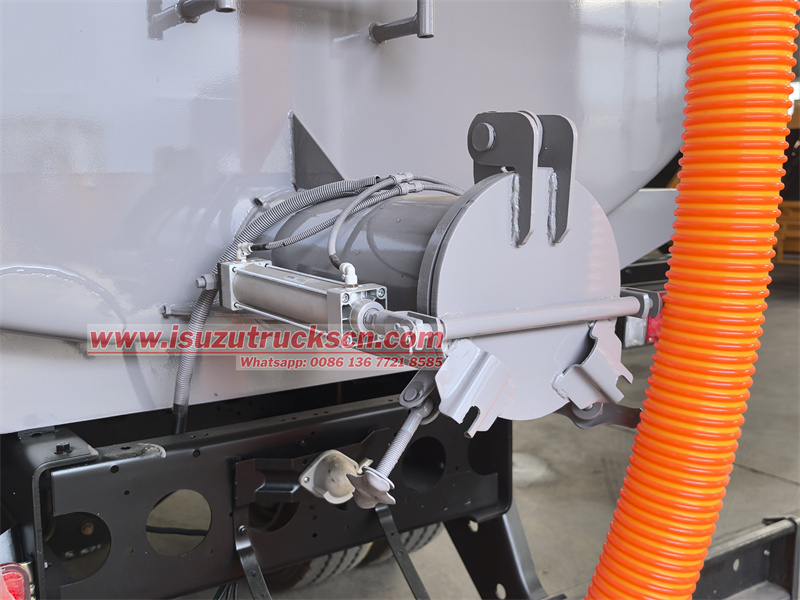

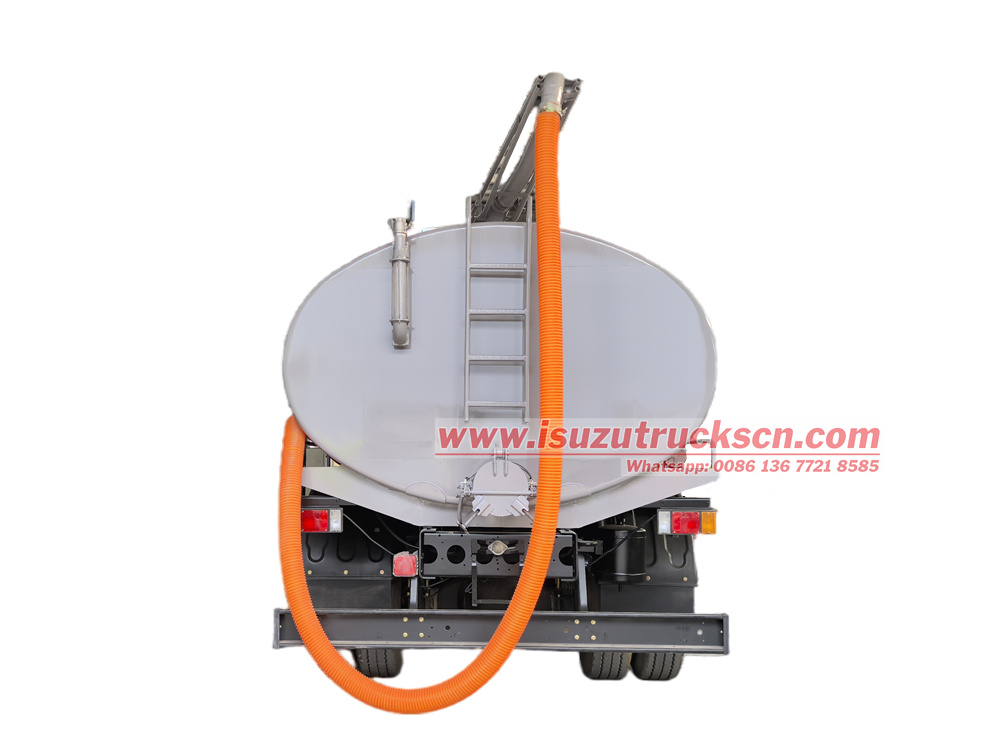

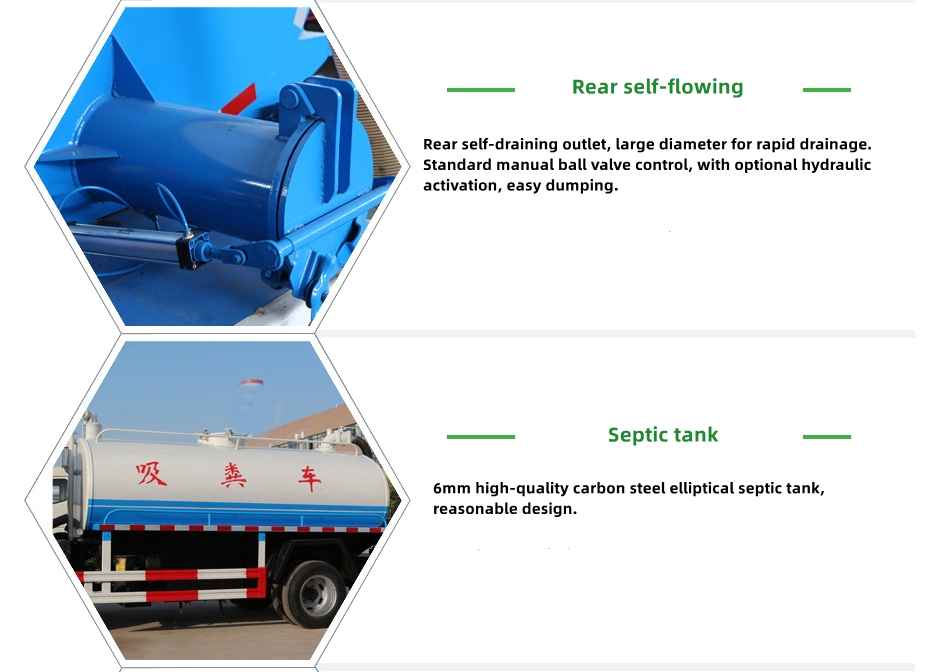

▪ A 220mm sewage outlet (pneumatic control) is set at the tail, which is convenient for sewage discharge and labor-saving operation.
▪ Equipped with a hand washing device to facilitate cleaning by operators and improve hygiene standards.
6. Hoisting and rotation function

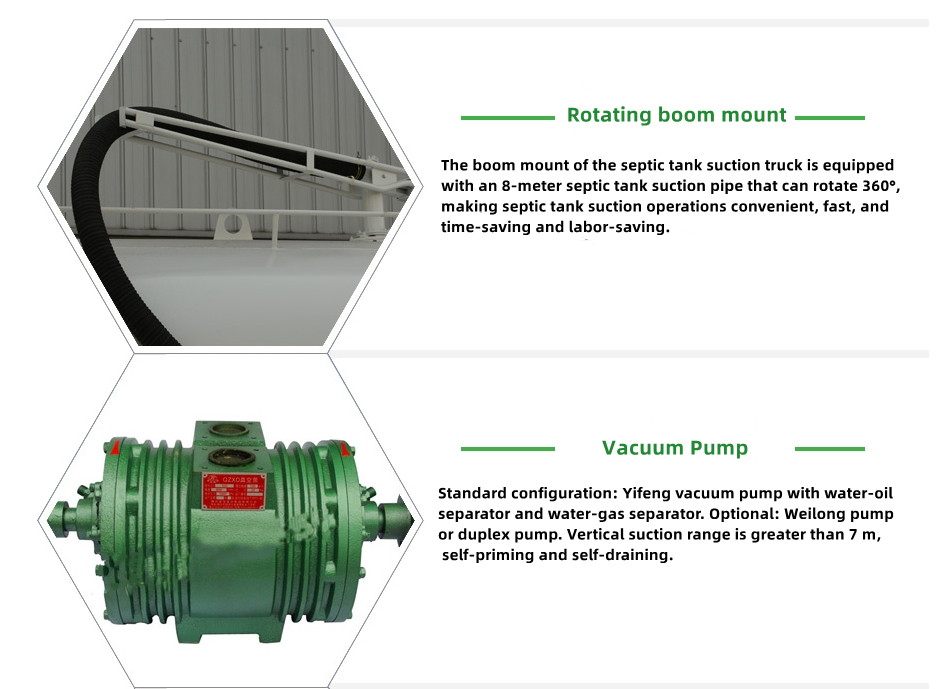

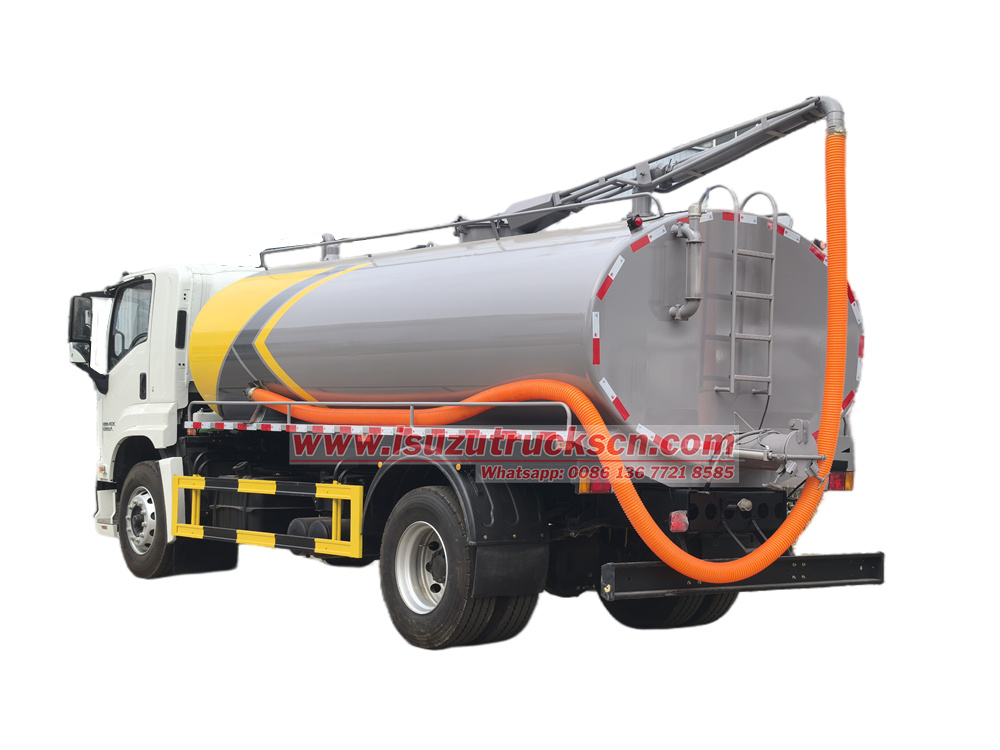

▪ The feces suction truck is equipped with a 360-degree rotating boom seat, which supports flexible operation at multiple angles and is convenient for the retraction and positioning of the pipeline.
7. Applicable scenarios
▪ It is widely used in septic tank and sewage tank cleaning and transportation operations in municipal sanitation, community property, industrial parks and other fields.
The hydraulic system uses a Chinese-made gear pump with a working pressure of 16MPa and a flow rate of 25L/min. It has a quick response and low noise.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We POWERSTAR also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
» Ⅳ.Professional Design and Production:
1. POWERSTAR R & D Department for design:
100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
